Realmix G20010 - Mechanical chipper G3 Ferrari - Free user manual and instructions

Product type	Mechanical chopper
Brand	G3 Ferrari
Model	Realmix G20010
Power supply	AC 230V ~ 50Hz, 250W
Bowl capacity	400 cc
Operating mode	Pulse (PULSE function)
Maximum operating time	20 seconds
Cooling time	2 minutes
Safety	Double safety device: motor works only if bowl and lid are correctly locked
Blade material	Stainless steel
Cleaning	Motor body: damp cloth; accessories washable with warm water and mild detergent, do not put in dishwasher
Dimensions	Not specified
Weight	Not specified
Lid type	Twist lock
Recommended use	Fruits, vegetables, meat, fish, garlic, onion (in pieces)
Not recommended foods	Ice, frozen foods, rice, coffee, hard foods not pre-chopped
Maximum food temperature	40°C
Warranty	Standard (per retailer)
Spare parts availability	Recommended original parts, contact after-sales service

Frequently Asked Questions - Realmix G20010 G3 Ferrari

How to use the G3 Ferrari Realmix G20010 mechanical chopper?

Assemble the bowl onto the motor unit by turning clockwise until it clicks, place the blade assembly, add food (do not exceed max capacity), close the lid by turning, plug in and press the PULSE button. The motor stops immediately if the lid is removed.

What foods can be chopped with this appliance?

Fruits (pitted), tender vegetables, meat cut into 1.5 cm pieces, fish (boneless), onion, garlic. Avoid hard foods like raw carrots not pre-chopped, ice, frozen foods, rice and coffee.

What is the maximum capacity of the bowl?

The bowl capacity is 400 cc. Do not fill beyond the indicated limit to avoid overflow or motor overload.

Can I chop carrots?

Yes, but carrots must be peeled and cut into 2 cm pieces. The maximum quantity is 140 g and chopping time is about 20 seconds. For best results, chop them slightly before adding.

How long can I use the appliance continuously?

The appliance must not run for more than 20 seconds at a time. After each use, allow it to cool for 2 minutes before using again.

How to clean the chopper?

Always unplug the appliance. Clean the motor unit with a damp cloth (never immerse). The lid, bowl and blades can be washed with warm water and mild detergent; the blades are very sharp, handle with care. Do not put in the dishwasher.

What to do if the blades jam?

Immediately unplug the appliance before removing the jammed food. Check that the pieces are not too large or too hard. If the problem persists, contact customer service.

Is the appliance safe for children?

This appliance should not be used by children under 8 years old. Older children must be supervised. Keep the appliance and its cord out of reach of children under 8 years old.

Can I chop meat with this appliance?

Yes, cut the meat into pieces of about 1.5 cm and add 3 tablespoons of water to facilitate chopping. The maximum quantity is 150 g and time is 20 seconds.

How to know if the bowl and lid are correctly locked?

Turn the bowl onto the motor unit and the lid onto the bowl clockwise until you hear a click. The appliance will only work if both are correctly placed; if the lid is removed during use, the motor stops automatically.

USER MANUAL Realmix G20010 G3 Ferrari

Safety information. p. 7

General instructions. p. 9

G20010 p. 10

Operating the unit. p. 10

Safety block. p. 10

First use. p. 11

Grinding p. 11

Cleaning. p. 11

Technical features. p. 11

Waste of electric and electronic equipment (WEEE Directive) p. 26

PORTUGUES: p. 11

ESPAÑOL p. 16

FRANCAIS p. 21

CLASSI DI PROTEZION/PROTECTION CLASSES

ATTENZIONE

DO NOT EXPOSE TO RAIN OR MOISTURE

ATTENZIONE: NON APRITE L'APPARECCHIO. ALL'INTERNO NON VI SONO COMANDI MANIPOLABILI DALL'UTENTE NE' PARTI DI RICAMBIO. PER TUTTE LE OPERAZIONI DI SERVIZIO RIVOLGERSI AD UN CENTRO DI ASSISTENZA AUTORIZZATO.

This symbol warns the user that un-insulated dangerous voltage inside the system may cause an electrical shock. Do not open the case.

Class II Appliance symbol. The double insulated electrical appliance is one which has been designed in such a way that it does not require a safety connection to electrical earth/ground.

Caution: this symbol reminds the user to read carefully the important operations and maintenance instructions in this owner's guide.

AVVERTENZE DI SICUREZZA

ENGLISH: SAFETY INSTRUCTIONS

The following are important notes on the installation, use and maintenance; save this instruction manual for future reference; use the equipment only as specified in this guide; any other use is considered improper and dangerous; therefore, the manufacturer cannot be held responsible in the event of damages caused by improper, incorrect or unreasonable use.

Before use, ensure the equipment is undamaged; if in doubt, do not attempt to use it and contact the authorized service center; do not leave packing materials (i.e. plastic bags, polystyrene foam, nails, staples, etc.) within the reach of children as they are potential sources of danger; always remember that they must be separately collected.

Make sure that the rating information given on the

technical label are compatible with those of the electricity grid; the installation must be performed according to the manufacturer's instructions considering the maximum power of the appliance as shown on the label; an incorrect installation may cause damage to people, animals or things, for which the manufacturer cannot be considered responsible thereof.

If it is necessary to use adapters, multiple sockets or electrical extensions, use only those that comply with current safety standards; in any case do not exceed the power consumption limits indicated on the electrical adapter and / or extensions, as well as the maximum power shown on multiple adaptor.

Do not leave the unit plugged; better to remove the plug from the mains when the device is not in use. Always disconnect from power supply if you leave it unattended. Cleaning operations should be carried out after unplugging the unit.

If the unit is out of order and you do not want to fix it, it must be made inoperable by cutting power cord.

• Do not allow the power cord to get closer to sharp objects or in contact with hot surfaces; do not pull it to disconnect the plug.
• Do not use the appliance in the event of damage to the power cord, plug, or in case of short circuits; to repair the product only address an authorized service center.
• Do not handle or touch the appliance with wet hands or bare feet. Do not expose the appliance to harmful weather conditions such as rain, moisture, frost, etc.. Always store it in a dry place.
• This appliance cannot be used by children, even if they're more than 8 years old.
• This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they received supervision

or instruction concerning use of appliance in a safe way and understand the hazards involved.

• Children must not play with the appliance.
• Keep the appliance and its cord out of reach of children less than 8 years.

If the power cord is damaged, or in case of failure and / or malfunction do not tamper with the unit. The reparation must be done by manufacturer or by service center authorized by the manufacturer in order to prevent any risk. Failure to comply with the above may compromise the unit safety and invalidate the warranty.

• This appliance is intended to be used in household as similar applications such as: staff kitchen areas in shops, offices and other working environments; by clients in hotels, motels and other residential type environments; farm houses, bed and breakfast type environments.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Before every use, unroll the power cord.
• Use original spare parts and accessories only.
• Do not subject the product to strong impacts, serious damages may result.

Do not use near or under flammable materials (like curtains), heat, cold spots and steam.

GENERAL INSTRUCTIONS

Before using the appliance, wash the set designed to be in contact with food as the container, the lid and the blade.

Caution: close the lid before turning on the unit. Unplug the unit from the electrical outlet before touching any attachments and/or accessory, especially the blade set.

Do not insert large pieces in the container, especially hard food. It is advisable to pre-chop the food.

Do not use the appliance running continuously for more than 20 seconds, in then interval with at least 2 minutes of

rest. Never leave the appliance unattended while it is running.

When mincing fruits, remove the pit and/or any tough rind. Unplug the appliance from the electrical outlet immediately after using and / or before touching any accessory, especially the blades. If some food stops the blades before removing it, unplug the unit from the electrical outlet.

Do not insert food if it's too hot (maximum 40 C).

Not exceed the maximum capacity for ingredients as indicated in the Operating section.

At the end of processing, wait for the blade to completely stops before removing the food from the glass container.

When finished using the unit, it is advisable to wrap the power cord so as to ensure a better cleaning, avoiding any risk of damage.

For cleaning, we recommend using warm water only, limiting the use of detergents. In this case, rinse the part profusely. Do not immerse the motor unit in water or other liquids; clean it with a damp cloth.

Caution: blades are very sharp; pay attention not to cut yourself while removing the attachment or during cleaning operations.

DESCRIPTION G20010

1. Main body

2. Transparent container

3. ON/OFF button Container slot

4. Lid with safety block

5. Shaft

6. Rostrum with blades

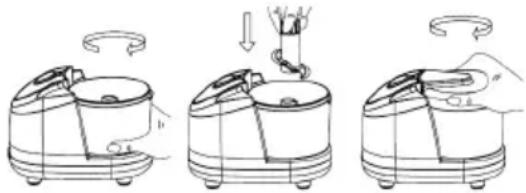

OPERATING THE UNIT

Assembling the unit by following the steps as shown besides.

1) Fit the glass container properly into the main body by turning it into place until it snaps.
2) Insert the rostrum in the container without touching the blades.
3) Insert the food without exceeding the maximum capacity.
4) Fit lid properly over the container, by turning counterclockwise until it clicks in position.
5) Plug the unit and push the operation button to turn it on.

SAFETY BLOCK

This model has a double safety device: the unit only works if the container (4) is placed correctly into the main body (7) and the lid (5) is correctly inserted in the joint. Remove the lid and the motor stops running.

FIRSTUSE

Removing and assembling the glass container a few times without plugging it or adding any fruits or vegetables. Follow this step to practice with the appliance. Wash the lid and the jug with warm water and dishwashing liquid. Other accessories made of electrical parts, such as the motor block and the main body must be cleaned with a damp cloth and dry immediately.

GRINDING

The blade set consists of two blades that can chop and shred fruits, vegetables and meat; by adding liquids, it's easy to prepare baby meals and homogenized food. For a correct use follow the next steps:

• Pre-chop fruits and vegetables in small pieces and put them inside the container.
• If you want to prepare baby food or homogenized, add some water or milk not exceeding the maximum capacity of the glass. Close the lid.
• Push and hold the power button until you reach the desired consistency of the food. At the end of the process, power off the device and unplug it.
• Remove the container from the main body by gently pulling it up then pour the contents.

This food processor is not suitable for crushing ice, frozen foods, cereals, rice and coffee; these operations may damage the blades.

Meat	Cut in pieces of 1.5cm, add 3 spoons of water	150g max	20sec.
Fish	Remove fishbone and cut in pieces of 2cm	100g max	10-20sec.
Onion	Peel off and cut in pieces of \( 2 - 3\mathrm{\;{cm}} \)	70g max	7 impulsi
Garlic	Peel off	3 spicchi	5sec.
Fruits	Peel off, remove pit and cut in pieces of \( 2\mathrm{\;{cm}} \)	100g max	10-15sec.
Carrot	Peel off and cut in pieces of \( 2\mathrm{\;{cm}} \)	140g max	20sec.
Tomato	Cut 4 pieces	70g max	10-15sec.

CLEANING - Unplug the unit from the electrical outlet.

• Do not immerse the main body in water, but wash it with a damp cloth and non-abrasive detergent. Try to avoid any infiltration of water into the motor housing.
• Container, blades and lid can be washed as everyday crockery with non-abrasive sponge and mild detergent. Dry them thoroughly before assembling them to the main body.
• The unit and the accessories are not dishwasher-safe.

For a fast cleaning of blades, fill the container halfway with water and operate few seconds.

TECHNICAL FEATURES

Power supply: AC 230V~50Hz. Power 250W
KB 30 sec
PULSE function
- Container capacity 400cc

PORTUGUES: ADVERTÉNCIAS

The product is made of non-biodegradable and potentially polluting substances if not properly disposed of; other parts can be recycled. It's our duty to contribute to the ecological health of the environment following the correct procedures for disposal. The crossed out wheelie bin symbol indicates the product complies with the requirements of the new directives introduced to protect the environment (2002/96/EC, 2003/108/EC, 2002/95/EC, 2012/19/EC) and must be properly disposed at the end of its lifetime. If you need further information, ask for the dedicated waste disposal areas at your place of residence. Who does not dispose of the product as specified in this section shall be liable according to the law.

RESIDUOS DE APARELHIOS ELECTRICOS E ELECTRONICOS

To find the nearest service center, please call the telephone number 0541 694246, fax number 0541 756430 or contact us at [e-mail] asking for the service centers supervisor.

Appliance is conform to the pertinent European regulation and is therefore marked with the CE mark.

www.g3ferrari.it TREVIDEA S.r.l.
