USER MANUAL TOO8502 SUNTEC

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be made by children without supervision.

• Before connecting the appliance to the power supply, check that the voltage indicated on the appliance corresponds with the voltage at your home.
• Please be careful of hot surfaces and do not touch them with bare hands as they might cause burns.
• Please refrain from further usage if the power cord, power plug or the appliance are damaged and contact your seller.
• Please do not use the appliance for other than its intended use. Other uses may cause fire. For domestic indoor use only.
• Only operate the appliance on a flat, stable and heat-resistant surface.
• Please remove the appliance from the wall socket when it is not in use, before cleaning and in case of malfunctions.
• Please do not insert any foreign objects into the appliance as this may cause electric shocks, fire or damages to the appliance.
• Do not place the appliance near curtains, drapes or

other flammable materials. Keep it away from other heating sources, direct sunlight and humidity.

• Do not leave the appliance unattended. Very dry food may catch fire.
• Do not attempt to repair, disassemble or change the appliance by yourself.
• The usage of accessories not provided by SUNTEC may cause harm.
• Please keep the power cord from table edges, working surfaces or any hot surfaces.
• Never immerse the appliance, its power cord and plug in water or other liquids to prevent electric shocks.
• Only use heat-resistant kitchen and table ware. Do not use aluminium foil as they might lead to overheating.
• Please make sure that the ventilation parts are not blocked and free from dust or foreign objects.
• The top and sides of the appliance should have a minimum distance of 20cm to other objects. Do not place the appliance below hanging cupboards to avoid heat accumulation.

Components

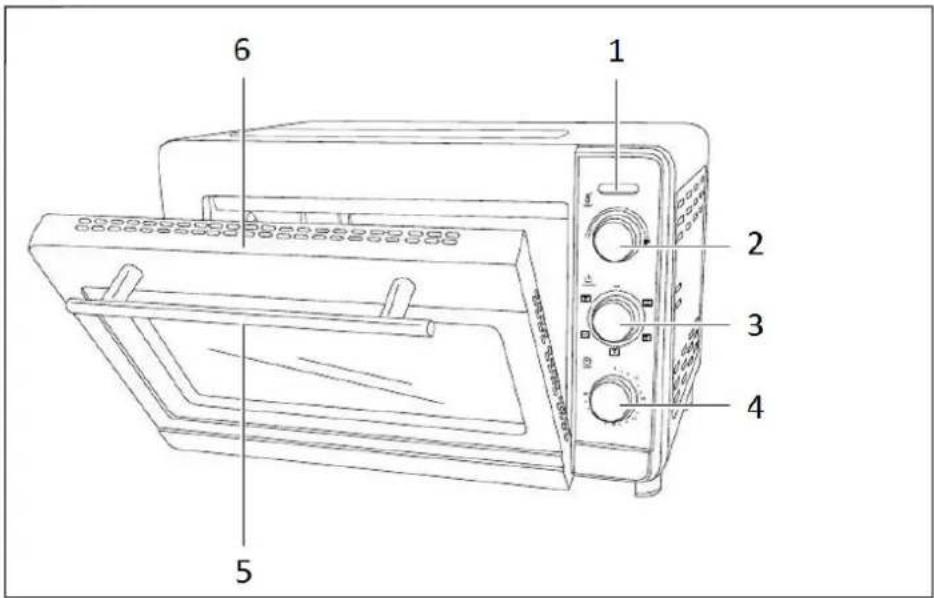

• Toast oven:

1:Indicating light 4:Timer
2: Temperature knob for with/without fan 5: Door handle
3: Operating mode knob 6: Glass door

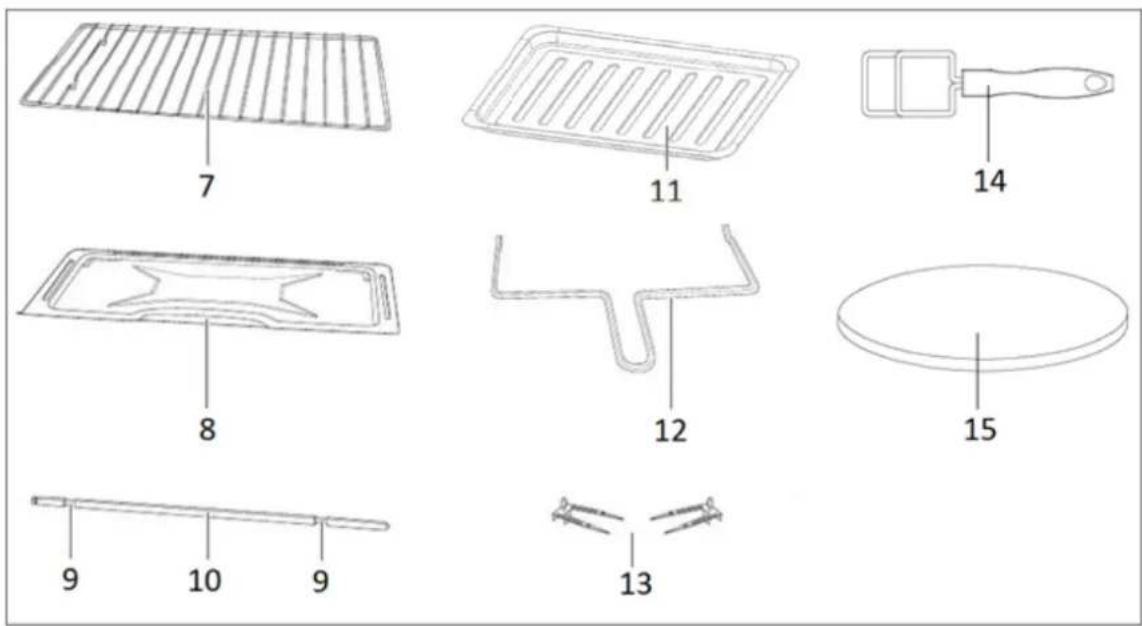

• Accessories:

7: Wire rack

8: Crumb tray

13: Spit forks

9: Spit nuts

10: Rotating spit

15: Pizza stone

11: Baking tray

12: Spit handle
14: Wire rack/baking tray handle

Operation

• Operating voltage: 220-240V~, 50/60Hz, 1500W
• Clean the crumb tray, rotating spit, baking tray, wire rack, pizza stone and the spit forks prior to first use. Please follow the instructions from the segment "Cleaning".
• Place the appliance on a flat, stable and heat resistant surface and connect it to the power supply.
• When using the appliance for the first time, it is recommended to operate the appliance without any content at max. temperature with top/bottom heat for 15 minutes. Please make sure that all packaging material and all foreign objects are removed from the baking chamber, then regulate the according knobs at the appliance. During operation, the indicating red light is turned on. When the set time is over, the indicating light will turn off and a sound signal will play. Turn the temperature knob and the operating mode knob back to the initial position by turning both knobs anti-clockwise until the stop. Production residues should be removed after this operation.
• For food preparation open the glass door and put the crumb tray on the bottom of the baking chamber below the heating elements to collect crumbs. Place your food on heat-resistant kitchen or table ware, then place both on the wire rack or baking tray. Alternatively, you can place your food directly on the wire rack or baking tray, but never directly on the heating elements. Make sure that the heating elements on top and on the bottom of the baking chamber do not come in contact with any food or other objects during operation because these might burn.

• Rotisserie function:

• By using the rotating spit, grilled chicken and other meat dishes can be prepared. Please skewer your food over the rounded end of the spit to the spit middle. For larger dishes, such as grilled chicken, fix these additionally with the spit forks by inserting the tips into the food and tightening the screws on the rotating spit. Please leave the spit nuts free at all times, otherwise the spit remover cannot be used (see pictures 1 and 2). Please wipe the rounded end of the spit with a cloth after skewering.
  To place the rotating spit into the appliance, insert the rounded end into the right spit holder and then place the other spit end on the left spit holder. Please make sure that your food does not touch the heating elements and slide a baking tray with sufficient distance underneath the rotating spit to collect liquids during the operation.
  To remove the rotating spit, guide the spit handle beneath the nuts and lift up the left side of the rotating spit. Then pull the right side of the rotating spit out of the right spit holder.

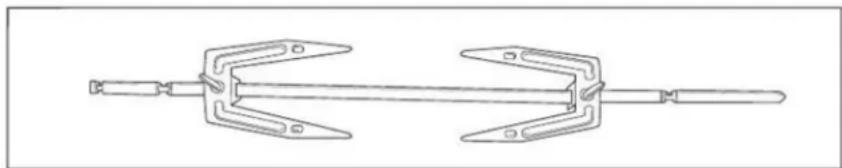

Picture 1: Installing the spit forks with freestanding spit nuts

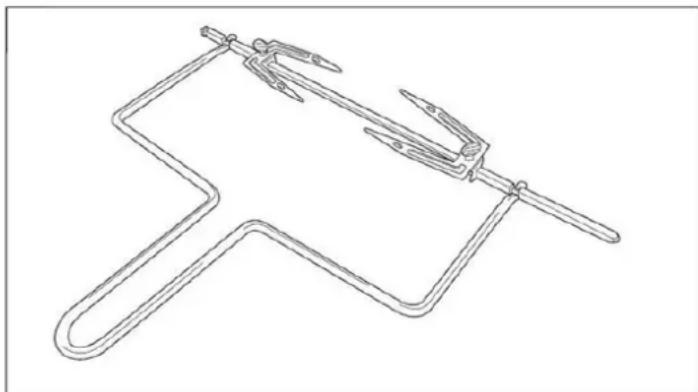

Picture 2: Spit handle beneath the freestanding spit nuts

• Pizza stone:

If you want to bake crispy pizzas in the toast oven, you can use the included pizza stone. For an optimal baking result, preheat the pizza stone on the wire rack, then place your pizza with a max.diameter of 30cm on the pizza stone to bake.

• Please close the glass door and set the desired temperature, operating mode and baking time using the respective knobs. You can choose from the following operating modes:

Symbol	Operating mode
	Top/Bottom heat
	Top/Bottom heat with fan
	Top heat with fan
	Top heat for rotisserie function
	Top/Bottom heat with fan for rotisserie function

Please select the scale that is suitable for the operating mode on the temperature knob. For the operation with fan, please use the upper temperature scale. For the operation with top/bottom heat, please use the lower temperature scale. The temperatures are given in ^ C .

• Please note that the heating process does not start until the operating mode and duration have been set. During operation, the indicating red light is turned on. The appliance has an overheating protection.
• When the set time is over, the appliance turns off and the baking process is completed. A sound signal is played and the indicating light turns off. Please turn the temperature knob and the operating mode knob back to the initial position by turning both knobs anti-clockwise until the stop. If you wish to end or shorten the baking process before the end of duration, turn the timer anti-clockwise.
• Please use heat-insulating oven gloves in addition to the enclosed baking tray/wire rack and spit handles to remove your baked goods from the baking chamber. If you do not use the appliance for a longer period of time, remove it from the power supply.

Cleaning

• Always disconnect the appliance from the power outlet and let it cool before cleaning. Never immerse the appliance in water to prevent electric shocks.
• Wipe over the exterior of the appliance with a soft wet cloth and then wipe dry with a dry cloth.
• Please do not use any aggressive or chemical cleaning agents or abrasive cleaning agents, such as steel wool or hard sponges and brushes, as this may damage the surfaces of the unit and in particular the glass door pane.
• Please clean the crumb tray, rotating spit, baking tray, wire rack, pizza stone and the spit forks with conventional detergent, water and a sponge. Please rinse all parts thoroughly with water and allow them to dry completely before using them for operation. The accessories are not dishwasher-safe.

In case of complaint

• You can claim the device within 24 months from date of purchase (receipt).
• A free replacement or repair will be excluded from prior improper product handling.
• Defects in wear parts, consumables, as well as cleaning, maintenance or replacement of said parts are therefore with costs.
• If you want to make a complaint, please bring the entire device in its original packaging and with proof of purchase to your dealer. For a timely and convenient service register, visit our website www.suntec-wellness.de and learn more.
• Without a proof of purchase, generally there will be no repair or replacement.
• In the event that the complaint case is analogous to our terms of service, all defects of the device or its accessories due to material or manufacturing defects will be eliminated by repair or, at our discretion, replacing the unit.
• The damage of accessories does not automatically lead to a free exchange of the whole device. In these cases, please contact your dealer. Glass breakage, or breakage of plastic parts are always to charge.
  The dealer or repair service can perform the repair after the expiration of warranty against charge.

Note concerning protection of environment

This product must not be disposed of via normal household waste after its service life, but must be taken to a collection station for the recycling of electrical and electronic devices. The symbol on the product, the operating instructions or the packaging indicates such disposal procedures. The materials are recyclable in accordance with their respective symbols. By means of re-use, material recycling or any other form of recycling old appliances you are making an important contribution to the protection of our environment.

Please ask your local council where your nearest disposal station is located.

As part of our extended producer responsibility, this product is indicated in accordance to the European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). The aim is to avoid, reduce, and environmentally friendly disposal of electronic waste. Please help actively to protect the environment and dispose electronic waste through local collection points. The packaging and this manual can be recycled.

EC declaration of conformity

The device meets the essential health and safety requirements of the European Union. The EC declaration of conformity is the basis for CE marking this unit.

With publication of this manual supersedes all previous their validity. SUNTEC, SUNTEC Wellness, KLIMATRONIC and the Sun-Logo are registered trademarks. © 2021 SUNTEC WELLNESS GMBH

Liability is excluded for all printing errors and omissions.

Fornetto

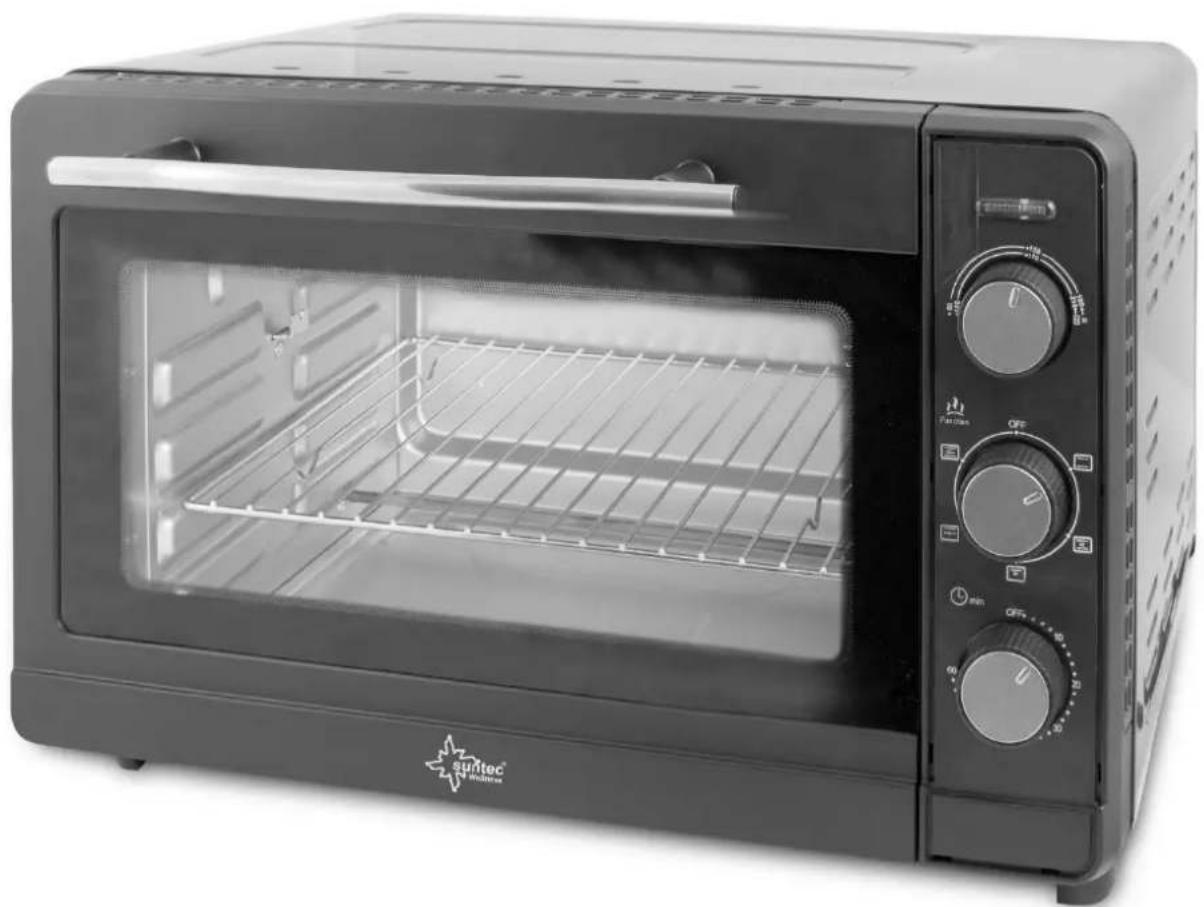

TOO-8502 toast oven

Voeding:220-240V\~,50/60Hz,1500W

© 2021 SUNTEC WELLNESS GMBH

For this appliance we assure 24 months warranty.

During the 24 months warranty we guarantee to repair your appliance free of charge or to provide your seller the spare parts free of charge if the appliance fails to work due to production failure.

Other claims are excluded from this warranty. We will not be liable for any defects caused by acts of nature, improper use, negligence of the instruction manual, damage from continuous use and damages during transportation.

This warranty card is only applicable with the according invoice.

In case of service please bring your purchased product to your seller.

Product name:

Serial number:

Name of buyer:

Date of purchase:

Stamp and signature of seller:

Manufacturer:

Suntec Wellness GmbH

Holzstraße 2

40221 Dusseldorf

Germany
