FDH8595 Dörthe digital - Juicer SUNTEC - Free user manual and instructions

Product type	Food dehydrator
Brand	Suntec (Suntec Wellness GmbH)
Model	FDH8595 Dörthe digital
Power supply	220-240 V~, 50/60 Hz
Power	200-240 W
Temperature range	35 °C to 70 °C, in 5 °C increments
Timer	30 min to 19 h 30, in 30 min steps
Number of trays	5 trays (3 minimum required)
Included accessories	2 fine mesh inserts
Display	LED screen with time and temperature settings
Tray material	Plastic (food-safe)
Main functions	Dehydration with forced ventilation, automatic shut-off, audible signal
Safety	Automatic shutdown at end of cycle, do not use for more than 19.5 h without break
Cleaning	Trays and inserts hand-washable with damp cloth; wipe base, do not immerse
Dishwasher safe	Not dishwasher safe
Warranty	24 months
Manufacturer	Suntec Wellness GmbH, Holzstraße 2, 40221 Düsseldorf, Germany
Country of manufacture	Not specified (probably made in China)
Weight	Approximately 3 kg (estimate)
Dimensions (L x W x H)	Approximately 35 x 35 x 30 cm (estimate)

Frequently Asked Questions - FDH8595 Dörthe digital SUNTEC

How to prepare food for dehydration?

Wash and cut fruits, vegetables, herbs, meats or fish into thin slices. Place them on the trays without overlapping. Use at least 3 trays. For small items, use the fine mesh inserts.

What temperature and time to choose for dehydration?

Temperature can be set from 35°C to 70°C in 5°C increments. Drying time can be set from 30 min to 19h30 in 30 min steps. For fruits, use 50-60°C for 6-12 h; for vegetables, 45-55°C for 4-10 h; for meat, 65-70°C for 4-8 h. Adjust according to thickness and desired result.

How to clean the Suntec FDH8595 dehydrator?

Unplug the appliance and let it cool. Clean the trays and inserts with a damp cloth and a soft brush. Do not use abrasive products. Clean the base with a damp cloth (never immerse). Dry all parts before reassembling. Note: Parts are not dishwasher safe.

Can the appliance be used continuously?

No, the appliance must not run for more than 19.5 hours consecutively. After that, unplug it and let it cool for at least 2 hours before reusing.

Why is there a smell or smoke during first use?

This is normal. The first use without food for 30 minutes eliminates manufacturing residues. Ensure good ventilation.

How to store dehydrated food?

Let the food cool completely before placing in airtight containers, away from light, in a cool, dry place. Avoid metal containers. Check for moisture in the following weeks; if moisture appears, re-dehydrate.

What to do if drying is uneven?

For even drying, rotate the trays or change their stacking order during the cycle. Make sure foods do not touch and trays are not overloaded.

Is the appliance safe for children?

This appliance can be used by children aged 8 and over under supervision. Children aged 3 to 8 can turn the appliance on/off under supervision. Children under 3 must not access it. Cleaning should not be done by children.

What is the shelf life of dehydrated food?

Fruits, vegetables, herbs, nuts and bread: up to 1 year in the refrigerator or freezer. Dried meat and fish: up to 3 months in the refrigerator and 1 year in the freezer.

How to contact Suntec after-sales service?

For any warranty claims (24 months), return the complete appliance with original packaging and proof of purchase to your retailer. For after-sales service, visit www.suntec-wellness.de. Out-of-warranty repairs are chargeable.

USER MANUAL FDH8595 Dörthe digital SUNTEC

Dörrautomat

FDH-8595 Dörthe digital

Bedienungsanleitung

Sicherheitshinweise

VORSICHT!

Food dehydrator FDH-8595 Dörthe digital

Instruction manual

Safety Precautions

CAUTION!

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be made by children without supervision. Children of less than 3 years should be kept away unless continuously supervised.

Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

• Before connecting the appliance to the power supply, check that the voltage indicated on the appliance corresponds with the voltage at your home.
• Please be careful of hot surfaces and do not touch them as they might cause burns.
• Please refrain from further usage if the power cord, power plug or the appliance are damaged and contact your seller.
• Please do not use the appliance for other than its

intended use. Other uses may cause fire. The appliance is not suitable for commercial use. For domestic indoor use only.

- Only operate the appliance on a flat and stable surface.

- Please remove the appliance from the wall socket when it is not in use, before cleaning and in case of malfunctions. Do not pull on the cord but on the power plug. Make sure that your hands are dry.

- Please do not insert any foreign objects into the appliance as this may cause electric shocks, fire or damages to the appliance.

- Do not place the unit near heat sources such as ovens or gas stoves and keep it away from flammable materials and water when operating.

- Always use the appliance in well-ventilated, warm and dry rooms.

- Please do not leave the appliance unattended.

- Do not attempt to repair, disassemble or change the appliance by yourself.

- The usage of accessories not provided by SUNTEC may cause harm.

- Please do not let the cable hang over the edge of the table or the work surface and do not come into contact with hot surfaces.

- To avoid electric shock, never immerse the unit, cables and power plugs in water or other liquids.

- The device may not be used continuously for more than 19.5 hours.

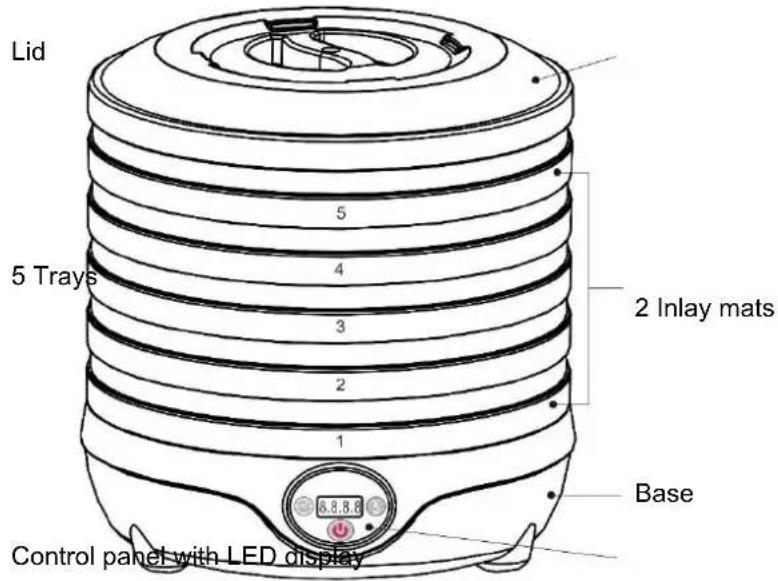

Components

Operation

• Operating voltage: 220-240V\~, 50/60Hz, 200-240W
• Before first usage:

Please remove all packaging materials and clean all trays and inlay mats in accordance with the section "Cleaning". Place the inlay mats on the trays and stack the trays on top of each other as shown in the section "Components". Please connect the appliance to the power supply.
When the appliance is used for the first time, it must be put into operation for 30 minutes without any content. Possible smoke or odour development due to production-related residues are normal during this time. Please ensure adequate ventilation. When the time is over, the trays and inlay mats must be cleaned again. To do so, please remove the appliance from the power supply (see section "Cleaning").

- Preparation:

Please prepare the food to be dried. Fruit, vegetables, herbs, nuts, bread, meat or fish are suitable for the drying process. For vegetables and fruit it is recommended to cut them into thin slices.
- Spread your prepared food on the trays while starting with the lowest one. Make sure that there is space between two slices of food. Do not overfill the trays. Please always use at least three trays to ensure the functionality of the appliance.

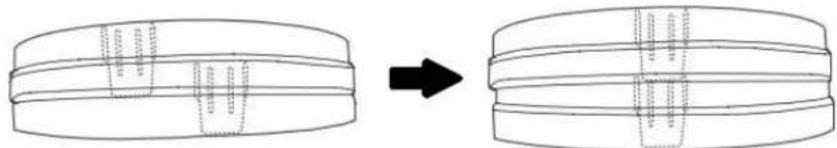

The fine-meshed inlay mats can be used for particularly fine or small foods. If required, the height of the trays can be adjusted as well. For bigger food, arrange the trays in a way that the clips of two trays are positioned directly on top of each other, as shown in the following picture:

- As soon as you have finished the preparation, close the uppermost tray with the lid.

- Drying process:

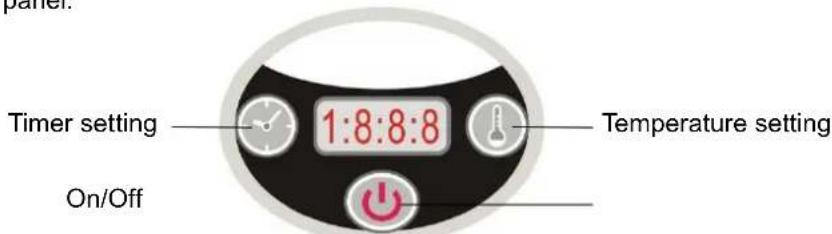

- Control panel:

• Please connect the appliance to the power supply. An acoustic signal sounds.
  ○ Switch the appliance on by using the on/off button. Every operation on the control panel is accompanied acoustically. The display shows the default setting "10.00" which indicates a drying time of 10 hours. As soon as the dot between the hours and minutes flashes, the drying process begins. Due to the built-in fan, warm air is circulated evenly over all floors, drying your food.
• Use the timer setting button on the control panel to adjust the drying time between "00.30"

(30min.) and "19.30" (19hrs. 30min.) as required in steps of 30min. each. The appliance takes over your setting after three seconds. The remaining time is displayed.

The temperature can be set between 35° C and 70° C in 5° C steps depending on the desired dryness and thickness of the food using the temperature setting button. The appliance takes over your setting after three seconds.
Please note that in addition to the thickness of your food, the quantity, number of trays and humidity can also influence the drying process.
- If you notice uneven drying, rotate or change the stacking order of the trays.
As soon as your set time has elapsed, the appliance switches off automatically. An acoustic signal sounds and the fan continues to run for 10 seconds until the unit switches off completely. If you want to end the drying process before the time ends, press the on/off button.
The unit must not be used continuously for longer than 19.5 hours. Press the on/off button after 19.5 hours, disconnect the appliance from the power supply and allow it to cool for at least two hours before putting the appliance back into operation.
Once you are satisfied with the result, remove the unit from the power supply and take out your dried food.

- Storage:

• Please allow your food to cool completely before storing it in a cool, dry and dark place.
• Store the dried food as airtight as possible and never place it directly in a metal container.
  Please check your dried food for moisture during the weeks after the drying process. If there is moisture inside the food, you can dry the food again to extend its shelf life.
  o Dried fruit, vegetables, herbs, nuts or bread stored in a refrigerator or freezer should not be stored for more than one year.
  o Dried meat or fish should not be kept in the refrigerator for more than three months and not longer than a year if kept in the freezer.

Cleaning

• Always disconnect the appliance from the power outlet and let it cool before cleaning. Never immerse the appliance in water to prevent electric shocks.
• Please wipe the surfaces of the trays and inlay mats with a damp cloth. Food residues can be removed with a soft brush or cloth. If necessary, regular detergent can be used. Please note that all components of this appliance are not suitable for dishwashers.
• Wipe over the exterior of the appliance with a soft wet cloth and then wipe dry with a dry cloth.
• Please do not use any aggressive or chemical cleaning agents or abrasive cleaning agents, such as steel wool.
• The unit and its components must be completely dry before operation or storage.

In case of complaint

• You can claim the device within 24 months from date of purchase (receipt).
- A free replacement or repair will be excluded from prior improper product handling.
- Defects in wear parts, consumables, as well as cleaning, maintenance or replacement of said parts are therefore with costs.
- If you want to make a complaint, please bring the entire device in its original packaging and with proof of purchase to your dealer. For a timely and convenient service register, visit our website www.suntec-wellness.de and learn more.
- Without a proof of purchase, generally there will be no repair or replacement.
- In the event that the complaint case is analogous to our terms of service, all defects of the device or its accessories due to material or manufacturing defects will be eliminated by repair or, at our discretion, replacing the unit.
- The damage of accessories does not automatically lead to a free exchange of the whole device. In these cases, please contact your dealer. Glass breakage, or breakage of plastic parts are always to charge.
- The dealer or repair service can perform the repair after the expiration of warranty against charge.

Note concerning protection of environment

This product must not be disposed of via normal household waste after its service life, but must be taken to a collection station for the recycling of electrical and electronic devices. The symbol on the product, the operating instructions or the packaging indicates such disposal procedures. The materials are recyclable in accordance with their respective symbols. By means of re-use, material recycling or any other form of recycling old appliances you are making an important contribution to the protection of our environment.

Please ask your local council where your nearest disposal station is located.

As part of our extended producer responsibility, this product is indicated in accordance to the European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). The aim is to avoid, reduce, and environmentally friendly disposal of electronic waste. Please help actively to protect the environment and dispose electronic waste through local collection points. The packaging and this manual can be recycled.

EC declaration of conformity

The device meets the essential health and safety requirements of the European Union. The EC declaration of conformity is the basis for CE marking this unit.

With publication of this manual supersedes all previous their validity. SUNTEC, SUNTEC Wellness, KLIMATRONIC and the Sun-Logo are registered trademarks. © 2021 SUNTEC WELLNESS GMBH

Liability is excluded for all printing errors and omissions.

For this appliance we assure 24 months warranty.

During the 24 months warranty we guarantee to repair your appliance free of charge or to provide your seller the spare parts free of charge if the appliance fails to work due to production failure.

Other claims are excluded from this warranty. We will not be liable for any defects caused by acts of nature, improper use, neglection of the instruction manual, damage from continuous use and damages during transportation.

This warranty card is only applicable with the according invoice.

In case of service please bring your purchased product to your seller.

Product name:

Serial number:

Name of buyer:

Date of purchase:

Stamp and signature of seller:

Manufacturer:

Suntec Wellness GmbH

Holzstraße 2

40221 Düsseldorf

Germany
