USER MANUAL INKI112CBK6 NEDIS

With 4 or 6 Watt LED

INKI112CBK4 | INKI112CBK6

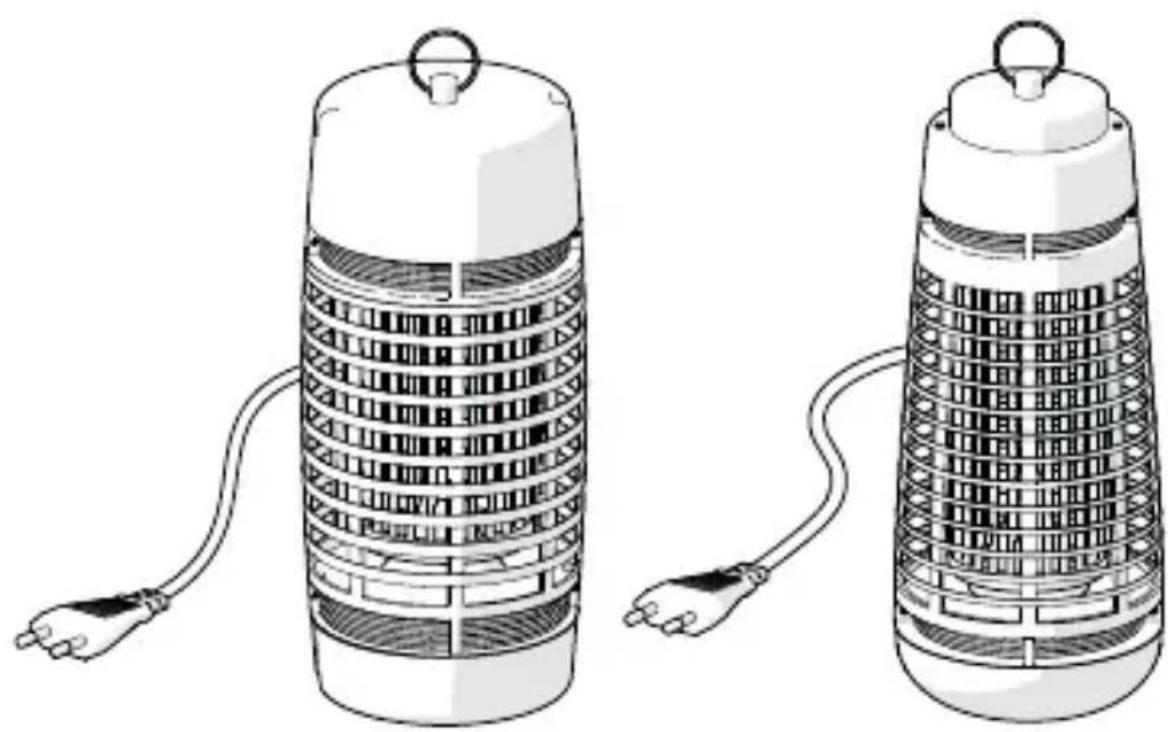

Illustration of two thermos (no text or symbols present)

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

ned.is/inki112cbk4

ned.is/inki112cbk6

EN Quick start guide 4
DE Kurzanleitung 7
FR Guide de démarrage rapide 11
NL Snelstartgids 14
IT Guida rapida all'avvio 17
ES Guía de inicio rápido 20
PT Guia de iniciação rápida 23
SV Snabbstartsguide 26
FI Pika-aloitusopas 29
NO Hurtigguide 32
DA Vejledning til hurtig start 35
HU Gyors beüzemelési útmutató 38
PL Przewodnik Szybki start 41
EL Οδηγός γρήγορης εκκίνησης 45

Rýchly návod 48

Rychlý návod 51

Labeled diagram of a portable refrigerator with numbered parts and an inset showing a pin insertion detail.

Specifications

Product Insect Killer
Article number INKI112CBK4 INKI112CBK6
Grid voltage 800 - 1000 V
Input voltage AC 220 - 240 V / 50 / 60 Hz
Lamp UV-A LED
Power 3 W 4 W
Lifespan ± 20000 hours
Effective range 30 m	^2	35 m^2
Cable length 1 m

Quick start guide

Insect Killer

INKI112CBK4 | INKI112CBK6

For more information see the extended manual online:

ned.is/inki112cbk4 | ned.is/inki112cbk6

Intended use

The Nedis INKI112CBK4 | INKI112CBK6 is an electronic insect killer.

It utilizes a UV-A LED tube to attract light sensitive flying insects, such as flies, moths, and mosquitoes.

These insects are electrocuted by the electrically charged inner metal grid.

The product is intended for indoor, domestic use only.

This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved.

Any modification of the product may have consequences for safety, warranty and proper functioning.

Main parts (image A)

1 Chain ring

2 Housing

3 Metal grid

4 UV-A LED lamp

5 Power cable

6 Tray

Safety instructions

WARNING

• Ensure you have fully read and understood the instructions in this document before you install or use the product. Keep the packaging and this document for future reference.
• Only use the product as described in this document.
• The manufacturer is not liable for consequential damages or for damages to property or persons caused by non-observance of the safety instructions and improper use of the product.
• Do not use the product if a part is damaged or defective. Replace a damaged or defective product immediately.
• Do not use the product for outdoor uses, the product is designed for indoor use.
• The product is intended for domestic use only.
• Do not use this product in a bathtub, shower, or water-filled reservoir.
• Do not immerse the product, the power cable or plug in water or other liquids.
• After the product has been immersed or covered in water or other liquids, do not use the product again.
• Keep the product away from heat sources. Do not place the product on hot surfaces or near open flames.
• Keep away from flammable gases, vapor or explosive dust.
• Keep distance from flammable objects.
• Do not open the product.
  • High voltage! Do not touch the inner metal grid.

• Do not look directly into the light, this may cause eye damage.

• Never put metal objects inside the grid.

• Keep your hands away from the grid. Do not insert fingers, pencils or other objects through the guard.
• Do not use the product in barns, stables and similar locations.
• Do not expose the product to water or moisture.
• Always disconnect the product from the power outlet before cleaning or moving the product.
• Do not drop the product and avoid bumping.
• Do not use the product for more than 8 hours a day, due to the radiation.
• Keep the product out of reach from children.
• Cleaning and user maintenance shall not be done by children without supervision.
  • Children shall not play with the product.
• For replacement, use lamps of the same type and rating only.
• This product may only be serviced by a qualified technician for maintenance to reduce the risk of electric shock.
• Disconnect the product from the power outlet and other equipment if problems occur.
• Do not use the product when the cable or plug is damaged.
• Always unwind the power cable before using the product.
• Do not pull the power cable to move the product.
• Do not let the power cable hang over the edge of a table or counter.
• Do not leave the product unattended when the product is connected to the power outlet.
• Before cleaning and maintenance, switch off the product and disconnect the power. Let the product cool down completely.
• Do not cover the product when in use.
• Do not use the product in barns, stables and similar locations.
• Do not use cleaning solvents or abrasives.
• Do not clean the inside of the product.
• Do not attempt to repair the product. If the product does not operate correctly, replace it with a new product.
• Never put metal objects inside the grid.

Installing the product (image A)

1. Hang the product with the chain ring A 1 to the ceiling.
2. Connect the power cable A 5 to a power outlet.

Maintenance

Always disconnect the product from the power outlet before cleaning or moving the product.
☐ not use cleaning solvents or abrasives.
☐ not attempt to repair the product. If the product does not operate correctly, replace it with a new product.

Clean the outside of the product with a soft, clean, lightly damp cloth.

Empty the tray A 6 at least once a week.

The LED lamp A4 cannot be replaced.

Kurzanleitung

Insektenvernichter

INKI112CBK4 | INKI112CBK6

De Tweeling 28, 5215 MC 's-Hertogenbosch – The Netherlands 01/22
