USER MANUAL LOCKBLGB10BU NEDIS

Two horizontal color swatches: one grayscale from dark gray to white, the other solid-colored from yellow to black (no text or symbols)

nedis

Replacement Battery

for Bluetooth bicycle lock

LOCKBLGB10BU

Simple line drawing of a cylindrical object with a hook attached (no text or symbols)

QR code image containing encoded data, no visible human-readable text

ned.is/lockblgb10bu

Two horizontal color swatches: one grayscale from dark gray to white, the other solid-colored from yellow to pink (no text or symbols)

EN Quick start guide 9
DE Kurzanleitung 13
FR Guide de démarrage rapide 17
NL Verkorte handleiding 21
IT Guida rapida all'avvio 25
ES Guía de inicio rápido 30
PT Guia de iniciação rápida 34
SV Snabbstartsguide 38
FI Pika-aloitusopas 42

Two horizontal color swatches: one grayscale from dark gray to white, the other solid-colored from yellow to pink (no text or symbols)

NO Hurtigguide 45
DA Vejledning til hurtig start 49
HU Gyors beüzemelési útmutató 53
PL Przewodnik Szybki start 57
EL Οδηγός γρήγορης εκκίνησης 61
SK Rýchly návod 66
CS Rychlý návod 70
RO Ghid rapid de inițiere 74

Two horizontal color swatches: one grayscale from dark gray to white, the other solid-colored from yellow to black (no text or symbols)

A 1 2 3 4 5 6

Two horizontal color swatches: one grayscale from dark gray to white, the other solid-colored from yellow to black (no text or symbols)

B

Two horizontal color swatches: one grayscale from dark gray to white, the other solid-colored from yellow to black (no text or symbols)

C

Two horizontal color swatches: one grayscale from dark gray to white, the other solid-colored from yellow to black (no text or symbols)

D

Color swatch bar with grayscale gradient from black to white (no text or symbols)

E

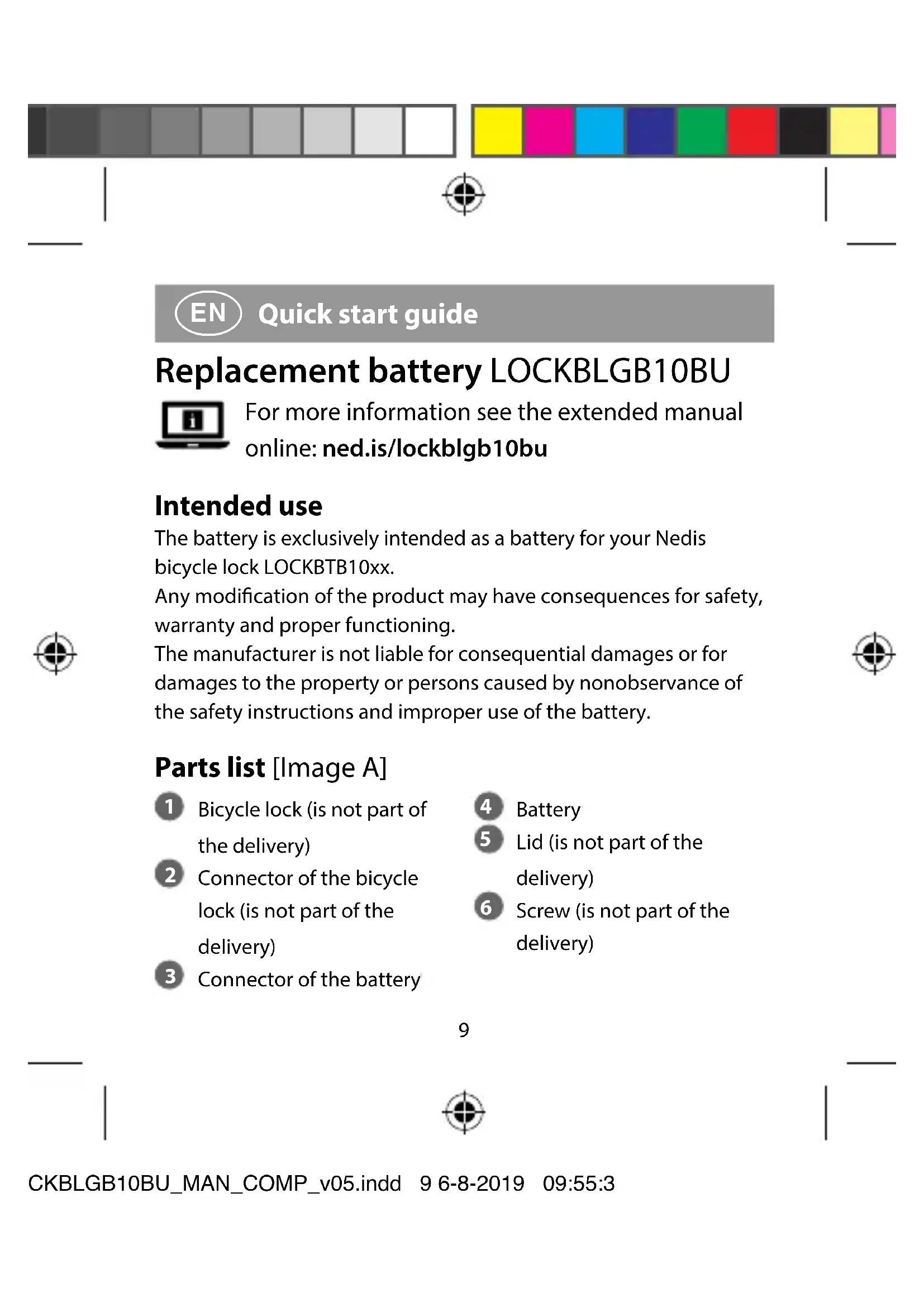

Quick start guide

Replacement battery LOCKBLGB10BU

For more information see the extended manual online: ned.is/lockblgb10bu

Intended use

The battery is exclusively intended as a battery for your Nedis bicycle lock LOCKBTB10xx.

Any modification of the product may have consequences for safety, warranty and proper functioning.

The manufacturer is not liable for consequential damages or for damages to the property or persons caused by nonobservance of the safety instructions and improper use of the battery.

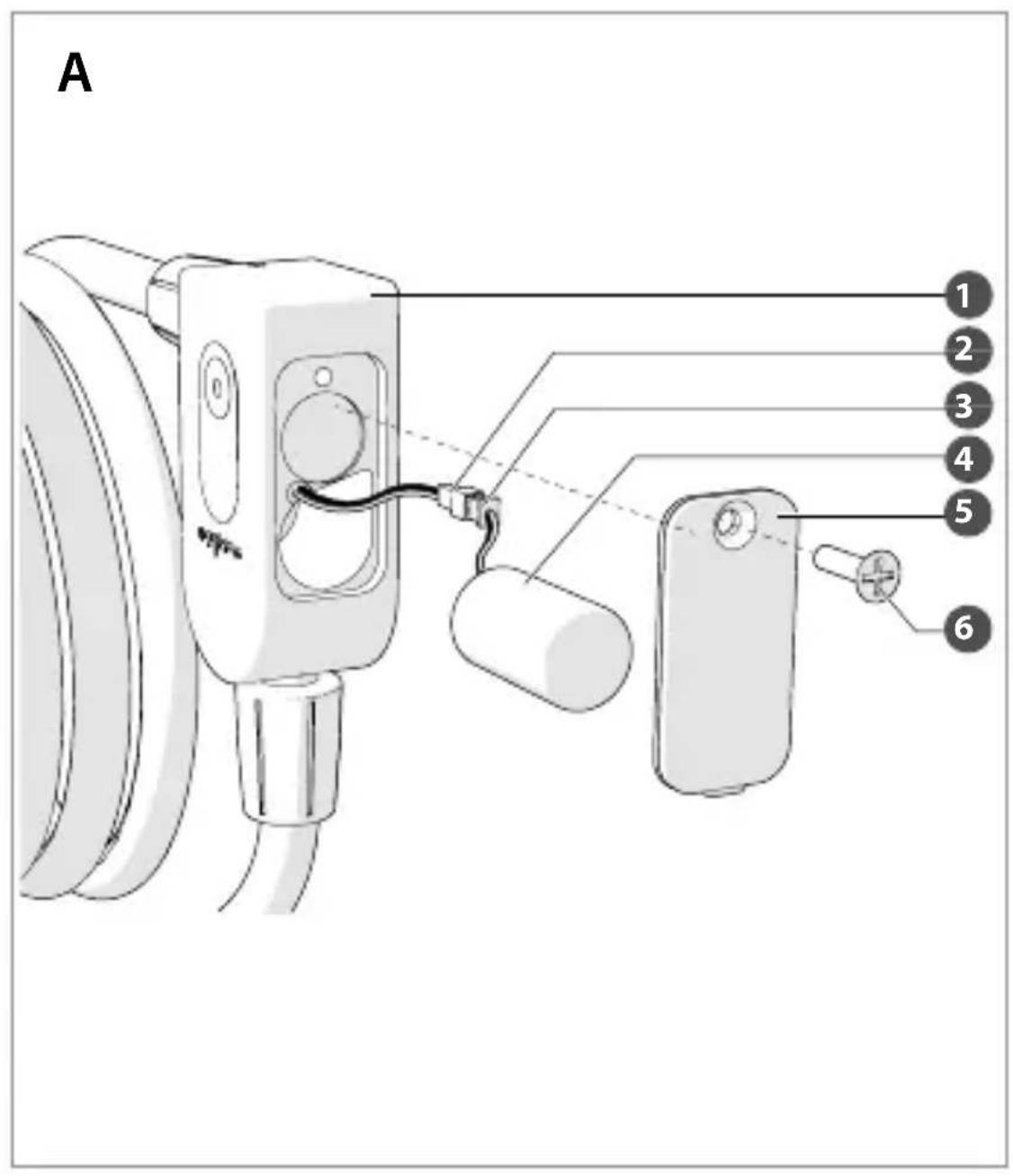

Parts list [Image A]

1 Bicycle lock (is not part of the delivery)
2 Connector of the bicycle lock (is not part of the delivery)
3 Connector of the battery

4 Battery
5 Lid (is not part of the delivery)
6 Screw (is not part of the delivery)

Safety instructions

WARNING

• Do not store cells or batteries haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by other metal objects.
• Keep cells and batteries clean and dry.
• Do not remove a battery from its original packaging until required for use.
• Retain the original product literature for future reference.
• Do not subject cells or batteries to mechanical shock.
• In the event of a battery leaking, do not allow the liquid to come in contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.
• Seek medical advice immediately if a cell or a battery has been swallowed.
• Do not install the battery in reverse polarity.
• Do not short circuit.
• Do not use any battery which is not designed for use with the equipment.
• Battery usage by children should be supervised.
• Always purchase the battery recommended by the device manufacturer for the equipment.
• Wipe the cell or battery terminals with a clean dry cloth if they

become dirty.

• Use only the battery in the application for which it was intended as described in this manual.
• Do not use the battery if any part is damaged or defective. Replace a damaged or defective battery immediately.
• Do not dismantle, open or shred batteries.
• When possible, remove the battery from the equipment when not in use.
• Do not expose batteries to heat or fire. Avoid storage in direct sunlight.
• Do not repair the product. If damaged, it must be properly disposed of.

Installing the battery [Image B - E]

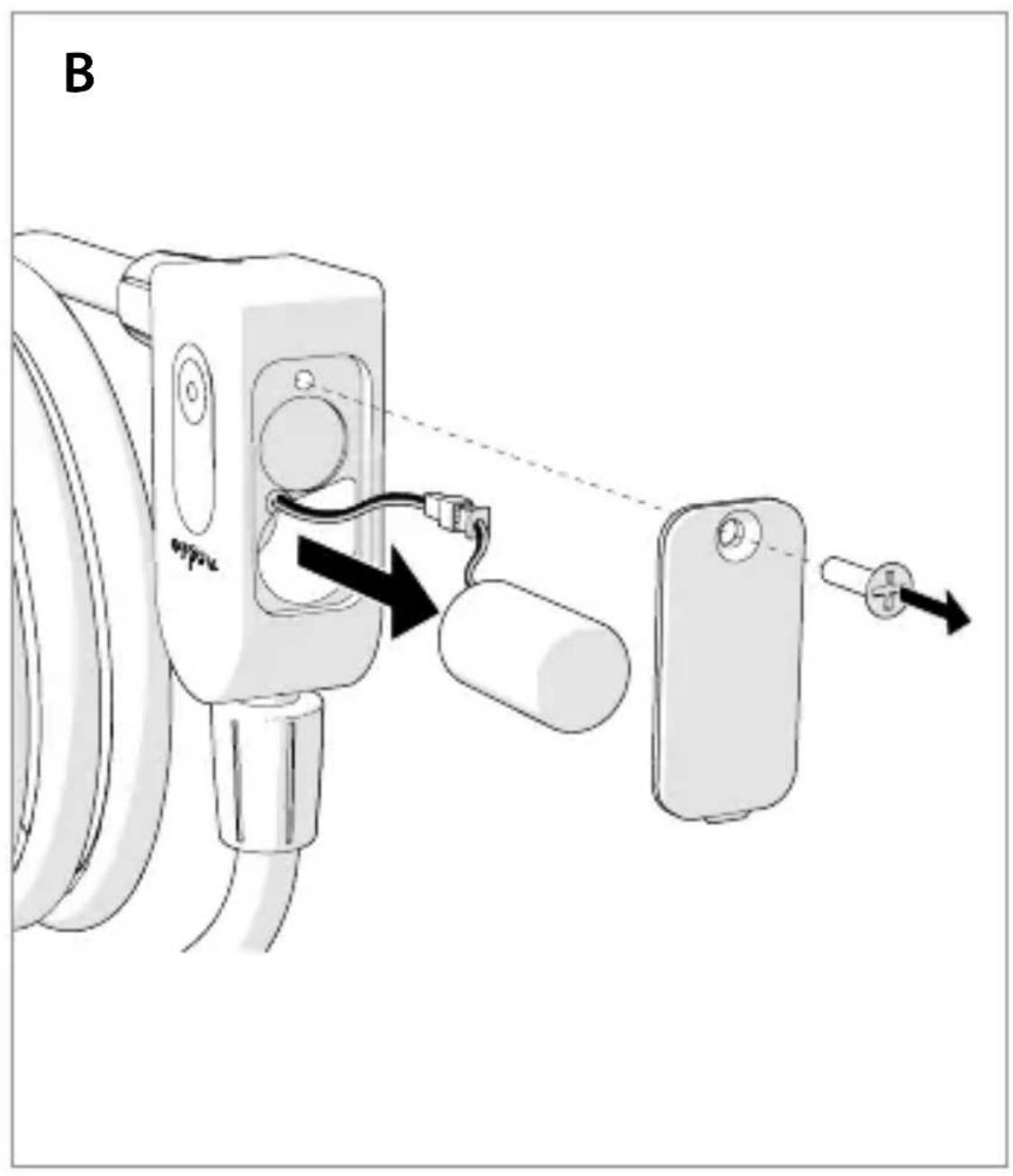

1. Unscrew the lid.
2. Remove the lid.
3. Pull the battery out of the bicycle lock.

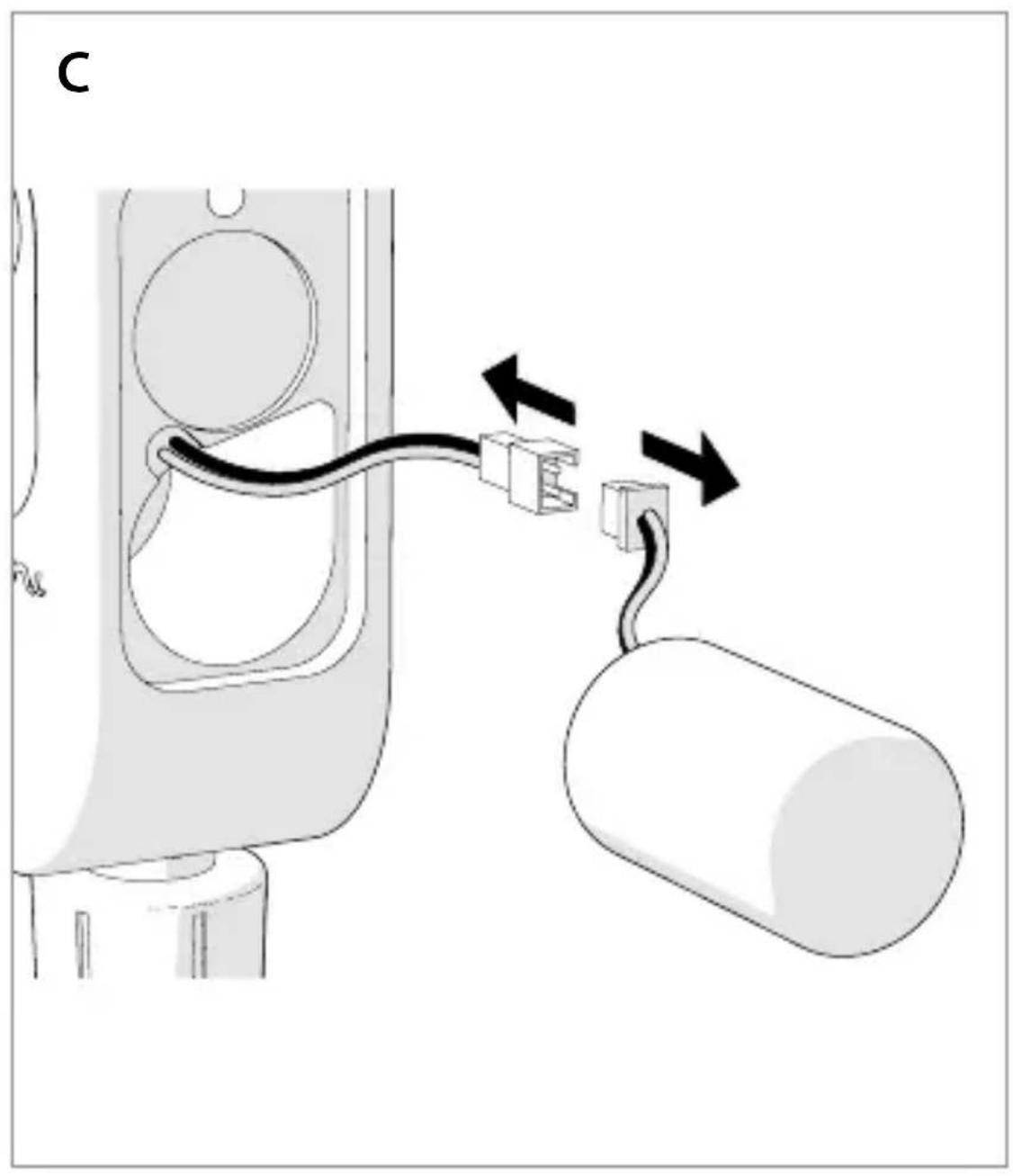

4. Disconnect the plugs of the bicycle lock and the battery.

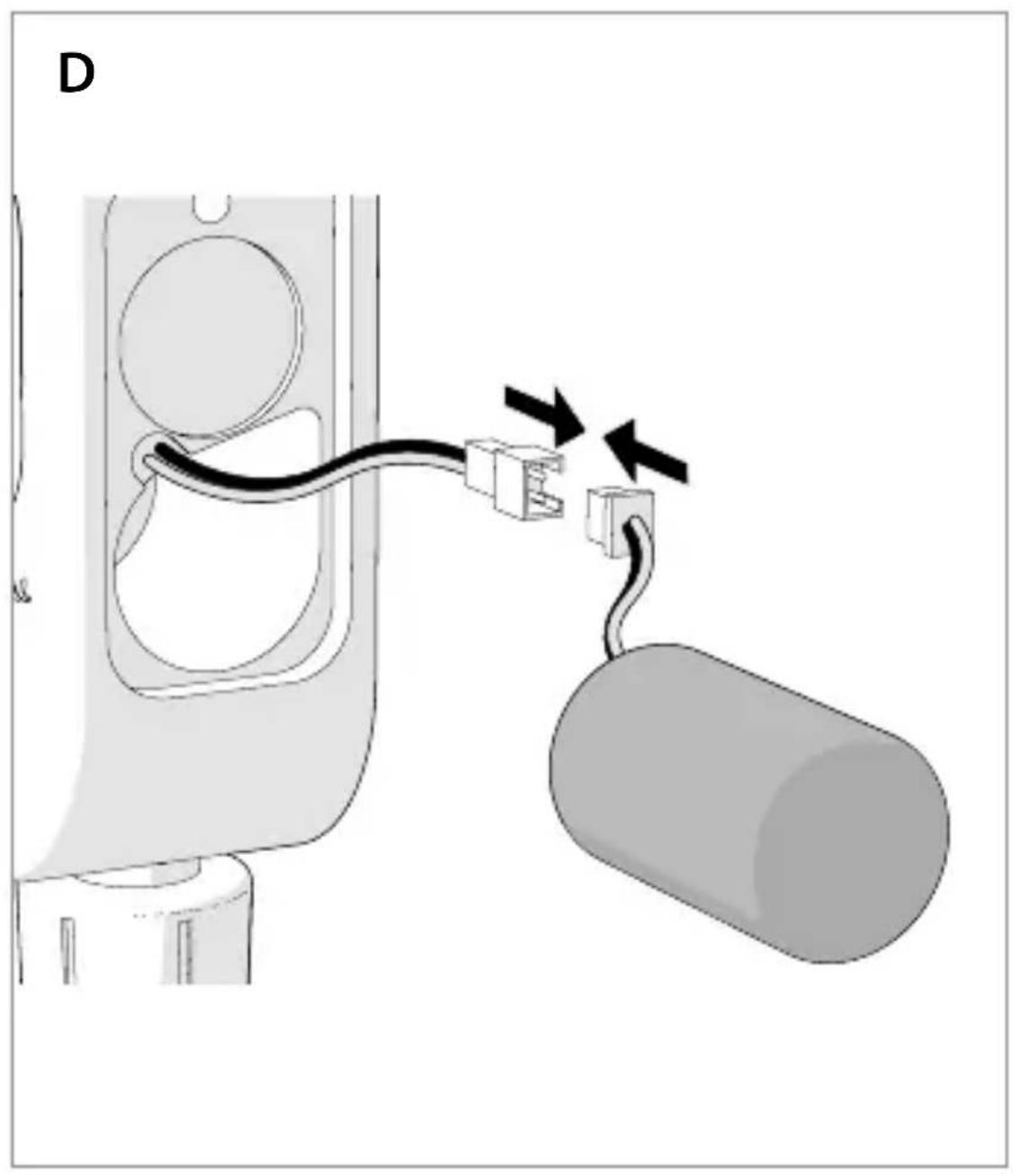

5. Connect the plug of the bicycle lock to the new battery.

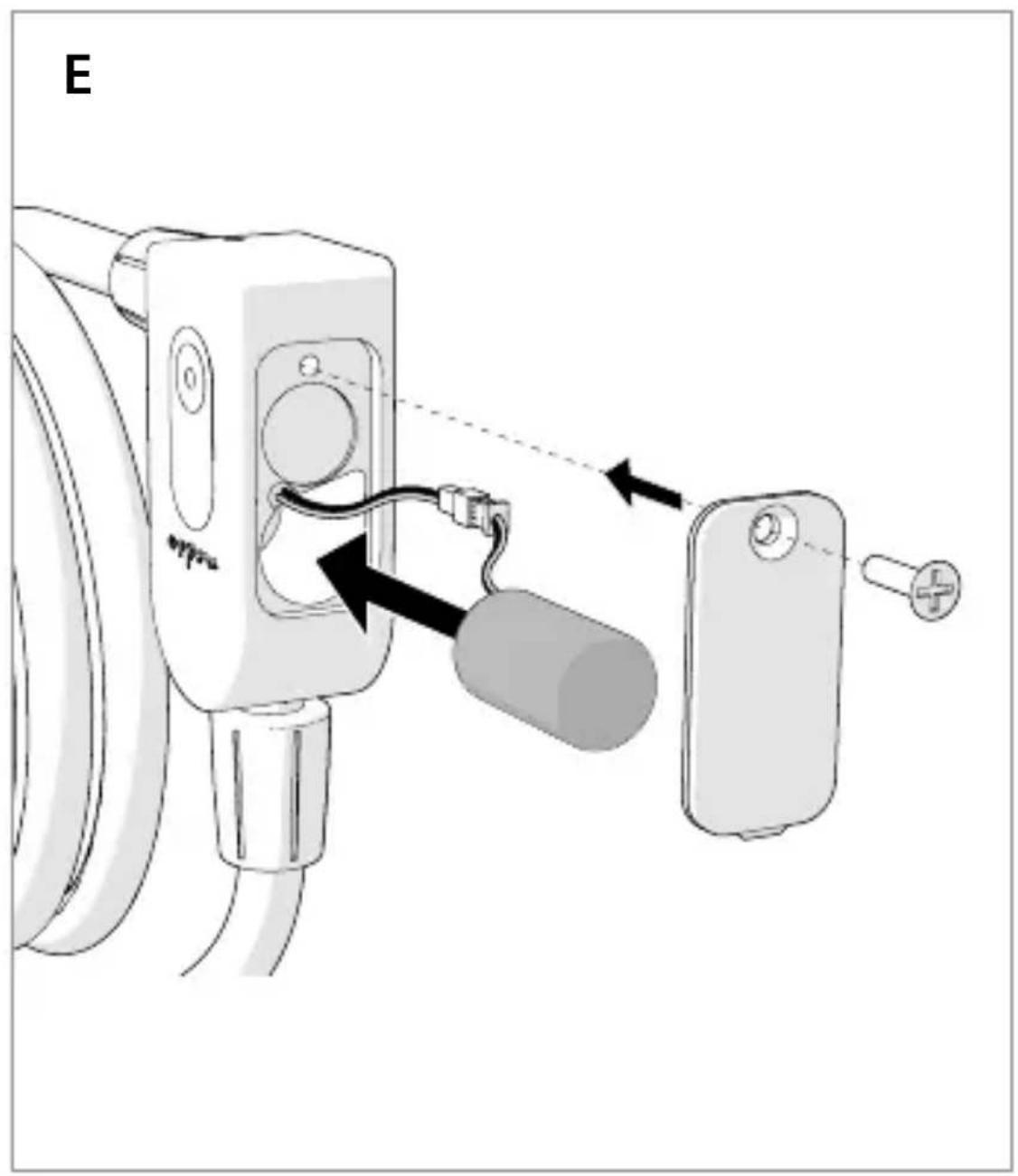

6. Push the new battery in the bicycle lock. Place the electrical wiring in the middle of the lock. Otherwise the cover might pinch the wiring.
7. Put back the lid.
8. Fasten the lid with the screw.

Color palette bar with grayscale and solid color swatches (no text or symbols)

1. Check if the bicycle lock works properly.

2. Dispose the empty battery.

Specifications

Product Lock replacement battery
Article number LOCKBLGB10BU
Battery type Lithium
Voltage 3.0 VDC
Capacity 800 mAh
Power 2.4 W
Length 27 mm
Diameter 15,6 mm
Weight 14 g
Color Blue
Rechargeable No
IEC code CR15H270
Lifespan 10 months
Operating temperature -65 °C - 85 °C

Kurzanleitung

Ersatzbatterie LOCKBLGB10BU

Two horizontal color swatches: one grayscale from dark gray to white, the other solid-colored from yellow to pink (no text or symbols)

Two horizontal color swatches: grayscale bars on the left and solid-colored squares on the right, no text or symbols present.

Two horizontal color swatches: one grayscale from dark gray to white, the other solid-colored from yellow to black (no text or symbols)

Two horizontal color swatches: one grayscale from dark gray to white, the other solid-colored from yellow to black (no text or symbols)

Specifiche

Two horizontal color swatches: one grayscale from dark gray to white, the other solid-colored from yellow to black (no text or symbols)

Two horizontal color swatches: one grayscale from dark gray to white, the other solid-colored from yellow to black (no text or symbols)

Two horizontal color swatches: one grayscale from dark gray to white, the other solid-colored from yellow to pink (no text or symbols)

Specifikationer

Two horizontal color swatches: one grayscale from dark gray to white, the other solid-colored from yellow to pink (no text or symbols)

Two horizontal color swatches: one grayscale from dark gray to white, the other solid-colored from yellow to pink (no text or symbols)

Batteritype Lithium
Spenning 3,0 VDC
Kapasitet 800 mAh
Effekt 2,4 W
Lengde 27 mm
Diameter 15,6 mm
Vekt 14 g
Farge Blått
Oppladbart Nei
IEC code CR15H270
Levetid 10 måneder
Driftstemperatur -65 °C - 85 °C

Two horizontal color swatches: grayscale bars on the left and solid-colored squares on the right, no text or symbols present.

Two horizontal color swatches: one grayscale from dark gray to white, the other solid-colored from yellow to black (no text or symbols)

Two horizontal color swatches: grayscale bars on the left and solid-colored squares on the right, no text or symbols present.

Two horizontal color swatches: one grayscale from dark gray to white, the other solid-colored from yellow to black (no text or symbols)

Color palette bar with grayscale and white sections (no text or symbols)

Two horizontal color swatches: one grayscale from dark gray to white, the other solid-colored from yellow to pink (no text or symbols)

Technické údaje

Two horizontal color swatches: one grayscale from dark gray to white, the other solid-colored from yellow to black (no text or symbols)

Two horizontal color swatches: one grayscale from dark gray to white, the other solid-colored from yellow to pink (no text or symbols)

Two horizontal color swatches: one grayscale from dark gray to white, the other solid-colored from yellow to pink (no text or symbols)

Two horizontal color swatches: one grayscale from dark gray to white, the other solid-colored from yellow to black (no text or symbols)

Nedis BV

De Tweeling 28, 5215 MC 's-Hertogenbosch

The Netherlands 08/19
