USER MANUAL PS 58 CC Plus OLYMPIA

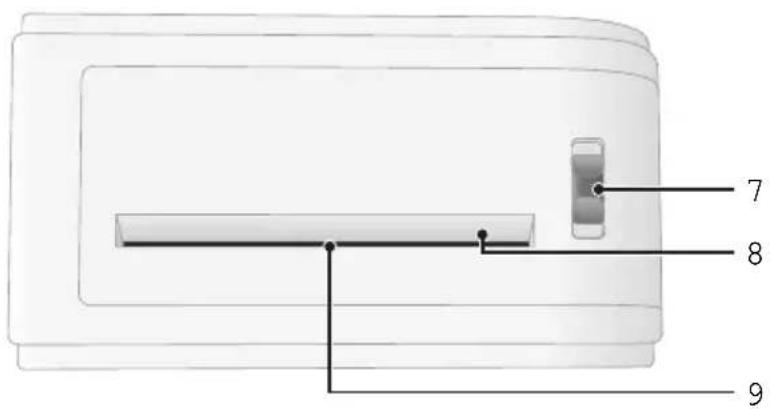

Paper infeed with cutting mechanism 9 Optical sensor

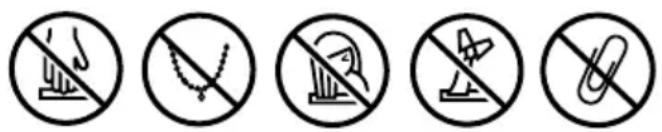

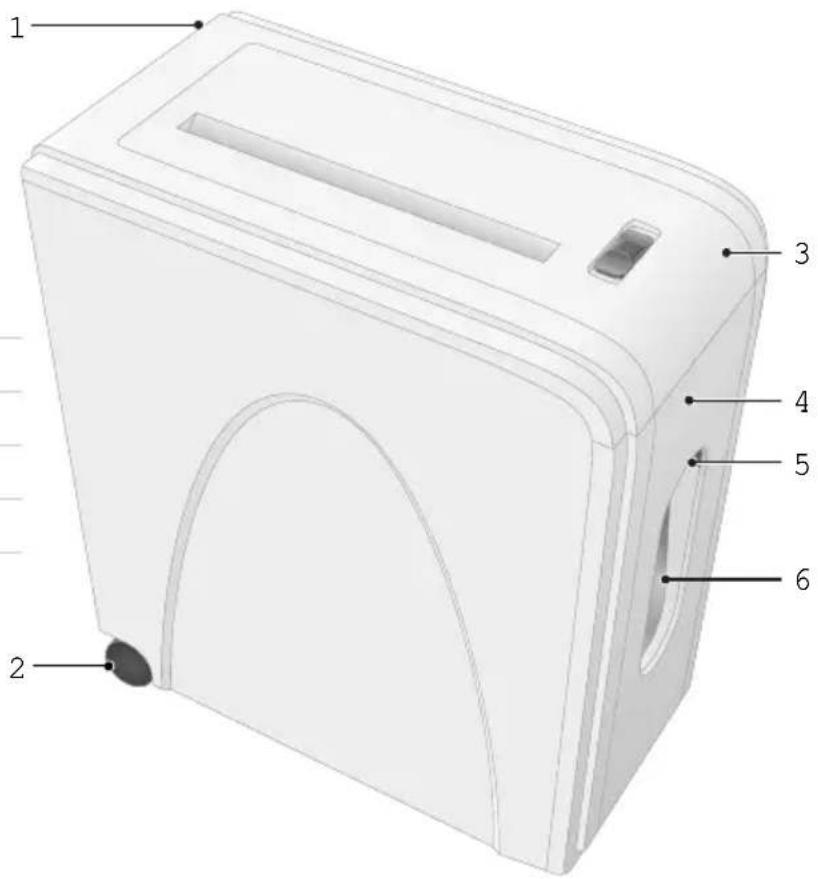

1 Power cable (not illustrated here) 2 Castors 3 Paper shredder 4 Waste bin 5 Carrying handle for the waste bin 6 Window to waste bin G13 Intended Use The automatic shredder can be used to shred paper and credit cards by inserting them in the insertion slot. The material to be shred must comply with the requirements stipulated in Technical Data. The automatic shredder is not intended for shredding material which does not comply with the requirements stipulated in the Technical Data (e.g. cardboard). Any other use is considered unintended use. Before You Start Read this operating manual through carefully, observing all the information contained regarding handling and using the shredder. Keep the operating manual in a safe place for future reference. The following information should help to ensure that the shredder always functions as you expect it to. Never reach into the insertion slot. Before starting to shred material, remove any staples, paper clips, rubber bands or other foreign bodies from the material concerned. Keep all loose pieces of clothing, jewellery, long hair or other loose items away from the device. Positioning the Shredder Safely The shredder only operates when the waste bin supplied is tted. Caution! Risk of injury through sharp edges on the cutting mechanism. The under- side of the cutting mechanism has sharp edges and corners. Do not take hold of the shredder from the underside. 1 Remove the machine carefully from the packaging. 2 Insert the waste bin in the body of the device under the cutting mechanism. Ensure that you push the waste bin fully into the shredder. The waste bin latches audibly in place. 3 Set the shredder down on a stable, level, horizontal surface and in the vicinity of an easily accessible power socket. 4 Pay attention that the switch is set to its Off position and then connect the power adapter plug to an easily accessible power socket. G14 Operating the Shredder The shredder works using an automatic shredding mechanism. The optical sensor for the materi- al in the automatic insertion is positioned in the centre of the slot. ! Risk of injury through sharp edges on the cutting mechanism. NEVER take hold of the shredder by the underside when the shredder is in operation. 1 Set the switch to its position. The shredder is now ready to operate. ! Risk of injury through automatic insertion. The infeed starts automatical- ly when material is inserted. Keep all loose pieces of clothing, jewellery, long hair or other loose items away from the shredder's insertion slot. ! Risk of property damage through material jam! Observe the maximum cutting output of the insertion slot. 2 Feed the material to be shred in the centre of the insertion slot. The insertion slot draws the material in and stops 2 - 4 seconds after shredding has been completed and no further material is fed in. 3 If you want to shred a credit card, insert the credit card in the centre of the slot with a short edge to the front.

Switch the shredder o󰀨 when you no longer need to use it. This saves electricity and prevents third parties inadvertently injuring themselves with the shredder. 1 Set the switch to its position. 2 Disconnect the power plug from the power socket. Transporting the Shredder If you want to transport the shredder for use elsewhere, use the practical castors provided on the underside of the shredder. 1 Ensure that the shredder is switched o󰀨 and disconnected from the power supply. 2 Use the handles to raise the shredder slightly. The shredder is now standing on the castors and can be simply pushed to the new location. If Something Does Not Work The following information should help if something does not work as you expect it to. Overheating Protection The motor switches o󰀨 automatically in the event of overheating and overloading. When the cool down phase has elapsed, the shredder is ready to operate again. Pay attention to the intermit- tent operation value. G15 Lubricating the Cutting Mechanism If you want to increase the working life of the shredder, you should oil the shredder's cutting mechanism at regular intervals. GO Europe GmbH o󰀨ers a special oil for shredders. For more information, please contact our hotline: Attention! Risk of property damage through using the wrong oil! Do not use spray oils. Only use a special oil intended for shredders. 1 Apply the special oil for shredders in several lines square to the sheet of paper. 2 Set the switch to its Auto position. 3 Insert the oiled sheet of paper in the paper infeed. The paper with oil applied is inserted and oils the cutting mechanism. Emptying the Waste Bin Empty the waste bin regularly. This prevents shred material jamming and causing malfunctions as a result. 1 Set the switch to its Off position. 2 Disconnect the power plug from the power socket. 3 Use the handle to pull the waste bin fully out of the device. 4 Empty the waste bin. 5 Insert the waste bin back in the body of the device under the cutting mechanism. Ensure that you push the waste bin fully into the shredder. The waste bin latches audibly in place. Clearing Residual Material If the shredder no longer shreds material as you expect, remove any residual material from the cutting mechanism. 1 Set the switch to its Rev position. The cutting mechanism runs in reverse and releases any material remaining in the cutting mechanism. 2 Set the switch to its Off position. 3 Disconnect the power plug from the power socket. 4 Remove any residual material carefully from the cutting mechanism using an appropriate pointed object. Regular Cleaning Clean the shredder at regular intervals. 1 Disconnect the power plug from the power socket. 2 Use a slightly damp, lint-free cloth to clean the surface of the shredder housing. Do not use any solvents or cleaning agents. G16 Disposal In order to dispose of your device, take it to a collection point provided by your local public waste authorities (e.g. recycling centre). According to laws on the disposal of electronic and electrical devices, owners are obliged to dispose of old electronic and electrical devices in a separate waste container. The symbol indicates that the device must not be disposed of in normal domestic waste! Packaging materials must be disposed of according to local regulations. The device and packaging materials can be recycled; sort them for disposal to simplify waste management. The Triman logo is only relevant for France. Technical Data Subject to change without prior notice. Cutting capacity Max. 12 sheets of A4 (80 g/m2), 1 credit card Cutting method/width Particle-cut (4 x 40 mm), 220 mm (max.) Shredding speed 2.0 m/min. Security level P4 compliant with DIN 66399-2 Intermittent operation 2.0 mins. on / 30 mins. o󰀨 Noise level 73 - 75 dB Operating modes Automatic mode (Start-Stop function) Reverse running Overheating protection Waste bin 15-litre volume, pull-out, with window Power supply 220 - 240 V, 50 Hz, 2.0 A Power consumption 450 W Dimensions 365 x 205 x 402 mm, standing on 2 castors Weight Approx. 5.6 kg Declaration of Conformity The CE Mark on the device conrms conformity. The Declaration of Conformity can be viewed at www.go-europe.com. Declaration of conformity with security level according to DIN 66399-2 We declare that, regarding shredding documents, this shredder complies with the requirements of security level P-2 according to DIN 66399-2. Guarantee Dear Customer, we are pleased that you have chosen this equipment. In the case of a defect, please return the device together with the receipt and original packing material to the point-of-sale. G17
