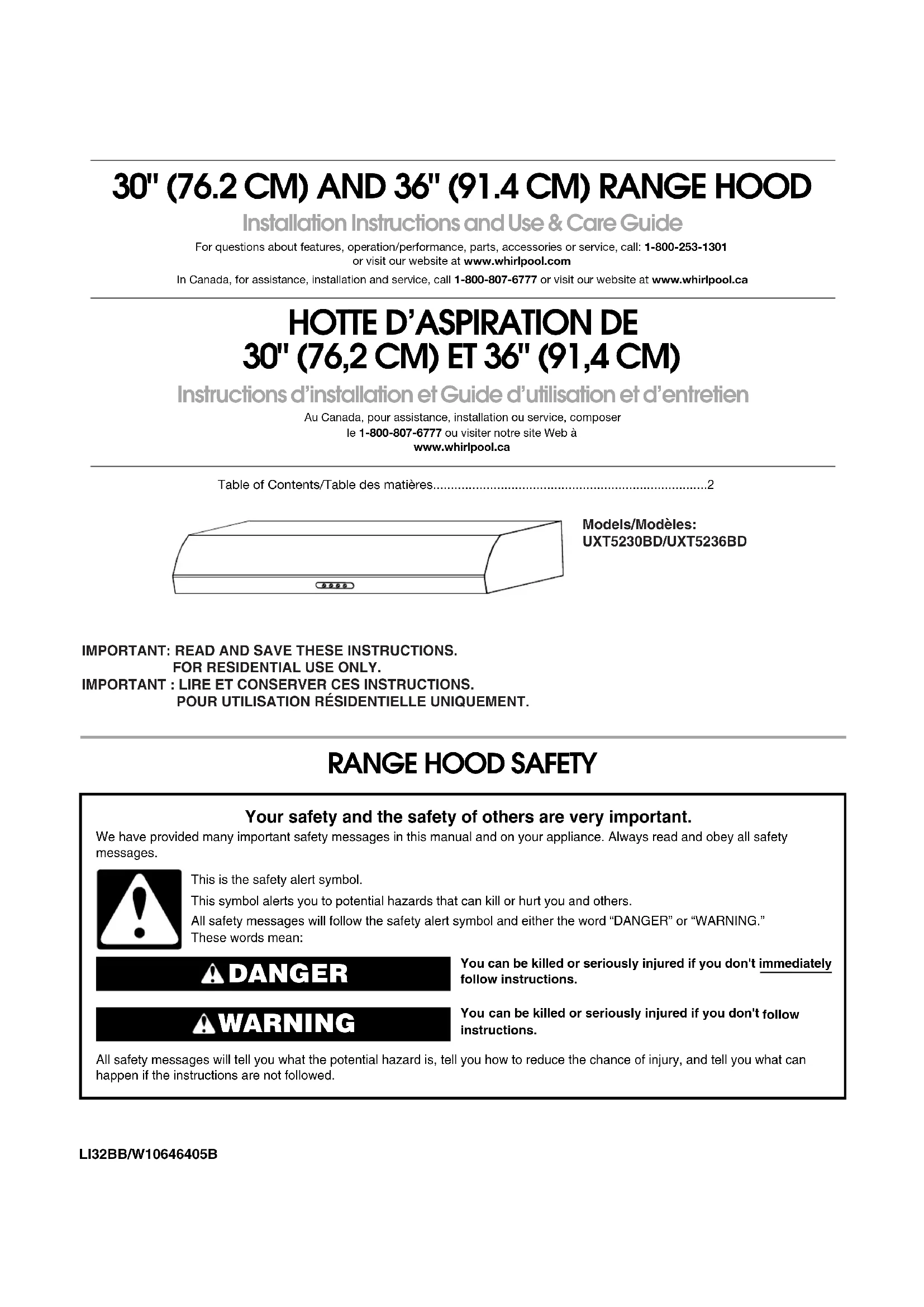

USER MANUAL UXT5230BDS AMANA

Installation Instructions and Use & Care Guide For questions about features, operation/performance, parts, accessories or service, call: 1-800-253-1301 or visit our website at www.whirlpool.com In Canada, for assistance, installation and service, call 1-800-807-6777 or visit our website at www.whirlpool.ca

HOTTE D’ASPIRATION DE

30" (76,2 CM) ET 36" (91,4 CM) Instructions d’installation et Guide d’utilisation et d’entretien Au Canada, pour assistance, installation ou service, composer le 1-800-807-6777 ou visiter notre site Web àwww.whirlpool.caTable of Contents/Table des matières.............................................................................2 Models/Modèles:UXT5230BD/UXT5236BD IMPORTANT: READ AND SAVE THESE INSTRUCTIONS. FOR RESIDENTIAL USE ONLY.IMPORTANT : LIRE ET CONSERVER CES INSTRUCTIONS. POUR UTILISATION RÉSIDENTIELLE UNIQUEMENT. LI32BB/W10646405B You can be killed or seriously injured if you don't immediately You can be killed or seriously injured if you don'tfollow All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed. Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.This is the safety alert symbol.This symbol alerts you to potential hazards that can kill or hurt you and others.All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”These words mean:follow instructions.instructions. DANGER WARNING2

READ AND SAVE THESE INSTRUCTIONS

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: ■ Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.■ Before servicing or cleaning the unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.■ Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.■ Do not operate any fan with a damaged cord or plug. Discard fan or return to an authorized service facility for examination and/or repair.■ Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA), the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.■ When cutting or drilling into wall or ceiling; do not damage electrical wiring and other utilities.■ Ducted fans must always be vented outdoors. CAUTION: For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors. CAUTION: To reduce risk of fire and to properly exhaust air, be sure to duct air outside - do not vent exhaust air into spaces within walls or ceilings, attics or into crawl spaces, or garages.

GREASE FIRE:■ Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.■ Always turn hood ON when cooking at high heat or when flambeing food (i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambé).■ Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.■ Use proper pan size. Always use cookware appropriate for the size of the surface element.

PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING:

■ SMOTHER FLAMES with a close fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.■ NEVER PICK UP A FLAMING PAN - you may be burned.■ DO NOT USE WATER, including wet dishcloths or towels - a violent steam explosion will result.■ Use an extinguisher ONLY if:– You know you have a class ABC extinguisher, and you already know how to operate it.– The fire is small and contained in the area where it started. – The fire department is being called.– You can fight the fire with your back to an exit. Based on "Kitchen Fire Safety Tips" published by NFPA.■ WARNING: To reduce the risk of fire or electrical shock, do not use this fan with any solid-state speed control device.3 INSTALLATION REQUIREMENTS Tools and Parts Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here. Tools needed Parts supplied Remove parts from package. Check that all parts are included. Parts needed For 7" (17.8 cm) round vented installations For 3¹⁄₄" x 10" (8.3 x 25.4 cm) rectangular vented installations Optional accessories *For information on ordering, see the “Assistance or Service” section. Location Requirements IMPORTANT: Observe all governing codes and ordinances. ■ It is the installer’s responsibility to comply with installation clearances specified on the model/serial rating plate. The model/serial rating plate is located inside the range hood on the left wall. ■ Range hood location should be away from strong draft areas, such as windows, doors and strong heating vents. ■ Cabinet opening dimensions that are shown must be used. Given dimensions provide minimum clearance. Consult the cooktop/range manufacturer installation instructions before making any cutouts. ■ This range hood is recommended for use with cooktops with a maximum total rating of 50,000 Btus or less. ■ Grounded electrical outlet is required. See “Electrical Requirements” section. ■ All openings in ceiling and wall where range hood will be installed must be sealed. ■ These range hoods are factory set for vented installations. Models that are capable of being installed as non-vented (recirculating) require charcoal filters. See the “Assistance or Service” section for information on ordering charcoal filters. For Mobile Home Installations The installation of this range hood must conform to the Manufactured Home Construction Safety Standards, Title 24 CFR, Part 328 (formerly the Federal Standard for Mobile Home Construction and Safety, title 24, HUD, Part 280) or when such standard is not applicable, the standard for Manufactured Home Installation 1982 (Manufactured Home Sites, Communities and Setups) ANSI A225.1/NFPA 501A, or latest edition, or with local codes. Caulking gun and weatherproof caulking compound Jigsaw or keyhole saw Flat-blade screwdriver Drill with ¹⁄₈" (3 mm), ¹⁄₂" (13 mm) and 1¹⁄₄" (3 cm) bits Wire stripper #2 Phillips screwdriver Metal snips Pencil 3¹⁄₄" x 10" (8.3 x 25.4 cm)rectangular damper#8-18 x ⁵⁄₈" (4.2 x 16 mm)truss-head screws#8-18 x 1"(4.2 x 25 mm) flat-head screwsDrywallanchorsMountingbracketsShort Phillipshead screwsTorx T10 adapter

UL Listed/CSA Approved wire connectors UL Listed/CSA Approved ¹⁄₂" (13 mm) strain relief †®TORX and T10 are registered trademarks of Acument Intellectual Properties, LLC. 7" (17.8 cm) round metal vent system with wall or roof cap 7" (17.8 cm) round damper Part Number W10355451* Vent clamps as required 7" (17.8 cm) round vent mounting plate Part Number W10388168*

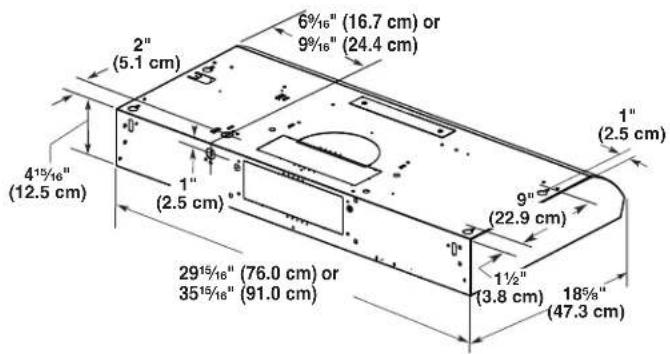

¹⁄₄" x 10" (8.3 x 25.4 cm) rectangular metal vent system with wall or roof cap Duct tape Charcoal filter kit Part Number W10386873* Power cord kit Part Number W10355452* Stainless steel cleaner and polish Part Number 31462A*4 Product Dimensions Installation Clearances Venting System Venting Methods NOTES: ■ Flexible vent is not recommended. Flexible vent creates both back pressure and air turbulence that greatly reduce performance. ■ The vent system is optional for this model. Vent system can terminate either through the roof or wall. Use 3¹⁄₄" x 10" (8.3 x 25.4 cm) rectangular with a maximum vent length of 35 ft (10.7 m) or 7" (17.8 cm) or larger round vent with a maximum length of 50 ft (15.2 m) for vent system. Cold Weather Installations An additional back draft damper should be installed to minimize backward cold air flow and a thermal break should be installed to minimize conduction of outside temperatures as part of the vent system. The damper should be on the cold air side of the thermal break. The break should be as close as possible to where the vent system enters the heated portion of the house. Makeup Air Local building codes may require the use of makeup air systems when using ventilation systems greater than specified CFM of air movement. The specified CFM varies from locale to locale. Consult your HVAC professional for specific requirements in your area. Venting Requirements ■ Vent system must terminate to the outdoors, except for non- vented (recirculating) installations. ■ Do not terminate the vent system in an attic or other enclosed area. ■ Do not use a 4" (10.2 cm) laundry-type wall cap. ■ Use 7" (17.8 cm) round metal vent or 3¹⁄₄" x 10" (8.3 x

25.4 cm) rectangular metal vent, depending on your

installation requirement. Rigid metal vent is recommended. Plastic or metal foil vent is not recommended. ■ The length of vent system and number of elbows should be kept to a minimum to provide efficient performance. A. 18" (45.7 cm) minimum distance from electric cooking surface.24" (61.0 cm) minimum distance from gas cooking surface. 30" (76.2 cm) suggested maximum above the cooking surface. B. 18" (45.7 cm) minimum clearance - upper cabinet to countertop.C. 30" (76.2 cm) minimum cabinet opening width for 30" (76.2 cm) models and 36" (91.4 cm) minimum cabinet width for 36" (91.4 cm) models.D. 12" (30.5 cm) cabinet depth.E. 36" (91.4 cm) base cabinet height. 1" (2.5 cm)4¹⁵⁄₁₆" (12.5 cm)6⁹⁄₁₆" (16.7 cm) or9⁹⁄₁₆" (24.4 cm) 29¹⁵⁄₁₆" (76.0 cm)

Top Venting Wall Venting A. 7" (17.8 cm) round vent through roof (purchased separately). 3¹⁄₄" x 10" (8.3 x 25.4 cm) rectangular vent through the roof (purchased separately).B. Roof cap with damper(purchased separately)A. 7" (17.8 cm) round vent out the top and through the wall (purchased separately). 3¹⁄₄" x 10" (8.3 x 25.4 cm) rectangular vent through the wall or out the top (purchased separately).B. Wall cap with damper(purchased separately)

For the most efficient and quiet operation: ■ Use no more than three 90° elbows.■ Make sure there is a minimum of 24" (61 cm) of straight vent between the elbows if more than 1 elbow is used. ■ Do not install 2 elbows together. ■ Use clamps or duct tape to seal all joints in the vent system. ■ The vent system must have a damper. If roof or wall cap has a damper, do not use damper supplied with the range hood. ■ Use caulking to seal exterior wall or roof opening around the cap. Calculating Vent System Length To calculate the length of the system you need, add the equivalent feet (meters) for each vent piece used in the system. Vent System Example vent system Electrical Requirements Observe all governing codes and ordinances. Ensure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70 (latest edition), or CSA Standards C22.1-94, Canadian Electrical Code,

Part 1 and C22.2 No. 0-M91 (latest edition) and all local codes

and ordinances. If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate. A copy of the above code standards can be obtained from: National Fire Protection Association 1 Batterymarch Park Quincy, MA 02169-7471 CSA International 8501 East Pleasant Valley Road Cleveland, OH 44131-5575 ■ A 120 volt, 60 Hz., AC only, 15-amp, fused electrical circuit is required. ■ If the house has aluminum wiring, follow the procedure below:

1. Connect a section of solid copper wire to the pigtail

2. Connect the aluminum wiring to the added section of

copper wire using special connectors and/or tools designed and UL listed for joining copper to aluminum. Follow the electrical connector manufacturer's recommended procedure. Aluminum/copper connection must conform with local codes and industry accepted wiring practices. ■ Wire sizes and connections must conform with the rating of the appliance as specified on the model/serial rating plate. The model/serial plate is located behind the filter on the rear wall of the range hood. ■ Wire sizes must conform to the requirements of the National Electrical Code, ANSI/NFPA 70 (latest edition), or CSA Standards C22. 1-94, Canadian Electrical Code, Part 1 and C22.2 No. 0-M91 (latest edition) and all local codes and ordinances. Vent Piece 45° elbow 2.5 ft (0.8 m) 90° elbow 5.0 ft (1.5 m) 3¹⁄₄" x 10" (8.3 cm x

1 - wall cap = 0.0 ft (0.0 m)

90˚ elbow 2 ft (0.6 m) 6 ft (1.8 m)6 INSTALLATION INSTRUCTIONS NOTES: ■ Depending on your model, determine which venting method to use: roof, wall or non-vented (recirculating). ■ It is recommended that the vent system be installed before the range hood is installed. Go to “Venting System” in the “Installation Requirements” section if you need assistance.■ Before making cutouts, make sure there is proper clearance within the ceiling or wall for the vent system.

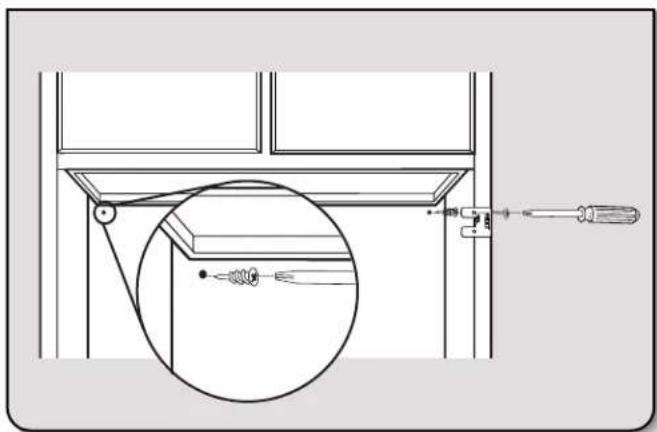

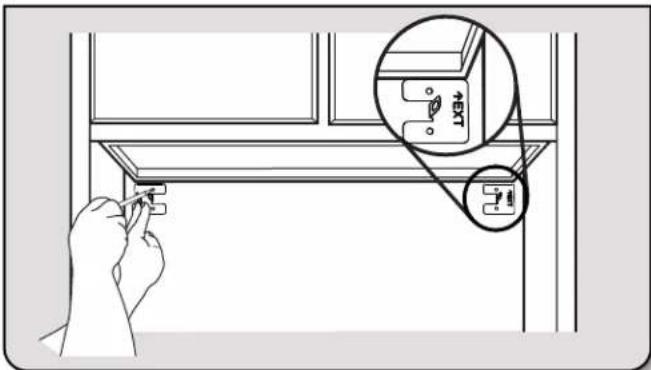

Align the exterior edge of the mounting brackets with the exterior edges of the upper cabinet.IMPORTANT: The brackets should touch the upper cabinet.With a pencil, mark the upper holes on the brackets.

■ Using a #2 Phillips screwdriver, install the drywall anchors. ■ Using #8-18 x 1" (4.2 x 25 mm) flat-head #2 Phillips screws, install the mounting brackets using the upper holes. NOTE: For installations to a surface other than drywall, it is recommended that a qualified contractor determine the anchoring method.

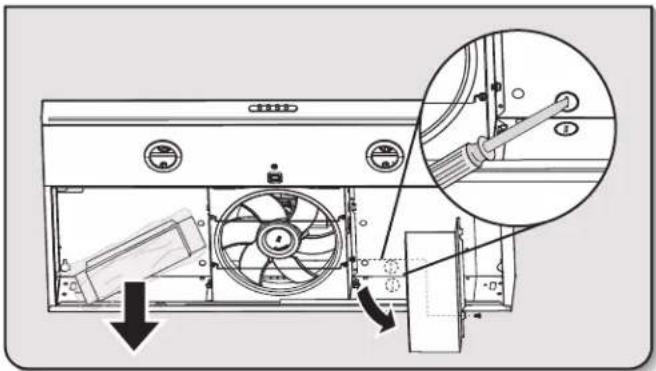

4. Prepare Range Hood

■ Set the range hood on its back on a covered surface.■ Remove the filter, locking screw, and side panels. ■ Remove the rectangular damper.■ Using a #2 Phillips screwdriver, remove the electrical box cover. ■ Using a flat-blade screwdriver, remove the appropriate power supply knockout.

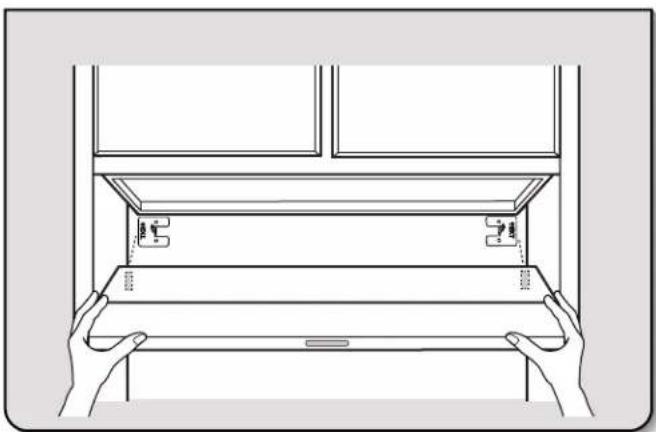

5. Mark Hole Locations

Lift the range hood into place and insert the mounting bracket tabs through the slots in the back of the range hood. WARNING Electrical Shock Hazard Disconnect power before servicing. Replace all parts and panels before operating. Failure to do so can result in death or electrical shock.7 Hold the range hood firmly in place with one hand and bend each mounting tab (A) upward approximately 90°.Mark the hole at the power supply knockout (B).OPTIONAL: Mark the hole in each mounting tab.For a non-vented (recirculating) installation: Go to Step 7.For a top vented installation: Mark the 4 vent hole locations (C) on the top of the range hood.For a rear vented installation: Mark the 4 vent hole locations (D) on the rear of the range hood.Remove the range hood and set it aside.

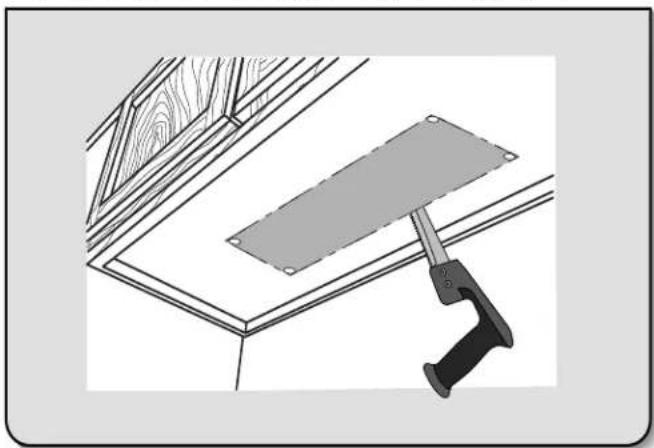

6. Mark and Cut Vent Opening

3¹⁄₄" x 10" (8.3 x 25.4 cm) Rectangular Vent System ■ Using a ¹⁄₂" (13 mm) drill bit, drill a hole in each of the dots marked previously on either the wall or upper cabinet. Using the outside edges of the holes, mark the vent opening.■ Using a jigsaw or keyhole saw, cut the vent opening. 7" (17.8 cm) Round Vent System ■ Using the 7" (17.8 cm) round vent mounting plate, draw the vent opening outline on the underside of the cabinet:- Place the vent mounting plate on the bottom of the cabinet. Position the edge of the plate with the widest distance (A) between the hole and edge of the mounting plate against the wall. Position the side edges of the mounting plate between the dots marked previously.IMPORTANT: The widest edge (A) of the vent mounting plate must be positioned against the wall.- Trace the 7" (17.8 cm) vent opening (solid line) on the cabinet bottom.■ Using a jigsaw or keyhole saw, cut the vent opening 1" (2.5 cm) larger than the 7" (17.8 cm) hole traced (dashed line).

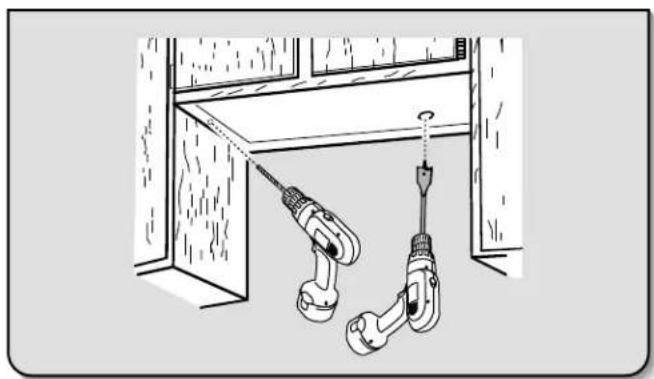

7. Drill Electrical Opening

Using a 1¹⁄₄" (3 cm) drill bit, drill the hole in the dot marked previously at the electrical strain relief. OPTIONAL: Using a ¹⁄₈" (3 mm) drill bit, drill pilot holes for the dots marked previously at each mounting tab at an approximate 45° angle in an upward direction. D D

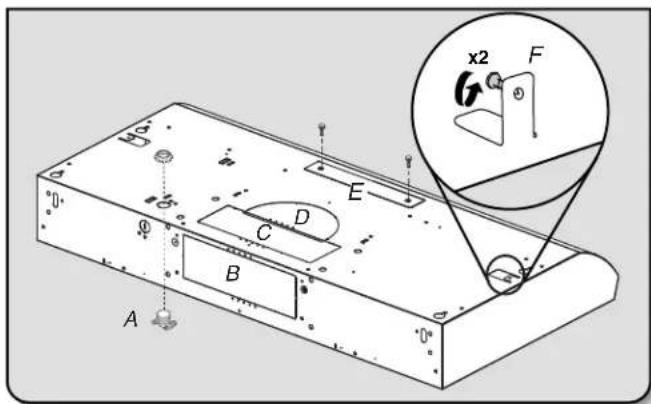

8. Prepare Range Hood Vents and

Mounting Tabs ■ Install Strain Relief Install a UL Listed/CSA Approved ¹⁄₂" (13 mm) strain relief (A). ■ Mounting Tabs Start a #8-18 x ⁵⁄₈" (4.2 x 16 mm) truss-head screw into the mounting tab (F) on each side of the range hood as shown in the inset. Insert the screws approximately 2 turns into the mounting tab holes. ■ Non-vent (Recirculating) Installations Remove the (2) T10

For wall vent installations, remove the rear rectangular vent knockout (B). ■ 7" (17.8 cm) Round Vent Installations Remove both top knockouts (C and D).

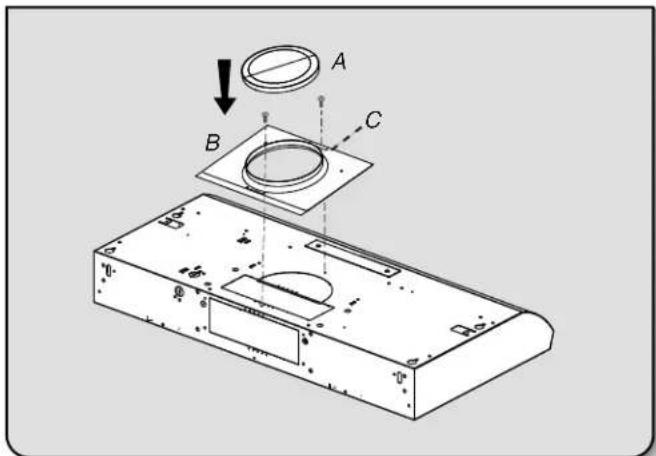

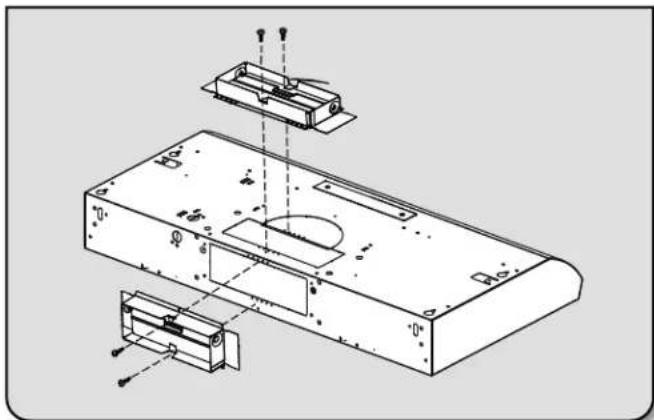

9. Attach Vent Damper or Transition

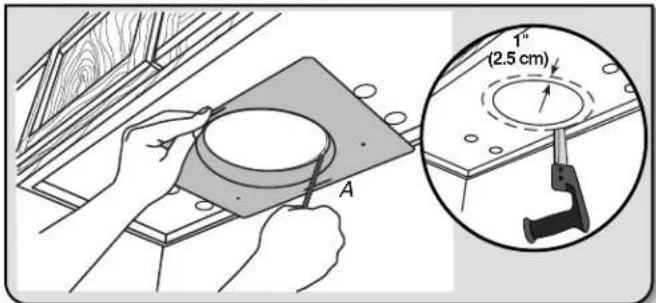

3¹⁄₄" x 10" (8.3 x 25.4 cm) Rectangular Vent Damper Using (2) short Phillips head screws, install the 3¹⁄₄" x 10" (8.3 x 25.4 cm) rectangular damper over the top or rear vent knockout removed in Step 8. NOTE: If the wall cap used has a damper and it interferes with the rectangular damper, remove the rectangular damper flap. 7" (17.8 cm) Round Vent Mounting Plate ■ Using (2) short Phillips head screws, install the 7" (17.8 cm) round vent mounting plate over the vent knockouts removed in Step 8. Position the wide flange (C) to the front. NOTE: An optional 7" (17.8 cm) round damper (A), Part Number W10355451, and a 7” (17.8 cm) round vent mounting plate (B), Part Number W10388168, are available as accessories. For information on ordering, see the “Assistance or Service” section. ■ If installing the optional round damper, position it over the round vent mounting plate.

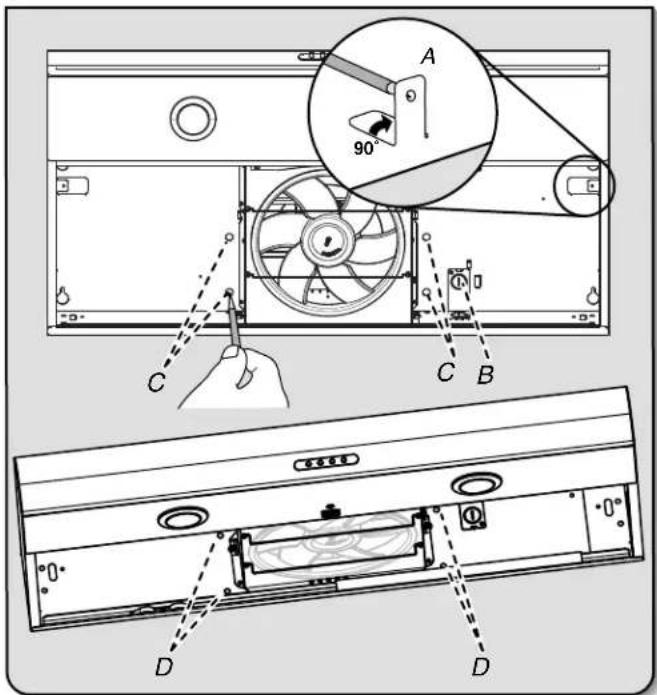

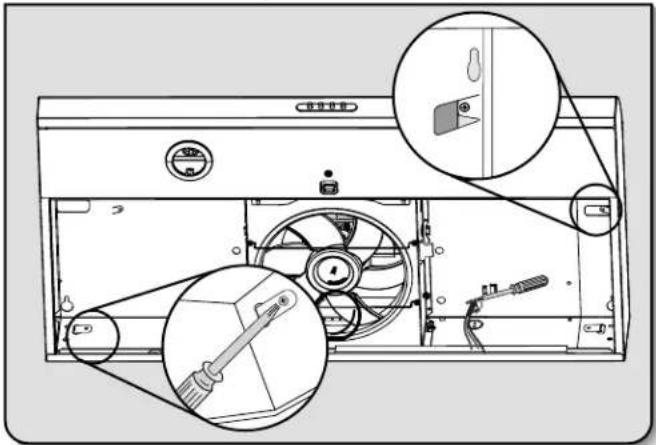

10. Mount Range Hood

■ Lift the range hood into place, positioning the rear slots over the mounting brackets. ■ Using a Phillips screwdriver, push on the screws that are started into the top mounting tabs and bend the tabs against the cabinet side walls. Attach the screws to the cabinet side walls. IMPORTANT: Do not overtighten the screws. ■ For direct wire installations, run the home power supply cable according to the National Electric Code or CSA standards and local codes and ordinances. There must be enough wiring from the fused disconnect (or circuit breaker) box to make the connection in the range hood electrical terminal box.

■ Tighten the strain relief screws.NOTE: Do not reconnect power until the installation is complete.OPTIONAL: If you prefer, bend the rear tabs against the rear of the range hood and attach to the wall using #8-18 x ⁵⁄₈" (4.2 x 16 mm) truss-head screws.

11. Connect Vent System

■ Connect the ventwork to the range hood. ■ Seal joints with vent clamps or duct tape to make secure and airtight.■ Check that the back draft dampers work properly.

12. Make Electrical Connection

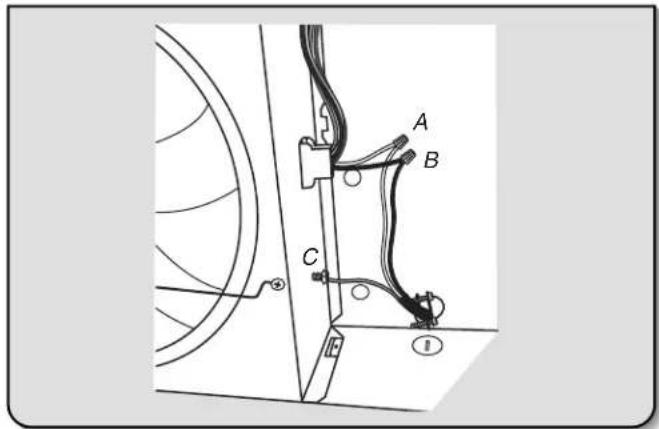

Option 1 - Direct Wire Installations ■ Use a UL Listed/CSA Approved wire connector and connect the 2 white wires (A) together.■ Use a UL Listed/CSA Approved wire connector and connect the 2 black wires (B) together.■ Connect the green (or bare) ground wire (C) from the power supply to the green ground screw in the electrical box and tighten the screw securely.Reinstall the electrical box cover.Reconnect power. Option 2 - Power Cord Kit Installations For optional power cord kit installations, follow the instructions supplied with the power cord kit. See the “Assistance or Service” section for information on ordering.NOTE: Use only with range hood cord connection kits that have been investigated and found acceptable for use with this model range hood. Complete the Installation.

13. Complete the Installation

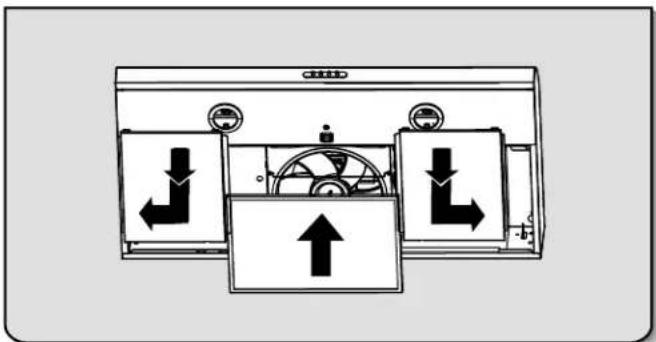

■ Replace the 2 bottom panels.- Position the panel with the small tabs toward the front of the range hood and the wide flange toward the center of the range hood. Place the back of the panel into the rear channel and push the panel toward the back of the range range hood until the tabs on the front of the panel clear the front mounting flange.- Slide the panel toward the outside edge of the range hood and push the front of the panel up until the panel tabs align with the slots in the front. Release the panel so the tabs lock the panel in place.■ Replace the filter. See the “Range Hood Care” section.- For vented installations: Install a metal filter. - For non-vented (recirculating) installations: Install a charcoal filter. Check the operation of the range hood fan and lights. See the “Range Hood Use” section.If the range hood does not operate, check to see whether a circuit breaker has tripped or a household fuse has blown. Disconnect the power and check the wiring connections. NOTE: To get the most efficient use from your new range hood, read the “Range Hood Use” section.

WARNING Fire Hazard Electrically ground the blower. Use copper wire. Connect ground wire to green ground screw in terminal box. Failure to do so can result in death, fire, or electrical shock.10

The range hood is designed to remove smoke, cooking vapors and odors from the cooktop area. For best results, start the hood before cooking and allow it to operate several minutes after the cooking is complete to clear all smoke and odors from the kitchen. Range Hood Controls Operating the light The light On/Off button controls both lights. Press once for On and again for Off. Operating the blower The blower buttons turn the blower On/Off and control the blower speed and sound level for quiet operation. The speed can be changed anytime during fan operation by pressing the desired blower speed button. Press the blower On/Off button a second time to turn the blower Off.

Cleaning IMPORTANT: Clean the hood and grease filters frequently according to the following instructions. Replace grease filter before operating hood. Exterior Surfaces: IMPORTANT: Do not use soap-filled scouring pads, abrasive cleaners, cooktop polishing creme, steel wool, gritty washcloths or paper towels. To avoid damage to the stainless steel, do not use cleaners that contain chlorine. Cleaning Method: ■ Liquid detergent or all-purpose cleaner: Rinse with clean water and dry with a soft, lint-free cloth. ■ Glass cleaner to remove fingerprints.■ For stainless steel models, use Stainless Steel Cleaner and Polish Part Number 31462A (not included): See the “Assistance or Service” section to order. ■ For stainless steel models, rub in the direction of the grain to avoid scratching or damaging the surface. Metal or Charcoal Filter To Clean the Filter:

1. Using a #2 Phillips screwdriver, remove the screw from the

2. To remove, pull the filter latch toward the front of the range

hood and pull down on the front edge of the filter.

3. For vented installations: Wash metal filter as needed in a

dishwasher or hot detergent solution. For non-vented (recirculating) installations: Replace the metal filter with a charcoal filter. The charcoal filter is not washable. It should last up to 6 months with normal use. For information on ordering, see the “Assistance or Service” section. Dispose of old charcoal filter. A. Light On/Off buttonB. Blower On/Off and minimum speed buttonC. Blower medium speed buttonD. Blower maximum speed button

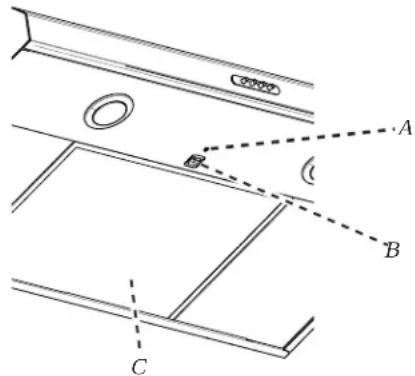

A. ScrewB. Grease filter latchC. Grease filter

C11 To Replace the Filter:1. To reinstall the filter, place the back edge of the filter into the channel at the rear of the range hood. 2. Pull the filter latch toward the front of the range hood and push the front of the filter up into place.

3. Release the filter latch. It will spring back into place to secure

the filter.4. Replace the screw in the filter retainer.Replacing a Halogen LampTurn off the range hood and allow the halogen lamp to cool. To avoid damage or decreasing the life of the new lamp, do not touch the lamp with bare fingers. Replace the lamp, using tissue or wearing cotton gloves to handle the lamp.If new lights do not operate, make sure the lamps are inserted correctly before calling service.1. Disconnect power.

2. Use a flat-blade screwdriver and gently pry the light cover

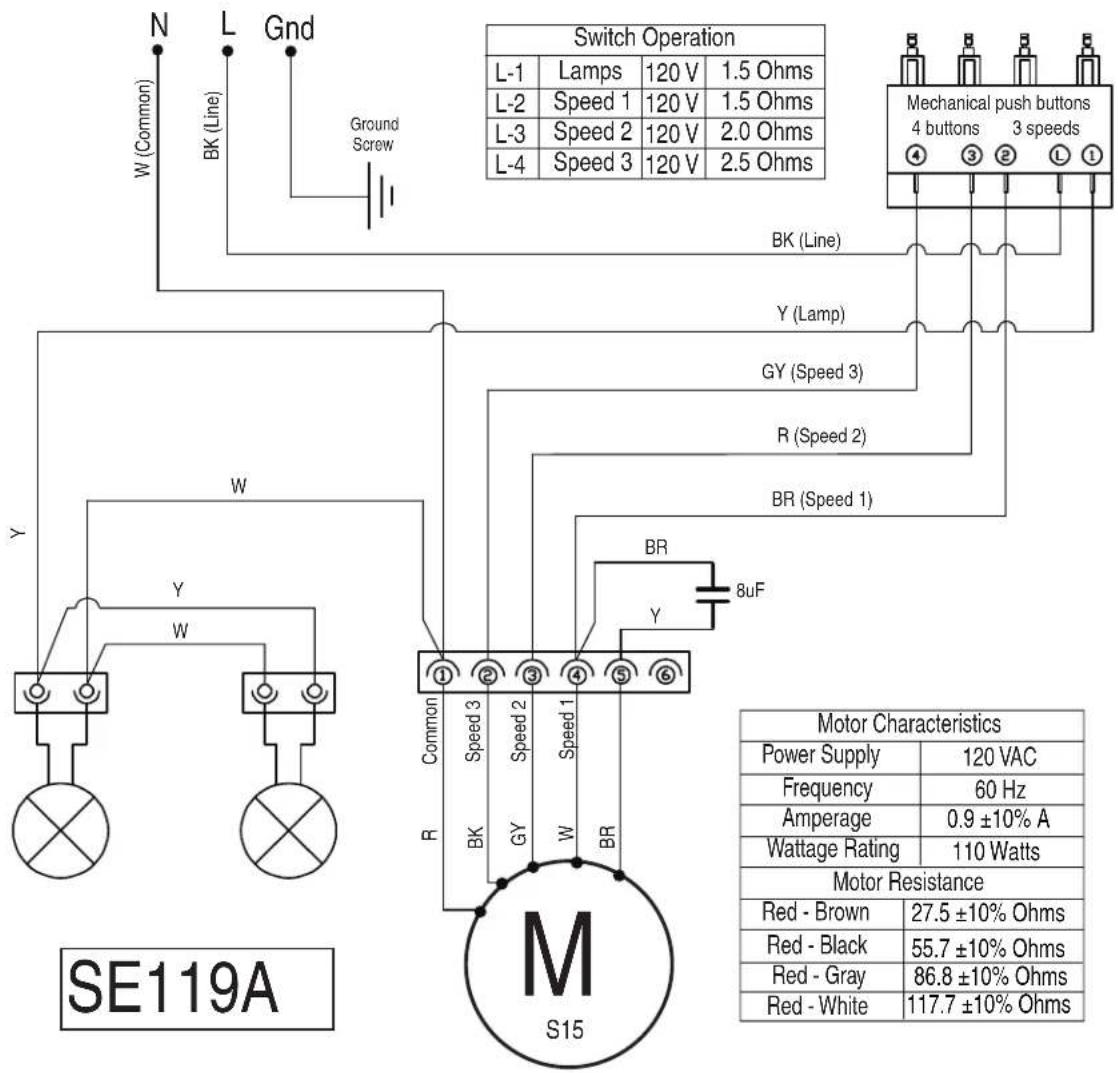

loose.3. Remove the lamp and replace it with a 120-volt, 40-watt maximum, halogen lamp made for a G-9 base.4. Replace the light cover.5. Reconnect power. WIRING DIAGRAM SE119A Gnd GroundScrew

W (Common) BK (Line) BK (Line) Y (Lamp) GY (Speed 3) R (Speed 2) BR (Speed 1) Mechanical push buttons 4 buttons 3 speeds

When calling for assistance or service, please know the purchase date and the complete model and serial number of your appliance. This information will help us to better respond to your request. If you need replacement parts If you need to order replacement parts, we recommend that you use only factory specified parts. Factory specified parts will fit right and work right because they are made with the same precision used to build every new appliance. To locate factory specified replacement parts in your area, call us or your nearest designated service center. In the U.S.A. Call the Whirlpool Customer eXperience Center toll free: 1-800-253-1301 or visit www.whirlpool.com. Our consultants provide assistance with: ■ Features and specifications on our full line of appliances. ■ Installation information. ■ Use and maintenance procedures. ■ Accessory and repair parts sales. ■ Specialized customer assistance (Spanish speaking, hearing impaired, limited vision, etc.). ■ Referrals to local dealers, repair parts distributors and service companies. Whirlpool designated service technicians are trained to fulfill the product warranty and provide after- warranty service, anywhere in the United States. To locate the Whirlpool designated service company in your area, you can also look in your telephone directory Yellow Pages. For further assistance If you need further assistance, you can write to Whirlpool Corporation with any questions or concerns at: Whirlpool Brand Home Appliances Customer eXperience Center 553 Benson Road Benton Harbor, MI 49022-2692 Please include a daytime phone number in your correspondence. In Canada Call the Whirlpool Canada LP Customer eXperience Centre toll free: 1-800-807-6777 or visit our webpage www.whirlpool.ca. Our consultants provide assistance with: ■ Features and specifications on our full line of appliances. ■ Use and maintenance procedures. ■ Accessory and repair parts sales. ■ Referrals to local dealers, repair parts distributors, and service companies. Whirlpool Canada LP designated service technicians are trained to fulfill the product warranty and provide after-warranty service, anywhere in Canada. For further assistance If you need further assistance, you can write to Whirlpool Canada LP with any questions or concerns at: Customer eXperience Centre Whirlpool Canada LP

200 - 6750 Century Ave.

Mississauga, Ontario L5N 0B7 Please include a daytime phone number in your correspondence.

WHIRLPOOL CORPORATION MAJOR APPLIANCE WARRANTY

ONE YEAR LIMITED WARRANTY

For one year from the date of purchase, when this major appliance is installed, operated and maintained according to instructions attached to or furnished with the product, Whirlpool Corporation or Whirlpool Canada LP (hereafter “Whirlpool”) will pay for Factory Specified Parts and repair labor to correct defects in materials or workmanship that existed when this major appliance was purchased or at its sole discretion replace the product. If replaced, the product will be covered by the remaining one-year limited warranty of the original unit. YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. Service must be provided by a Whirlpool designated service company. This limited warranty is valid only in the United States or Canada and applies only when the major appliance is used in the country in which it was purchased. Outside the 50 United States and Canada, this limited warranty does not apply. This limited warranty is effective from the date of original consumer purchase. Proof of original purchase date is required to obtain service under this limited warranty.

ITEMS EXCLUDED FROM WARRANTY

This limited warranty does not cover: 1. Service calls to correct the installation of your major appliance, to instruct you on how to use your major appliance, to replace or repair house fuses, or to correct house wiring or plumbing. 2. Service calls to repair or replace appliance light bulbs, air filters or water filters. Consumable parts are excluded from warranty coverage. 3. Repairs when your major appliance is used for other than normal, single-family household use or when it is used in a manner that is contrary to published user or operator instructions and/or installation instructions. 4. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation, installation not in accordance with electrical or plumbing codes, or use of consumables or cleaning products not approved by Whirlpool. 5. Cosmetic damage, including scratches, dents, chips or other damage to the finish of your major appliance, unless such damage results from defects in materials or workmanship and is reported to Whirlpool within 30 days from the date of purchase.

6. Any food loss due to refrigerator or freezer product failures.13

7. Costs associated with the removal from your home of your major appliance for repairs. This major appliance is designed to be repaired in the home and only in-home service is covered by this warranty.

8. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.

9. Expenses for travel and transportation for product service if your major appliance is located in a remote area where service by an authorized Whirlpool servicer is not available. 10. The removal and reinstallation of your major appliance if it is installed in an inaccessible location or is not installed in accordance with published installation instructions. 11. Major appliances with original model/serial numbers that have been removed, altered or cannot be easily determined. This warranty is void if the factory applied serial number has been altered or removed from your major appliance. 12. Removal or replacement of trim, decorative panels, flooring, cabinetry, islands, countertops, drywall or other built-in fixtures that interfere with servicing, removal or replacement of the product. The cost of repair or replacement under these excluded circumstances shall be borne by the customer.

DISCLAIMER OF IMPLIED WARRANTIES

IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states and provinces do not allow limitations on the duration of implied warranties of merchantability or fitness, so this limitation may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.

ASSISTANCE OU SERVICE

WHIRLPOOL CORPORATION
