SET 5600 - Manicure and pedicure set Orbegozo - Free user manual and instructions

Product type	Manicure and pedicure set
Brand	Orbegozo
Model	SET 5600
Power supply	Mains adapter 100-240 V, 50/60 Hz, output 30 V DC, 250 mA
Speeds	5 speeds with indicator lights
Rotation	Right and left selectable
Included accessories	7 accessories: flat sapphire cone, sapphire cone, small sapphire cutter, small cylindrical sapphire burr, felt cone, fine sapphire disc, thick sapphire disc
Lighting	Integrated LED
Approximate dimensions	20 x 15 x 5 cm
Approximate weight	0.5 kg
Use	Domestic use only
Maintenance	Unplug before cleaning; clean body with a damp cloth, accessories with alcohol
Safety	Do not use in bath or shower; do not immerse; supervision for children under 8 years
Spare parts / Repairability	Contact after-sales service at [e-mail]
Storage accessory	Pouch included
Warranty	Compliant with European directives (2014/35/EU, 2014/30/EU)

Frequently Asked Questions - SET 5600 Orbegozo

How to turn on the device?

Turn the ON/OFF switch from position 0 (off) to position R (right) or L (left) to start.

How to adjust the speed?

Use the + and - buttons to increase or decrease the speed among the 5 available levels.

Which accessories to use for calluses?

The flat sapphire cone or the sapphire cone are suitable for removing calluses and hard skin.

How to clean the device?

Unplug it, clean the body with a damp cloth and the accessories with a cloth soaked in alcohol. Dry thoroughly.

Can I use the device in the bath?

No, never use the device in a bath or under the shower to avoid any electrical risk.

How to change an accessory?

Turn off the device, then remove the accessory by pulling it. Insert the new accessory by pressing firmly.

What to do if the device overheats?

Turn it off and let it cool down. Avoid blocking the shaft for a long time to prevent overheating.

Is the device suitable for children?

Children over 8 years old can use it under supervision. Younger children should not play with it.

My nails are thick, which accessory should I choose?

Use the thick sapphire disc to file thick nails, carefully.

Where to find spare parts?

Contact after-sales service at [e-mail] for any parts requests.

USER MANUAL SET 5600 Orbegozo

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

When using an electrical appliance, basic safety precautions should always be observed, including the following:

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.
2. Children should be supervised to ensure that they do not play with the appliance.
3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.
4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
5. If the supply cord is damaged it must be repaired by the Authorized Service Agent.
6. Never pull on the cord when unplugging.
7. Do not use the unit with a damaged cord or plug, or if it is not working properly.
8. Do not handle the appliance with wet hands.

9. Never immerse the appliance in water or any other liquid. 10. Make sure the appliance has been unplugged before cleaning.

10. This appliance must be installed following the national regulations for electrical installations.

11. This appliance is for household use only.
12. In case that you need a copy of the instruction manual, you can ask for it writing an email to [e-mail]

13. WARNING: In case of misuse, there is a risk of possible injury.

14. During its use can generate great heat on the skin.

15. Monitor results repeatedly during use.
16. Do not use the appliance for a long time without interruption, thus avoiding overheating.
17. Only use the accessory parts supplied.
18. Never use the appliance while taking a bath or during the shower.

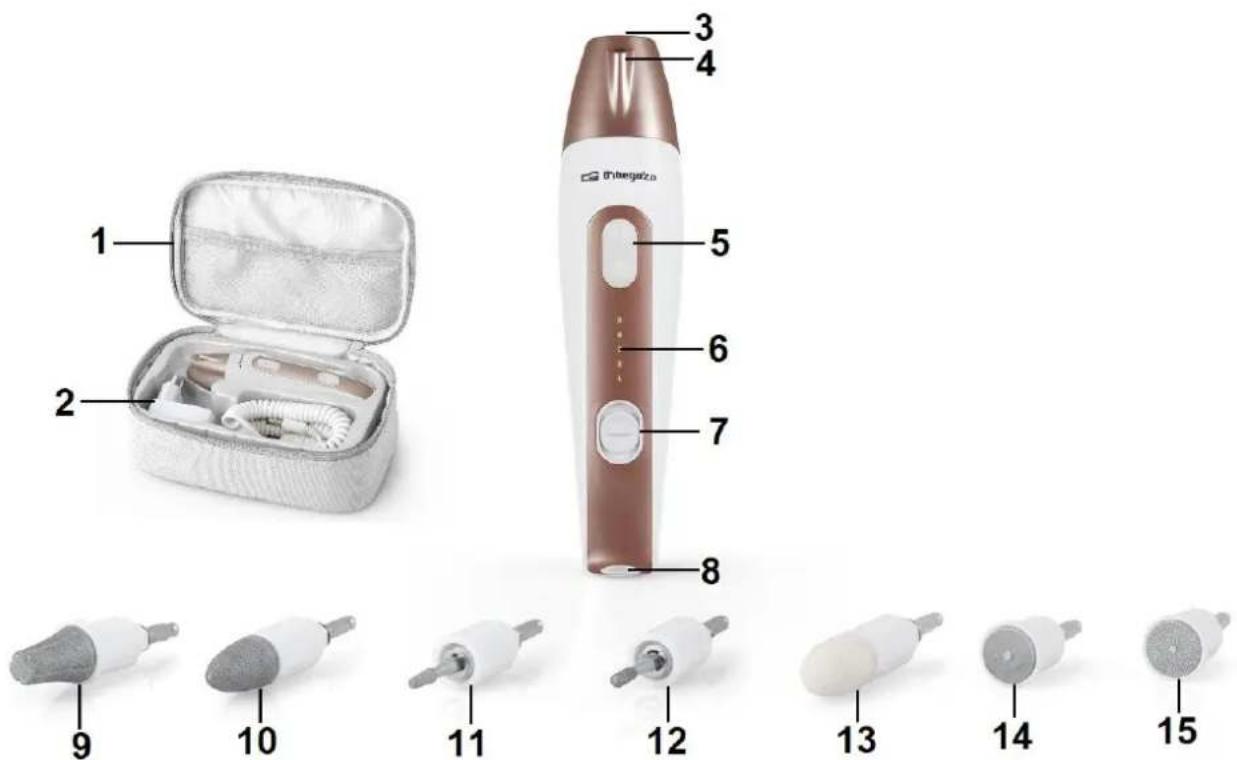

DESCRIPTION

1. Pouch.

2. Adapter.

3. Accessory support.

4. LED light.

5. Speed button +/-

6. Speed indicator lights.
7. Ignition switch (3 positions: off, left turn and right turn).
8. Connection of the adapter.

9. Flat sapphire cone.

10. Sapphire cone.

11. Small filing sapphire cutter.
12. Cylindrical small sapphire cutter.
13. Felt cone.
14. Fine sapphire disc.
15. Thick sapphire disc.

TECHNICAL DATA

Model: SET 5600

Voltage: 100-240V

Frecuence: 50/60Hz

Output voltage: 30V DC250mA

5 speeds with indicator lights.

INDICATIONS ON THE APPLIANCE

This manicure and pedicure set is provided with high quality accessories. This is supplied with 7 accessories provided with a sapphire coating (except felt cone). Thanks to its different speeds and adjustable rotation to the right or left, this device allows a professional pedicure and manicure.

In order to always offer sufficient power for an effective manicure and pedicure treatment, this apparatus is provided with a fixed source of power by the electric power network.

UTILIZATION

• Make sure that the appliance switch is in 0 position before connecting it.
• Connect the adapter to the appliance, then connect the adapter to the plug.
• Choose the accessory which you want, depending that you desire.
• Put the accessory on the upper support and push firmly.
• Turn on the device by moving the ignition switch from position 0 (off) to position R (clockwise rotation) or L (rotation to the left).
  The speed of rotation can be changed with the speed button by pressing " - " to lower it and "+" to raise it.
• To remove accessory, simply pull it out. Do not remove the accessory while the appliance is operating.
• All filing and polishing accessories are coated with a sapphire grain. This granulation guarantees a long useful life since its wear is almost nil.
• It is recommend not to exert excessive pressure and always approach the accessories with extreme care to the surface to be treated. The device must be passed over the parts to be treated with slight pressure and circular movements.
• It should be noted that the effect of the polishing of the accessories will be less if the skin is soaked or damp. Therefore, avoid using this appliance after bathing.
• Do not completely eliminate the cornea of the foot in order to preserve the natural protection of the skin.
• Be aware that the shaft can rotate freely at all times. The shaft must not be blocked for a long time as otherwise the device will overheat and could be damaged.
• After each treatment it is recommended that a moisturizing cream be applied on the treated parts.

ACCESSIONS

Flat sapphire cone, used to file and smooth the hardened surfaces of the nail and the foot; suitable for foot calluses.

Sapphire cone, used to remove dry skin, cornea or calluses on the sole of the foot and the heel and to treat the nails.

Small filing sapphire cutter, is used to loosen the ingrown toenails. For this purpose, place the cutter in the place to be treated and remove the relevant parts of the nail.

Cylindrical small sapphire cutter, it is used both for grinding and for smoothing the lignified surfaces of the toenails. For this purpose, place the cylindrical cutter parallel to the Surface of the nail and roughen the desired layers of the nail with slow circular movements.

Felt cone, is used to smooth and polish the edge of the nails after the limit as well as to clean the Surface of the nails. The polishing must always be carried out with the circular movements, and it must be avoided to leave the felt cone on the same place where the friction can produce excessive heating.

Fine sapphire disc, used for filing and treating nails, has fine sapphire granulation. The main feature of this disc is that it only rotates the disc while the support is fixed. This allows a precise limitation of the nails without danger of burning the skin with the disc.

Thick sapphire disc, used for filing and treating nails, has coarse graining of sapphire. With this accessory you can shorten your thick nails yourself by limiting them. This accessory must be used with extreme care since the discharge is very large on nail surface.

To file the nails, always start from the outer side moving towards the tip. Control the results during treatment. As soon as the application becomes unpleasant, stop using it.

CLEANING AND MAINTENANCE

• Disconnect and unplug the appliance when you clean it.
• Clean the main body with a damp cloth and dry it immediately.
• If necessary, due to hygienic reasons, it is possible to clean the accessories with a cloth with alcohol. After a cleaning, dry them carefully.
• Do not immerse the appliance into the water.
• When you do not use the appliance store it in its pouch.

Disposal of old electrical appliances.

The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and

recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY: This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.
