BCT 3950 - Barbecue Orbegozo - Free user manual and instructions

Product type	Electric barbecue
Brand	Orbegozo
Model	BCT 3950
Power supply	230 V ~ 50 Hz
Power	2200 W
Water tank capacity	1.2 to 2.4 L
Upper grid material	Non-stick aluminum
Temperature control	Heating indicator, setting 0/MAX
Adjustable grid height	3 levels
Usage	Indoors only, on a flat and heat-resistant surface
Safety	Do not use without water; do not use charcoal; hot surface (caution symbol)
Cleaning	Do not immerse control unit; grid, lid, tray washable with hot water
Recommended preheating	5 to 10 minutes
Weight	Not specified
Dimensions	Not specified

Frequently Asked Questions - BCT 3950 Orbegozo

How to assemble the Orbegozo BCT 3950 barbecue?

Insert the control unit with the heating element into the base by aligning the rods. Place the tray then the upper grid without touching the element. Fill the water tank (1.2-2.4 L) and plug in.

How much water should I put in the tank?

Between 1.2 and 2.4 liters of water. The level must always be between minimum and maximum. Never operate without water.

Can I use charcoal in this barbecue?

No, this barbecue is electric. Never use charcoal or other fuel. Fire hazard.

How to adjust the temperature?

Turn the knob from 0 to MAX. The indicator lights up when the element heats and turns off when the temperature is reached. It lights up again if the temperature drops.

Can I leave the barbecue unattended while cooking?

No, always supervise. Beware of oil splashes and do not cover the appliance while in operation.

How to clean the barbecue?

Unplug and allow to cool. The control unit must never be immersed. Clean the grid, lid, and tray with hot water. Dry before reconnecting.

Why does my barbecue emit smoke or odor during first use?

This is normal. The heating elements burn off manufacturing residues. Let it heat empty for 10 minutes in a ventilated area.

What to do if the heating element does not heat?

Check that the control unit is properly inserted and that the water tank is filled. Make sure the cord is plugged in and the knob is not set to 0.

Can I use frozen foods?

Yes, but they must be completely thawed before placing them on the grid.

How to store the barbecue after use?

Allow to cool completely, empty the water, clean and dry. Store indoors, away from moisture.

USER MANUAL BCT 3950 Orbegozo

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

Please read these operating instructions through carefully before connecting your device to the mains, in order to avoid damage due to incorrect use. please pay particular attention to the safety information. if you pass the device on to a third party, these operating instructions must also be handed over

SAFEGUARDS

General Safety Instructions:

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.

2. Children should be supervised to ensure that they do not play with the appliance.

3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.
4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
5. If the supply cord is damaged it must be repaired by the Authorized Service Agent.
6. Never pull on the cord when unplugging.
7. Do not use the unit with a damaged cord or plug, or if it is not working properly.
8. Do not handle the appliance with wet hands.
9. Never immerse the appliance in water or any other liquid.
10. Make sure the appliance has been unplugged before cleaning.
11. This appliance must be installed following the national regulations for electrical installations.

12. This appliance is for household use only.

13. In case that you need a copy of the instruction manual, you can ask for it writing an email to [e-mail]

14. WARNING: In case of misuse, there is a risk of possible injury.

Special safety instructions:

1. WARNING: Charcoal or similar combustible fuels must not be used.
2. Do not operate the device connected to an external timer or a separate remote control system.
3. Never use the barbecue without water. Watch the water level is always above the minimum and below the maximum.
4. The unit just can be used only in household.
5. While operating, the unit must stand on a solid, heat-resistant surface and at a distance of minimum 30~cm from the nearest wall cord and other inflammable objects.
6. Caution! The unit becomes very hot! It must be allowed to cool completely before touching its surface.
7. WARNING: Charcoal or similar combustible

fuels must not be used with this appliance.

1. Do not store the unit in open air.
2. The unit could emit a light smell and smoke on its first use.
3. RISK OF BURNING! Exercise caution while handling hot oils or greases. Watch out for oil sprays and vapors.
4. See that the unit does not shift during the grilling session.

ATTENTION: do not cover the appliance when it is operating to avoid the risk of fires.

ATTENTION: This symbol show: Hot surface. The temperature of the door or the outer surface may be high when the appliance is operating.

BEFORE FIRST USE

1. Remove all packing material.
2. Clean the unit as described under Cleaning and care.
3. The grill must first be assembled before using it.

OPERATION

1. Insert the control unit with heating element and power cord with power plug into the unit housing, such that the two rods are in the holes and the control unit rests on the unit housing. Ensure that the mains cable is not clamped below the control unit.
2. Set the tray on the unit housing, and then insert the grill stack. CAUTION! The grill

grating must not touch the heating element under any circumstances.

1. Fill the grill tray with 1.2 to 2.4 liters of water.
2. Connect the mains plug to a suitable socket. only the appropriate connector must be used
3. Heating up the unit for about 5-10 minutes before beginning the grilling progress. Set the desired temperature by means of the control unit 0/MAX. The check lamp light up; the heating element heats up simultaneously. As soon as the set temperature is attained, the check lamp goes off. If the heating rods cool down too much, the check lamp lights again to indicate that the heating element is being heated again.
4. Now you can put the materials to be grilled on the grill grating. Deep frozen grilling material needs to be thawed completely before grilling.
5. To grill the material uniformly, it should be turned often while grilling. The duration of grilling depends on the stuff to be grilled.
6. To switch off the grill, rotate the rotary control 0/MAX to 0 and pull the plug out from the socket.
7. You may pull out the grill stack, the grill grating, the control unit only after the unit has cooled down completely.
8. The door or the outer surface may get hot when the appliance is operating.

NOTE

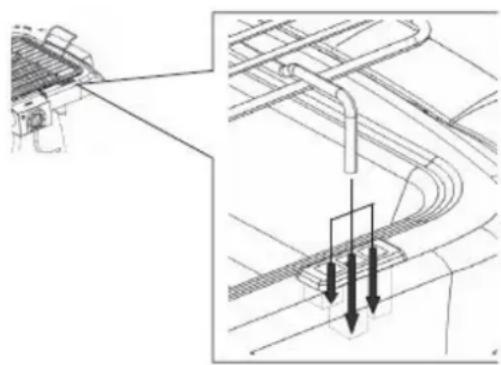

The grill grating can be set at three different levels. The higher the grill grating, the lower the grilling temperature.

CLEANING AND CARE

1. In addition to this, you must observe the safety information.
2. Allow the unit to cool down completely and then pull out the power plug, before cleaning the unit.
3. To take the heating element out.
4. The control unit must never be dipped in any fluid. for cleaning the outside, use a lightly damp cloth.
5. You can clean the grill stack, wind protection, grill grating, the collecting tray hot water.
6. Let the unit dry completely, before connecting it to the mains again.
7. Do not use sharp or abrasive cleaning material.

TECHNICAL SPECIFICATIONS

Model	Voltage	Power
BCT 3950	230 V ~ 50 Hz	2200 W

Disposal of old electrical appliances.

The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation,

that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY: This device complies with the requirements of the Low Voltage Directive 2006/95/EC and the requirements of the EMC directive 2004/108/EC.
