Brand	SilverCrest
Model	SWWS 240 C1
Product type	Hair removal wax heater
Usage	Legs, underarms, bikini area hair removal
Power supply	220-240 V ~ 50 Hz, 20 W
Reservoir capacity	Approx. 530 ml
Autonomy	Automatic shut-off after 60 minutes
Protection class	II (double insulation)
Package contents	1 wax heater, 18 wax discs, 1 spatula, instruction manual
Inner tub material	Metal (not precisely specified)
Heating temperature	Not specified (approx. 25-30 min for 6 discs)
Cleaning	With baby oil or cooking oil, do not immerse
Safety	Do not use near water, on irritated skin, or in case of medical contraindications
Spare parts	Wax discs (18 pieces) available via after-sales service
Warranty	3 years
Country of origin	Imported by Kompernass Handels GmbH (Germany)
Reusable	Remaining wax can be melted and reused

Frequently Asked Questions - SWWS 240 C1 SILVERCREST

How to use the SWWS 240 C1 wax heater?

Place the device on a flat, heat-resistant surface. Insert wax discs into the inner tub (max 6 at a time). Close the lid, plug in the device, and wait for the wax to melt (approx. 25-30 min for 6 discs). Apply wax with the spatula in the direction of hair growth, wait 30-60 seconds for it to dry, then quickly remove against the direction of growth.

How many wax discs are needed for each area?

For each lower leg: about 2 discs. For armpits: 1 disc. For the bikini area: 1 disc. For the whole body (legs, armpits, bikini): about 6 discs in total.

How to clean the device after use?

First unplug the device. Let it cool down. Use a cloth soaked in baby oil (or olive oil) to wipe the spatula and the edge of the device. Clean the lid rails to remove wax residue. Never immerse the device in water.

What to do if the wax cools too quickly?

If the wax hardens before application, you can reheat it. Keep the device on and stir the wax. If necessary, add additional discs. The wax should be fluid for even application.

Can I use the device on sensitive skin?

First do a patch test on a discreet area. Do not use the device on irritated, burned, or eczematous skin, or if you have diabetes, heart conditions, etc. Consult a doctor if in doubt.

How to remove wax residue from the skin?

Use baby oil, olive oil, or another cooking oil. Apply to the skin and massage gently to dissolve the wax. Then wash with warm water and soap.

Does the device turn off automatically?

Yes, the device turns off automatically after 60 minutes. A light flashes after 55 minutes to warn you. However, it is recommended to unplug the device after use.

Can I use the device in the bathroom?

No, the device must not be used near water (bathtubs, showers, sinks). There is a risk of electric shock. Use only in dry rooms.

What to do if the lid doesn't open after storage?

Cold wax residue can block the lid. Plug in the device and heat for about 10 minutes with the lid closed. The wax will soften and the lid can be opened by turning gently.

Where to order replacement wax discs?

You can order wax discs (reference SWWS 240 C1) via SilverCrest after-sales service (hotline or website www.kompernass.com). Have your IAN number ready.

USER MANUAL SWWS 240 C1 SILVERCREST

PDF ONLINE www.lidl-service.com

White ceramic mortar with a wooden pestle pouring liquid into it, labeled 'SilverChest' (no other text or symbols visible)

WARMWACHS-SET / HOT WAX KIT CHAUFFE-CIRE ET ACCESSOIRES SWWS 240 C1

DE AT CH

WARMWACHS-SET

Bedienungsanleitung

FR BE

CHAUFFE-CIRE ET ACCESSOIRES

Mode d'emploi

PL

ZESTAW DO DEPILACJI CIEPŁYM WOSKIEM

Instrukcja obstugi

SK

PRÍSTROJ NA OHRIEVANIE DEPILAČNÉHO VOSKU

Návod na obsluhu

GB IE

HOT WAX KIT

Operating instructions

NL BE

WARME WAX-SET

Gebruiksaanwijzing

CZ

ELEKTRICKÁ DEPILAČNÍ SADA

Návod k obsluze

IAN 339566_1910

Icon set with a lowercase 'i' and a folded document or folder, accompanied by a rotation arrow.

DE AT CH

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

Two 3D-rendered objects: a curved, elongated object labeled '8' and a smooth circular object labeled '9', both without any text or symbols.

Inhaltsverzeichnis

Einführung 2

Illustration of a hand pointing at stacked books (no text or symbols visible)

Simple line drawing of a trash bin with crossed lines indicating no waste or restriction (no text or symbols)

Gray circular object with smooth surface and no visible text or symbols

SWWS240C1

HINWEIS

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DEUTSCHLAND

www.kompernass.com

Contents

Introduction 26
Intended use 26
Package contents 26
Appliance description 27
Technical details 27
Safety information 28
Before first use ....33
Automatic switch-off....33
Preparing the appliance .... 3 3
Epilation 35
Legs 36
Armpits 37
Bikini zone 38
After epilation 39
Cleaning 39
Storage 41
Disposal 42
Ordering spare parts 43
Kompernass Handels GmbH warranty ..... 4 4
Service 46
Importer 46

Introduction

Congratulations on the purchase of your new appliance.

Illustration of a hand interacting with stacked books (no text or symbols visible)

You have selected a high-quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the range of applications specified. Keep these operating instructions as a reference and store them near the product. Please also pass these operating instructions on to any future owner.

Intended use

This appliance has been designed exclusively for the epilation of legs, armpits and the bikini zone on the human body. This appliance is intended solely for use in private households. Do not use it for commercial purposes.

Package contents

Hot Wax Kit

18 wax discs

Spatula

Operating instructions

Appliance description

① Inner bowl
2 Control lamp
③ Power plug
4 Socket
⑤ Groove (for locking the lid)
6 Tray (for the spatula)
7 Lid
8 Spatula
⑨ Wax disc

Technical details

Voltage	220 - 240 V ~ (AC),50 Hz
Power consumption 20 W
Capacity approx. 530 ml
Protection class	II / □ (Double insulation)

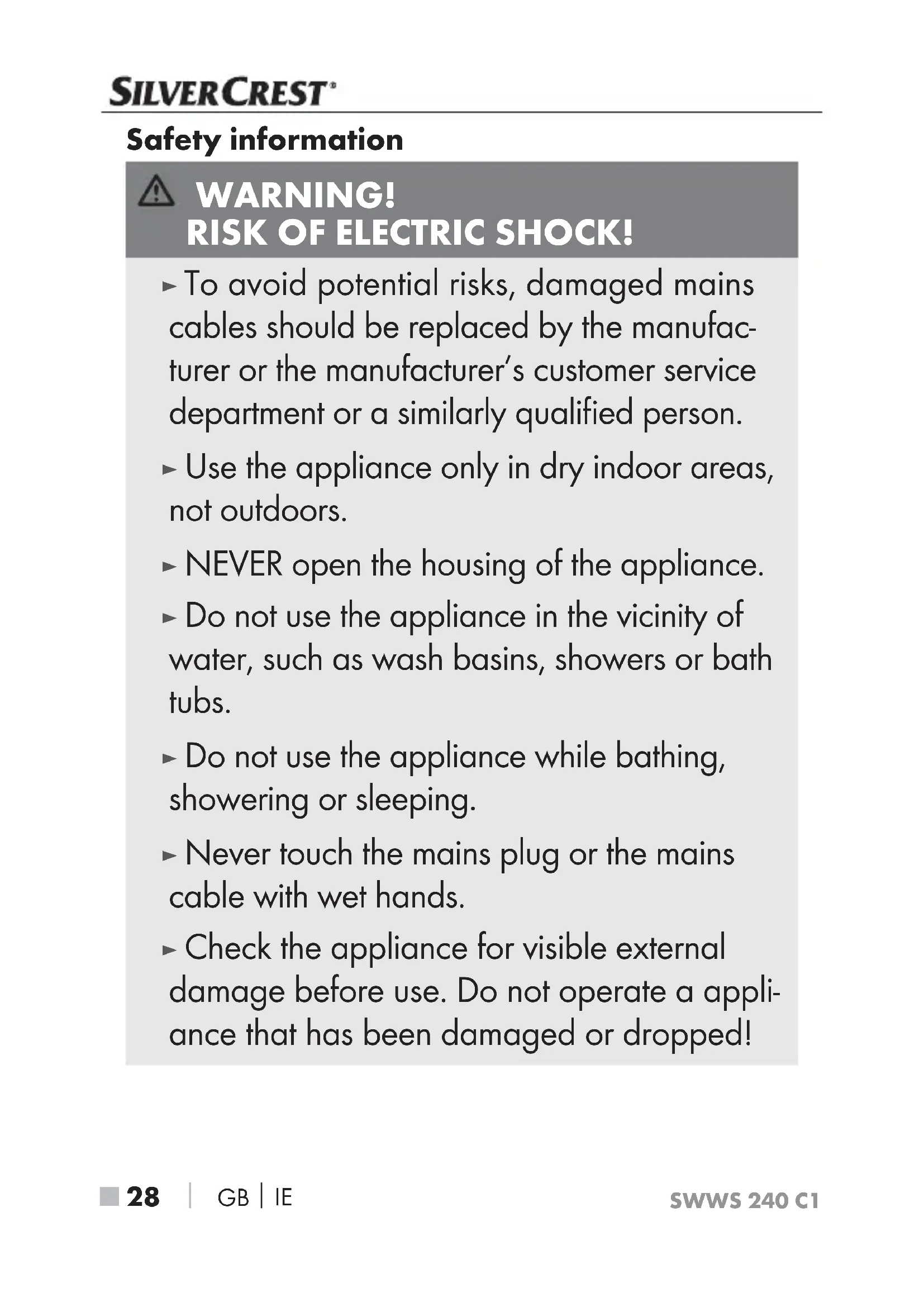

Safety information

WARNING! RISK OF ELECTRIC SHOCK!

To avoid potential risks, damaged mains cables should be replaced by the manufacturer or the manufacturer's customer service department or a similarly qualified person.
▶ Use the appliance only in dry indoor areas, not outdoors.
▶ NEVER open the housing of the appliance.
▶ Do not use the appliance in the vicinity of water, such as wash basins, showers or bath tubs.
▶ Do not use the appliance while bathing, showering or sleeping.
▶ Never touch the mains plug or the mains cable with wet hands.
▶ Check the appliance for visible external damage before use. Do not operate a appliance that has been damaged or dropped!

WARNING! RISK OF ELECTRIC SHOCK!

Do not use this appliance near a bath tub, shower or any other container filled with water.

- Do not allow any liquid to run over the appliance's plug connections.

WARNING! RISK OF INJURY!

This appliance may be used by children aged 8 years and above and by persons with limited physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been told how to use the appliance safely and are aware of the potential risks.

▶ Do not allow children to play with the appliance.

WARNING! RISK OF INJURY!

▶ Cleaning and user maintenance tasks may not be carried out by children unless they are aged 8 or older and are supervised.
The appliance and its connecting cable must be kept away from children younger than 8 years old.
▶ People who are insensitive to heat may not use this appliance.
▶ If you are unsure whether you can safely use the appliance due to pre-existing conditions, consult a doctor before use.
▶ After use, the surfaces of the heating elements will still have some residual heat.
There is a risk of injury if the appliance is misused. Use the appliance only as described in the instructions!

WARNING! RISK OF INJURY!

▶ Do not use the appliance beneath blankets or towels.
If possible, set up the appliance close to a power socket. Ensure that the power plug is quickly reachable in case of danger, and that the cable poses no risk of tripping.
▶ Provide a stable location for the appliance.
▶ Never immerse the appliance in water or other liquids!
▶ Do not use the appliance if you have heart disease, skin redness, inflammation, swelling, sensitive areas, diabetes, open wounds, burns, eczema or psoriasis.

ATTENTION! PROPERTY DAMAGE!

▶ Never operate this appliance when it is empty (without wax).
▶ Fill the appliance with wax only. Do not add any aggressive substances or substances containing solvents!
▶ Always place the appliance on a heat-resistant, level surface.
▶ Never heat the wax in the plastic packaging.
▶ Never heat the wax in a microwave oven, over an open flame or on a stove.
- Do not use an external timer switch or a separate remote control system to operate the appliance.
▶ Never use pointed or sharp objects to remove solidified wax from the appliance.

Before first use

1) Wipe the appliance with a damp cloth both inside and outside to remove any residual dust left over from transport. Dry it well so that there is no moisture left in the appliance.
2) Place the appliance on a level and heat-resistant surface. Also keep in mind that wax splashes may drip onto the surface. The surface should therefore be easy to clean.

Automatic switch-off

After 60 minutes, the appliance will switch off automatically. After 55 minutes, the control lamp ② will start flashing to notify you that the appliance is about to switch off automatically.

The automatic switch-off is not intended as a substitute for removing the plug from the mains power after use! It is merely a safety feature! Always remove the plug from the mains power socket when the appliance is not in use!

Preparing the appliance

Once the appliance is set up on a suitable surface:

1) Remove the wax discs ⑨ from its packaging.
2) Add the required number of wax discs ⑨ to the inner bowl ①. Use the following standard values as an orientation aid. The values may vary.

Body region	Number of wax discs 9
Lower leg approx. 2 pcs. lower leg
Armpits 1 pc.
Bikini zone 1 pc.
Entire body(lower leg, armpits,bikini zone)	6 pcs.

This symbol, together with a date, on the packaging of the wax discs ⑨ indicates how long the product will last.

3) Put the lid ⑦ on the appliance by placing the plastic tab in the groove ⑤ and then turning the lid ⑦ clockwise slightly (see fold-out page):
4) Insert the plug ③ of the power cable into the socket ④ on the appliance.
5) Insert the plug into a mains power socket. The control lamp ② in the base of the appliance comes on and the appliance heats up.
6) Stir the wax occasionally while it is melting.
As soon as the wax discs ⑨ have melted (this takes about 25–30 minutes for 6 discs), you can start epilating.

NOTE

If you realise that you need more wax than you have melted, you can add additional wax discs ⑨ to the inner bowl ①. Wait until the wax has melted before you start epilating.
▶ Melt a maximum of 6 wax discs ⑨ at once.

Epilation

The skin regions that you want to epilate should be dry, clean and free of care products, oils or fats.

NOTES

Before first use, carry out a skin test to find out whether your skin reacts to the treatment. Apply a small amount of melted wax to an inconspicuous area of skin. After removing the wax, check to see whether the skin reacts in any way over the course of the next 24 hours. If you notice any skin reactions, stop using this appliance. If in any doubt, seek medical advice.
▶ If you have a tendency towards ingrowing hairs, carry out regular peelings. These can prevent the hairs from growing inwards.
▶ Always pull off the wax strips as close as possible to the skin surface.
Make sure that you don't get any wax on your clothes. Wax residue can be very difficult to remove and may discolour clothing.

Legs

Once the wax discs ⑨ are completely melted:

1) Open the lid ⑦ by turning it anticlockwise slightly and lifting it upwards.
2) Pick up a little wax using the flattened edge of the spatula ⑧. You can wipe off excess wax on the rim of the appliance.
3) Apply the wax to the skin in the direction of hair growth (from the knee towards the heel). The wax strips should have the approximate thickness of an orange peel and the area of two spatulas ⑧ laid side by side. You may have to add wax. Try to make sure that one end of the applied wax strip (the end nearer to your heel) is a little thicker as you will need to be able to grip this end for removal.
4) After application, you can place the spatula ⑧ into the tray ⑥ on the edge of the appliance so that the spatula ⑧ projects over the inner bowl ①.
5) Wait about 30 - 60 seconds until the wax is dry.
6) Pull the skin taut with one hand. Grip the wax strip by the thicker end and pull it off with a rapid movement against the direction of hair growth (from your ankle towards your knee).
Repeat the process for the remaining areas of skin.
7) When you are finished with the treatment, pull the plug from the mains power socket to turn off the appliance. The control lamp ② goes out.

Armpits

Once the wax disc ⑨ is completely melted:

1) Open the lid ⑦ by turning it anticlockwise slightly and lifting it upwards.

NOTE

As armpit hairs tend to grow in different directions, they need to be removed in at least two steps.

2) Raise your elbow upwards and hold it out behind you. This tightens the skin in the armpit.

3) Pick up a little wax using the flattened edge of the spatula ⑧. You can wipe off excess wax on the rim of the appliance.

4) Apply this immediately from the middle of the armpit upwards in the direction of the elbow. The wax strips should be roughly the thickness of orange peel. Try to make sure that one end of the applied wax strip (the end nearer to your elbow) is a little thicker as you will need to be able to grip this end for removal.

5) After application, you can place the spatula ⑧ into the tray ⑥ on the edge of the appliance so that the spatula ⑧ projects over the inner bowl ①.

6) Wait about 30-60 seconds until the wax is dry.

7) Grip the wax strip by the thicker end (the end nearer to your elbow) and pull it off downwards with a rapid movement against the direction of hair growth.

8) To depilate the lower part of the armpit, apply the wax from the middle of the armpit towards the bottom.

9) Wait about 30-60 seconds until the wax is dry.

10) Grip the wax strip at the lower end and pull it off upwards with a rapid movement against the direction of hair growth.
11) When you are finished with the treatment, pull the plug from the mains power socket to turn off the appliance. The control lamp ② goes out.

Bikini zone

Once the wax disc ⑨ is completely melted:

1) Open the lid ⑦ by turning it anticlockwise slightly and lifting it upwards.
2) Pick up a little wax using the flattened edge of the spatula ⑧. You can wipe off excess wax on the rim of the appliance.
3) After application, you can place the spatula ⑧ into the tray ⑥ on the edge of the appliance so that the spatula ⑧ projects over the inner bowl ①.

NOTE

▶ When epilating the bikini zone, treat only small areas at once. The skin is very sensitive.

4) Tighten the skin with one hand and apply the wax in the direction of hair growth (towards your inner thigh).
5) Wait about 30 - 60 seconds until the wax is dry.
6) Grip the wax strip by the thicker end (the end nearer to your inner thigh) and pull it off downwards with a rapid movement against the direction of hair growth.

Repeat the process for the remaining areas of skin.

7) When you are finished with the treatment, pull the plug from the mains power socket to turn off the appliance. The control lamp ② goes out.

After epilation

■ Clean the spatula ⑧ (see section "Cleaning").

■ You can remove small quantities of residual wax from your skin using baby oil. If you do not have any baby oil, you can also use olive oil or some other edible oil.

■ You skin may be slightly reddened after epilation. This is normal. Run cold water over affected areas. This soothes the skin. If your skin does not recover and/or you experience a burning sensation, contact a doctor.

Cleaning

WARNING! RISK OF ELECTRIC SHOCK!

Before cleaning the appliance, disconnect the power plug from the mains power socket!
▶ NEVER immerse the appliance in water or other liquids!

WARNING! RISK OF INJURY!

▶ Allow the appliance to cool down before cleaning it.

ATTENTION! PROPERTY DAMAGE!

▶ Never use pointed or sharp objects to remove solidified wax from the appliance!
▶ Do not use any chemical, abrasive or aggressive cleaning agents to clean the appliance!

NOTE

You do not need to clean the inner bowl ① and remove the wax residues after every use. The wax remaining in the appliance can be melted and reused for the next application!
To reorder wax discs ⑨, contact our Customer Service (see section "Ordering spare parts").

Scrape the surplus wax off the spatula ⑧ on the inside of the rim of the appliance immediately after use.

Wipe the spatula ⑧ as well as the rim of the appliance immediately after use with a cloth moistened with a little baby oil. This will allow you to remove any still-soft wax residue. Preferably use an old cloth as wax residue is extremely difficult to remove from textiles. If you do not have any baby oil in the house, you can also use olive oil or some other edible oil for cleaning. Make sure that no wax residue remains in the grooves ⑤ for locking the lid ⑦! Wipe the spatula ⑧ and the rim afterwards with a paper cloth to remove any remaining oil.

If there is any wax left on the outside of the appliance, proceed as follows:

—Ensure that the appliance is unplugged but still warm.
— Wipe the surface with a cloth moistened with a little oil.
- Make sure that no wax residue remains in the grooves ⑤ for locking the lid ⑦!
—Remove any oil residue with a clean paper towel.

Storage

NOTE

You do not need to clean the inner bowl ① and remove the wax residues after every use. The wax remaining in the appliance can be melted and reused for the next application!

Once the appliance and the spatula ⑧ have been cleaned as described in the "Cleaning" section:

• Lay the spatula ⑧ in the tray ⑥ on the edge of the appliance so that the spatula ⑧ protrudes over the inner bowl ①.
  — Put the lid ⑦ on.
  — Store the cooled-down appliance in a clean, dry location.

NOTE

If you are unable to remove/turn the lid ⑦ when you remove it from storage, there is probably solidified wax between the lid ⑦ and the appliance. In this case, heat up the appliance for about 10 minutes (depending on the amount of wax) with the lid ⑦ closed. The wax will soften and the lid ⑦ can now be removed.

Disposal

You can dispose of used wax in the normal waste.

Simple line drawing of a trash bin with crossed lines indicating no waste or restriction (no text or symbols)

Never dispose of the appliance in your normal domestic waste. This product is subject to the provisions of European Directive 2012/19/EU.

Dispose of the appliance through an approved disposal centre or at your community waste facility. Please comply with all applicable regulations. Please contact your waste disposal centre if you are in any doubt.

The product is recyclable, subject to extended producer responsibility and is collected separately.

The packaging is made from environmentally friendly material and can be disposed of at your local recycling plant.

b a

Dispose of the packaging in an environmentally-friendly manner. Note the labelling on the packaging and separate the packaging material components for disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1–7: Plastics, 20–22: Paper and cardboard, 80–98: Composites

Your local community or municipal authorities can provide information on how to dispose of the worn-out product.

Ordering spare parts

You can order the following spare parts for the product SWWS 240 C1:

Gray circular object with smooth surface and no visible text or symbols

▶ Wax discs (18 pc.)

Order the spare parts via the Service Hotline (see section „Service“) or simply visit our website at www.kompernass.com.

With this QR code you can go directly to our website and order the available spare parts:

SWWS240C1

HINWEIS

▶ Have the IAN number of the appliance ready (can be found on the cover of these operating instructions) when you place your order.

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase.

If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion). This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile parts which could be considered as consumable parts such as switches, batteries or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

■ Please have the till receipt and the item number (e.g. IAN 12345) available as proof of purchase.

■ You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

■ You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

PDF ONLINE www.fdi-service.com

You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com.

This QR code will take you directly to the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN) 123456.

Service

Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

IAN 339566_1910

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21 • 44867 BOCHUM

GERMANY

www.kompernass.com

Table des matières

Introduction 48

Illustration of a hand interacting with stacked books (no text or symbols visible)

Simple line drawing of a trash bin with two crossed lines indicating no waste or restriction (no text or symbols)

SWWS240C1

REMARQUE

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALLEMAGNE

www.kompernass.com

Inhoud

Illustration of a hand interacting with stacked books (no text or symbols visible)

WAARSCHUWING! LETSELGEVAAR!

WAARSCHUWING! LETSELGEVAAR!

WAARSCHUWING! LETSELGEVAAR!

WAARSCHUWING! LETSELGEVAAR!

Simple line drawing of a trash bin with two crossed lines indicating no waste or restriction (no text or symbols)

Plain gray circular object with smooth surface and no visible text or markings

SWWS240C1

OPMERKING

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DUITSLAND

www.kompernass.com

Spis treści

Wstep 98

Illustration of a hand interacting with stacked books (no text or symbols visible)

Simple line drawing of a trash bin with two crossed lines indicating no waste or restriction (no text or symbols)

Plain gray circular object with smooth surface and no visible text or markings

SWWS240C1

WSKAZÓWKA

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NIEMCY

www.kompernass.com

Obsah

Úvod....120

Illustration of a hand interacting with stacked books (no text or symbols visible)

Simple line drawing of a trash bin with two crossed lines indicating no waste or prohibition (no text or symbols)

Gray circular object with smooth surface and slight edges (no text or symbols)

▶ Voskové disky (18 ks)

SWWS240C1

UPOZORNĚNÍ

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NĚMECKO

www.kompernass.com

Obsah

Úvod....142

Illustration of a hand interacting with stacked books (no text or symbols visible)

Simple line drawing of a trash bin with no text or symbols

Gray circular object with smooth surface and no visible text or symbols

SWWS240C1

UPOZORNENIE

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NEMECKO

www.kompernass.com

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Stand der Informationen · Last Information Update · Version des informations
