USER MANUAL Forzaspira SE600 POLTI

The optional accessories are on sale at all the best domestic appliance retailers, an Authorised Polti Service Centre or online at www.polti.com

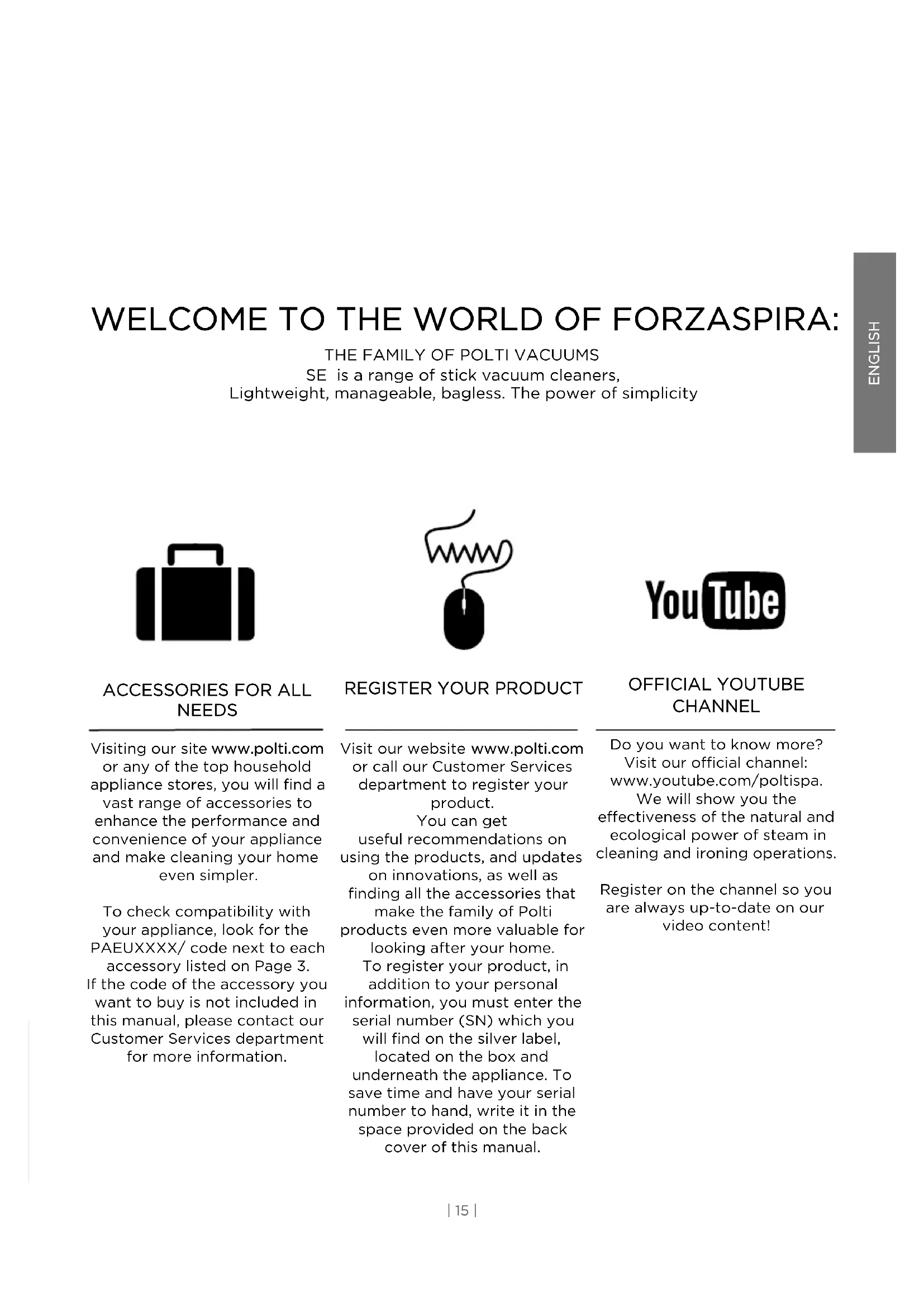

SE is a range of stick vacuum cleaners, Lightweight, manageable, bagless. The power of simplicity

NEEDS Visiting our site www.polti.com or any of the top household appliance stores, you will find a vast range of accessories to enhance the performance and convenience of your appliance and make cleaning your home even simpler. To check compatibility with your appliance, look for the PAEUXXXX/ code next to each accessory listed on Page 3. If the code of the accessory you want to buy is not included in this manual, please contact our Customer Services department for more information. OFFICIAL YOUTUBE CHANNEL Do you want to know more? Visit our official channel: www.youtube.com/poltispa. We will show you the effectiveness of the natural and ecological power of steam in cleaning and ironing operations. Register on the channel so you are always up-to-date on our video content!

REGISTER YOUR PRODUCT

Visit our website www.polti.com or call our Customer Services department to register your product. You can get useful recommendations on using the products, and updates on innovations, as well as finding all the accessories that make the family of Polti products even more valuable for looking after your home. To register your product, in addition to your personal information, you must enter the serial number (SN) which you will find on the silver label, located on the box and underneath the appliance. To save time and have your serial number to hand, write it in the space provided on the back cover of this manual.SAFETY WARNINGS

WARNINGS IN THIS MANUAL,

APPLIANCE ITSELF. Polti S.p.A. accepts no liability for any accident deriving from any improper use of this appliance. Correct use of the product is only as detailed in this instruction manual. Any use which does not comply with these instructions will invalidate the warranty.

• Never disassemble or carry out maintenance on the appliance apart from that indicated in this manual. In the event of a fault or malfunction, do not try and repair the appliance yourself. Incorrect use or a lack of respect for the instructions herein may lead to serious accidents. Always contact Authorised Service Centres.

• The appliance is not to be used if it has been dropped, if there are visible signs of damage.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Keep the appliance and the power cable out of the reach of children under 8 years of age.

• Keep all packaging out of the reach of children; it is not a toy. Keep the plastic bag out of the reach of children to avoid risk of suffocation.

• This appliance is intended exclusively for indoor domestic use.

• The appliance must not be left unattended if plugged in to ENGLISH | 16 |the mains.

• Always unplug the appliance if it is not in use and before any preparation, maintenance or cleaning operation. In order to reduce the risk of accidents, including: fires, electrocution, personal injury and scalding, both during use and during preparation, maintenance and storage, always take the fundamental precautions listed in this manual.

• The earthing system and highly sensitive residual-current circuit breaker, complete with magnetothermic cut-out for your domestic system, guarantee safe use of electrical appliances. Therefore, for your own safety, check that the electrical system to which the appliance is connected complies with current laws.

• Do not connect the appliance to the mains if the voltage does not correspond with that of the domestic electrical circuit in use.

• Do not overload the sockets with adaptors and/or transformers. Only connect the product to a single socket with current that is compatible with the supplied plug.

• Electrical extension leads that are unsuitable for the power rating or which are not compliant with law may overheat and possibly lead to short-circuiting, fire, power outage or damage to the equipment. Only use certified extensions, suitable for the power rating, that support at least 10A.

• To remove the plug from the socket, do not pull the power cable, but hold the plug itself to avoid damage to the plug and the cable.

• Fully unwind the cable from the cable winder before connecting the appliance to the mains and before use. Always use the product with the cable completely unwound.

• Do not pull or jerk the cable or expose it to stress (twisting, crushing or stretching). Keep the cable away from hot and/or sharp surfaces and elements. Avoid trapping the cables in doors and windows. Do not pull the cable tight around corners. Avoid treading on the cable. Do not pass over the ENGLISH | 17 |cable with the appliance. Do not wind the power cable around the appliance, especially if the appliance is hot. Do not place the appliance on top of the power cable, this can be dangerous.

• Do not change the plug on the power cable.

• If the power cable is damaged, it must be replaced by the manufacturer or its service agent in order to avoid all possible hazards. Do not turn on and use the product if the power cable is damaged.

• Do not touch or use the appliance barefoot and/or with wet body or feet.

• Do not use the appliance near containers full of water, e.g. sinks, baths and swimming pools.

• Do not immerse the appliance, including the power cable and plug, in water or other liquids. RISKS DURING USE OF THE PRODUCT – INJURIES/SCALDING

• The product should not be used in areas where there is a danger of explosions or in the presence of toxic substances.

• Do not vacuum liquid substances or damp dirt.

• Do not vacuum over toxic substances, acids, solvents, detergents or corrosive substances. The handling and removal of dangerous substances must be carried out according to the instructions of the manufacturers of these substances.

• Do not vacuum over explosive powders or liquids, hydrocarbons, open flames and or extremely hot objects.

• Keep all parts of your body away from the suction nozzle and from any moving or rotating parts.

• Do not use the vacuum function on people and/or animals.

• Use the special carry handle for transport. Do not pull the power cable. Do not use the power cable as a handle. Do not lift the appliance using the power cable or the vacuum tubes. Do not lift the product using the dirt collector grip.

• Re-wind the cable when the appliance is not in use.

• Do not put the product near sources of heat such as fireplaces, stoves and ovens.

• Do not obstruct the openings and grills on the product. ENGLISH

| 18 |CORRECT USE OF THE PRODUCT

This appliance is intended for internal home use as a vacuum of dry material, in accordance with the descriptions and instructions contai- ned in this manual. Please read these instruc- tions carefully and keep them. This manual is also available on the website www.polti.com. Only vacuum domestic dirt. Do not vacuum up liquids. Do not use on debris or chalk, cement or resi- dues from building sites or brick laying. Do not use on earth and sand/soil, etc. Do not use on ash, soot and combustion resi- dues (fireplaces, barbecues, etc.). Do not use on printer, photocopier or fax to- ner and ink powder. Do not vacuum pointed, sharp or stiff objects. The appliance only functions correctly with the collector inserted, and complete with all its parts. Correct use of the product is only as detailed in this instruction manual. Any other use may damage the appliance and invalidate the warranty. POLTI S.p.A. reserves the right to make the aesthetic, technical and construction changes it deems necessary, without prior notice.

INFORMATION FOR USERS

Pursuant to European Directive 2012/19/EU, regarding electric and electronic appliances, this appliance must not be disposed of with domestic waste, but must be sent to an official collection facility. This appliance complies with EU Directive 2011/65/EU. The crossed-out bin symbol on the appliance indicates that, at the end of its useful lifespan, the product must be disposed of separately from other waste. Therefore, at the end of its life, the user must hand over the appliance to an appropriate collection centre for electric and electronic waste or, according to the legislation in force in the country, leave the used appliance with the distributor when buying a new product to replace it. Proper separate waste collection to facilitate the subsequent recycling, treatment and environmentally compatible disposal of the appliance helps to prevent negative effects on the environment and human health, and promotes recycling of the materials the product is made of. Unlawful disposal by the owner may result in the application of the administrative sanctions envisaged by current legislation. IMPORTANT Forzaspira SE600 MODULAR is a practical 3- in-1 vacuum cleaner. Depending on the va- rious cleaning requirements, the electrical upright vacuum cleaner can be converted in- to a wired portable vacuum cleaner (“Porta- ble” mode) or into a portable vacuum cleaner with an extension (“Extendible” mode). Lightweight and manageable, it reaches everywhere thanks to the folding handle.

1.1 Remove the appliance from the packaging,

checking that the product is intact and that all the parts are included. - Mount the handle onto the central body (1). - Attach the brush (2). The appliance is now ready for use.

2. SUCTION POWER ADJUSTMENT

The suction power can be adjusted, depen- ding on the surface to be cleaned, by holding down the +/– adjustment button (7). This will increase or decrease the appliance’s suction power. The indicator lights on the ap- pliance’s body will indicate the selected power level. Minimum power is recommended for curtains. Medium power is recommended for carpets and upholstery. Maximum power is recommended on hard floor surfaces.

3. USING THE ELECTRIC UPRIGHT

3.1 Ensure that Section 1 has been followed.

3.2 Unwind the power cable and plug it into

3.4 Adjust the suction power as explained in

Section 2 by pressing the +/– button on the

3.5 The vacuum’s handle can be inclined to

clean under furniture and beds. Simultaneou- sly press the buttons located on the side of the electrical upright (3) to fold the handle (4).

3.6 The brush is fitted with LED lights that

turn on when the appliance is switched on – an ideal solution to find hidden dirt even mo- re effectively. ENGLISH

| 19 |4. USE IN “PORTABLE” MODE

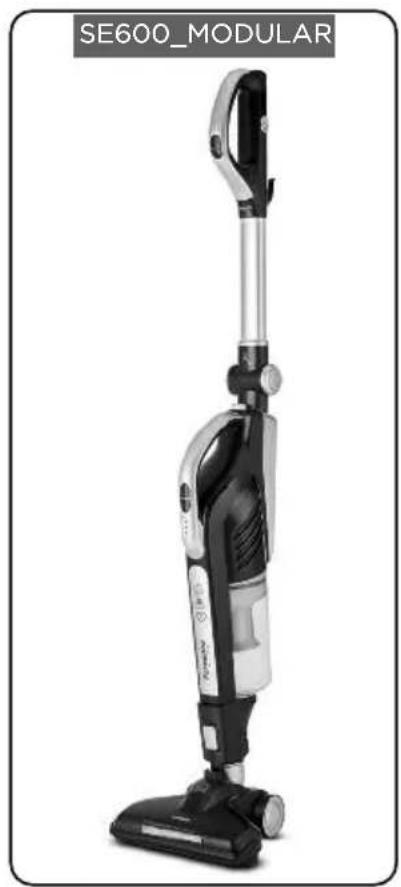

Forzaspira SE600 MODULAR can be used as a portable vacuum cleaner to deeply clean sofas, upholstery and car interiors.

4.2 Remove the brush by pressing the locking

4.3 Detach the handle tube from the central

body by pressing the button (9).

4.4 Press the power switch (6).

4.5 Adjust the suction power as explained in

Section 2 by pressing the +/– button on the

cleaning, or the 2-in-1 nozzle for fabrics and upholstery (14).

5. USE IN “EXTENDIBLE” MODE”

Forzaspira SE600 MODULAR can be used as a portable vacuum cleaner with an extension to reach the most difficult points, such as the ceiling or shelves.

5.1 Remove the brush by pressing the locking

5.2 Detach the handle tube from the central

body by pressing the button (9) on the hand- le then open the upper cap (10).

5.3 Move the handle cursor (11) to take out the

5.4 Attach the handle tube (12) to the nozzle

of the central body.

5.5 Attach the lance accessory for precision

cleaning, or the 2-in-1 nozzle for fabrics and upholstery (13).

5.6 Plug the power cable in to an appropriate

5.8 Adjust the suction power as explained in

Section 2 by pressing the +/– button on the

UNIVERSAL BRUSH The universal brush is the ideal accessory for cleaning all types of floors, carpets and wall- to-wall carpets. It is equipped with LED lights that turn on when the appliance is switched on an ideal solution to find hidden dirt even more effectively. PARQUET BRUSH The parquet brush is designed to clean deli- cate surfaces and therefore has bristles and wheels in material specially selected to avoid damaging such surfaces. LANCE The lance is recommended for thorough va- cuum cleaning of hard-to-reach spots such as skirting boards and folds in sofas, armchairs, upholstered furniture and car upholstery.

2-IN-1 SUCTION NOZZLE WITH REMOVABLE

BRUSH The 2-in-1 nozzle is recommended for clea- ning upholstered surfaces such as the joints of sofas, armchairs, mattresses, car uphol- stery, etc. The bristle frame can be inserted by sliding the frame guides onto the base of the nozzle to clean drawers, bookcases and furniture (15). Complete the above in reverse order to remove it.

7.1 Switch the appliance off by pressing the

power switch . Disconnect the power sup- ply cable from the mains.

7.2 Detach the dust collector by pressing the

relevant release button (16).

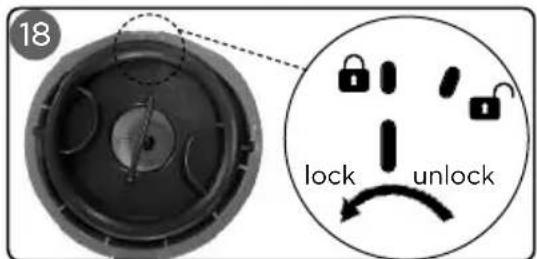

7.3 Turn it anti-clockwise to unlock it then re-

move the tank filter, aligning the filter mark with the mark on the filter unit (UNLOCK) (18)

7.4 Remove the filter unit.

7.5 Empty the dust collector. If it is very dirty,

rinse it under running water.

7.6 Remove the HEPA filter from the filter unit

7.7 Eliminate any excess dust and dirt from

7.8 Wash the filter unit under running water

to remove all the residual dirt then dry it.

7.9 Wash the HEPA filter regularly under run-

ning water (do not use detergents). Leave it to dry for 24 hours, away from direct sources of heat.

7.10 After cleaning the HEPA filter, put it back

into the filter unit by aligning the filter mark with the mark on the filter unit (LOCK) (18), inside the dust collector (19).

7.11 Attach the dust collector to the vacuum

cleaner (17). With the universal brush attaached, the upright remains in the vertical position. Dry the dust collector before reattaching it. ENGLISH | 20 |8. GENERAL MAINTENANCE Ensure that the appliance is switched off and disconnected from the mains. To clean the outside of the appliance, use only a damp cloth and tap water. Do not use detergents of any type.

9.1 Turn off the appliance and disconnect it

from the mains electricity.

9.2 Reassemble the product in the upright va-

9.3 Wind the power cable around the special

WARNING: Check that all the components

of the dust collector are dry before reassembling them.

WARNING: Check the condition of the filters

during cleaning. Replace the filters when visibly damaged.

WARNING: Do not clean the filters with the

brush as this may damage them and reduce their filtering capacity. Do not use detergents nor rub the filter and avoid washing it in the washing machine. Do not reattach the filter if it is still damp. We recommend cleaning the container after each use. ENGLISH | 21 |10. TROUBLESHOOTING

PROBLEM CAUSE SOLUTION

The vacuum cleaner does not turn on. No power. Power switch off. Check that the vacuum cleaner is connected to the mains electricity. Turn the power switch on. The LED lights of the uni- versal brush do not turn on. No power. Power switch off. Check that the vacuum cleaner is connected to the mains electricity. Turn the power switch on. The vacuum cleaner has little or no suction. Dust collector overfull. Suction power adjusted to the minimum. Empty the dust collector. Increase the suction power to the desired level. During suction, dust co- mes out of the appliance. Dust collector not inser- ted correctly. Dust collector overfull. Insert the dust collector properly. Empty the dust collector. The dust collector does not detach. Filter wrongly inserted. Insert the filter correctly. Should the problems persist, contact an Authorised Polti Service Centre (see www.polti.com for the up-to-date list) or Customer Services. ENGLISH | 22 |WARRANTY This appliance is for domestic use only and is guaranteed for two years from the date of purchase against any defects present at the time the goods are handed over; the date of purchase must be proven via a proof of purchase document valid for tax purposes and issued by the seller. For repairs, the appliance must be accompanied by proof of purchase. This warranty does not affect the consumer rights deriving from European Directive 99/44/EC as regards some aspects of sale and warranty of consumer goods, rights which the consumer should uphold against the seller. This warranty is valid in the countries which adhere to European Directive 99/44/EC. For other countries, local regulations on warranties apply.

WHAT THE WARRANTY COVERS

During the warranty period, Polti guarantees free repair of a product with a manufacturing or factory defect and, therefore, the customer is not liable to pay for any work or materials. In case of irreparable defects, Polti may replace the product free of charge. To avail of the warranty, the customer should visit one of the Polti Authorised Service Centres or contact Customer Services with proof of purchase from the seller valid for tax purposes and bearing the date of purchase of the product. Without proof of purchase and the relative date of purchase, the work will be charged for. Store the proof of purchase document safely for the whole duration of the warranty period.

WHAT THE WARRANTY DOES NOT COVER

• Any fault or damage not deriving from a manufacturing defect.

• Any fault due to improper use or use other than that indicated in the instruction booklet, an integral part of the product sales contract.

• Any defect resulting from force majeure (fires, short circuits) or caused by third parties (tampering).

• Damage caused by the use of non-original Polti parts, and repairs or modifications performed by staff or service centres not authorised by Polti.

• Damage caused by the customer.

• Parts (filter, brush, hose, battery, etc.) damaged by use (consumable goods) or normal wear and tear.

• Any damage caused by limescale.

• Defects resulting from lack of maintenance/cleaning according to the manufacturer’s instructions.

• Assembly of non-original Polti accessories or those that have been modified or which are not suitable for the appliance. Inappropriate use and/or use not compliant with the instructions for use and any other warnings or indications contained in this manual invalidates the warranty. Polti takes no responsibility for any direct or indirect damage to people, objects or animals caused by non-compliance with the instructions indicated in this instruction booklet, regarding warnings for use and product maintenance. To see the up-to-date list of the Polti Authorised Service Centres, visit the website www.polti.com. ENGLISH | 23 |ENGLISH | 24 |FRANÇAIS | 25 |
