BV 5035 - Blender Orbegozo - Free user manual and instructions

Product Type	Blender
Brand	Orbegozo
Model	BV 5035
Bowl Material	Plastic
Bowl Capacity	1.5 L (estimated)
Power	600 W (estimated)
Power Supply	220-240 V ~ 50/60 Hz
Number of Speeds	2 speeds (1, 2) + pulse function (P)
Pulse Function	Yes, controlled rotation
Safety	Safety device prevents start-up if bowl is not properly placed
Max Continuous Operation Time	3 minutes, then 10 minute break
Cleaning	Hand washing recommended. Do not put in dishwasher. Wipe base with a damp cloth
Included Accessories	Measuring cup, lid with filling cap
Usage	Fruits, vegetables, sauces, smoothies. Do not blend hot liquids or over-sized solid foods
Warranty	Legal warranty according to current legislation. Keep the receipt

Frequently Asked Questions - BV 5035 Orbegozo

How to use the Orbegozo BV 5035 blender?

Assemble the bowl onto the motor base by turning until it clicks. Add food cut into small cubes, place the lid, plug in and select the speed. Do not exceed the max level and do not blend hot liquids. Max use 3 continuous minutes.

What speeds are available?

The blender has two continuous speeds (1 and 2) and a pulse function (P) for controlled operation. Turn the knob clockwise for continuous speeds, press P for pulse.

How to clean the BV 5035 blender?

Unplug the appliance. Remove the bowl and lid. Wash them with warm soapy water, rinse and dry. For deep cleaning, blend water with a few drops of dish soap for 2 minutes on high speed. Wipe the base with a damp cloth. Never put parts in the dishwasher.

What to do if the blender does not start?

Check that the bowl is correctly placed on the base and locked (you should hear a click). The safety device prevents start-up if the bowl is not properly locked. Also ensure the cord is plugged in and the outlet works.

Can I blend hot or boiling liquids?

No, never use hot or boiling liquids. Let hot foods cool down before putting them in the blender. Boiling liquids could damage the appliance or cause burns.

How long can I use the blender continuously?

The maximum continuous operation time is 3 minutes. After that, the appliance must be turned off and cooled down for at least 10 minutes before further use.

How to assemble the bowl onto the motor?

Place the bowl on the motor base aligning the handle to the right. Turn the bowl clockwise until you hear a click. This safety lock ensures the bowl is properly fixed. Do not operate the appliance if the bowl is not correctly locked.

Can I wash the parts in the dishwasher?

No, do not wash the bowl, lid, blades or seal in the dishwasher. They must be hand washed with warm soapy water. The motor base must never be immersed in water.

What to do if the blades are damaged?

Regularly check the condition of the blades. If they are broken, cracked or loose, do not use the appliance. Contact Orbegozo technical service or an authorized dealer for spare parts.

Where to find after-sales service for the BV 5035?

For any assistance, visit the Orbegozo website at https://orbegozo.com/asistencia-tecnica/ or contact them via the contact form. Keep your receipt to validate the warranty.

USER MANUAL BV 5035 Orbegozo

Two modern kitchen blender models, one with clear glass and the other with a black handle, shown side by side (no visible text or symbols on the devices themselves)

BV 5035 BV 5040

Sonifer, S.A.

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

BV 5035

BV 5040

CONOZCA SU BATIDORA

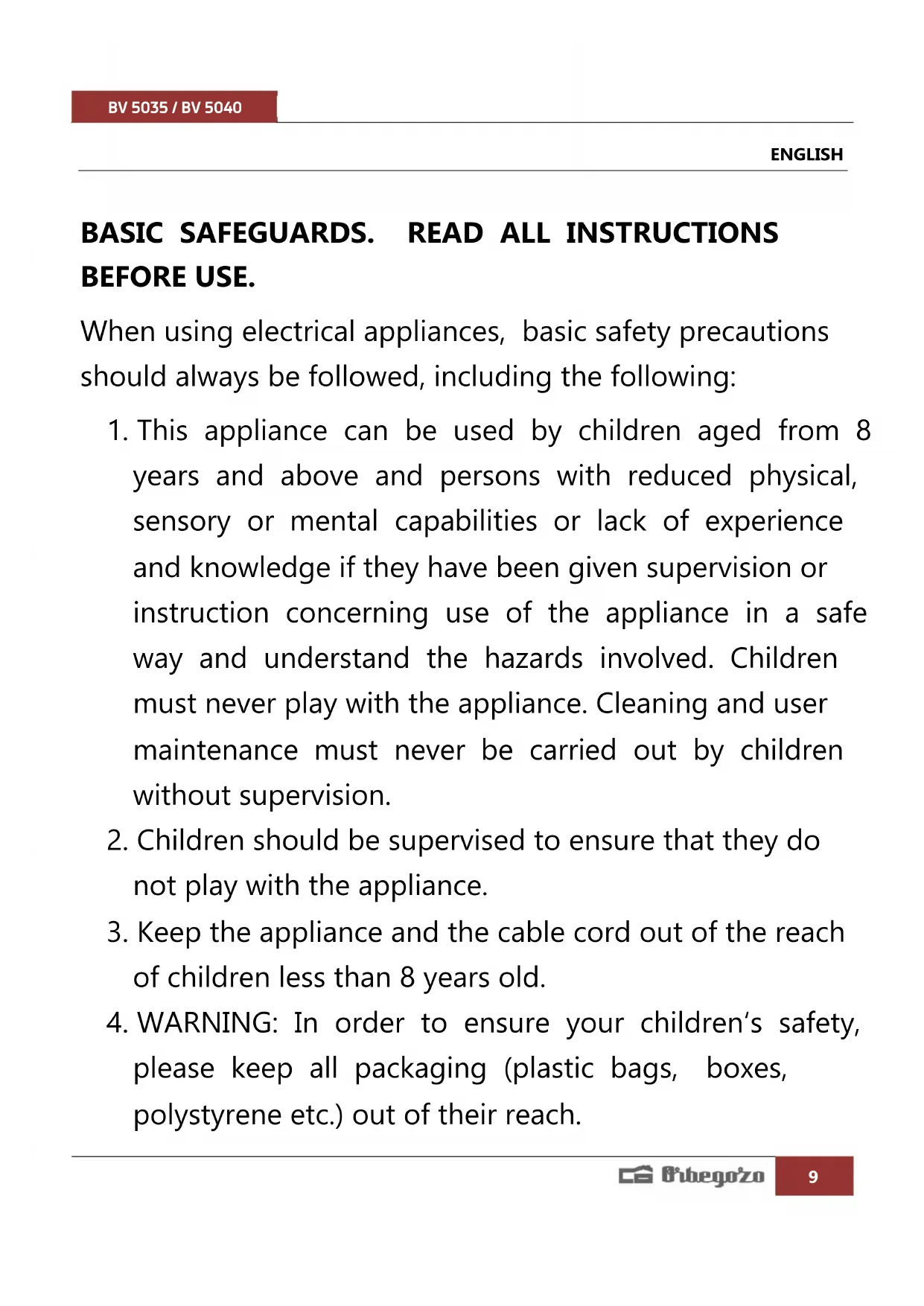

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.
2. Children should be supervised to ensure that they do not play with the appliance.
3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.

4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

5. If the supply cord is damaged it must be repaired by the Authorized Service Agent.

6. Never pull on the cord when unplugging.
7. Do not use the unit with a damaged cord or plug, or if it is not working properly.
8. Do not handle the appliance with wet hands.
9. Never immerse the appliance in water or any other liquid.
10. Make sure the appliance has been unplugged before cleaning.
11. This appliance must be installed following the national regulations for electrical installations.
12. This appliance is for household use only.
13. In case that you need a copy of the instruction manual, you can find it in www.orbegozo.com

IMPORTANT SAFEGURADS:

• The appliance is at risk for injury in the event of misuse. Care should be taken when handling the cutting blades when the glass is empty and during cleaning.
• Always disconnect the power if left unattended and before assembling, disassembling or cleaning.

• Always use the blender on a flat, level work surface.
- Never insert metal utensils, such as knives or forks, into the inside of the jug while the appliance is operating.
- The use of accessories not supplied by the manufacturer may cause accidents.

- Never try to fit or remove the jug on the blender while the appliance is still running.

- Unplug the appliance before attempting to change any accessory or accessing any part of the liquidizer that might move during operation.

- Do not open the lid on the blender until the motor has stopped.

BV 5035

BV 5040

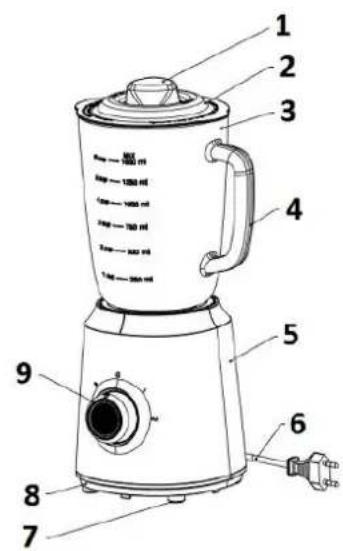

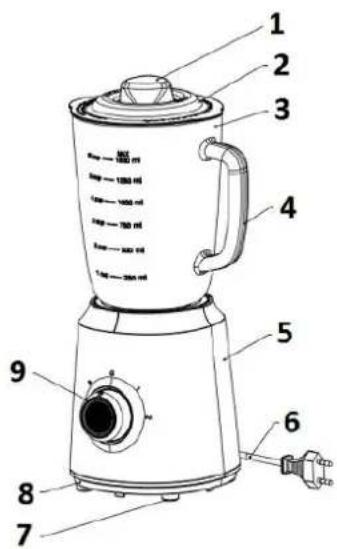

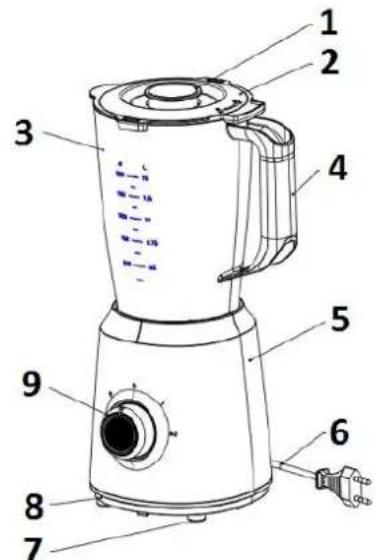

KNOW YOUR BLENDER

1. Measuring cup
2. Jar cover
3. Jug (BV 5035 plastic / BV 5040 glass)
4. Handle
5. Motor unit
6. Cable
7. Feet
8. Base
9. Knob

HOW TO USE BLENDER

After unpacking the blender, wash everything except the blender base in hot, soapy water. Try thoroughly. Do not place in dishwasher. Wipe the blender base with a damp cloth or sponge. Do not immerse the base in water. Care should be taken when handing the blades, as they are very sharp.

How to assemble and use

Important: Your blender jar and cutting blades are subject to wear during normal use. Always inspect cutting blades for broken, cracked or loose blades. If jar-cutting blades are damaged, do not use.

1. Make sure blender is unplugged. Place blender base on clean, dry surface.

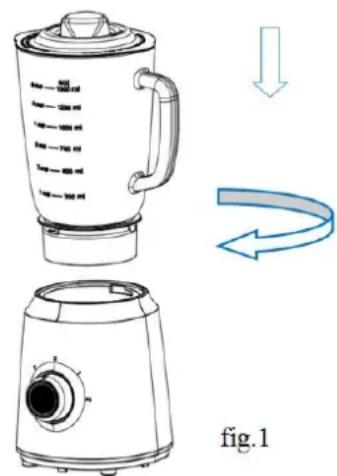

2. Place the jar on the motor unit. To do this, fit the jug with the body leaving the handle to the right and turning it until it gets locked. This blender is fitted with a safety device that stops the motor from starting if the jar is not positioned correctly.
   The blade assembly must be screwed into the jar firmly. If not, it may loosen when the motor is turned on.
3. Peeled or cored the fruit or vegetables and then cut it into small dices, put the food piece into the jar. Usually certain amount of purified water has to be add to facilitate the smooth running of appliance. The amount of mixture should not exceed the max

level as indicated on the jar. Process food or beverages. Place hand on lid when blending liquids.

Note: never use boiling liquid or run the appliance empty.

1. Replace the jar cover on the jar.
2. You may add ingredient into the jar through the center opening of jar cover during operation, then close the measuring cup if necessary. Note: the measuring cup can only be opened by pressing the end with the mark of push, but never remove out.
3. Connect the plug to wall outlet and set speed control to your desired setting. You can turn the speed control to the P position if want to accelerate the process of blending. The detailed

information of speed control. The motor can work continuously for 3 minutes. After that it have to be off for 10 minutes.

1. Turn the speed control to 0 position once the mixture has been blended to your desired consistency.
2. Remove the jar from the motor unit, carefully take down the jar covert, then pour and serve.
3. If you have to stir in food that us tuck to the sides of the jug, then switch the appliance off first. The blades may continue to rotate for a moment longer. Keep spoons or spatulas a good distance away from the blades to avoid accidents. Always turn blender OFF and wait until blades have stopped rotating before removing jar.
4. Never place jar onto unit while motor is running.

Speed

Speeds are 1, 2 and P. P is a controlled cycle operation. This means it operates only while the button is held down. All other speeds are continuous cycle operate continuously at whatever speed is selected until turn the knob to the right.

For continuous operation

Rest one hand on top the blender jar with lid securely in place. Rotate knob to desire speed setting to turn blender on.

For controlled cycle operation

Rest one hand on top of blender jar with lid securely in place. Press P button and hold down for about 2 seconds. Release button and allow blades to coast to a stop. Repeat cycles until ingredients reach desired consistency. Release of the P button turns blender off. Note: P button can be held longer than 2 seconds as needed.

HINTS FOR BEST USE

• To add foods when blender is operating, remove filler-cap from jar cover and add ingredients through the opening.
• If using your blender to make salsa or other recipes using tomatoes, onions and/or other vegetables, you may have better results using a slower speed function.
• If blending action stops during blending or ingredients stick to the sides of the jar, turn blender OFF. Remove the cover and use a rubber spatula to push mixture towards blades.
• Do not store food or liquids in the blender jar.
• Avoid bumping or dropping the blender.
• Do not use the blender to store food.
• Do not use the blender to bear egg whites as it will not incorporate air.
• Do not use the blender to mash potatoes.
• Do not use the blender to knead dough or other heavy mixtures.
• Do not place large pieces of solid of frozen foods into the blender jug. Always break pieces before blending.

- Do not process boiling liquids or hot ingredients. Allow hot ingredients to cool before placing them into the blender jug.

•

HOW TO CLEAN THE BLENDER

1. Unplug the blender from electrical outlet.
2. Remove the jar from the blender base. Remove the lid, add a cup of cleaning solution made by adding a few drops of dishwashing detergent to 1 cup of cool water to the jar. Scrub and flush out the interior of jar and the lid to dislodge and remove as much residue as possible. Empty the jar.
3. Add more cleaning solution, put lid on jar, place in on motor base, and run on high speed for two minutes.
4. Empty the jar and repeat as above using clean rinse water in place of cleaning solution. Empty, rinse and dry prior to storing unit.
5. Wipe blender base, control panel and cord with a damp cloth or sponge. To remove stubborn spots, use a mild, non-abrasive cleaner.
6. Carefully wash the gasket, jar and cover in hot soapy water.
7. In order to clean the blades, turn clockwise the device placed at the bottom of the jar in order to disassemble them. Rinse and dry thoroughly. Do not wash blades, gasket, plastic jar or cover in dishwasher.

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be

separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.

GUARANTEE

This appliance is covered and is entitled to the legal guarantee in accordance with the legislation in force from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the closest service to your location, contact through the following web link: https://orbegozo.com/asistencia-tecnica/

For any type of query, doubt or incident, you can contact us through our email shown on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/

Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. Check the legal conditions on our website.

MESURES DE SÉCURITÉ IMPORTANTES

BV 5035

BV 5040

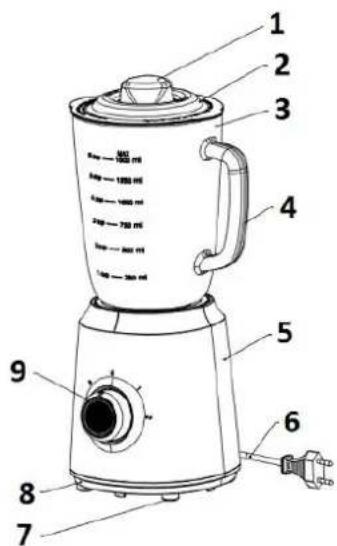

DESCRIPTION DE VOTRE MIXEUR

BV 5035

BV 5040

BV 5035

BV 5040

CONEGUI LA SEVA BATEDORA
