USER MANUAL 48228542 MILWAUKEE

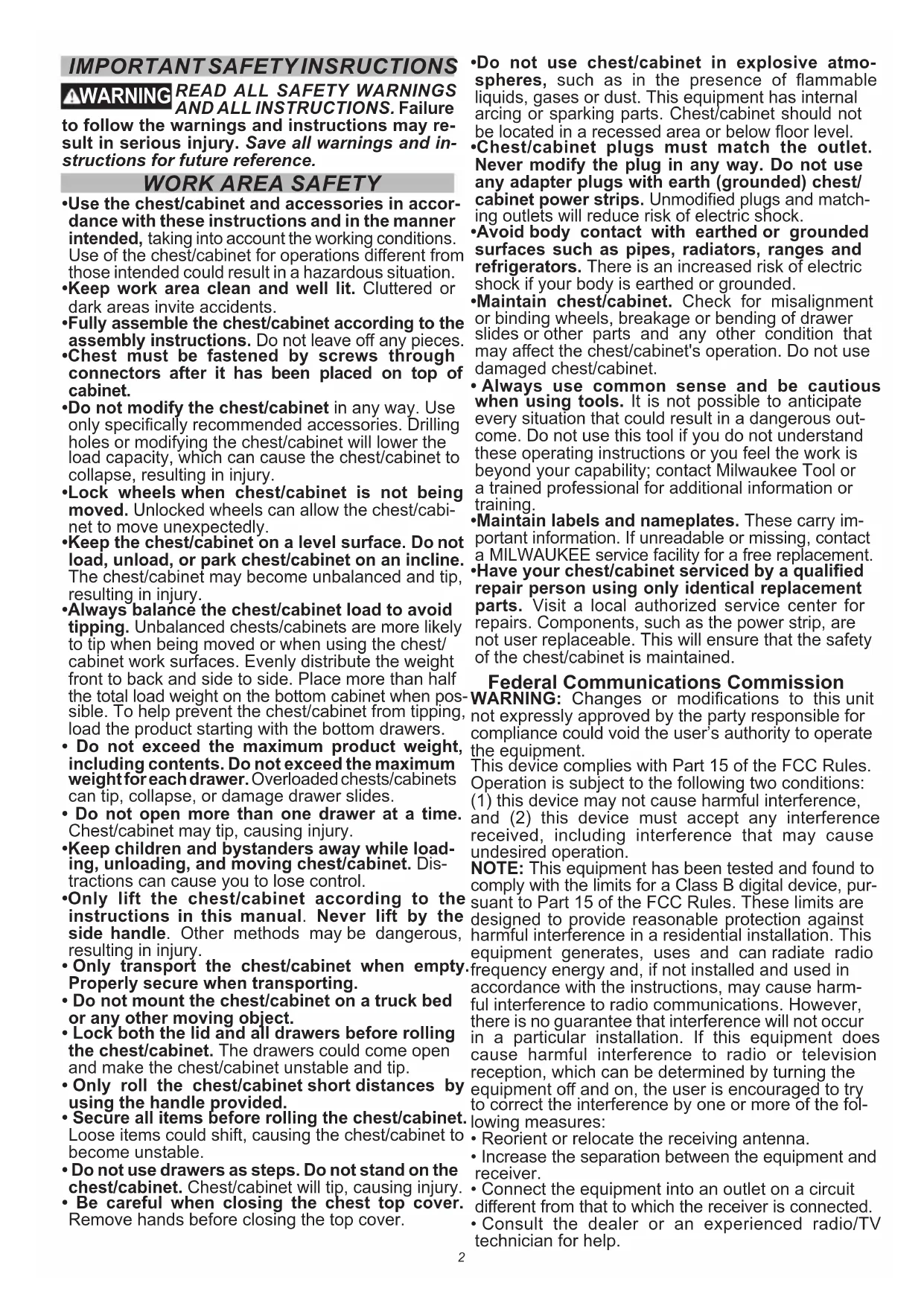

AND ALL INSTRUCTIONS. Failure to follow the warnings and instructions may re- sult in serious injury. Save all warnings and in- structions for future reference.

• Use the chest/cabinet and accessories in accor- dance with these instructions and in the manner intended, taking into account the working conditions. Use of the chest/cabinet for operations di󰀨erent from those intended could result in a hazardous situation.

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.

• Fully assemble the chest/cabinet according to the assembly instructions. Do not leave o󰀨 any pieces.

• Chest must be fastened by screws through connectors after it has been placed on top of cabinet.

• Do not modify the chest/cabinet in any way. Use only specically recommended accessories. Drilling holes or modifying the chest/cabinet will lower the load capacity, which can cause the chest/cabinet to collapse, resulting in injury.

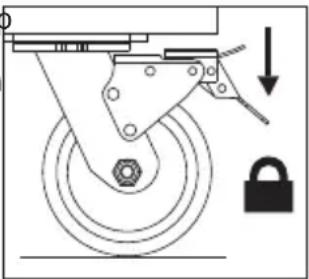

• Lock wheels when chest/cabinet is not being moved. Unlocked wheels can allow the chest/cabi- net to move unexpectedly.

• Keep the chest/cabinet on a level surface. Do not load, unload, or park chest/cabinet on an incline. The chest/cabinet may become unbalanced and tip, resulting in injury.

• Always balance the chest/cabinet load to avoid tipping. Unbalanced chests/cabinets are more likely to tip when being moved or when using the chest/ cabinet work surfaces. Evenly distribute the weight front to back and side to side. Place more than half the total load weight on the bottom cabinet when pos- sible. To help prevent the chest/cabinet from tipping, load the product starting with the bottom drawers.

• Do not exceed the maximum product weight, including contents. Do not exceed the maximum weight for each drawer. Overloaded chests/cabinets can tip, collapse, or damage drawer slides.

• Do not open more than one drawer at a time. Chest/cabinet may tip, causing injury.

• Keep children and bystanders away while load- ing, unloading, and moving chest/cabinet. Dis- tractions can cause you to lose control.

• Only lift the chest/cabinet according to the instructions in this manual. Never lift by the side handle. Other methods may be dangerous, resulting in injury.

• Only transport the chest/cabinet when empty. Properly secure when transporting.

• Do not mount the chest/cabinet on a truck bed or any other moving object.

• Lock both the lid and all drawers before rolling the chest/cabinet. The drawers could come open and make the chest/cabinet unstable and tip.

• Only roll the chest/cabinet short distances by using the handle provided.

• Secure all items before rolling the chest/cabinet. Loose items could shift, causing the chest/cabinet to become unstable.

• Do not use drawers as steps. Do not stand on the chest/cabinet. Chest/cabinet will tip, causing injury.

• Be careful when closing the chest top cover. Remove hands before closing the top cover.

• Do not use chest/cabinet in explosive atmo- spheres, such as in the presence of ammable liquids, gases or dust. This equipment has internal arcing or sparking parts. Chest/cabinet should not be located in a recessed area or below oor level.

• Chest/cabinet plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earth (grounded) chest/ cabinet power strips. Unmodied plugs and match- ing outlets will reduce risk of electric shock.

• Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

• Maintain chest/cabinet. Check for misalignment or binding wheels, breakage or bending of drawer slides or other parts and any other condition that may a󰀨ect the chest/cabinet's operation. Do not use damaged chest/cabinet.

• Always use common sense and be cautious when using tools. It is not possible to anticipate every situation that could result in a dangerous out- come. Do not use this tool if you do not understand these operating instructions or you feel the work is beyond your capability; contact Milwaukee Tool or a trained professional for additional information or training.

• Maintain labels and nameplates. These carry im- portant information. If unreadable or missing, contact a MILWAUKEE service facility for a free replacement.

• Have your chest/cabinet serviced by a qualied repair person using only identical replacement parts. Visit a local authorized service center for repairs. Components, such as the power strip, are not user replaceable. This will ensure that the safety of the chest/cabinet is maintained. Federal Communications Commission

WARNING: Changes or modications to this unit

not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pur- suant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harm- ful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o󰀨 and on, the user is encouraged to try to correct the interference by one or more of the fol- lowing measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit di󰀨erent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.3 GROUNDING WARNING Improperly connecting the ground- ing wire can result in the risk of electric shock. Check with a qualied electrician if you are in doubt as to whether the outlet is properly grounded. Do not modify the plug pro- vided with the chest/cabinet. Never remove the grounding prong from the plug. Do not use the chest/cabinet if the cord or plug is damaged. If damaged, have it repaired before use. If the plug will not t the outlet, have a proper outlet installed by a qualied electrician. Chests/Cabinets with Three Prong Plugs Chests/cabinets marked “Grounding Required” have a power strip with a three wire cord and three prong grounding plug. The plug must be connected to a properly grounded outlet (See Figure A). If the power strip should electrically malfunction or break down, grounding provides a low resistance path to carry electricity away from the user, reducing the risk of electric shock. The grounding prong in the plug is connected through the green wire inside the cord to the grounding sys- tem in the power strip. The green wire in the cord must be the only wire connected to the power strip's grounding system and must never be attached to an electrically “live” terminal. Your power strip must be plugged into Fig. A an appropriate outlet, properly in- stalled and grounded in accordance with all codes and ordinances. The plug and outlet should look like those in Figure A. SYMBOLOGY Warning Read Operator's Manual Electrical Shock Hazard

Do not open more than one drawer at a time. Chest/cabinet may tip, causing injury. Be careful when closing the chest top cover. Remove hands before closing the cover. Chest must be fastened by screws through connectors after it has been placed on top of cabinet. Lock wheels when chest/cabinet is not being moved. Unlocked wheels can allow the chest/cabinet to move unexpectedly. Do not use drawers as steps. Chest/ cabinet may tip, causing injury.

• FPO Lock both the lid and all drawers before moving the chest/cabinet. SPECIFICATIONS Cat. No p. 48
• -22-8541, 48-22-8542* Two-slide drawer capacity p. 100
• lbs. (45.4 kg) Four-slide drawer capacity p. 200
• lbs. (90.7 kg) Total capacity p. 2500
• lbs. (1134 kg) AC input volts p. 120
• Hertz p. 60
• Watts p. 1875
• Recommended Ambient Operating Temperature °F to 104°F (-18°C to 40°C) p. 0

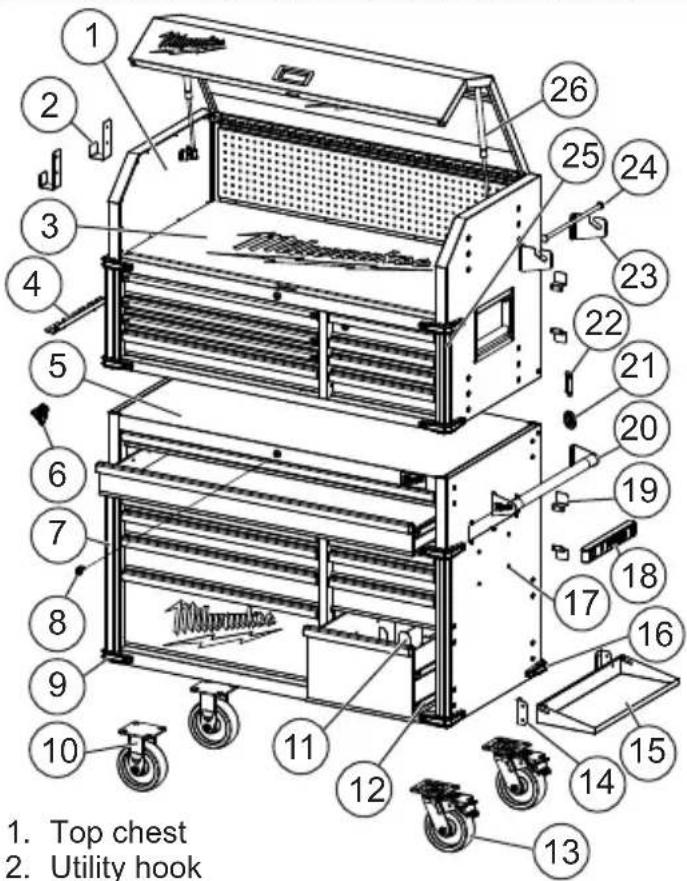

• Items may be sold separately. FUNCTIONAL DESCRIPTION

Shelf hinge bracket 2 Front bumper 8 Rear bumper 2 Chest corner extrusion 2 Cabinet corner extrusion 2 Cord storage bracket 4 Utility hook 2 Paper towel holder bracket

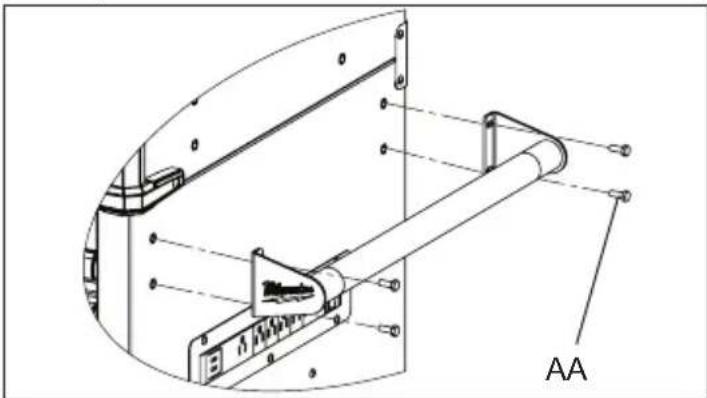

Paper towel holder rod 1 Bottle opener 1 NOTE: Begin product assembly close to the nal intended location of your chest/cabinet. This product is heavy and may be di󰀩cult to move after assembly. Attaching the Side Handle Attach the side handle to the rolling cabinet using four bolts (AA). The side handle can be attached to either side of the rolling cabinet, but must match the end where the swivel casters are installed. NOTE: The holes in the cabinet are tapped and do not require nuts.

Installing the Casters CAUTION Two people may be required to complete installation. Do not overtighten the screws.

1. Ensure all cabinet drawers are securely locked into

place using the key lock on the rolling cabinet.

2. Lay the rolling cabinet on its back. Use the packag-

ing material to protect the nish.

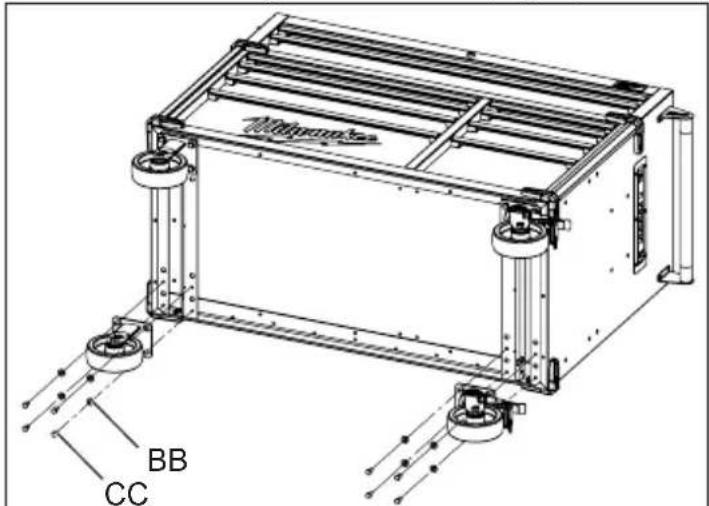

3. Mount the two swivel casters with brake to the roll-

ing cabinet using four bolts (CC) and washers (BB) per caster. The swivel casters with brake must be in- stalled on the end of the cabinet with the side handle. ASSEMBLY CAUTION Be sure to follow the assembly in- structions for the appropriate chest/cabinet. Do not use power tools to as- semble chest/cabinet. Tighten bolts with hand wrenches. Tools Required (Not Included)

4. Mount the two rigid casters to the opposite end

of the rolling cabinet using four bolts (CC) and washers (BB) per caster.

5. Tighten all bolts securely with a wrench.

6. Return the rolling cabinet to its upright position.

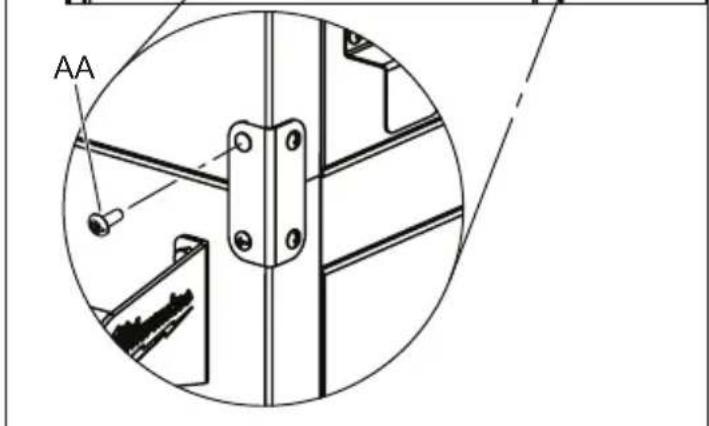

NOTE: The casters may come preinstalled. To switch caster placement, follow steps 1-2 before removing casters. Remove casters, retain hardware, and then complete steps 3-6. Installing the Chest onto the Cabinet CAUTION Two people may be required to complete installation.

1. Place the top chest on top of the rolling cabinet.

NOTE: The holes in the cabinet are tapped and do not require nuts.

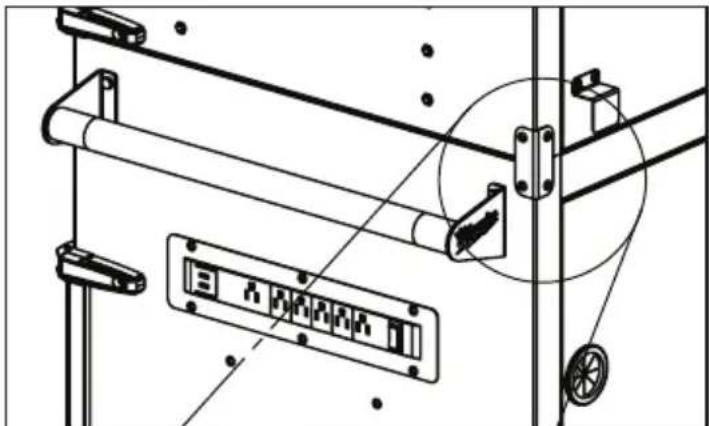

2. Attach the two brackets to the back of the product

to secure the top chest to the rolling cabinet. Place the brackets over the holes and secure with four screws (DD) per bracket.

3. Tighten all screws securely with a Phillips screw-

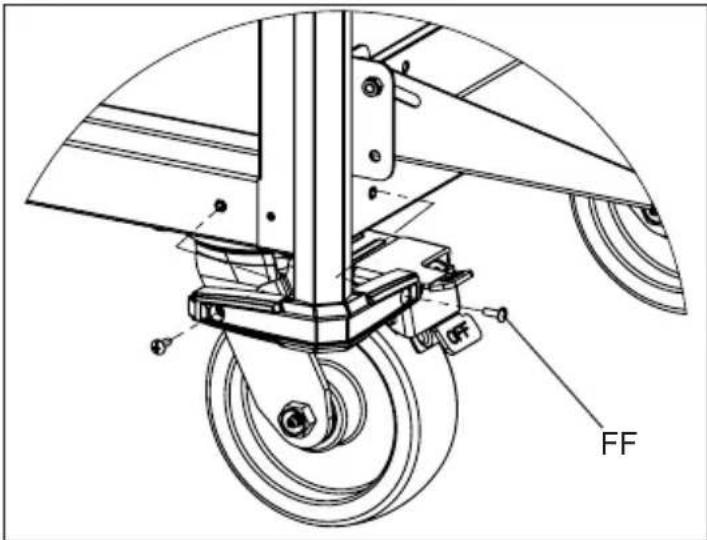

Installing the Drawer Liners and Mat Place the drawer liners in appropriately sized draw- ers and the mat in the chest lid area to protect the surface. Installing the Corner Extrusions and Bumpers Place the front bumpers on both ends of the extrusion by sliding the extrusion into the cavity of the bumpers. Attach the front bumpers with extrusions using two screws (FF) per bumper. Attach the two rear bumpers to the back of the lower cabinet using two screws (FF) per bumper.

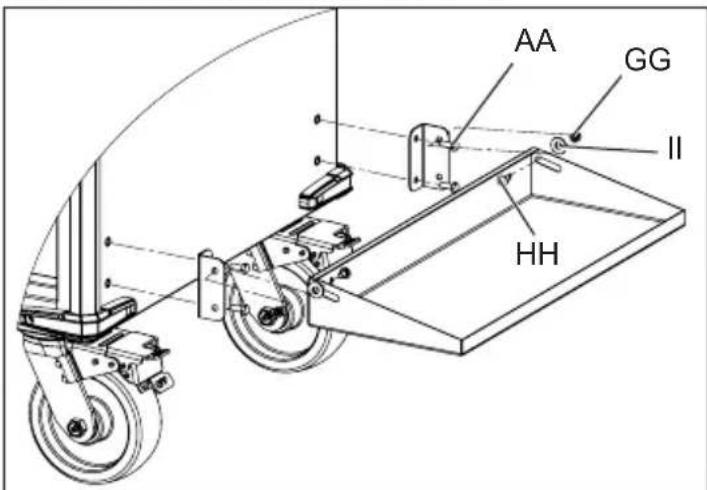

Installing the Cord Storage Brackets Attach the brackets to the back of the chest and cabinet with two screws (DD) per bracket. Orient the brackets with one pointed up and one pointed down so that the power outlet cord can be wrapped around the brackets for storage. Installing the Storage Shelf Attach the shelf hinge brackets to the right cabinet using two bolts (AA) for each bracket. Attach the storage shelf to the brackets using one washer (II), nut (GG) and bolt (HH) on each end.

Installing the Tool Hanger Attach the tool hanger to the left end of the chest using two bolts (AA). Installing the Utility Hooks and Paper Towel Holder Attach the utility hooks and paper towel holder to either end of the chest using two screws (EE) for each hook and bracket.6 Installing the Bottle Opener Attach the bottle opener to the left side of the cabinet using two screws (JJ). Installing the Power Cord Locate the power cord inside one of the right-hand drawers. Untie the power cord and gently pull the cord plug through the grommet. OPERATION WARNING To avoid injury or property damage, do not exceed maximum shelf ca- pacity. Use care when moving chest/cabinet on incline or rough surface. Chest/cabinet may tip if weight is not evenly distributed front to back and side to side. Place more than half the total load weight on the bottom cabinet when possible. Locking and Unlocking the Chest/Cabinet NOTE: The drawers must be fully closed before locking/unlocking the unit. Insert the key. Turn it fully left to lock, or fully right to unlock. Always remove the key after locking and unlocking. Using the Caster Brakes To lock the swivel casters, step down on the levers marked ON. Be sure to lock both casters to prevent chest/ cabinet from rolling or swiv- eling. To unlock casters, push down on the levers- marked OFF. Moving the Chest/Cabinet on an Incline or Rough Surface Take care that the chest/cabinet does not tip or become unbalanced when moving it on an incline or rough surface. Do not exceed an incline of 10 degrees. Lock the chest/cabinet and secure all items before moving. Rolling the Chest/Cabinet The chest/cabinet is only intended for rolling short distances. Only roll the chest/cabinet using the han- dle. Do not push or pull chest/cabinet by the frame or product may tip. Do not modify the chest/cabinet in any way. Drilling holes or modifying the chest/ cabinet will lower the load capacity, which can cause the chest/cabinet to collapse, resulting in injury. Lock the chest/cabinet and secure all items before rolling. Lifting the Chest/Cabinet The cabinet and chest/cabinet combo are not intended to be lifted. However, if you need to lift, empty the chest/cabinet and then place straps or forks inside and next to casters. Do not lift loaded chests/cabinets. Never lift by the side handle. Be sure all bystanders are moved away before lifting chest/cabinet. Mounting Chargers The rolling cabinet comes equipped with four pre- installed charger mounting bosses, located below the power strip. The charger mounts are suitable for hold- ing MILWAUKEE M18™ & M12™ Multi Voltage char- gers as well as M18™ chargers. To mount a charger, install a screw (DD) into each boss, then slide the charger's key-hole slots over the screws. Slide the charger toward the oor to lock it onto the screws. Removing the Drawers

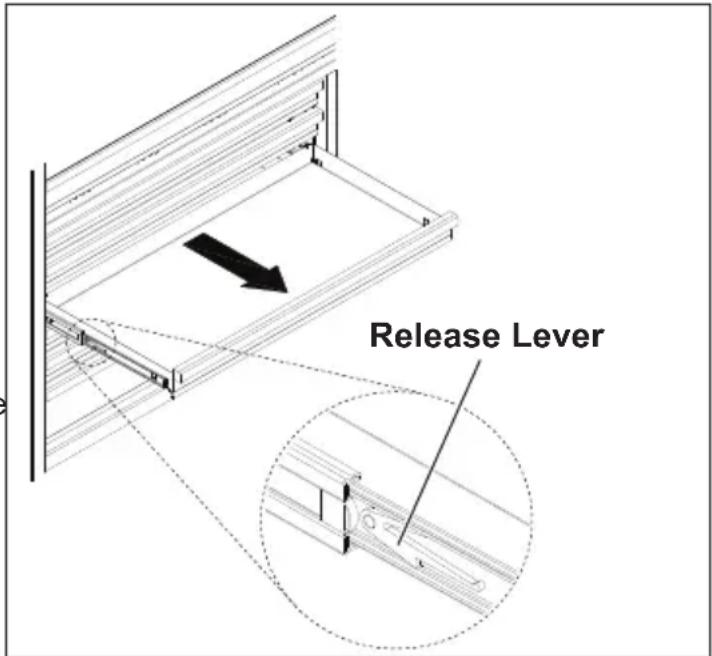

1. Fully extend and empty the drawer.

2. Depending on the side, either lift or lower the

release lever on both sides so the slides can ride over the stops. Pull out to remove. Release Lever Installing the Drawers

1. Pull the slides and slide carrier out until fully ex-

2. Hold the slide on the cabinet while aligning it with

the slide on the drawer.

3. Slightly insert one side and repeat for the other

4. Slowly push the drawer until it is fully closed to

5. Open and close the drawer to verify proper operation.

MAINTENANCE WARNING To reduce the risk of injury, contact MILWAUKEE Corporate After Sales Service Technical Support for ALL repairs and replacement parts. Maintaining the Chest/Cabinet Keep your chest/cabinet in good repair by adopting a regular maintenance program. Before use, examine the general condition of your chest/cabinet. Check for loose screws, misalignment, binding of wheels, bro- ken parts and any other condition that may a󰀨ect its safe operation. Do not use a damaged chest/cabinet. Maintaining the Casters Grease the casters annually using high quality bear- ing grease.

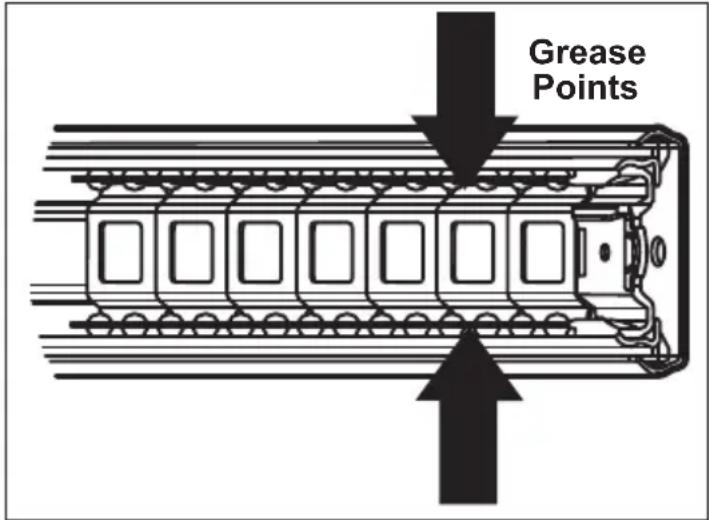

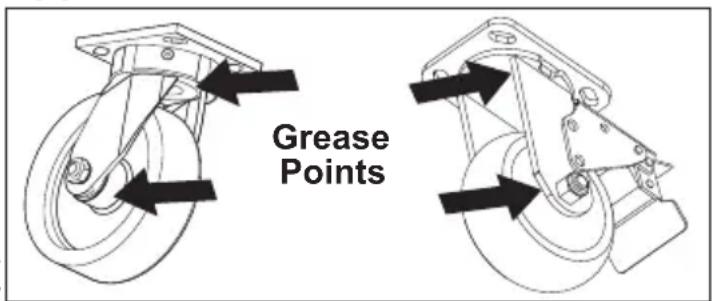

Grease Points7 Maintaining the Drawers

1. Periodically clean the drawers with a mild deter-

2. Remove grease and oil in drawer with a standard,

nonammable cleaning uid.

3. The use of drawer liners is recommended to

protect the nish inside the drawers and make the drawers easier to clean. Drawer liners can be cleaned with soap and water.

4. Lubricate the slides semi-annually with general

purpose grease or equivalent. Grease Points Cleaning This steel product has been coated with industrial powder coating for a durable nish. To help protect the powder coated nish, do not allow harsh chemi- cals (oil, grease or other chemical) to remain on the powder coating surface. Use a glass cleaner to clean and maintain all surfaces of powder coating. Keep the chest/cabinet handles and wheels clean, dry and free of oil or grease. Use only mild soap and a damp cloth to clean your chest/cabinet since certain cleaning agents and solvents are harm- ful to plastics. Some of these include: gasoline, turpentine, lacquer thinner, chlorinated cleaning solvents, ammonia and household detergents containing ammonia. Never use flammable or combustible solvents around chests/cabinets. Service For service and repair information, including the or- dering of service parts, call our Corporate After Sales Service Technical Support line at 1-800-SAWDUST, or visit our website at www.milwaukeetool.com. ACCESSORIES WARNING Modifying the chest/cabinet to ac- cept other accessories may be hazardous, resulting in injury or property dam- age. Use only specically recommended acces- sories according to the manufacturer's instruc- tions. For a complete listing of accessories, go online to www.milwaukeetool.com or contact a distributor.

SERVICE - UNITED STATES

1-800-SAWDUST (1.800.729.3878) Monday-Friday, 7:00 AM - 6:30 PM CST or visit www.milwaukeetool.com Contact Corporate After Sales Service Technical Support with technical, service/repair, or warranty questions. Email: metproductsupport@milwaukeetool.com Become a Heavy Duty Club Member at www.milwaukeetool.com to receive important notications regarding your tool purchases.

Monday-Friday, 7:00 AM - 4:30 PM CST or visit www.milwaukeetool.ca LIMITED WARRANTY USA & CANADA Every MILWAUKEE steel storage chest and cabinet are warranted to the original purchaser only to be free from defects in material and workmanship. Subject to certain exceptions, MILWAUKEE will repair or replace any part on a chest or cabinet which, after examination, is determined by MILWAUKEE to be defective in material or workman- ship for a period of three (3) years after the date of purchase. Return of the chest or cabinet to the place of purchase is required. A copy of the proof of purchase should be included with the return product. This warranty does not apply to damage that MILWAUKEE determines to be from repairs made or attempted by anyone other than MILWAUKEE authorized personnel, misuse, alterations, abuse, normal wear and tear, lack of maintenance, or accidents. Warranty Registration is not necessary to obtain the applicable warran- ty on a MILWAUKEE steel storage chest or cabinet. The manufacturing date of the product will be used to determine the warranty period if no proof of purchase is provided at the time warranty service is requested. If you feel your product has a warranty defect, or if you need information on a service/replacement part, please contact MILWAUKEE at 1.800. SAWDUST for instructions. ACCEPTANCE OF THE EXCLUSIVE REPAIR AND REPLACEMENT REMEDIES DESCRIBED HEREIN IS A CONDITION OF THE CON- TRACT FOR THE PURCHASE OF EVERY MILWAUKEE PRODUCT. IF YOU DO NOT AGREE TO THIS CONDITION, YOU SHOULD NOT PURCHASE THE PRODUCT. IN NO EVENT SHALL MILWAUKEE BE LIABLE FOR ANY INCIDENTAL, SPECIAL, CONSEQUENTIAL OR PUNITIVE DAMAGES, OR FOR ANY COSTS, ATTORNEY FEES, EXPENSES, LOSSES OR DELAYS ALLEGED TO BE AS A CON- SEQUENCE OF ANY DAMAGE TO, FAILURE OF, OR DEFECT IN ANY PRODUCT INCLUDING, BUT NOT LIMITED TO, ANY CLAIMS FOR LOSS OF PROFITS. SOME STATES DO NOT ALLOW THE EX- CLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS WARRANTIES, WRITTEN OR ORAL. TO THE EXTENT PERMITTED BY LAW, MILWAUKEE DISCLAIMS

ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION

ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR USE OR PURPOSE; TO THE EXTENT SUCH DISCLAIMER IS NOT PERMITTED BY LAW, SUCH IMPLIED WAR- RANTIES ARE LIMITED TO THE DURATION OF THE APPLICABLE EXPRESS WARRANTY AS DESCRIBED ABOVE. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WAR- RANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU, THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE. This warranty applies to product sold in the U.S.A. and Canada only. Please consult the 'Find a Service Center Search' in the Parts & Service section of MILWAUKEE’s website www.milwaukeetool.com or call 1.800.SAWDUST (1.800.729.3878) to locate your nearest MILWAUKEE factory Service Center location.8 INSTRUCTIONS IMPORTANTES

Monday-Friday, 7:00 AM - 4:30 PM CST www.milwaukeetool.ca
