USER MANUAL RF65A977FSR SAMSUNG

Free Standing Appliance

Abstract illustration of ice cubes with bubbles and droplets, no text or symbols present

Dynamic splash of ice cubes with bubbles, no text or symbols present

SAMSUNG

Contents

Safety information 4

What you need to know about the safety instructions 4

Important safety symbols and precautions: 5

Important safety precautions 6

Severe warning signs for transportation and site 9

Critical installation warnings 10

Installation cautions 13

Critical usage warnings 13

Usage cautions 18

Cleaning cautions 20

Critical disposal warnings 22

Additional tips for proper usage 23

Instructions about the WEEE 24

Installation 25

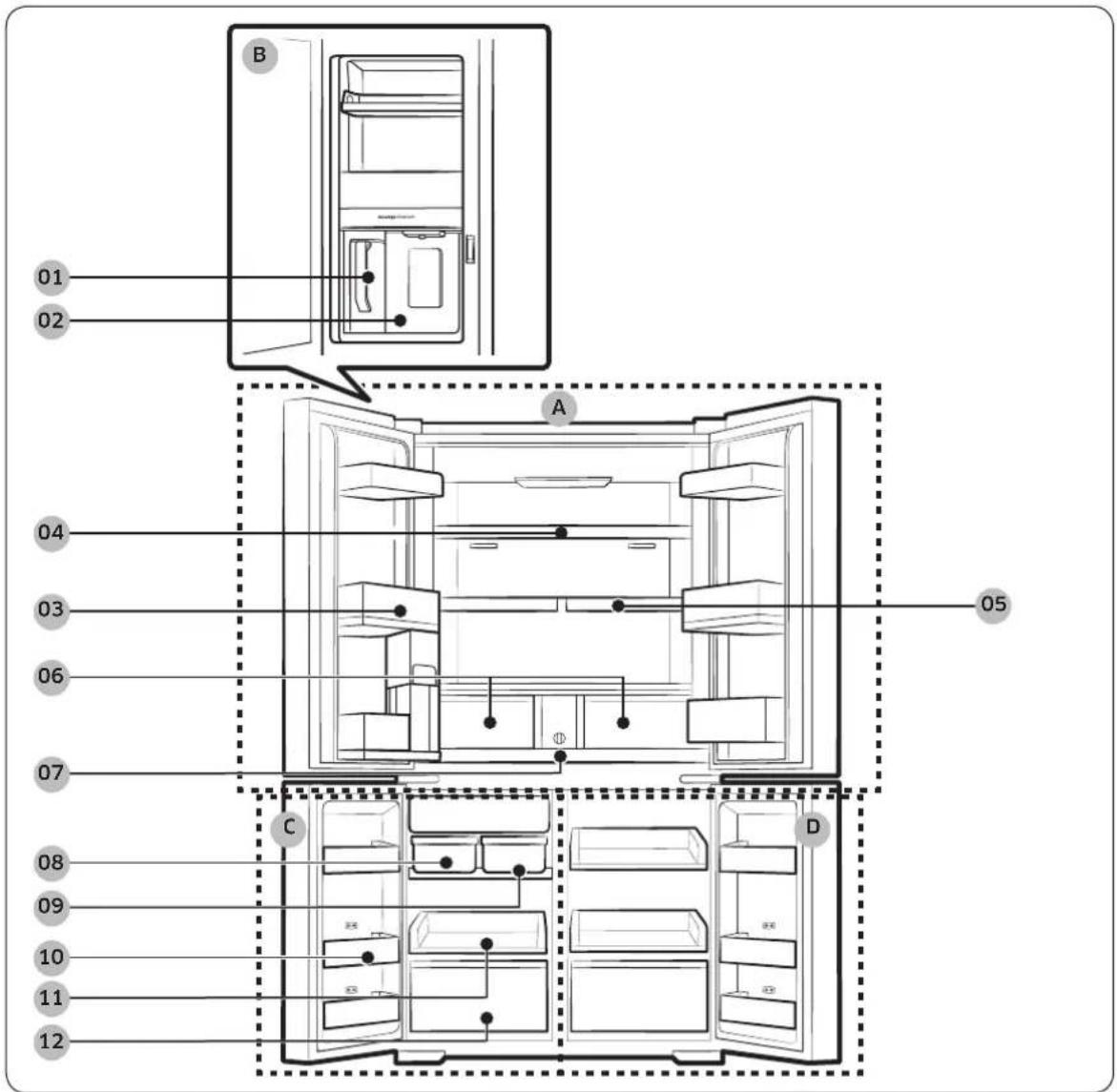

Refrigerator at a glance 26

Step-by-step installation 29

Operations 47

User interface 47

SmartThings 50

Recommendations for voice recognition 53

Special features 54

Maintenance 61

Handling and care 61

Cleaning 65

Replacement 67

Troubleshooting 70

General 70

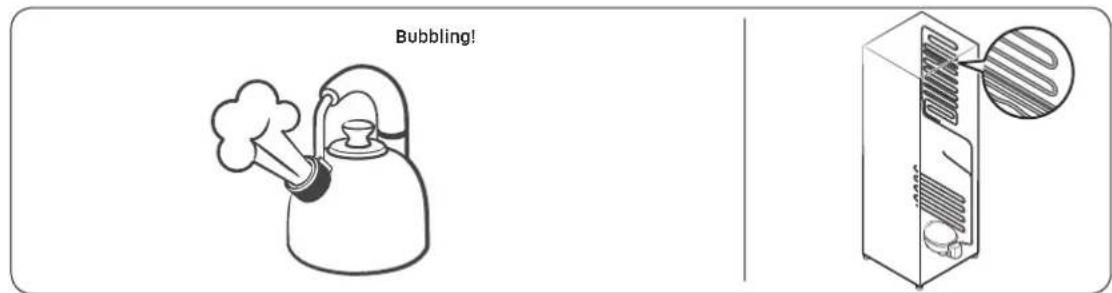

Do you hear abnormal sounds from the refrigerator? 74

SmartThings 76

LCD 77

English2

Appendix 78

Safety Instruction 78

Install Instruction 78

Temperature Instruction 79

Information for model and ordering spare parts 82

Safety information

Before using your new Samsung Refrigerator, please read this manual thoroughly to ensure that you know how to operate the features and functions that your new appliance offers safely and efficiently.

What you need to know about the safety instructions

• Warnings and Important Safety Instructions in this manual do not cover all possible conditions and situations that may occur. It is your responsibility to use common sense, caution, and care when installing, maintaining, and operating your appliance.
• Because these following operating instructions cover various models, the characteristics of your refrigerator may differ slightly from those described in this manual and not all warning signs may be applicable. If you have any questions or concerns, contact your nearest service center or find help and information online at www.samsung.com.
• R-600a or R-134a is used as a refrigerant. Check the compressor label on the rear of the appliance or the rating label inside the fridge to see which refrigerant is used for your appliance. When this product contains flammable gas (Refrigerant R-600a), contact your local authority in regard to safe disposal of this product.
• In order to avoid the creation of a flammable gas-air mixture if a leak in the refrigerating circuit occurs, the size of the room in which the appliance may be sited depends on the amount of refrigerant used.
• Never start up an appliance showing any signs of damage. If in doubt, consult your dealer. The room must be 1m^3 in size for every 8 g of R-600a refrigerant inside the appliance. The amount of refrigerant in your particular appliance is shown on the identification plate inside the appliance.

English4

• Refrigerant squirting out of the pipes could ignite or cause an eye injury. When refrigerant leaks from the pipe, avoid any naked flames and move anything flammable away from the product and ventilate the room immediately.
• Failing to do so may result in fire or explosion.
• It is hazardous for anyone other than an Authorized Service Person to service this appliance. In Queensland – the authorized Service Person MUST hold a Gas Work Authorization or Licence for hydrocarbon refrigerants, to carry out Servicing or repairs which involve the removal of covers. (For Australia only)

Important safety symbols and precautions:

Please follow all safety instructions in this manual. This manual uses the following safety symbols.

WARNING

Hazards or unsafe practices that may result in severe personal injury, property damage, and/or death.

CAUTION

Hazards or unsafe practices that may result in severe personal injury and/or property damage.

NOTE

Useful information that helps users understand or benefit from the refrigerator.

These warning signs are here to prevent injury to you and others.

Please follow them carefully.

After reading this section, keep it in a safe place for future reference.

English 5

Safety information

Important safety precautions

Warning; Risk of fire / flammable materials

WARNING

• When positioning the appliance, ensure the supply cord is not trapped or damaged.
• Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
• Fill with potable water only.
• Connect to potable water supply only.
• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• Do not use mechanical devices or any other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Do not damage the refrigerant circuit.
• Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or those who lack experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.

English6

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• The socket must be easily accessible so that the appliance can be quickly disconnected from the supply in an emergency.
• It must be outside the area of the rear of the appliance.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

• If the product is equipped with LED lamps, do not disassemble the Lamp Covers and LED lamps yourself.

• Contact a Samsung service center.

• Use only the LED Lamps provided by the manufacturer or its service agents.

• New hose-sets supplied with the appliance are to be used and old hose-sets should not be reused.

• Have the refrigerator's water supply connected only to a potable water supply. To operate the ice maker properly, water pressure of 30-125 psi (206-861 kPa) is required.
• For the most efficient use of energy, please keep the all inner fittings such as baskets, drawers, shelves on the position supplied by manufacturer.
• To get the best energy efficiency of this product, please leave all shelves, drawers and baskets on their original position.

Safety information

How to minimize the energy consumption

• Install the appliance in a cool, dry room with adequate ventilation.
- Ensure that it is not exposed to direct sunlight and never put it near a direct source of heat (radiator, for example).

• Not to block any vents or grilles is recommended for energy efficiency.
• Allow warm food to cool down before placing it in the appliance.
• Put frozen food in the refrigerator to thaw. You can then use the low temperatures of the frozen products to cool food in the refrigerator.
• Do not keep the door of the appliance open for too long when putting food in or taking food out.
• The shorter time for which the door is open, the less ice will form in the freezer.
• Clean the rear of the refrigerator regularly. Dust increases energy consumption.
• Do not set temperature colder than necessary.
• Ensure sufficient air exhaust at the refrigerator base and at the back wall of the refrigerator. Do not cover air vent openings.

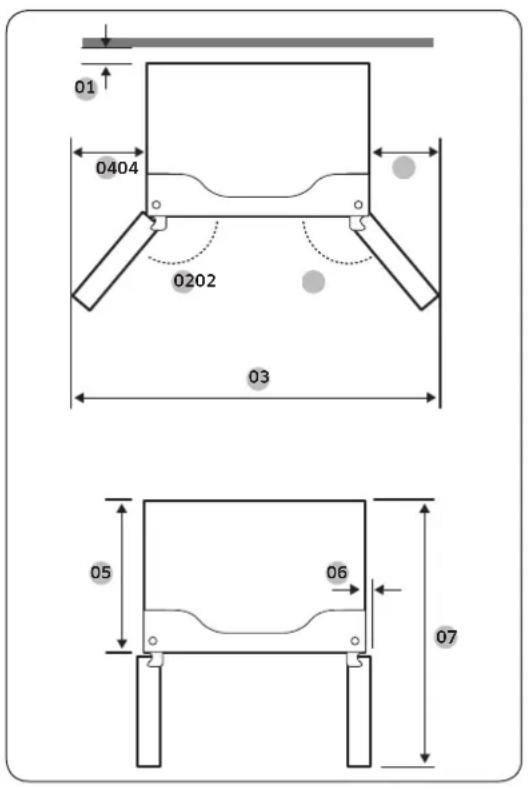

• Allow clearance to the right, left, back and top when installing. This will help reduce power consumption and keep your energy bills lower.

• We recommend the value of clearance to be :

- Right, left, and back side: more than 50 mm

- Top side: more than 100 mm

English8

This appliance is intended to be used in household and similar applications such as

• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.

Severe warning signs for transportation and site

WARNING

- When transporting and installing the appliance, care should be taken to ensure that no parts of the refrigerating circuit are damaged.

• Refrigerant leaking from the pipe work could ignite or cause an eye injury. If a leak is detected, avoid any naked flames or potential sources of ignition and air the room in which the appliance is standing for several minutes.
• This appliance contains a small amount of isobutane refrigerant (R-600a), a natural gas with high environmental compatibility that is, however, also combustible. When transporting and installing the appliance, care should be taken to ensure that no parts of the refrigerating circuit are damaged.

- When transporting and installing the refrigerator, do not touch the water hose on the back side of the refrigerator.

- This may damage the refrigerator and as a result the water dispenser can not be used.

Safety information

Critical installation warnings

WARNING

• Do not install the refrigerator in a damp location or place where it may come in contact with water.
• Deteriorated insulation on electrical parts may cause an electric shock or fire.
• Do not place this refrigerator in direct sunlight or expose it to the heat from stoves, room heaters, or other appliances.
• Do not plug several appliances into the same multiple power strip. The refrigerator should always be plugged into its own individual electrical outlet which has a voltage rating that matches the voltage listed on the refrigerator's rating plate.
• This provides the best performance and also prevents overloading of house wiring circuits, which could cause a fire hazard from overheated wires.
• If the wall socket is loose, do not insert the power plug.
• There is a risk of electric shock of fire.
• Do not use a power cord that has cracks or abrasion damage along its length or at either end.
• Do not bend the power cord excessively or place heavy objects on it.
• Do not pull or excessively bend the power cord.
• Do not twist or tie the power cord.
• Do not hook the power cord over a metal object, place a heavy object on the power cord, insert the power cord between objects, or push the power cord into the space behind the appliance.
• When moving the refrigerator, be careful not to roll over or damage the power cord.
• This may result in an electric shock or fire.

English10

- Never unplug your refrigerator by pulling on the power cord. Always grip the plug firmly and pull straight out from the outlet.

- Damage to the cord may cause a short-circuit, fire, and/or electric shock.

- Do not use aerosols near the refrigerator.

- Using aerosols near the refrigerator may cause an explosion or fire.

- Do not install this appliance near a heater or inflammable material.

- Do not install this appliance in a location where gas may leak.

- This may result in an electric shock or fire.

- This refrigerator must be properly located and installed in accordance with the instructions in this manual before you use it.

- Connect the power plug in the proper position with the cord hanging down.

- If you connect the power plug upside down, the wire can get cut off and cause a fire or electric shock.

- Make sure that the power plug is not crushed or damaged by the back of the refrigerator.

- Keep the packing materials out of reach of children.

- There is a risk of death from suffocation if a child puts the packing materials on his or her head.

- Do not install this appliance in a humid, oily or dusty location, in a location exposed to direct sunlight and water (rain drops).

- Deteriorated insulation of electrical parts may cause an electric shock or fire.

- If any dust or water is in the refrigerator, pull out power plug and contact your Samsung Electronics service center.

- Otherwise there is a risk of fire.

Safety information

• Do not stand on top of the appliance or place objects (such as laundry, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance.
• This may result in an electric shock, fire, problems with the product, or injury.
• You need to remove all the protective plastic film before you initially plug the product in.
• Children should be supervised to ensure that they do not play with the snap rings used for door adjustment or the water tube clips.
• There is risk of death by suffocation if a child swallows a snap ring or water tube clip. Keep the snap rings and water tube clips out of children's reach.
• The refrigerator must be safely grounded.
• Always make sure that you have grounded the refrigerator before attempting to investigate or repair any part of the appliance. Power leakages can cause severe electric shock.
• Never use gas pipes, telephone lines, or other potential lightning attractors as an electrical ground.
• You must ground the refrigerator to prevent any power leakages or electric shocks caused by current leakage from the refrigerator.
• This may result in an electric shock, fire, explosion, or problems with the product.
• Plug the power plug into the wall socket firmly. Do not use a damaged power plug, damaged power cord, or loose wall socket.
• This may result in an electric shock or fire.
• The fuse on the refrigerator must be changed by a qualified technician or service company.
• Failing to do so may result in an electric shock or personal injury.

English12

Installation cautions

CAUTION

• Allow sufficient space around the refrigerator and install it on a flat surface.

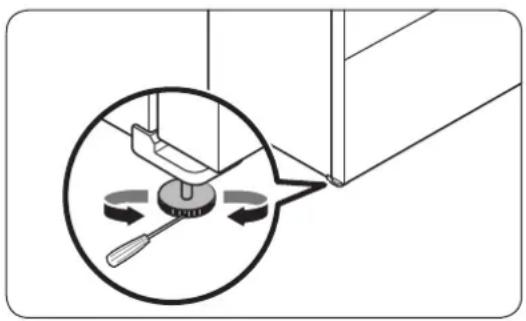

• If your refrigerator is not level, cooling efficiency and durability can be declined.
• Allow the appliance to stand for 2-3 hours before loading foods after installation and turning on.
• We strongly recommend you have a qualified technician or service company install the refrigerator.
• Failing to do so may result in an electric shock, fire, explosion, problems with the product, or injury.

Critical usage warnings

WARNING

• Do not insert the power plug into a wall socket with wet hands.
• This may result in an electric shock.
• Do not store articles on the top of the appliance.
• When you open or close the door, the articles may fall and cause personal injury and/or material damage.
• Do not insert hands, feet or metal objects (such as chopsticks, etc.) into the bottom or the back of the refrigerator.
• This may result in an electric shock or injury.
• Any sharp edges may cause a personal injury.
• Do not touch the inside walls of the freezer or products stored in the freezer with wet hands.
• This may cause frostbite.
• Do not put a container filled with water on the refrigerator.
• If spilled, there is a risk of fire or electric shock.

English 13

Safety information

• Do not keep volatile or flammable objects or substances (benzene, thinner, propane gas, alcohol, ether, LP gas, and other such products) in the refrigerator.
• This refrigerator is for storing food only.
• This may result in fire or explosion.
• Children should be supervised to ensure that they do not play with the appliance.
• Keep fingers out of “pinch point” areas. Clearances between the doors and cabinet are necessarily small. Be careful when you open the doors if children are in the area.
• Do not put your fingers or children's fingers between the doors.
• Keep fingers out of the left and right door gaps. Be careful when you open the doors if your fingers are in between the doors.
• Do not let children hang on the door or door bins. A serious injury may occur.
• Do not let children go inside the refrigerator. They could become trapped.
• Do not insert your hands into the bottom area under the appliance.
• Any sharp edges may cause personal injury.
• Do not store pharmaceutical products, scientific materials, or temperature sensitive products in the refrigerator.
• Products that require strict temperature controls must not be stored in the refrigerator.
• If you smell pharmaceutical or smoke, pull out power plug immediately and contact your Samsung Electronics service center.
• If any dust or water is in Refrigerator, pull out power plug and contact your Samsung Electronics service center.
• Otherwise there is a risk of fire.

English14

• Do not let children step on a drawer.
• The drawer may break and cause them to slip.
• Do not leave the doors of the refrigerator open while the refrigerator is unattended and do not let children enter inside the refrigerator.
• Do not allow babies or children go inside the drawer.

- It can cause death from suffocation by entrapment or personal injury.

- Do not overfill the refrigerator with food.

- When you open the door, an item may fall out and cause personal injury or material damage.

- Do not spray volatile material such as insecticide onto the surface of the appliance.

- As well as being harmful to humans, it may also result in an electric shock, fire, or problems with the product.

• Never put fingers or other objects into the water dispenser hole, ice chute and ice maker bucket.
• It may cause a personal injury or material damage.
• Do not use or place any substances sensitive to temperature such as flammable sprays, flammable objects, dry ice, medicine, or chemicals near or inside of the refrigerator.
• Do not use a hair dryer to dry the inside of the refrigerator. Do not place a lighted candle in the refrigerator for removing bad odours.

- This may result in an electric shock or fire.

- Fill the water tank, ice tray and water cubes only with potable water (mineral water or purified water).

- Do not fill the tank with tea, juice or sports drink, this may damage the refrigerator.

Safety information

• Do not stand on top of the appliance or place objects (such as laundry, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance. This may result in an electric shock, fire, problems with the product, or injury. Do not put a container filled with water on the appliance.
• If spilled, there is a risk of fire or electric shock.
• Never stare directly at the UV LED lamp for long periods of time.
• This may result in eye strain due to the ultraviolet rays.

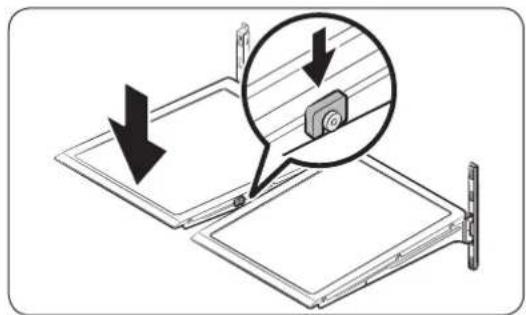

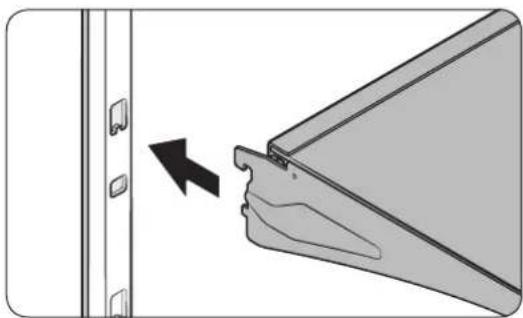

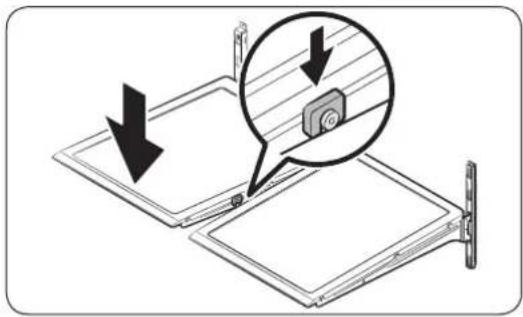

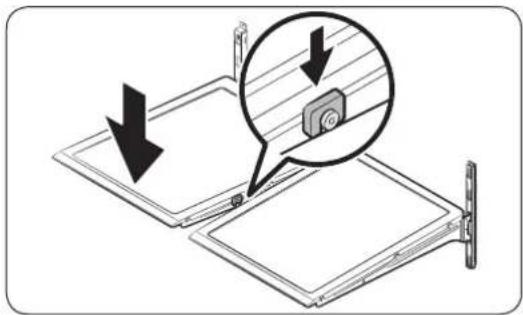

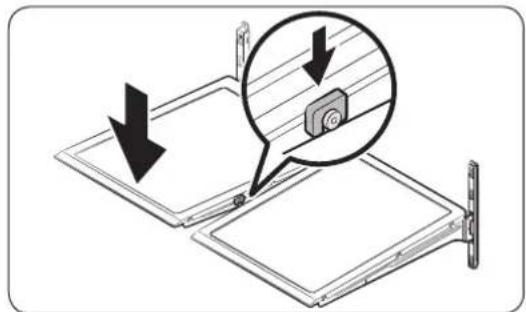

• Do not put shelf in upside down. Shelf stopper could not work.
• It may cause a personal injury because of glass shelf drop.
• Keep fingers out of “pinch point” areas. Clearances between the doors and cabinet are necessarily small. Be careful when you open the doors if children are in the area.

• If a gas leak is detected, avoid any naked flames or potential sources of ignition, and air the room in which the appliance is standing for several minutes.

• Do not touch the appliance or power cord.

• Do not use a ventilating fan.

• A spark may result in explosion or fire.

• Bottles should be stored tightly together so that they do not fall out.

• This product is intended only for the storage of food in a domestic environment.
• Never put fingers or other objects into the water dispenser hole, ice chute and ice maker bucket.

- It may cause a personal injury or material damage.

- Do not attempt to repair, disassemble, or modify the refrigerator yourself.

- Do not use any fuse (such as cooper, steel wire, etc.) other than a standard fuse.

English16

• If your refrigerator needs to be repaired or reinstalled, contact your nearest service center.
• Failing to do so may result in an electric shock, fire, problems with the product, or injury.
• If the refrigerator emits a burning smell or smoke, unplug the refrigerator immediately and contact your Samsung Electronics service center.
• Failing to do so may result in an electric or fire hazards.
• Pull the power plug out of the socket before changing the interior lamps of the refrigerator.
• Otherwise, there is a risk of electric shock.
• If you experience difficulty changing a non-LED light, contact a Samsung service center.
• Plug the power plug into the wall socket firmly.
• Do not use a damaged power plug, damaged power cord or loose wall socket.
• This may result in an electric shock or fire.

Safety information

Usage cautions

CAUTION

- Do not refreeze thawed food.

• Frozen and thawed food will develop harmful bacteria faster than fresh.
• The second thaw will break down even more cells, leaching out moisture and changing the integrity of the product.

- Do not thaw meat at room temperature.

- Safety will depend on whether the raw product was handled properly.

- Do not place glass bottles or carbonated beverages into the freezer.

- The container may freeze and break, and this may result in injury.

• Use only the ice maker provided with the refrigerator.
• If you will be away from home for a long period of time (on vacation, for example) and won't be using the water or ice dispensers, close the water valve.

- Otherwise, water leakage may occur.

• If you won't be using the refrigerator for a very long period of time, (3 weeks or more) empty the refrigerator including the ice bucket, unplug it, close the water valve, wipe excess moisture from the inside walls, and leave the doors open to prevent odors and mold.
  • To get the best performance from the product:

- Do not place food too close to the vents at the rear of the refrigerator as this can obstruct free air circulation in the refrigerator compartment.

- Wrap food up properly or place it in airtight containers before putting it into the refrigerator.

English18

• Please observe maximum storage times and expiration dates of frozen goods.
• There is no need to disconnect the refrigerator from the power supply if you will be away for less than three weeks. However, if you will be away for more than three weeks, remove all the food and ice in the ice bucket, unplug the refrigerator, close the water valve, wipe excess moisture from the inside walls, and leave the doors open to prevent odors and mold.

• Service Warranty and Modification.

- Any changes or modifications performed by a 3rd party on this finished appliance are not covered under Samsung warranty service, nor is Samsung responsible for safety issues that result from 3rd party modifications.

- Do not block the air vents inside the refrigerator.

- If the air vents are blocked, especially with a plastic bag, the refrigerator can be over cooled. If a cooling period lasts too long, the water filter may break and cause water leakage.

- Use only the ice-maker provided with the refrigerator.

- Wipe excess moisture from the inside and leave the doors open.

- Otherwise, odor and mold may develop.

- If the refrigerator is disconnected from the power supply, you should wait for at least five minutes before plugging it back in.

- When the refrigerator got wet by water, pull out the power plug and contact your Samsung Electronics service center.

- Do not strike or apply excessive force to any glass surface.

- Broken glass may result in a personal injury and/or property damage.

Safety information

• Fill the water tank and ice cube trays with potable water only (tap water, mineral water, or purified water).
• Do not fill the tank with tea or a sports drink. This may damage the refrigerator.
• Be careful that your fingers are not caught in.
• If the refrigerator is flooded, make sure to contact your nearest service center.
• There is a risk of electric shock or fire.
• Do not keep vegetable oil in your refrigerator's door bins. The oil can solidify, making it foul-tasting and difficult to use. In addition, the open container can leak and the leaked oil can cause the door bin to crack. After opening an oil container, it is best to keep the container in a cool and shaded place such as a cupboard or pantry.
• Examples of vegetable oil: olive oil, corn oil, grape-seed oil, etc.

Cleaning cautions

CAUTION

• Do not spray water directly on the inside or outside the refrigerator.
• There is a risk of fire or electric shock.
• Do not use a hair dryer to dry the inside of the refrigerator.
• Do not place a lighted candle in the refrigerator to remove bad odors.
• This may result in an electric shock or fire.

- Do not spray cleaning products directly on the display.

- Printed letters on the display may come off.

- If any foreign substance such as water has entered the appliance, unplug the power plug and contact your nearest service center.

- Failing to do so may result in an electric shock or fire.

English20

- Use a clean, dry cloth to remove any foreign matter or dust from the power plug blades. Do not use a wet or damp cloth when cleaning the plug.

- Otherwise, there is a risk of fire or electric shock.

- Do not clean the appliance by spraying water directly onto it.

- Do not use benzene, thinner, or Clorox, Chloride for cleaning.

- They may damage the surface of the appliance and may cause a fire.

- Never put fingers or other objects into the dispenser hole.

- It may cause a personal injury or material damage.

- Before cleaning or performing maintenance, unplug the appliance from the wall socket.

- Failing to do so may result in an electric shock or fire.

- Use a clean sponge or soft cloth and a mild detergent in warm water to clean the refrigerator.

- Do not use abrasive or harsh cleansers such as window sprays, scouring cleansers, flammable fluids, muriatic acid, cleaning waxes, concentrated detergents, bleaches, or cleansers containing petroleum products on exterior surfaces (doors and cabinet), plastic parts, door and interior liners, and gaskets.

- These can scratch or damage the material.

- Do not clean glass shelves or covers with warm water when they are cold. Glass shelves and covers may break if exposed to sudden temperature changes or impacts such as bumping or dropping.

Safety information

Critical disposal warnings

WARNING

• Please dispose of the packaging material from this product in an environmentally friendly manner.
• Ensure that none of the pipes on the back of the refrigerator are damaged prior to disposal.
• R-600a or R-134a is used as a refrigerant. Check the compressor label on the rear of the appliance or the rating label inside the fridge to see which refrigerant is used for your refrigerator. If this refrigerator contains flammable gas (Refrigerant R-600a), contact your local authority in regard to safe disposal of this product.
• When disposing of this refrigerator, remove the door/door seals and door latch so that small children or animals cannot become trapped inside. Children should be supervised to ensure that they do not play with the appliance. If trapped inside, a child may get hurt or suffocate to death.
• If trapped inside, the child may become injury and suffocate to death.
• Cyclopentane is used in the insulation. The gases in the insulation material require a special disposal procedure. Please contact your local authorities in regard to the environmentally safe disposal of this product.
• Keep all packaging materials well out of the reach of children, as packaging materials can be dangerous to children.
• If a child places a bag over his or her head, the child could suffocate.

English22

Additional tips for proper usage

- In the event of a power failure, call the local office of your electric company and ask how long the failure is going to last.

• Most power failures that are corrected in an hour or two will not affect your refrigerator temperatures. However, you should minimize the number of door openings while the power is off.

• Should the power failure last more than 24 hours, remove and discard all frozen food.

• The refrigerator might not operate consistently (frozen contents can thaw or temperatures can become too warm in the frozen food compartment) if sited for an extended period of time in a location where ambient air temperatures are constantly below the temperatures for which the appliance is designed.

• In case of particular foods, keeping it under refrigeration can have a bad effect on preservation due to its properties.
• Your appliance is frost free, which means there is no need to manually defrost your appliance. This will be carried out automatically.
• Temperature rise during defrosting complies with ISO requirements. If you want to prevent an undue rise in the temperature of frozen food while the appliance defrosts, wrap the frozen food in several layers of newspaper.
• Do not re-freeze frozen foods that have thawed completely.

Safety information

Instructions about the WEEE

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or restriction (no text present)

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

For information on Samsung's environmental commitments and product regulatory obligations, e.g. REACH, WEEE or Batteries, visit our sustainability page available via www.samsung.com

(For products sold in European countries and in the UK only)

English24

Installation

Follow these instructions carefully to ensure a proper installation of this refrigerator and to prevent accidents before using it.

WARNING

• Use the refrigerator only for its intended purpose as described in this manual.
• Any servicing must be performed by a qualified technician.
• Dispose of the product packaging material in compliance with the local regulations.
• To prevent electric shock, unplug the power cord before servicing or replacements.

Installation

Refrigerator at a glance

NOTE

The actual image and provided component parts of the refrigerator may differ, depending on the model and the country.

B 01 02 A 04 03 06 07 05 C D 08 09 10 11 12

English26

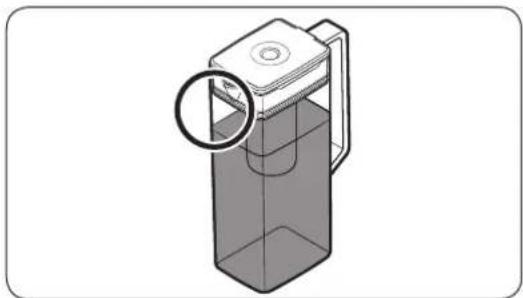

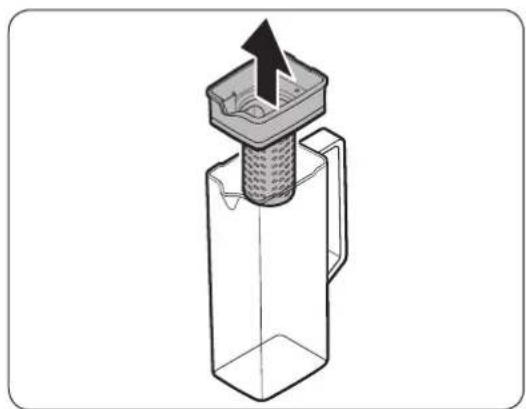

01 AutoFill pitcher A. Fridge
02 Water dispenser
03 Fridge door bin
04 Fridge shelf

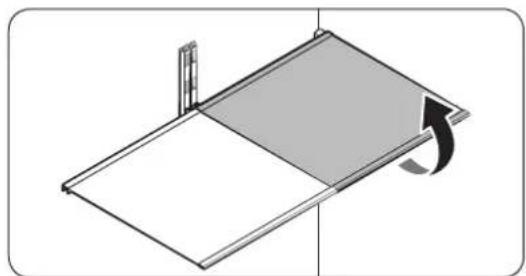

05 Quick Space shelf
06 Crisper / Flex Crisper Drawers
07 Water filter
08 Auto ice maker - Cubed Ice
09 Auto ice maker - Ice Bites
10 Freezer door bin
11 Freezer shelf
12 Freezer drawer

NOTE

• For energy efficiency, keep all shelves, drawers, and baskets in their original positions.

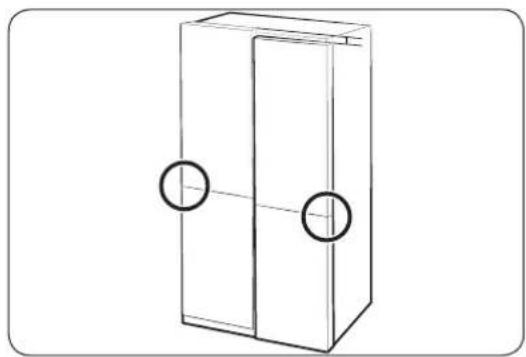

• When closing the door, make sure the vertical hinged section is in the correct position to avoid scratching the other door.
• If the vertical hinged section is reversed, put it back into the correct position, and then close the door.
• Moisture may form at times on the vertical hinged section.
• If you close a door forcefully, the other door may open.
• If the internal or external LED lamp is out of order, contact a local Samsung service center.

Installation

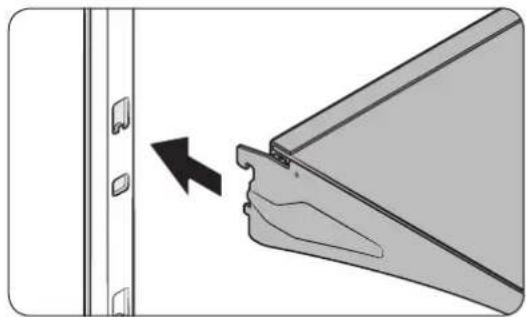

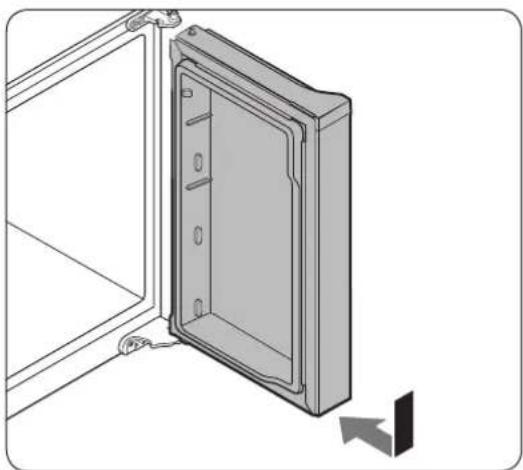

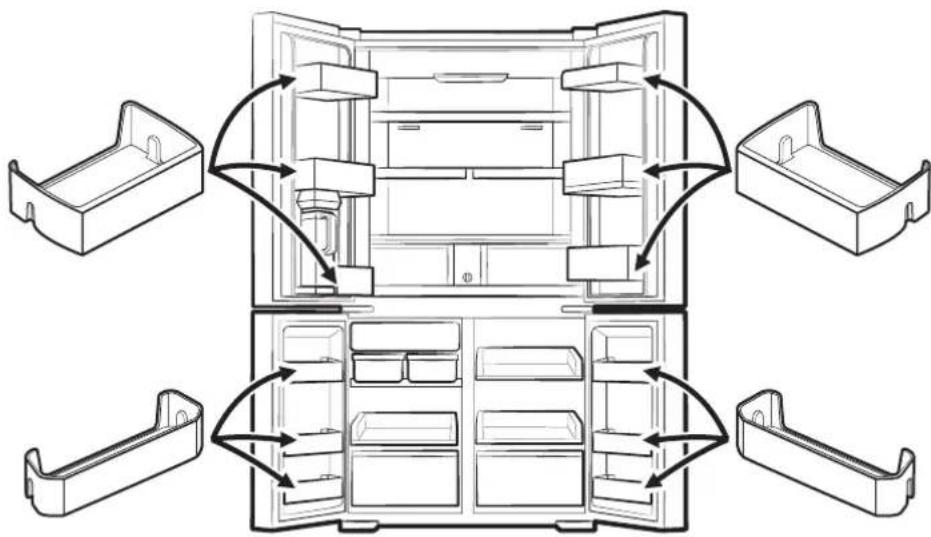

Door bins

Your refrigerator ships with door bins of different types and sizes. If the door bins for your refrigerator were packaged separately, use the figure below to help you position the bins properly.

NOTE

The actual refrigerator and provided component parts of your refrigerator may differ from the illustrations in this manual, depending on the model and the country.

English28

Step-by-step installation

STEP 1 Select a site

The site must:

• Have a solid level surface without carpeting or flooring that may obstruct ventilation
• Be out of direct sunlight
  • Have adequate room for opening and closing the door
• Be away from any heat source
• Provide room for maintenance and servicing
  • Have a temperature range between 10 °C and 43 °C

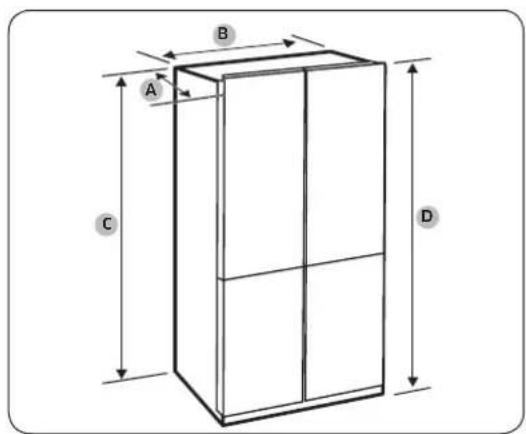

Clearance

See the following figures and tables for installation space requirements.

A B C D

Depth “A” 723 mm

Width “B” 912 mm

Height “C” 1797 mm

Overall Height “D” 1825 mm

Installation

01 0404 0202 03 05 06 07

01	more than 50 mm recommended
02 125°
03 147	2 mm
04 282	mm
05 610	mm
06 47	mm
07 109	3 mm

NOTE

The measurements in the tables may differ slightly from the actual measurements, depending on the measuring and rounding method.

English30

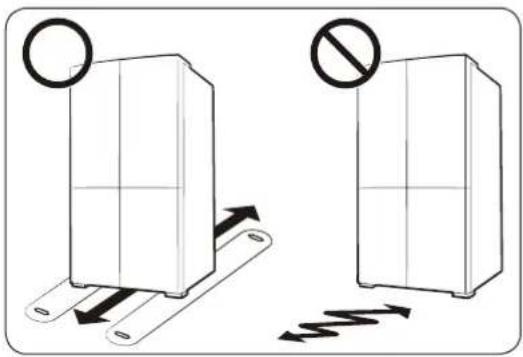

STEP 2 Flooring

If the refrigerator cannot pass through the entrance due to its size, see Door removal for entrance.

Diagram showing two mechanical components with directional arrows and a prohibition sign, no text or symbols present.

NOTE

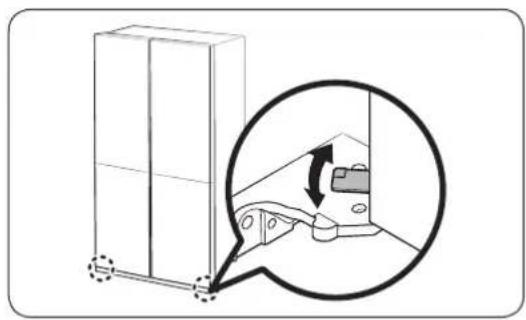

To prevent floor damage, make sure the front leveling legs are in the upright position.

• The surface you install the refrigerator on must support a fully loaded refrigerator.
• To protect the floor, put a large piece of cardboard along the path to the refrigerator's final installation location.
• Once the refrigerator is in its final position, do not move it unless necessary to protect the floor. If you have to move the refrigerator, place thick paper or cloth such as old carpets along the path of movement.

Installation

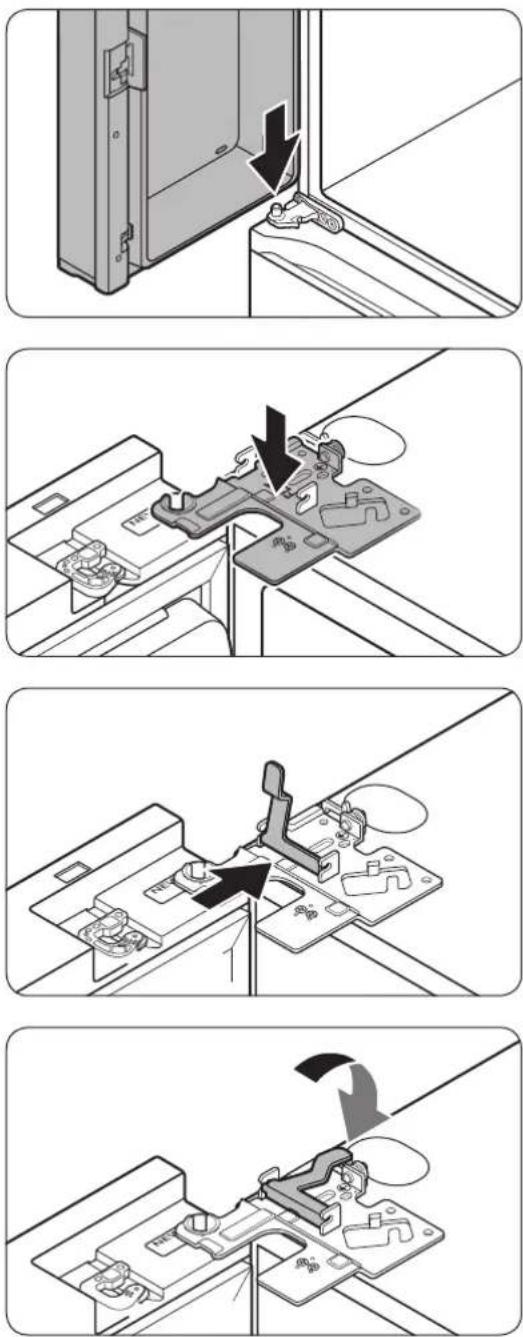

STEP 3 Door removal for entrance

If the refrigerator cannot pass through the entrance to your home or kitchen due to its size, follow these instructions to remove and then re-install the refrigerator's doors. If you do not need to remove the doors, go to page 40 to continue the installation procedure.

WARNING

Unplug the power cord of the refrigerator before removing the doors.

Tools required (not provided)

Phillips screwdriver Flat-head screwdriver Socket wrench

^3/_8 " (10 mm)

Pliers Allen wrench

^1/_4 " (5 mm)

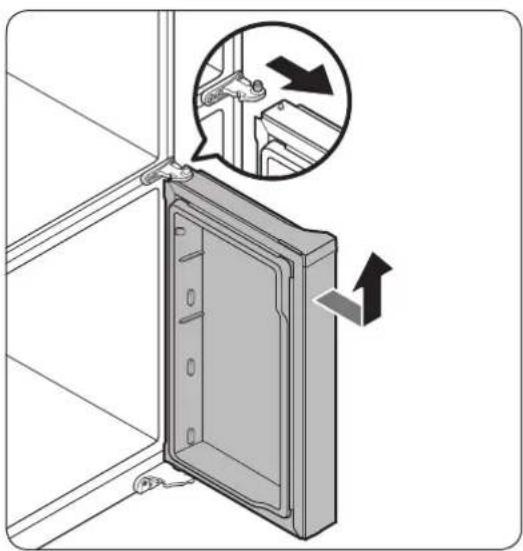

Detach the fridge doors

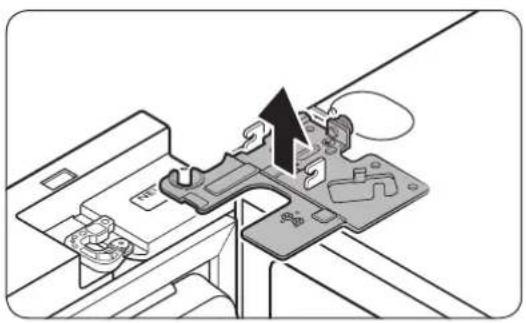

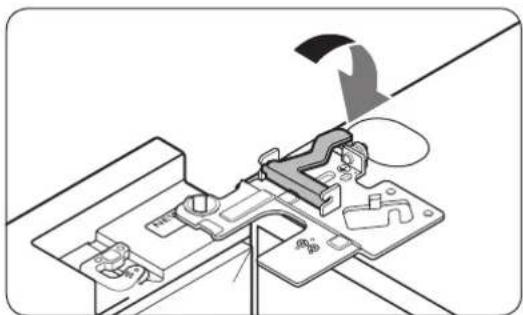

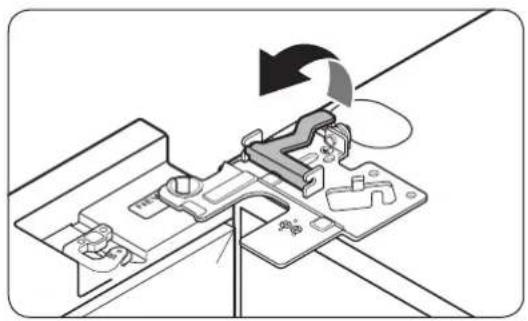

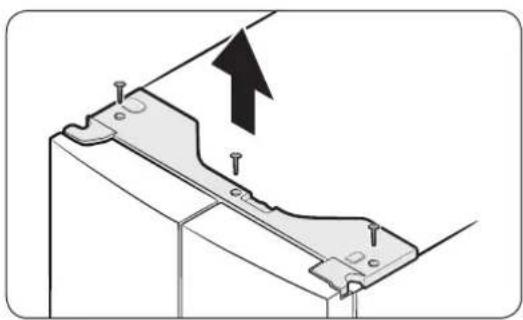

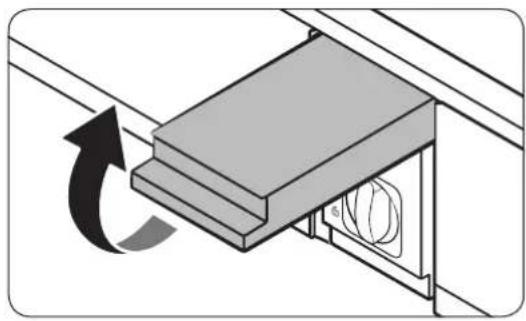

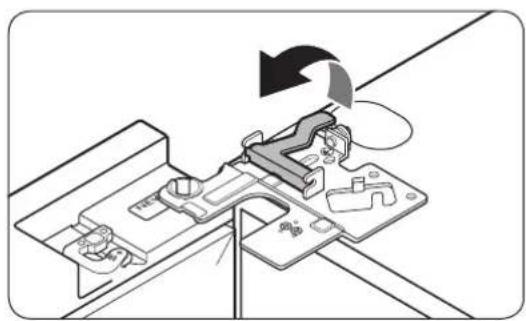

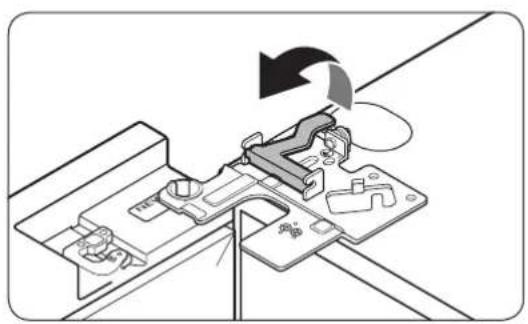

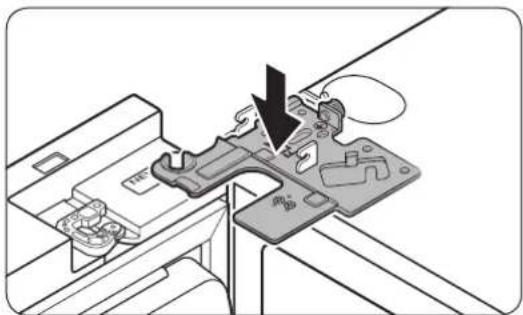

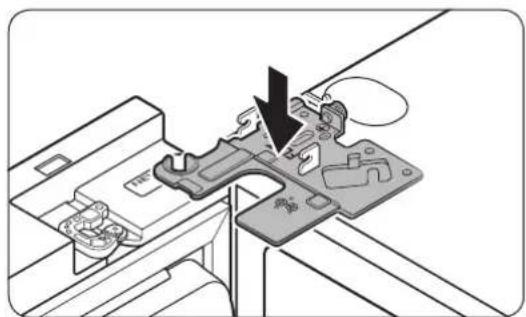

Mechanical assembly diagram showing a bracket with mounting holes and a directional arrow (no text or symbols)

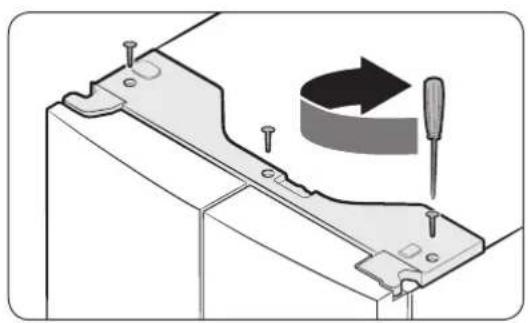

1. With the doors closed, use a Phillips screwdriver to remove the screws (x3) from the top cover. Pull up and remove the top cover with the connectors.

English32

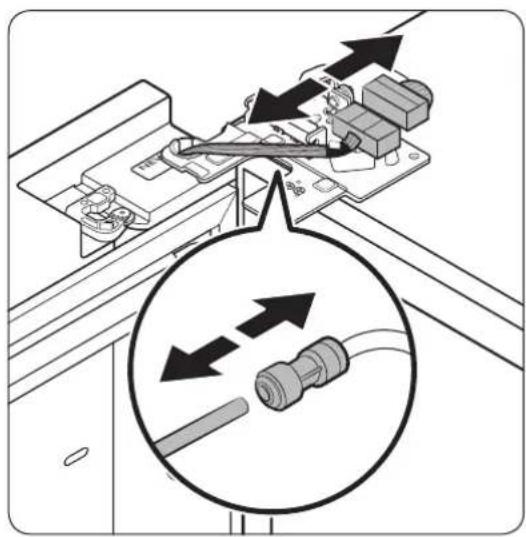

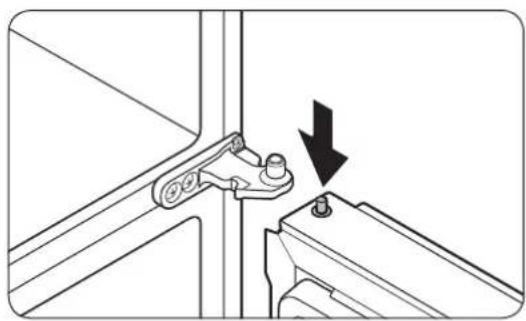

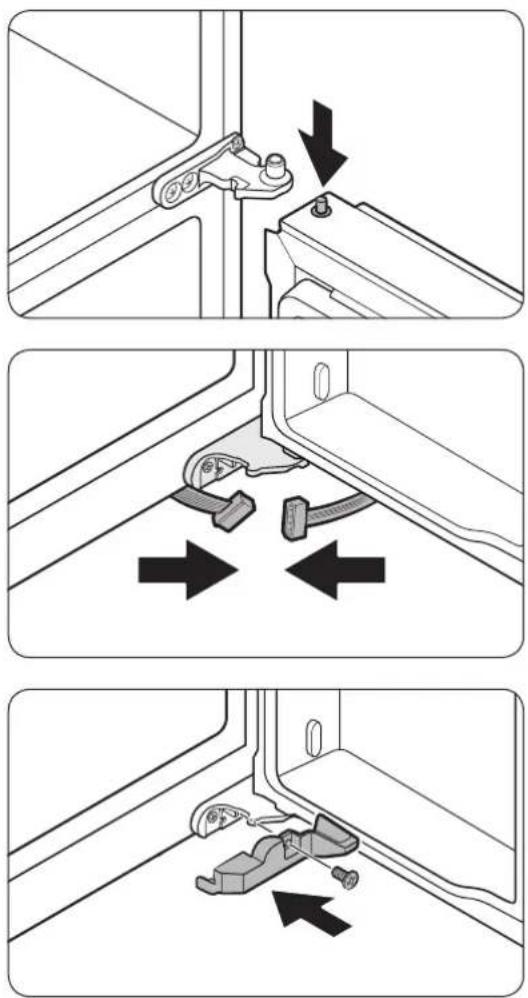

Diagram showing mechanical assembly with directional arrows and a magnified view of connected components (no text or symbols)

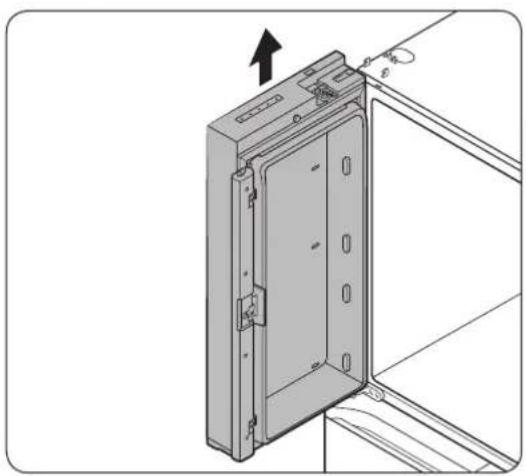

Technical diagram of a mechanical assembly with a person operating a workpiece, showing motion arrows (no text or symbols)

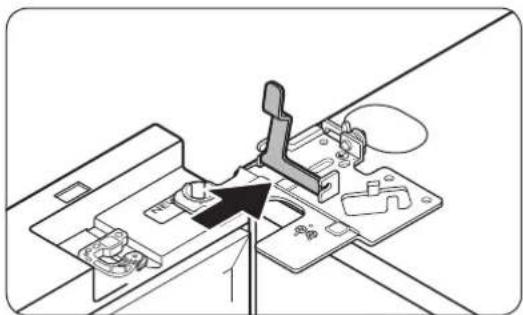

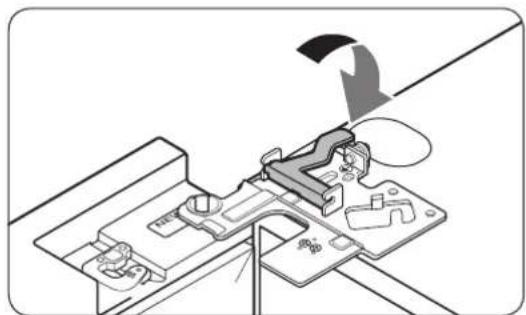

Technical line drawing of a mechanical assembly with a lever and bracket (no text or symbols)

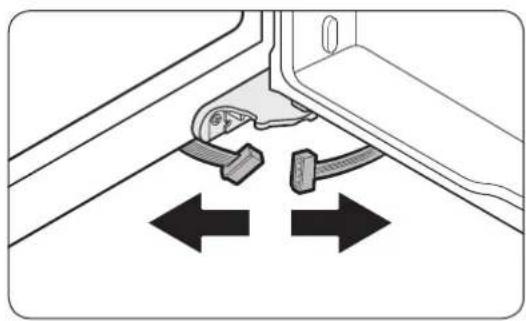

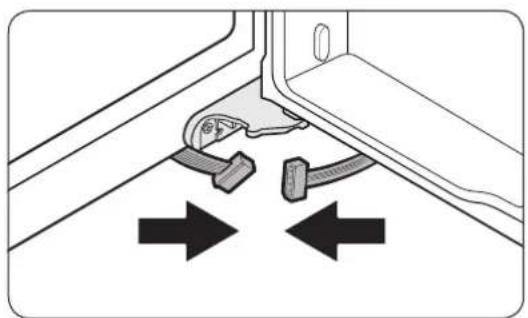

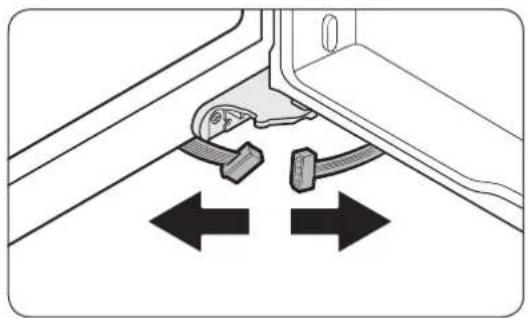

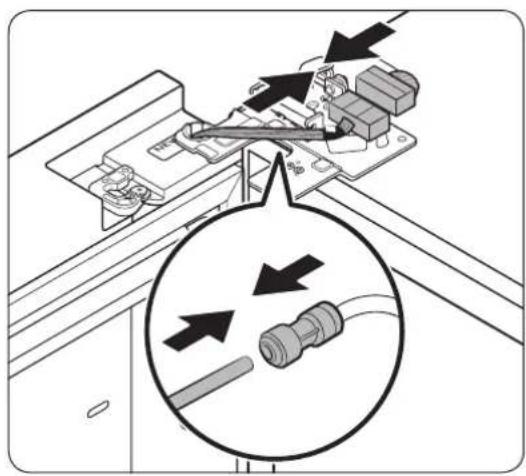

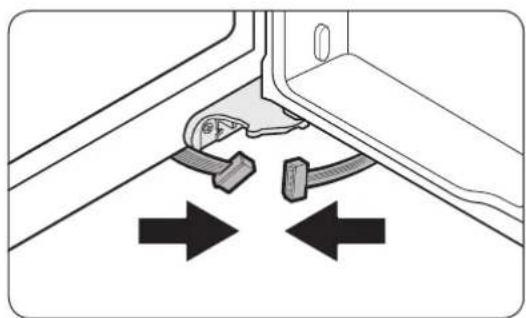

1. Disconnect the two wire connectors on the left door. The position of the connectors differs with the model.

CAUTION

• Do not remove both doors simultaneously. Make sure to remove one door at a time. Otherwise, any of the doors may fall and cause physical injury.
• Make sure the refrigerator is off before disconnecting the connectors.

• Disconnect the water tube from the coupler on the left door as shown.

• This step does not apply to the models without the AutoFill pitcher and the water dispenser.

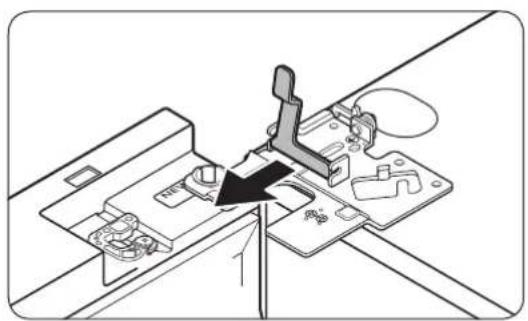

• Gently draw up the clamp in several steps. To prevent finger injuries, do not apply a sudden force to the clamp.
• Pull up the clamp to remove.

Installation

installation

Mechanical assembly diagram showing a component being inserted into a housing (no text or symbols visible)

Technical line drawing of a door frame with an arrow indicating direction (no text or symbols)

1. Open the door 90 degrees. While holding the door, pull up and remove the top hinge. Be careful not to damage the connector wires when you remove the hinge.

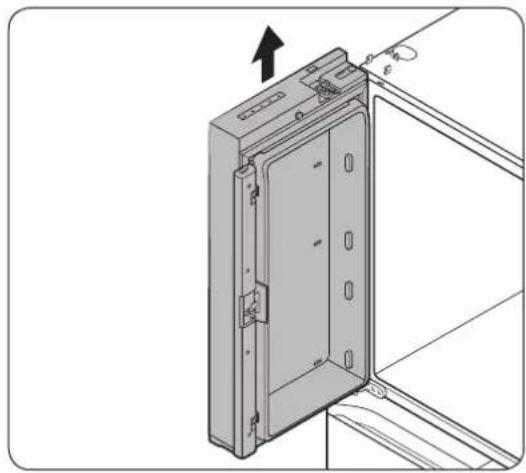

2. Gently pull up the door vertically to remove. Do not apply excessive force to the door. The door may fall, causing physical injury.
3. Lay the door down on a flat surface.
4. Repeat steps 1-8 for the other door, except for step 3. There is no water tube on the right side door.

- Step 2 does not apply to the models without the Showcase door.

English34

Detach the freezer doors

CAUTION

• Be sure to remove the fridge doors before removing the freezer doors.
• Use caution when disconnecting the bottom connectors.

Diagram showing a person using a seatbelt to lift a door, with a black arrow indicating direction (no text or symbols)

Diagram of a mechanical linkage or cable assembly with bidirectional arrows indicating movement (no text or symbols)

Technical diagram showing a mechanical joint or bracket with an arrow indicating direction (no text or symbols present)

1. Open the freezer door.

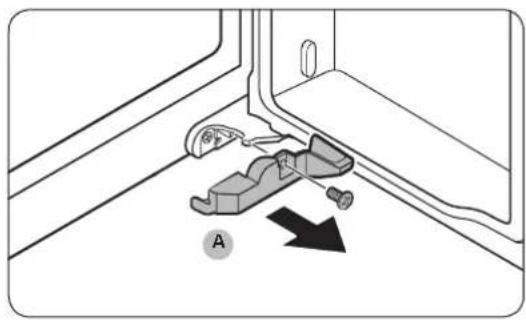

2. Use a Phillips screwdriver to remove the screw holding the cover (A).

3. This step only applies to the right side freezer door (Cool Select+ door).

4. Disconnect the wire connectors.

5. This step only applies to the right side freezer door (Cool Select+ door).

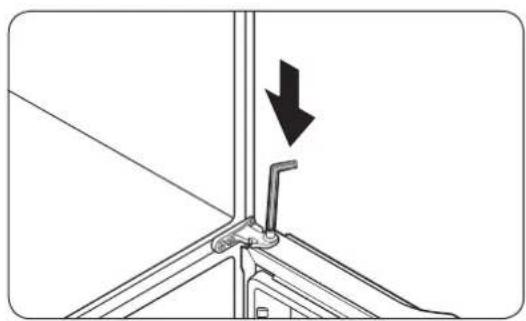

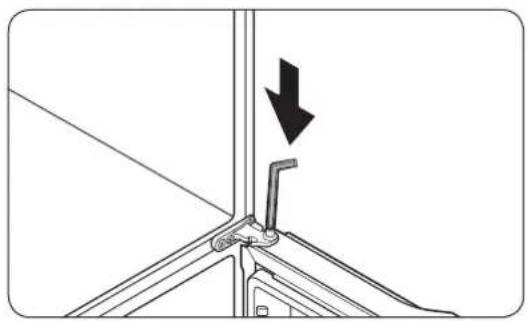

6. Locate the hinge shaft. While holding the door with one hand, use a flat-head screwdriver or Allen wrench to press the shaft down. Make sure to hold the door to prevent the door from falling.

Installation

Diagram of a door panel with an inset showing a close-up of the door and a directional arrow indicating rotation (no text or symbols present)

1. To prevent contact with the middle hinge, slightly tilt the door to the front, and then lift it up to remove.

2. Repeat steps 1-5 for the other door, except for steps 2 and 3.

To reattach the freezer doors

CAUTION

• After re-attaching the doors, make sure all the electrical connectors are properly connected.
• The freezer doors must be re-attached before the fridge doors.
• Be careful not to damage or step on the wires during this process.

Diagram of a door opening with a wall-mounted panel and a directional arrow indicating left motion (no text or symbols)

1. Insert the freezer door into the bottom hinge while pushing the freezer door in the direction of the arrow.

CAUTION

- Be careful not to damage or step on the wires during this process.

English36

Technical diagram showing a mechanical clamp or bracket assembly with a downward arrow indicating force or direction (no text or symbols present)

Diagram showing a car door with two attached clips and directional arrows indicating movement or force (no text or symbols)

Diagram of a car seatbelt mechanism inside a vehicle, showing a hand holding a small object and a black arrow indicating direction (no text or symbols)

1. While pressing the hinge shaft down, position the door so that the hinge shaft is below the shaft hole in the middle hinge. Release the hinge shaft so that it enters the shaft hole.

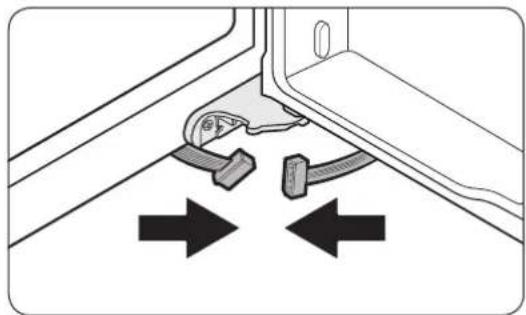

2. With the door open, connect the bottom connectors in the direction of the arrows.

- This step only applies to the right side freezer door (Cool Select+ door).

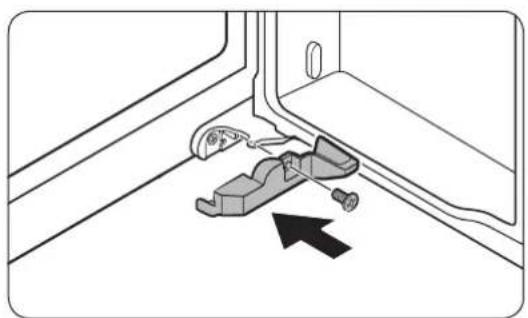

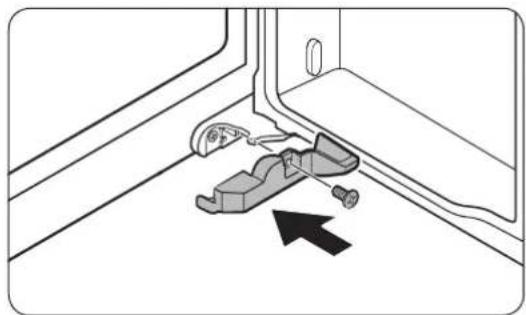

1. Attach the cover using a Phillips screwdriver. Be careful not to damage or step on the connectors.

- This step only applies to the right side freezer door (Cool Select+ door).

1. Repeat steps 1-5 for the other door, except for steps 3 and 4.

Installation

To reattach the fridge doors

1. While holding the door open by more than 90 degrees, insert the shaft on the middle hinge into the hole on the bottom of the door.
2. Put the top hinge into position on the top of the refrigerator, and then insert the hinge shaft into the top hole of the door. Make sure the wires from the door pass through the hole in the hinge shaft.

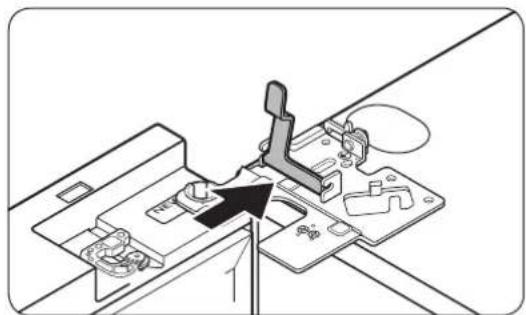

3. Insert the clamp in the direction of the arrow.
4. Push back the clamp as shown.

English38

Diagram showing a mechanical assembly with arrows indicating direction, and a magnified view of connected components (no text or symbols)

Technical diagram of a mechanical assembly with screw fasteners and a curved arrow indicating rotation (no text or symbols)

1. Connect the wire connectors.

CAUTION

• Make sure the wire connectors are connected properly. Otherwise, the display will not operate.
• Connect the water tube.

- This step does not apply to the models without the AutoFill pitcher and the water dispenser.

CAUTION

• To prevent water leaks, make sure the red clips tighten the coupler properly.
- Keep the clips out of children's reach.

1. Repeat steps 1-5 for the other door.
2. Step 5 does not apply to the models without the Showcase door.
3. Attach the top cover with the front side first, and then press down on its back to get it into position. Then, tighten the screws (x3).

Installation

STEP 4 Leveling the refrigerator

CAUTION

• When installed, the refrigerator must be leveled on a flat, solid floor. Not leveling the refrigerator can cause damage to the refrigerator or physical injury.
• Leveling must be performed with the refrigerator empty. Make sure no food items are inside the refrigerator.
• For safety reasons, adjust the front a little higher than the rear.

Level the refrigerator using the special screws (levelers) on the front legs. Use a flat-head screwdriver to turn the levelers.

Diagram showing a mechanical device with a tool and rotating components, no text or symbols present

• To adjust the height of the left side: Insert a flat-head screwdriver into the leveler of the left side front leg. Turn the leveler clockwise to raise the left side or turn it counterclockwise to lower.
• To adjust the height of the right side: Insert a flat-head screwdriver into the leveler of the right side front leg. Turn the leveler clockwise to raise the right side or turn it counterclockwise to lower.

English40

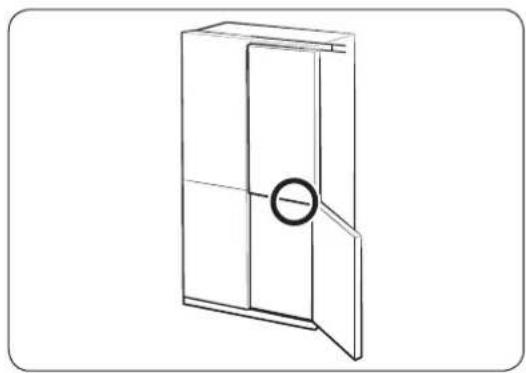

STEP 5 Adjust the door height

Adjusting the height with the height lever (applicable models only)

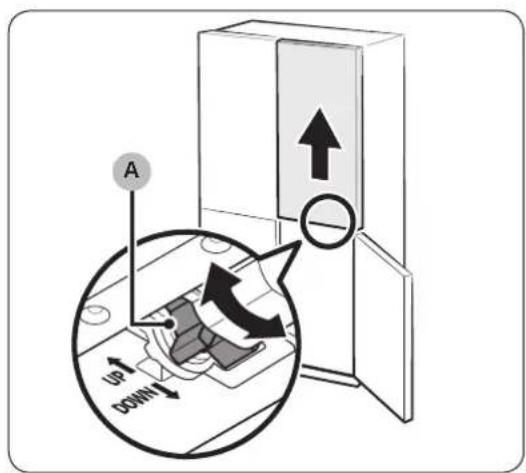

Line drawing of a door with an open lid and circular button (no text or symbols)

A UP DOWN

• Before aligning the door height, make sure the refrigerator is level. Use the leveling legs for this purpose.
• You can use the height lever at the bottom of the right-side door of the fridge. Open the right-side door of the freezer with both fridge doors closed and use the lever to adjust the door height.
• Turn the height lever (A) until the two doors are aligned at the top. Turn the lever toward UP (as marked) to raise the right-side door and turn it toward DOWN (as marked) to lower the door.
• Lift the fridge door slightly to make alignment easier. The maximum adjustable height is 3 mm.

- The lever will not turn past the maximum limit. It may make a noise it if is turned too far.

- Excessive height may interfere with the upper hinge cover of the fridge door.

- If you align the door height with the door bins empty and then store items in the bins, the heights may differ again. If this happens, follow the steps above to realign the doors.

Installation

Adjusting the height with the snap rings

For the models with the height lever on the right-side door of the fridge, use the snaps rings only if you cannot align the doors with the height lever.

Two identical curved, segmented objects resembling stylized hands or clips, with no text or symbols present.

NOTE

The height of a door can be adjusted using the provided snap rings, which come in 4 different sizes (1 mm, 1.5 mm, 2 mm, and 2.5 mm).

Simple line drawing of a two-door cabinet with two circular buttons on one side (no text or symbols)

1. Check the height difference between the doors, and then lift up and hold the door with the lower height.

A B

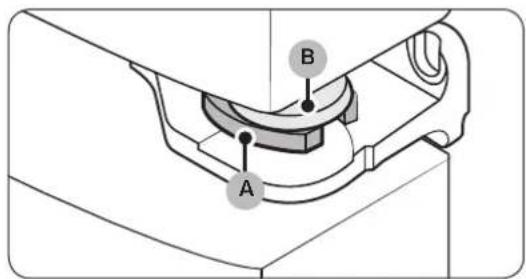

1. Insert a suitable-sized snap ring (A) between the door grommet (B) and the hinge as shown.

CAUTION

• Insert only one snap ring. If you insert two or more snap rings, the rings may slip out or make a rubbing noise.
• Keep the snap rings out of children's reach and keep them for future use.
• Do not raise the door too much. The door can contact and damage the top cover.

English42

Adjusting the freezer door height (applicable models only)

Diagram showing a mechanical assembly with an inset close-up of a component being inserted (no text or symbols present)

• Before aligning the door height, make sure the refrigerator is level. Use the leveling legs for this purpose.
• You can adjust the height of both freezer doors using the lever located at the bottom hinge.
• Open the door, lift it a little, and then turn the lever left or right to adjust the height.

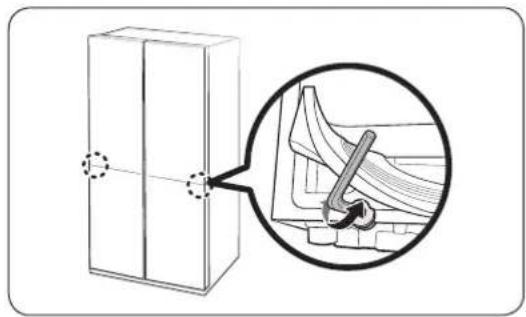

Adjusting the gap between the fridge doors and the main body of the refrigerator (applicable models only)

Diagram showing a cabinet with a magnified inset of a mechanical component (no text or symbols)

• You can adjust the gap between both fridge doors and the main body of the refrigerator using the adjustment bolt located at the bottom of the fridge compartment.
• Lift the door gasket and located the adjustment bolt underneath the gasket. Use the 4 mm Allen wrench to adjust the gap.

CAUTION

Make sure you firmly attach the gasket. Otherwise, cold air from the refrigerator may leak.

Installation

STEP 6 Connect to a water source (applicable models only)

CAUTION

• The new hose-sets supplied with the appliance are to be used and that old hose-sets should not be reused.
• The water line must be connected by a qualified technician.
• The warranty for your refrigerator does not cover the water line installation. The water line installation will be performed at your own costs unless the installation fee is included in the retailer's price.
• Samsung takes no responsibility for the water line installation. If water leaks occur, contact the installer of the water line.

To connect the cold water pipe to the water filtering hose

CAUTION

- Make sure the water filtering hose is connected to a cold, potable water source pipe. Connecting to the hot water pipe may cause the purifier to malfunction.

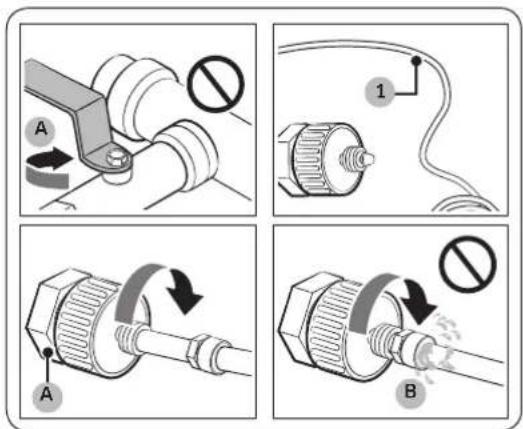

Diagram illustrating four steps of a mechanical or electrical component assembly, labeled A and B with directional arrows and no symbols.

A. Close Main Water pipe
B. No gap

1. Shut off the water supply by closing the main water valve.
2. Locate the cold, potable water pipe (1).
3. Follow the Water Line Installation to connect to the water pipe.
4. When connection is complete, open the main water valve and dispense about 3 liters of water. This is to remove impurities inside the pipe.

English44

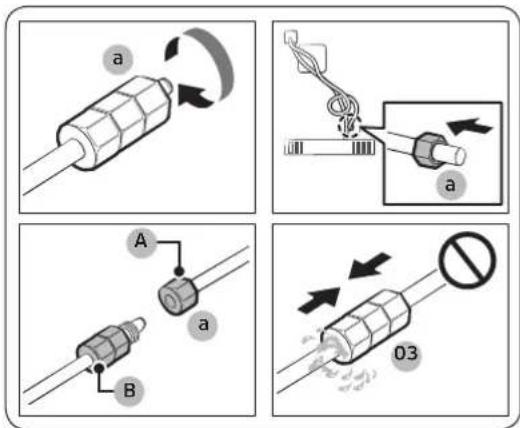

To connect the water filtering hose to the water line

a a A a B 03

A. Water Line from unit

B. Water Line from Kit

Safety warning illustration showing a pipe knot with a circle and a prohibition sign, indicating no protection or disapproval.

Diagram showing a prohibition symbol and three labeled safety symbols connected by curved lines, likely indicating safety or hazard zones.

1. Loosen and remove the compression nut (a) from the water line of the refrigerator, and insert it to the water filtering hose.
2. Tighten up the compression nut (a) to connect the water filtering hose and the water line.
3. Open the main water valve and check for any leaks.
4. If there are no leaks, dispense about a 3 liters of water before actually using the refrigerator to remove impurities inside the water filtering system.

NOTE

If you have to relocate the refrigerator after connecting the water line, make sure the joined section of the water line must is straight.

CAUTION

Do not mount the water filter on any part of the refrigerator. This may damage the refrigerator.

To repair the water line

CAUTION

The waterline must be repaired by a qualified professional. If you encounter a water leak, contact a local Samsung service centre or the installer of the waterline.

Installation

STEP 7 Initial settings

By completing the following steps, the refrigerator should be fully functioning.

1. Plug the power cord into the wall socket to turn the refrigerator on.
2. Open the door, and check if the interior light lights up.
3. Set the temperature to the coldest, and wait for about an hour. Then, the freezer will be slightly chilled, and the motor will run smoothly.
4. Wait until the refrigerator reaches the set temperature. Now the refrigerator is ready for use.

STEP 8 Final check

When installation is complete, confirm that:

• The refrigerator is plugged into an electrical outlet and grounded properly.
• The refrigerator is installed on a flat, level surface with a reasonable clearance from the wall or the cabinet.
• The refrigerator is level and is sitting firmly on the floor.
• The door opens and closes freely, and the interior light turns on automatically when you open the door.

English46

Operations

User interface

NOTE

• For more information about other menus and apps available on the Refrigerator app, see the Online manual of your refrigerator.
• The content of apps and widgets, or their design is subject to change or support may be discontinued without notice, depending on the content provider's policy.
• Children's use of the refrigerator's functions, apps, and services must be supervised by adults.
  • Underage transactions with the services must be supervised by adults.

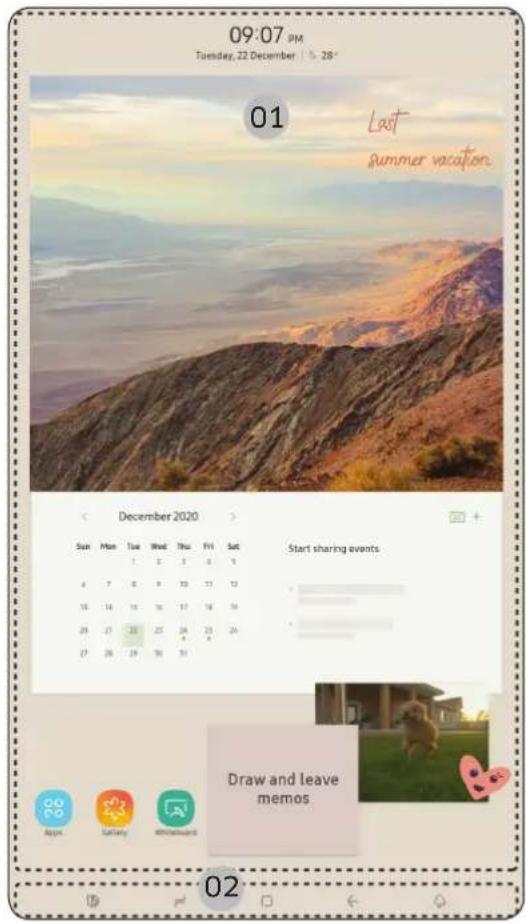

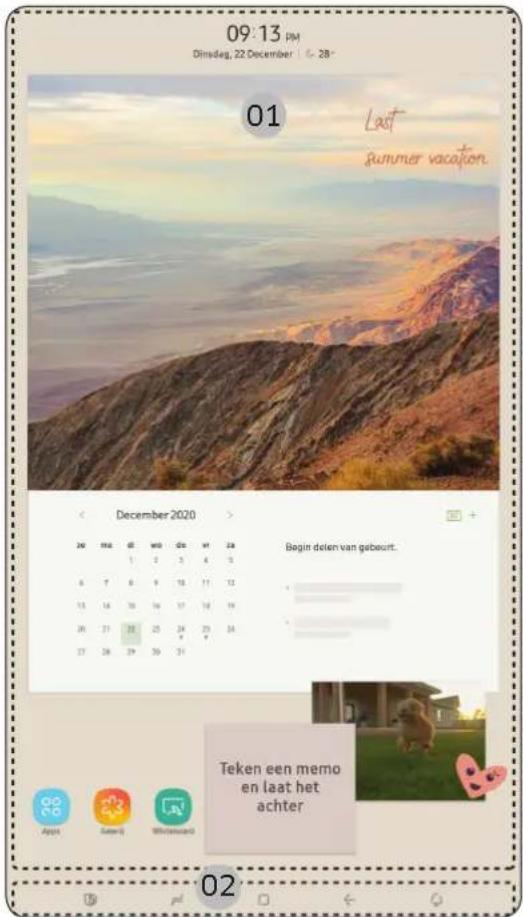

09:07 PM Tuesday, 22 December | 28° 01 Last summer vacation December 2020 Start sharing events Draw and leave memos Apps Gallery Whiteboard 02

01 Home screen
02 Soft buttons

Operations

01 Home screen

• Tap a desired app or widget to launch it.
• On the home screen, you can add or remove items such as apps, widgets, pictures, videos, drawings, and texts.
• Tap and hold an item to enter Edit mode. In Edit mode, you can drag and drop an item to a new location on the home screen. When you move the item to a new location, the item turns red if the location is not available.

02 Soft buttons

010203040506

01 Bixby

- Tap to use Bixby.

02 Task Manager

- Tap to open the Task Manager.

03 Home

- Tap to open the Home screen.

04 Return

- Tap to return to the previous screen.

05 Notification

- Tap to display the Quick Panel.

06 Hide/Show

• Tap to hide or show Soft buttons.
• The Hide/Show button only appears when an app is active.

English48

Fridge Manager

On the Home screen, tap the Fridge Manager app.

• You can set the desired temperature or modes for each compartment.
• For more detailed information on the Fridge Manager app, check the online manual.
• To access the online manual from your Family Hub refrigerator, tap Setting > Help & Contact Us > Online Manual.

Display reset (applicable models only)

If you encounter an abnormal symptom on the display, try resetting the display. This may solve the symptom.

Diagram of a device component with an arrow indicating direction (no text or symbols present)

Line drawing of a hand inserting a small rectangular component into a box (no text or symbols)

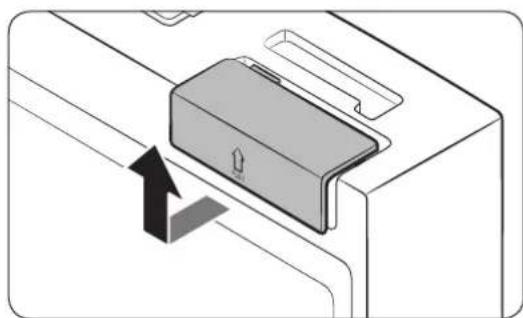

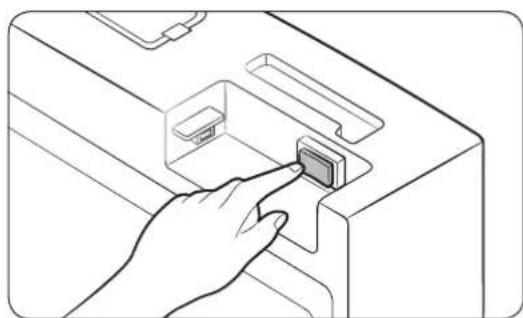

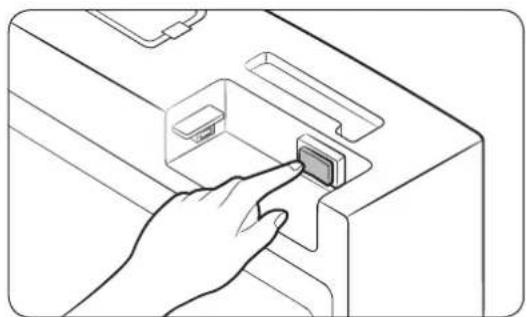

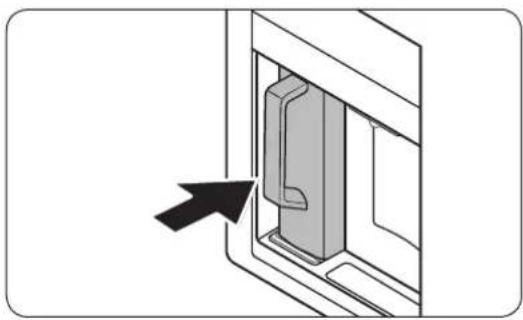

1. Open the right-side fridge door and locate the switch cover on the top right corner of the door.

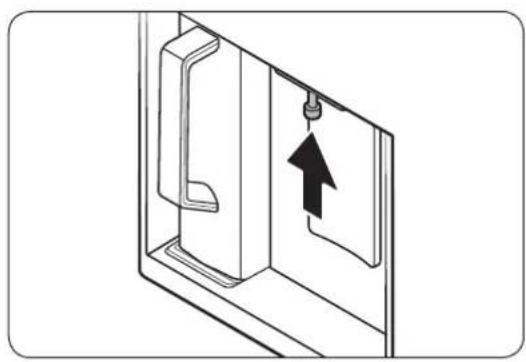

2. Push up the cover to reveal the power switch.

3. Turn the switch off and turn it on again.

4. Reinsert the switch cover to the end until you hear a clicking sound.

Operations

SmartThings

Installation

Visit the Google Play Store, Galaxy Apps, or Apple App Store and search for "SmartThings". Download and install the SmartThings app provided by Samsung Electronics to your smart device.

NOTE

• The SmartThings app is designed for Android 8.0 or later, iOS 12.0 or later, iPhone 6 or later, and is optimized for Samsung smartphones (Galaxy S and Galaxy Note series).
• For improved performance, the SmartThings app is subject to change without notice, or discontinued support according to the manufacturer's policy.
• Recommended encryption systems include WPA/TKIP and WPA2/AES. Any newer or unstandardized Wi-Fi authentication protocols are not supported.
• Wireless networks may be affected by the surrounding wireless communication environment.
• If your Internet service provider has registered the MAC address of your PC or modem for identification, your Samsung Smart Refrigerator may fail to connect to the Internet. If this happens, contact your Internet service provider for technical assistance.
• The firewall settings of your network system may prevent your Samsung Smart Refrigerator from accessing the Internet. Contact your Internet service provider for technical assistance. If this symptom continues, contact a local Samsung service center or retailer.
• To configure the wireless access point (AP) settings, see the user manual of the AP.
• Samsung Smart Refrigerators support both Wi-Fi 2.4 GHz with IEEE 802.11 b/g/n and Soft-AP protocols (IEEE 802.11 n is recommended).
• Unauthorized Wi-Fi wireless routers may fail to connect to applicable Samsung Smart Refrigerators.

English50

Samsung account

You are required to register your Samsung account to use the app. If you don't have a Samsung account, follow the app's onscreen instructions to create a free Samsung account.

Getting started

Turn on the device you want to connect, open the SmartThings app on your phone, then follow the instructions below.

If a pop-up appears saying that a new device has been found, tap ADD NOW.

If a pop-up doesn't appear, tap the + button, then select the device you want to connect from the list of available devices.

If your device isn't in the list of available devices, tap Supported Devices, select the device type (Refrigerator), and then select the specific device model.

Follow the instructions in the app to set up your device. Once setup is complete, your refrigerator will appear as a "card" on your Devices screen.

Refrigerator app

Integrated control

You can monitor and control your refrigerator at home and on the go.

• Tap the refrigerator icon on the SmartThings Dashboard or tap the Devices icon at the bottom of the Dashboard, and then tap the refrigerator "card" to open the Refrigerator page.
• Check the operation status or notifications related to your refrigerator, and change options or settings if necessary.

NOTE

Some options or settings of the refrigerator may not be available for remote control.

Operations

Category Item Description
Monitor & Control	Fridge Temperature	You can set and monitor the desired temperature of the fridge.
	Freezer Temperature	You can set and monitor the desired temperature of the freezer.
	Power Cool	You can turn Power Cool on or off, and check the current settings.
	Power Freeze	You can turn Power Freeze on or off, and check the current settings.
	Flex Crisper	You can set and monitor the desired mode of the Flex Crisper.
	Cool Select+	You can set and monitor the desired mode of the Cool Select+.
	Cubed Ice / Ice Bites	You can turn the ice making function on or off, and check the current settings of the function.
	AutoFill Pitcher	You can turn the AutoFill Pitcher function on or off, and check the current settings of the function.
Alarms	Abnormally high temperature	This alarm is triggered when the fridge, the freezer, or the Cool Select+ has abnormally high temperatures.
	Door opening	This alarm is triggered if the fridge door, the freezer drawer, or the Cool Select+ drawer is open for a specific time.
	Autofill Pitcher overflowing	If the Autofill Pitcher function senses an overflow, it triggers this alarm to let you know the status of the overflow.
	Water filter replacement	This alarm reminds you that the water filter must be replaced.
Inside Image		You can view the inside of the refrigerator and can see if you need to replace food items.

English52

Recommendations for voice recognition

For the voice recognition function, there is a built-in microphone at the top of the refrigerator's display. To use the voice recognition function:

• Stand no more than 1 meter from the refrigerator and speak loudly and clearly towards the built-in microphone.
• Speak at a regular pace. Reduce ambient noises, such as noises from a living-room TV.

NOTE

The voice recognition function may not work if you stand more than 1 meter away or if you speak too softly.

Operations

Special features

The refrigerator has features convenient for you.

Water pitcher (AutoFill Pitcher) (applicable models only)

Cold, purified water is always ready in the AutoFill Pitcher. You can put tea or fruits in the infuser to enjoy the various infused water you like.

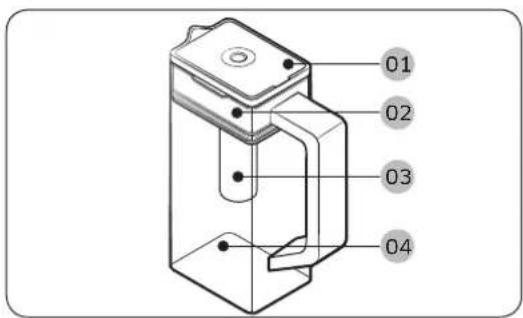

01 02 03 04

01 Lid
02 Infuser holder
03 Infuser
04 Body

To fill the Water pitcher

Diagram of a mechanical device with a handle and internal structure, showing an upward arrow (no text or symbols)

1. Grasp a handle groove of the lid, and then pull up to open the lid.
2. Put tea leaves or fruit to your taste into the infuser.

NOTE

If you want to keep the infused water in its initial concentration, turn the AutoFill Pitcher function off.

English54

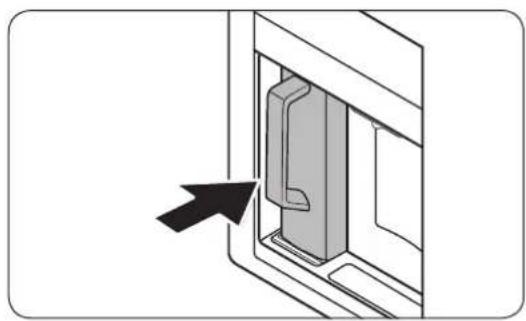

Diagram of a door opening with a black arrow pointing to the door handle (no text or symbols present)

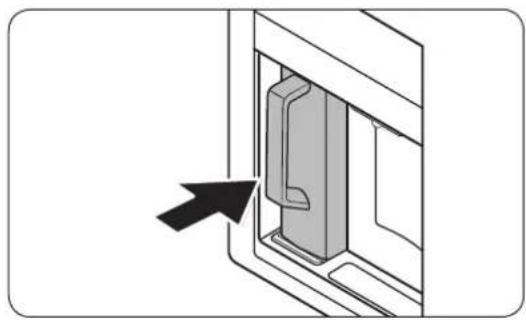

1. Enable the AutoFill Pitcher function on the control panel. Open the Beverage Center door and then mount the water pitcher onto the holder. Push it straight in as shown in the figure.

CAUTION

Make sure the water pitcher fits in the water pitcher holder.

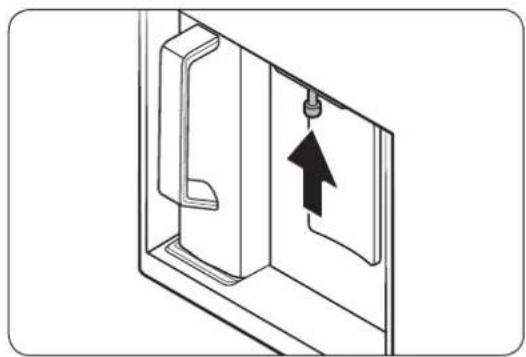

1. Close the door. The water pitcher will start to fill with chilled water a short time later.

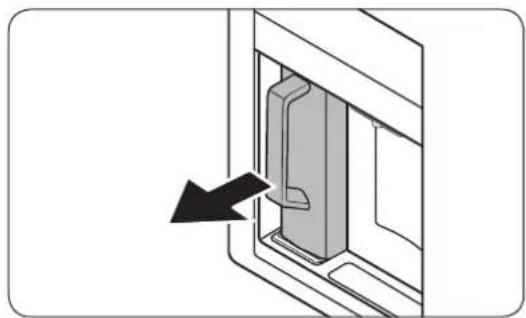

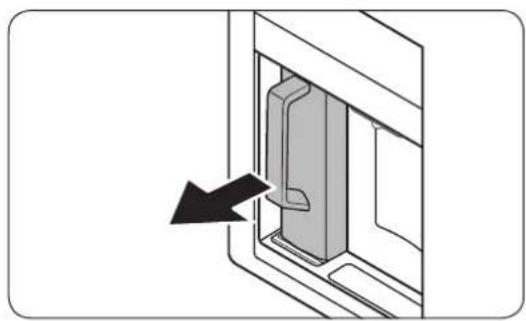

2. To drink tea, open the Beverage Center door and then detach the water pitcher. Pull it straight out.

Diagram of a door handle assembly with a black arrow indicating direction (no text or symbols)

Operations

CAUTION

• We recommend consuming fruit infused water within 24 hours. After that, the infused water can spoil over time.
- You must clean the water pitcher after you have consumed the infused water. Also clean the water pitcher if you haven't used it for a long time.

Technical illustration of a mechanical assembly with two views showing internal components and a no-smoking symbol (no text or labels present)

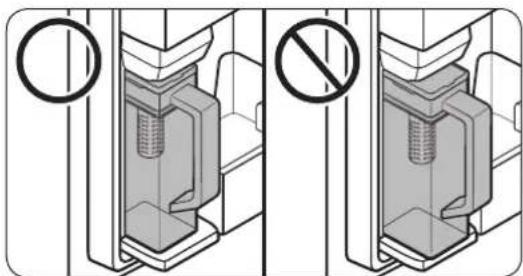

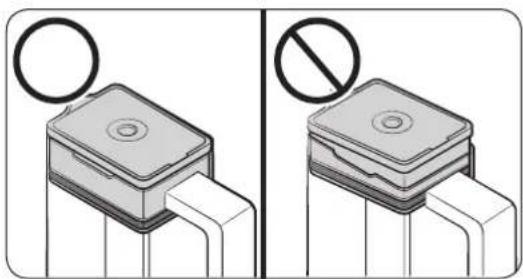

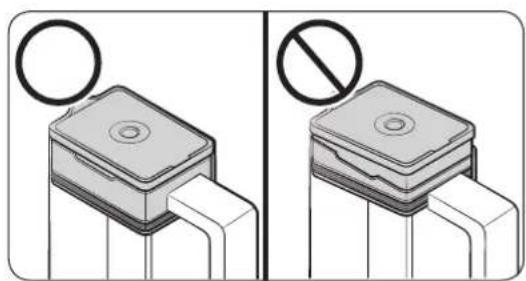

• To prevent the water pitcher from tipping over or leaking, make sure the water pitcher fits in the water pitcher holder.

Two technical diagrams showing a component with a circular symbol above and a prohibition sign below, no text or labels present.

• To prevent the water pitcher from spilling over or leaking, make sure the infuser holder is properly inserted.

3D diagram of a mechanical device with a magnified inset showing a circular feature (no text or symbols)

NOTE

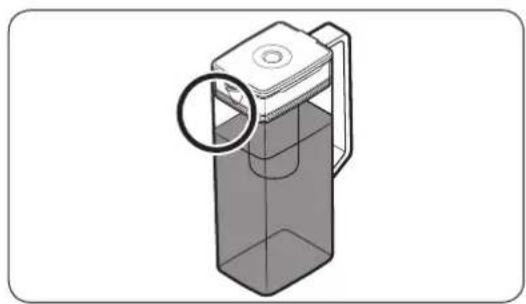

• If the front side (specifically marked area) of the water pitcher has too much moisture, the water pitcher may not fully fill. Remove the moisture, and then try again.
• AutoFill Pitcher function will stop supplying water to the water pitcher if the water pitcher does not fill after a certain amount of time. If this happens, check if the water line is properly connected. Remove and reinsert the water pitcher, and then try again.

English56

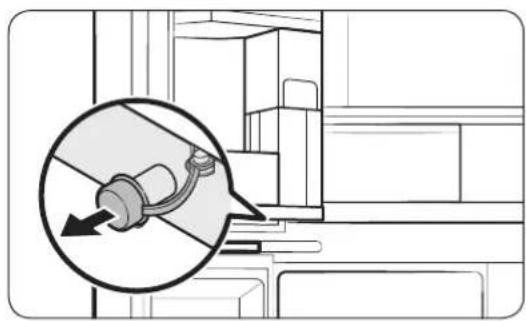

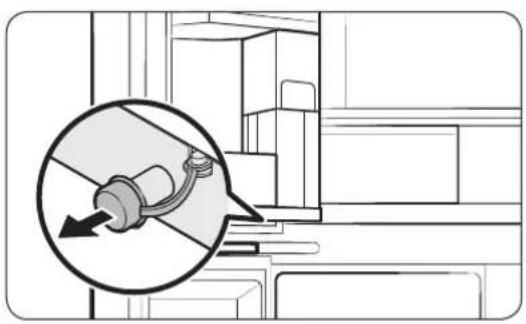

Illustration of a mechanical device inside a room with shelves and furniture (no text or symbols)

NOTE

• Wipe around the water pitcher holder if the water pitcher overflows or leaks.

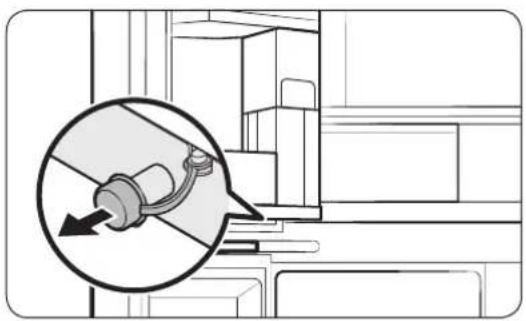

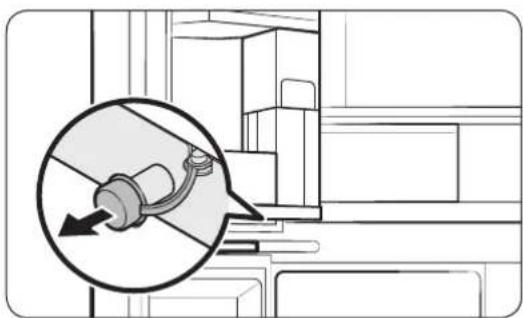

  • Water drops off if the rubber cap is opened.
• An alert message appears on the control panel if there is a leak. In case of a leak, open the rubber cap so that the leaked water drains. If the alert message does not disappear after draining, there might be a system failure. Contact your local Samsung service center.

Operations

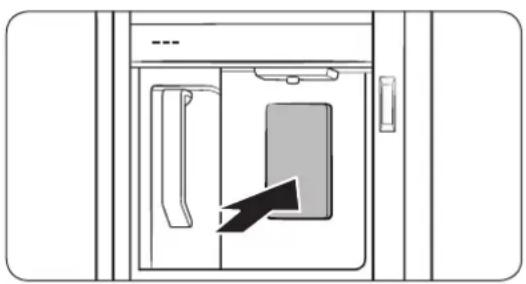

Water dispenser (applicable models only)

Diagram of a door with a door handle and internal panel, showing a black arrow pointing to a device (no text or symbols present)

To dispense chilled water, open the Beverage Center and press the dispenser lever.

NOTE

• The dispenser will stop dispensing if you keep pushing the dispenser lever for about 1 minute. To dispense more water, release and push the lever again.
• Make sure the glass is in line with the dispenser to prevent the dispensed water from spilling out.
• If you do not use the water dispenser for 2-3 days, the dispensed water may have an abnormal smell or taste. This is not a system failure. Discard the first 1-2 glasses of water.

Water clouding

Water supplied to the refrigerator flows through a core alkaline filter. During this filtering process, the water pressure of the water increases and the water becomes saturated with oxygen and nitrogen. This causes the water to look misty or cloudy temporarily when dispensed. This is normal and the water will look clear after a few seconds.

English58

Ice maker

The refrigerator has a built-in ice maker that automatically dispenses ice.

- The overall design and/or accessories may differ with the model.

Cross-sectional diagram of a mechanical or electrical component with layered structure (no text or symbols)

• This product has two types of ice makers.

Ice making

After you have installed your refrigerator and plugged it in, follow these instructions to ensure proper ice making and to keep the ice bucket full of ice.

For first-time use

• Let the ice maker make ice for 1-2 days.
• Discard the first 1-2 buckets of ice to remove impurities in the water supply system.

Diagnosis

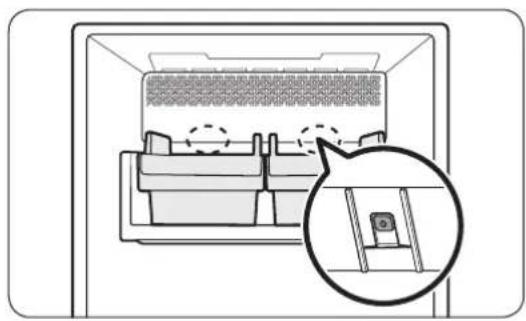

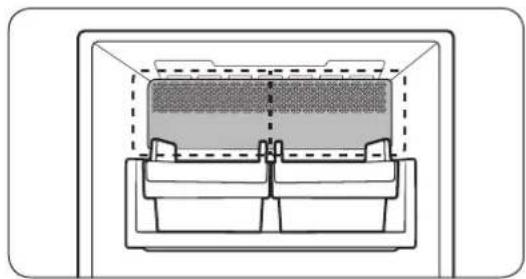

Diagram of a refrigerator interior showing seating arrangement and a magnified inset view (no text or symbols)

• The overall design and/or accessories may differ with the model.
• If ice does not dispense, first check the status of ice maker using the Test button on the bottom of the ice maker.

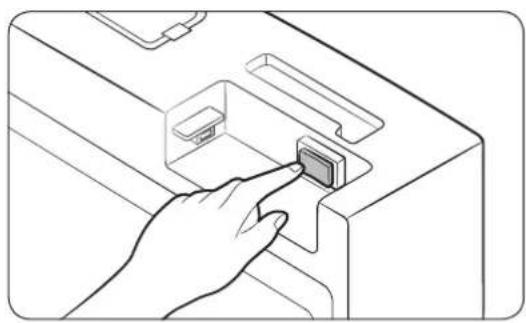

• Press the Test button on the bottom of the ice maker. You will hear a chime (ding-dong) when you press the button. You will hear another chime if the ice maker is operating properly.

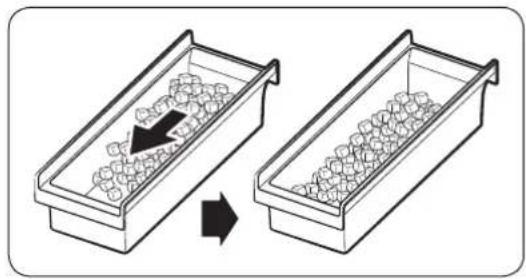

• Ice accumulating on one side of the tray is normal. Arrange the ice evenly in the tray to store more ice.

Diagram showing two containers with granular material inside, one moving right and the other horizontally (no text or symbols)

Operations

CAUTION

• Leaving the water line disconnected may cause the water valve to produce a buzzing sound over time. If this is the case, make sure to turn the ice making function (Cubed Ice / Ice Bites) off.
• If the ice making chime rings repeatedly, contact the waterline installer or a local Samsung service center.
• Do not put food in the ice bucket. The frozen food may damage the ice maker, especially when you open or close the door.
• When the refrigerator recovers power after a power failure, the ice bucket may contain a mix of melted and jammed ice cubes, which can prevent the ice maker from working properly. To prevent this, make sure to empty the ice bucket before using the refrigerator.
• Do not put fingers or any objects into the ice maker. This can cause physical injury or property damage.
• Due to sublimation, ice stored in the freezer for a long time gets smaller and then forms large ice chunks. Therefore, if it will be a long time before you use ice, turn the ice maker off as follows.

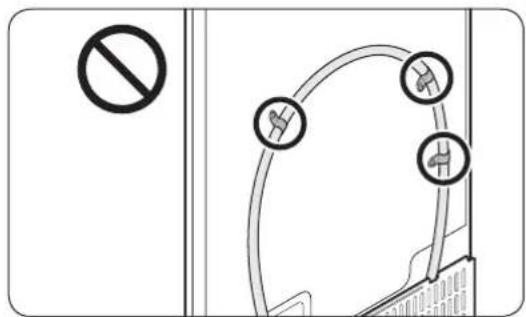

• Use the new hose-sets supplied with the appliance only. Do not re-use an old hose set.

English60

Maintenance

Handling and care

Ice bucket (applicable models only)

If you do not dispense ice for an extended period, ice may form clumps inside the bucket. If this happens, remove and empty the ice bucket.

CAUTION

• To prevent injury, make sure to clean up any ice or water that has fallen on the floor.
- To prevent accidents or injury, do not let children play with the water dispenser or the ice maker.
- Use only the provided ice bucket. Third-party ice buckets may cause a system failure.

NOTE

• The water pressure required for ice making is between 206-861 kPa.
- Noise from the ice maker as it produces ice during the ice making process is normal.

Autofill pitcher (applicable models only)

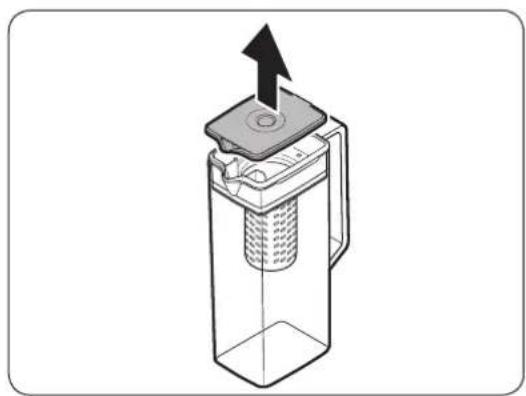

Diagram of a mechanical device with an upward arrow indicating motion or force, no text or symbols present

1. Grasp a handle groove of the lid, and then pull up to remove.

Diagram of a mechanical component with a handle and internal structure, no text or symbols present

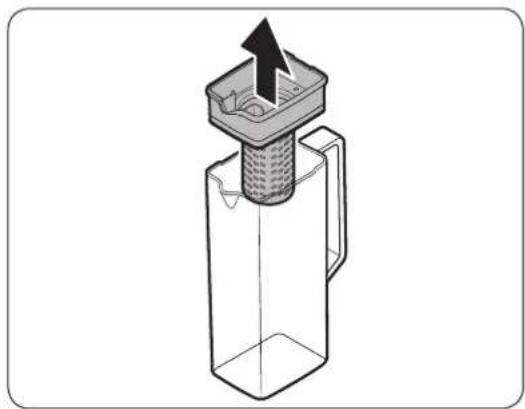

1. Grasp both sides of the infuser holder, and then lift to remove.

Maintenance

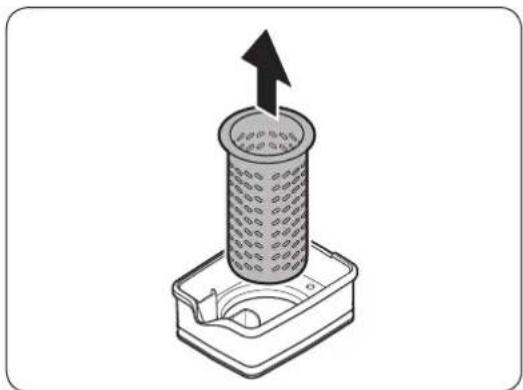

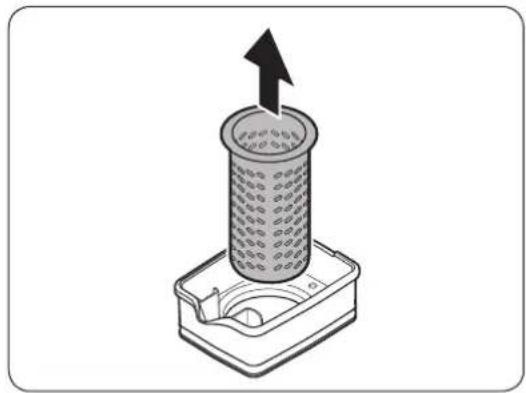

Diagram of a cylindrical device with a black upward arrow emerging from it, placed on a base with a small mouth (no text or symbols)

1. While slightly twisting the infuser, pull it out of the sealed mouth.
2. Clean the infuser with neutral agents and running water. Rinse and dry well.
3. Reassemble the Autofill pitcher in the reverse order of disassembly.

CAUTION

The water pitcher and lid are not microwave safe and can melt or deform if exposed to heat (including hot water). Please hand wash in cool or warm water as needed.

English62

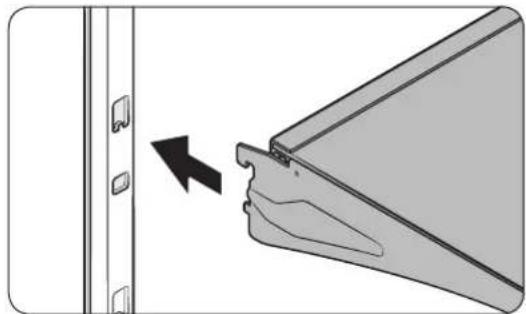

Fridge shelves

The appearance of the shelves differs by model.

Isometric diagram of a mechanical assembly with a rotating component (no text or symbols)

Diagram showing a door panel being inserted into a plastic hinge, with an arrow indicating the insertion direction (no text or symbols present)

Diagram showing a device with arrows indicating movement or force, and a magnified inset highlighting a component.

- To remove a shelf, fully open the corresponding door. Hold the front of the shelf, and then gently lift up and pull out.

NOTE

Do not lift up the shelf fully when removing or reinserting the shelf. The rear wall of the fridge room can be dented.

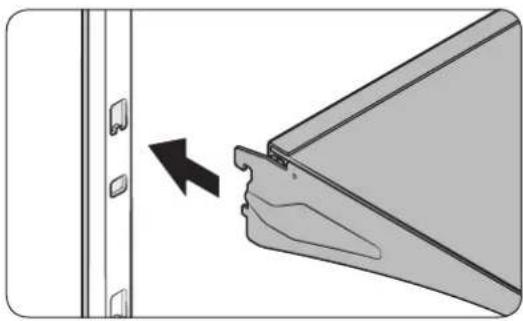

- To reinsert, hold the shelf at an angle so the front is higher than the back, and then insert the top hook into the top shelf notch. Then, lower the shelf and insert the bottom shelf hook into the bottom shelf notch.

CAUTION

• The tempered glass shelves are heavy. Use caution when removing them.
• The shelf must be inserted correctly. Do not insert upside down.
  • Glass containers may scratch the surface of glass shelves.

Maintenance

Door bins

3D diagram of a rectangular container with a black arrow pointing to a vertical slot, no text or symbols present

• To remove the door bin, hold the front sides of the bin, and then gently lift up to remove.
• To reinsert, insert the door bin slightly above its final location making sure that the back of the bin is against the door. Hold the rear of the door bin with both hands, and then press down so that it fits snugly.

CAUTION

• Do not remove a bin that is filled with food. Empty the bin beforehand.
• Use caution when opening the door if the bottom bin contains larger bottles, which may fall over.
• Do not allow children to play with the bins. Sharp corners of the bin may cause injury.

Fridge drawers

Crisper / Flex Crisper Drawers

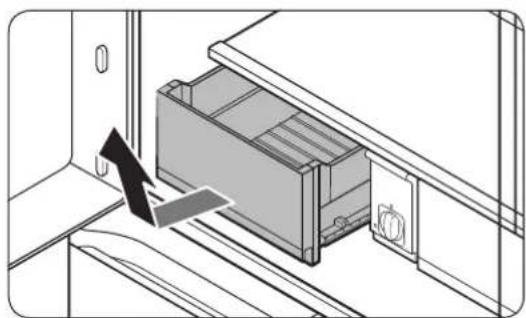

Diagram of a refrigerator interior with an open drawer and a black arrow indicating direction (no text or symbols)

Gently lift up the front of the drawer and slide out.

• We recommend that you remove the door bins before removing the drawer. This is to prevent damage to the door bins.
- To reinsert, insert the drawer into the frame rails and then slide inward.

English64

Cleaning

Interior and exterior

WARNING

• Do not use benzene, thinner, or home/car detergent such as Clorox™ for cleaning purposes. They may damage the surface of the refrigerator and cause a fire.
• Do not spray water onto the refrigerator. This may cause electric shock.
• Do not put fingers or other objects into the dispenser hole.

CAUTION

• Do not spray water directly on the LCD display or speaker. This may cause fire, electric shock, or damage.
• Do not scratch the LCD display or speaker. This may cause permanent damage.

Regularly use a dry cloth to remove all foreign substances such as dust or water from the power plug terminals and contact points.

1. Unplug the power cord.
2. Use a moistened, soft, lint-free cloth or paper towel to clean the refrigerator's interior and exterior.
3. When done, use a dry cloth or paper towel to dry well.
4. Plug in the power cord.

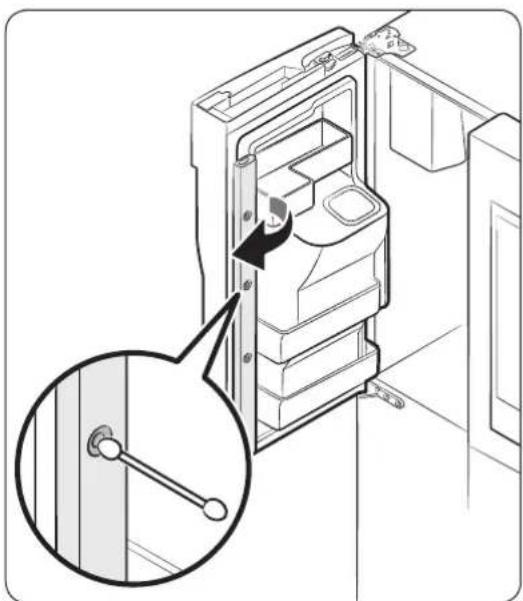

Inner-view camera

Diagram of a refrigerator door with an inset showing a close-up of the door panel (no text or symbols present)

NOTE

Use a cotton swab or microfiber cloth to clean the camera on the left-side door of the fridge.

Maintenance

Dispenser nozzle (applicable models only)

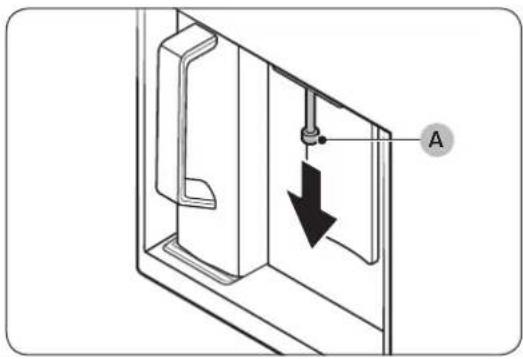

Technical line drawing of a door handle assembly with a black arrow indicating direction (no text or symbols)

1. Hold the end of the dispenser nozzle (A).

2. While turning the dispenser nozzle (A) left, pull it down to remove it from the dispenser.

Diagram of a door with an arrow indicating direction, showing internal structure and mounting bracket (no text or symbols)

1. Clean the dispenser nozzle thoroughly, and then assemble it back.

CAUTION

- Fully insert the dispenser nozzle, so it is back to its original position.

- Do not use a sponge with rough textures for cleaning the dispenser nozzle.

Rubber seals

If the rubber seals of a door become dirty, the door may not close properly and reducing refrigerator performance and efficiency. Use a mild detergent and damp cloth to clean the rubber seals. Then, dry well with a cloth.

Rear panel

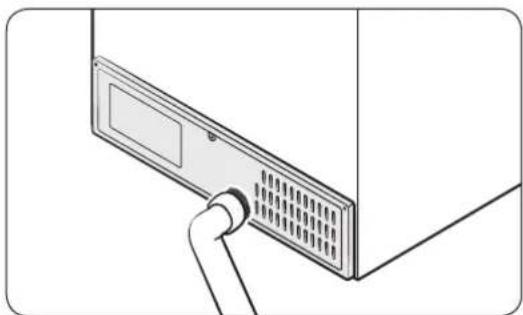

Diagram of a computer monitor rear panel with a cable inserted, showing ventilation slots and a scroll wheel (no text or symbols)

To keep cords and exposed parts of the rear panel free of dirt, vacuum the panel once or twice a year.

CAUTION

Do not remove the rear panel cover. Electric shock may occur.

English66

Replacement

Water filter (applicable models only)

WARNING

• Do not use third-party water filters. Use only Samsung-provided or -approved filters.
• Unapproved filters may leak and damage the refrigerator, causing electric shock. Samsung is not responsible for any damage that may occur from use of third-party water filters.

The "Replace water filter" message appears on the control panel to let you know it is time to replace the water filter. Before replacing the filter, make sure the water supply line is shut off.

Diagram of a mechanical assembly with a rotating component and directional arrow (no text or symbols)

1. Shut off the water supply line.
2. Open the filter cartridge cover.

Diagram of a mechanical component with directional arrows indicating motion (no text or symbols)

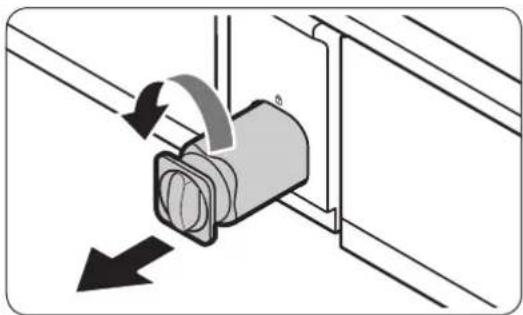

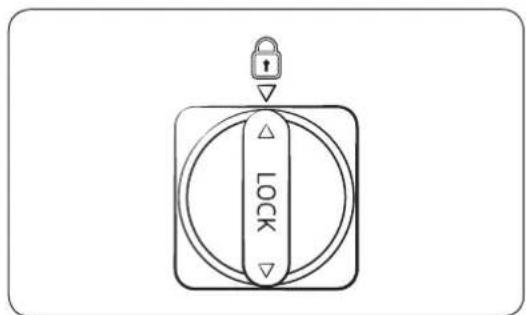

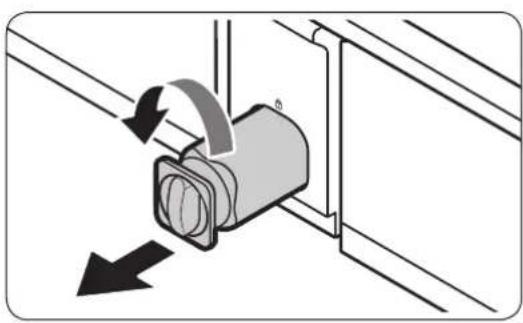

1. Turn the knob of the filter cartridge counter clockwise 90 degrees ( 14 turn). The filter cartridge unlocks.

Maintenance

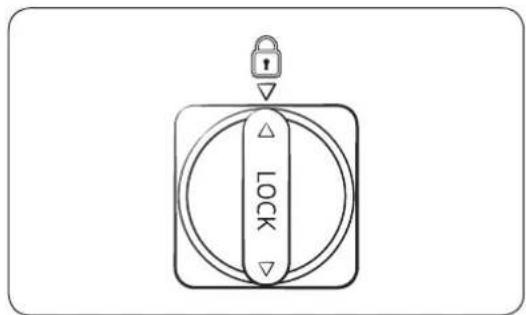

Diagram of a mechanical component with an arrow indicating direction (no text or symbols present)

LOCK

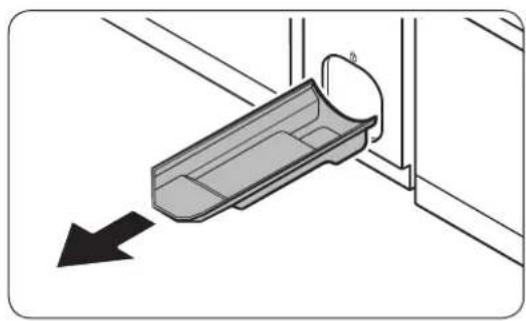

1. Pull out to remove the cartridge.

- If the water filter is severely contaminated, the cartridge may not be easy to remove. If that is the case, use force to remove the cartridge.

- To prevent water leaks from the filter opening, pull the cartridge straight out while removing it.

1. Insert a new filter cartridge. Use only Samsung-provided or approved filters.

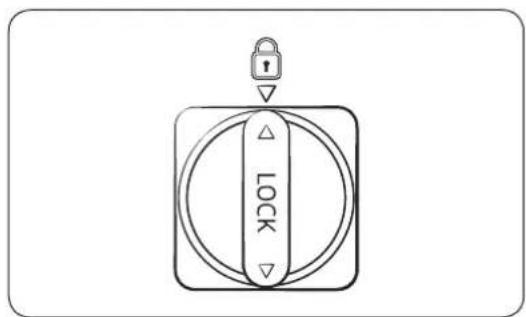

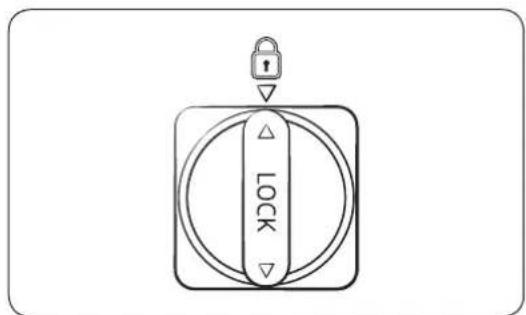

2. Turn the cartridge knob clockwise to lock into place.

3. Close the filter cartridge cover.

4. On the Home screen, tap Fridge Manager > Fridge Settings > Water Filter, and then select Reset.

NOTE

• A newly installed filter may cause the water dispenser to spurt water briefly. This is because of air entering the waterline.
• This replacement process cause the refrigerator to drip water onto the floor. Simply wipe up with dry cloths.

Reverse osmosis water filtration system

The water pressure of the water supply system to a reverse osmosis water filtration system must be between 206-861 kPa (30-125 psi).

The water pressure of the reverse osmosis water filtration system to the refrigerator's cold water line must be at least 206 kPa (30 psi). If the water pressure is below the specified:

• Check if the sediment filter in the reverse osmosis system is blocked. Replace the filter if necessary.
• Refill the water tank in the reverse osmosis system with water.
• If your refrigerator has a water filter, it may further reduce the water pressure when used in conjunction with a reverse osmosis system. Remove the water filter.

For more information or servicing, contact a licensed plumbing professional.

English68

Ordering a new filter

To purchase a new water filter, contact a local Samsung service center.

LED Lamps

To replace the lamps of the refrigerator, contact a local Samsung service centre.

WARNING

The lamps are not user-serviceable. Do not attempt to replace a lamp yourself. This can cause electric shock.

Lamp (Light Source)

This product contains a light source of energy efficiency class .

The lamp(s) and/or control gear(s) are not user-serviceable. To replace the lamp(s) and/or control gear(s) in the product, contact a local Samsung service centre.

For detailed instructions on replacing lamp(s) or control gear(s) in your product, visit the Samsung website (http://www.samsung.com), go to Support > Support home, and then enter the model name.

For detailed instructions on dismantling lamp(s) and/or control gear(s), simply follow the replacement instruction reached as described above.

Troubleshooting

If you encounter an abnormal situation with the refrigerator, first check the table below and try the suggestions.

General

Temperature

Symptom Possible causes Solution
Fridge/freezer does not operate.Fridge/freezer temperature is warm.	Power cord is not plugged in properly.Temperature control is not set correctly.Refrigerator is located near a heat source or direct sunlight.Not enough clearance between refrigerator and nearby walls or cabinets.The refrigerator is overloaded. Food is blocking the refrigerator vents.	Properly plug in the power cord.Set the temperature lower.Keep the refrigerator away from direct sunlight or a heat source.We recommend that the gap between the refrigerator and nearby walls (or cabinets) is more than 50 mm.Do not overload the refrigerator. Do not allow food to block ventilation.
Fridge/freezer is over-cooling.	Temperature control is not set correctly.	Set the temperature higher.
Interior wall is hot.	Refrigerator has heat-proof piping in the interior wall.	To prevent condensation from forming, the refrigerator has heat-proof piping in the front corners. If the ambient temperature rises, this equipment may not work effectively. This is not a system failure.

English70

Odors

Symptom Possible causes Solution
Refrigerator has odors.	• Spoiled food.	• Clean the refrigerator and remove any spoiled food.
	• Food with strong odors.	• Make sure strong smelling food is wrapped airtight.

Frost

Symptom Possible causes Solution
Frost around the vents.	·Food is blocking the vents.	·Make sure no food blocks the refrigerator vents.
Frost on interior walls.	·Door is not closed properly.	·Make sure food does not block the door. Clean the door gasket.
Fruits or vegetables are frozen.	·Fruits or vegetables are stored in the Cool Select+ and the temperature was set too low.	·Set the temperature of the Cool Select+ to a temperature appropriate for fruits or vegetables.

Condensation

Symptom Possible causes Solution
Condensation forms on the interior walls.	If door is left open, moisture enters the refrigerator.	Remove the moisture and do not leave a door open for extended periods of time.
	Food with high moisture content.	Make sure food is wrapped airtight.

Troubleshooting

Water/ice (dispenser models only)

Symptom Possible causes Solution
Water flow is weaker than normal.	·Water pressure is too low.	·Make sure the water pressure is between 138 and 827 kPa.
Ice maker makes a buzzing sound.	·The ice maker function is activated, but the water supply to the refrigerator has not been connected.	·Turn off the ice maker.
Ice maker does not make ice.	·Ice maker has just been installed.	·You must wait 12 hours for the refrigerator to make ice.
	·Freezer temperature is too low.	·Set the freezer temperature below -18 °C or -20 °C in warm, ambient air.
	·Ice maker is off. ·Turn on the ice maker.
Ice does not dispense.	·Ice may jam if the ice dispenser is not used for a long time (approx. 3 weeks).	·If you won't be using the refrigerator for a long time, empty the ice bucket and turn off the ice maker.
	·Ice bucket is not properly inserted.	·Make sure the ice bucket is properly inserted.
	·Water line is not connected properly or water supply is not on.	·Check if the water line is installed correctly. Check if the water line stop valve is closed.

English72

Symptom Possible causes Solution
Water does not dispense.	·Water line is not connected properly or water supply is not on.	·Check the water installation conditions.
	·A third-party water filter was installed.	·Use only Samsung-provided or approved filters.·Unapproved filters may leak and damage the refrigerator.
	·Water filter indicator turns on or blinks.	·Replace the water filter. After replacing, reset the filter in Fridge Manager >Fridge Settings >Water Filter.

Troubleshooting

Do you hear abnormal sounds from the refrigerator?

Before calling for service, review the checkpoints below. Any service calls related to normal sounds will be charged to the user.

These sounds are normal.

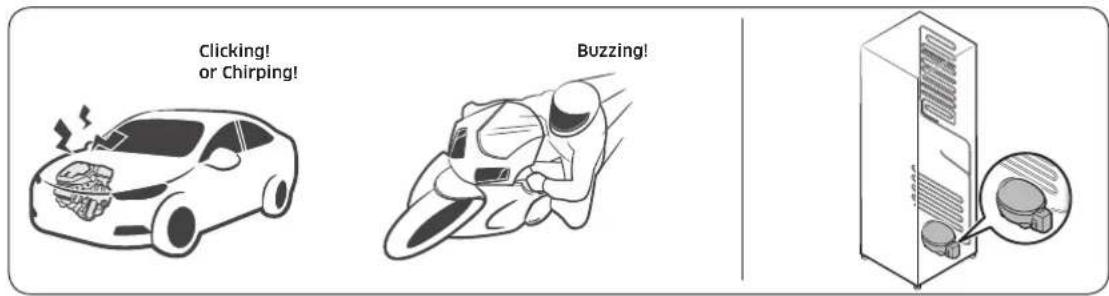

- When starting or ending an operation, the refrigerator may make sounds similar to a car engine igniting. As the operation stabilizes, the sounds will decrease.

Clicking! or Chirping! Buzzing!

- While the fan is operating, these sounds may occur. When the refrigerator reaches the set temperature, no fan sound will occur.

SSSRRR! Whir!

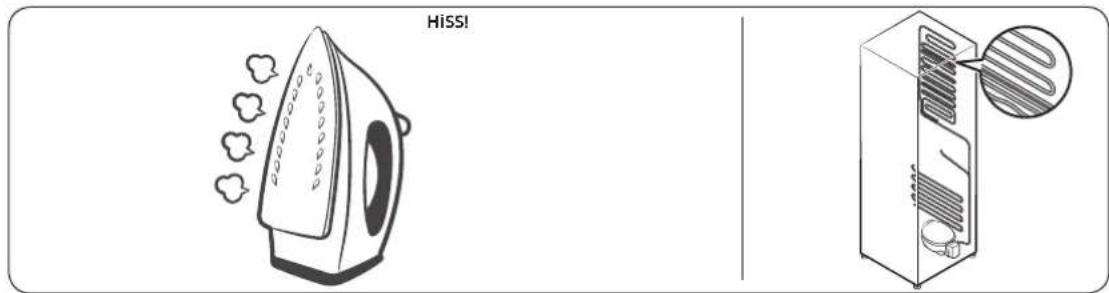

- During a defrost cycle, water may drip on the defrost heater, causing sizzling sounds.

HISSI

English74

- As the refrigerator cools or freezes, refrigerant gas moves through sealed pipes, causing bubbling sounds.

Bubbling!

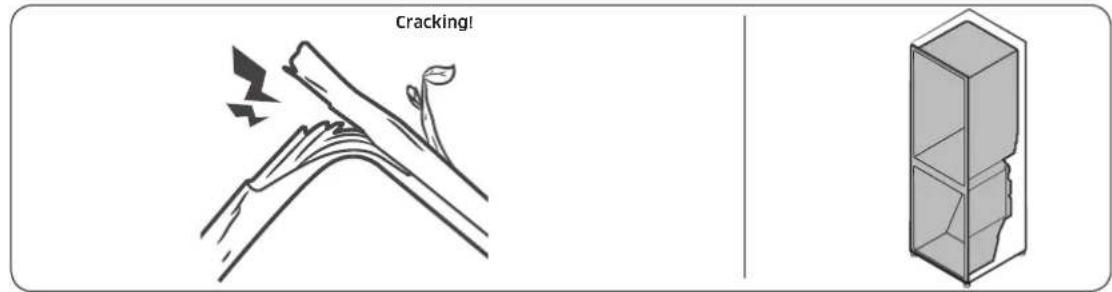

- As the refrigerator temperature increases or decreases, plastic parts contract and expand, creating knocking noises. These noises occur during the defrosting cycle or when electronic parts are working.

Cracking!

• For ice maker models: When the water valve opens to fill the ice maker, buzzing sounds may occur.
• Due to pressure equalizing when opening and closing the refrigerator door, whooshing sounds may occur.

Troubleshooting

SmartThings

Symptom Action
Could not find “SmartThings” in the app market.	The SmartThings app is designed for Android 8.0 or later, iOS 12.0 or later, iPhone 6 or later, and is optimized for Samsung smartphones (Galaxy S and Galaxy Note series).
The SmartThings app fails to operate.	The SmartThings app is available for applicable models only.The old Samsung Smart Refrigerator app cannot connect with Samsung Smart Home models.
The SmartThings app is installed but is not connected to my refrigerator.	You must log into your Samsung account to use the app.Make sure that your router is operating normally.If you have not connected your refrigerator to the SmartThings App after the app was installed, you must make the connection using the device registration function of the app.
Could not log into the app.	You must log into your Samsung account to use the app.If you don't have a Samsung account, follow the app's onscreen instructions to create one.
An error message appears when I try to register my refrigerator.	Easy Connection may fail due to the distance from your access point (AP) or electrical interference from the surrounding environment. Wait a moment and try again.
The SmartThings app is successfully connected to my refrigerator but does not run.	Exit and restart the SmartThings app or disconnect and reconnect the router.Unplug the power cord of the refrigerator, and then plug it in again after 1 minute.

English76

LCD

Symptom Action
Cannot connect to my TV.	This refrigerator can connect only with Samsung Smart TV 6400 series or higher models released since 2015. Please check the model name of your TV first.Network connections may suffer temporary interruptions.Turn your TV off, and then try again.
The inner view picture looks bulged out or incomplete.	The edges of the inner view may look bulged out. The bulging is caused by the convex lens of the camera.The inner view may be incomplete due to the blind spots on the left and right corners or screened depending on the layout of food items. Make sure to place food items in the front center.
The displayed measurement on the Fridge Manager is not correct.	The displayed conditions may differ from the actual temperature and humidity.

Appendix

Safety Instruction

• For the most efficient use of energy, please keep the all inner fittings such as baskets, drawers, shelves and ice cube tray on the position supplied by manufacturer.
• This refrigerating appliance is not intended to be used as a built-in appliance.

Install Instruction

For refrigerating appliances with climate class

Depending on the climate class, This refrigerating appliance is intended to be used at ambient temperatures range as specified following table.

The climate class can be found on the rating plate. The product may not operate properly at temperatures outside of the specific range.

You can find climate class on label inside of your refrigerator

Effective temperature range

The refrigerator is designed to operate normally in the temperature range specified by its class rating.

Class Symbol		Ambient Temperature range (°C)
		IEC 62552 (ISO 15502)	ISO 8561
Extended Temperate SN	+10 to +32	+10 to +32
Temperate N +16 to +32 +16 to +32
Subtropical ST +16 to +38 +18 to +38
Tropical T +16 to +43 +18 to +43

NOTE

The cooling performance and power consumption of the refrigerator may be affected by the ambient temperature, the door-opening frequency, and the location of the refrigerator. We recommend adjusting the temperature settings as appropriate.

English78

Temperature Instruction

Recommended Temperature

The optimal temperature setting for food storage:

- Fridge: 3 °C

- Freezer: -19 °C

NOTE

The optimal temperature setting of each compartment depends on the ambient temperature. Above optimal temperature is based on the ambient temperature of 25 ^ .

Power Cool

Power Cool speeds up the cooling process at maximum fan speed. The fridge keeps running at full speed for two and a half hours and then returns to the previous temperature.

Power Freeze

Power Freeze speeds up the freezing process at maximum fan speed. The freezer keeps running at full speed for 50 hours and then returns to the previous temperature. To freeze large amounts of food, activate Power Freeze for at least 20 hours before putting food in the freezer.

NOTE

When you use this function the energy consumption of the refrigerator will increase. Remember to turn it off when you don't need it and return the freezer to your original temperature setting.

How to store for best preservation (applicable models only)

Cover foods to retain moisture and prevent them from picking up odors from other foods. A large pot of food like soup or stew should be divided into small portions and put in shallow containers before being refrigerated. A large cut of meat or whole poultry should be divided into smaller pieces or placed in shallow containers before refrigerating.

Appendix

Placement of Foods

Shelves	Shelves should be adjustable to accommodate a variety of packages.
Specialized compartment (applicable models only)	Sealed crisper drawers provide an optimal storage environment for fruits and vegetables. Vegetables require higher humidity conditions while fruits require lower humidity conditions.Crispers are equipped with controls devices to control the humidity level. (*Depending on model and options) An adjustable temperature meat drawer maximizes the storage time of meats and cheeses.
Stored on the door	Don’t store perishable foods in the door. Eggs should be stored in the carton on a shelf. The temperature of the storage bins in the door fluctuate more than the temperature in the cabinet. Keep the door closed as much as possible.
Freezer Compartment	You can store frozen food, make ice cubes and freeze fresh food in the freezer compartment.

NOTE

Freeze fresh, undamaged food only. Keep food which is to be frozen away from food which is already frozen. To prevent food from losing its flavour or drying out, place in airtight containers.

Refrigerator & Freezer Storage Chart

The freshness longevity depends on temperature and exposure to moisture. Since product dates aren't a guide for safe use of a product, consult this chart and follow these tips.

Milk products

Product Refrigerator	Freezer
Milk 1 week 1 month
Butter 2 weeks 12 months
Ice cream - 2-3 weeks
Natural cheese 1 month 4-6 months
Cream cheese 2 weeks Not recommended
Yogurt 1 month -

English80

Meat

Product Refrigerator	Freezer
Fresh roasts, steaks, chops 3-4 days	2-3 months
Fresh ground meat, stew meat 1-2 days	3-4 months
Bacon 7 days 1 month
Sausage, Raw from pork, beef, turkey	1-2 days 1-2 months

Poultry / Eggs

Product Refrigerator	Freezer
Fresh poultry 2 days 6-8 months
Poultry salad 1 day -
Eggs, Fresh in shell 2-4 weeks Not recommended

Fish / Seafood

Product Refrigerator	Freezer
Fresh fish 1-2 days 3-6 months
Cooked fish 3-4 days	1 month
Fish salad	1 day	Not recommended
Dried or pickled fish	3-4 weeks	-

Fruits

Product Refrigerator	Freezer
Apples	1 month	-
Peaches	2-3 weeks	-
Pineapple	1 week	-
Other fresh fruit	3-5 days	9-12 months

Vegetables

Product Refrigerator	Freezer
Asparagus	2-3 days	-
Broccoli, Brussels sprouts, green peas, mushrooms	3-5 days	-

Appendix

Product Refrigerator	Freezer
Cabbage, cauliflower, celery, cucumbers, lettuce	1 week -
Carrots, beets, radishes 2 weeks -

Information for model and ordering spare parts

Model information

To access the EPREL registration of the model :

1. Go to https://eprel.ec.europa.eu
2. Get the model identifier from the energy label of the product and type it in the search box
3. Energy Labelling information of the model is shown

Part information

- The minimum period during which spare parts, necessary for the repair of the appliance, are available

- 7 Years thermostats, temperature sensors, printed circuit boards and light sources, door handles, door hinges, trays, baskets (boxes or drawers) - 10 Years door gaskets

• The minimum duration of the guarantee of the refrigerating appliance offered by the manufacturer 24 Months.
• Relevant information for ordering spare parts, directly or through other channels provided by the manufacturer, importer or authorized representative
• You can find professional repair information on http://samsung.com/support You can find user servicing manual on http://samsung.com/support.

English82

Memo

NOTE

Hereby, Samsung declares that this radio equipment is in compliance with Directive 2014/53/EU and with the relevant statutory requirements in the UK.

The full text of the EU declaration of conformity and the UK declaration of conformity is available at the following internet address: The official Declaration of conformity may be found at http://www.samsung.com, go to Support > Search Product Support and enter the model name.

CAUTION

The 5 GHz WLAN function of this equipment may only be operated indoors. This equipment may be operated in all EU countries and in the UK.

	Frequency range Transmitter power (Max)
Wi-Fi	2412 - 2472 MHz 20 dBm
	5120 - 5250 MHz 23 dBm
	5250 - 5350 MHz 20 dBm
	5470 - 5725 MHz 27 dBm
	5745 - 5825 MHz 14 dBm
Bluetooth 2402 - 2480 MHz 20 dBm

Contact SAMSUNG WORLD WIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.

Country Contact Center Web Site
UK 0333 000 0333 www.samsung.com/uk/support
IRELAND (EIRE) 08 18 717100 www.samsung.com/ie/support
NORWAY 21629099 www.samsung.com/no/support
DENMARK 707 019 70 www.samsung.com/dk/support
FINLAND 030-6227 515 www.samsung.com/fi/support
SWEDEN 0771 726 786 www.samsung.com/se/support
FRANCE 01 48 63 00 00 www.samsung.com/fr/support

DA68-04023T-01

Abstract illustration of ice cubes with bubbles and droplets, no text or symbols present

Dynamic splash of ice cubes with bubbles, no text or symbols present

SAMSUNG

Inhalt

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Technical line drawing of a refrigerator interior showing door, drawer, and shelf layout (no text or labels)

Aufstellung

Diagram showing two 3D blocks with directional arrows and a prohibition sign, no text or symbols present

HINWEIS

Technical diagram of a mechanical bracket with mounting holes and a directional arrow indicating motion (no text or symbols)

Diagram showing mechanical assembly with directional arrows and a magnified view of connected components (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with rotating arrow (no text or symbols)

Technical line drawing of a mechanical assembly with a lever and clamping mechanism (no text or symbols)

Mechanical assembly diagram showing a tool interacting with a component, no text or symbols present

Technical line drawing of a door panel with an arrow indicating direction (no text or symbols)

Diagram of a car seatbelt mechanism inside a vehicle door, showing a valve and directional arrow (no text or symbols)

Diagram showing a mechanical linkage with two bidirectional arrows indicating movement or force (no text or symbols present)

Technical diagram showing a mechanical joint or bracket assembly with an arrow indicating direction (no text or symbols present)

Diagram of a door panel with an inset showing a hand holding a bracket, indicating left-hand rule or adjustment (no text or symbols present)

Diagram of a door opening with a wall-mounted panel and a directional arrow indicating left motion (no text or symbols)

Diagram illustrating three steps of a vehicle door lock mechanism with arrows indicating movement direction.

Diagram of a door hinge joint with a black arrow indicating a detail (no text or symbols present)

Mechanical assembly diagram showing a clamping mechanism interacting with a bracket (no text or symbols visible)

Technical diagram of a mechanical assembly with a lever and mounting bracket (no text or symbols)

Technical diagram of a mechanical assembly with no visible text or symbols

Diagram showing electrical circuit components with arrows indicating direction, no text or symbols present

Technical diagram of a mechanical assembly with screw fasteners and a curved arrow indicating rotation (no text or symbols)

Diagram showing a mechanical device with a circular inset view of its components, no text or symbols present.

Line drawing of a door with an open lid and circular hole (no text or symbols)

A UP DOWN

Two identical curved mechanical or electronic components with no visible text or symbols

Simple line drawing of a two-door cabinet with two circular buttons on one side (no text or symbols)

A B

HINWEIS

Diagram showing a mechanical assembly with a magnified inset highlighting a component (no text or symbols present)

Diagram showing a mechanical assembly with a magnified inset of a tool inserted into a component (no text or symbols present)

Safety warning symbols for pipe safety, one showing no sign and circle, the other without sign

Diagram showing a prohibition symbol and three circular icons with arrows pointing to a device or installation, likely indicating a safety or monitoring mechanism.

Diagram of a device component with an arrow indicating direction (no text or symbols present)

Line drawing of a hand inserting a small component into a cabinet (no text or symbols)

Diagram of a mechanical device with an upward arrow indicating force or direction (no text or symbols present)

Diagram of a door or cabinet with an arrow pointing to the opening, showing internal structure (no text or symbols)

Diagram of a door or panel with an arrow pointing to a component, no text or symbols present

Deutsch58

! VORSICHT

Technical illustration of a mechanical assembly with two views showing internal components and a no-smoking symbol (no text or labels present)

Two diagrams showing a device with a circular symbol above and a prohibition sign below, no text or symbols present.

3D rendering of a mechanical device with a circular aperture and rectangular base (no text or symbols)

HINWEIS

Diagram of a mechanical device with a magnified inset showing a rotating shaft (no text or symbols)

HINWEIS

Diagram of a door with a door handle and internal panel, showing a black arrow pointing to the door panel (no text or symbols present)

Cross-sectional diagram of a mechanical or electrical component with layered structure (no text or symbols)

Diagram of a refrigerator interior showing seating arrangement and a magnified view of the front portion (no text or symbols)

Diagram showing two containers with granular material inside, one moving right and the other horizontally (no text or symbols)

Diagram of a mechanical device with a top component and an arrow indicating upward motion (no text or symbols)

Diagram of a mechanical component with a handle and internal structure, no text or symbols present

Diagram of a cylindrical device with a black arrow pointing upward, placed on a base with a small mouth (no text or symbols)

Diagram of a mechanical assembly with a rotating component and a flat plate (no text or symbols)

Diagram showing a device with a black arrow pointing to a component, no text or symbols present

Diagram showing a device being inserted into a panel, with arrows indicating direction and a magnified inset highlighting the component.

3D diagram of a rectangular container with a black arrow pointing to it, no text or symbols present

Diagram of a cabinet or rack with an arrow indicating direction, no text or symbols present

Technical line drawing of a refrigerator door with an inset close-up showing a handle mechanism (no text or symbols)

HINWEIS

Technical diagram of a mechanical component with a downward arrow and labeled point A (no text or symbols beyond label)

Diagram of a door with an arrow indicating upward motion, no text or symbols present

Diagram of a computer monitor with ventilation slots and a cable inserted (no text or symbols)

Diagram of a mechanical assembly with a rotating component and directional arrow (no text or symbols)

Diagram of a mechanical device with directional arrows indicating motion or force (no text or symbols)

Diagram of a mechanical component with an arrow indicating direction, no text or symbols present

LOCK

Abstract illustration of ice cubes with bubbles and droplets, no text or symbols present

Dynamic splash of ice cubes with bubbles and droplets, no text or symbols present

SAMSUNG

Indice

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Technical line drawing of a refrigerator interior with handlebars and compartments (no text or labels)

Installazione

Diagram showing two mechanical components with directional arrows and a prohibition sign, no text or symbols present.

NOTA

Mechanical assembly diagram showing a bracket with mounting holes and a directional arrow (no text or symbols)

Diagram showing mechanical assembly with directional arrows and a magnified view of connected components (no text or symbols)

Mechanical assembly diagram showing a clamping mechanism with rotating arrow (no text or symbols)

Technical line drawing of a mechanical assembly with a clamping tool and bracket (no text or symbols)

Mechanical assembly diagram showing a clamp device inserted into a bracket (no text or symbols visible)

Technical line drawing of a door panel with an arrow indicating direction (no text or symbols)

Diagram of a car seatbelt buckle being installed into the door, with a directional arrow indicating motion (no text or symbols present)

Diagram of a mechanical component with two bidirectional arrows indicating movement or force (no text or symbols present)

Technical diagram showing a mechanical joint or bracket with an arrow indicating direction (no text or symbols present)

Diagram of a door panel with an inset showing a hand holding a bracket, indicating left-hand rule or adjustment (no text or symbols present)

Per ricollegare le porte del freezer

ATTENZIONE

Diagram of a door opening with a wall-mounted panel and a directional arrow indicating movement (no text or symbols)

Technical diagram showing a mechanical clamp or bracket assembly with a downward arrow indicating force or motion (no text or symbols present)

Diagram showing a mechanical component with two curved clips and directional arrows indicating movement or force (no text or symbols present)

Diagram of a car seatbelt mechanism inside a vehicle, showing a valve and pushpin (no text or symbols)

Diagram showing a mechanical assembly with arrows indicating direction, and a magnified inset of connected cables (no text or symbols present)

Technical illustration of a mechanical component with screw fasteners and a curved arrow indicating rotation (no text or symbols)

Diagram showing a mechanical device with a tool inside a circular inset, no text or symbols present

Line drawing of a door with an open lid and circular hole (no text or symbols)

A UP DOWN

Two identical curved, segmented objects resembling medical or surgical devices (no text or symbols)

Simple line drawing of a two-door cabinet with two circular buttons on one side (no text or symbols)

A B

NOTA

Diagram showing a mechanical assembly with a magnified inset highlighting a component (no text or symbols present)

Diagram showing a cabinet with a magnified inset of a mechanical component (no text or symbols)

Diagram illustrating four steps of a mechanical or electrical component disassembly, labeled A and B with directional arrows and no symbols.

Safety warning illustration showing a pipe knot with a circle and a prohibition sign, indicating no protection or disapproval.

Diagram showing a prohibition symbol and three labeled circular symbols with arrows, likely indicating safety or hazard zones.

Diagram of a device component with an arrow indicating direction (no text or symbols present)

Line drawing of a hand inserting a small component into a device cabinet (no text or symbols)

Italiano52

SmartThings

Installazione

Diagram of a mechanical device with an upward arrow indicating force or direction (no text or symbols present)

Diagram of a door opening with a black arrow pointing to the door panel (no text or symbols present)

Diagram of a door or panel with a black arrow pointing to a component, no text or symbols present

Italiano58

ATTENZIONE

Technical illustration of a mechanical assembly with two views showing internal components and a no-smoking symbol (no text or labels present)

Two diagrams showing a device with a circular symbol above and a prohibition sign below, no text or labels present.

3D rendering of a mechanical device with a circular aperture and rectangular base (no text or symbols)

Diagram of a mechanical device with a magnified inset showing a rotating shaft (no text or symbols)

NOTA

Diagram of a door with a door handle and internal panel, showing a black arrow pointing to the door panel (no text or symbols present)

Cross-sectional diagram of a mechanical or electrical component with layered structure (no text or symbols)

Diagram of a refrigerator interior showing seating arrangement and a magnified view of the front portion (no text or symbols)

Diagram showing two containers with granular material inside, one moving right and the other horizontally (no text or symbols)

Diagram of a mechanical device with a top component and an arrow indicating upward motion (no text or symbols)

Diagram of a mechanical component with a handle and internal structure, no text or symbols present

Diagram of a cylindrical device with a black arrow pointing upward, placed on a base with a small inset showing internal components (no text or symbols)

Diagram of a mechanical assembly with a rotating component and a flat plate (no text or symbols)

Diagram showing a mechanical component with an arrow indicating direction, no text or symbols present

Diagram showing a device being inserted into a panel, with arrows indicating direction and a magnified inset highlighting the component.

3D diagram of a rectangular container with a black arrow pointing to it, no text or symbols present

Diagram of a refrigerator interior showing a drawer with an arrow indicating direction (no text or symbols present)

Technical line drawing of a refrigerator door with an inset close-up showing the handle mechanism (no text or symbols)

NOTA

Technical diagram of a door handle assembly with a black arrow indicating direction (no text or symbols)

Diagram of a door with a hanging hook and an upward arrow indicating direction (no text or symbols)

Diagram of a device rear panel with a pipe inserted, showing ventilation slots and a label (no text or symbols present)

Diagram of a mechanical assembly with a rotating component and directional arrow (no text or symbols)

Diagram of a mechanical component with directional arrows indicating motion (no text or symbols)

Diagram of a mechanical component with an arrow indicating direction (no text or symbols present)

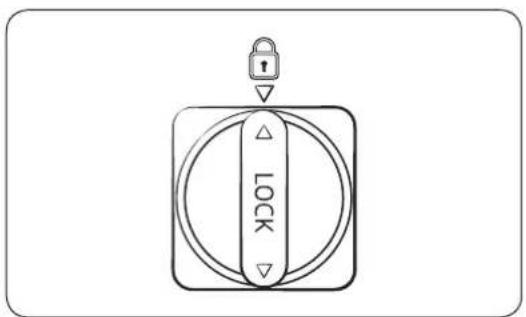

LOCK

Simple line drawing of a kettle with smoke rising from its side (no text or symbols)

Diagram of a vertical container with internal heat exchanger and a magnified inset showing internal flow (no text or symbols)

scricchiolio

Abstract illustration of ice cubes with bubbles and droplets, no text or symbols present

Dynamic splash of a transparent ice cube with bubbles and droplets (no text or symbols)

SAMSUNG

Sommaire

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Technical line drawing of a refrigerator interior showing door, drawer, and shelf layout (no text or labels)

Installation

Diagram showing two mechanical components with directional arrows and a prohibition sign, no text or symbols present.

REMARQUE

Mechanical assembly diagram showing a bracket with mounting holes and a directional arrow (no text or symbols)

Diagram showing mechanical assembly with directional arrows and a magnified view of connected components (no text or symbols)

Mechanical assembly diagram showing a clamping mechanism with rotating arrow (no text or symbols)

Technical diagram of a mechanical assembly with a lever and clamping mechanism (no text or symbols)

Mechanical assembly diagram showing a tool interacting with a component, no text or symbols present

Technical line drawing of a door panel with mounting bracket and side railings (no text or symbols)

Diagram of a car seatbelt buckle being installed into the door, with a directional arrow indicating motion (no text or symbols present)

Diagram of a mechanical component with two bidirectional arrows indicating movement or force (no text or symbols present)

Technical diagram showing a mechanical joint or bracket assembly with an arrow indicating direction (no text or symbols present)

Diagram of a door panel with an inset showing a hand holding a bracket, indicating left-hand rule or adjustment (no text or symbols present)

Diagram of a door opening with a wall-mounted panel and a directional arrow indicating left motion (no text or symbols)

Installation

Diagram illustrating three-step car seatbelting and locking mechanism with arrows indicating movement directions.

Diagram showing electrical circuit components with arrows indicating connection to a cable, no text or symbols present

Technical diagram of a mechanical assembly with screw fasteners and a curved arrow indicating rotation (no text or symbols)

Diagram showing a mechanical device with a circular inset view of its internal components (no text or symbols)

Line drawing of a door with an open lid and circular hole (no text or symbols)

A UP DOWN

Two identical curved mechanical or electrical components with no visible text or symbols

Simple line drawing of a two-door cabinet with two circular buttons on one side (no text or symbols)

A B

REMARQUE

Diagram showing a mechanical assembly with a magnified inset highlighting a component (no text or symbols present)

Diagram showing a cabinet with a magnified inset of a mechanical component (no text or symbols)

Diagram illustrating four steps of a mechanical device with labeled components and directional arrows indicating motion or force.

Safety warning illustration showing a pipe knot with a circle and a prohibition sign, indicating no protection or disapproval.

Diagram showing a prohibition symbol and three labeled circular symbols with arrows, likely indicating safety or hazard zones.

Two-step diagram showing a hand inserting a component into a device, with an arrow indicating the process (no text or symbols present)

Diagram of a mechanical device with an upward arrow indicating force or direction (no text or symbols present)

Diagram of a door opening with a black arrow pointing to the door panel (no text or symbols present)

Diagram of a door or panel with an arrow pointing to a component, no text or symbols present

Français56.

ATTENTION

Technical illustration of a mechanical assembly with two views showing internal components and a no-smoking symbol (no text or labels present)

Two diagrams showing a device with a circular symbol above and a prohibition sign below, no text or labels present.

3D rendering of a mechanical device with a circular aperture and rectangular base (no text or symbols)

Diagram of a mechanical device inside a cabinet, showing a rotating shaft and housing (no text or symbols)

REMARQUE

Diagram of a door with internal compartments and a black arrow indicating a directional flow (no text or symbols)

Cross-sectional diagram of a mechanical or electrical component with layered structure (no text or symbols)

Diagram of a refrigerator interior showing seating arrangement and a magnified view of the refrigerator (no text or symbols)

Diagram showing two containers with granular material inside, one moving right and the other horizontally (no text or symbols)

Diagram of a mechanical device with a top component and arrow indicating upward motion (no text or symbols)

Diagram of a mechanical component with a handle and internal structure, no text or symbols present

Diagram of a cylindrical filter with an upward arrow, placed on a base with a small inset component (no text or symbols)

Diagram of a mechanical assembly with a rotating component and a flat plate (no text or symbols)

Diagram showing a device with a black arrow pointing to a component, no text or symbols present

Diagram showing a device being inserted into a panel, with arrows indicating direction and a magnified inset highlighting the component.

3D diagram of a rectangular container with a black arrow pointing to a small object on top, no text or symbols present

Diagram of a refrigerator with an open drawer and a black arrow indicating direction (no text or symbols)

Diagram of a refrigerator door with an inset showing a close-up of the door panel (no text or symbols present)

REMARQUE

Technical diagram of a door handle assembly with a black arrow indicating direction (no text or symbols)

Diagram of a door with a hanging hook and an arrow indicating direction (no text or symbols)

Diagram of a computer monitor with ventilation slots and a cable inserted (no text or symbols)

Diagram of a mechanical assembly with a rotating component and directional arrow (no text or symbols)

Diagram of a mechanical component with directional arrows indicating motion (no text or symbols)

Diagram of a mechanical component with an arrow indicating direction, no text or symbols present

LOCK

Abstract illustration of ice cubes with bubbles and droplets, no text or symbols present

Dynamic splash of ice cubes with bubbles and droplets, no text or symbols present

SAMSUNG

Innehåll

Säkerhetsinformation 4

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Technical line drawing of a refrigerator interior with door compartments and handle brackets (no text or labels)

Installation

Stegvis installation

Two technical diagrams showing a mechanical component with a circular head and a prohibition sign, no text or symbols present.

OBS!

Technical diagram of a mechanical bracket with mounting holes and an upward arrow indicating motion (no text or symbols)

Diagram showing mechanical assembly with directional arrows and a magnified view of connected components (no text or symbols)

Mechanical assembly diagram showing a clamping mechanism with rotating arrow (no text or symbols)

Technical diagram of a mechanical assembly with a lever and bracket (no text or symbols)

Mechanical assembly diagram showing a tool interacting with a component, no text or symbols present

Technical line drawing of a door panel with an arrow indicating direction (no text or symbols)

Diagram of a car seatbelt buckle being installed into the door, with a directional arrow indicating motion (no text or symbols present)

Diagram of a mechanical component with two bidirectional arrows indicating movement or force (no text or symbols present)

Technical diagram showing a mechanical joint or bracket with an arrow indicating direction (no text or symbols present)

Diagram of a door panel with an inset showing a hand holding a bracket, indicating left-hand rule or adjustment (no text or symbols present)

Diagram of a door opening with a wall-mounted panel and a directional arrow indicating left motion (no text or symbols)

Installation

Diagram illustrating three-step car seatbelt mounting techniques with arrows indicating movement directions.

Technical diagram showing four steps of a mechanical assembly or mounting process with arrows indicating direction of movement.

Diagram showing a mechanical assembly with arrows indicating direction, and a magnified view of connected components (no text or symbols)

Technical diagram of a mechanical assembly with screw fasteners and a curved arrow indicating rotation (no text or symbols)

1. Anslut kabelskorna.

! VAR FÖRSIKTIG

Diagram showing a mechanical device with a circular inset view of its internal components (no text or symbols)

Line drawing of a door with an open lid and circular hole (no text or symbols)

A UP DOWN

Two identical curved, segmented objects resembling ovals or clips, with no text or symbols present.

Simple line drawing of a two-door cabinet with two circular buttons on one side (no text or symbols)

A B

OBS!

Diagram showing a door handle and a magnified view of the handle with an arrow indicating rotation (no text or symbols)

Diagram showing a mechanical assembly with a magnified inset of a tool interacting with a component (no text or symbols present)

Diagram illustrating four steps of a mechanical device with labeled components and directional arrows indicating motion or force.

Safety warning illustration showing a pipe knot with a circle and a prohibition sign, indicating no protection or disapproval.

Diagram showing a prohibition symbol and three labeled circular symbols connected by lines, likely indicating safety or installation instructions.

Diagram of a device component with an arrow indicating direction (no text or symbols present)

Line drawing of a hand inserting a small component into a device drawer (no text or symbols)

Diagram of a mechanical device with an upward arrow indicating motion or force, no text or symbols present

Diagram of a door handle assembly with an arrow pointing to the lock (no text or symbols present)

Diagram of a door or panel with a black arrow pointing to a component, no text or symbols present

Technical diagram showing two mechanical assembly states with no visible text or symbols

Two diagrams showing a device with a circular symbol above and a prohibition sign below, no text or symbols present.

3D diagram of a mechanical device with a magnified circular detail (no text or symbols)

Illustration of a mechanical component inside a storage room, with a magnified inset showing a directional arrow (no text or symbols)

OBS!

Diagram of a door with a door handle and internal panel, showing a black arrow pointing to a device (no text or symbols present)

Cross-sectional diagram of a mechanical or electrical component with layered structure (no text or symbols)

Diagram of a refrigerator interior showing seating arrangement and a magnified view of the refrigerator (no text or symbols)

Diagram showing two containers with granular material inside, one moving right and the other horizontally (no text or symbols)

Verksamhet

⚠️ VAR FÖRSIKTIG

Diagram of a mechanical device with an upward arrow indicating motion or force, no text or symbols present

Diagram of a mechanical component with an arrow indicating upward motion, no text or symbols present

Diagram of a cylindrical device with an upward arrow, mounted on a base with a small inset component (no text or symbols)

3D diagram of a rectangular container with a black arrow pointing to it, no text or symbols present

Diagram of a refrigerator interior showing a drawer with an arrow indicating direction (no text or symbols present)

Diagram of a refrigerator interior showing door, drawer, and handle mechanism (no text or labels)

OBS!

Technical diagram of a door handle assembly with a black arrow indicating direction (no text or symbols)

Diagram of a door panel with an arrow indicating direction (no text or symbols)

Diagram of a computer monitor with ventilation slots and a cable inserted, showing no text or symbols

Diagram of a mechanical assembly with a rotating component and directional arrow (no text or symbols)

Diagram of a mechanical component with directional arrows indicating motion (no text or symbols)

Diagram of a mechanical component with an arrow indicating direction (no text or symbols present)

Abstract illustration of ice cubes with bubbles and droplets, no text or symbols present

Dynamic splash of ice cubes with bubbles and droplets, no text or symbols present

SAMSUNG

Indhold

Trin for trin-installation 29

Drift 47

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Technical line drawing of a refrigerator interior layout with compartments and doorways (no text or labels)

Dansk28

Trin for trin-installation

TRIN 1 Vælg et sted

Stedet skal:

Diagram showing two mechanical components with directional arrows and a prohibition sign, no text or symbols present.

BEMÆRK

Mechanical assembly diagram showing a bracket with mounting holes and a black arrow indicating direction (no text or symbols)

Diagram showing mechanical assembly with directional arrows and a magnified view of connected components (no text or symbols)

Mechanical assembly diagram showing a clamping mechanism with rotating arrow (no text or symbols)

Technical diagram of a mechanical assembly with a lever and bracket (no text or symbols)

Mechanical assembly diagram showing a component being inserted into a housing (no text or symbols visible)

Technical line drawing of a door panel with an arrow indicating direction (no text or symbols)

Diagram of a car seatbelt buckle being inserted into the door, with a black arrow indicating direction (no text or symbols)

Diagram of a mechanical or electrical component with two bidirectional arrows indicating movement or force (no text or symbols present)

Technical diagram showing a mechanical joint or bracket with an arrow indicating direction (no text or symbols present)

Diagram of a door panel with an inset showing a close-up of the door handle and a directional arrow indicating rotation (no text or symbols present)

Diagram of a door opening with a wall-mounted panel and a directional arrow indicating left motion (no text or symbols)

Technical diagram showing a mechanical clamp or bracket assembly with a downward arrow indicating force or motion (no text or symbols present)

Diagram showing a mechanical component with two directional arrows indicating movement or force (no text or symbols present)

Diagram of a car seatbelt mechanism inside a vehicle, showing a valve and pushpin (no text or symbols)

Diagram of a door hinge with a black arrow pointing to a handle (no text or symbols present)

Technical diagram of a mechanical assembly with a black arrow indicating a component (no text or symbols present)

Technical diagram of a mechanical assembly with a lever mechanism and mounting bracket (no text or symbols)

Technical diagram of a mechanical assembly with a tool interacting with a component (no text or symbols visible)

Diagram showing electrical circuit components with arrows indicating connection to a device, and a magnified inset illustrating cable routing (no text or symbols present)

Technical diagram of a mechanical assembly with screw fasteners and a curved arrow indicating rotation (no text or symbols)

Diagram showing a tool interacting with a mechanical component, with no visible text or symbols

Line drawing of a double door with a circular opening and handle (no text or symbols)

A UP DOWN

Two identical abstract curved shapes with internal lines, no text or symbols present

Simple line drawing of a two-door cabinet with two circular buttons on one side (no text or symbols)

A B

BEMÆRK

Diagram showing a mechanical assembly with an inset close-up of a component being inserted (no text or symbols present)

Diagram showing a cabinet with a magnified inset of a mechanical component (no text or symbols)

Diagram illustrating four steps of a mechanical or electrical component installation, labeled A and B with directional arrows and no symbols.

A. Luk hovedvandforsyningen

B. Intet mellemrum

Safety warning illustration showing a pipe knot with a circle and a prohibition sign, indicating no protection or disapproval.

Diagram showing a prohibition symbol and three labeled circular icons connected by curved lines, likely indicating safety or hazard zones.

Diagram of a device component with an arrow indicating direction (no text or symbols present)

Line drawing of a hand inserting a small component into a cabinet (no text or symbols)

Diagram of a mechanical device with an upward arrow indicating force or direction (no text or symbols present)

Diagram of a door or cabinet with an arrow pointing to the interior panel (no text or symbols present)

Diagram of a door opening with a black arrow pointing to the lock mechanism (no text or symbols present)

Technical illustration of a mechanical assembly with two views showing internal components and a no-smoking symbol (no text or labels present)

Two diagrams showing a component with a circular symbol and a prohibition sign, no text or labels present.

3D rendering of a mechanical device with a circular aperture and rectangular body (no text or symbols)

Drift

Diagram of a mechanical device inside a storage room, with an inset magnified view showing a component (no text or symbols present)

BEMÆRK

Diagram of a door with a door handle and internal panel, showing a black arrow pointing to the door panel (no text or symbols present)

Cross-sectional diagram of a mechanical or electrical component with layered structure (no text or symbols)

Diagram of a refrigerator interior showing seating arrangement and a magnified view of the front portion of the refrigerator (no text or symbols present)

Diagram showing two containers with granular material inside, one moving right and the other horizontally (no text or symbols)

Dansk58

! FORSIGTIG

Diagram of a mechanical device with an upward arrow indicating motion or force (no text or symbols present)

Diagram of a mechanical component with a handle and internal structure, no text or symbols present

Diagram of a cylindrical filter with an upward arrow, placed on a base with a small mouth (no text or symbols)

Diagram of a mechanical assembly with a rotating component and a flat plate (no text or symbols)

Diagram showing a device with a black arrow pointing to a component, no text or symbols present

Diagram showing a device being inserted into a panel, with arrows indicating direction of insertion (no text or symbols present)

3D diagram of a rectangular container with a black arrow pointing to it, no text or symbols present

Diagram of a refrigerator with an open drawer and a black arrow indicating direction (no text or symbols)

Technical line drawing of a door panel with an inset close-up showing a finger inserted into the door (no text or symbols present)

BEMÆRK

Technical diagram showing a mechanical component with a downward arrow and labeled point A

Diagram of a door with an arrow indicating direction, showing internal structure and mounting bracket (no text or symbols)

Diagram of a computer monitor with ventilation slots and a cable inserted (no text or symbols)

Diagram of a mechanical assembly with a rotating component and directional arrow (no text or symbols)

1. Luk for vandforsyningen.
2. Åbn filterkassettens dæksel.

Diagram of a mechanical component with directional arrows indicating motion or force (no text or symbols)

1. Drej knappen på filterkassetten 90 grader ( ^1/_4 omgang) mod uret. Filterkassetten låses op.

Dansk66

Diagram of a mechanical component with an arrow indicating direction, no text or symbols present

LOCK

SSSRRR! Raslen

Abstract illustration of ice cubes with bubbles and droplets, no text or symbols present

Dynamic splash of a transparent ice cube with bubbles and droplets, no text or symbols present

SAMSUNG

Innhold

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

06 Crisper / Flex Crisper-skuffer

07 Vannfilter

08 Automatisk ismaskin - Isbiter

09 Automatisk ismaskin - Små isbiter

10 Fryerskapskuff

11 Fryserhylle

12 Fryerskuff

MERK

Technical line drawing of a refrigerator interior showing door, compartments, and handle mechanisms (no text or labels)

Installasjon

Two technical diagrams showing a mechanical component with a circular head and a prohibition sign, no text or symbols present.

MERK

Technical diagram of a mechanical bracket with mounting holes and an upward arrow indicating motion (no text or symbols)

Diagram showing mechanical assembly with directional arrows and a magnified view of connected components (no text or symbols)

Mechanical assembly diagram showing a clamping mechanism with rotating arrow (no text or symbols)

Technical diagram of a mechanical assembly with a lever and bracket (no text or symbols)

Mechanical assembly diagram showing a clamp device inserted into a housing component (no text or symbols visible)

Technical line drawing of a door panel with an arrow indicating direction (no text or symbols)

Diagram of a car seatbelt buckle being installed into the door, with a directional arrow indicating motion (no text or symbols present)

Diagram of a mechanical component with two bidirectional arrows indicating movement or force (no text or symbols present)

Technical diagram showing a mechanical joint or bracket assembly with an arrow indicating direction (no text or symbols present)

Diagram of a door panel with an inset showing a hand holding a bracket, indicating left-hand rule or adjustment (no text or symbols present)

Diagram of a door opening with a wall-mounted panel and a directional arrow indicating movement (no text or symbols)

Installation

Diagram illustrating three-step car seatbelt mounting techniques with arrows indicating movement directions.

Technical diagram showing four steps of a mechanical assembly or mounting process with Chinese annotations.

Diagram showing electrical circuit components with arrows indicating connection to a cable, no text or symbols present

Technical diagram of a mechanical assembly with screw fasteners and a curved arrow indicating rotation (no text or symbols)

1. Koble til kabelkoblingene.

⚠️ FORSIKTIG

Diagram showing a mechanical device with a tool inside a circular inset, no text or symbols present

Line drawing of a door with an open lid and circular hole (no text or symbols)

A UP DOWN

Two identical curved mechanical or electrical components with no visible text or symbols

Simple line drawing of a two-door cabinet with two circular buttons on one side (no text or symbols)

A B

MERK

Diagram showing a mechanical assembly with a magnified inset highlighting a component (no text or symbols present)

Diagram showing a cabinet with a magnified inset of a mechanical component (no text or symbols)

Diagram illustrating four steps of a mechanical device with labeled parts A and B, showing motion and assembly states.

Safety warning illustration showing a pipe knot with a circle and a prohibition sign, indicating no protection or no leakage.

Diagram showing a prohibition symbol and three labeled circular icons with arrows, likely indicating safety or hazard zones.

Diagram of a device component with an arrow indicating direction (no text or symbols present)

Line drawing of a hand inserting a small component into a device (no text or symbols)

Diagram of a mechanical device with an upward arrow indicating force or direction (no text or symbols present)

Diagram of a door opening with a black arrow pointing to the door panel (no text or symbols present)

Diagram of a door or panel with a black arrow pointing to a component, no text or symbols present

Drift

Norsk54

! FORSIKTIG

Technical illustration of a mechanical assembly with two views showing internal components and a no-smoking symbol (no text or labels present)

- Sørg for at vannkannen passer inn i vannkanneholderen, slik at den ikke velter eller lekker.

Two diagrams showing a device with a circular symbol above and a prohibition sign below, no text or labels present.

3D technical illustration of a mechanical device with a magnified circular detail (no text or symbols)

MERK

Illustration of a mechanical component with a magnified inset showing a directional arrow (no text or symbols)

MERK

Diagram of a door with a door handle and internal panel, showing a black arrow pointing to the door panel (no text or symbols present)

Cross-sectional diagram of a mechanical or electrical component with layered structure (no text or symbols)

- Dette produktet har to typer ismaskiner.

Isproduksjon

Diagram of a refrigerator interior showing seating arrangement and a magnified view of the front portion of the refrigerator (no text or symbols present)

Diagram showing two containers with granular material inside, one moving right and the other horizontally (no text or symbols)

Norsk58

! FORSIKTIG

Diagram of a mechanical device with an upward arrow indicating force or direction (no text or symbols present)

Diagram of a mechanical component with an arrow indicating upward motion, no text or symbols present

Diagram of a cylindrical filter with an upward arrow, placed on a base with a small mouth (no text or symbols)

Diagram of a mechanical assembly with a rotating component and a flat plate (no text or symbols)

Diagram showing a device with a black arrow pointing to a component, no text or symbols present

Diagram showing two rectangular panels with downward arrows, one highlighted by a magnified inset (no text or symbols)

3D diagram of a rectangular container with an arrow pointing to it, no text or symbols present

Crisper / Flex Crisper-skuffer

Diagram of a refrigerator interior with an open drawer and a black arrow indicating direction (no text or symbols)

Diagram of a refrigerator interior showing door, drawer, and handle mechanism (no text or labels)

MERK

Technical diagram showing a mechanical component with a downward arrow and labeled point A

Diagram of a door opening with a hanging hook and an arrow indicating direction (no text or symbols)

Diagram of a computer monitor with ventilation slots and a cable inserted (no text or symbols)

Diagram of a mechanical assembly with a rotating component and directional arrow (no text or symbols)

1. Slå av vanntilførselen.
2. Åpne filterkassettens deksel.

Diagram of a mechanical component with directional arrows indicating motion (no text or symbols)

1. Vri knotten på filterkassetten mot klokken 90 grader (1/4 runde). Filterkassetten låses opp.

Norsk66

Diagram of a mechanical component with an arrow indicating direction, no text or symbols present

LOCK

Klikking! eller Kvitring! Summing!

SSSRRR! Brumming!

Abstract illustration of ice cubes with bubbles and droplets, no text or symbols present

Dynamic splash of a transparent ice cube with bubbles and droplets (no text or symbols)

SAMSUNG

Sisällysluettelo

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Technical line drawing of a refrigerator interior with compartments and doorways (no text or labels)

Suomi28

Diagram showing two mechanical components with directional arrows and a prohibition sign, no text or symbols present.

HUOM.

Mechanical assembly diagram showing a bracket with mounting holes and a black arrow indicating direction (no text or symbols)

Diagram showing mechanical assembly with directional arrows and a magnified view of connected components (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with motion arrows (no text or symbols)

Technical line drawing of a mechanical assembly with a lever and bracket (no text or symbols)

Mechanical assembly diagram showing a clamp device inserted into a housing component (no text or symbols visible)

Technical line drawing of a door frame with mounting holes and a directional arrow (no text or symbols)

Diagram of a car seatbelt buckle being inserted into the door, with a black arrow indicating direction (no text or symbols)

Diagram of a mechanical or electrical component with two bidirectional arrows indicating movement or force (no text or symbols present)

Technical diagram showing a mechanical joint or bracket with an arrow indicating direction (no text or symbols present)

Diagram of a door panel with an inset showing a close-up of the door and a directional arrow indicating rotation (no text or symbols present)

Diagram of a door opening with a wall-mounted panel and a directional arrow indicating left motion (no text or symbols)

Technical diagram showing a mechanical clamp or bracket assembly with a downward arrow indicating force or motion (no text or symbols present)

Diagram showing a car door with two attached clips and directional arrows indicating movement (no text or symbols)

Diagram of a car seatbelt mechanism inside a vehicle, showing a hand holding a small object and a black arrow indicating direction (no text or symbols present)

Diagram of a door hinge with a black arrow pointing to a handle (no text or symbols present)

1. Pitele ovea auki yli 90 asteen verran, aseta keskisaranan varsi oven alaosan aukkoon.

Mechanical assembly diagram showing a clamping mechanism interacting with a bracket (no text or symbols visible)

Technical diagram of a mechanical assembly with a lever mechanism and mounting bracket (no text or symbols)

Technical diagram of a mechanical assembly with a clamping tool interacting with a component (no text or symbols visible)

Diagram showing a mechanical assembly with arrows indicating direction, and a magnified view of connected components (no text or symbols)

Technical diagram of a mechanical assembly with screw fasteners and a curved arrow indicating rotation (no text or symbols)

Diagram showing a tool interacting with a mechanical component, with no visible text or symbols

Line drawing of a door with an open lid and circular button (no text or symbols)

A UP DOWN

Two identical curved, segmented objects resembling medical or laboratory devices (no text or symbols)

HUOM.

Simple line drawing of a two-door cabinet with two circular buttons on one side (no text or symbols)

Diagram showing a cabinet with a magnified inset highlighting a mechanical component (no text or symbols present)

Diagram showing a mechanical assembly with a magnified inset of a foot and ankle detail (no text or symbols)

Diagram illustrating four steps of a mechanical or electrical component disassembly, labeled A and B with directional arrows and no symbols.

Safety warning illustration showing a pipe knot with a circle and a prohibition sign, indicating no protection or disapproval.

Diagram showing a no-smoking symbol and three hanging objects connected by lines, likely indicating safety or safety measures.

Diagram of a device component with an arrow indicating direction, no text or symbols present

Line drawing of a hand inserting a small component into a rectangular box (no text or symbols)

Diagram of a mechanical device with a handle and internal structure, showing an upward arrow (no text or symbols)

Diagram of a door or panel with an arrow pointing to the interior structure (no text or symbols present)

Diagram of a door or panel assembly with a black arrow pointing to a component (no text or symbols present)

Technical illustration of a mechanical assembly with two views showing internal components and a no-smoking symbol (no text or labels present)

Two diagrams showing a device with a circular symbol above and a prohibition sign below, no text or labels present.

3D rendering of a mechanical device with a circular aperture and rectangular body (no text or symbols)

Diagram of a mechanical device with a magnified inset showing a directional arrow (no text or symbols present)

HUOM.

Diagram of a door with a door handle and internal panel, showing a black arrow pointing to a device (no text or symbols present)

Cross-sectional diagram of a mechanical or electrical component with layered structure (no text or symbols)

Diagram of a refrigerator interior showing seating arrangement and a magnified view of the front portion of the refrigerator (no text or symbols present)

Diagram showing two containers with granular material inside, one moving right and the other horizontally (no text or symbols)

Suomi58

HUOMIO

Diagram of a mechanical device with a top component and arrow indicating upward motion (no text or symbols)

Diagram of a mechanical component with a handle and internal structure, no text or symbols present

Diagram of a cylindrical filter with an upward arrow, placed on a base with a small mouth (no text or symbols)

Diagram of a mechanical assembly with a rotating component and a flat plate (no text or symbols)

Diagram showing a device with a black arrow pointing to a component, no text or symbols present

Diagram showing a device with two panels, one highlighted by arrows and the other with a magnified inset (no text or symbols)

3D diagram of a rectangular container with a black arrow pointing to it, no text or symbols present

Diagram of a refrigerator with an open drawer and a black arrow indicating direction (no text or symbols)

Diagram of a refrigerator interior showing door, drawer, and door lock mechanism with an arrow indicating rotation (no text or symbols)

HUOM.

Technical diagram showing a mechanical component with a downward arrow and labeled point A

Diagram of a door with an arrow pointing to the interior panel (no text or symbols)

Diagram of a computer monitor with ventilation slots and a cable inserted (no text or symbols)

Diagram of a mechanical assembly with a rotating component and directional arrow (no text or symbols)

Diagram of a mechanical component with directional arrows indicating motion (no text or symbols)

Diagram of a mechanical component with an arrow indicating direction, no text or symbols present

LOCK

1. Vedä patruuna ulos.

Abstract illustration of ice cubes with bubbles and droplets, no text or symbols present

Black and white illustration of a cube with bubbles spilling out (no text or symbols)

SAMSUNG

Inhoud

Symbol of a trash bin crossed with no visible text or labels

Technical line drawing of a refrigerator interior with door, compartments, and handlebars (no text or labels)

Installatie

Diagram showing two mechanical components with directional arrows and a prohibition sign, no text or symbols present.

OPMERKING

Mechanical assembly diagram showing a bracket with mounting holes and a directional arrow (no text or symbols)

Diagram showing mechanical assembly with directional arrows and a magnified view of connected components (no text or symbols)

Mechanical assembly diagram showing a clamping mechanism with rotating arrow (no text or symbols)

Technical diagram of a mechanical assembly with a lever and clamping mechanism (no text or symbols)

Mechanical assembly diagram showing a tool interacting with a component, no text or symbols present

Technical line drawing of a door panel with an arrow indicating direction (no text or symbols)

Diagram of a car seatbelt buckle being installed into the door, with a directional arrow indicating motion (no text or symbols present)

Diagram of a mechanical component with two bidirectional arrows indicating movement or force (no text or symbols present)

Technical diagram showing a mechanical joint or bracket with an arrow indicating direction (no text or symbols present)

Diagram of a door panel with an inset showing a close-up of the door and a directional arrow indicating rotation (no text or symbols present)

Diagram of a door opening with a wall-mounted panel and a directional arrow indicating movement (no text or symbols)

Diagram illustrating three-step car seatbelting and locking mechanism with arrows indicating movement directions.

Technical diagram showing four steps of a mechanical assembly or mounting process with Chinese annotations.

Diagram showing electrical circuit components with arrows indicating direction, no text or symbols present

Technical diagram of a mechanical assembly with screw fasteners and a curved arrow indicating rotation (no text or symbols)

Diagram showing a tool interacting with a circular component, with arrows indicating rotation or movement (no text or symbols present)

Line drawing of a door with an open lid and circular hole (no text or symbols)

A UP DOWN

Two identical curved, segmented objects resembling ovals or clips, with no text or symbols present.

Simple line drawing of a two-door cabinet with two circular buttons on one side (no text or symbols)

A B

OPMERKING

Diagram showing a door handle and a magnified view of the handle with an arrow indicating rotation (no text or symbols)

Diagram showing a mechanical assembly with a magnified inset of a tool interacting with a component (no text or symbols present)

Diagram illustrating four steps of a mechanical or electrical component disassembly, labeled A and B with no symbols.

Safety warning illustration showing a pipe knot with a circle and a prohibition sign, indicating no protection or no leakage.

Diagram showing a prohibition symbol and three labeled electrical connections with arrows, likely illustrating a safety or circuit hazard.

Bediening

Diagram of a device component with an arrow indicating direction (no text or symbols present)

Line drawing of a hand inserting a small component into a device (no text or symbols)

Diagram of a mechanical device with an upward arrow indicating force or direction (no text or symbols present)

Diagram of a door handle assembly with an arrow pointing to the lock (no text or symbols present)

Diagram of a door or cabinet with an arrow pointing to the interior panel (no text or symbols present)

Technical illustration of two mechanical assembly states showing no text or symbols (no readable labels or symbols)

Two identical electronic component diagrams showing a top and bottom with a prohibition symbol (no text or labels present)

3D diagram of a mechanical device with a magnified circular detail (no text or symbols)

Illustration of a mechanical component inside a room, with a magnified inset showing a directional arrow (no text or symbols)

OPMERKING

Diagram of a door with a door handle and internal panel, showing a black arrow pointing to a device (no text or symbols present)

Cross-sectional diagram of a mechanical or electrical component with layered structure (no text or symbols)

Diagram of a refrigerator interior showing seating arrangement and a magnified view of the refrigerator (no text or symbols)

Diagram showing two containers with granular material inside, one moving right and the other horizontally (no text or symbols)

Bediening

! LET OP

Diagram of a mechanical device with an upward arrow indicating motion or force, no text or symbols present

Diagram of a mechanical component with a handle and internal structure, no text or symbols present

Diagram of a cylindrical device with a black arrow pointing upward, placed on a base with a small mouth (no text or symbols)

Diagram of a mechanical assembly with a rotating component and a flat plate (no text or symbols)

Diagram showing a device with a black arrow pointing to a component, no text or symbols present

Diagram showing a mechanical assembly with arrows indicating direction of movement, including a magnified inset highlighting a component.

3D diagram of a rectangular container with a black arrow pointing to a vertical slot, no text or symbols present

Diagram of a refrigerator interior showing a drawer with an arrow indicating direction (no text or symbols present)

Diagram of a refrigerator interior showing door, drawer, and handle mechanism (no text or labels)

OPMERKING

Technical line drawing of a door handle assembly with a black arrow indicating direction (no text or symbols)

Diagram of a door with an arrow indicating upward motion, no text or symbols present

Diagram of a device rear panel with a connecting rod, showing ventilation slots and a label (no text or symbols present)

Diagram of a mechanical assembly with a rotating component and directional arrow (no text or symbols)

Diagram of a mechanical component with directional arrows indicating motion (no text or symbols)

Diagram of a mechanical component with an arrow indicating direction, no text or symbols present

LOCK

Abstract illustration of ice cubes with bubbles and droplets, no text or symbols present

Dynamic splash of ice cubes with bubbles and droplets, no text or symbols present

SAMSUNG

Spis treści

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or restriction (no text present)

Technical line drawing of a refrigerator interior showing door, seats, and storage compartments (no text or labels)

Polski30

Diagram showing two mechanical components with directional arrows and a prohibition sign, no text or symbols present.

UWAGA

Technical diagram of a mechanical bracket with mounting holes and a directional arrow indicating motion (no text or symbols)

Diagram showing mechanical assembly with directional arrows and a magnified view of connected components (no text or symbols)

Technical diagram of a mechanical assembly with a person operating a workpiece, showing motion arrows (no text or symbols)

Technical line drawing of a mechanical assembly with a lever and bracket (no text or symbols)

Mechanical assembly diagram showing a clamping mechanism with a black arrow pointing to a component (no text or symbols present)

Technical line drawing of a door panel with an arrow indicating direction (no text or symbols)

Diagram of a car seatbelt buckle being inserted into the door, with a black arrow indicating direction (no text or symbols)

Diagram of a mechanical or electrical component with two bidirectional arrows indicating movement or force (no text or symbols present)

Technical diagram showing a mechanical joint or bracket with an arrow indicating direction (no text or symbols present)

Diagram of a door panel with an inset showing a close-up of the door and a directional arrow indicating rotation (no text or symbols present)

Diagram of a door opening with a wall-mounted panel and a directional arrow indicating left motion (no text or symbols)

Technical diagram showing a mechanical clamp or bracket assembly with a downward arrow indicating force or motion (no text or symbols present)

Diagram showing a mechanical component with two directional arrows indicating movement or force (no text or symbols present)

Diagram of a car seatbelt mechanism inside a vehicle, showing a hand holding a small object and a black arrow indicating direction (no text or symbols present)

Diagram of a door hinge with a black arrow pointing to a handle (no text or symbols present)

Technical diagram of a mechanical assembly with a black arrow indicating a component (no text or symbols present)

Technical diagram of a mechanical assembly with a lever mechanism and mounting bracket (no text or symbols)

Technical diagram of a mechanical assembly with a clamping tool and component (no text or symbols visible)

Diagram showing a mechanical assembly with arrows indicating direction, and a magnified view of connected components (no text or symbols)

Technical diagram of a mechanical assembly with screw fasteners and a curved arrow indicating rotation (no text or symbols)

Diagram showing a mechanical device with a tool inside a circular inset, no text or symbols present

Line drawing of a door with an open lid and circular button (no text or symbols)

A UP DOWN

Two identical abstract curved shapes with internal lines, no text or symbols present

UWAGA

Simple line drawing of a two-door cabinet with two circular buttons on one side (no text or symbols)

Diagram showing a cabinet with a magnified inset highlighting a mechanical component (no text or symbols present)

Diagram showing a mechanical assembly with a magnified inset of a foot and ankle detail (no text or symbols)

Diagram illustrating four steps of a mechanical or electrical component assembly, labeled A and B with directional arrows and no symbols.

Safety warning illustration showing a pipe knot with a circle and a prohibition sign, indicating no protection or disapproval.

Diagram showing a prohibition symbol and three labeled circular elements with arrows, likely indicating safety or hazard zones.

Diagram of a device component with an arrow indicating direction (no text or symbols present)

Line drawing of a hand inserting a small component into a cabinet (no text or symbols)

Diagram of a mechanical device with a handle and internal structure, showing an upward arrow (no text or symbols)

Diagram of a door or cabinet with an arrow pointing to the interior panel (no text or symbols present)

Diagram of a door or panel assembly with a black arrow pointing to a component (no text or symbols present)

Technical illustration of a mechanical assembly with two views showing internal components and a no-smoking symbol (no text or labels present)

Two diagrams showing a device with a circular symbol above and a prohibition sign below, no text or labels present.

3D diagram of a mechanical device with a magnified inset showing internal structure (no text or symbols)

Illustration of a mechanical component inside a room, with a magnified inset showing a directional arrow (no text or symbols)

UWAGA

Diagram of a door with a door handle and internal panel, showing a black arrow pointing to the door panel (no text or symbols present)

Cross-sectional diagram of a mechanical or electrical component with layered structure (no text or symbols)

Diagram of a refrigerator interior showing seating arrangement and a magnified view of the front portion (no text or symbols)

Diagram showing two containers with granular material inside, one moving right and the other horizontally (no text or symbols)

Polski60

⚠️ PRZESTROGA

Diagram of a mechanical device with a top component and an arrow indicating upward motion (no text or symbols)

Diagram of a mechanical component with a handle and internal structure, no text or symbols present

Diagram of a cylindrical filter with an upward arrow, placed on a base with a small mouth (no text or symbols)

Diagram of a mechanical assembly with a rotating component and a flat plate (no text or symbols)

Diagram showing a device with a black arrow pointing to a component, no text or symbols present

Diagram showing two rectangular panels with downward arrows, one highlighted by a magnified inset (no text or symbols)

3D diagram of a rectangular container with a black arrow pointing to it, no text or symbols present

Diagram of a cabinet or rack with an arrow indicating direction, showing internal components and a power outlet (no text or symbols present)

Diagram of a refrigerator interior showing a door, drawer, and handle mechanism (no text or labels)

UWAGA

Technical diagram of a door handle assembly with a black arrow indicating direction (no text or symbols)

Diagram of a door with an arrow indicating upward motion, no text or symbols present

Diagram of a computer monitor with ventilation slots and a cable inserted (no text or symbols)

Diagram of a mechanical assembly with a rotating component and directional arrow (no text or symbols)

Diagram of a mechanical component with directional arrows indicating motion (no text or symbols)

Diagram of a mechanical component with an arrow indicating direction, no text or symbols present

LOCK

Abstract illustration of ice cubes with bubbles and droplets, no text or symbols present

Dynamic splash of ice cubes with bubbles, no text or symbols present

SAMSUNG

Índice

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Technical line drawing of a refrigerator interior showing door, seats, and storage compartments (no text or labels)

Español28

Diagram showing two mechanical components with directional arrows and a prohibition sign, no text or symbols present.

NOTA

Mechanical assembly diagram showing a bracket with mounting holes and a directional arrow (no text or symbols)

Diagram showing mechanical assembly with directional arrows and a magnified view of connected components (no text or symbols)

Mechanical assembly diagram showing a person working on a platform with motion arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical assembly with a lever and bracket (no text or symbols)

Mechanical assembly diagram showing a clamping mechanism with a black arrow indicating motion (no text or symbols present)

Technical line drawing of a door panel with an arrow indicating direction (no text or symbols)

Diagram of a car seatbelt buckle being inserted into the door, with a black arrow indicating direction (no text or symbols)

Diagram of a mechanical or electrical component with two bidirectional arrows indicating movement or force (no text or symbols present)

Technical diagram showing a mechanical joint or bracket with an arrow indicating direction (no text or symbols present)

Diagram of a door panel with an inset showing a close-up of the door and a directional arrow indicating rotation (no text or symbols present)

Diagram of a door opening with a wall-mounted panel and a directional arrow indicating left motion (no text or symbols)

Technical diagram showing a mechanical clamp or bracket assembly with a downward arrow indicating force or direction (no text or symbols present)

Diagram showing a car seatbelt buckle and its left-hand side, with two arrows indicating direction (no text or symbols)

Diagram of a car seatbelt mechanism inside a vehicle, showing a valve and pushpin (no text or symbols)

Diagram of a door hinge with a black arrow pointing to a handle (no text or symbols present)

Mechanical assembly diagram showing a clamping mechanism interacting with a bracket (no text or symbols visible)

Technical diagram of a mechanical assembly with a lever mechanism and mounting bracket (no text or symbols)

Technical diagram of a mechanical assembly with a clamping tool and component (no text or symbols visible)

Diagram showing mechanical assembly with arrows indicating direction, magnified inset shows cable routing (no text or symbols)

Technical diagram of a mechanical assembly with screw fasteners and a rotating component (no text or symbols)

Diagram showing a mechanical device with a tool inside a circular inset, no text or symbols present

Line drawing of a door with an open lid and circular button (no text or symbols)

A UP DOWN

Two identical abstract curved shapes with internal lines, no text or symbols present

Line drawing of a two-door cabinet with two circular buttons on one side (no text or symbols)

A B

NOTA

Diagram showing a cabinet with a magnified inset highlighting a mechanical component (no text or symbols present)

Diagram showing a mechanical assembly with a magnified inset of a tool interacting with a component (no text or symbols present)

Diagram illustrating four steps of a mechanical or electrical component assembly, labeled A and B with directional arrows and no symbols.

Safety warning illustration showing a pipe knot with a circle and a prohibition sign, indicating no protection or disapproval.

Diagram showing a prohibition symbol and three labeled safety symbols connected by curved lines, likely indicating anti-smoking or hazard zones.

Diagram of a device component with an arrow indicating direction (no text or symbols present)

Line drawing of a hand inserting a small component into a cabinet (no text or symbols)

Diagram of a mechanical device with a handle and internal structure, showing an upward arrow (no text or symbols)

Diagram of a door or panel with an arrow pointing to the interior structure (no text or symbols)

Español54

Diagram of a door or panel assembly with a black arrow pointing to a component (no text or symbols present)

Technical illustration of a mechanical assembly with two views showing internal components and a no-smoking symbol (no text or labels present)

Two diagrams showing a device with a circular symbol above and a prohibition sign below, no text or labels present.

3D rendering of a mechanical device with a circular aperture and rectangular body (no text or symbols)

Diagram showing a mechanical component with an arrow pointing to it, enclosed in a magnified inset (no text or symbols present)

NOTA

Diagram of a door with a door handle and internal panel, showing a black arrow pointing to the door panel (no text or symbols present)

Cross-sectional diagram of a mechanical or electrical component with layered structure (no text or symbols)

Diagram of a refrigerator interior showing seating arrangement and a magnified view of the front portion of the refrigerator (no text or symbols present)

Diagram showing two containers with granular material inside, one moving right and the other horizontally (no text or symbols)

Diagram of a mechanical device with a top component and an arrow indicating upward motion (no text or symbols)

Diagram of a mechanical device with a central component and an upward arrow indicating force or direction (no text or symbols)

Diagram of a cylindrical device with an upward arrow, placed on a tray (no text or symbols)

Diagram of a mechanical assembly with a rotating component and a flat plate (no text or symbols)

Diagram showing a device with a black arrow pointing to a component, no text or symbols present

Diagram showing a device being inserted into a panel, with arrows indicating direction and magnified detail highlighting the component.

3D diagram of a rectangular container with a black arrow pointing to it, no text or symbols present

Diagram of a cabinet or rack with an arrow indicating direction, no text or symbols present

Diagram of a refrigerator interior showing door, drawer, and handle mechanism (no text or labels)

NOTA

Technical diagram of a door handle assembly with a black arrow indicating direction (no text or symbols)

Diagram of a door with a hanging hook and an upward arrow indicating direction (no text or symbols)

Diagram of a computer monitor with ventilation slots and a cable inserted (no text or symbols)

Diagram of a mechanical assembly with a rotating component and directional arrow (no text or symbols)

Diagram of a mechanical component with directional arrows indicating motion (no text or symbols)

Diagram of a mechanical component with an arrow indicating direction, no text or symbols present

LOCK
