USER MANUAL BSZ 2333 HOTPOINT

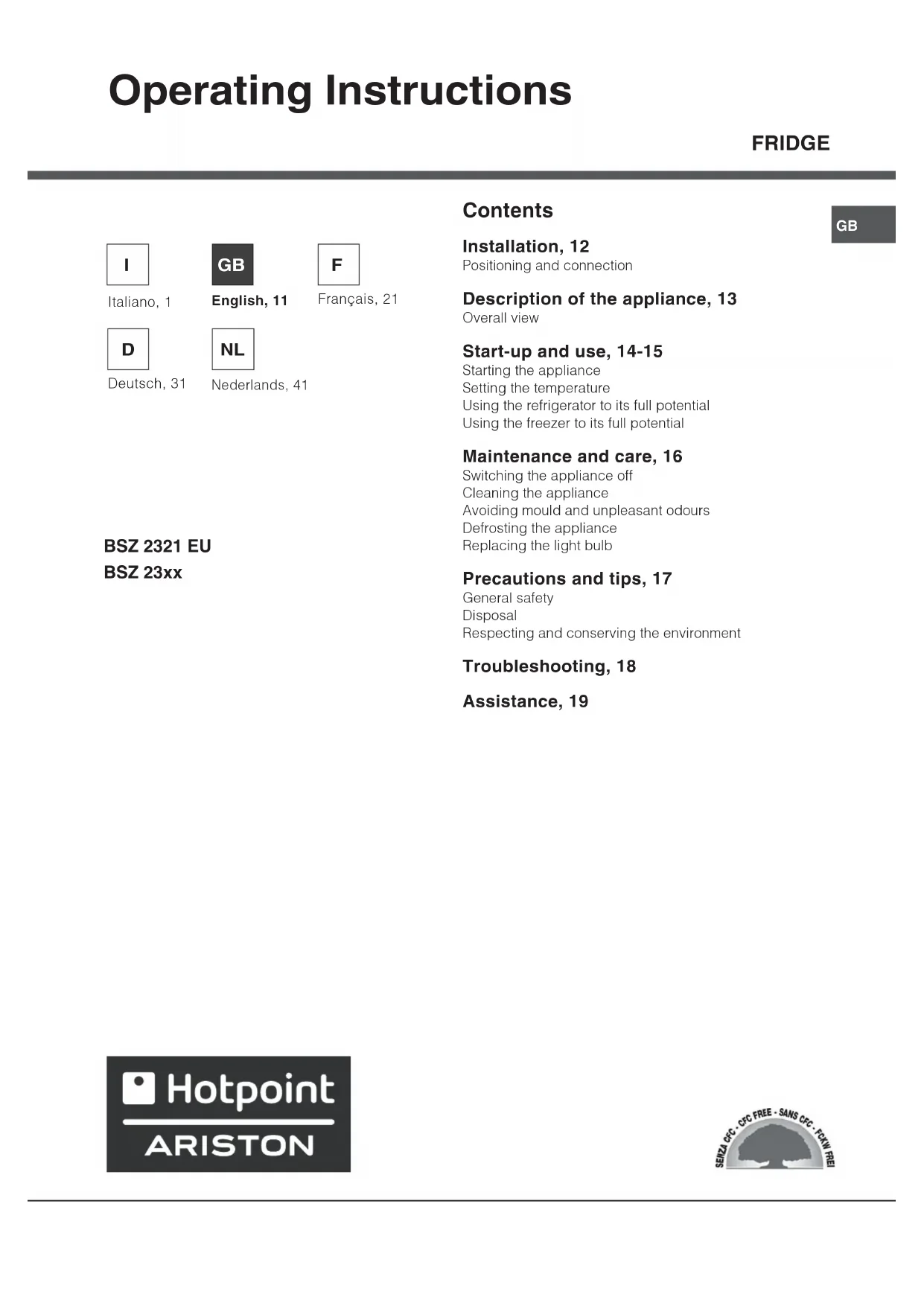

01/2014GB FRIDGE Contents Installation, 12 Positioning and connection Description of the appliance, 13 Overall view Start-up and use, 14-15 Starting the appliance Setting the temperature Using the refrigerator to its full potential Using the freezer to its full potential Maintenance and care, 16 Switching the appliance off Cleaning the appliance Avoiding mould and unpleasant odours Defrosting the appliance Replacing the light bulb Precautions and tips, 17 General safety Disposal Respecting and conserving the environment Troubleshooting, 18 Assistance, 19 Operating Instructions Italiano, 1

Installation ! Before placing your new appliance into operation please read these operating instructions carefully. They contain important information for safe use, for installation and for care of the appliance. ! Please keep these operating instructions for future reference. Pass them on to possible new owners of the appliance. Positioning and connection Positioning

1. Place the appliance in a well-ventilated humidity-

2. Do not obstruct the rear fan grills. The compressor

and condenser give off heat and require good ventilation to operate correctly and save energy.

3. Ensure the appliance is away from any sources of

heat (direct sunlight, electric stove, etc.). Electrical connections After the appliance has been transported, carefully place it vertically and wait at least 3 hours before connecting it to the electricity mains. Before inserting the plug into the electrical socket ensure the following: The appliance is earthed and the plug is compliant with the law. The socket can withstand the maximum power of the appliance, which is indicated on the data plate located on the bottom left side of the fridge (e.g. 150 W). The voltage must be in the range between the values indicated on the data plate located on the bottom left side (e.g. 220-240V). The socket is compatible with the plug of the appliance. If the socket is incompatible with the plug, ask an authorised technician to replace it (see Assistance). Do not use extension cords or multiple sockets. ! Once the appliance has been installed, the power supply cable and the electrical socket must be easily accessible. ! The cable must not be bent or compressed. ! The cable must be checked regularly and replaced by authorised technicians only (see Assistance). ! The manufacturer declines any liability should these safety measures not be observed.GB

Description of the appliance Overall view The instructions contained in this manual are applicable to different model refrigerators. The diagrams may notdirectly represent the appliance purchased. For more complex features, consult the following pages.Removable liddedshelf with EGG TRAYand BUTTER DISH RemovablemultipurposeSHELVESCompartment for a 2LITRE BOTTLEBOTTLE shelf SHELVESFRUIT andVEGETABLE bin Varies by number and/or position.

Start-up and use Starting the appliance ! Before starting the appliance, follow the installation instructions (see Installation). ! Before connecting the appliance, clean thecompartments and accessories well with lukewarmwater and bicarbonate.1. Insert the plug into the socket and ensure that theinternal light illuminates.2. Turn the TEMPERATURE ADJUSTMENT knob to anaverage value. After a few hours you will be able toput food in the refrigerator. Setting the temperature The temperature inside the refrigerator compartmentautomatically adjusts itself according to the position ofthe thermostat knob.1 = warmest 5 = coldestWe recommend, however, a medium position.The cooling section of the refrigerator is located insidethe back wall of the refrigerator compartment forincreased space and improved aesthetics. Duringoperation, the back wall will be covered in frost orwater droplets depending on whether the compressoris operating or paused. Do not worry, the refrigeratoris functioning normally.If the TEMPERATURE ADJUSTMENT knob has beenset on high values with large quantities of food andwith a high ambient temperature, the appliance canoperate continuously, resulting in excessive frostformation and excessive energy consumption:compensate for this by shifting the knob towards lowervalues (defrosting will occur automatically).In static appliances, the air circulates in a natural way:the colder air tends to move downwards as it isheavier. The food should be stored as follows:)RRG$UUDQJHPHQWLQVLGHWKHUHIULJHUDWRUFresh fish and meat Above the fruit and vegetable bins Fresh cheese Above the fruit and vegetable bins Cooked food On any shelf Salami, bread loaf, chocolate On any shelf Fruit and vegetables In the fruit and vegetable bins Eggs On the shelf provided Butter and margarine On the shelf provided Bottles, drinks, milk On the shelf provided

SHELVES: with or without grill.Due to the special guides theshelves are removable and theheight is adjustable (seediagram), allowing easy storageof large containers and food.Height can be adjusted withoutcomplete removal of the shelf.TEMPERATURE Indicator light: to identify the coldestarea in the refrigerator.1. Check that OK appears clearly on the indicator light(see diagram).2. If the word OK does not appear it means that thetemperature is too high: adjust the REFRIGERATOROPERATION knob to a higher position (colder) andwait approximately 10 hours until the temperature hasbeen stabilised.3. Check the indicator light again: if necessary, readjustit following the initial process. If large quantities offood have been added or if the refrigerator door hasbeen opened frequently, it is normal for the indicatornot to show OK. Wait at least 10 hours beforeadjusting the REFRIGERATOR OPERATION knob to ahigher setting. Using the refrigerator to its full potential Use the TEMPERATURE ADJUSTMENT knob toadjust the temperature (see Description). Place only cold or lukewarm foods in thecompartment, not hot foods (see Precautions andtips). Remember that cooked foods do not last longer thanraw foods. Do not store liquids in open containers. They willincrease humidity in the refrigerator and causecondensation to form. Available only on certain models.GB

Using the freezer to its full potential Do not re-freeze food that is defrosting or that has already been defrosted. These foods must be cooked and eaten (within 24 hours). Fresh food that needs to be frozen must not come into contact with food that has already been defrosted. Do not place glass bottles which contain liquids, and which are corked or hermetically sealed in the freezer because they could break. The maximum quantity of food that may be frozen daily is indicated on the plate containing the technical properties located on the bottom left side of the refrigerator compartment (for example: Kg/ 24h: 4) ! Do not open the door during freezing. ! If there is a power cut or malfunction, do not open the freezer door. This will help maintain the temperature inside the freezer, ensuring that foods are conserved for at least 9 -14 hours. ! If the room temperature drops below 14°C for an extended period of time, the ideal temperature will not be reached in the freezer compartment and food preservation will be reduced. Food hygiene

1. Once you have bought your food, remove all

external packaging made of paper/cardboard or other wrappers, which could introduce bacteria or dirt inside your refrigerator.

2. Protect the food, (especially easily perishable

items and those that have a strong smell), in order to avoid contact between them, thereby removing both the possibility of germ/bacteria contamination as well as the diffusion of strong odours inside the fridge.

3. Store all food in such a way as to ensure air can

circulate freely between different items.

4. Keep the inside of your fridge clean, taking care

not to use oxidiser or abrasive products.

5. Remove all food past its expiry date from the

6. For the correct preservation of food, all easily

perishable items (soft cheeses, raw fish, meat, etc.) should be stored in the coldest zone of the fridge compartment, i.e. just above the salad crisper where the temperature indicator is situated.16

Maintenance and care Switching the appliance off During cleaning and maintenance it is necessary to disconnect the appliance from the electricity supply: It is not sufficient to set the temperature adjustment knobs on (appliance off) to eliminate all electrical contact. Cleaning the appliance The external and internal parts, as well as the rubber seals may be cleaned using a sponge that has been soaked in lukewarm water and bicarbonate of soda or neutral soap. Do not use solvents, abrasive products, bleach or ammonia. The removable accessories may be soaked in warm water and soap or dishwashing liquid. Rinse and dry them carefully. The back of the appliance may collect dust which can be removed by delicately using the hose of a vacuum cleaner set on medium power. The appliance must be switched off and the plug must be pulled out before cleaning the appliance. Avoiding mould and unpleasant odours The appliance is manufactured with hygienic materials which are odour free. In order to maintain an odour free refrigerator and to prevent the formation of stains, food must always be covered or sealed properly. If you want to switch the appliance off for an extended period of time, clean the inside and leave the doors open. Defrosting the appliance ! Follow the instructions below. Do not use objects with sharp or pointed edges to defrost the appliance as these may damage the refrigeration circuit beyond repair. Defrosting the refrigerator compartment The refrigerator has an automatic defrosting function: water is ducted to the back of the appliance by a special discharge outlet (see diagram) where the heat produced by the compressor causes it to evaporate. It is necessary to clean the discharge hole regularly so that the water can flow out easily. Defrosting the freezer compartment If the frost layer is greater than 5 mm, it is necessary to defrost manually:

1. Set the TEMPERATURE ADJUSTMENT knob to the

2. Wrap frozen foods in newspaper and place them in

another freezer or in a cool place.

3. Leave the door open until the frost has melted

completely. This can be made easier by placing containers with lukewarm water in the freezer compartment.

4. Clean and dry the freezer compartment carefully

before switching the appliance on again. Replacing the light bulb To replace the light bulb in the refrigerator compartment, pull out the plug from the electrical socket. Follow the instructions below. Access the light bulb by removing the cover as indicated in the diagram. Replace it with a similar light bulb within the power range indicated on the cover (10W or 15W).GB

Precautions and tips ! The appliance was designed and manufactured in compliance with international safety standards. The following warnings are provided for safety reasons and must be read carefully. This appliance complies with the following Community Directives: General safety The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use. The appliance must be used to store and freeze food products by adults only and according to the instructions in this manual. The appliance must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain and storms. Do not touch the appliance with bare feet or with wet or moist hands and feet. Do not touch the internal cooling elements: this could cause skin abrasions or frost/freezer burns. When unplugging the appliance always pull the plug from the mains socket, do not pull on the cable. Before cleaning and maintenance, always switch off the appliance and disconnect it from the electrical supply. It is not sufficient to set the temperature adjustment knobs on (appliance off) to eliminate all electrical contact. In the case of a malfunction, under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or further malfunctioning of the appliance. Do not use any sharp or pointed utensils or electrical equipment - other than the type recommended by the manufacturer - inside the frozen food storage compartments. Do not put ice cubes taken directly from the freezer into your mouth. Do not allow children to tamper with the controls or play with the appliance. Under no circumstance should they be allowed to sit on the bins or to hang from the door. Keep packaging material out of the reach of children! It can become a choking or suffocation hazard. Disposal Observe local environmental standards when disposing packaging material for recycling purposes. The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out wheeled bin symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance. Respecting and conserving the environment Install the appliance in a fresh and well-ventilated room. Ensure that it is protected from direct sunlight and do not place it near heat sources. Try to avoid keeping the door open for long periods or opening the door too frequently in order to conserve energy. Do not fill the appliance with too much food: cold air must circulate freely for food to be preserved properly. If circulation is impeded, the compressor will work continuously. Do not place hot food directly into the refrigerator. The internal temperature will increase and force the compressor to work harder and will consume more energy. Defrost the appliance if ice forms (see Maintenance). A thick layer of ice makes cold transference to food products more difficult and results in increased energy consumption. Regularly check the door seals and wipe clean to ensure they are free of debris and to prevent cold air from escaping (see Maintenance). - 2006/95/CEE of 12/12/2006 (Low Voltage) - 2004/108/CEE of 12/12/2004 (Electromagnetic Compatibility).- 2011/65/EU (RoHS).- 2012/19/UE.18

Troubleshooting If the appliance does not work, before calling for Assistance (see Assistance), check for a solution from the following list. Malfunctions: The internal light does not illuminate. The refrigerator and the freezer do not cool well. The food inside the refrigerator is beginning to freeze. The motor runs continuously. The appliance makes a lot of noise. The back wall of the refrigerator unit is covered in frost or droplets of water. There is water at the bottom of the refrigerator. Possible causes / Solutions: The plug has not been inserted into the electrical socket, or not far enough to make contact, or there is no power in the house. The doors do not close properly or the seals are damaged. The doors are opened too frequently. The TEMPERATURE ADJUSTMENT knob is not in the correct position The refrigerator or the freezer have been over-filled. The TEMPERATURE ADJUSTMENT knob is not in the correct position. The food is in contact with the back inside wall of the refrigerator. The door is not closed properly or is continuously opened. The outside ambient temperature is very high. The thickness of the frost exceeds 2-3 mm (see Maintenance). The appliance has not been installed on a level surface (see Installation). The appliance has been installed between cabinets that vibrate and make noise. The internal refrigerant makes a slight noise even when the compressor is off. This is not a defect, it is normal. This shows the appliance is operating normally. The water discharge hole is blocked (see Maintenance).GB

Assistance Before calling for Assistance: Check if the malfunction can be solved on your own (see Troubleshooting). If after all the checks, the appliance still does not operate or the problem persists, call the nearest Service Centre Communicating: type of malfunction appliance model (Mod.) serial number (S/N) This information can be found on the data plate located on the bottom left side of the refrigerator compartment. Never call on unauthorized technicians and always refuse spare parts which are not originals. Mod. RG 2330
