Atom - Docking station MANHATTAN - Free user manual and instructions

Product Type	Mini Bluetooth speaker with LED lighting
Brand	Manhattan
Model	Atom
Connection Technology	Bluetooth
Power	Built-in rechargeable battery (Lithium-ion)
Charging Port	Micro USB
Charging Time	Less than 1h30
Charge Indicator	Red LED indicator lit during charging
Main Material	ABS Plastic
Main Functions	Wireless audio playback, rhythmic LED lighting, remote control
Controls	Power button (on/off, pairing), volume/track/playback control from connected device
Included Accessories	Micro USB cable, wrist strap
Compatibility	Any Bluetooth device (smartphone, tablet, computer)
Bluetooth Range	Approximately 10 meters
Maintenance	Clean with a soft, dry cloth
Precautions	Do not immerse in water, avoid shocks, dust, extreme temperatures
Operating Temperature	0°C to 40°C

Frequently Asked Questions - Atom MANHATTAN

How to connect my phone to the Atom speaker?

Press and hold the power button to turn on the speaker. Enable Bluetooth on your phone and select "Sound Science Atom" from the list of devices. An audio signal confirms the connection.

What does the red light mean?

The red LED on the back lights up during battery charging. It turns off once charging is complete.

How to charge the speaker?

Insert the provided micro USB cable into the charging port on the back of the speaker. Plug the other end into a computer or USB charger. The red light indicates charging is in progress.

How long does the battery last?

The manual does not specify the exact battery life, but it charges in less than 1.5 hours. For optimal use, avoid letting the battery discharge completely.

Can I use the speaker while charging?

It is possible to use the speaker while charging, but this may reduce battery lifespan in the long run. It is recommended to unplug once charging is complete.

Is the speaker waterproof?

No, it is not waterproof. Avoid contact with water, excessive dust, and shocks.

How to control the volume?

Volume is controlled directly from the connected device (phone, tablet, etc.). Use your device's volume buttons to adjust the sound.

What to do if Bluetooth does not connect?

Make sure the speaker is on and in pairing mode. Check that your phone's Bluetooth is enabled. If the problem persists, turn off and on the speaker and try again.

Can I connect multiple devices?

The speaker connects to only one device at a time. To change devices, disconnect the first and pair the second.

How to clean the speaker?

Use a soft, dry cloth to clean the surface. Do not use chemical or abrasive cleaners. Avoid letting moisture enter the openings.

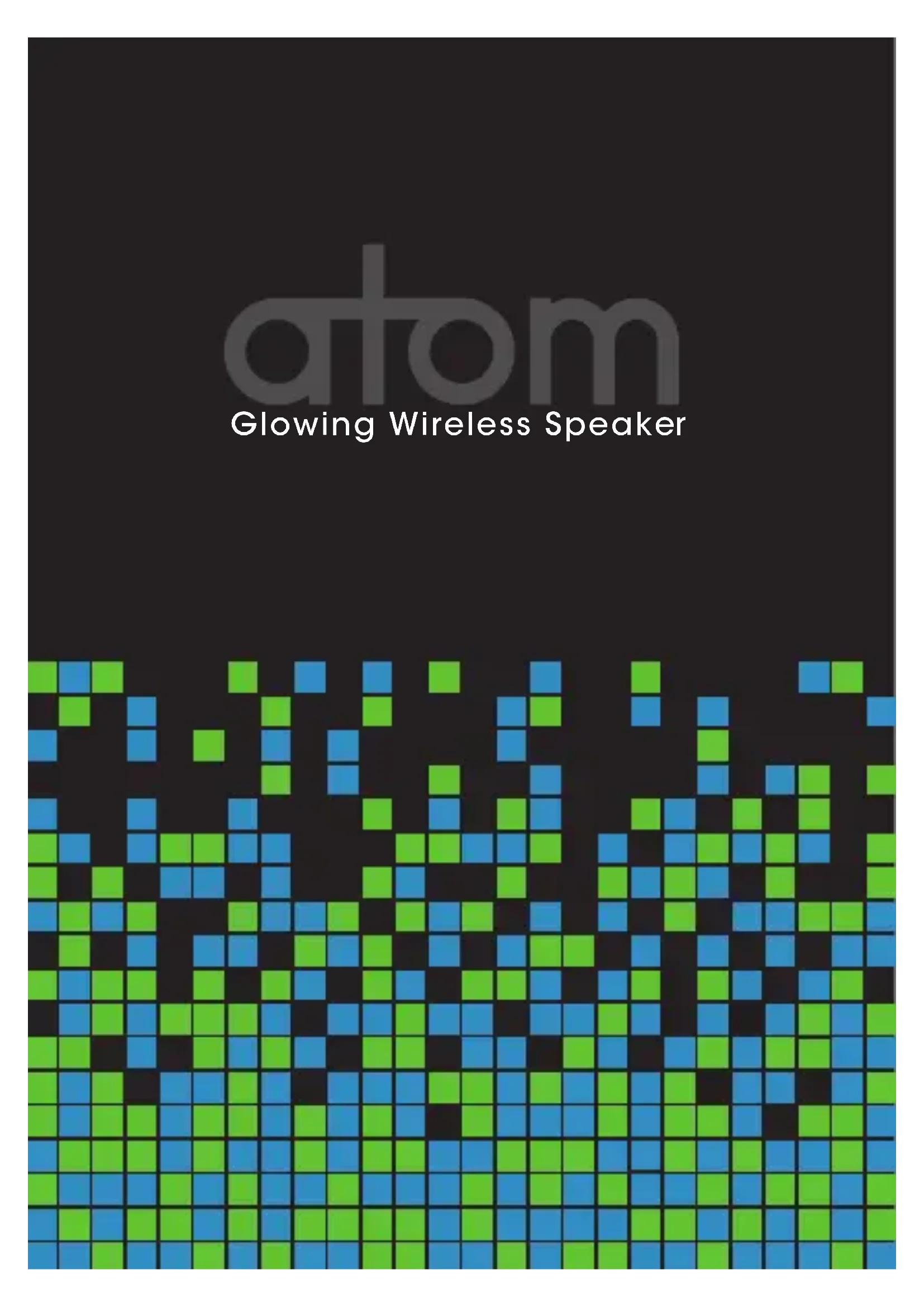

USER MANUAL Atom MANHATTAN

Glowing Wireless Speaker

Sound Science Atom is a mini-speaker with wireless Bluetooth technology and rhythmic LED lighting effects.

Features

1 Wrist Strap
2 Micro-USB Charging Port
3 LEDField
4 Power Button

Bluetooth mode

Press and hold power button

Activate Bluetooth on your device and select "Sound Science Atom" (you will hear audio cue when connected)

Control volume, tracks and playback on your device

charging

Insert charging cable into Micro-USB port

Connect the other end of charging cable to a computer or charger (red LED on back will light while charging)

Battery charges in less than 1.5 hours

\section*{ warnings}

Do not submerge in water or subject unit to excessive force, shock, dust or extreme temperature.

Deutsch

sound science by Manhattan
