H100 - Computer and peripheral cables ENERGY SISTEM - Free user manual and instructions

Product type	HDMI 1.4 cable for computer and peripheral
Brand	Energy Sistem
Model	H100
Connectors	2x HDMI Type-A male-to-male, gold-plated contacts
HDMI version	1.4
Maximum bandwidth	10.2 Gbit/s
Supported resolutions	4Kx2K (3840x2160 at 30 Hz), 1080p, 720p
Special features	HDMI Ethernet channel (100 Mb/s), audio return channel (ARC), 3D support
Cable diameter	7.7 mm
Jacket material	Flexible PVC and nylon braid
Length	1.5 m
Weight	Approximately 50 g
Power	None (passive cable)
Care	Clean with a soft, dry cloth. Avoid chemicals.
Safety	Do not excessively bend, do not expose to extreme temperatures
Spare parts / Repairability	Not repairable, integrated cable
Warranty	36 months

Frequently Asked Questions - H100 ENERGY SISTEM

Is this cable compatible with 4K?

Yes, this HDMI 1.4 cable supports 4Kx2K (3840x2160) resolutions at 30 Hz. For a 4K experience at 60 Hz, an HDMI 2.0 cable is recommended.

Can I use this cable to connect my computer to a monitor?

Yes, this HDMI cable is perfect for connecting a computer (with HDMI output) to a monitor or HD TV.

Does the cable support audio return (ARC)?

Yes, the cable includes the audio return channel (ARC), allowing sound to be sent from the TV to an amplifier without an additional cable.

What is the length of the cable?

The standard length of the Energy Sistem H100 cable is 1.5 meters.

Can I use this cable for a 3D gaming console?

Yes, this cable supports HDMI 3D, compatible with gaming consoles and 3D Blu-ray players.

Is the cable shielded?

Yes, the nylon braid and PVC provide good protection against electromagnetic interference.

How to clean the cable?

Use a soft, dry cloth to gently wipe the connectors and jacket. Do not use chemicals.

Does this cable work with older devices?

Yes, it is backward compatible with earlier HDMI versions, but advanced features (4K, Ethernet) will not be available if the device does not support them.

What to do if the image does not display?

Check that the connectors are fully inserted, that the source and display are set to the correct HDMI channel. Try another cable if possible.

Is the cable repairable?

No, this cable is a non-repairable device. In case of a defect, it must be replaced under warranty.

USER MANUAL H100 ENERGY SISTEM

Line drawing of a USB connector with ports and internal components (no text or symbols)

HDMI CABLE

YENEI

H100/H150

Manual de usuario / User manual / Notice d'utilisation

Energy Sistem thanks you for buying your new Energy HI00/HI50 HDMI v1.4 Cable. We wish you enjoy using it.

PRODUCT DESCRIPTION

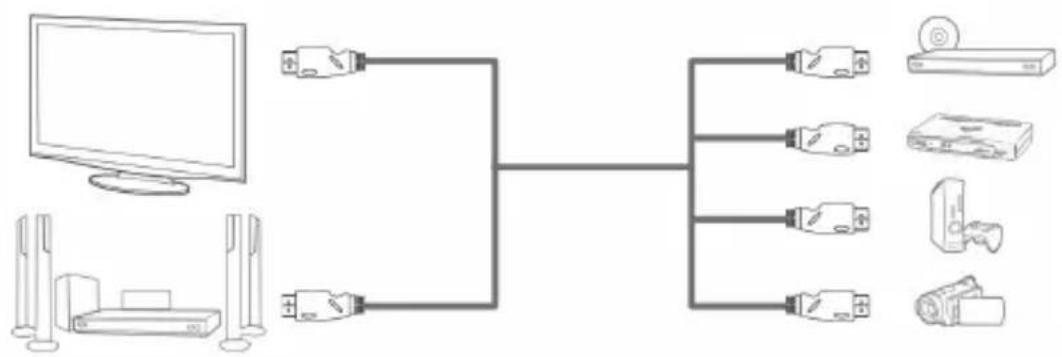

The HDMI v1.4 cable allows you to connect your HD TV or Home Cinema with HDMI Type-A connection to many multimedia devices with HDMI Type-A output such as DVD or Blue-Ray players, multimedia HD, DVB-T receiver, video game console, HD camcorder, computers, and many others.

MAIN FEATURES

Delivers uncompressed digital video and multi-channel audio on one cable.
Includes HDMI Ethernet channel which allows for a 100 Mb/s Ethernet connection between the two HDMI connected devices.
▶ Supports audio return channel functionality
▶ Data speed transfer exceeds 10.2 Gbit/s
▶ Supports 4Kx2K, 1080p and 720p video resolutions.
- Allows 3D over HDMI when connected to 3D Devices
▶ Additional Color Spaces (sYCC60I, RGB & YCC60I)
▶ Gilded Male-to-Male Type-A plugs for a better quality.
7.3 mm PVC cable with Nylon braid.

OPERATION

1. Reel cable.
2. Connect one of the HDMI Type-A connectors to a HDMI Type-A* output available in your source multimedia device.
3. Connect the other HDMI Type-A connector to a HDMI Type-A* input available in the receiver HD device.
4. Maybe you have to manually select the HDMI output in the source device and/or the HDMI input in the receiver using the corresponding procedure**.

* If your multimedia devices only have a DVI connection or it is not HDMI Type-A, then you may have to use an adapter to be able to connect this HDMI cable.

** Check the User's Manual of the device.

SPECIAL GUARANTEE

Energy Sistem ^® guarantees that your product does not have any material, design or manufacture defect and provides 36 month guarantee.

GUARANTEE PROCEDURE

Direct to your vendor and present the purchase invoice or ticket. For more information visit www.energysistem.com.

Specifications are subject to change without notice.

© 2010 by Energy Sistem ®. All rights reserved.

Trademarks

All company, brand and product names are trademarks or registered trademarks of their respective companies.

INTRODUCTION

Simple heart-shaped outline on black background (no text or symbols)

www.energysistem.com
