BQ2815 - Barbecue Brixton - Free user manual and instructions

Product Type	Electric Barbecue
Brand	Brixton
Model	BQ2815
Power Supply	220-240 V ~ 50 Hz
Power	Not specified
Cooking Plate Material	Non-stick coating
Included Accessories	Cover, grill plate, fat tray, condiment tray, stand (legs, tubes), removable thermostat with cord
Cooking Features	Adjustable thermostat, temperature indicator light, cooking with or without lid
Safety	Thermal protection with automatic reset, do not use extension cord, do not immerse thermostat
Maintenance	Grill plate and fat tray dishwasher safe; base clean with damp cloth; do not use metal scouring pads
Warranty	24 months from date of purchase
Compliance	CE, WEEE (2002/96/EC), Low Voltage Directive 2006/95/EC, EMC 2004/108/EC

Frequently Asked Questions - BQ2815 Brixton

How to assemble the BQ2815 barbecue?

Follow the steps in the manual: assemble the support leg (10A) into the leg base (10B) until it clicks, secure with a washer and screw. Mount the lower and upper tubes with the decorative ring, then fix the condiment tray. Place the appliance base on the support, insert the fat tray, then the grill plate and finally the cover.

How to use the barbecue for the first time?

Remove all packaging and wash the grill plate, fat tray and cover (they are dishwasher safe). Dry thoroughly. Plug in the appliance, set the thermostat to maximum and heat covered for 10 minutes without food to eliminate manufacturing residues. A slight odor and smoke may appear, which is normal.

What temperature setting for steaks?

The manual recommends setting 5 for steaks/beef, with a cooking time of 15 to 20 minutes. Use tongs to turn the meat and avoid a fork to prevent piercing the surface.

Can I use accessories not supplied?

No, using accessories not recommended by the manufacturer may cause injury and void the warranty. Only use the parts supplied or approved.

How to clean the grill plate?

Let the appliance cool down, unplug it and remove the removable thermostat. Clean the grill plate and fat tray with hot water and a damp cloth. You can also put them in the dishwasher. Never use metal scouring pads or abrasives to preserve the non-stick coating.

What if food sticks to the plate?

If food sticks, rub the plate with a piece of paper towel soaked in oil. This helps reactivate the non-stick coating. Avoid using metal utensils that could scratch the surface.

Can the barbecue be used outdoors?

Yes, the barbecue can be used outdoors, but the manual specifies that the cover must be placed in dome position when used outdoors. Make sure it is placed on a stable and level surface, protected from bad weather.

How to store the barbecue after use?

Let the appliance cool down, clean it thoroughly, then store it in a dry place. For prolonged protection, wrap it in a plastic bag to avoid dust and dirt.

What to do in case of malfunction?

If the appliance does not work properly, first check the plug and cord. Do not attempt to repair it yourself. Contact a qualified electrician (manufacturer's after-sales service). In case of a problem under warranty (24 months), return the complete appliance with the original packaging and receipt to the retailer.

What is the warranty period for the Brixton BQ2815?

The warranty is 24 months from the date of purchase, upon presentation of the receipt. It covers manufacturing defects and material defects. Damages due to improper use or unauthorized repairs are not covered.

USER MANUAL BQ2815 Brixton

Black outdoor grill setup with skewers, vegetables, and meat on a grater (no visible text or labels)

eN Instruction manual
NI Gebruiksaanwijzing
FR Mode d'emploi
De Bedienungsanleitung
eS Manual de usuario
PT Manual de utilizador
PI Instrukcja obsługi
IT Manuale utente
sv Användare

BQ-2815

*** TRISTAR

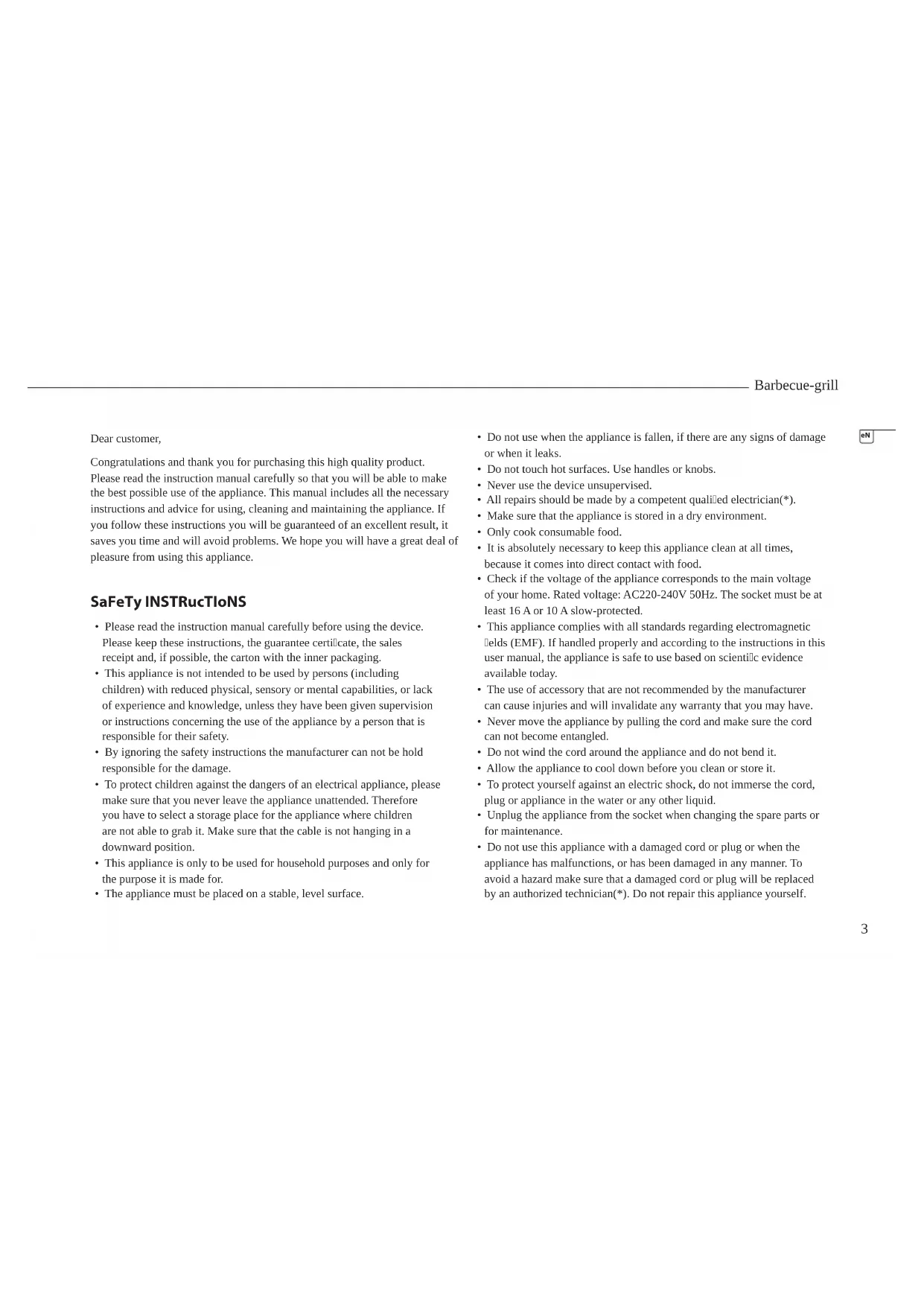

Dear customer,

Congratulations and thank you for purchasing this high quality product. Please read the instruction manual carefully so that you will be able to make the best possible use of the appliance. This manual includes all the necessary instructions and advice for using, cleaning and maintaining the appliance. If you follow these instructions you will be guaranteed of an excellent result, it saves you time and will avoid problems. We hope you will have a great deal of pleasure from using this appliance.

SaFeTy INSTRucTloNS

• Please read the instruction manual carefully before using the device. Please keep these instructions, the guarantee certificate, the sales receipt and, if possible, the carton with the inner packaging.
• This appliance is not intended to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instructions concerning the use of the appliance by a person that is responsible for their safety.
• By ignoring the safety instructions the manufacturer can not be hold responsible for the damage.
• To protect children against the dangers of an electrical appliance, please make sure that you never leave the appliance unattended. Therefore you have to select a storage place for the appliance where children are not able to grab it. Make sure that the cable is not hanging in a downward position.
• This appliance is only to be used for household purposes and only for the purpose it is made for.

• The appliance must be placed on a stable, level surface.

• Do not use when the appliance is fallen, if there are any signs of damage or when it leaks.

• Do not touch hot surfaces. Use handles or knobs.
• Never use the device unsupervised.
• All repairs should be made by a competent qualified electrician(*).
• Make sure that the appliance is stored in a dry environment.
• Only cook consumable food.
• It is absolutely necessary to keep this appliance clean at all times, because it comes into direct contact with food.
• Check if the voltage of the appliance corresponds to the main voltage of your home. Rated voltage: AC220-240V 50Hz. The socket must be at least 16 A or 10 A slow-protected.
• This appliance complies with all standards regarding electromagnetic fields (EMF). If handled properly and according to the instructions in this user manual, the appliance is safe to use based on scientific evidence available today.
• The use of accessory that are not recommended by the manufacturer can cause injuries and will invalidate any warranty that you may have
• Never move the appliance by pulling the cord and make sure the cord can not become entangled.
• Do not wind the cord around the appliance and do not bend it.
• Allow the appliance to cool down before you clean or store it.
• To protect yourself against an electric shock, do not immerse the cord, plug or appliance in the water or any other liquid.
• Unplug the appliance from the socket when changing the spare parts or for maintenance.
• Do not use this appliance with a damaged cord or plug or when the appliance has malfunctions, or has been damaged in any manner. To avoid a hazard make sure that a damaged cord or plug will be replaced by an authorized technician(*). Do not repair this appliance yourself.

TRISTAR Instruction manual

• Do not use this appliance near direct heat sources.
• Unplug the appliance from the socket when you are not using it.
• Note: To avoid danger by accidental resetting the thermal protection, this appliance may not be powered through an external switching device, such as a timer, or connected to a circuit that regularly will be switched on or off.
• Using an extension cord or something similar is not allowed.
• Allow the device to cool down before you are going to remove or replace spare parts.
• Make sure that the cord is not hanging over the edge of the table or counter, does not touch any hot surfaces or is coming directly into contact with the hot parts of the appliance. Do not place the appliance underneath or close to curtains, window coverings etc.
• We advise to place a heat resistant coating between your table and the appliance (this way you don't get burns on your table or table cloth).
• Be careful with oil and fat preparations, because they might catch fire by overheating. Provide proper ventilation when using the appliance.
• Caution: do not, under any circumstances, cover the grill rack with aluminum foil, barbecue dishes or other items, as the resulting build-up of heat could destroy the grill.
• Do not, under any circumstances, use charcoal or any other solid or liquid fuel to operate the grill.

(*) Competent qualified electrician: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician.

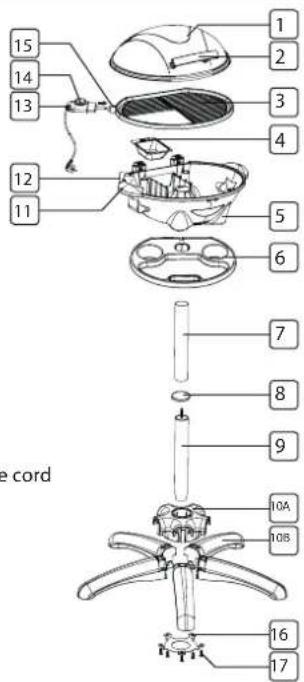

PARTS LIST

1. Hood
2. Handle of hood
3. Grill plate
4. Grease tray
5. Base of appliance
6. Condiment tray
7. Upper stand tube
8. Decorative ring
9. Nether stand tube
10. A Stand foot, B Stand base
11. Handle of base
12. Opening for appliance socket
13. Adjustable thermostat on detachable cord
14. Power indication light
15. Appliance socket
16. Washer
17. Screws

15 14 13 12 11 1 2 3 4 5 6 7 8 9 10A 10B 16 17 e cord

BEFORE USE

Please read these instructions carefully. They provide you important advice on the use, the security and maintenance of the appliance. Keep the instructions carefully and, should the situation arise, pass them on to further users.

• The appliance should only be used for the intended purpose according to these instructions.
• Observe the notes on safety regulations.
• Keep the packaging properly.

Barbecue-grill

12345 10A 10B

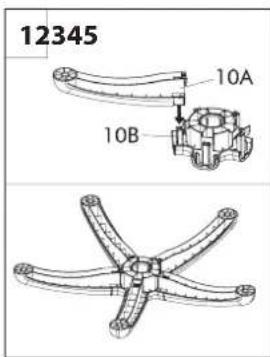

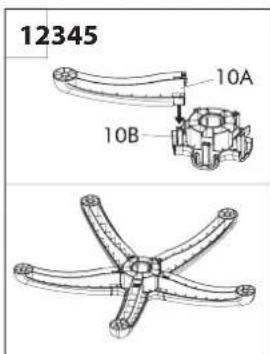

Place the stand feet (10A) into the stand base (10B) properly. You will hear a "click" sound when the foot is fixed well.

Technical diagram showing mechanical assembly with labeled parts 16 and 17, including a circular component and directional arrows.

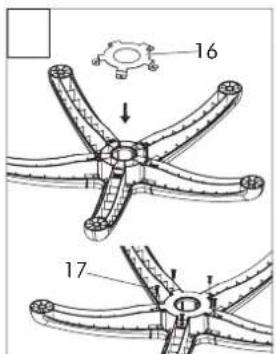

Place the washer (16) onto the stand base and install the screws (17) into the washer to fix the stand feet and stand base firmly.

7 8 a 9

Turn half of the threaded rod (a) in the lower tube (9), put the decorati ring (8) on the lower tube (9) and assemble both tubes together; ensure that they are fixed well.

9 10

Connect the grill stand base (10) and the lower tube (9) together to form the complete grill stand. The grill can be used with or without this stand.

Technical diagram showing a mechanical component with labeled parts and an arrow indicating direction

Install the screw (b) into upper tube (7) and put the condiment tray on the upper tube. Make sure that the tray is fixed well.

678910 5

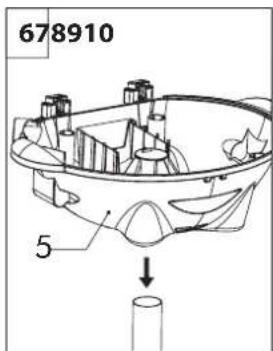

Place the bowl-shaped base of the appliance (5) onto the grill stand. Make sure that the grill stand is placed on a dry flat, stable surface.

Technical diagram of a mechanical assembly with labeled parts 1 and 4, showing internal components and directional arrows.

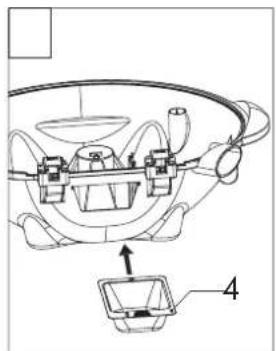

Put the grease tray (4) into the appropriate slot in the base of the appliance. The grease tray can be filled with some water to make it easier to clean.

Technical diagram of a mechanical device with numbered components labeled 3, 5, and 3.

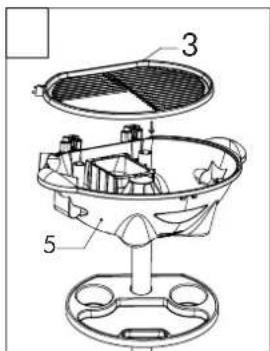

Place the grill plate (3) on the base of the appliance (5). First of all insert the appliance socket (15) into the appropriate opening in the base (12), then place the grill plate horizontally on the appliance base.

Technical line drawing of a portable stove or cooker with open lid and internal compartments (no text or symbols)

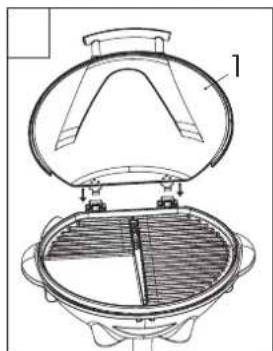

Place the hood (1) into the base. Position the hood as a wind breaker when you use the grill in the open air.

13

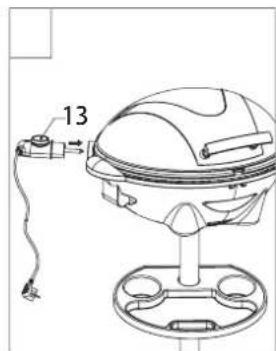

Push the detachable thermostat (13) as far as it will go into the grill's appliance socket.

BEFORE USING THE APPLIANCE FOR THE FIRST TIME

- Remove all the packaging materials and wash the grill plate (3), grease tray (4) and hood (1) thoroughly. The grill plate and the grease tray are both dishwasher safe.

Important: Dry all the different parts thoroughly, especially the appliance socket. (15). Never immerse the adjustable thermostat on detachable cord (13) in water or any other liquid.

- Heat the grill to its maximum setting for about 10 minutes, with the hood closed and without putting any food on it. Residues left from the manufacturing process may cause some smell and smoke when the appliance is used for the first time, this is normal and will disappear after a short time.

OPERATING THE APPLIANCE

• Connect the appliance to the mains electricity supply.
• Set the thermostat (13) to the required temperature level (it usually takes about 10 minutes to heat up).
• The power indication light (14) will go out as soon as the required temperature has been reached.
• Place the food to be grilled on the grill plate (3).

COOKING TIMES

The following cooking times are indicative. Different times will be required for different weights and sizes of foods to be grilled, and depend on whether you are grilling with or without the hood.

Food to be grilled Temperature grade setting Cooking time

Steak/beef 5 15-20 mins
Lamb 5 12-18 mins
Chicken drumsticks 5 25-30 mins
Chops 5 20-25 mins
Chicken wings 5 15-20 mins
Fillet of pork 4-5 9-10 mins
Whole fish 5 12-15 mins
Kebabs 3-4 10-12 mins
Various sausages 3-4 12-15 mins

TIPS FOR GRILLING

• Your meat will be tendered if you marinade it overnight before cooking (the marinade is always made of oil (to add moistness), vinegar (to tenderize) and a mixture of seasonings).
  • Always use tongs or some form of scoop to turn the grilled food (using a fork to turn the food will dry it out and damage the non-stick coating).
• Turn meat and fish only once during grilling. Turning the food too often will lead to dehydration.
• Never cook meat too long.
• In case the cooked food sticks to the grill plate, rub the plate with a piece of kitchen paper soaked in oil.

cleaNINg aND lookINg aFTeR The aPPIIaNce

• Disconnect the appliance from the mains electricity supply.
• Allow the grill to cool down.
  • Take the detachable thermostat (13) out of the appliance socket.
• Clean the grill plate (3) and grease tray (4) with warm washing-up water and a damp cloth. Do not use steel wool pads, brush or abrasives to avoid any damages to the non-stick coating.
• Wipe the base of the appliance (5) with a damp cloth. Fat splashes can be removed with a mild cleaning agent.
• The grill plate has a non-stick coating. Do not scratch this coating during either the grilling or the cleaning stages.
• Protect the appliance from dust and dirt when not using it for a prolonged length of time (wrap it in a plastic bag). Store it in a dry place.

guaRaNTee

• Tristar is not liable for damages occurred through:
  o In case the appliance has fallen.
  o In case the appliance has been technically changed by the owner or another third party.
  o In case of improper use of the appliance.
  o In case of normal wear of the appliance.
• By executing repairs the original warranty period of 2 years will not be extended, nor the right to a complied new warranty. This warranty is only legal on European soil. This warranty does not overrule the European directive 1944/44CE.

• Always keep your receipt, without this receipt you can not claim any form of warranty whatsoever.

• Damage caused by not following the instruction manual will lead to a void of warranty, if this results in consequential damages Tristar will not be liable.

• Tristar will not be liable for material damage or personal injury caused by improper use or if the safety instructions are not properly executed.
• Cleaning, as mentioned in this manual, is the only necessary maintenance for this appliance.
• When the appliance should be repaired, make sure that this will be performed by an authorized company.
  • This appliance may not be amended or changed.
• If problems arise during the 2 years from the date of purchase, which are covered by the factory warranty, you can go back to the point of purchase to replace it for a new one.
• For questions or compliances please contact your retailer "point of purchase."
• This appliance is covered with a 24 month guarantee starting on the date of purchase (receipt).
• Only material or manufacturing defects are included in this warranty.
• If you wish to make a claim please return the entire machine in the original packaging to your dealer together with the receipt.
• Damage to accessories does not mean automatic free replacement of the whole appliance. In such cases please contact our hotline. Broken glass or breakage of plastic parts are always subject to a charge.
• Defects to consumables or parts subject to wearing, as well as cleaning, maintenance or the replacement of these parts are not covered by the guarantee and hence are to be paid!
• The guarantee lapses in case of unauthorized tampering.
• After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.

GUIDELINES FOR PROTECTION OF THE ENVIRONMENT

This appliance should not be put into the domestic garbage at the end of its durability, but must be offered at a central

point for the recycling of electric and electronic domestic appliances. This symbol on the appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance can be recycled. By recycling used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection.

Packaging

The packaging is 100% recyclable, return the packaging separated.

Product

This device is equipped with a mark according to the European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring that this product will be correctly processed into waste, it will help prevent possible negative consequences for the environment and human health.

EC declaration of conformity

This appliance is designed to come into contact with food and is designed in accordance with EC Directive89/109/EEC. This device is designed, manufactured and marketed in accordance with the safety objectives of the Low Voltage Directive "No 2006/95/EC", the protection requirements of the EMC Directive 2004/108/EC "Electromagnetic Compatibility" and the requirement of Directive 93/68/EEC.

Geachte klant,

Exploded view diagram of a refrigerator with numbered parts for identification

Barbecue elektrisch

12345 10A 10B

Technical diagram showing mechanical assembly with labeled parts 16 and 17, including a circular component and directional arrows.

Technical diagram showing a mechanical component with labeled parts and an arrow indicating direction

Technical line drawing of a mechanical assembly with labeled parts (no text or symbols present)

Technical diagram of a mechanical device with labeled components 3, 5, and 6

Technical line drawing of a portable stove or grill with open lid and internal grating (no text or symbols)

Exploded view diagram of a refrigerator with numbered parts for identification

Barbecue électrique

12345 10A 10B

Technical diagram showing mechanical assembly with labeled parts 16 and 17, including a circular component and directional arrows.

Technical diagram showing a mechanical component with labeled parts and an arrow indicating direction

Technical diagram of a mechanical assembly with labeled parts 1 and 4, showing internal components and directional arrows.

Technical diagram of a mechanical device with numbered components labeled 3, 5, and 3

Technical line drawing of a portable stove or oven with lid and side panel (no text or symbols)

Technical line drawing of a portable stove or oven with lid and side panel (no text or symbols)

13

13

13

AVANT D'UTILISER L'APPAREIL POUR LA PREMIÈRE FOIS

Technical diagram showing mechanical assembly with labeled parts 16 and 17, including a gear-like component and directional arrows.

Technical diagram showing a mechanical assembly with labeled parts and dimension annotation

Technical line drawing of a mechanical assembly with labeled parts (no text or symbols present)

Technical diagram of a mechanical device with numbered components labeled 3, 5, and 3

Technical line drawing of a portable stove or cooker with open lid and internal compartments (no text or symbols)

Exploded view diagram of a refrigerator with numbered parts for identification

Barbacoa Eléctrica

12345 10A 10B

Technical diagram showing mechanical assembly with labeled parts 16 and 17, including a circular component and directional arrow.

Technical diagram showing a mechanical component with labeled parts and an arrow indicating direction

Technical line drawing of a mechanical assembly with labeled parts (no text or symbols present)

Technical diagram of a mechanical device with labeled components 3, 5, and a central base.

Technical line drawing of a portable stove or grill with open lid and internal compartments (no text or symbols)

Technical diagram showing mechanical assembly with labeled parts 16 and 17, including a circular component and directional arrows.

Technical diagram showing a mechanical component with labeled parts and an arrow indicating direction

Technical line drawing of a mechanical assembly with labeled parts (no text or symbols present)

Technical diagram of a mechanical device with numbered components labeled 3, 5, and 3.

Technical line drawing of a portable stove or cooker with open lid and internal compartments (no text or symbols)

Exploded view diagram of a refrigerator with numbered parts for identification

Grill elektryczny

12345 10A 10B

Technical diagram showing mechanical assembly with labeled parts 16 and 17, including a circular component and directional arrow.

Technical diagram showing a mechanical component with labeled parts and an arrow indicating direction

Technical diagram of a mechanical assembly with labeled parts (no text or symbols present)

Technical diagram of a mechanical device with labeled components 3, 5, and a central base.

Technical line drawing of a portable stove or cooker with open lid and internal compartments (no text or symbols)

Exploded view diagram of a refrigerator with numbered parts for identification

Barbecue elettrico

12345 10A 10B

Technical diagram showing mechanical assembly with labeled parts 16 and 17, including a magnified inset view.

Technical diagram showing a mechanical component with labeled parts and an arrow indicating direction

Technical line drawing of a mechanical assembly with labeled parts (no text or symbols present)

Technical diagram of a mechanical device with labeled parts 3, 5, and internal components

Technical line drawing of a portable stove or grill with open lid and internal grating (no text or symbols)

Technical line drawing of a medical device with labeled component (no text or symbols beyond part number)

Exploded view diagram of a refrigerator with numbered parts for identification

Elektrisk grill

12345 10A 10B

Technical diagram showing mechanical assembly with labeled parts 16 and 17, including a circular component and directional arrow.

Technical diagram showing a mechanical component with labeled parts and an arrow indicating direction

Technical line drawing of a mechanical assembly with labeled parts (no text or symbols present)

Technical diagram of a mechanical device with numbered components labeled 3, 5, and 3.

Technical line drawing of a portable stove or grill with open lid and internal compartments (no text or symbols)

5015 BH Tilburg, The Netherlands

www.tristar.eu

BQ-2815
