USER MANUAL KS40 KICKER

LIVIN’ LOUD 2011 KS Coax Multilingual c01.indd 12011 KS Coax Multilingual c01.indd 1 7/28/2010 11:58:48 AM7/28/2010 11:58:48 AM2 KS Coaxial Speakers KS Coaxial and 3-Way Speakers Owner’s Manual KS Coaxial Speakers The KICKER KS speakers offer an excellent upgrade to your vehicle’s factory sound system, delivering great full-range sound at an amazing value! Whether dropping the KS speakers in a factory location or customizing your install, their high-effi ciency design means less power is needed to play your music, while our use of advanced materials and construction techniques ensures optimal performance for years to come.Authorized KICKER Dealer:Purchase Date:Speaker Model Number:

MODEL: KS35 / KS40 / KS46 / KS410 / KS525

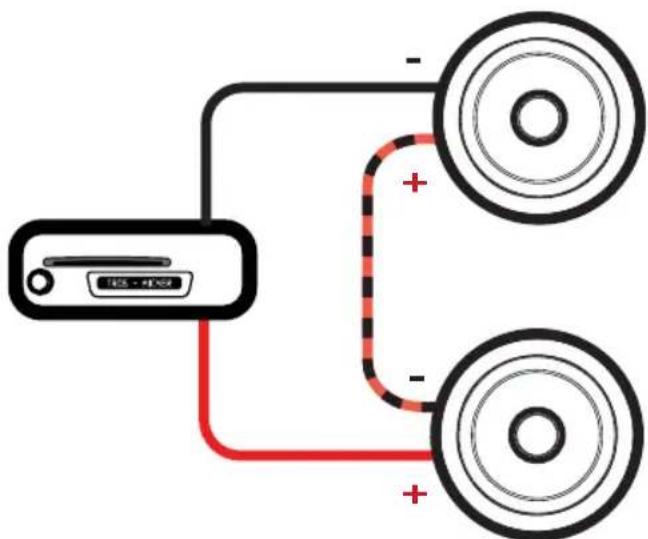

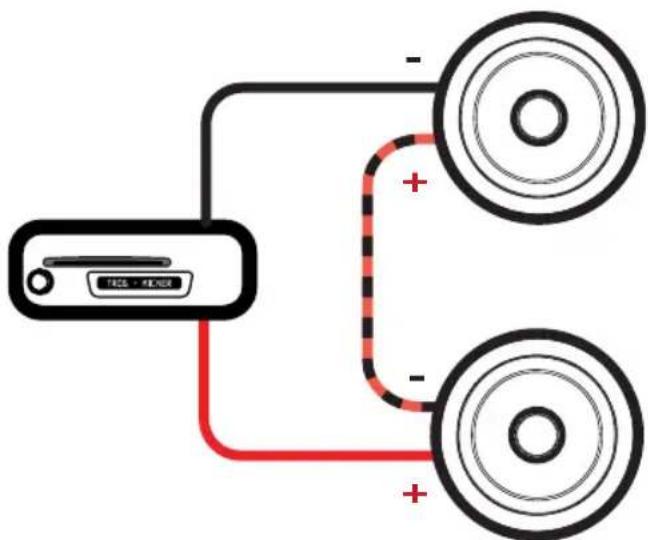

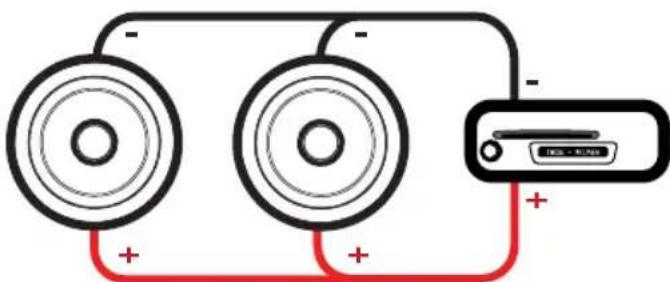

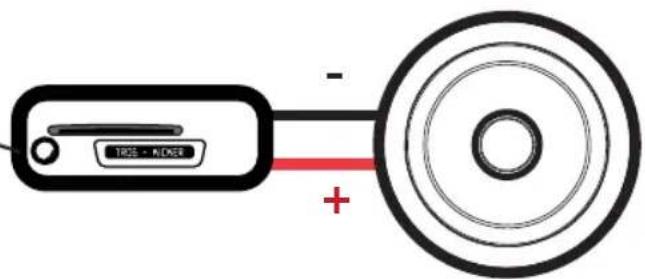

KS60 / KS65 / KS68 / KS69 / KS693 WIRING We recommend using 16 gauge (or larger) wire. The KS Speakers are rated at 4 ohms and work with any source unit or amplifi er designed to operate at a 4 ohm load. Make sure your source unit or amplifi er is rated for 4 ohm operation.Two KS Speakers wired in series to a single channelTotal Impedance: 8 ohmsTwo KS Speakers wired in parallel to a single channelTotal Impedance: 2 ohms

2011 KS Coax Multilingual c01.indd 22011 KS Coax Multilingual c01.indd 2 7/28/2010 11:58:54 AM7/28/2010 11:58:54 AM3 Model: KS35 KS40 KS46 KS410 KS525 KS60 KS65 KS68 KS69 KS693 Speaker Design 2 - Way 2 - Way 2 - Way 2 - Way 2 - Way 2 - Way 2 - Way 2 - Way 2 - Way 3 - Way Woofer Size, in (mm) 3 1/2 (89) 4 (100) 4x6 (100x160) 4x10 (100x250) 5 1/4 (130) 6 (160) 6 1/2 (165) 6x8 (150x200) 6x9 (150x230) 6x9 (150x230) Mid Size, in (mm) - - - - - - - - - 2 (50) Tweeter Size, in (mm) 1/2 (13) 1/2 (13) 1/2 (13) 1/2 (13) 3/4 (20) 3/4 (20) 3/4 (20) 3/4 (20) 1 (25) 3/4 (20) Rated Impedance, ohm 4 4 4 4 4 4 4 4 4 4 DC Resistance, ohm 3 3 3 3 3 3 3 3 3 3 Power Range, Watts RMS 6-20 6-30 6-30 6-35 6-45 6-65 6-65 6-60 6-90 6-100 Peak Power Handling, Watts 40 60 60 70 135 195 195 180 270 300 Sensitivity [SPLo], dB @ 1W, 1m 88 88 88 88 90 90 90 90 92 92 Effective Frequency Range, Hz 80-20k 60-20k 50-20k 45-20k 45-21k 43-21k 40-21k 45-21k 30-21k 30-21k Mounting Hole Diameter, in (mm) 3 3/16 (81) 3 11/16 (94) 3 1/2x5 3/4 (89x146) 3 7/8x9 5/16 (98x237) 4 9/16 (116) 5 (127) 5 5/8 (143) 5x7 (127x178) 6x8 9/16 (152x217) 6x8 9/16 (152x217) Top Mount Depth, in (mm) .31 (8) .42 (10.7) .22 (5.7) .23 (5.9) .57 (14.4) .83 (21.2) .73 (18.6) .01 (3.1) .57 (14.5) .91 (23.1) Bottom Mount Depth, in (mm) 1 9/16 (40) 1 3/16 (46) 1 3/16 (46) 2 7/16 (62) 2 (51) 1 15/16 (49) 2 1/8 (54) 2 3/8 (6) 3 3/16 (81) 3 3/16 (81) Tweeter Protrusion, in (mm) .09 (2.4) .09 (2.3) .06 (1.5) .05 (1.2) .15 (3.9) .47 (11.9) .48 (12.1) 0 0 .34 (8.6) Grilles No Yes No No Yes Yes Yes No Yes Yes Tweeter Magnet Material Neodymium Neodymium Neodymium Neodymium Neodymium Neodymium Neodymium Neodymium Neodymium Neodymium Tweeter Dome Material PEN (polyethylene naphthalate) PEN (polyethylene naphthalate) PEN (polyethylene naphthalate) PEN (polyethylene naphthalate) Titanium Titanium Titanium Titanium Titanium Titanium Tweeter Design Balanced dome Balanced dome Balanced dome Balanced dome Dome Dome Dome Dome Dome Dome Woofer Cone Material Polypropylene Polypropylene Polypropylene Polypropylene Polypropylene Polypropylene Polypropylene Polypropylene Polypropylene Polypropylene Woofer Surround Material Santoprene Santoprene Santoprene Santoprene Santoprene Santoprene Santoprene Santoprene Santoprene Santoprene PERFORMANCE 2011 KS Coax Multilingual c01.indd 32011 KS Coax Multilingual c01.indd 3 7/28/2010 11:58:55 AM7/28/2010 11:58:55 AM4 KS Coaxial Speakers WOOFER MOUNTING The KICKER KS Speakers are designed for free-air applications and do not require a sealed enclosure for optimum performance. It is important to isolate the sound coming from the front of the speaker from the sound radiating from the back of the speaker. This is most easily accomplished by mounting the speakers in a vehicle’s factory locations or in a location with a semi-isolated rear chamber (like the rear deck of a car behind the rear seats). If you are replacing factory speakers in their original locations, you may have to enlarge the speaker cut-outs and pre-drill new screw holes using a 7/64” (2.5mm) bit. Custom mounting locations will require more preparation and work. Make sure that the speaker will not interfere with trunk and door opening and closing mechanisms and that the enclosed screws will not puncture the fuel tank, puncture wiring, or interfere with any other mechanical parts on the underside of the mounting surface. Cycle the windows all the way down and up. If the speaker cut-out locations require you to cut metal, avoid structural metal and braces. If the door body and panel cannot support the weight of the speaker, an optional reinforcing ring (thin piece of wood or Medium Density Fiberboard) may be fastened or adhered to the door body. Mount the speaker to the vehicle as outlined in Fig. 4. Fig. 4 Pro Tip: You’re a KICKER amplifi er and a few cables away from a full system upgrade that will dominate any factory system! KICKER line of amplifi ers make it easy to upgrade to solid bass with your existing or stock source unit. Also, ask your dealer about KICKER Subwoofer upgrades. door body door panel speaker cut-out KS woofer mounting ring (KS 525 only) KS grille mounting ring reinforcing ring (optional) 2011 KS Coax Multilingual c01.indd 42011 KS Coax Multilingual c01.indd 4 7/28/2010 11:58:55 AM7/28/2010 11:58:55 AM5

ACOUSTICS LIMITED WARRANTY

KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of THREE (3) MONTHS from date of original purchase with receipt. When purchased from an Authorized KICKER Dealer it is warranted for ONE (1) YEAR from date of original purchase with receipt. In all cases you must have the original receipt. Should service be necessary under this warranty for any reason due to manufacturing defect or malfunction during the warranty period, KICKER will repair or replace (at its discretion) the defective merchandise with equivalent merchandise at no charge. Warranty replacements may have cosmetic scratches and blemishes. Discontinued products may be replaced with more current equivalent products. This warranty is valid only for the original purchaser and is not extended to owners of the product subsequent to the original purchaser. Any applicable implied warranties are limited in duration to a period of the express warranty as provided herein beginning with the date of the original purchase at retail, and no warranties, whether express or implied, shall apply to this product thereafter. Some states do not allow limitations on implied warranties; therefore, these exclusions may not apply to you. This warranty gives you specifi c legal rights; however you may have other rights that vary from state to state. WHAT TO DO IF YOU NEED WARRANTY OR SERVICE: Defective merchandise should be returned to your local Authorized Stillwater Designs (KICKER) Dealer for warranty service. Assistance in locating an Authorized Dealer can be found at www.kicker.com or by contacting Stillwater Designs directly. You can confi rm that a dealer is authorized by asking to see a current authorized dealer window decal. If it becomes necessary for you to return defective merchandise directly to Stillwater Designs (KICKER), call the KICKER Customer Service Department at (405) 624-8510 for a Return Merchandise Authorization (RMA) number. Package only the defective items in a package that will prevent shipping damage, and return to: Stillwater Designs, 3100 North Husband St, Stillwater, OK 74075 The RMA number must be clearly marked on the outside of the package. Please return only defective Coaxs. The return of functioning items increases your return freight charges. Non-defective items will be returned freightcollect to you. For example, if a subwoofer is defective, only return the defective subwoofer, not the entire enclosure. Include a copy of the original receipt with the purchase date clearly visible, and a “proof-of-purchase” statement listing the Customer’s name, Dealer’s name and invoice number, and product purchased. Warranty expiration on items without proof-of-purchase will be determined from the type of sale and manufacturing date code. Freight must be prepaid; items sent freight-collect, or COD, will be refused. WHAT IS NOT COVERED? This warranty is valid only if the product is used for the purpose for which it was designed. It does not cover: o Damage due to improper installation o Subsequent damage to other Coaxs o Damage caused by exposure to moisture, excessive heat, chemical cleaners, and/or UV radiation o Damage through negligence, misuse, accident or abuse. Repeated returns for the same damage may be considered abuse o Any cost or expense related to the removal or reinstallation of product o Speakers damaged due to amplifi er clipping or distortion o Items previously repaired or modifi ed by any unauthorized repair facility o Return shipping on non-defective items o Products with tampered or missing barcode labels o Products returned without a Return Merchandise Authorization (RMA) number o Freight Damage o The cost of shipping product to KICKER o Service performed by anyone other than KICKER HOW LONG WILL IT TAKE? KICKER strives to maintain a goal of 48-hour service for all acoustics (subwoofers, midrange drivers, tweeters, crossovers, etc) returns. Delays may be incurred if lack of replacement inventory or parts is encountered. Failure to follow these steps may void your warranty. Any questions can be directed to the KICKER Customer Service Department at (405) 624-8510. Contact your International KICKER dealer or distributor concerning specifi c procedures for your country’s warranty policies. P.O. Box 459 • Stillwater, Oklahoma 74076 • USA • (405) 624–8510 Note: All specifi cations and performance fi gures are subject to change. Please visit www.kicker.com for the most current information. To get the best performance from your new KICKER speakers, we recommend using genuine KICKER accessories and wiring. Please allow two weeks of break-in time for the speakers to reach optimum performance. 20100728+C-11KSCoax stillwaterdesigns 2011 KS Coax Multilingual c01.indd 52011 KS Coax Multilingual c01.indd 5 7/28/2010 11:58:55 AM7/28/2010 11:58:55 AM6 KS Coaxial Speakers Manual del propietario de del Coax KS COAX KS Los sistemas de Coaxes de la serie KS de KICKER ofrecen una fi delidad de audio inigualable para aplicaciones para vehículos. Ya sea para confi gurar el último sistema de sonido envolvente con altavoces múltiples y subwoofer o simplemente para mejorar la versión de parlantes aburridos y sin vida de fábrica, los sistemas de Coaxes KS brindan el sonido de gama completa más placentero del mercado en la actualidad!Distribuidor autorizado de KICKER:Fecha de compraNúmero de modelo del altavoz:

WARNING: KICKER products are capable of producing sound levels that can permanently damage your hearing! Turning up a
