USER MANUAL BRB26715DWW SAMSUNG

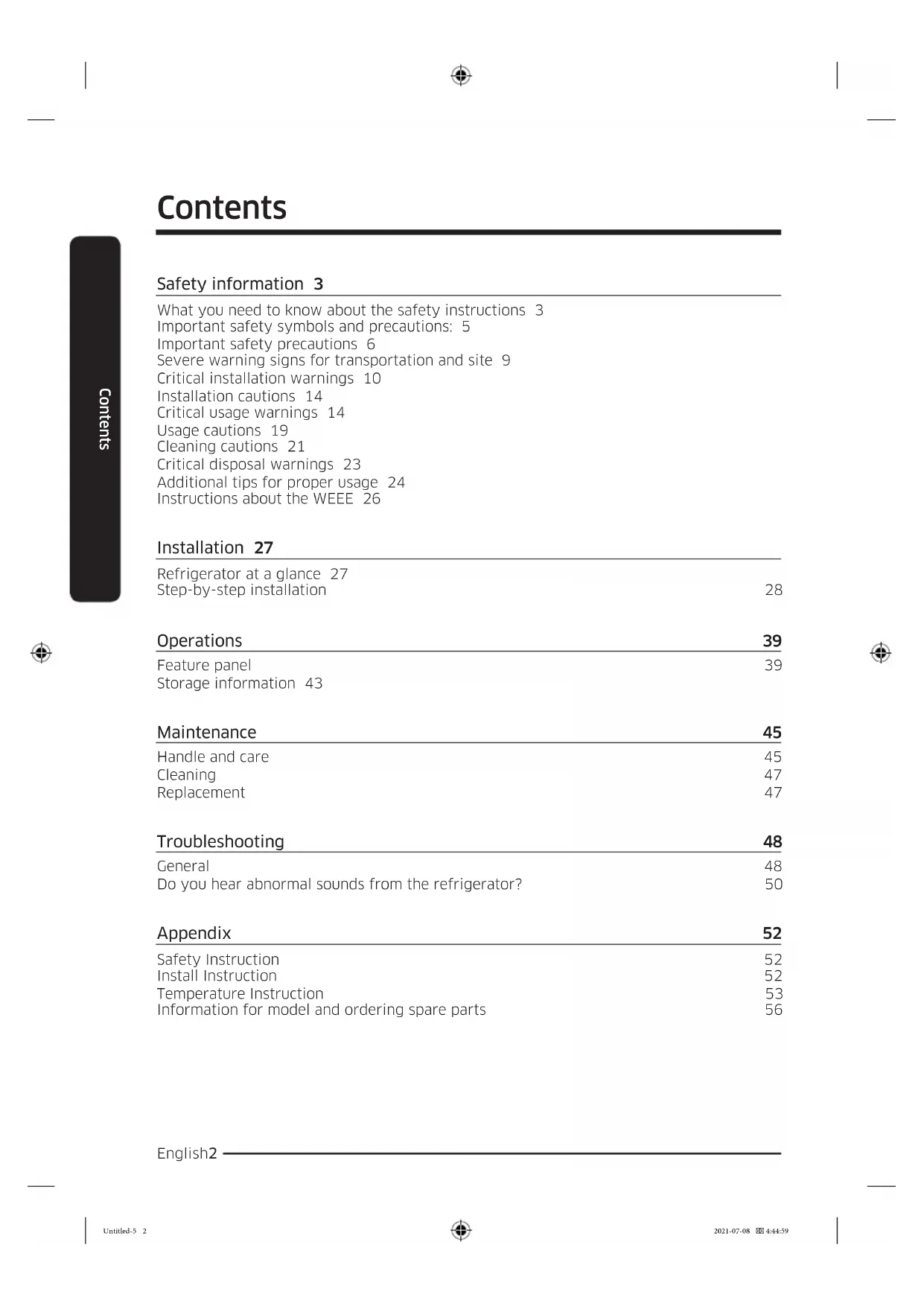

SESG / SEAG Built-in Appliance Untitled-5 1 2021-07-08 4:44:59English2 Contents Contents Safety information 3 What you need to know about the safety instructions 3 Important safety symbols and precautions: 5 Important safety precautions 6 Severe warning signs for transportation and site 9 Critical installation warnings 10 Installation cautions 14 Critical usage warnings 14 Usage cautions 19 Cleaning cautions 21 Critical disposal warnings 23 Additional tips for proper usage 24 Instructions about the WEEE 26 Installation 27 Refrigerator at a glance 27 Step-by-step installation 28 Operations 39 Feature panel 39 Storage information 43 Maintenance 45 Handle and care 45 Cleaning 47 Replacement 47 Troubleshooting 48 General 48 Do you hear abnormal sounds from the refrigerator? 50

Safety Instruction 52 Install Instruction 52 Temperature Instruction 53 Information for model and ordering spare parts 56 Untitled-5 2 2021-07-08 4:44:59English 3 Safety information Before using your new Samsung Refrigerator, please read this manual thoroughly to ensure that you know how to operate the features and functions that your new appliance offers safely and efciently. What you need to know about the safety instructions

• Warnings and Important Safety Instructions in this manual do not cover all possible conditions and situations that may occur. It is your responsibility to use common sense, caution, and care when installing, maintaining, and operating your appliance.

• Because these following operating instructions cover various models, the characteristics of your refrigerator may differ slightly from those described in this manual and not all warning signs may be applicable. If you have any questions or concerns, contact your nearest service center or nd help and information online at www.samsung.com.

• R-600a or R-134a is used as a refrigerant. Check the compressor label on the rear of the appliance or the rating label inside the fridge to see which refrigerant is used for your appliance. When this product contains ammable gas (Refrigerant R-600a), contact your local authority in regard to safe disposal of this product.

• In order to avoid the creation of a ammable gas-air mixture if a leak in the refrigerating circuit occurs, the size of the room in which the appliance may be sited depends on the amount of refrigerant used.

• It is hazardous for anyone other than an Authorized Service Person to service this appliance. Safety information Untitled-5 3 2021-07-08 4:44:59Safety information English4 Safety information

• Never start up an appliance showing any signs of damage. If in doubt, consult your dealer. The room must be 1 m

in size for every 8 g of R-600a refrigerant inside the appliance. The amount of refrigerant in your particular appliance is shown on the identication plate inside the appliance.

• Refrigerant squirting out of the pipes could ignite or cause an eye injury. When refrigerant leaks from the pipe, avoid any naked ames and move anything ammable away from the product and ventilate the room immediately. - Failing to do so may result in re or explosion.

• To avoid contamination of food, please respect the following instructions: - Opening the door for long periods can cause a signicant increase of the temperature in the compartments of the appliance. - Clean regularly surfaces that can come in contact with food and accessible drainage systems. - Clean water tanks if they have not been used for 48 h; ush the water system connected to a water supply if water has not been drawn for 5 days. - Store raw meat and sh in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food. - Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making icecream and making ice cubes. - One-, two- and three-star compartments are not suitable for the freezing of fresh food. Untitled-5 4 2021-07-08 4:44:59English 5 Safety information - If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance. Important safety symbols and precautions: Please follow all safety instructions in this manual. This manual uses the following safety symbols. WARNING Hazards or unsafe practices that may result in severe personal injury, property damage, and/or death. CAUTION Hazards or unsafe practices that may result in severe personal injury and/or property damage. NOTE Useful information that helps users understand or benet from the refrigerator. These warning signs are here to prevent injury to you and others. Please follow them carefully. After reading this section, keep it in a safe place for future reference. Untitled-5 5 2021-07-08 4:44:59Safety information English6 Safety information Important safety precautions Warning; Risk of re / ammable materials WARNING

• When positioning the appliance, ensure the supply cord is not trapped or damaged.

• Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

• Do not use mechanical devices or any other means to accelerate the defrosting process, other than those recommended by the manufacturer.

• Do not damage the refrigerant circuit.

• Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or those who lack experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety. Untitled-5 6 2021-07-08 4:44:59English 7 Safety information

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualied persons in order to avoid a hazard.

• The socket must be easily accessible so that the appliance can be quickly disconnected from the supply in an emergency. - It must be outside the area of the rear of the appliance.

• Do not store explosive substances such as aerosol cans with a ammable propellant in this appliance.

• If the product is equipped with LED lamps, do not disassemble the Lamp Covers and LED lamps yourself. - Contact a Samsung service center. - Use only the LED Lamps provided by the manufacturer or its service agents.

• If the interior or exterior LED lamp has gone out, contact your nearest service center.

• For the most efcient use of energy, please keep the all inner ttings such as baskets, drawers, shelves on the position supplied by manufacturer. Untitled-5 7 2021-07-08 4:44:59Safety information English8 Safety information

• To get the best energy efciency of this product, please leave all shelves, drawers and baskets on their original position. How to minimize the energy consumption

• Install the appliance in a cool, dry room with adequate ventilation.

• Ensure that it is not exposed to direct sunlight and never put it near a direct source of heat (radiator, for example). - Not to block any vents or grilles is recommended for energy efciency. - Allow warm food to cool down before placing it in the appliance. - Put frozen food in the refrigerator to thaw. You can then use the low temperatures of the frozen products to cool food in the refrigerator. - Do not keep the door of the appliance open for too long when putting food in or taking food out. - The shorter time for which the door is open, the less ice will form in the freezer. - Clean the rear of the refrigerator regularly. Dust increases energy consumption. - Do not set temperature colder than necessary. - Ensure sufcient air exhaust at the refrigerator base and at the back wall of the refrigerator. Do not cover air vent openings. - Allow clearance to the right, left, back and top when installing. This will help reduce power consumption and keep your energy bills lower. Untitled-5 8 2021-07-08 4:44:59English 9 Safety information

• Select 560 mm cavity depth. A smaller cavity depth will result in a higher energy consumption. This appliance is intended to be used in household and similar applications such as - staff kitchen areas in shops, ofces and other working environments; - farm houses and by clients in hotels, motels and other residential type environments; - bed and breakfast type environments; - catering and similar non-retail applications. Severe warning signs for transportation and site WARNING

• When transporting and installing the appliance, care should be taken to ensure that no parts of the refrigerating circuit are damaged. - Refrigerant leaking from the pipe work could ignite or cause an eye injury. If a leak is detected, avoid any naked ames or potential sources of ignition and air the room in which the appliance is standing for several minutes. Untitled-5 9 2021-07-08 4:44:59Safety information English10 Safety information - This appliance contains a small amount of isobutane refrigerant (R-600a), a natural gas with high environmental compatibility that is, however, also combustible. When transporting and installing the appliance, care should be taken to ensure that no parts of the refrigerating circuit are damaged. Critical installation warnings WARNING

• Do not install the refrigerator in a damp location or place where it may come in contact with water. - Deteriorated insulation on electrical parts may cause an electric shock or re.

• Do not place this refrigerator in direct sunlight or expose it to the heat from stoves, room heaters, or other appliances.

• Do not plug several appliances into the same multiple power strip. The refrigerator should always be plugged into its own individual electrical outlet which has a voltage rating that matches the voltage listed on the refrigerator’s rating plate. - This provides the best performance and also prevents overloading of house wiring circuits, which could cause a re hazard from overheated wires.

• If the wall socket is loose, do not insert the power plug. - There is a risk of electric shock of re.

• Do not use a power cord that has cracks or abrasion damage along its length or at either end. Untitled-5 10 2021-07-08 4:44:59English 11 Safety information

• Do not bend the power cord excessively or place heavy objects on it.

• Do not pull or excessively bend the power cord.

• Do not twist or tie the power cord.

• Do not hook the power cord over a metal object, place a heavy object on the power cord, insert the power cord between objects, or push the power cord into the space behind the appliance.

• When moving the refrigerator, be careful not to roll over or damage the power cord. - This may result in an electric shock or re.

• Never unplug your refrigerator by pulling on the power cord. Always grip the plug rmly and pull straight out from the outlet. - Damage to the cord may cause a short-circuit, re, and/ or electric shock.

• Do not use aerosols near the refrigerator. - Using aerosols near the refrigerator may cause an explosion or re.

• Do not install this appliance near a heater or inammable material.

• Do not install this appliance in a location where gas may leak. - This may result in an electric shock or re.

• This refrigerator must be properly located and installed in accordance with the instructions in this manual before you use it. Untitled-5 11 2021-07-08 4:44:59Safety information English12 Safety information

• Connect the power plug in the proper position with the cord hanging down. - If you connect the power plug upside down, the wire can get cut off and cause a re or electric shock.

• Make sure that the power plug is not crushed or damaged by the back of the refrigerator.

• Keep the packing materials out of reach of children. - There is a risk of death from suffocation if a child puts the packing materials on his or her head.

• Do not install this appliance in a humid, oily or dusty location, in a location exposed to direct sunlight and water (rain drops). - Deteriorated insulation of electrical parts may cause an electric shock or re.

• If any dust or water is in the refrigerator, pull out power plug and contact your Samsung Electronics service center. - Otherwise there is a risk of re.

• Do not stand on top of the appliance or place objects (such as laundry, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance. - This may result in an electric shock, re, problems with the product, or injury.

• You need to remove all the protective plastic lm before you initially plug the product in.

• Children should be supervised to ensure that they do not play with the snap rings used for door adjustment or the water tube clips. - There is risk of death by suffocation if a child swallows a snap ring or water tube clip. Keep the snap rings and water tube clips out of children’s reach. Untitled-5 12 2021-07-08 4:44:59English 13 Safety information

• The refrigerator must be safely grounded. - Always make sure that you have grounded the refrigerator before attempting to investigate or repair any part of the appliance. Power leakages can cause severe electric shock.

• Never use gas pipes, telephone lines, or other potential lightning attractors as an electrical ground. - You must ground the refrigerator to prevent any power leakages or electric shocks caused by current leakage from the refrigerator. - This may result in an electric shock, re, explosion, or problems with the product.

• Plug the power plug into the wall socket rmly. Do not use a damaged power plug, damaged power cord, or loose wall socket. - This may result in an electric shock or re.

• The fuse on the refrigerator must be changed by a qualied technician or service company. - Failing to do so may result in an electric shock or personal injury.

• This appliance is a built-in model that requires guided ventilation. To prevent a risk of explosion, make sure to secure room for ventilation.

• The fuse on the refrigerator must be changed by a qualied technician or service company. Failing to do so may result in an electric shock or personal injury. Untitled-5 13 2021-07-08 4:44:59Safety information English14 Safety information Installation cautions CAUTION

• Allow sufcient space around the refrigerator and install it on a at surface. - If your refrigerator is not level, cooling efciency and durability can be declined.

• Allow the appliance to stand for 2-3 hours before loading foods after installation and turning on.

• We strongly recommend you have a qualied technician or service company install the refrigerator. - Failing to do so may result in an electric shock, re, explosion, problems with the product, or injury. Critical usage warnings WARNING

• Do not insert the power plug into a wall socket with wet hands. - This may result in an electric shock.

• Do not store articles on the top of the appliance. - When you open or close the door, the articles may fall and cause personal injury and/or material damage.

• Do not insert hands, feet or metal objects (such as chopsticks, etc.) into the bottom or the back of the refrigerator. - This may result in an electric shock or injury. - Any sharp edges may cause a personal injury. Untitled-5 14 2021-07-08 4:44:59English 15 Safety information

• Do not touch the inside walls of the freezer or products stored in the freezer with wet hands. - This may cause frostbite.

• Do not put a container lled with water on the refrigerator. - If spilled, there is a risk of re or electric shock.

• Do not keep volatile or ammable objects or substances (benzene, thinner, propane gas, alcohol, ether, LP gas, and other such products) in the refrigerator. - This refrigerator is for storing food only. - This may result in re or explosion.

• Children should be supervised to ensure that they do not play with the appliance. - Keep ngers out of “pinch point” areas. Clearances between the doors and cabinet are necessarily small. Be careful when you open the doors if children are in the area.

• Do not put your ngers or children's ngers between the doors. - Keep ngers out of the left and right door gaps. Be careful when you open the doors if your ngers are in between the doors.

• Do not let children hang on the door or door bins. A serious injury may occur.

• Do not let children go inside the refrigerator. They could become trapped.

• Do not insert your hands into the bottom area under the appliance. - Any sharp edges may cause personal injury. Untitled-5 15 2021-07-08 4:44:59Safety information English16 Safety information

• Do not store pharmaceutical products, scientic materials, or temperature sensitive products in the refrigerator. - Products that require strict temperature controls must not be stored in the refrigerator.

• If you smell pharmaceutical or smoke, pull out power plug immediately and contact your Samsung Electronics service center.

• If any dust or water is in Refrigerator, pull out power plug and contact your Samsung Electronics service center. - Otherwise there is a risk of re.

• Do not let children step on a drawer. - The drawer may break and cause them to slip.

• Do not leave the doors of the refrigerator open while the refrigerator is unattended and do not let children enter inside the refrigerator.

• Do not allow babies or children go inside the drawer. - It can cause death from suffocation by entrapment or personal injury.

• Do not overll the refrigerator with food. - When you open the door, an item may fall out and cause personal injury or material damage.

• Do not spray volatile material such as insecticide onto the surface of the appliance. - As well as being harmful to humans, it may also result in an electric shock, re, or problems with the product.

• Do not use or place any substances sensitive to temperature such as ammable sprays, ammable objects, dry ice, medicine, or chemicals near or inside of the refrigerator. Untitled-5 16 2021-07-08 4:44:59English 17 Safety information

• Do not use a hair dryer to dry the inside of the refrigerator. Do not place a lighted candle in the refrigerator for removing bad odours. - This may result in an electric shock or re.

• Do not stand on top of the appliance or place objects (such as laundry, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance. This may result in an electric shock, re, problems with the product, or injury. Do not put a container lled with water on the appliance. - If spilled, there is a risk of re or electric shock.

• Never stare directly at the UV LED lamp for long periods of time. - This may result in eye strain due to the ultraviolet rays.

• Do not put shelf in upside down. Shelf stopper could not work. - It may cause a personal injury because of glass shelf drop.

• If a gas leak is detected, avoid any naked ames or potential sources of ignition, and air the room in which the appliance is standing for several minutes. - Do not touch the appliance or power cord. - Do not use a ventilating fan. - A spark may result in explosion or re.

• Bottles should be stored tightly together so that they do not fall out.

• This product is intended only for the storage of food in a domestic environment. Untitled-5 17 2021-07-08 4:44:59Safety information English18 Safety information

• Do not attempt to repair, disassemble, or modify the refrigerator yourself. - Unauthorized modications can cause safety problems. To reverse an unauthorized modication, we will charge the full cost of parts and labor.

• Do not use any fuse (such as cooper, steel wire, etc.) other than a standard fuse.

• If your refrigerator needs to be repaired or reinstalled, contact your nearest service center. - Failing to do so may result in an electric shock, re, problems with the product, or injury.

• If the refrigerator emits a burning smell or smoke, unplug the refrigerator immediately and contact your Samsung Electronics service center. - Failing to do so may result in an electric or re hazards.

• Pull the power plug out of the socket before changing the interior lamps of the refrigerator. - Otherwise, there is a risk of electric shock.

• If you experience difculty changing a non-LED light, contact a Samsung service center.

• Plug the power plug into the wall socket rmly.

• Do not use a damaged power plug, damaged power cord or loose wall socket. - This may result in an electric shock or re. Untitled-5 18 2021-07-08 4:44:59English 19 Safety information Usage cautions CAUTION

• Do not refreeze thawed food. - Frozen and thawed food will develop harmful bacteria faster than fresh. - The second thaw will break down even more cells, leaching out moisture and changing the integrity of the product.

• Do not thaw meat at room temperature. - Safety will depend on whether the raw product was handled properly.

• Do not place glass bottles or carbonated beverages into the freezer. - The container may freeze and break, and this may result in injury.

• Use only the ice maker provided with the refrigerator.

• To get the best performance from the product: - Do not place food too close to the vents at the rear of the refrigerator as this can obstruct free air circulation in the refrigerator compartment. - Wrap food up properly or place it in airtight containers before putting it into the refrigerator. - Please observe maximum storage times and expiration dates of frozen goods. Untitled-5 19 2021-07-08 4:44:59Safety information English20 Safety information - There is no need to disconnect the refrigerator from the power supply if you will be away for less than three weeks. However, if you will be away for more than three weeks, remove all the food and ice in the ice bucket, unplug the refrigerator, close the water valve, wipe excess moisture from the inside walls, and leave the doors open to prevent odors and mold.

• Service Warranty and Modication. - Any changes or modications performed by a 3rd party on this nished appliance are not covered under Samsung warranty service, nor is Samsung responsible for safety issues that result from 3rd party modications.

• Do not block the air vents inside the refrigerator. - If the air vents are blocked, especially with a plastic bag, the refrigerator can be over cooled.

• Wipe excess moisture from the inside and leave the doors open. - Otherwise, odor and mold may develop.

• If the refrigerator is disconnected from the power supply, you should wait for at least ve minutes before plugging it back in.

• When the refrigerator got wet by water, pull out the power plug and contact your Samsung Electronics service center.

• Do not strike or apply excessive force to any glass surface. - Broken glass may result in a personal injury and/or property damage.

• Be careful that your ngers are not caught in. Untitled-5 20 2021-07-08 4:44:59English 21 Safety information

• If the refrigerator is ooded, make sure to contact your nearest service center. - There is a risk of electric shock or re.

• Do not keep vegetable oil in your refrigerator’s door bins. The oil can solidify, making it foul-tasting and difcult to use. In addition, the open container can leak and the leaked oil can cause the door bin to crack. After opening an oil container, it is best to keep the container in a cool and shaded place such as a cupboard or pantry. - Examples of vegetable oil: olive oil, corn oil, grape-seed oil, etc. Cleaning cautions CAUTION

• Do not spray water directly on the inside or outside the refrigerator. - There is a risk of re or electric shock.

• Do not use a hair dryer to dry the inside of the refrigerator.

• Do not place a lighted candle in the refrigerator to remove bad odors. - This may result in an electric shock or re.

• Do not spray cleaning products directly on the display. - Printed letters on the display may come off.

• If any foreign substance such as water has entered the appliance, unplug the power plug and contact your nearest service center. - Failing to do so may result in an electric shock or re. Untitled-5 21 2021-07-08 4:44:59Safety information English22 Safety information

• Use a clean, dry cloth to remove any foreign matter or dust from the power plug blades. Do not use a wet or damp cloth when cleaning the plug. - Otherwise, there is a risk of re or electric shock.

• Do not clean the appliance by spraying water directly onto it.

• Do not use benzene, thinner, or Clorox, Chloride for cleaning. - They may damage the surface of the appliance and may cause a re.

• Before cleaning or performing maintenance, unplug the appliance from the wall socket. - Failing to do so may result in an electric shock or re.

• Use a clean sponge or soft cloth and a mild detergent in warm water to clean the refrigerator.

• Do not use abrasive or harsh cleansers such as window sprays, scouring cleansers, ammable uids, muriatic acid, cleaning waxes, concentrated detergents, bleaches, or cleansers containing petroleum products on exterior surfaces (doors and cabinet), plastic parts, door and interior liners, and gaskets. - These can scratch or damage the material.

• Do not clean glass shelves or covers with warm water when they are cold. Glass shelves and covers may break if exposed to sudden temperature changes or impacts such as bumping or dropping. Untitled-5 22 2021-07-08 4:44:59English 23 Safety information Critical disposal warnings WARNING

• Please dispose of the packaging material from this product in an environmentally friendly manner.

• Ensure that none of the pipes on the back of the refrigerator are damaged prior to disposal.

• When disposing of this refrigerator, remove the door/ door seals and door latch so that small children or animals cannot become trapped inside. Children should be supervised to ensure that they do not play with the appliance. If trapped inside, a child may get hurt or suffocate to death. - If trapped inside, the child may become injury and suffocate to death.

• Cyclopentane is used in the insulation. The gases in the insulation material require a special disposal procedure. Please contact your local authorities in regard to the environmentally safe disposal of this product.

• Keep all packaging materials well out of the reach of children, as packaging materials can be dangerous to children. - If a child places a bag over his or her head, the child could suffocate. Untitled-5 23 2021-07-08 4:44:59Safety information English24 Safety information Additional tips for proper usage

• In the event of a power failure, call the local ofce of your electric company and ask how long the failure is going to last. - Most power failures that are corrected in an hour or two will not affect your refrigerator temperatures. However, you should minimize the number of door openings while the power is off. - Should the power failure last more than 24 hours, remove and discard all frozen food.

• The refrigerator might not operate consistently (frozen contents can thaw or temperatures can become too warm in the frozen food compartment) if sited for an extended period of time in a location where ambient air temperatures are constantly below the temperatures for which the appliance is designed.

• In case of particular foods, keeping it under refrigeration can have a bad effect on preservation due to its properties.

• Your appliance is frost free, which means there is no need to manually defrost your appliance. This will be carried out automatically.

• Temperature rise during defrosting complies with ISO requirements. If you want to prevent an undue rise in the temperature of frozen food while the appliance defrosts, wrap the frozen food in several layers of newspaper.

• Do not re-freeze frozen foods that have thawed completely. Untitled-5 24 2021-07-08 4:44:59English 25 Safety information

• The temperature of two star section (sections) or compartment (compartments) which have two star symbol ( ) is slightly higher than other freezer compartment (compartments). The two star section (sections) or compartment (compartments) is (are) based on the instruction and/or the condition as delivered. Untitled-5 25 2021-07-08 4:44:59Safety information English26 Safety information Instructions about the WEEE Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in countries with separate collection systems) This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government ofce, for details of where and how they can take these items for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal. For information on Samsung’s environmental commitments and product regulatory obligations, e.g. REACH, WEEE or Batteries, visit our sustainability page available via www.samsung.com (For products sold in European countries and in the UK only) Untitled-5 26 2021-07-08 4:44:59English 27 Installation Follow these instructions carefully to ensure a proper installation of this refrigerator and to prevent accidents before using it. WARNING

• Use the refrigerator only for its intended purpose as described in this manual.

• Any servicing must be performed by a qualied technician.

• Dispose of the product packaging material in compliance with the local regulations.

• To prevent electric shock, unplug the power cord before servicing or replacements. Refrigerator at a glance The actual image and provided component parts of the refrigerator may differ, depending on the model and the country.

• applicable models only NOTE

• For best energy efciency, make sure all of shelves, drawers, and baskets are placed in their original position.

• Only for models which have freezer shelf: - To quickly freeze large quantities of food, use the freezer after removing the bottom drawer of the freezer. - To get more space, you can remove the slide shelf (5) and two freezer drawers (6,11) under it but keep the freezer shelf on the bottom drawer of the freezer. They do not affect thermal and mechanical characteristics. The declared storage volume of the frozen food storage compartment is calculated with the shelf and the freezer drawers removed. Installation Untitled-5 27 2021-07-08 4:45:00Installation English28 Installation Step-by-step installation STEP 1 Select a site Site requirements:

• Solid, level surface without carpeting or ooring that may obstruct ventilation

• Away from direct sunlight

• Adequate room for opening and closing the door

• Away from a heat source

• Room for maintenance and servicing

• Temperature range: between 10 °C and 43 °C Product dimension

• 01: From cabinet to rear of product. (unit : mm) NOTE

• The specied energy consumption is based on the condition of a 10 mm gap from cabinet to rear of product. The product will work properly even with a gap which is less than 10 mm, however it consumes slightly more energy.

• We recommend using a cabinet that is 18 mm thick with hinges less than 20 mm thick. NOTE

• The measurements in the above table may differ, depending on the measuring method.

• For built-in installation, see the Installation Manual. Untitled-5 29 2021-07-08 4:45:00Installation English30 Installation Ventilation system of the cabinet As shown in the gure, the air entering the refrigerator circulates along the ventilation path (see the arrow direction) of the cabinet. The cabinet must have at least 200 cm

(WxH: 500 mm x 40 mm) of space both for the air inlet and air outlet. Also, the cabinet must have a rear vent of at least 200 cm

(WxH: 500 mm x 40 mm) of space at the rear bottom. Air inlet

The air inlet must be positioned in one of the examples below, or a similar position, depending on your cabinet type. A. A ventilation hole included in the cabinet. B. A cabinet with feet. Air outlet A B C The air outlet must be positioned in one of the examples below, or a similar position, depending on your cabinet type. A. Immediately above the refrigerator with an optional vent grille B. Close to the cabinet ceiling C. Above the refrigerator with a separately built-in vent CAUTION Regardless of the cabinet design, the air ventilation system must not be blocked by any kind of installation. Untitled-5 30 2021-07-08 4:45:00English 31 Installation Cabinet dimension

CAUTION If the cabinet has a door, make sure the door is not heavy to prevent it from tipping or falling off. Cabinet door Thickness (mm) Weight (kg) Fridge side Min. 16 Max. 19 Max. 18 Freezer side Max. 12 Any product failure due to the following is not covered by the Warranty.

2. Defective cabinet

3. Mistakes by the installer or the user

Clearance See the pictures and tables below for space requirements for installation. Model

• If the width of a cabinet is larger than 568 mm, the gasket (between the refrigerator and the cabinet) can become loose. Untitled-5 31 2021-07-08 4:45:00Installation English32 Installation

• If the cabinet is higher than the maximum dimension (1782 mm), you must use other nishing materials to ll the gap. Consideration for socket outlet location and required space

A Min. 590 B Min. 560 C Min. 580 D 240 (unit : mm) NOTE If you install the refrigerator in a cabinet with a 560 mm depth, make sure the power cord is arranged on a side of the refrigerator before plugging into a power socket. If the power cord is in the rear of the refrigerator, it could decrease the energy efciency. Untitled-5 32 2021-07-08 4:45:00English 33 Installation Cabinet type The recommended cabinet type is one of the following: A B NOTE If using any of these cabinet types, you don't need to remove the main unit from the cabinet for servicing a defective main PBA. If using another cabinet type, you must remove the main unit from that cabinet for servicing. A. Flipping type B. Sliding type NOTE

• Using an unrecommended-sized cabinet can cause the gasket between the refrigerator and the cabinet to be loose after the refrigerator is inserted in the cabinet.

• If the gasket dedicated to BRB26*1*, BRB30*1* (FIXED TYPE) models is not inserted properly, split and remove the 2 extra branches (A) of the gasket one by one and try again. Untitled-5 33 2021-07-08 4:45:00Installation English34 Installation

3mm (fridge and freezer door gap) A. Lower edge of the front panel above the air ventilation B. Front panel overhang Untitled-5 34 2021-07-08 4:45:01English 35 Installation STEP 2 Flooring

• The surface to install the refrigerator must support a fully loaded refrigerator.

• To protect the oor, put a large piece of cardboard on each foot of the refrigerator.

• Once the refrigerator is in its nal position, do not move it unless necessary to protect the oor. If you have to, use a thick paper or cloth such as old carpet along the movement path. STEP 3 Spacing (applicable models only)

A A Attach the provided spacers (A) and the sponge (B) as shown in the gure to for optimal energy efciency. CAUTION If the refrigerator is not ush with the cabinet, you may cut the spacers to make the refrigerator ush with the cabinet, but the optimal energy efciency cannot be guaranteed. Untitled-5 35 2021-07-08 4:45:01Installation English36 Installation STEP 4 Adjust the levelling legs CAUTION

• The refrigerator must be levelled on a at, solid oor. Failing to do so can cause damage to the refrigerator or physical injury.

• Levelling must be performed with an empty refrigerator. Make sure no food items remain inside the refrigerator. The refrigerator can be levelled using the front legs that have a special screw (leveller) for levelling purposes. Use a at-head screwdriver for levelling. To adjust the height of the left side: Insert a at-head screwdriver into the leveller of the front left leg. Turn the leveller clockwise to raise, or turn it counter clockwise to lower. To adjust the height of the right side: Insert a at-head screwdriver into the leveller of the front right leg. Turn the leveller clockwise to raise, or turn it counter clockwise to lower. NOTE Make sure to secure a 41 mm (A: for both the sliding hinge and the xed hinge) gap between the refrigerator and the closet or alcove. Then, x the front legs using the screws. Untitled-5 36 2021-07-08 4:45:01English 37 Installation A A

STEP 5 Initial settings By completing the following steps, the refrigerator should be fully functioning.

1. Remove the PE foam sheet on each shelf corner, which is attached to protect the

refrigerator during transportation.

2. Open the door, and check if the interior light lights up.

3. Remove the PE foam on the magnet

from the top of the door.

4. Set the temperature to the coldest, and wait for about an hour. Then, the freezer will be

slightly chilled, and the motor will run smoothly.

5. Wait until the refrigerator reaches the set temperature. Now the refrigerator is ready

for use. NOTE When the refrigerator powers on, the alarm will sound. To turn off the alarm, press Freezer or Fridge. Untitled-5 37 2021-07-08 4:45:01Installation English38 Installation STEP 6 Temperature Alarm (applicable models only) Type 1

• The refrigerator blinks '- -' on the temperature display with an alarm if the freezer compartment is too warm. This may occur if the freezer becomes too warm after there has been a power failure.

• If this happens, press Freezer or Fridge. Whichever warmer temperature is displayed for 5 seconds. Then the actual temperature is displayed. To deactivate the alarm, press Door Alarm. Type 2

• The refrigerator blinks the temperature indicator with an alarm if the freezer compartment is too warm. This may occur if the freezer becomes too warm after there has been a power failure. To deactivate the alarm, press Freezer or Fridge. STEP 7 Final check When installation is complete, conrm that:

• The refrigerator is plugged into an electrical outlet and grounded properly.

• The refrigerator is installed on a at, level surface with a reasonable clearance from the wall or the cabinet.

• The refrigerator is level and is sitting rmly on the furniture.

• The door opens and closes freely, and the interior light turns on automatically when you open the door. Untitled-5 38 2021-07-08 4:45:01English 39 Operations Feature panel TYPE 1

• applicable models only NOTE The LED indicators turn on all at once when the door is open, or turn off all at once when the door is closed. Operations Untitled-5 39 2021-07-08 4:45:01Operations English40 Operations 01 Fridge / Vacation (3 sec) Fridge To adjust the fridge temperature, press Fridge to select the corresponding temperature. You can change the temperature between 1 °C and 7 °C (default: 3 °C). Power Cool (Type 1) Power Cool speeds up the cooling process at maximum fan speed. The fridge keeps running at full speed for two and a half hours and then returns to the previous temperature.

• To activate Power Cool, select temperature 1 °C, and then press Fridge to select Power Cool. The corresponding indicator ( ) lights up, and the refrigerator will speed up the cooling process for you.

• To deactivate Power Cool, press Fridge again. Then, the temperature of the fridge will be set back to 7 °C. NOTE Using Power Cool increases power consumption. Make sure you turn it off and return to the previous temperature if you don't intend to use it. Vacation

• Use the Vacation function if you are going on vacation or a business trip, or if you do not intend to use the fridge for an extended time. The fridge temperature will be kept under 17 °C, but the freezer remains active as previously set.

• To activate or deactivate the Vacation mode, press and hold Fridge for 3 seconds. NOTE

• Make sure to remove foods in the fridge compartment before using Vacation mode.

• The Vacation mode will be disabled if you adjust the temperature. Untitled-5 40 2021-07-08 4:45:01English 41 Operations 02 Freezer / Power Freeze (3 sec) / Cool Select+ (3 sec) Freezer The Freezer button can be used to set the freezer temperature. Available temperatures are between -15 °C and -23 °C (default: -19 °C). NOTE You cannot change the temperature in Cool Select+ mode. Power Freeze Power Freeze speeds up the freezing process at maximum fan speed. The freezer keeps running at full speed for 50 hours and then returns to the previous temperature. To freeze large amounts of food, activate Power Freeze for at least 20 hours before putting food in the freezer. Type 1

• To activate Power Freeze, select temperature -23 °C, and then press Freezer to select Power Freeze. The corresponding indicator ( ) lights up, and the refrigerator will speed up the freezing process for you.

• When the Power Freeze process is complete, the corresponding indicator turns off and the freezer returns to the previous temperature setting.

• To deactivate Power Freeze, press Freezer again. The freezer returns to the pervious temperature setting. Type 2

• To activate Power Freeze, press and hold Freezer for 3 seconds to select Power Freeze. The corresponding indicator ( ) lights up, and the refrigerator will speed up the freezing process for you.

• To deactivate Power Freeze, press and hold Freezer for 3 seconds again. The freezer returns to the previous temperature setting, and the indicator turns off. NOTE Using Power Freeze increases power consumption. Make sure you turn it off and return to the previous temperature if you do not intend to use it. Untitled-5 41 2021-07-08 4:45:01Operations English42 Operations Cool Select+ (Type 1) Each time you press and hold Cool Select+ for 3 seconds, the operating mode switches in this sequence: Freeze Soft Freezing (-5 °C) Chill (-1 °C) Cool (2 °C) CAUTION

• If you switch the mode from Freezer to Cool Select+, the stored food may leak juice or liquid from the food.

• Do not store meat or shery for an extended time in Cool Select+ mode. The food may freeze or spoil because of inappropriate temperature settings for the food to store.

• If the refrigerator recovers power from an extended time of inactivity, the Cool Select+ settings may be reset to factory defaults. Check out the Cool Select+ settings before using the refrigerator. 03 Door Alarm Door Alarm You can set the alarm for a reminder. If the door is left open for more than 2 minutes, the alarm will sound with the Alarm indicator blinking. You can toggle to enable and disable the alarm by pressing Door Alarm. 04 Power (3 sec) POWER To turn the refrigerator on, press and hold POWER for 3 seconds. Both the fridge and the freezer turn on, and do the lamps accordingly. If you press and hold POWER for 3 seconds again, the refrigerator (both the fridge and the freezer) turns off, and the room lamps also turn off. Untitled-5 42 2021-07-08 4:45:02English 43 Operations Storage information The numbers marked in the bottom section of this gure indicate the storage period for the immediately above food item. For example, 4-6 months for sh. To freeze food

1. Wrap the food airtight with suitable wrapping materials.

2. Seal the wrapping.

3. Label the wrapping with the content and date.

• Materials suitable for wrapping food: plastic lm, polyethylene blown lm, aluminium foil, and freezer tins.

• Materials not suitable for wrapping food: wrapping paper, greaseproof paper, cellophane, food garbage bags, and used shopping bags. Sealing materials Rubber bands, plastic clips, string, cold-resistant adhesive tape or similar. Bags and polyethylene blown lm can be sealed with a lm sealer. Untitled-5 43 2021-07-08 4:45:02Operations English44 Operations Storage period of frozen food The storage period differs with food types and storing temperatures. The following specication is based on a temperature of -18 °C (0 °F):

• Fresh poultry (whole chickens), fresh meat (steaks, roasts): up to 12 months

• Fish (lean sh, cooked sh), fresh shrimp, scallops, squid: up to 6 months

• Pizza, sausage: up to 2 months NOTE For more information, visit the FDA web site (http://www.fda.gov/). Thawing Frozen food can be thawed in the following ways:

• Naturally at room temperatures

• Naturally in the fridge

• By using an electric oven with or without heat support

• By using a microwave oven NOTE

• Do not refreeze thawed food. Some parts of the food may not freeze completely.

• Do not store frozen food for longer than the max storage period. Untitled-5 44 2021-07-08 4:45:02English 45 Maintenance Handle and care Shelves (fridge/freezer) / Shelf Wine (applicable models only)

1. Pull out the shelf (or shelf wine) a little.

Then, while lifting the rear side, pull out.

2. Twist the shelf (or shelf wine) diagonally

• The shelf must be inserted correctly. Do not insert upside down.

• Glass containers may scratch the surface of glass shelves.

• Do not insert a shelf in the shelf wine position. This may damage the refrigerator. (applicable models only) Vegetable shelf (applicable models only)

• If your model has just one drawer in the fridge, the vegetable shelf just above the drawer has a line printed on it. When you store items on the vegetable shelf, make sure you put the items within the printed line. Maintenance Untitled-5 45 2021-07-08 4:45:02Maintenance English46 Maintenance Fridge guard / Variety guard Hold the guard with both hands, and then lift up to remove. CAUTION To prevent accidents, empty the guards before removing Fridge drawer / Freezer drawer Gently lift up the front of the drawer and slide out. Untitled-5 46 2021-07-08 4:45:02English 47 Maintenance Cleaning Interior and exterior WARNING

• Do not use benzene, thinner, or home/car detergent such as Clorox™ for cleaning purposes. They may damage the surface of the refrigerator and cause a re.

• Do not spray water onto the refrigerator. This may cause electric shock. Regularly use a dry cloth to remove all foreign substances such as dust or water from the power plug terminals and contact points.

1. Unplug the power cord.

2. Use a moistened, soft, lint-free cloth or paper towel to clean the refrigerator’s interior

3. When done, use a dry cloth or paper towel to dry well.

4. Plug in the power cord.

Replacement LED Lamps To replace the lamps of the refrigerator, contact a local Samsung service centre. WARNING

• The lamps are not user-serviceable. Do not attempt to replace a lamp yourself. This can cause electric shock. Lamp (Light Source) This product contains a light source of energy efciency class <G>. The lamp(s) and/or control gear(s) are not user-serviceable. To replace the lamp(s) and/or control gear(s) in the product, contact a local Samsung service centre. For detailed instructions on replacing lamp(s) or control gear(s) in your product, visit the Samsung website (http://www.samsung.com), go to Support > Support home, and then enter the model name. For detailed instructions on dismantling lamp(s) and/or control gear(s), simply follow the replacement instruction reached as described above. Untitled-5 47 2021-07-08 4:45:02English48 Troubleshooting Before calling for service, review the checkpoints below. Any service calls regarding normal situations (No Defect Cases) will be charged to users. General Temperature Symptom Possible causes Solution Fridge/freezer does not operate. Fridge/freezer temperature is warm.

• Power cord is not plugged in properly.

• Properly plug in the power cord.

• Temperature control is not set correctly.

• Set the temperature lower.

• Refrigerator is located near a heat source or direct sunlight.

• Keep the refrigerator away from direct sunlight or a heat source.

• Not enough clearance between refrigerator and sides/rear.

• Make sure to secure at least 7 mm of space from the rear and side walls of the cabinet.

• Vacation mode is activated. • Deactivate vacation mode.

• The refrigerator is overloaded. Food is blocking the refrigerator vents.

• Do not overload the refrigerator. Do not allow food to block ventilation. Fridge/freezer is over-cooling.

• Temperature control is not set correctly.

• Set the temperature higher. Interior wall is hot.

• Refrigerator has heat-proof piping in the interior wall.

• To prevent condensation from forming, the refrigerator has heat-proof piping in the front corners. If the ambient temperature rises, this equipment may not work effectively. This is not a system failure. Troubleshooting Untitled-5 48 2021-07-08 4:45:02English 49 Troubleshooting Odors Symptom Possible causes Solution Refrigerator has odors.

• Clean the refrigerator and remove any spoiled food.

• Food with strong odors.

• Make sure strong smelling food is wrapped airtight. Frost Symptom Possible causes Solution Frost around the vents.

• Food is blocking the vents.

• Make sure no food blocks the refrigerator vents. Frost on interior walls.

• Door is not closed properly.

• Make sure food does not block the door. Clean the door gasket. Fruits or vegetables are frozen.

• Fruits or vegetables are stored in the Fresh/Chef Zone.

• The Fresh/Chef Zone is only for meat/sh. Excessive frost build-ups in the freezer.

• The door is not sealing properly because the door gasket was not reversed after reversing the doors.

• Detach the door gasket and then attach it after rotating it 180°. Condensation Symptom Possible causes Solution Condensation forms on the interior walls.

• If door is left open, moisture enters the refrigerator.

• Remove the moisture and do not open the door for a long time.

• Food with high moisture content.

• Make sure food is wrapped airtight. Untitled-5 49 2021-07-08 4:45:02Troubleshooting English50 Troubleshooting Do you hear abnormal sounds from the refrigerator? Before calling for service, review the checkpoints below. Any service calls related to normal sounds will be charged to the user. These sounds are normal.

• When starting or ending an operation, the refrigerator may make sounds similar to a car engine igniting. As the operation stabilizes, the sounds will decrease. Clicking! or Chirping!Buzzing!

• While the fan is operating, these sounds may occur. When the refrigerator reaches the set temperature, no fan sound will occur. SSSRRR!Whir!

• During a defrost cycle, water may drip on the defrost heater, causing sizzling sounds. HiSS! Untitled-5 50 2021-07-08 4:45:02English 51 Troubleshooting

• As the refrigerator cools or freezes, refrigerant gas moves through sealed pipes, causing bubbling sounds. Bubbling!

• As the refrigerator temperature increases or decreases, plastic parts contract and expand, creating knocking noises. These noises occur during the defrosting cycle or when electronic parts are working. Cracking!

• For ice maker models: When the water valve opens to ll the ice maker, buzzing sounds may occur.

• Due to pressure equalizing when opening and closing the refrigerator door, whooshing sounds may occur. Untitled-5 51 2021-07-08 4:45:03English52 Appendix Safety Instruction

• For the most efcient use of energy, please keep the all inner ttings such as baskets, drawers, shelves and ice cube tray on the position supplied by manufacturer. Install Instruction For refrigerating appliances with climate class Depending on the climate class, This refrigerating appliance is intended to be used at ambient temperatures range as specied following table. The climate class can be found on the rating plate. The product may not operate properly at temperatures outside of the specic range. You can nd climate class on label inside of your refrigerator Effective temperature range The refrigerator is designed to operate normally in the temperature range specied by its class rating. Class Symbol Ambient Temperature range (°C)

IEC 62552 (ISO 15502) ISO 8561

Extended Temperate SN +10 to +32 +10 to +32 Temperate N +16 to +32 +16 to +32 Subtropical ST +16 to +38 +18 to +38 Tropical T +16 to +43 +18 to +43 NOTE The cooling performance and power consumption of the refrigerator may be affected by the ambient temperature, the door-opening frequency, and the location of the refrigerator. We recommend adjusting the temperature settings as appropriate. Untitled-5 52 2021-07-08 4:45:03English 53 Temperature Instruction Recommended Temperature The optimal temperature setting for food storage:

• Freezer: -19 °C NOTE The optimal temperature setting of each compartment depends on the ambient temperature. Above optimal temperature is based on the ambient temperature of 25 °C. Power Cool Power Cool speeds up the cooling process at maximum fan speed. The fridge keeps running at full speed for two and a half hours and then returns to the previous temperature. Power Freeze Power Freeze speeds up the freezing process at maximum fan speed. The freezer keeps running at full speed for 50 hours and then returns to the previous temperature. To freeze large amounts of food, activate Power Freeze for at least 20 hours before putting food in the freezer. NOTE When you use this function the energy consumption of the refrigerator will increase. Remember to turn it off when you don’t need it and return the freezer to your original temperature setting. How to store for best preservation (applicable models only) Cover foods to retain moisture and prevent them from picking up odors from other foods. A large pot of food like soup or stew should be divided into small portions and put in shallow containers before being refrigerated. A large cut of meat or whole poultry should be divided into smaller pieces or placed in shallow containers before refrigerating. Placement of Foods Shelves Shelves should be adjustable to accommodate a variety of packages. Specialized compartment (applicable models only) Sealed crisper drawers provide an optimal storage environment for fruits and vegetables. Vegetables require higher humidity conditions while fruits require lower humidity conditions. Crispers are equipped with controls devices to control the humidity level. (*Depending on model and options) An adjustable temperature meat drawer maximizes the storage time of meats and cheeses. Untitled-5 53 2021-07-08 4:45:03Appendix English54 Stored on the door Don’t store perishable foods in the door. Eggs should be stored in the carton on a shelf. The temperature of the storage bins in the door uctuate more than the temperature in the cabinet. Keep the door closed as much as possible. Freezer Compartment You can store frozen food, make ice cubes and freeze fresh food in the freezer compartment. NOTE Freeze fresh, undamaged food only. Keep food which is to be frozen away from food which is already frozen. To prevent food from losing its avour or drying out, place in airtight containers. Refrigerator & Freezer Storage Chart The freshness longevity depends on temperature and exposure to moisture. Since product dates aren't a guide for safe use of a product, consult this chart and follow these tips. Milk products Product Refrigerator Freezer Milk 1 week 1 month Butter 2 weeks 12 months Ice cream - 2-3 weeks Natural cheese 1 month 4-6 months Cream cheese 2 weeks Not recommended Yogurt 1 month - Meat Product Refrigerator Freezer Fresh roasts, steaks, chops 3-4 days 2-3 months Fresh ground meat, stew meat 1-2 days 3-4 months Bacon 7 days 1 month Sausage, Raw from pork, beef, turkey 1-2 days 1-2 months Untitled-5 54 2021-07-08 4:45:03English 55 Poultry / Eggs Product Refrigerator Freezer Fresh poultry 2 days 6-8 months Poultry salad 1 day - Eggs, Fresh in shell 2-4 weeks Not recommended Fish / Seafood Product Refrigerator Freezer Fresh sh 1-2 days 3-6 months Cooked sh 3-4 days 1 month Fish salad 1 day Not recommended Dried or pickled sh 3-4 weeks - Fruits Product Refrigerator Freezer Apples 1 month - Peaches 2-3 weeks - Pineapple 1 week - Other fresh fruit 3-5 days 9-12 months Vegetables Product Refrigerator Freezer Asparagus 2-3 days - Broccoli, Brussels sprouts, green peas, mushrooms 3-5 days - Cabbage, cauliower, celery, cucumbers, lettuce 1 week - Carrots, beets, radishes 2 weeks - Untitled-5 55 2021-07-08 4:45:03Appendix English56 Information for model and ordering spare parts Model information To access the EPREL registration of the model :

1. Go to https://eprel.ec.europa.eu

2. Get the model identier from the energy label of the product and type it in the search

3. Energy Labelling information of the model is shown

• The minimum period during which spare parts, necessary for the repair of the appliance, are available - 7 Years thermostats, temperature sensors, printed circuit boards and light sources, door handles, door hinges, trays, baskets (boxes or drawers) - 10 Years door gaskets

• The minimum duration of the guarantee of the refrigerating appliance offered by the manufacturer 24 Months.

• Relevant information for ordering spare parts, directly or through other channels provided by the manufacturer, importer or authorized representative
