USER MANUAL ZFT 11401 WA ZANUSSI

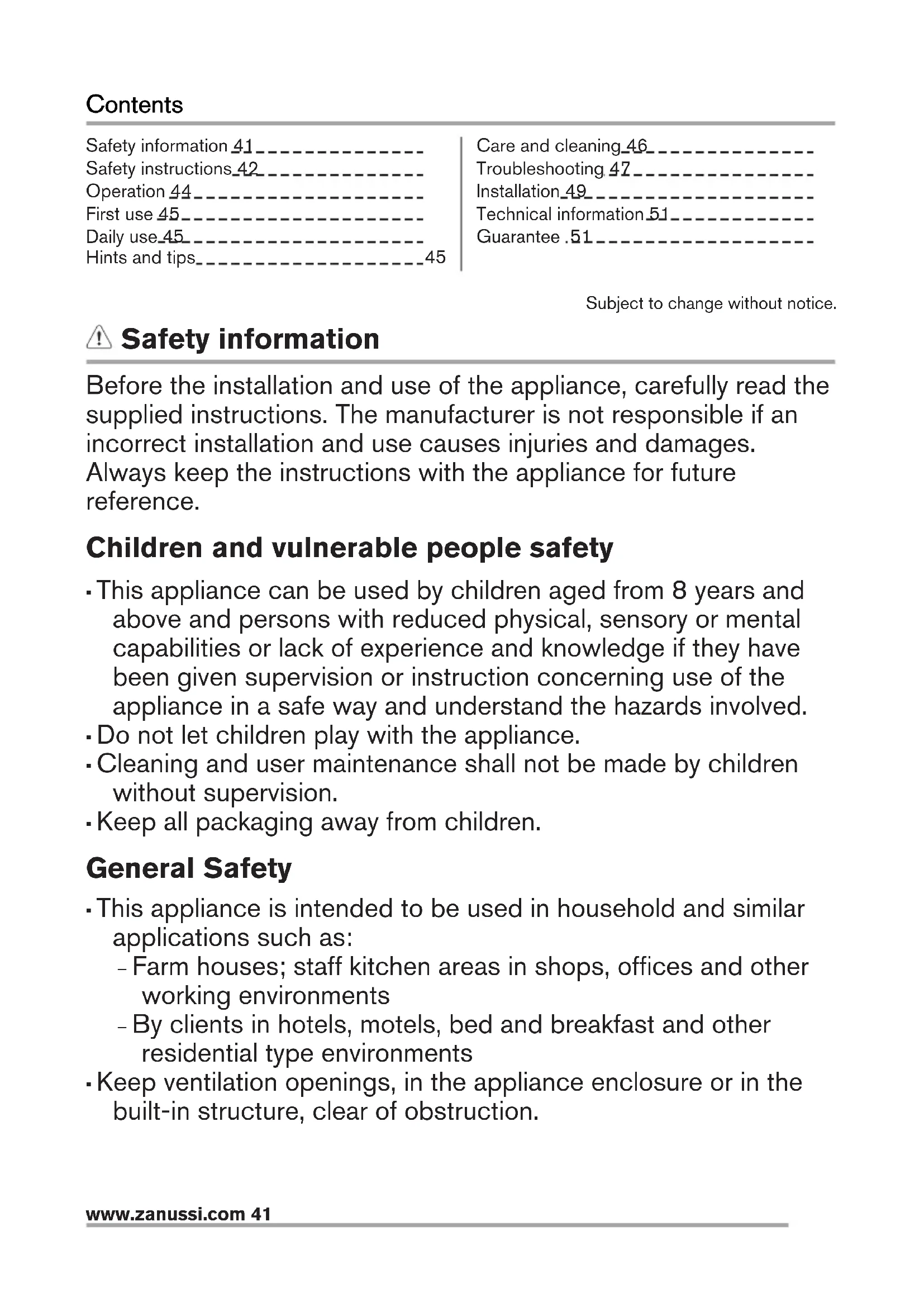

Care and cleaning 46 Troubleshooting 47 Installation 49 Technical information 51 Guarantee 51 Subject to change without notice. Safety information Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference. Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Do not let children play with the appliance.

• Cleaning and user maintenance shall not be made by children without supervision.

• Keep all packaging away from children. General Safety

• This appliance is intended to be used in household and similar applications such as: – Farm houses; staff kitchen areas in shops, offices and other working environments – By clients in hotels, motels, bed and breakfast and other residential type environments

• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. www.zanussi.com 41• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

• Do not damage the refrigerant circuit.

• Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

• Do not use water spray and steam to clean the appliance.

• Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. Safety instructions Installation WARNING! Only a qualified person must install this appliance.

• Remove all the packaging.

• Do not install or use a damaged appliance.

• Obey the installation instruction supplied with the appliance.

• Always be careful when you move the appliance because it is heavy. Always wear safety gloves.

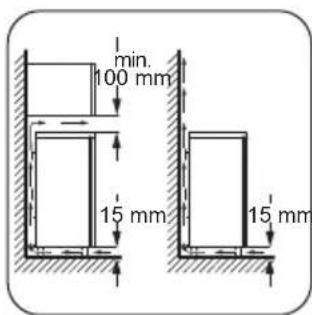

• Make sure the air can circulate around the appliance.

• Wait at least 4 hours before connecting the appliance to the power supply. This is to allow the oil to flow back in the compressor.

• Do not install the appliance close to radiators or cookers, oven or hobs.

• The rear of the appliance must stand against the wall.

• Do not install the appliance where there is direct sunlight.

• Do not install this appliance in areas that are too humid or too colds, such as the construction appendices, garages or wine cellars.

• When you move the appliance, lift it by the front edge to avoid scratching the floor. Electrical connection WARNING! Risk of fire and electrical shock.

• The appliance must be earthed.

• Make sure that the electrical information on the rating plate agrees with the power supply. If not, contact an electrician.

• Always use a correctly installed shockproof socket.

• Do not use multi-plug adapters and extension cables.

• Make sure not to cause damage to the electrical components (e.g. mains plug, mains cable, compressor). Contact the Service or an electrician to change the electrical components.

• The mains cable must stay below the level of the mains plug.

• Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.

• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug. 42 www.zanussi.comUse WARNING! Risk of injury, burns, electrical shock or fire.

• Do not change the specification of this appliance.

• Do not put electrical appliances (e.g. ice cream makers) in the appliance unless they are stated applicable by the manufacturer.

• Be careful not to cause damage to the refrigerant circuit. It contains isobutane (R600a), a natural gas with a high level of environmental compatibility. This gas is flammable.

• If damage occurs to the refrigerant circuit, make sure that there are no flames and sources of ignition in the room. Ventilate the room.

• Do not let hot items to touch the plastic parts of the appliance.

• Do not put soft drinks in the freezer compartment. This will create pressure on the drink container.

• Do not store flammable gas and liquid in the appliance.

• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.

• Do not touch the compressor or the condenser. They are hot.

• Do not remove or touch items from the freezer compartment if your hands are wet or damp.

• Do not freeze again food that has been thawed.

• Obey the storage instructions on the packaging of frozen food. Care and cleaning WARNING! Risk of injury or damage to the appliance.

• Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.

• This appliance contains hydrocarbons in the cooling unit. Only a qualified person must do the maintenance and the recharging of the unit.

• Regularly examine the drain of the appliance and if necessary, clean it. If the drain is blocked, defrosted water collects in the bottom of the appliance. Disposal WARNING! Risk of injury or suffocation.

• Disconnect the appliance from the mains supply.

• Cut off the mains cable and discard it.

• Remove the door to prevent children and pets to be closed inside of the appliance.

• The refrigerant circuit and the insulation materials of this appliance are ozone-friendly.

• The insulation foam contains flammable gas. Contact your municipal authority for information on how to discard the appliance correctly.

• Do not cause damage to the part of the cooling unit that is near the heat exchanger. www.zanussi.com 43Operation Control panel

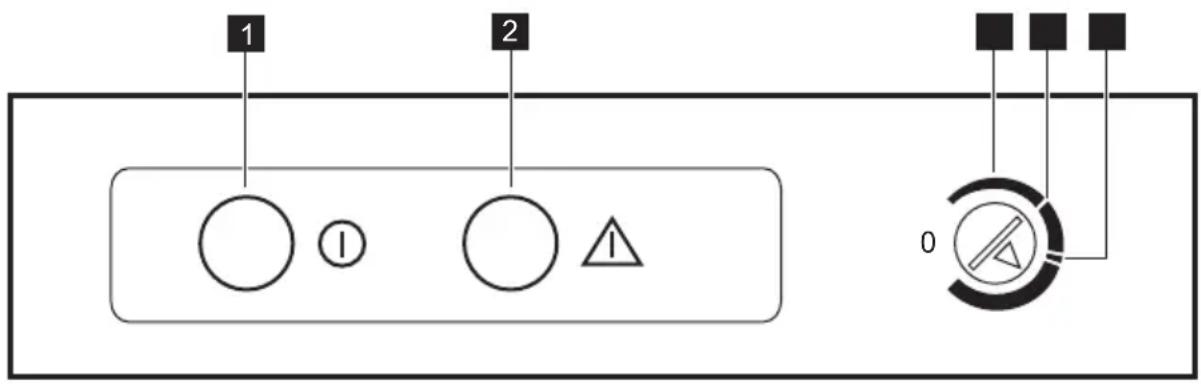

Temperature Regulator

Half Loaded position

Full Loaded position Switching on Leave the appliance to stand upright for 4 hours after installation. Insert the plug into the wall socket.

1. Turn the Temperature Regulator clockwise

to the Full Loaded position. The Green Indicator Light will light up and remain lit until the appliance is switched off.

2. Leave to run for 8 hours to allow the correct

temperature to be reached before placing food inside. The Red Indicator Light will stay on until the correct temperature is reached.

3. When the appliance has reached the set

temperature (the Red Indicator Light has gone out) adjust the Temperature Regulator according to the quantity of the stored foods. A few hours after starting up the Red Indicator Light will go out to show that the correct temperature has been reached for the setting chosen and will stay out to indicate that everything is in order. It will come on if the freezer temperature rises unduly for instance, after opening the freezer door or placing food inside the cabinet, but the light should go out again when the temperature returns to the correct storage level. Switching off

1. To turn off the appliance, turn the

Temperature Regulator to the "O" position.

2. To disconnect the appliance from the

power, disconnect the mains plug from the wall socket. Temperature regulation The temperature within the appliance is controlled by the Temperature Regulator situated on the control panel. To operate the appliance, proceed as follows:

• turn the Temperature Regulator toward lower settings to obtain the minimum coldness.

• turn the Temperature Regulator toward higher settings to obtain the maximum coldness. In case of freezing less food volumes, the Half Loaded setting is the most suitable. In case of freezing large food volumes, the Full Loaded setting is the most suitable. 44 www.zanussi.comFirst use Cleaning the interior Before using the appliance for the first time, the interior and all internal accessories should be washed with lukewarm water and some neutral soap to remove the typical smell of a brand-new product, then dried thoroughly. CAUTION! Do not use detergents or abrasive powders, as these will damage the finish. Daily use WARNING! Refer to Safety chapters. Freezing fresh food The freezing (top) area is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time. To freeze fresh food, place it in the freezing (top) compartment and leave it there for 24 hours. Move frozen food in the storing (lower) compartments to make room for another freezing. The maximum amount of food that can be frozen in 24 hours is specified on the rating plate, a label located on the inside of the appliance. The freezing process lasts 24 hours: during this period do not add other food to be frozen. Storage of frozen food When first starting-up or after a period out of use, before putting the products in the compartment let the appliance run at least 8 hours on the higher settings. In the event of accidental defrosting, for example due to a power failure, if the power has been off for longer than the value shown in the technical characteristics chart under "rising time", the defrosted food must be consumed quickly or cooked immediately and then re- frozen (after cooling). Thawing Deep-frozen or frozen food, prior to being used, can be thawed in the refrigerator compartment or at room temperature, depending on the time available for this operation. Small pieces may even be cooked still frozen, directly from the freezer: in this case, cooking will take longer. Hints and tips Normal operating sounds The following sounds are normal during operation:

• A faint gurgling and bubbling sound from coils sound when refrigerant is pumped.

• A whirring and pulsating sound from the compressor when refrigerant is pumped.

• A sudden cracking noise from inside appliance caused by thermic dilatation (a natural and not dangerous physical phenomenon).

• A faint click noise from the temperature regulator when the compressor switches on or off. Hints for energy saving

• Do not open the door frequently or leave it open longer than absolutely necessary. Hints for freezing To help you make the most of the freezing process, here are some important hints:

• the maximum quantity of food which can be frozen in 24 hrs. is shown on the rating plate;

• the freezing process takes 24 hours. No further food to be frozen should be added during this period; www.zanussi.com 45• freeze only top quality, fresh and thoroughly cleaned, foodstuffs;

• prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible subsequently to thaw only the quantity required;

• wrap up the food in aluminium foil or polythene and make sure that the packages are airtight;

• do not allow fresh, unfrozen food to touch food which is already frozen, thus avoiding a rise in temperature of the latter;

• lean foods store better and longer than fatty ones; salt reduces the storage life of food;

• water ices, if consumed immediately after removal from the freezer compartment, can possibly cause the skin to be freeze burnt;

• it is advisable to show the freezing in date on each individual pack to enable you to keep tab of the storage time. Hints for storage of frozen food To obtain the best performance from this appliance, you should:

• make sure that the commercially frozen foodstuffs were adequately stored by the retailer;

• be sure that frozen foodstuffs are transferred from the foodstore to the freezer in the shortest possible time;

• not open the door frequently or leave it open longer than absolutely necessary;

• once defrosted, food deteriorates rapidly and cannot be refrozen;

• do not exceed the storage period indicated by the food manufacturer. Care and cleaning WARNING! Refer to Safety chapters. General warnings CAUTION! Unplug the appliance before carrying out any maintenance operation. This appliance contains hydrocarbons in its cooling unit; maintenance and recharging must therefore only be carried out by authorized technicians. The accessories and parts of the appliance are not suitable for washing in a dishwasher. Periodic cleaning CAUTION! Do not pull, move or damage any pipes and/or cables inside the cabinet. CAUTION! Take care of not to damage the cooling system. CAUTION! When moving the cabinet, lift it by the front edge to avoid scratching the floor. The equipment has to be cleaned regularly:

1. Clean the inside and accessories with

lukewarm water and some neutral soap.

2. Regularly check the door seals and wipe

clean to ensure they are clean and free from debris.

3. Rinse and dry thoroughly.

4. If accessible, clean the condenser and the

compressor at the back of the appliance with a brush. This operation will improve the performance of the appliance and save electricity consumption. Defrosting the freezer A certain amount of frost will always form on the freezer shelves and around the top compartment. Defrost the freezer when the frost layer reaches a thickness of about 3-5 mm. Defrosting can be accelerated by placing bowls with hot water (not boiling) inside the freezer. 46 www.zanussi.comCAUTION! Never use sharp metal tools to scrape off frost from the evaporator as you could damage it. Do not use a mechanical device or any artificial means to speed up the thawing process other than those recommended by the manufacturer. A temperature rise of the frozen food packs, during defrosting, may shorten their safe storage life. About 12 hours prior to defrosting, set the Temperature Regulator toward higher settings , in order to build up sufficient chill reserve for the interruption in operation.

1. Switch off the appliance and disconnect the

mains plug from the mains socket.

2. Remove any stored food, wrap it in several

layers of newspaper and put it in a cool place. CAUTION! Do not touch frozen goods with wet hands. Hands can freeze to the goods.

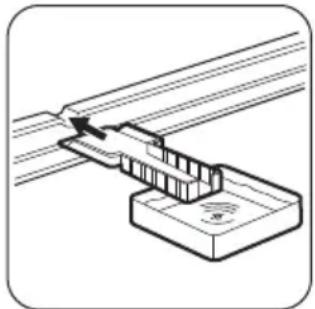

3. Leave the door open and insert the plastic

scraper in the appropriate seating at the bottom centre, placing a basin underneath to collect the defrost water. In order to speed up the defrosting process, place a pot of warm water in the freezer compartment. In addition, remove pieces of ice that break away before defrosting is complete.

4. When defrosting is completed, dry the

interior thoroughly and keep the scraper for future use.

5. Switch on the appliance.

6. Turn the Temperature Regulator to the Full

Loaded position and leave to run for at least 8 hours.

7. After the Red Indicator Light has gone out,

reload the previously removed food into the compartments.

8. Adjust the Temperature Regulator

according to the quantity of the stored foods. Periods of non-operation When the appliance is not in use for long periods, take the following precautions:

1. Disconnect the appliance from electricity

appliance and all accessories.

4. Leave the door/doors open to prevent

unpleasant smells. WARNING! If the cabinet will be kept on, ask somebody to check it once in a while to prevent the food inside from spoiling in case of a power failure. Troubleshooting WARNING! Refer to Safety chapters. What to do if... Problem Possible cause Solution The appliance does not operate. The appliance is switched off. Switch on the appliance. www.zanussi.com 47Problem Possible cause Solution The mains plug is not connected to the mains socket correctly. Connect the mains plug to the mains socket correctly. There is no voltage in the mains socket. Connect a different electrical ap- pliance to the mains socket. Con- tact a qualified electrician. The appliance is noisy. The appliance is not supported properly. Check if the appliance stands stable. The compressor operates contin- ually. Temperature is set incorrectly. Refer to "Operation" chapter. Many food products to be frozen were put in at the same time. Wait some hours and then check the temperature again. The room temperature is too high. Refer to climate class chart on the rating plate. Food products placed in the ap- pliance were too warm. Allow food products to cool to room temperature before storing. The door is not closed correctly. Refer to "Closing the door". There is too much frost and ice. The door is not closed correctly or the gasket is deformed/dirty. Refer to "Closing the door". The water drainage plug is not correctly positioned. Position the water drainage plug in the correct way. Food products are not wrapped properly. Wrap the food products better. Temperature is set incorrectly. Refer to "Operation" chapter. Door is misaligned or interferes with ventilation grill. The appliance is not levelled. Refer to "Levelling". The temperature in the appliance is too low/too high. The temperature regulator is not set correctly. Set a higher/lower temperature. The door is not closed correctly. Refer to "Closing the door". The food products' temperature is too high. Let the food products tempera- ture decrease to room tempera- ture before storage. Many food products are stored at the same time. Store less food products at the same time. The thickness of the frost is greater than 4-5 mm. Defrost the appliance. The door has been opened often. Open the door only if necessary. There is no cold air circulation in the appliance. Make sure that there is cold air circulation in the appliance. 48 www.zanussi.comIf the advice does not lead to the desired result, call the nearest Authorized Service Centre. Closing the door

1. Clean the door gaskets.

2. If necessary, adjust the door. Refer to

gaskets. Contact the Authorised Service Centre. Installation WARNING! Refer to Safety chapters. Positioning This appliance can be installed in a dry, well ventilated indoor where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance: Climate class Ambient temperature SN +10°C to + 32°C N +16°C to + 32°C ST +16°C to + 38°C T +16°C to + 43°C Some functional problems might occur for some types of models when operating outside of that range. The correct operation can only be guaranteed within the specified temperature range. If you have any doubts regarding where to install the appliance, please turn to the vendor, to our customer service or to the nearest Service Centre Levelling When placing the appliance ensure that it stands level. This can be achieved by two adjustable feet at the bottom in front. Location CAUTION! It must be possible to disconnect the appliance from the mains power supply; the plug must therefore be easily accessible after installation. The appliance should be installed well away from sources of heat such as radiators, boilers, direct sunlight etc. Ensure that air can circulate freely around the back of the cabinet. To ensure best performance, if the appliance is positioned below an overhanging wall unit, the minimum distance between the top of the cabinet and the wall unit must be at least 100 mm . Ideally, however, the appliance should not be positioned below overhanging wall units. Accurate levelling is ensured by one or more adjustable feet at the base of the cabinet. min. 100 mm 15 mm 15 mm www.zanussi.com 49Door reversibility WARNING! Before carrying out any operations, remove the plug from the power socket. CAUTION! To carry out the following operations, we suggest that this be made with another person that will keep a firm hold on the doors of the appliance during the operations.

1. Tilt back the appliance carefully so that the

compressor cannot touch the floor.

2. Unscrew the left foot.

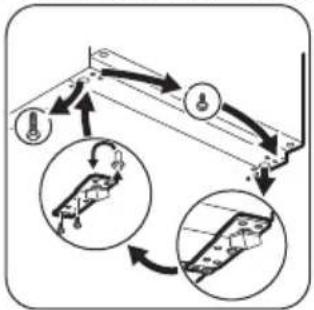

3. Remove the lower door hinge by

unscrewing the 2 retaining screws.

4. Remove the hinge pin from the bottom of

5. Slot the hinge pin into the hole in the hinge

6. Take the door off.

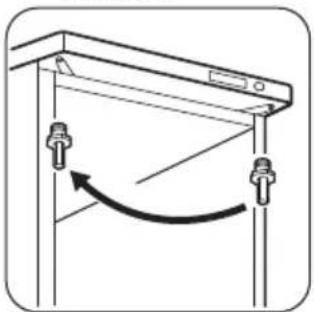

7. Refit the upper hinge pin into the opposite

8. Fit the door in place on the hinge pin.

9. Slot the hinge pin into the hole in the hinge

plate and relocate the hinge assembly to the opposite location and refit using the retaining screws.

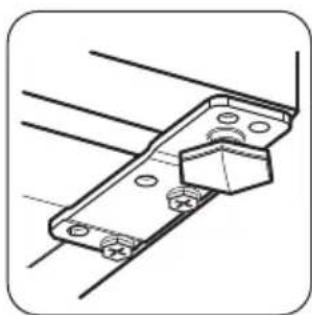

10. Refit the bottom hinge plate assembly on

the opposite side, taking care that the edge of the door is parallel with the side of the cabinet.

11. Remove and install the handle (if foreseen)

on the opposite side. CAUTION! Reposition, level the appliance, wait for at least four hours and then connect it to the power socket. Do a final check to make sure that:

• All screws are tightened.

• The magnetic seal adheres to the cabinet.

• The door opens and closes correctly. If the ambient temperature is cold (i.e. in Winter), the gasket may not fit perfectly to the cabinet. In that case, wait for the natural fitting of the gasket. In case you do not want to carry out the above mentioned operations, contact the nearest Authorised Service Centre. The Authorised Service specialist will carry out the reversibility of the doors at your cost. Electrical connection

• Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply.

• The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a qualified electrician.

• The manufacturer declines all responsibility if the above safety precautions are not observed.

• This appliance complies with the E.E.C. Directives. 50 www.zanussi.comTechnical information Technical data Height mm 850 Width mm 550 Depth mm 612 Rising time Hours 22 Voltage Volts 230 - 240 Frequency Hz 50 The technical information are situated in the rating plate, on the external or internal side of the appliance and in the energy label.
