USER MANUAL SDD2 L EMTC 880 SIRIUS

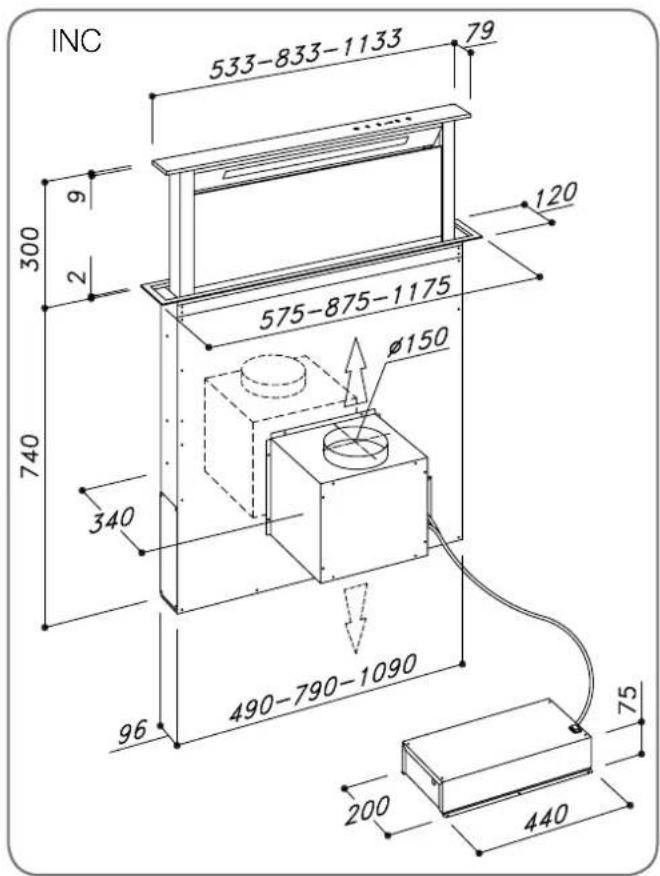

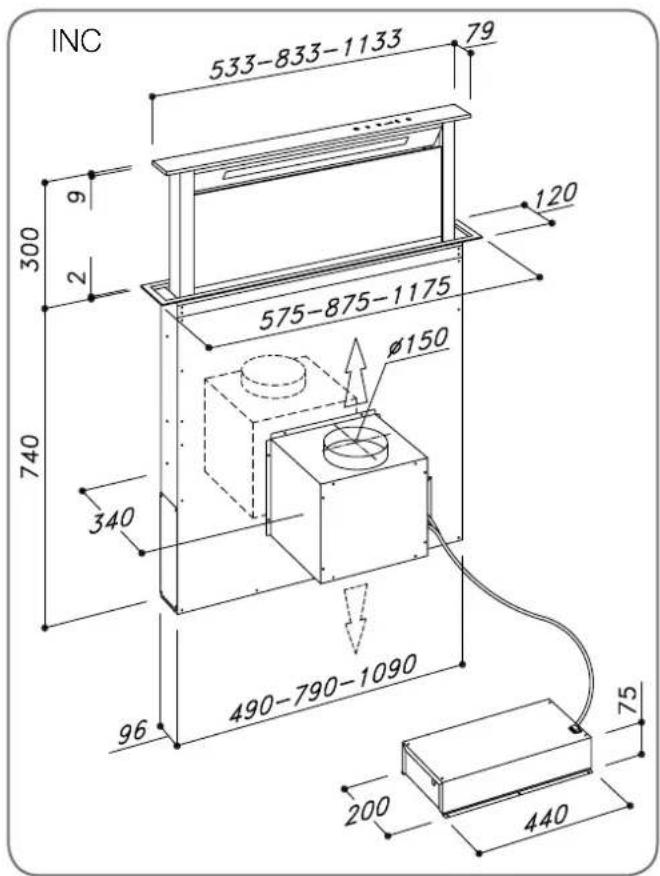

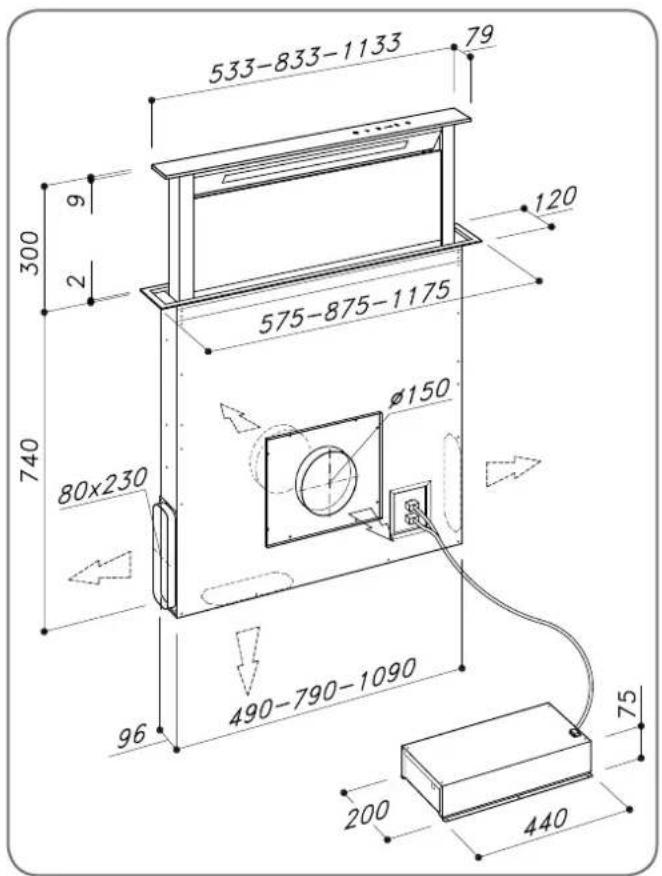

It is designed to work in both suctioning mode, with outside evacuation, and filtering mode. SAFTEY INSTRUCTIONS These hoods have been designed for personal use in the home. The appliance must be used by adults. Make sure that the appliance is out of reach of children and that they do not use it to play with. Make sure that children do not operate the controls.

• When the appliance is delivered, check the overall appearance of the packaging. Any remarks should be written on the delivery coupon, of which you keep a copy. Your appliance is designed for normal domes- tic use. It is not designed for commercial or in- dustrial use, or for purposes other than those for which it was designed.

• Anyconsequencesofordamagefromincor- rect installation or incorrect use of the appli- ance will not be covered by the manufactur- er’s guarantee.

• Donoteverchangeortrytochangethechar- acteristics of this appliance. This would be a danger. Repairs must be performed only by an authorised technician. Always disconnect the hood before carrying out cleaning or maintenance operations.

• Adequatelyventilatetheroomwhenacooker hoodand other appliances, powered by en- ergy other than electricity, are used simultane- ously, so that the hood does not suck any- combustion fumes.

• Itisnotallowedtocookfoodoveropenflames (flambé) or operate gas hobs without pots or pans on them under the hood itself (the flames sucked into the hood might damage the ap- pliance).

• Fryingundertheappliancemustbedoneun- der constant supervision as hot oils and fats may ignite. Respect the guidelines for cleaning and re- placement of grease filters. Accumulated de- posits of grease are a fire hazard.

• This appliance must not be used over cook tops powered by wood or coal or in any case, over cook tops with power levels that could damage the appliance. Never use steam or high-pressure devices for cleaning your hood (regulations regarding electrical safety).

• Neverusethecookerhoodwithoutthegrease filters.

• The minimum distance between the Down- draft (closed) and the surface above it must be at least 400 mm.

• Whenhandlingthedowndraft,neverputyour hands in the field of action of the extractable unit. Constantly seeking to improve our products, we reserve the right to modify their technical, func- tional, or aesthetic characteristics deriving from their upgrading. In the case of the version with external motor, fornormal downdraft operation, it is necessary to use a suctioning unit (external motor) made by the same manufacturer. The air collected must not be conveyed into a flue used for smoke or fumes from appliances powered by anything other than electricity (cen- tral heating systems, etc.). As far as discharg- ing exhaust air is concerned, please follow the guide- lines given by competent authorities. WARNING Keep these instructions for use with the ap- pliance. If the appliance should be sold or passed on to others, make sure that the in- structions are passed on with it. We thank you for taking note of these suggestions be- fore installing and using the appliance. They have been written for your personal safety and the safety of others.S-DD2-L FLUSH TOP 15

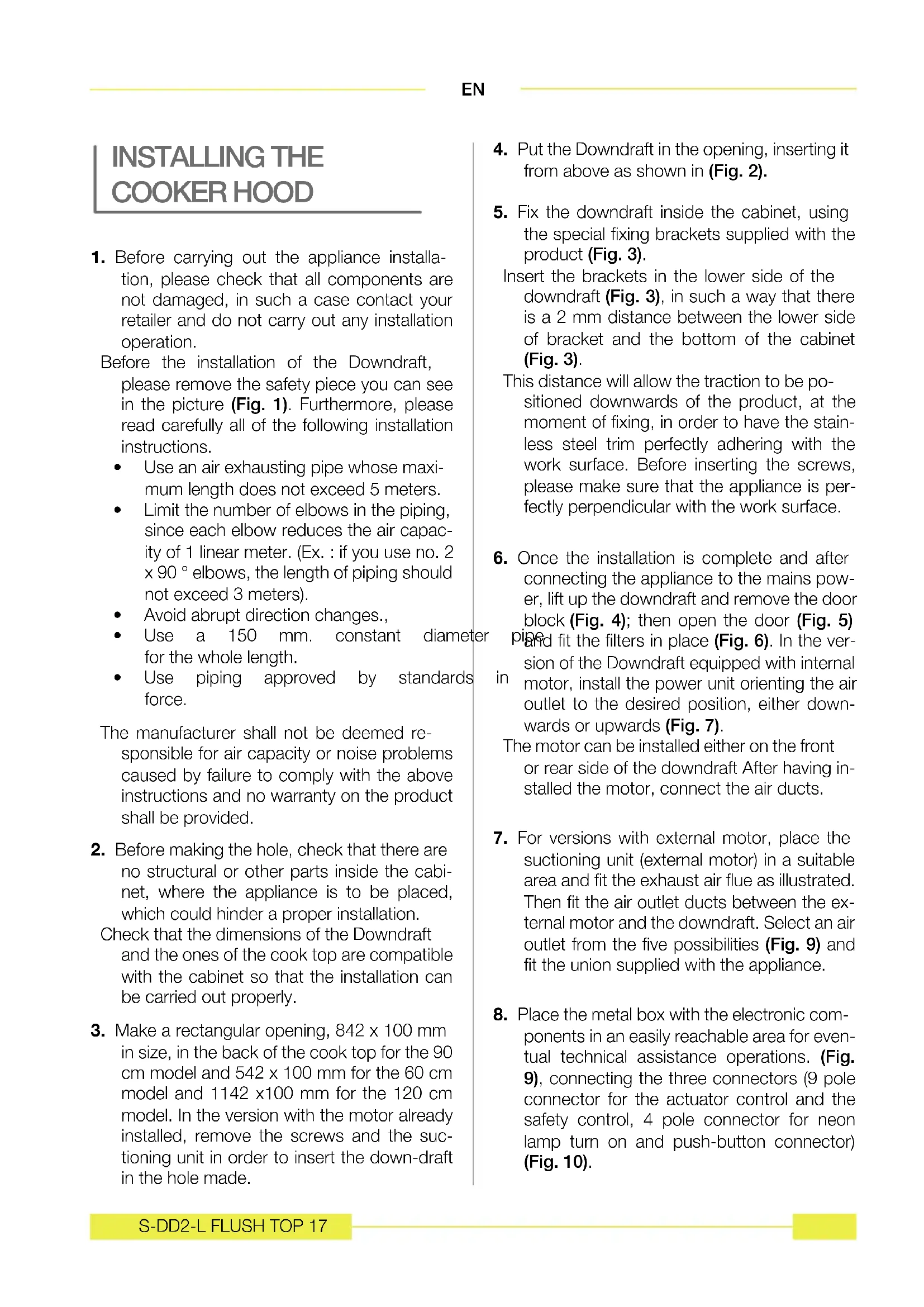

1. Before carrying out the appliance installa-

tion, please check that all components are not damaged, in such a case contact your retailer and do not carry out any installation operation. Before the installation of the Downdraft, please remove the safety piece you can see in the picture (Fig. 1). Furthermore, please read carefully all of the following installation instructions.

• Useanairexhaustingpipewhosemaxi- mum length does not exceed 5 meters.

• Limitthenumberofelbowsinthepiping, since each elbow reduces the air capac- ity of 1 linear meter. (Ex. : if you use no. 2 x 90 ° elbows, the length of piping should not exceed 3 meters).

• Avoidabruptdirectionchanges.,

• Use a 150 mm. constant diameter pipe for the whole length.

• Use piping approved by standards in force. The manufacturer shall not be deemed re- sponsible for air capacity or noise problems caused by failure to comply with the above instructions and no warranty on the product shall be provided.

2. Before making the hole, check that there are

no structural or other parts inside the cabi- net, where the appliance is to be placed, which could hinder a proper installation. Check that the dimensions of the Downdraft and the ones of the cook top are compatible with the cabinet so that the installation can be carried out properly.

3. Make a rectangular opening, 842 x 100 mm

in size, in the back of the cook top for the 90 cm model and 542 x 100 mm for the 60 cm model and 1142 x100 mm for the 120 cm model. In the version with the motor already installed, remove the screws and the suc- tioning unit in order to insert the down-draft in the hole made.

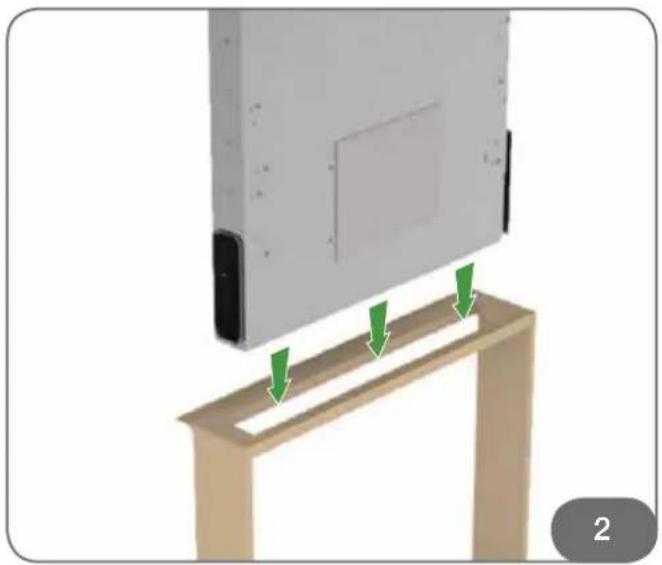

4. Put the Downdraft in the opening, inserting it

from above as shown in (Fig. 2).

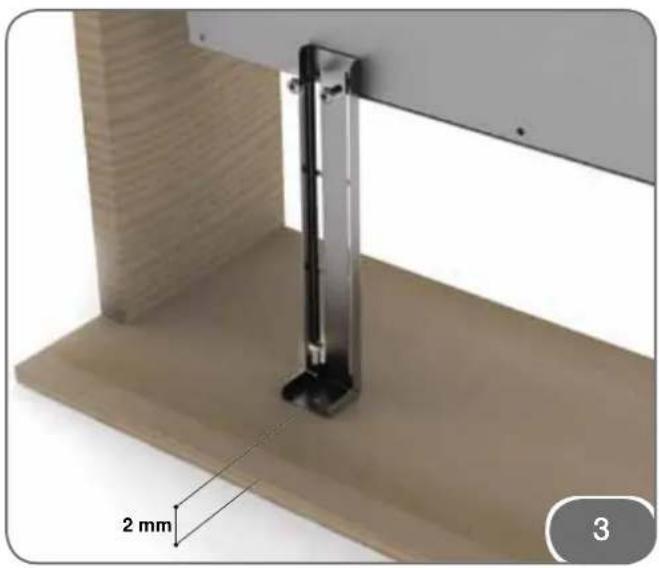

5. Fix the downdraft inside the cabinet, using

the special fixing brackets supplied with the product (Fig. 3). Insert the brackets in the lower side of the downdraft (Fig. 3), in such a way that there is a 2 mm distance between the lower side of bracket and the bottom of the cabinet (Fig. 3). This distance will allow the traction to be po- sitioned downwards of the product, at the moment of fixing, in order to have the stain- less steel trim perfectly adhering with the work surface. Before inserting the screws, please make sure that the appliance is per- fectly perpendicular with the work surface.

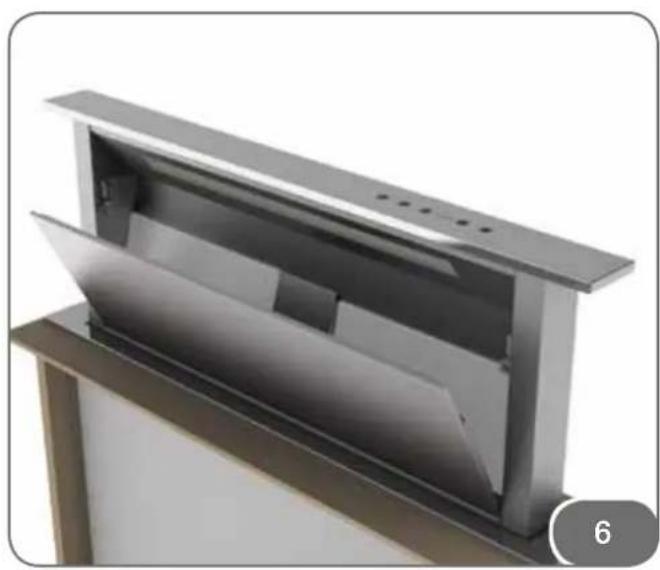

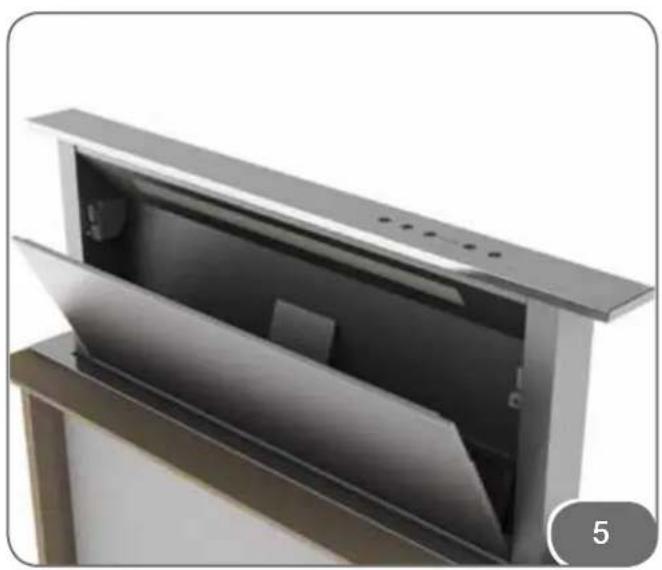

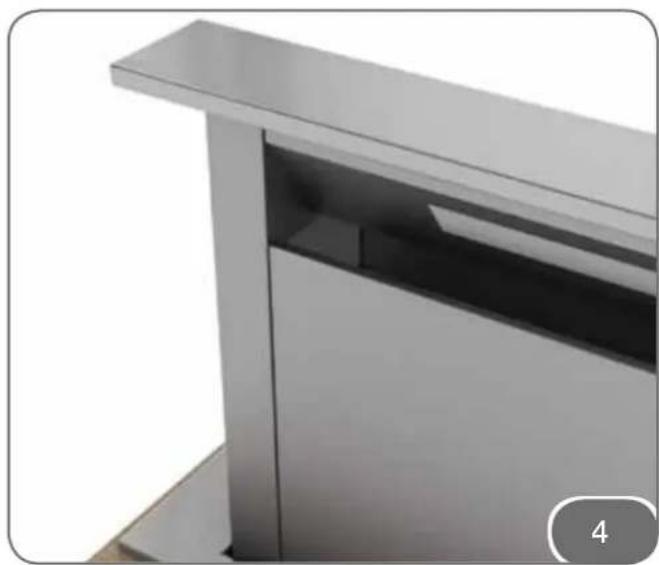

6. Once the installation is complete and after

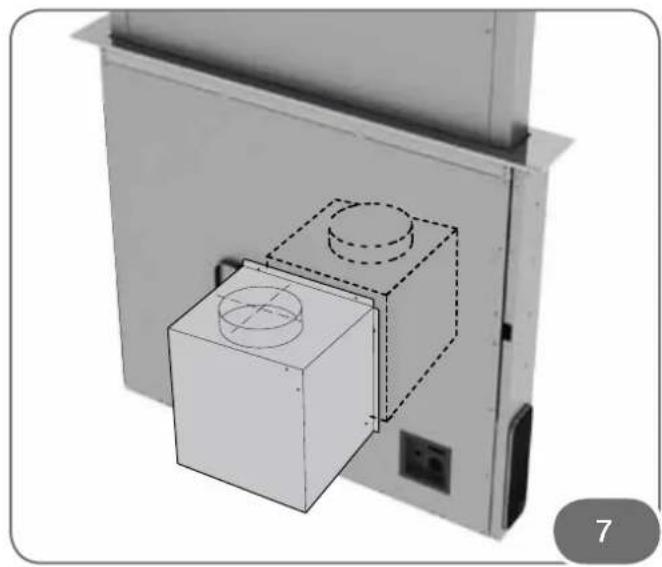

connecting the appliance to the mains pow- er, lift up the downdraft and remove the door block (Fig. 4); then open the door (Fig. 5) and fit the filters in place (Fig. 6). In the ver- sion of the Downdraft equipped with internal motor, install the power unit orienting the air outlet to the desired position, either down- wards or upwards (Fig. 7). The motor can be installed either on the front or rear side of the downdraft After having in- stalled the motor, connect the air ducts.

7. For versions with external motor, place the

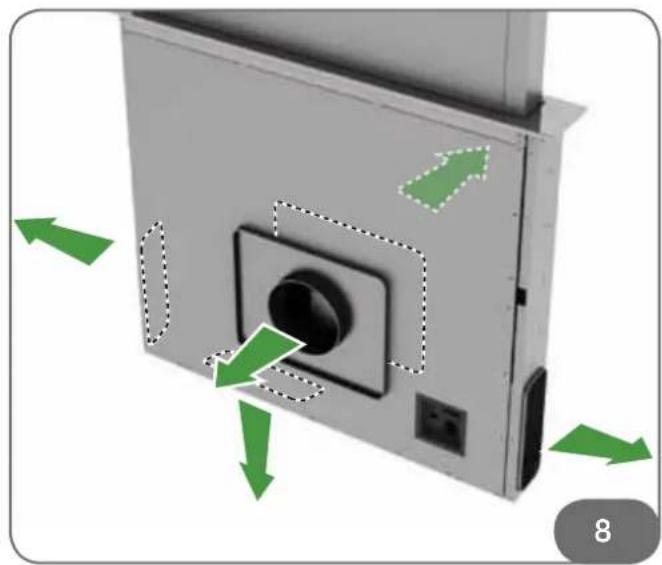

suctioning unit (external motor) in a suitable area and fit the exhaust air flue as illustrated. Then fit the air outlet ducts between the ex- ternal motor and the downdraft. Select an air outlet from the five possibilities (Fig. 9) and fit the union supplied with the appliance.

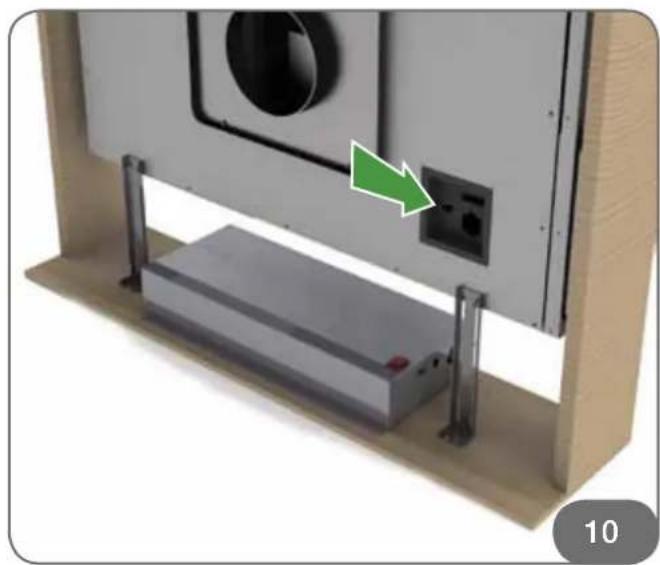

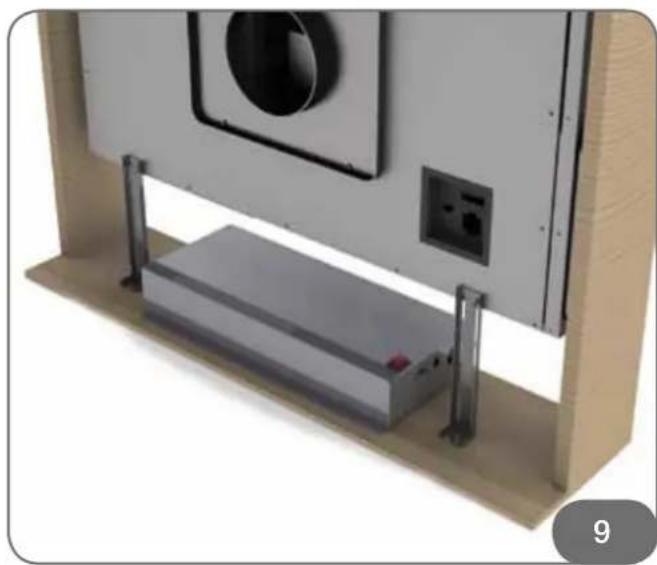

8. Place the metal box with the electronic com-

ponents in an easily reachable area for even- tual technical assistance operations. (Fig. 9), connecting the three connectors (9 pole connector for the actuator control and the safety control, 4 pole connector for neon lamp turn on and push-button connector) (Fig. 10).S-DD2-L FLUSH TOP18

WARNING Before connecting the air exhaust hose, make sure that the non-return valves can rotate freely. CAUTION Installation must comply with the regula- tions in force regarding the ventilation of enclosed environments. In particular, dis- charged air must not be conveyed into a duct used for fumes discharge or discharge from appliances using gas or other combustible materials. The use of discontinued ducts is not allowed without the approval of a qualified technician. WARNING After having replaced the filters, reinstall the front stainless steel pan’el, otherwise the Downdraft is not enabled to function.

9. For external motors, connect the motor unit

cable to the relevant connector on the elec- trical components box.

10. Power the cookerhood.

HOW TO USE THE COOKER HOOD

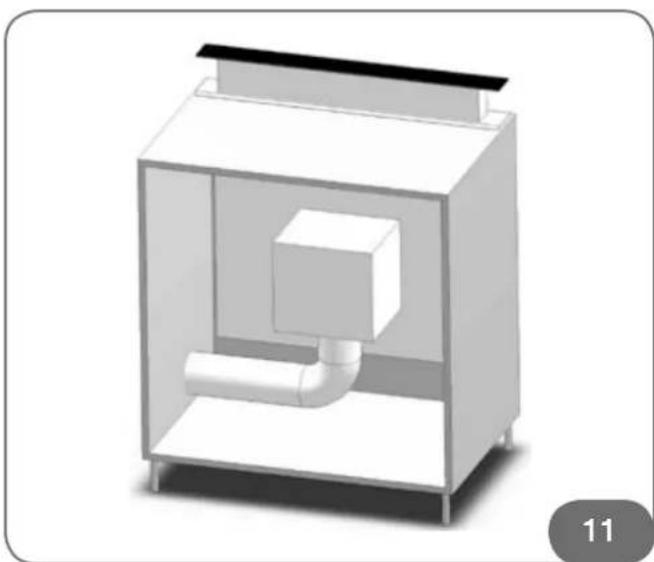

This appliance is intended to suck cooking fumes, greases and steam. It has been designed to work in both suctioning mode, with outside evacuation, and filtering mode. Outside - discharge version The cooker hood can be mounted in the version with outside discharge of suctioned air: in this case it is necessary to connect the exhausting channel to the outside (exhausting pipes are not supplied with the products.) Non-return valve blockage In case of outside air discharge installation, fit a non-return valve to prevent wind and back air from entering. Filtering mode In case fumes and vapour cannot be evacuated outside, the appliance can be used in the filtering mode. Activated charcoal filters are required for this type of cooker hood. Air recycled through the charcoal filters is recir- culated into the kitchen, thanks to a duct con- veying the air on one side of the cabinet (Fig. 11). GREASE FILTER REMOVAL,

MOUNTING THE ACTIVATED CHAR-

COAL FILTER The removal and fitting of the grease and carbon filters need to be carried out with the downdraft in the open position. To open the downdraft, push the key. Then remove the front panel, push- ing the upper part of each side at the same time. The panel will rotate forwards to make it possible to access the grease filters (Fig. 6). Remove the grease filters to access the carbon filters (Fig. 12). The replacement of the charcoal filters has to be carried out accordingly to the effective use of the Downdraft, and in any case at least once every 6 months.S-DD2-L FLUSH TOP 19

If the appliance has no plug or if the plug is not easily accessible, then a device needs to be fit- ted to cut it off from the electric network; this device must have an opening distance between contacts on all poles of at least 3 mm. ELECTRICAL CONNECTION While installing the appliance and carrying main- tenance operation, make sure it is disconnected from the electrical network or the fuses are cut out or removed. Check that:

• Feeder lines (mains) are in good condi- tions.

• Thecablesdiametercomplieswithinstal- lation regulations. WARNING Place the metal box containing the elec- tronic components at a distance of no less than 65 cm from gas-operated cook tops or in any case, 65 cm from the suctioning sur- face of the cookerhood. NOTA We recommend installing the metal box containing the electronic components at least 10 cm above floor level and at a suita- ble distance from all heat sources (e.g. oven sides or cook top). CAUTION This appliance is fitted with an H05 VVF 3 conductor, 0.75 mm2 (neutral, phase, and ground) power cord. This can be connected up to a 220 - 240 V mono-phase electrical network through a CEI 60083 approved power socket, which must remain accessible after installation, in compliance with installation regulations. We decline any responsibility in case of ac- cidents caused by a lack of ground connec- tion or incorrect ground connection. The appliance must be fed through a differen- tial protection device (RCD), with a nominal residual current not exceeding 30mA. If the power cord is damaged, call the after-sales service to avoid any risk. WARNING The downdraft connection to the electrical network must be carried out only by profes- sional and qualified technicians. The downdraft must be connected to a properly installed and suitable electrical network. The electrical system must comply with VDE0100 standard. DANGER If the cooker hood presents any anomaly, disconnect the appliance or remove the fuse corresponding to the appliance power disconnecting line. NOTA This appliance complies with the European Directives 2006/95/EC (Low Voltage Direc- tive) and 2004/108/EC (Electromagnetic Compatibility).S-DD2-L FLUSH TOP20

A: Light ON/OFF key The light switches on and off only when the carriage is fully OPEN. Pressing this button with the carriage closed will cause the carriage to open and then the light will switch on . The button also serves to switch off the light if it is on.

ON/OFF key This starts the extraction carriage upward movement and when it is fully open, it sets the second extraction speed. With the carriage open: it switches off the mo- tor and if on, the light; then it retracts the ex- traction carriage.

(-) Key This reduces the speed of the extractor motor from the 4th speed until the motor switch- es off, without closing the pull-out car- riage.

• This signals the speed setting, by only the relevant LED switching on.

• This signals that all filters have been satu- rated by all LEDs switching on.

(+) Key This increases the speed of the extractor mo- tor, from 1st to 4th speed, without moving the extractor panel.

Timer 10 min after setting, it serves to stop the ex- tractor motor, close the carriage and switch the lights off, if they are on. The set function is signalled by the flashing LEDs “D” for the set speed. The timer can be cancelled by press- ing the key again. Other functions: Automatic turn off: After 4 hours of continuous working from the last setup, the appliance turns off and closes automatically. Grease filters saturation: After 30 hours of working, the speed indica- tors “D” will all flash simultaneously, signaling the grease filters saturation. To reset this alarm, hold down the “TIMER” button for at least 3 seconds, while the car- riage is open. Calibration: The cooker-hood carries out its self-calibra- tion every 3 complete cycles of its extractable unit. By pushing the “TIMER” key 6 times consec- utively (MAX break between one push and the other is 3 sec.) all the leds will flash and the calibration will be reset. After the next 3 cycles the downdraft will carry out its self-calibration. Stand-by: When the extractable unit is closed and the light is switched off, the control panel, after 6 seconds, activates the Stand-by function, reducing the brightness of the leds. This function can be stopped by pressing ON/ OFF or LIGHT key.

Security system: If there is an obstacle while the extractable unit is closing, the Downdraft stops closing and rises again thanks to a security system. WARNING This operation has to be carried out by a specialized technician.S-DD2-L FLUSH TOP22

Careful maintenance ensures proper operation and good performances over time. MAINTENANCE HOW TO PROCEED?

ACCESSORY PRODUCTS TO

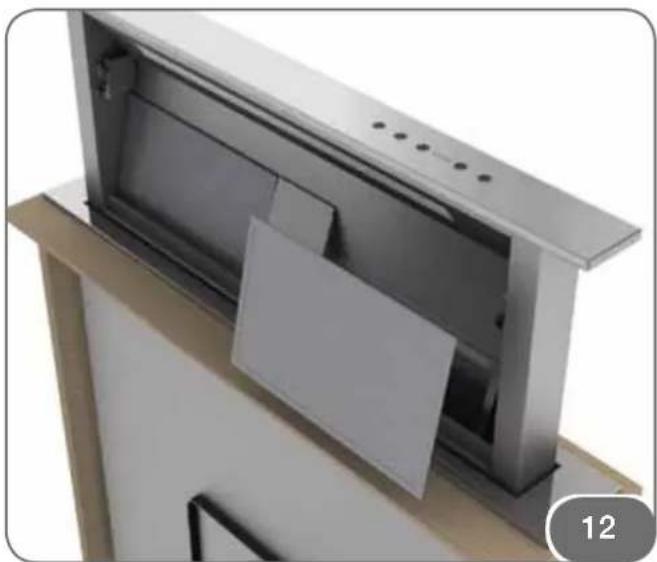

USE External surfaces and accessories Do not use metallic scrubbers, abra- sive products, or hard brushes. To clean the external surfaces of the cookerhood and the light housing screen use only commercially avail- able household detergents diluted in water. Then rinse with clean water and dry with a soft cloth. Active charcoal filter with extractable unit open After 30 hours of operation, the downdraft will signal the grease filter saturation. The saturation is signaled by the blinking of the 4 central leds. To reset, hold down the timer button for at least 3 seconds, while the carriage is open. The grease filters can be washed by hand or in the dishwasher. These fil- ters need to be cleaned on a regular basis, because otherwise they may represent a fire risk. Refit the grease filters and front panel, making sure that the panis properly fitted at the sides so that it it does not cause the downdraft to stop operating. Active charcoal filter In the recirculation mode, the active charcoal filter must be replaced pe- riodically. To remove the charcoal filter first of all it is necessary to remove the grease filter and then pull the plastic key of the panel itself, in order to disengage it from its seating. Follow these steps in reverse order to insert the active charcoal filter. Replace the used charcoal filter on an average of every six months. CLEANING

CAUTION The hood must be disconnected from the electrical network, both by unplugging the appliance from the socket and activating the magnetic circuit breaker (safety cut-out), before removing the metal grease filters. After cleaning operations, replace the metal grease filters as outlined in the installation instructions.S-DD2-L FLUSH TOP 23

PROBLEM SOLUTION The cooker hood does not work... Check that:

• Theredresetkey,foundovertheelectricalsystembox,ispushed.

• Makesurethatthewiresofthe9poleconnectionareinsertedprop- erly in the connector itself (during the connection phase, an excessive pressure could bend the contacts). The cooker hood has low performances... Check that:

• Themotorspeedselectedissufficientforthequantityoffumesand vapors present in the room.

• Thekitchenisventilatedwellenoughtoallowairforintake.

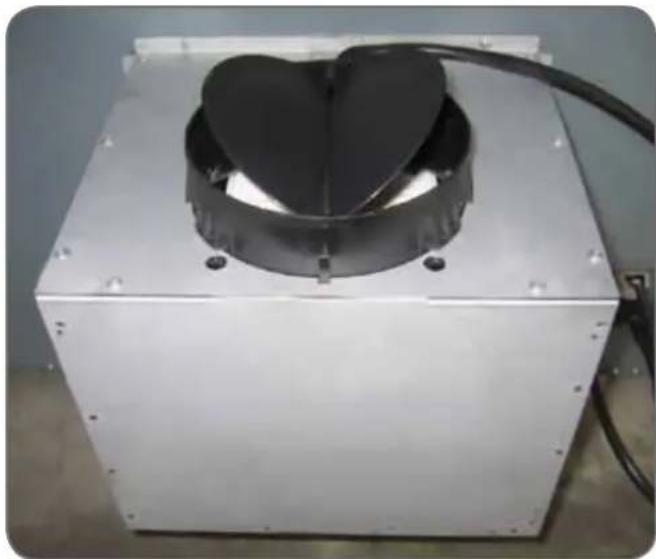

• Thenon-returnvalvesofthesuctioningunitarefreetorotate. The cooker hood stops in the middle of operation. Check that:

• Thereisnotapoweroutage.

• Theomnipolardevicehasnottripped. Any maintenance operation on your appliance should be carried out by:

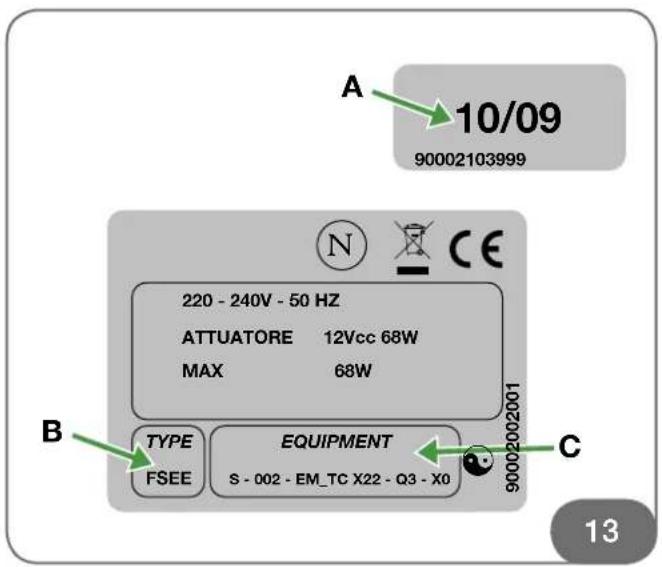

NOTA When calling, please mention the appliance details (Type Fig. 13a and equipment Fig. 13b and production date Fig. 13c). This information is mentioned on the rating label and the production date one placed on the lower side of the downdraft.S-DD2-L FLUSH TOP24
