Soft Babywarmer - Food Warmers Zensy - Free user manual and instructions

Product type	Electric rechargeable baby hot water bottle (bed warmer)
Brand	Zensy
Model	Soft Babywarmer
Power supply	220-240 V ~ 50/60 Hz, 450 W
Charging time	Approximately 6 minutes
Maximum temperature	65 °C (automatic thermostat shut-off)
Battery life	Approximately 3 hours under covers (cooling to 45 °C)
Charge indicator	Red light (on while charging, off when ready)
Cover material	Fabric with Velcro closure
Safety	Automatic thermostat shut-off; anti-pressure safety device; do not use without cover; do not immerse; do not expose to water or humidity
Care and cleaning	Clean with a soft, slightly damp cloth; do not immerse in water; do not use solvents or abrasives
Intended use	Preheat the baby's bed, crib or bassinet; maintain a distance of at least one hand between the bottle and the child
Package contents	Hot water bottle, charger, power cord, cover
Warranty	2 years (subject to proof of purchase)
Standards	Compliant with LVD 2014/35/EU and EMC 2014/30/EU directives
Country of origin	Not specified

Frequently Asked Questions - Soft Babywarmer Zensy

How to use the Zensy Soft Babywarmer?

Open the connector cap, plug in the charger, then plug into an outlet. The red light turns on. Wait about 6 minutes until it turns off. Unplug, place the bottle in its cover and close with Velcro. Place it in the bed at least one hand's distance from the baby.

How long does it take to heat the bottle?

Charging time is about 6 minutes. The red light turns off automatically when the temperature of 65 °C is reached.

Can the bottle be microwaved?

No, never reheat the bottle in a microwave. It contains water and electrical components that would be damaged.

Is it possible to open the bottle to refill it?

No, the bottle is factory-filled and sealed. Only the manufacturer is authorized to refill it. Do not attempt to open it.

What is the maximum temperature of the bottle?

The bottle heats up to 65 °C and then shuts off automatically via a thermostat. Never use it without the cover and maintain distance between the bottle and the baby's skin.

How to clean the bottle?

Always unplug and let cool. Use a soft, slightly damp cloth. Never immerse the bottle in water and do not use abrasive products or solvents.

What to do if the bottle seems too hot?

If it feels too hot after charging, let it cool before use. Never use it directly against the skin; the cover and a minimum distance are mandatory.

Can the bottle be used with a baby in the bed?

Yes, but following instructions: place the bottle next to the baby or near their feet, at least one hand's distance away. Never use it while plugged in and monitor the baby's temperature.

What does the red light mean?

The red light turns on when the bottle is charging and turns off automatically when it has reached 65 °C. If the bottle does not heat, check the connections.

How to recharge the bottle after use?

Wait for the bottle to cool below 40 °C (about 3 hours). Replug it as shown in step 1. Never recharge it while it is still hot or in use.

USER MANUAL Soft Babywarmer Zensy

Congratulations on your purchase of this rechargeable baby warmer. This product meets the most stringent safety requirements according to the European standard LVD 2014/35/EU and EMC 2014/30/EU.

Important: Read the instructions carefully before use and keep them for future reference. The child may be hurt if you do not follow these instructions.

ALGEMENE WAARSCHUWINGEN

WAARSCHUWINGEN BIJ OPLADEN

Diagram of a telephone handset with labeled parts ① and ③, showing internal structure and wiring.

Analyze ②

MADE IN CHINA

Garantie

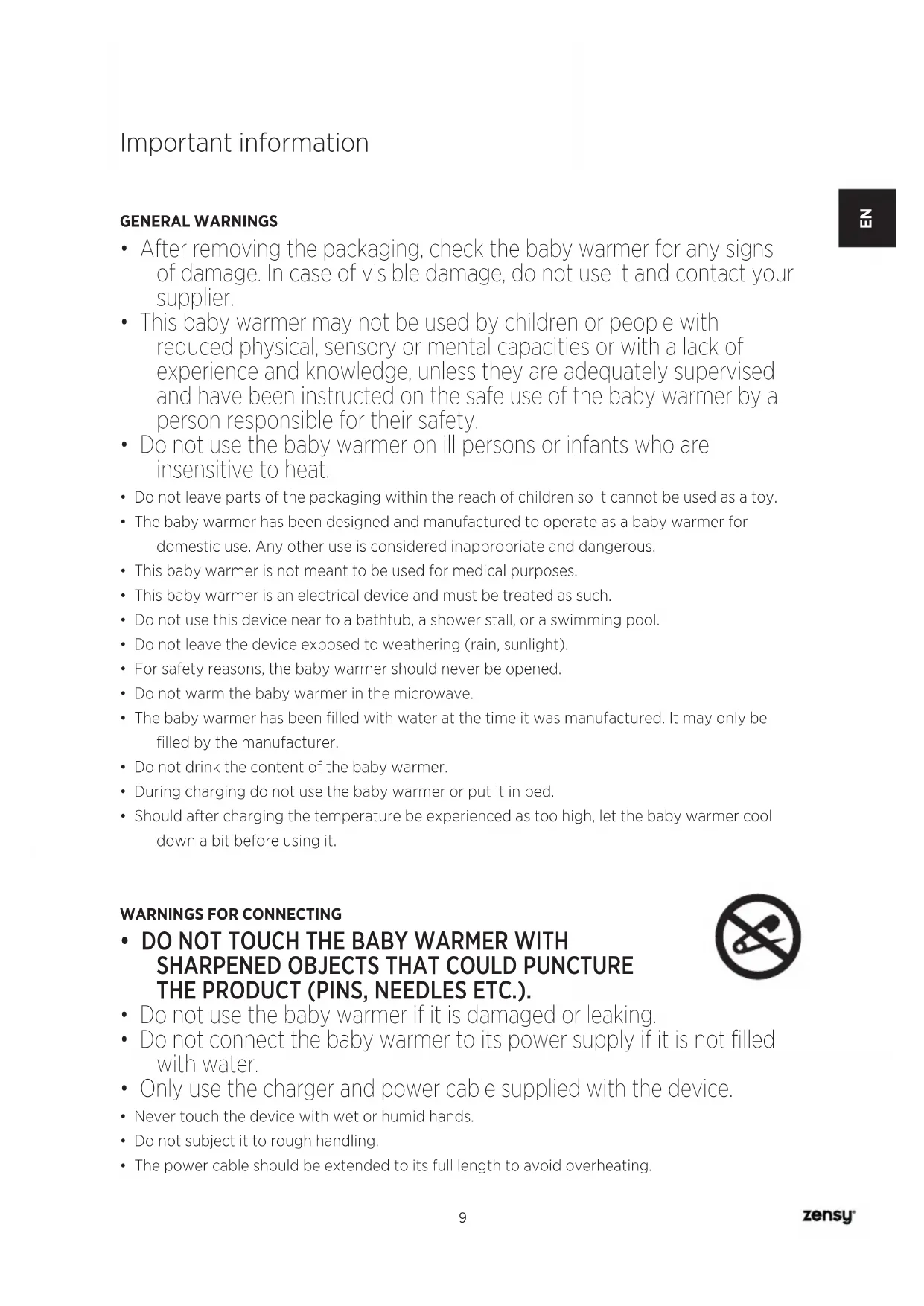

• After removing the packaging, check the baby warmer for any signs of damage. In case of visible damage, do not use it and contact your supplier.
- This baby warmer may not be used by children or people with reduced physical, sensory or mental capacities or with a lack of experience and knowledge, unless they are adequately supervised and have been instructed on the safe use of the baby warmer by a person responsible for their safety.
- Do not use the baby warmer on ill persons or infants who are insensitive to heat.
- Do not leave parts of the packaging within the reach of children so it cannot be used as a toy.
- The baby warmer has been designed and manufactured to operate as a baby warmer for domestic use. Any other use is considered inappropriate and dangerous.
- This baby warmer is not meant to be used for medical purposes.
• This baby warmer is an electrical device and must be treated as such.
- Do not use this device near to a bathtub, a shower stall, or a swimming pool.
- Do not leave the device exposed to weathering (rain, sunlight).
- For safety reasons, the baby warmer should never be opened.
- Do not warm the baby warmer in the microwave.
- The baby warmer has been filled with water at the time it was manufactured. It may only be filled by the manufacturer.
- Do not drink the content of the baby warmer.
- During charging do not use the baby warmer or put it in bed.
- Should after charging the temperature be experienced as too high, let the baby warmer cool down a bit before using it.

WARNINGS FOR CONNECTING

• DO NOT TOUCH THE BABY WARMER WITH SHARPENED OBJECTS THAT COULD PUNCTURE THE PRODUCT (PINS, NEEDLES ETC.).

• Do not use the baby warmer if it is damaged or leaking.
• Do not connect the baby warmer to its power supply if it is not filled with water.
• Only use the charger and power cable supplied with the device.
• Never touch the device with wet or humid hands.
• Do not subject it to rough handling.
• The power cable should be extended to its full length to avoid overheating.

• Before connecting the device, make sure that the power supply voltage matches the indication on the data plate.
• Do not use adapters or extension cables which do not meet the current safety standards or that exceed the current carrying capacity limits.

WARNINGS FOR CHARGING

• Do not cover the baby warmer when charging it and do not leave it fully in the cover. While charging the baby warmer may be half in the cover.
• In case of a breakdown or malfunctioning of the device, disconnect it at once. Do not attempt to repair it, but take it to a point of sale.

- The cable is connected to a safety device that is triggered if the pressure within the baby warmer increases too much. If, during charging, the baby warmer inflates excessively, enabling the safety device, unplug the power cable, do not use the baby warmer and contact a point of sale.

- Place the baby warmer on a flat and stable surface when charging it and keep the baby warmer in a flat position with the connector facing upward.

- When charging the baby warmer, only lay it onto surfaces that do resist temperatures higher than 90^ (194°F).

• Always stay alert during charging.

- Do not charge near children.

- Make sure the baby warmer is only connected to the power source during charging. After it has finished charging, disconnect the plug from the power socket and disconnect the charger from the baby warmer.

- Do not tug on the power cable or on the device itself to remove the plug from the socket.

- If the power cable gets damaged, it has to be replaced only at a service centre approved by the manufacturer.

WARNINGS FOR USE

• Never use the baby warmer without the cover.
• Avoid direct contact between the skin and the baby warmer, even when the cover is being used. Always keep a minimum distance of one hand-width between your child and the baby warmer.
• Do not use the baby warmer in a stroller.
• Do not use the baby warmer when it is connected to its power source.
  • Always check the temperature of your baby regularly, the neck or feet may not be clammy.
• Do not exert pressure on the baby warmer, do not squeeze it, do not place it underneath the weight of your body or underneath part of it.

Use

The baby warmer is meant to pre-heat the cradle/crib/cot of a baby. There are some safety measures for when the baby warmer is used while the baby is in the cradle/crib/cot (see step 3)

E

STEP 1 | CONNECTING

• Open the safety cover of the connector (2) on the baby warmer.
• Press the charger (1) into the connector (2).
• Press the plug of the charger into the power socket. The red indicator light will turn; the baby warmer is charging now.
• When the baby warmer is used for the first time, it can emit an unpleasant smell. This is caused by the reaction of the insulating material to heat.

STEP 2 | CHARGING

• The baby warmer has a thermostat which automatically turns off the device when the thermostat reaches a temperature of 65 °C ( 149 °F ). The red indicator light turns off and the baby warmer is warmed up. The charging time is approximately 6 minutes.
• After it has finished charging, disconnect the plug from the power socket and disconnect the charger from the baby warmer.
• The baby warmer can also be charged to a lower temperature. To do this, simply maintain a shorter charging time by removing the plug from the power socket before the red indicator light turns of.
• Finally put the baby warmer in the cover and seal the cover with the Velcro strap.
  • The baby warmer is now ready to be used.

STEP 3 | USAGE

• Place the baby warmer on the mattress next to the baby. Always maintain a minimum distance of a hand width between the baby and the baby warmer.
• When there is not enough space next to the baby, place the baby warmer next to the feet with a minimum distance of a hand width or place the baby warmer between the blankets but closer to the baby.
• When the baby's temperature is too low, then on instruction of the obstetrician the baby warmer is placed against the baby. The baby warmer with cover is then always wrapped in a cloth or towel.

STEP 4 | RECHARGING

• After 3 hours (under the blankets), the baby warmer is cooled down to a temperature of approximately 45^ (113°F).
• As soon as the baby warmer is cooled down to a temperature below 40^ C ( 104^ F), the baby warmer can be recharged again.
  • To recharge the baby warmer, simply connect it again to the power socket (see step 2).

Maintenance

• Frequently examine the baby warmer to make sure there are no signs of wear or deterioration. If there are such signs or if the baby warmer has been used improperly, bring it to a point of sale.
• Disconnect the plug from the socket and let the baby warmer cool down well before cleaning it.
  • In order to clean the baby warmer, use a soft or slight damp cloth.
• Never use oil soaps, abrasives or chemical solvents.
• Do not use liquids or very wet cloths to prevent water from entering the baby warmer and irreparably damaging it.
  • NEVER IMMERSE THE BABY WARMER INTO THE WATER!
• Cleaning and maintenance operations must not be performed by children without supervision.

Technical specifications

450W, 220-240V, 50/60Hz

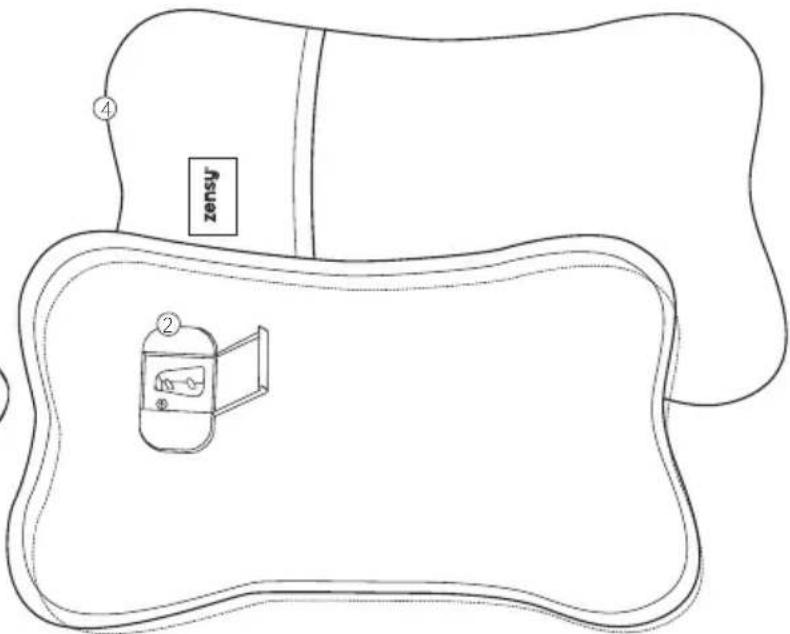

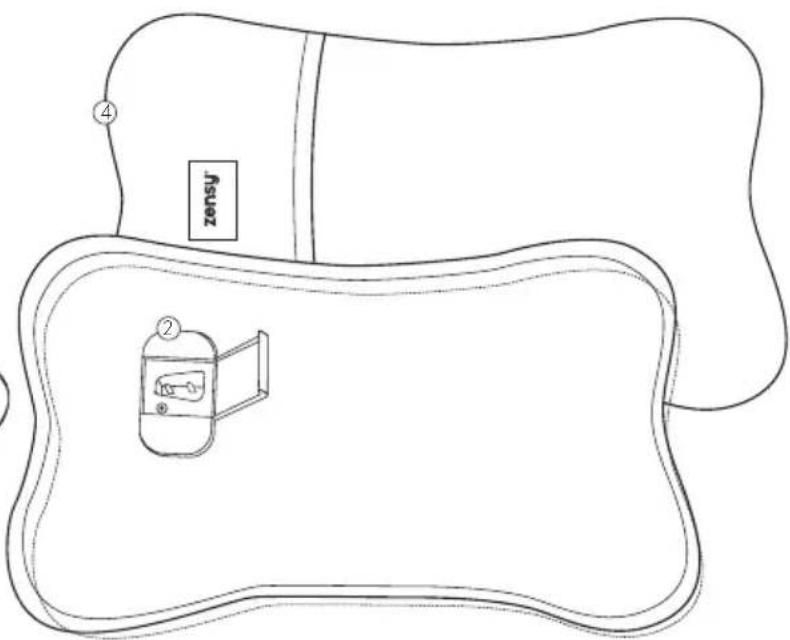

1. Charger
2. Connector
3. Red indicator light
4. Cover
5. Connect
6. Red Indicator light
7. Cover
8. Connector
9. Red indicator light
10. Cover
11. Connector
12. Red indicator light
13. Cover
14. Connector
15. Red indicator light
16. Cover
17. Connector
18. Red indicator light
19. Cover
20. Connect
21. Red Indicator light
22. Cover
23. Connector
24. Red indicator light
25. Cover

MADE IN CHINA

Warranty

Validity: 2 years from date of purchase.

The warranty is only valid in conjunction with proof of purchase. The warranty covers the replacement of the entire unit or parts when there is malfunctioning caused by a manufacturing defect. After the expiration of the warranty there are costs attached to any repairs. The supplier takes no responsibility for any damage or injury to persons, animals and belongings due to misuse of the baby warmer or by failure to follow the accompanying instructions.

Exclusion

All rights in respect of the guarantee and the responsibility of the supplier shall lapse if the device:

• Is dismantled by unauthorized persons;
- Is not properly used, stored or transported.

Furthermore, all external damage to the device that does not affect the proper functioning is excluded from the warranty.

If, despite our care in manufacturing and material of this product there should be a defective, please contact a sales point. You can of course also do this if you want more information about this product.

The information contained herein is subject to change without notice. Timgro B.V. shall not be liable for technical errors or omissions contained herein. The purchased product may differ from the product as described in this user guide.

Diagram of a telephone handset with labeled parts ① and ③, showing internal structure and wiring.

4 zensy 2

MADE IN CHINA

Garantie

Information important

PRÉCAUTIONS GÉNÉRALES

MISES EN GARDE RELATIVES AU BRANCHEMENT

- NE PAS TOUCHER LA BOUILLOTTE AVEC DES OBJETS COUPANTS OU TRANCHANTS SUSCEPTIBLES DE LA PERCER (ÉPINGLES, AIGUILLES ETC.).

MISES EN GARDE RELATIVES AU CHARGEMENT

Diagram of a telephone handset with labeled parts ① and ③, showing internal structure and wiring.

zensy ① ②

FABRIQUÉ EN CHINE

Garantie

The information contained herein is subject to change without notice. Timgro B.V. shall not be liable for technical errors or omissions contained herein. The purchased product may differ from the product as described in this user guide.

Close-up of a baby's face looking downward, hand resting on chin (no text or symbols visible)

Ksuaz

Close-up of a baby's foot with visible X-ray image in background (no text or symbols)

Timgro B.V

Hogeveldseweg 2

4041 CP Kesteren

The Netherlands

e-mail: [e-mail]

WWW.ZENSY.NL
