USER MANUAL THBL962V THOMSON

White and gray portable blender with a black handle and white body, no visible text or symbols on the device itself.

Technical line drawing of a mechanical component with two circular features (no text or symbols)

Line drawing of a device with a handle and internal components, showing a green arrow indicating rotation (no text or symbols)

Line drawing of a kitchen appliance with a lid and handle, showing internal components (no text or symbols)

Avantages

Line drawing of a hand holding an electrical plug with a socket (no text or symbols)

Line drawing of a portable electronic device with a speaker and control panel, showing airflow direction (no text or symbols)

Technical line drawing of a portable device with control panel and side view showing internal components (no text or symbols)

Line drawing of a device with a mechanical component and directional arrow, no text or symbols present

IMPORTANT

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

White and gray electric blender with a black handle, no visible text or symbols on the device body

Read the instructions carefully before use.

This product complies with the requirements of the 2014/35/EC Directive (repealing the 73/23/EEC Directive, amended by the 93/68/EEC Directive) and the 2014/30/EC Directive (repealing the 89/336/EEC Directive).

CE

Important Safety Instructions

• The following basic safety precautions apply when using electrical appliances, read all instructions before use. And save this instruction manual for future use.
• This product is intended for household and indoor use only. Do not use this product for commercial use purpose, and do not use outdoor.
• Care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.
• Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
• This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been

given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

- Children shall not play with the appliance.

- CAUTION: Ensure the blender is switched off before removing it from the stand.

- Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- Cleaning the appliance please use the dry cloth, do not use water cleaning the motor base, it may cause the potential injury from misuse.

- The blade accessory is very sharp, please paid attention for handing the sharp cutting blades during cleaning, emptying the bowl and user maintenance.

• This appliance is not intended to be operated by means of an external timer or separate remote-control system.
• This product is for indoor and domestic use only.
• Be careful if hot liquid is poured into the product as it can be ejected out of the appliance due to a sudden steaming.
• Always switch off the product and disconnect from supply if it is left unattended and before assembling, disassembling, cleaning or approaching parts that move in use.
• Do not immerse the product or allow the supply cord and plug come into contact with water or other liquid.
• The use of accessory attachments, including canning jars, not recommended by the appliance manufacturer may cause a risk of fire, electric shock or injuries to persons.

• Do not let cord hang over edge of table or counter or touch hot surfaces.

• Do not place on or near a hot gas or electric burner or in a heated oven.

• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Where applicable, always attach plug to appliance and check that the control is OFF before plugging cord into wall outlet. To disconnect, turn the control to OFF, then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• Avoid contacting moving parts.
• Keep hands and utensils out of container while blending to reduce the risk of severe injury to persons or damage to the power blender. A scraper may be used but must be used only when the blender is not running (does not apply to an acceptable scraper integral with the appliance).

• Do not use the product if the blade is curve or damage.

• Never operate the product without any liquid in the jar or empty.

• Never try to defeat the interlock switch mechanism, make sure the accessory is completely installed before operation.
• Do not overfill the jar.
• Always operate blender with cover in place.
• CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility. If the thermal cut-out operates during using, please switch off the product and unplug the plug from the supply main, let the product cool down before use.
• Do Not Overfill to maximum line.
• Do not blend any hot liquid in this appliance.
• The maximum continue operation time is 3 minutes and then required 30 minutes to cool down. (This is one

Cycle; if it needs to continuous use, operation time for 1 min then rest for 1 min, max is 10 cycles, then rest 30 mins.)

- The vacuum head charge battery only can connect by 5V DC current.

- WARNING: Do not try remove the blending jar form the motor base during operation or the blade still rotating. After use product, must let the blade stop rotating, and then pick up the jar from motor base.

IMPORTANT

It is forbidden to replace the power cable by yourself. In case of damage, it should be repaired by the after-sales service of local distributors, the manufacturer or similar qualified person. If the appliance is dropped, please ask professional qualified person to check before using it again. Internal damage may cause accidents.

For any kind of problems or repairs, please contact the after-sales service of local distributors, the manufacturer or similar qualified person in order to prevent any risks.

Disposal and environmental responsibility:

In order to be environmentally friendly, we encourage you to dispose of the appliance. You can contact local authorities or recycling centers for more information.

TO ASSEMBLE YOUR MACHINE

Assemble Blending jar:

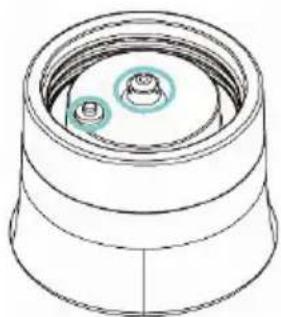

(1) Please check if Vacuum seal ring which is on bottom of Vacuum release rod is installed well, and also if Blending jar lid filter is installed well first. If not, please install them as per below pictures first:

Technical line drawing of a mechanical component with two circular features (no text or symbols)

(2) Rotate Blade set clockwise and install it to Blending jar.

Diagram of a device with a top component and a curved arrow indicating rotation or movement (no text or symbols)

(3) Cut the fruits or vegetables into small pieces of about 3x3cm, pour them into the blending jar, then turn the lid of the jar in clockwise direction, tightening it firmly.

MAX

(4) Rotate the whole blending jar set clockwise into main housing by aligning 3 feet of Blending jar with 3 holes on top of Main housing.

Line drawing of a kitchen blender with handle and control knob (no text or symbols)

Benefits from vacuum personal blender

Traditional blenders that do not have a vacuum before mixing favor the oxidation of food. On the other hand, the vacuum blender can delay oxidation by controlling the incipient oxidation by vacuum before mixing. In addition, this blender can maintain the freshness of already processed foods that have been exposed to vacuum, which delays oxidation, by vacuuming the blender jar again before removing it. (However, these foods stored in a refrigerator should be eaten as soon as possible, since vacuum storage does not prevent the growth of bacteria).

To use your machine

1) There is a rechargeable battery inside of Blending jar lid to power vacuum pump inside, please charge it before first using. Lift the Silicon cover and you can find USB charging port. Insert smaller end of USB wire into USB charging port and connect bigger end of USB wire to an Adapter /Computer USB port / or other power source.

Note: Adapter output shall be 5V 1A.

Charging will be done after 2 hours, then you can use vacuum function for about 80 times.

2) To aspirate the mixing container, continue press the "vacuum" button for 2 times, the "vacuum" indicator lights up and the progress begins with a very low noise. After 45 seconds, the status indicator goes off and the suction is finished. If you wish to stop the vacuum during the process, press the button "vacuum" only once.
3) Connect plug to power supply, make sure the voltage marked in bottom of Main housing is same with your power supply.

Line drawing of a hand holding a small electronic device with a probe inserted (no text or symbols)

4) Press the ON / OFF button and quickly release it to mix the pulses, repeat several times to prevent the ingredients from jamming. It is also possible to make crushed ice with the blender. For continuous mixing, simply press the ON / OFF button until you hear a click, after having thoroughly mixed the ingredients into the desired texture, press the ON / OFF button again until a click sounds to stop mixing.

NOTE: Vacuum function is prohibited while blending. Otherwise, juice may be sucked into Blending jar lid and destroy the vacuum pump inside.

DISASSEMBLE YOUR MACHINE

Always disassemble the vacuum personal blender until blades are completely stopped.

Pour out plug from power supply first. Rotate the whole blending jar set anti-clockwise and take it out from main housing.

Line drawing of a hand-operated blender with blue directional arrows indicating rotation (no text or symbols)

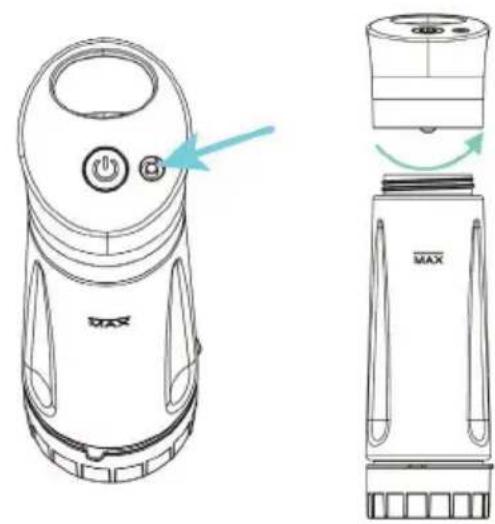

To open and consume the smoothie, press the release rod for a few seconds. Turn the lid of the blending jar counterclockwise to enjoy your fresh juice.

Technical line drawing of a blender with control buttons and a side view showing the top panel (no text or symbols)

The Blending jar base is detachable by rotating anti-clockwise, it can be cleaned easily.

Diagram of a device with a top component and internal structure, showing a green arrow indicating rotation or movement (no text or symbols)

IMPORTANT

• If preparing food for babies or young children, always check that the ingredients are thoroughly blended before feeding.
• Do not run the machine continuously for longer than 3 minutes, leave to cool for 30 minutes between each operation.
• Do not operate the machine with an empty blending jar.
  ● Always allow hot food to cool before processing.
• Do not place any part of the machine into a microwave.

HINTS

• If you insert too much food from the blending jar, remove part of the mixture and continue processing in several batches, otherwise you risk damaging the engine.
• Remember that blending hard foods such as coffee beans, spices, chocolate or ice will wear the blades faster.
• Beware of over processing some ingredients. Stop and check the consistency frequently.

CLEANING AND MAINTENANCE

1. Before cleaning, make sure the power switch and speed regulator are in "0" position, remove the plug from the supply main.
2. Use water to clean the mixing container, without chemicals or any other type of liquid.

3. Cleaning motor base only use the dry cloth, never use wet cloth clean the motor base, or immerse the motor base into water.

4. If the product operating with abnormal noise, or shaking seriously. Please stop use this product, and send back to the service agent to check it. Never repair the product by yourself.

Storage

• After use the product, please repack the product, and store it in a dry place and avoid sun exposure.
  • Make sure the children could not reach the product.
• Keep the product dry before repack.

TECHNICAL SPECIFICATIONS

Voltage: 220-240V\~

Frequency: 50-60Hz

Power: 250W

Rated capacity of blending jar: 0.5L

We decline any liability for defects due to improper use of the appliance and damage caused by service or repair made by a third party or due to installation of unauthorized parts.

Symbol of a trash bin crossed out by two crossed lines, representing no waste or discharge (no text or labels)

This logo affixed to the product indicates that is an appliance of which the waste processing falls within the framework of the 2012/19/EC, on Waste Electrical and Electronic Equipment (WEEE).

The presence of hazardous substances in electrical and electronic equipment may have potential effects on the environment and human health in the reprocessing cycle of the product.

Thus, at the end of the life of this appliance, it should not be disposed of with unsorted household waste.

As a consumer, your role is crucial in the cycle of reuse, recycling and other forms of recovery of electrical and electronic equipment. Waste reception center and collection facilities are implemented at your disposal by local communities (recycling facilities) and distributors.

You have the responsibility to use the selective waste collection systems at your disposal.

The warranty does not cover the wear parts of the product, nor the problems or damage resulting from:

(1) Surface deterioration due to normal wear and tear of the product;
(2) Defects or deterioration due to contact with liquids and corrosion caused by rust or the presence of insects;
(3) Any incident, abuse, misuse, alteration, disassembly or Unauthorized repair
(4) Improper maintenance, improper use Concerning the product or connection to an incorrect voltage;
(5) Any use of accessories not supplied or not approved by the manufacturer.

The guarantee will be cancelled if the nameplate and / or serial number of the product are removed.

THOMSON is a trademark of Technicolor SA used under license by SCHNEIDER CONSUMER GROUP.

This product is imported by SCHNEIDER CONSUMER GROUP 12, rue Jules Ferry, 93110 Rosny-sous-Bois, FRANCE
