USER MANUAL BrewStation 47665 HAMILTON BEACH

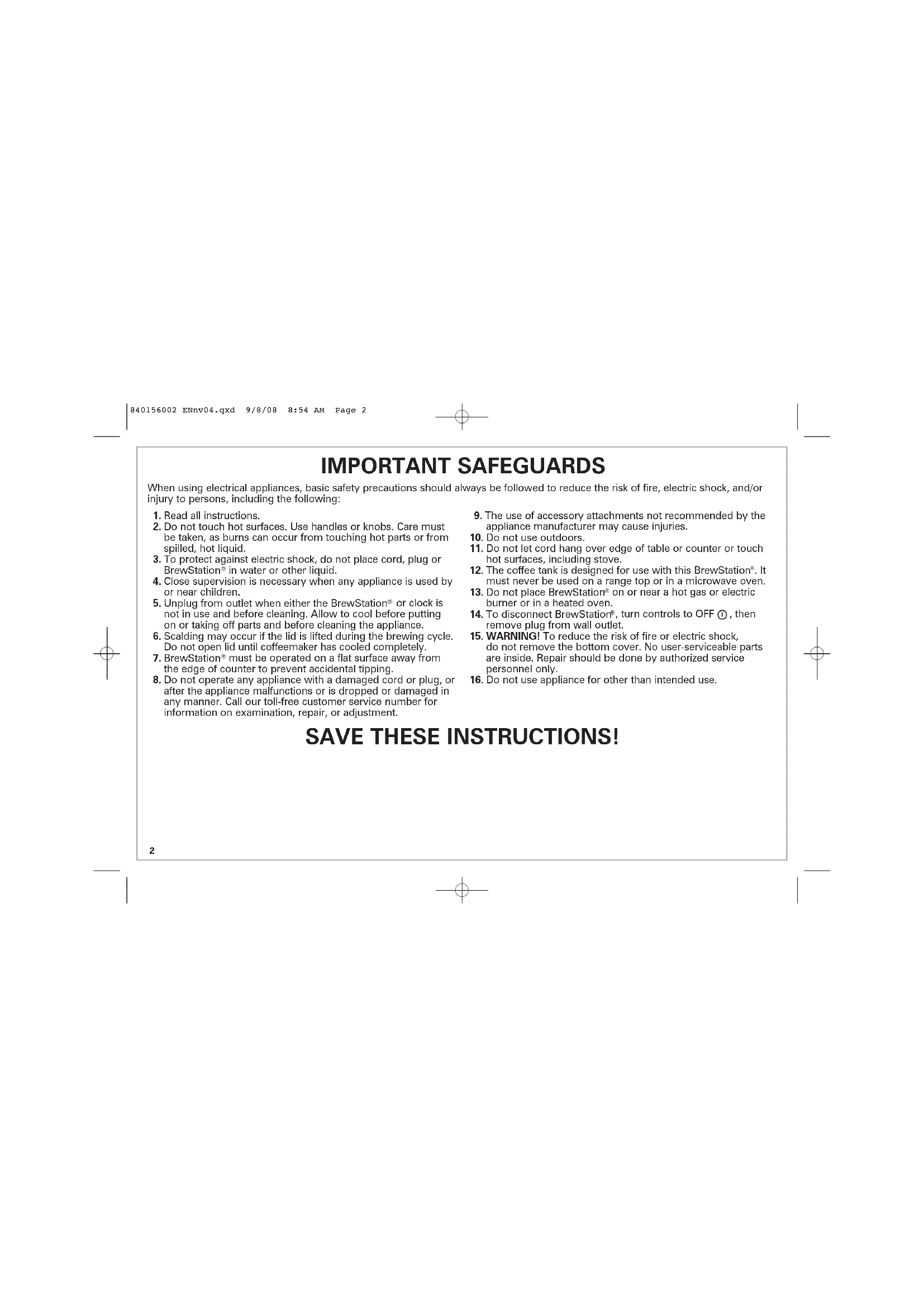

1. Read all instructions.

2. Do not touch hot surfaces. Use handles or knobs. Care must

be taken, as burns can occur from touching hot parts or from spilled, hot liquid.

3. To protect against electric shock, do not place cord, plug or

in water or other liquid.

4. Close supervision is necessary when any appliance is used by

5. Unplug from outlet when either the BrewStation

or clock is not in use and before cleaning. Allow to cool before putting on or taking off parts and before cleaning the appliance.

6. Scalding may occur if the lid is lifted during the brewing cycle.

Do not open lid until coffeemaker has cooled completely.

must be operated on a flat surface away from the edge of counter to prevent accidental tipping.

8. Do not operate any appliance with a damaged cord or plug, or

after the appliance malfunctions or is dropped or damaged in any manner. Call our toll-free customer service number for information on examination, repair, or adjustment.

9. The use of accessory attachments not recommended by the

appliance manufacturer may cause injuries.

10. Do not use outdoors.

11. Do not let cord hang over edge of table or counter or touch

hot surfaces, including stove.

12. The coffee tank is designed for use with this BrewStation

. It must never be used on a range top or in a microwave oven.

on or near a hot gas or electric burner or in a heated oven.

, turn controls to OFF , then remove plug from wall outlet.

15. WARNING! To reduce the risk of fire or electric shock,

do not remove the bottom cover. No user-serviceable parts are inside. Repair should be done by authorized service personnel only.

16. Do not use appliance for other than intended use.

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following: SAVE THESE INSTRUCTIONS! 840156002 ENnv04.qxd 9/8/08 8:54 AM Page 23

OTHER CONSUMER SAFETY INFORMATION

This appliance is intended for household use only. WARNING! Shock Hazard: This appliance has a polarized plug (one wide blade) that reduces the risk of electric shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or using an adaptor. If the plug does not fit, reverse the plug. If it still does not fit, have an electrician replace the outlet. The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in, or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the BrewStation

Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over. To avoid an electrical circuit overload, do not use another high-wattage appliance on the same circuit with your BrewStation

IMPORTANT Never use coffee tank to pour hot coffee or carry hot coffee. Handle coffee tank when it holds only cold water. Additional Information

• If overflow occurs: Let unit, coffee, and grounds cool completely before attempting any cleanup.

• Use only brand-name, high-quality filters.

• Use only 3/4 tablespoon of ground coffee for each cup of coffee.

• Use coffeemaker cleaner to prevent hard water deposits that affect coffeemaker performance. Clean monthly.

• Do not clean Coffee Tank in dishwasher.

• Read instructions before using. 840156002 ENnv04.qxd 9/8/08 8:54 AM Page 34 Parts and Features

Filter Basket Coffee Tank Coffee and Water Level Guide Coffee Dispenser Bar Two-Piece Removable Drip Tray (packed in bag and located in the coffee tank) Water Reservoir Keep Warm Plate To Order Call:

1.800.851.8900 (U.S.)

Avoid getting coffee grounds in any other areas of the BrewStation

Before first use: Wash coffee tank, filter basket, and drip tray in hot, soapy water. NEVER put the coffee tank in dishwasher. BrewStation

has an automatic 2-hour shutoff. Press ON/OFF ( ) to shut off sooner. Maximum Amount of Automatic Drip Coffee to Use in BrewStation

Coffee Scoops* Tablespoons Regular 13 11 Decaf 11 9 Normal Amount of Coffee Per Cup 1 scoop* or 3/4 tablespoon per cup Brew Options (On 6-Button Models Only) FLAVOR+ Enhanced full/strong-flavored coffee Press Brew Options Button until Flavor+ is displayed. 1–4 CUPS When brewing 1–4 cups of coffee or Press Brew Options Button until when using decaffeinated coffee 1–4 Cups is displayed. Burn Hazard.

• Never use coffee tank to pour or carry hot coffee.

• Handle coffee tank only when holding cold water for filling water reservoir and to clean tank after BrewStation

has been shut off and the coffee is cool.

overflows, unplug unit. Allow unit, coffee, and grounds to cool before cleaning unit, coffee, or grounds. *optional feature on select models w WARNING 840156002 ENnv04.qxd 9/8/08 8:54 AM Page 56 How to Make Coffee (cont.)

To Order Gold Tone Filter Call:

1.800.851.8900 (U.S.)

Permanent Gold Tone Filter (on some models)The Permanent Gold Tone Filtertakes the place of disposable paper filters. Rinse in hot water before first use.Then simply place in the filter basket. Clean under hot, running water and let dry, or place on top rack of dishwasher. Programming (on some models)

Press H and then M to set clock. Hold PROG until clock flashes. Continue holding PROG button; press H and M until the desired brewing start time is reached.Press PROG momentarily to activate automatic brewing. 840156002 ENnv04.qxd 9/8/08 8:54 AM Page 67 Water Filter

For better tasting coffee, use a water filter. Filter replacement is recommended every 60 cycles. To Order Water Filter Call:

1.800.851.8900 (U.S.)

Remove optional water filter. Pour1 pint (2 cups/500 ml) vinegarinto water reservoir.Press ON ( ). Turn OFF ( ) after 20 seconds and wait 30 minutes.Press ON ( ). Turn OFF ( ) whenfinished. Run 2–3 more brew cycles withCLEAN WATER only. Allow to cool between cycles.Clean BrewStation at least once a month (once a week for areas with hard water). When cool, dispense several cupsbefore emptying and rinsing reservoir.

840156002 ENnv04.qxd 9/12/08 10:21 AM Page 78 PROBLEM Coffee leaks from dispenser. ON/OFF Light blinking or appears on clock. Coffee tastes bad. Coffee not brewing/coffee stops brewing/unit will not turn on. Coffee brews slowly. Coffee overflows basket. PROBABLE CAUSE

• Coffee grounds trapped in coffee tank dispensing mechanism under seal in coffee tank. See “Cleaning with Vinegar.”

• Mineral deposits have built up. Clean the coffeemaker following “Cleaning with Vinegar.”

• Coffeemaker needs cleaning.

• Coffee ground too coarsely or too finely. Set to automatic drip grind.

• Coffee-to-water ratio unbalanced. Adjust for personal preference.

• Poor water quality. Use water filter or bottled water to make coffee.

• Mineral deposits have built up. Clean the coffeemaker following “Cleaning with Vinegar.”

• Water reservoir is empty.

• Power surge. Unplug; then plug the unit back in.

• Coffeemaker needs cleaning. Clean the coffeemaker at least every 30 days to maintain proper performance.

• Excessive amounts of coffee grounds. See Table on page 5.

• Coffee ground too finely. Set to automatic drip grind.

• More than one paper filter in filter basket.

• Poor quality or wrong size paper filter.

• Coffee is decaffeinated blend. Do not exceed amount shown in Table on page 5. Troubleshooting 840156002 ENnv04.qxd 9/8/08 8:54 AM Page 89 Limited Warranty This warranty applies to products purchased in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition. This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value. This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use. We exclude all claims for special, incidental and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental or consequential damages, so the foregoing limitations may not apply to you. To make a warranty claim, do not return this appliance to the store. Please call 1.800.851.8900 in the U.S. or 1.800.267.2826 in Canada or visit hamiltonbeach.com in the US or hamiltonbeach.ca in Canada. For faster service, locate the model, type, and series numbers on your appliance. 840156002 ENnv04.qxd 9/8/08 8:54 AM Page 910
