DISPLAY ANTENNA OPEN/CLOSE ON/OFF UBS VOLUME

Prolonged listening at loud volumes with the earphones can damage your hearing.

The only way to completely disconnect the device from the mains is to unplug the mains cable. General information on laser devices You will find a symbol similar to the one shown here on the bottom of the device.

UCT means that the la- ser is designed in such a way as to ensure that the maximum permis- sible emission value cannot be exceeded under any circumstances. If operating devices or methods other than those speci- fied here are employed, it may lead to dangerous ex- posure to emissions. Invisible laser radiation is emitted if the CD compart- ment is opened and the safety locking mechanism is shorted. Do not expose yourself to this radiation. To ensure that this device provides you with long-term satisfaction and enjoyment, please observe the follow- ing instructions.

This device is designed for the playback of audio signals. Any other use is expressly prohibited.

Protect the device and the CDs from rain, moisture (dripping or splashing water), sand and heat. Do not leave it next to heaters or inside parked cars in the sun.

Make sure there is adequate ventilation when posi- tioning the device. There must be a free space of at least 10 cm behind the device. Do not place objects on the ventilation slots.

Do not place any objects containing liquids (for ex- ample, vases) on the device. Do not insert any for- eign bodies in the CD compartment of the device.

Do not place any objects such as burning candles on the device.

Bringing the device in from the cold can cause con- densation on the CD lens, which prevents it from playing. Give the device time to warm up.

Only use the device in a moderate climate.

The CD unit contains self-lubricating bearings, which must not be oiled or greased.

Thunderstorms are a danger to all electrical devices. Even if the device is switched off, it can be damaged by a lightning strike to the mains. Always remove the mains plug during an electrical storm.

If malfunctions occur due to static electricity charges or fast transient (burst), reset the device. To do this, pull out the power plug and connect it again after a few seconds.

Do not use any cleaning agent, as this may dam- age the casing. Clean the device with a clean, moist leather cloth.

Please note when deciding where to put the device that furniture surfaces are covered by various types of lacquer and plastic, most of which contain chemical additives. These may cause corro- sion to the feet of the device, thus resulting in stains on the surface of the furniture which can be difficult or impossible to remove.

Never open the device casing under any circum- stances. No warranty claims are accepted for dam- age resulting from improper handling.

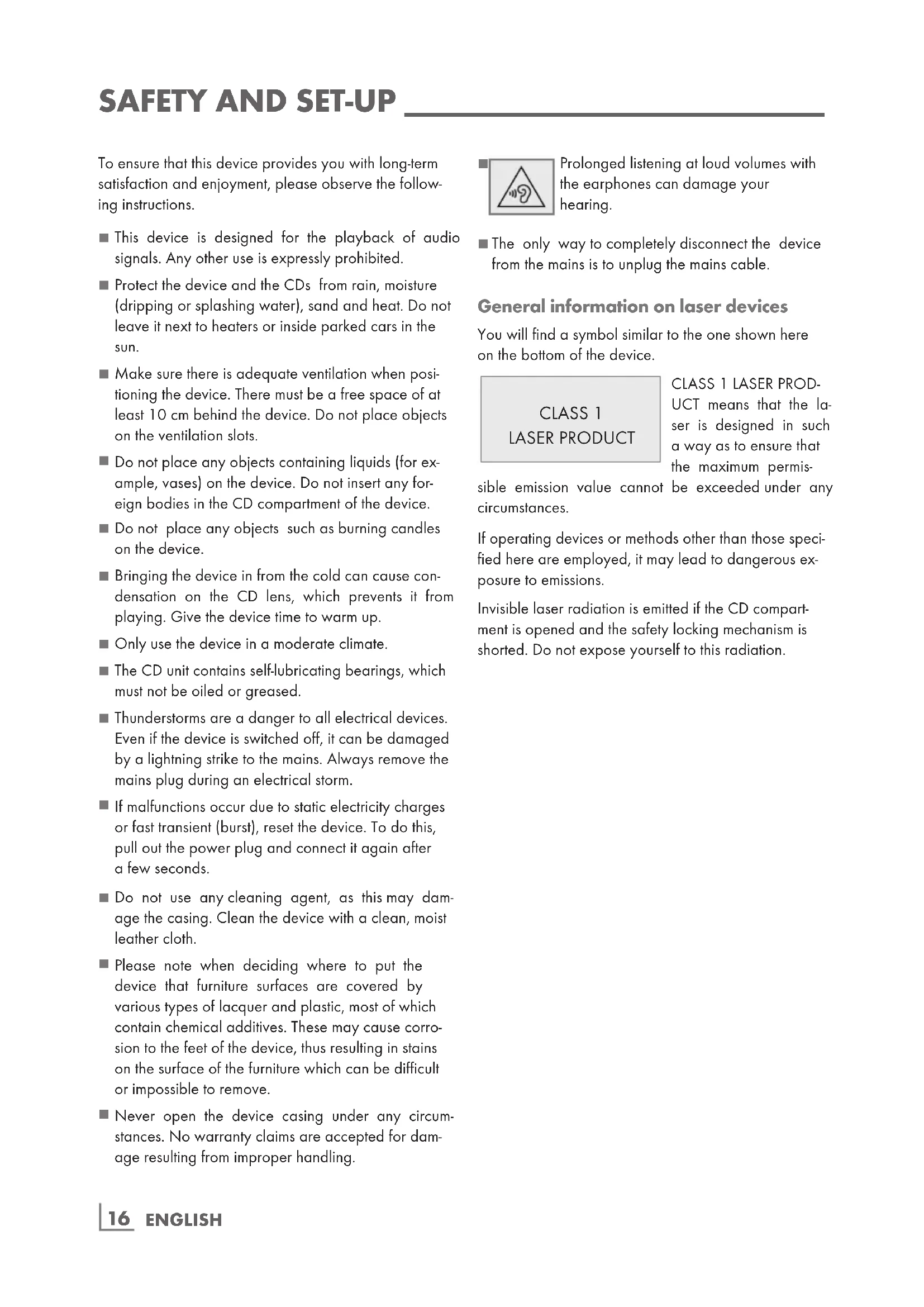

SAFETY AND SET-UP __________________________

CLASS 1 LASER PRODUCT17 ENGLISH See the figure on page 2 Controls General information

Socket for connecting the power cord (on the back of the device). 0 Headphone jack for connecting a headphone set with a 3.5mm jack plug UBS Switches the ultra Bass system on and off. VOLUME Adjusts the volume. ON Operation indicator. Lights up red during operation. OPEN/CLOSE Opens and closes the CD compartment. USB USB interface for connecting an MP3 player or USB memory stick. ON/OFF Switches the device on and off.

RADIO Switches between BLUETOOTH CD, USB and RADIO input sources. PLAY/ PAUSE/SEL In FM tuner mode: Press briefly to switch between mono and stereo reception.In DAB/FM mode: Press and hold to show menu.In CD, USB and Bluetooth mode: Press briefly to start and pause playback. In Bluetooth mode: Press and hold to disconnect the current Bluetooth connection, and enters discovery mode. PROG/ MEM/STOP In DAB/FM mode: Press briefly for saving radio stations on presets; In FM mode: Press and hold to start FM ATS. In CD and USB mode: Press briefly to end playback. OVERVIEW __________________________________ In CD mode: Press briefly to enter CD program mode when CD is in stop position. Press and hold to exit CD program mode. UP and DOWN In FM tuner mode: Press briefly to change the frequency up and down in steps; Press and hold down to start a forward or reverse search. In DAB tuner mode: Press briefly to select DAB stations from the DAB station list. Press and hold to scan DAB stations. In CD and USB mode: Press briefly to select the next or previ ous track; press and hold down to start a forward or reverse search. In Bluetooth mode: Press briefly to select the next or previous file. ALBUM UP /DOWN In CD and USB mode: Selects the previous /next album. In DAB and FM mode: Selects the stored presets stations. MODE/INFO In DAB/FM mode: Briefly press to switch between DAB and FM modes; Press and hold to display the station information of the radio modes. When playing CDDA disc: Press briefly to repeat a track or the entire CD, or starts random playback. In MP3-disc/USB mode: Press briefly to repeat a file, all the files on an album, or all the files. Selects the function random. In DAB/FM/CD/USB mode: Press and hold to display the information of the current mode.ENGLISH

Mains operation Note:

Check that the mains voltage on the type plate corresponds to your local mains supply.

If this is not the case, contact your specialist dealer. 1 Plug the mains cable supplied into the »AC

socket on the radio recorder (back of device). 2 Plug the mains cable into the wall socket. Caution:

The device is connected to the mains with the po- wer plug. To fully disconnect the device from the mains, pull out the plug.

The mains plug is used to disconnect the device. It shall remain readily operable and should not be obstructed during intended use. POWER SUPPLY ______________________________ Battery operation 1 Open the battery compartment by pressing the catch and removing the lid. 2 Insert six batteries (6 x 1.5 V/type IEC R14/UM2/ C-size), observing the polarity marked on the lid of the battery compartment. 3 Close the battery compartment. Notes:

Do not expose the batteries to extreme heat, caused for example by direct sunlight, heaters or fire.

Remove the batteries when they are flat or when you know that the device will not be used for a long period of time.

The manufacturer accepts no liability for damage resulting from leaking batteries.

The batteries are switched off during mains op- eration. Environmental note:

Batteries, including those which contain no heavy metal, may not be disposed of with household waste. Please dispose of used batteries in an en- vironmentally sound manner. Find out about the legal regulations which apply in your area.19 ENGLISH BLUETOOTH MODE ___________________________ Bluetooth Mode Connect to mobile device with Bluetooth 1 Press the “ON/OFF” button to switch on the device; 2 Move the (BLUETOOTH/CD/USB/RADIO) switch to the >>BLUETOOTH<< position. 3 The “Pairing” will be showing on LCD; 4 Go to your mobile device, and find the “Grun- dig RCD 1550, Grundig GRB 4000” from the available Bluetooth device list. Then press to connect to the radio. 5 When device has been connected to the mobile device, the “Paired” announcement will be displa- yed. Playback control via Bluetooth 1 Press the “ON/OFF” button to switch on the device;

2. Move the ( BLUETOOTH/CD/USB/RADIO)

switch to the >>BLUETOOTH<< position. 3 Connect the GRB 4000 BT DAB+, RCD 1550 BT DAB+ to mobile device via Bluetooth; 4 Press the

II button to toggle the music playback in between play or pause status; 5 Press the DOWN button to skip back to previous played songs 6 Press the UP button to skip to the next songs; Pairing mode 1Press the “ON/OFF” button to switch on the device; 2 Move the BLUETOOTH/CD/USB/RADIO switch to the >>BLUETOOTH<< position. 3 If the GRB 4000 BT DAB+, RCD 1550 BT DAB+ is connecting to any mobile device via Bluetooth, press and hold the

II button to disconnect the current Blue- tooth connection. 4 The GRB 4000 BT DAB+, RCD 1550 BT DAB+ de- vice will be in Bluetooth pairing mode and the display will show “Pairing”. 5 You can repeat the steps in “Connect to mobile de- vice with Bluetooth” for a new Bluetooth connection. Power saving in Bluetooth If there is no Bluetooth connection from the radio to any mobile devices, the GRB 4000 BT DAB+, RCD 1550 BT DAB+ will switch to off mode after 15 minutes.ENGLISH

1. For the best DAB reception, it is sufficient to extend

the telescopic antenna and direct it accordingly.

2. Press the MODE/INFO button until the display is

showing ‘DAB’. Tuning and storing DAB radio sta- tions first installation After the device has been connected to the mains for the first time or after factory reset, the device will start to scan the whole DAB bandwidth and store in the station list.

1. Press ON/OFF button to switch on the device.

LCD will show ‘GRUNDIG’. The automatic station search starts, searches and stores the radio stations in a station list. Selecting stored DAB stations from the station list The available DAB stations are stored in a station list.

1. Select the DAB station you want with DOWN or

UP button. Tuning and refreshing DAB radio stations You can activate the auto scan function again. That is reasonable if you are using the device in another place or for searching new DAB radio stations. 1.Press On/Off button to switch on the device to DAB mode. 2.Start the automatic station search by pressing and holding down the UP or DOWN button. Note: The device will remove the unavailable stations from the list, and add the new DAB stations into the list. Manual tuning DAB stations You can tune to the specific DAB channel for any new DAB stations in your area.

1. Press ON/OFF button to switch on the device to

2. Press and hold the PLAY/PAUSE/SEL button to

DAB manual tune. The current channel and frequen- cy will be displayed.

4. Press the UP or DOWN button to choose the desired

channel number for searching the new DAB stations. Then press the PLAY/PAUSE/SEL button to con- firm. The newly received DAB stations will be added to the DAB station list. Storing DAB radio stations to presets After the automatic station search, all radio stations will be stored in the station list. You can store your favourite radio stations on 20 presets.

1. Press ON/OFF button to switch on the device to

5. Press the PROG/MEM/STOP button again to

store the DAB station into preset list. Notes: You can replace a station on a preset with a new one by carrying out steps 2 to 5 as described above. Selecting stored DAB stations from presets

1. Select the DAB station you want with ALBUM/

MEMORY UP or DOWN button to choose the stored stations from presets. Displaying DAB station information

1. To display information on the current DAB station

press and hold the MODE/INFO button repeat- edly. Note: the following display appears in succession: Information from the provider (e.g. the actual broad- cast, the title of the song, the email address, phone number, etc), the genre, the signal strength, the fre- quency and the bit rate. Setting DRC (Dynamic Range Con- trol) for DAB stations When you activate DRC, you can hear lower sounds better in a loud environment.21 ENGLISH

1. Switch on the device to DAB mode.

2. Press and hold the PLAY/PAUSE/SEL button to

DRC level from ‘DRC high’, ‘DRC low’, or ‘DRC off’.

5. Press the PLAY/PAUSE/SEL to confirm.

6. You may press the STOP, ALBUM/MEMORY UP

or DN button to exit the menu. Removing DAB radio stations from the station list If you move to a different part of the country, you should remove DAB radio stations, which are no longer available, from the station list. These DAB ra- dio stations are marked with “?“.

1. Switch on the device to DAB mode.

2. Pressing and holding the PLAY/PAUSE/SEL but-

ton, the LCD will show the menu of the device.

3. Press briefly the UP or DOWN button to choose

want to remove the unavailable stations from the list, you can press the UP or DOWN button to choose “Yes,”, then press the PLAY/PAUSE/SEL button again to confirm the removal.

5. After these operations, you will find only available

stations are in the list. FM radio mode

1. For the best ‘FM’. reception, it is sufficient to extend

the telescopic antenna and direct it accordingly.

2. Press the MODE/INFO button until the display is

showing ‘FM’. Automatic tuning FM radio stations

1. Start the automatic station search by pressing and

holding down the UP or DOWN button. The search stops when a station is found. Manual tuning FM radio stations

1. To move the frequency forward or backward in

steps, briefly press UP or DOWN button. The fre- quency changes in steps of 50kHz. RADIO MODE ________________________________ Automatic tuning station (ATS)

1. Activate the ATS by pressing and holding PROG/

MEM/STOP button until the frequency display changes to rapid run through. - The device searches for up to 20 radio stations and then saves them. After the search has finished, the station stored in position 01 can be heard. Storing FM radio stations to presets You can store FM radio stations on 20 presets.

1. Press ON/OFF button to switch on the device.

2. Press and hold UP or DOWN button to tune to the

5. Press the PROG/MEM/STOP button again to store

the FM station into preset list. Note: You can replace a station on a preset with a new one by carrying out steps 2 to 5 as described above. Selecting stored FM stations from presets

1. Select the FM station you want with ALBUM/MEM-

ORY UP or DN button to choose the stored stations from presets. Stereo / Mono reception If the device receives a FM stereo station, and if the signal from the FM stereo station is weak, you can improve the sound quality by switching to mono re- ception.

1. Switch to mono reception by pressing MODE/INFO

2. Switch to stereo reception by pressing this button

The device is suitable for music CDs displaying the logo shown here (CD- DA) and for CD-Rs and CD-RWs with audio data. When burning CD-R and CD-RWs with audio files, various problems may arise which could lead to interference in playback. This can be caused by faulty software or hardware settings or by the CD being used. Should such problems arise, con- tact the customer services of your CD burner or soft- ware manufacturer or look for relevant information, for example on the internet.

1. When you are making audio CDs, observe all legal

guidelines and ensure that the copyright of third par- ties is not infringed.

2. Always keep the CD compartment closed to prevent

dust from collecting on the laser optics.

3. Do not attach adhesive labels to CDs. Keep the sur-

4. You can play standard 12 cm CDs as well as 8 cm

CDs on your device. And adapter is not necessary.

Warning: The lens of the CD player should never

be touched. Operating with MP3 player or an USB memory stick

1. The device supports most MP3 Players or USB mem-

2. The USB socket on the device does not support a

connection for a USB extension cable and is not de- signed for directly connecting to a computer.

3. The USB socket of this device is a standard socket.

Due to rapid developments in technology and new manufacturers appearing every day, the compatibility of USB memory sticks can only be partially guaran- teed. If USB operation is impaired or is not possible, this does not indicate a malfunction of the device.

4. Bi–directional data transfer as defined for ITE de-

vices in EN 55022/EN 555024 is not possible.

5. USB transfer is not in itself an operating mode. It is

only an additional function.

6. Never remove USB devices or memory sticks dur-

ing operation. This can damage the USB device and the device.

CD (CDDA / MP3 DISC) / USB MODE ___________

This type of damage will invalidate your warranty. Notes to the data medium:

1. In MP3 disc or USB mode, the terms “album” and

“file” are very important. “Album” corresponds to a folder on a PC, “file” to a file on a PC or CD-DA track. The device supports maximum 99 folders/999 tracks.

2. In MP3 disc or USB modes, the device can support

MP3, AAC (*.m4a) and wave file format. Automatic shutdown:

If the device is in the “Stop” position for more than 15 minutes it automatically switches to off mode. Inserting / connecting a music / stor- age medium

1. Open the CD compartment by pressing OPEN/

CLOSE on the CD lid.

2. Insert a disc in the compartment with its label

3. Close the CD compartment by pressing the CD lid.

Connecting an USB memory stick

1. Switch off the device by pressing ON/OFF button.

2. Plug the USB memory stick into the USB socket.

The device scans the content of the music / data medium.

Display of CD-DA: the total number of tracks and the total disc time will be displayed.

Display of MP3 disc or USB: the total number of files will be shown.23 ENGLISH

CD (CDDA / MP3 DISC) / USB MODE ___________

Playback When playing music CDs, you can select tracks; When playing MP3 disc or USB media, you can select folders or files.

1. Press PLAY/PAUSE/SEL button to start playback.

Playback begins with the first track.

Playback stops at the end of the CD.

2. Press PLAY/PAUSE/SEL button to pause playback.

3. Press PLAY/PAUSE/SEL button to resume playback.

4. Press PROG/MEM/STOP to end playback.

Note: When you press the PROG/MEM/ STOP button for the first time, the system will remember the last played position of the track. If you want to resume the playback again, press the PLAY/PAUSE/SEL button to continue the last playback.

5. To fully erase the CD resume, press the

PROG/MEM/STOP button for the second time.

6. Press OPEN/CLOSE to open the CD compart-

ment and take out the CD.

7. Close the CD compartment.

Select another track in CD or anoth- er file in USB

1. During playback, keep pressing DOWN or UP but-

ton until the number of track or file you want to hear appears in the display.

Playback of the selected track starts automatically. Note: You can also select tracks in the stop posi- tion. However, you must then start playback of the track with PLAY/PAUSE/SEL ( Only applicable for CD Mode) Searching for a passage within a track or a file

1. During playback, press DOWN or UP button and

hold it until you find the passage you want to hear.

Playback starts when you release DOWN or UP Repeat a track in CD or a file in USB (Repeat One)

1. During playback, press MODE/INFO button

once. The current track is repeated and repeat 1 is shown.

2. To terminate the function, press this button until the

icon is disappeared. Repeat a folder in USB or MP3 disc (Repeat Album)

1. During playback, press MODE/INFO button

twice, all the files in current folder will be playback re- peatedly.

2. To terminate the function, press this button until the

icon is disappeared. Repeat all tracks in CD or files in USB (Repeat All)

1. During playback, press MODE/INFO button until

repeat all appears. The current playing medium will be played repeatedly.

2. To terminate the function, press this button until the

icon is disappeared. Random play

1. During playback, press MODE/INFO button until

the display showing random. The tracks of the disc will be played in random order.

2. To terminate the function, press this button once.

Creating a track memory (For CD mode only) You can create a track memory of up to 20 tracks for the current CD in any order you choose and then play them back in that sequence. A track may be stored more than once. Program is only possible in the stop position. Selecting and storing tracks 1 Press »PROG/MEM/STOP« to call up the function. in stop mode. 2 Select the track by pressing »DOWN « or »UP button 3 Press »PROG/MEM/STOP« button to save the track into the program list. 4 To store more tracks, repeat steps 2 to 3.ENGLISH

Playing back a track memory 1 Start the track memory by pressing PLAY/PAUSE/ SEL – Playback begins with the first programmed file or track. 2 Press »PROG/MEM/STOP .« button to end playy- back. 3 To play the track memory again, press »PROG/MEM/STOP« button once, then press

Changing the track selection

1. In stop mode, keep briefly pressing »PROG/

MEM/STOP« button until the number of the track you want to replace appears in the display.

2. Select the number of the new track by pressing

ENGLISH SPECIAL FUNCTIONS _________________________ Deleting all settings (Reset) The function enables you to reset all the custom set- tings back to the default settings. All settings are lost when you do this. 1 Switch on the device to DAB or FM mode.

2. Pressing and holding the PLAY/PAUSE/SEL but-

ton, the LCD will show the menu of the device. 3 Press the UP or DOWN button to “Factory”, then press PLAY/PAUSE/SEL to confirm entering fac- tory reset menu.

4. If you want to execute factory reset, press the UP or

DOWN button to choose “Yes” to reset all the user settings.

5. The display will show “Restart” for a while to reset

all the settings. Checking software version

1. Switch on the device to DAB or FM mode.

2. Pressing and holding the PLAY/PAUSE/SEL but-

ton, the LCD will show the menu of the device.

3. Press the UP or DOWN button to “SW ver”, then

press PLAY/PAUSE/SEL to check the software ver- sion of the device.ENGLISH
