USER MANUAL U44406NDP4K6B Tripp Lite

Models: U444-06N-HD4K6B

(USB Type-C to HDMI),

U444-06N-DP4K6B, U444-06N-DP4K6W

(USB Type-C to DisplayPort)

USB Type-C and USB-C are trademarks of

USB Implementers Forum

Espanol 9 • Français 16 • Pycckn 23

PROTECT YOUR INVESTMENT!

Register your product for quicker service and ultimate

peace of mind. You could also win an ISOBAR6ULTRA

surge protector—a $100 value!

www.triplite.com/warranty

TRIPP·LITE

Manufacturing

Eaolln

1111 W. 35th Street, Chicago, IL 60609 USA

www.triplite.com/support

Copyright © 2017 Tripp Lite. All rights reserved.

All trademarks are the property of their owners.

Product Features

• Add an additional 4K HDMI or DisplayPort™ monitor via the USB-C or Thunderbolt™ 3 port on your laptop, tablet or other device
  Supports USB DisplayPort Alternate Mode, allowing you to transmit an audio/video signal via the USB Type-C port on your smartphone, tablet, Ultrabook or computer
• U444-06N-HD4K6B supports HDMI 2.0a video resolutions up to 4096 x 2160 (4K x 2K) @ 60 Hz as well as HDCP 2.2 compatibility
• U444-06N-DP4K6B and U444-06N-DP4K6W supports video resolutions up to 3840 x 2160, UHD 4K (4K x 2K) @ 60 Hz
  Supports 24-bit Deep Color (8 bits per channel) max
  Supports max per lane data transfer rates of 5.4 Gbps (HBR2), 2.7 Gbps (HBR) and 1.62 Gbps (RBR)
  Supports 7.1 surround sound audio
  Thunderbolt 3 port compatible
• Specifically designed for use with the MacBook®, Google Chromebook Pixel™ and USB Type-C supported computers

2

Product Features

• Slim design is perfect for travel and stores easily in your laptop bag when not in use
• Plug-and-Play; no software or drivers required

Package Contents

• U444-06N-HD4K6B, U444-06N-DP4K6B or U444-06N-DP4K6W
• Owner's Manual

System Requirements

• USB Type-C or Thunderbolt 3 device that supports USB DisplayPort Alternate Mode
• DisplayPort or HDMI monitor

Optional Accessories

P568-Series High-Speed HDMI Cables
- P569-XXX-CERT Premium High-Speed Cables with Gripping Connectors
P580-Series DisplayPort Cables

Installation

1. Connect the USB Type-C connector on the adapter to the USB Type-C port on your smartphone, tablet, Ultrabook or computer.
2. Connect the DisplayPort or HDMI port on the adapter to a monitor using a DisplayPort or HDMI cable (such as Tripp Lite's P580-Series DisplayPort cables or P568-Series HDMI cables).
3. The video image will appear on the add-on monitor. Customize how video is displayed on the add-on monitor using your device's display settings.

Specifications

	U444-06N-HD4K6B	U444-06N-DP4K6B / U444-06N-DP4K6W
Connectors-Input
USB USB-C (Male)
Connectors-Output
Ethernet HDMI (Female) DisplayPort (Female)
Video
Maximum Resolutions	4096 x 2160, UHD 4K, @ 60 Hz	3840 x 2160, UHD 4K, @ 60 Hz
Color Depth 24-bit Deep Color (8 bits per channel)
Environmental
Operating Temperature -4° to 158°F (-20° to 70°C)
Storage Temperature -4° to 185°F (-20° to 85°C)
Relative Humidity 5% to 90% RH, Non-Condensing

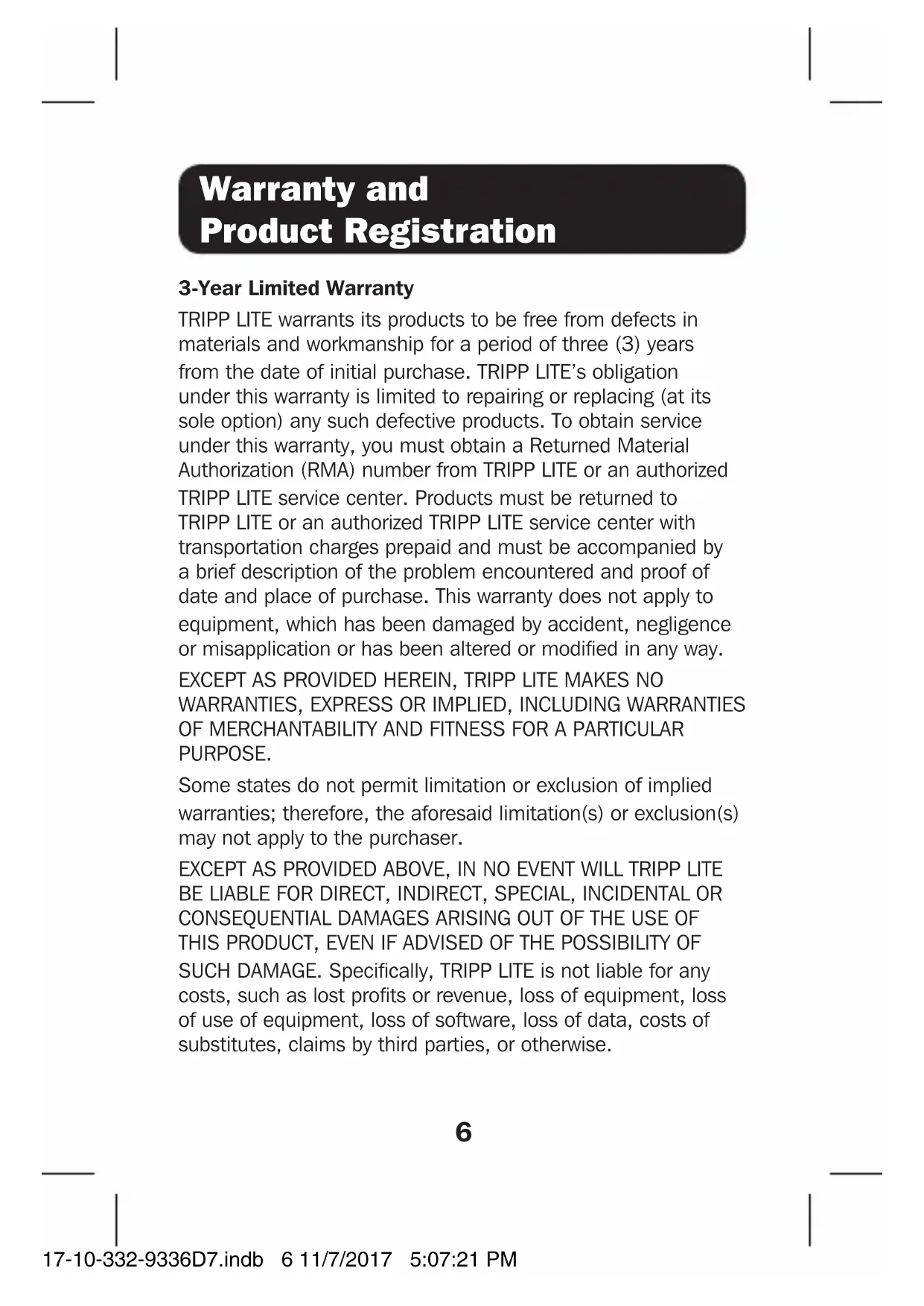

Warranty and Product Registration

3-Year Limited Warranty

TRIPP LITE warrants its products to be free from defects in materials and workmanship for a period of three (3) years from the date of initial purchase. TRIPP LITE's obligation under this warranty is limited to repairing or replacing (at its sole option) any such defective products. To obtain service under this warranty, you must obtain a Returned Material Authorization (RMA) number from TRIPP LITE or an authorized TRIPP LITE service center. Products must be returned to TRIPP LITE or an authorized TRIPP LITE service center with transportation charges prepaid and must be accompanied by a brief description of the problem encountered and proof of date and place of purchase. This warranty does not apply to equipment, which has been damaged by accident, negligence or misapplication or has been altered or modified in any way.

EXCEPT AS PROVIDED HEREIN, TRIPP LITE MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

Some states do not permit limitation or exclusion of implied warranties; therefore, the aforesaid limitation(s) or exclusion(s) may not apply to the purchaser.

EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL TRIPP LITE BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF THIS PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specifically, TRIPP LITE is not liable for any costs, such as lost profits or revenue, loss of equipment, loss of use of equipment, loss of software, loss of data, costs of substitutes, claims by third parties, or otherwise.

Warranty and Product Registration

Product Registration

Visit www.triplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*

• No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

FCC Notice, Class B

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Warranty and Product Registration

Any changes or modifications to this equipment not expressly approved by Tripp Lite could void the user's authority to operate this equipment.

WEEE Compliance Information for Tripp Lite Customers and Recyclers (European Union)

Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers buy new electrical and electronic equipment from Tripp Lite they are entitled to:

• Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country)
• Send the new equipment back for recycling when this ultimately becomes waste

Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended.

Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.

1111 W. 35th Street, Chicago, IL 60609 USA www.triplite.com/support

U444-06N-DP4K6B, U444-06N-DP4K6W

(USB Type-C a DisplayPort)

1111 W. 35th Street, Chicago, IL 60609 EE UU

www.triplite.com/support

1111 W. 35th Street, Chicago, IL 60609 EE UU www.triplite.com/support

U444-06N-DP4K6B, U444-06N-DP4K6W

Manufacturing Excellence.

1111 W. 35th Street, Chicago, IL 60609 USA

www.triplite.com/support

1111 W. 35th Street, Chicago, IL 60609 USA www.triplite.com/support

PykoBODCTBO N0Ib30BaTeJia

AdaanTepbI ДЯ дисплeeB cpa3beMaMn USB Type-CTM

Mодели: U444-06N-HD4K6B

(USB Type-C/HDMI),

U444-06N-DP4K6B, U444-06N-DP4K6W

(USB Type-C / DisplayPort)

USB Type-C n USB-C yBnIOTcTopRObIMN 3HaKaMn KOMNaHm

USB Implementers Forum

English 1 • Espanol 9 • Français 17

1111 W. 35th Street, Chicago, IL 60609 USA

www.triplite.com/support

OxpanyetcA BTOPCKIM npabOM © 2017 Tripp Lite. Pepeneutka 3anpeuaetc.

Bce ToproBbIe 3HaKn YBaJIaHTcCo6CTBeHHOCTbIO CBOUX BlaJeIbIeB.

XapakTepnCTnKn npOdyKta

Bo3MOxHocTb noDKIIOUeHnJa OoONHITeBHOrO MOHTopa 4K HDMI nnn DisplayPortTM uepe3 nopT USB-C nn ThunderboltTM 3 npTaTnBHorO KOMNbTePa, PnaHseTa nn dpyrOrO yCTpOInCTBa
- Повдержka рекиma USB DisplayPort Alternate, поЗвоглоча пераДаВаТыayнo-/Видесигнан чeрз пот USВ Type-C смарфona, палшета, устpoиства Ultrabook Или Компьютepa
- MoDénlb U444-06N-HD4K6B noДeρЖиВаeТ вдeopa3peшпн HDMI 2.0a до 4096 x 2160 (4K x 2K) пр n 60 Г, a тakже obecneuВaet coBmecTUMocTb c HDCP 2.2
- MoDéni U444-06N-DP4K6B n U444-06N-DP4K6W noDéperЖиBaet BnDEopa3peшени до 3840 x 2160, UHD 4K (4K x 2K)При 60 Гц
- Пордержka до 24-6иТОВOrO KoДированя CBeTa (no 8 6иТ ha KaHaI)
- Пордерхка скоростеи пердачданньх 5,4 ГNT/c (HBR2), 2,7 ГNT/c (HBR) и 1,62 ГNT/c (RBR) в кадом канале
- Повдержka aydinoформata obbeMHoro 3ByaHa7 7.1 surround sound
Cobmectnmoctb c npTaMu Thunderbolt 3
- Ппебанчени Спсиально Дд ИСпОьЗВаня СустpoистВамн MacBook, Google Chromebook Pixel™ и КOMпьЮтepамс с подержков ИNTерфейca USB Type-C

XapakTepnCTnKn npOdyKta

TapaHTnHbIe 06aTeJIbCTBa

OrpaHnueHHa rapaHTn3 roD

KoMaHnTRIPP LITE rapaHTnpyET OTCytCTBVE DeEeKTOB MaTePnaIOB n 3rOToBJIeHn B TeueHne Tpu (3) rOda c MOMeHTa nepBOHaUaNbHOJ NOKynKn. 06a3aTeIbCTBa KOMnTRIPP LITE no HactoJe rapaHTnOrpaHnUBaOTcpeMOHTom IIN 3aMeHoi (no ee eDInHOuNCHOMy yCMOTpeHNO) IIO6bIX TaKHX DeEeKTHbIX I3DeiN. IIn naOpUeHn ycnyr no daHNo rapaHTnN Heo6xOdmo NOLyHTb Homep Returneded Material Authorization (RMA - pa3peSeHne Ha BO3BpaT MaTePnaIOB) ot KOMnHn TRIPP LITE nn ee aBTopu3OBaHHoro cepBnCHoro ueHTpa. I3DeiNra DOnXHbI 6bITb BO3BpaUeHb B KOMnHIO TRIPP LITE nn aBTopu3OBaHHbI cepBnCHbI ueHTp TRIPP LITE c npedonlatoN TpaHCnOpTHbIX paCXoIDOB IN COnpoBOXDaTbCRA KpaTKM ONcaHem Bo3NKWe np6IeMbI IN DOkUMeHTOM, NOdTBePxxDAIOUIM DaTy IN MeTo erO npio6peTeHn. DeiCTBne HACToNe rapaHTnHe paCnpocTpaHReTcRa Na 6opUdoBaHne, NOBpeXdEHHOe B pe3yIbTaTe abapn, He6peXHOrO o6paUeHn IIN He npaBnIBHOrO nCpOJB3OBaHHa, a TaKKe BNDOn3MeHeHHoe KaKIM 6bl To Hn 6blIO 6pa30m.

3A NCKJIIOUYEHNEM IPEJDCMOTPEHHbIX 3DECb CJUYAEB KOMNAHNA TRIPP LITE HE IPEIOCTABJRET KAKNX-JIIBO YBHBIX JIN IOJPA3YMEBAEMbIX TAPAHNTI, BKJIIOUAYI TAPAHNTI KOMMEPUECKO IPIROJHOCTN IN IPIROJHOCTN JIAY KAKOIJIIO BO KOHKPETHOI CEII.

B HekoTopbix wTaTax/rocydapCTbax orpaHueHne nn NcknOueHne noPa3yMeBaemblx rapaHTn He onnyckaetc; cIeIOBaTeNbHo, BbiyeKa3aHHe(-bie) orpaHueHne(-r) nn NcknOueHne(-r) MoryT He paCnpocTpaHraTbcHa nOKynaTeJI.

3A NCKJIIOUCHHEM INPEYCMOTPEHHbIX BbIe CJIyAEB KOMNAHn TRIPP LITE HN IPIKIN KAKNX OBCTOATEJBCTBAX HE HECET OTBETCTBEHHOCTN 3A IIPRMBIE, KOCBEHHbIE, CJIyAHhIE INI NIOBOUHbIE YbItKN JIN60 YbItKN, OIPEJEJEMbIE OCOBIM NOCTOATEJBCTBAMN, BO3HNIKAIOUIE BCBA3N C NCIOLb3OBAHnEM DAHHORO IN3DEJIIN, DAXE B CJIyAe EE INHΦOPMUPOBAHnO BO3MOXHOCTN HACTUYIIEHnRA TAKNX YbItKOB. B qactHOCTn, KOMNaHn TRIPP LITE He Hecet OTBeTCTBEHHOCTN 3a KaKne-JIN60 IN3dePjKKn, TAKNE KaYNJuSEHNHbIe pni6blnn INI DOxOdbI, NoTepr o6OpUDoAHn, NoTepr BO3MOXHOCTN INCNOlb3OBAHnO bOpudOBAHn, NoTepr npOrpamMHOrO o6cneueHn, NoTepr DaHHbIX, paCXOdbI Ha 3aMeHHTeIN, ypeynilpoBaHne npeTeH3n TpeTBnx INIu INp.

TapaHTnHbIe 06aTeJIbCTBa

Hhopmaunno BbinoHneHn Tpe6oBaHn DnpeKtBbl WEEE nnyokynateneu nepepa60TuNKOB npOyKcUN KOMnaHn Tripp Lite (YBnIooXcpe3ndentamN Ebponeckoro co103a)

Corgnacno noIooxeHnM DnpeKtNBbl 06 yTuIN3aunn OTXoOB
3neKtpueckoro n 3neKtpoHHoro 6opuydoBaHna (WEEE) n
ncpOJIHTeBbIX paCnpopJxKeHn no ee npImeHnIO, npn pOKynke
noTpe6nteMaHn HOBOrO 3neKtpueckoro nn 3neKtpoHHoro 6opuydoBaHna
PpOn3BODCTBa KOMNaHn Tripp Lite OHn nonuayoiT npaBOHa:

-Пюджустаро оборудованя по пинцуну "ODIN 3a OIN" n/nnn Ha эКВИБАЛЕНТСОСНОВ (В 3aBИСМОСТN OT KOHКрТСОCTPанbl)
- OtnpaBky HOBoro obopydoBaHnHa nepepa60TKy nocne oKoHuaTeNbHO Bblpa60TK erO pecypca

He pekomehnyetcnaonb30BaHne daHHoro obopyoBaHnB CnCTeMax Kne3Heo6ecneueHnra, rde erO BbIXoN 3Ctpoa PpeIIOJoxHTeNbHO MoXeT npNBecTN Mepe6oam B pa6oTe o6OpydoBaHnKn3Heo6ecneueHn nnB 3HaHTeNbHoMpe CHn3ntb erO 6e30NaChOCTb nnn 3fKeKTHBHOCTb.

KoMaHnra Tripp Lite noctoHNO coBepseHCTByet cBOIO npOdykuu. B CBa3n C 3TUM BO3MOxHNO n3MeHeHne TexHnuecknx xapaKtepncTik 6e3 npEdbapntelbHoro yBeDOMLeHnra.

1111 W. 35th Street, Chicago, IL 60609 USA www.triplite.com/support
