USER MANUAL T013001POE Tripp Lite

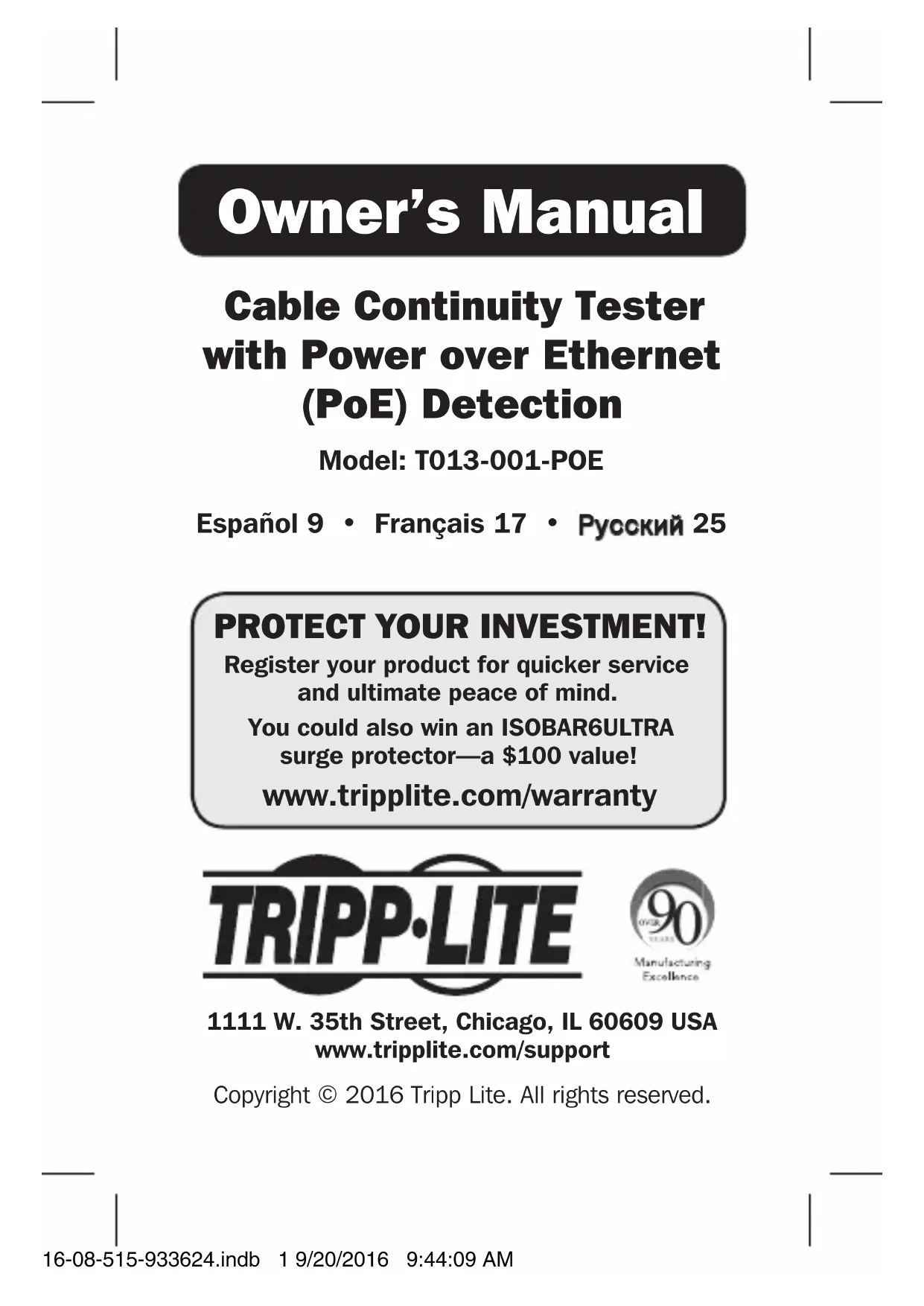

Owner’s Manual Cable Continuity Tester with Power over Ethernet (PoE) Detection Model: T013-001-POE Español 9 • Français 17 • 25 PROTECT YOUR INVESTMENT! Register your product for quicker service and ultimate peace of mind. You could also win an ISOBAR6ULTRA surge protector—a $100 value! www.tripplite.com/warranty 1111 W. 35th Street, Chicago, IL 60609 USA www.tripplite.com/supportCopyright © 2016 Tripp Lite. All rights reserved.16-08-515-933624.indb 1 9/20/2016 9:44:09 AM2 Package Contents Product Features

  • All-in-One cable tester combines a Main Tester unit with a Removable Remote Tester unit
  • Test cable connectivity to determine a connection, no connection, short, or crossed connection
  • Capable of testing RJ11 and RJ45 cables
  • Test live Ethernet cables to determine if power and data are present
  • Identify the Power Sourcing Equipment type in a network (Endspan, Midspan or both)
  • Identify the PoE standard used – IEEE 802.3af (15.4W PoE) or IEEE 802.3at (30W PoE+)
  • Compact design specifically tailored for system integrators and installers 16-08-515-933624.indb 2 9/20/2016 9:44:09 AM3 Continuity Testing Notes:
  • Electrified cabling cannot be used when testing continuity.
  • If LED lights appear weak or if the tester unit has not been used for an extended period, replace the 9V battery. When testing an uninstalled patch cable, the Main and Remote testers may remain connected. When testing installed cable, the Remote Tester will need to be removed from the Main Tester. Connect one end of the cable to the appropriate connector on the Main Tester and the other end of the cable to the appropriate connector on the Remote Tester. If this is the first time using the product, insert a 9V battery into the Main Tester unit’s battery compartment. After inserting the battery, initiating testing is as simple as connecting the desired cable and flipping the unit’s On/Off switch. Turning the switch to the On position will cause the LEDs to blink fast during testing, while turning the switch to S will cause LEDs to blink slow. Otherwise, testing is the same for both. 16-08-515-933624.indb 3 9/20/2016 9:44:09 AM4 Continuity Testing When a connection is established between one end of the cable to the other, the Pin LEDs will flash in succession to indicate the pins for which a connection is found (see the bullets below for pin listings). Pins that do not illuminate for a cable/connector are open.
  • RJ45 (UTP) – Pins 1 through 8 should be connected
  • RJ45 (STP) – Pins 1 through 8 and the S/G pin should be connected
  • RJ11 – RJ11 cables can be 2-wire, 4-wire, or 6-wire. 2-wire RJ11 cables use pins 3 and 4; 4-wire cables use pins 2-5; and 6-wire cables use pins 1-6. Open Connection If wires in a cable are not connected from one end to the other, the Pin LEDs for those wires will not illuminate on either the Main or Remote Testers. If only one wire is connected, none of the Pin LEDs on the Main and Remote testers will illuminate. 16-08-515-933624.indb 4 9/20/2016 9:44:09 AM5 Continuity Testing No Connection When a connection cannot be found between the connectors of a cable being tested, none of the Pin LEDs on the Main and Remote Testers will illuminate. As a result, either the cable is not plugged into the connector on the Remote Tester or no intact pin connections are established from one end of the cable to the other. Crossed If cable wires are crossed—such as in a crossover cable—the Pin LEDs of any pin(s) where a connection is found will illuminate to indicate which pins are crossed. Short If there is a short in two or more wires, the Pin LEDs for the corresponding wires will illuminate on the Main Tester only. 16-08-515-933624.indb 5 9/20/2016 9:44:09 AM6 PoE Detection and Identification Note: If LED lights appear weak or if tester has not been in use for an extended period, replace the 9V battery.

1. If this is the first time using the product,

insert a 9V battery into the Main Tester unit’s battery compartment.

2. Connect the open end of a LAN cable

coming from a PoE source to the Main Tester unit’s PoE port.

3. Turn the Main tester unit switch to the On

4. Possible testing results are shown in the

Receiving Midspan (45/78) power using the IEEE 802.3af (15.4W PoE) standard X X Receiving Midspan (45/78) power using the IEEE 802.3at (30W PoE+) standard X X Receiving both Endspan (12/36) and Midspan (45/78) power using the IEEE 802.3af (15.4W PoE) standard X X X X Receiving both Endspan (12/36) and Midspan (45/78) power using the IEEE 802.3at (30W PoE+) standard 16-08-515-933624.indb 6 9/20/2016 9:44:09 AM7 Warranty and Product Registration 1-Year Limited Warranty TRIPP LITE warrants its products to be free from defects in materials and workmanship for a period of one (1) year from the date of initial purchase. TRIPP LITE’s obligation under this warranty is limited to repairing or replacing (at its sole option) any such defective products. To obtain service under this warranty, you must obtain a Returned Material Authorization (RMA) number from TRIPP LITE or an authorized TRIPP LITE service center. Products must be returned to TRIPP LITE or an authorized TRIPP LITE service center with transportation charges prepaid and must be accompanied by a brief description of the problem encountered and proof of date and place of purchase. This warranty does not apply to equipment, which has been damaged by accident, negligence or misapplication or has been altered or modified in any way. EXCEPT AS PROVIDED HEREIN, TRIPP LITE MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Some states do not permit limitation or exclusion of implied warranties; therefore, the aforesaid limitation(s) or exclusion(s) may not apply to the purchaser. EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL TRIPP LITE BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF THIS PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specifically, TRIPP LITE is not liable for any costs, such as lost profits or revenue, loss of equipment, loss of use of equipment, loss of software, loss of data, costs of substitutes, claims by third parties, or otherwise. PRODUCT REGISTRATION Visit www.tripplite.com/warranty today to register your new Tripp Lite product. You’ll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*

  • No purchase necessary. Void where prohibited. Some restrictions apply. See website for details. FCC Notice, Class B This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 16-08-515-933624.indb 7 9/20/2016 9:44:09 AM8 Warranty and Product Registration Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
  • Reorient or relocate the receiving antenna.
  • Increase the separation between the equipment and receiver.
  • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
  • Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications to this equipment not expressly approved by Tripp Lite could void the user’s authority to operate this equipment. WEEE Compliance Information for Tripp Lite Customers and Recyclers (European Union) Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers buy new electrical and electronic equipment from Tripp Lite they are entitled to:
  • Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country)
