USER MANUAL HC60DCXB3 Fisher & Paykel

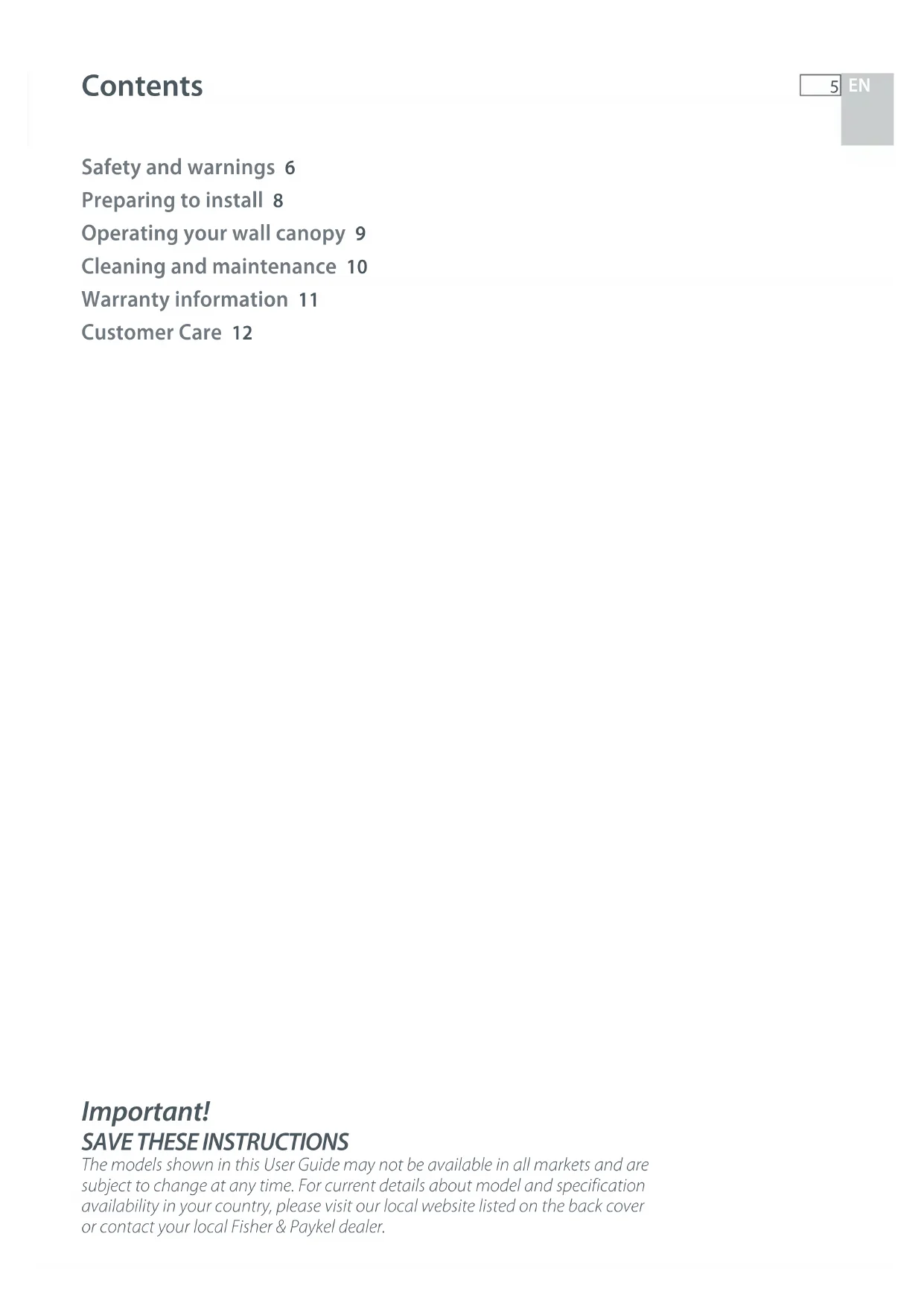

Contents Safety and warnings 6 Preparing to install 8 Operating your wall canopy 9 Cleaning and maintenance 10 Warranty information 11 Customer Care 12 Important!

SAVE THESE INSTRUCTIONS

The models shown in this User Guide may not be available in all markets and are subject to change at any time. For current details about model and specification availability in your country, please visit our local website listed on the back cover or contact your local Fisher & Paykel dealer.6

Safety and warnings WARNING! Electrical Shock Hazard All electrical work must be done in accordance with local and/or national electrical codes as applicable. For safety, this product must be earthed. If you are unfamiliar with methods of installing electrical wiring, employ the services of a qualified electrician. Turn off power at service entrance before installing wiring or servicing this product. WARNING!

(HC90) 19 kg (HC120) Weight Hazard The wall canopy is heavy. Please ensure adequate care is taken when installing the wall canopy to prevent personal injury. The wall canopy must be installed onto a solid wall, stud, beam or truss. Weight of the product is

13.1 kg (HC60) / 14.8 kg (HC90) / 19 kg (HC120).

Important safety precautions Please read the entire set of instructions before installing the wall canopy. Ducting accessories are not supplied. All ducting must comply with local requirements and building codes. Before connecting any pipes, consult municipal ordinances to ensure that any applicable regulations concerning the discharge of exhaust air are adhered to and request permission from the person in charge of the building. Exhaust air must not be discharged into an existing flue that is used for exhausting fumes from appliances burning gas or other fuels. There must be adequate ventilation of the room when the wall canopy is used at the same time as appliances burning gas or other fuels. (A partial vacuum in the room could result in too high a concentration of gas in the air). When the canopy is turned on at the same time as other appliances powered by energy other than electricity, the air outlet must not be greater than 4 Pa (4x10-5 bar). The minimum distance between the cooktop surface and the filters of the wall canopy shall be 600 mm, or 650 mm if installed over a gas cooktop (except for wall canopy availed to Australia market, 600mm). Stainless steel is very easily damaged during installation if abraded or knocked by tools. It is recommended to protect the top of the canopy with cardboard or polystyrene during the installation to minimise the risk of damage occurring. To comply with electrical safety regulations, this canopy must be plugged into a socket near the appliance. The socket must be accessible, or have an accessible isolating switch, to enable the end user to isolate the canopy from the power for the purpose of internal cleaning or maintenance.7

Safety and warnings A power outlet should be within 750 mm of the motor assembly and can be either on the wall, behind the chimney or in the ceiling. Always switch the power off prior to installation, servicing or cleaning the wall canopy. If the supply cord of this equipment is damaged it must only be replaced by the manufacturer, its service agent or similarly qualified person in order to avoid a hazard. Children must be supervised to ensure that they do not play with the hood. This canopy is not designed to be used by people (including children) with reduced physical, sensorial or mental capacity, or who lack experience or knowledge about it, unless they have had supervision or instructions on how to use the hood by someone who is responsible for their safety. You must read the details concerning the method and frequency of cleaning. There is a fire risk if cleaning is not carried out in accordance with the instructions. Never leave frying food unattended since grease can overheat and catch fire. The risk of fire is even greater in the case of used oil. Do not flambé under the wall canopy. Never use the wall canopy without the filters in place. During climatic conditions causing electrical interference, it is possible that the device may stop working. By switching the device OFF and ON the device will resume normal operation safety. During an electrostatic discharge (ESD) it is possible that the device will stop working. By switching the device OFF and ON the device will again work as intended. There will be no risk hazard presenting in the product. CAUTION: Accessible parts may become hot when used with cooking appliances.8

Preparing to install Please read this instruction manual carefully in order to obtain the best results from the use of the wall canopy. If you need any technical help or would like more information about our products, please do not hesitate to contact your local Fisher & Paykel retailer or call our Customer Care Centre. Preparing the wall canopy for installation Before installing your wall canopy: Please read the instructions carefully. Unpack the canopy and check that all functions are working. Ensure that the voltage (V) and the frequency (Hz) indicated on the serial plate match the voltage and frequency at the installation site. Check that the area behind the installation surface to be drilled is clear of any electrical cables or pipes, etc. The stainless steel and glass surfaces of the canopy are very easily damaged during installation if grazed or knocked by tools. Please take care to protect the surfaces during installation. Protect the cooktop surface below with cardboard, or the like, to prevent damage occurring whilst the wall canopy is being installed above. The manufacturer shall not be liable for failure to observe all safety regulations in force for the correct and normal operation of electrical parts. Ducting options Recirculation To recirculate your wall canopy, please purchase a recirculation kit (part no. 791820). The recirculation kit is required to channel the air out through the side-vents at the top of the flue. Note: a ducting hole is not required in the wall or ceiling if a recirculation kit is fitted. Ducting For ducted installation, it is recommended that you use 150 mm diameter, rigid or semi-rigid ducting. This will require a 160 mm (min) round hole in the ceiling, which the decorative chimney will cover. Care should be taken to align the canopy with the decorative chimney allowing sufficient clearance to accommodate the ducting. For optimal efficiency, use smooth-wall, solid galvanized or plastic ducting for reduced noise and increased airflow. Flexible ducting should only be used as a last resort (ie in difficult installations) and if used, ensure that it is pulled tight. The smoother, straighter and shorter the ducting the quieter and more efficient the wall canopy will perform. All ducting must comply with local requirements and building codes.9

Operating your wall canopy Touch control panel This panel is located on the front part of the hood and includes the following functions: Filter cleaning alert indicator (ref. A). Activated regularly to alert of the need to clean filters and deactivated with a single press. Timer button (ref. B). The fan will operate for 15 minutes before automatically turning off. Light button (ref. C). Turns the lights ON and OFF. Press and hold button to adjust the level of light. Power ON/OFF (ref. D). Fan speed buttons (1st, 2nd and 3rd speed) (Ref. E). Fig.1 Touch control panel A B C D E Using the automatic timer To operate the automatic timer:

Press the button for two seconds until the LED light blinks.

The timer will work for 5 minutes at the current speed and 5 minutes at each of the lower speeds until coming to a complete stop. At the end of this time, the motor will stop and the light will go out. To cancel the timer: press the timer button once and the motor will stop.10

Cleaning and maintenance Important! Never use abrasive or oil based cleaners Maintenance Before performing any cleaning or maintenance on your wall canopy, ensure that the power supply is switched OFF to the hood. The wall canopy should be cleaned regularly using a mild, liquid detergent to avoid a build up of grease occurring. Grease deposits are corrosive which can cause damage to your wall canopy. Note: in areas of high humidity or coastal environments, cleaning should be carried out frequently. Aluminium filters Depending on use, and at least once a month, the aluminium grease filters should be removed and cleaned in a dishwasher or with hot soapy water. If washed in a dishwasher, the filters should be placed in an upright position to prevent food from falling on them. After rinsing and drying, replace the filters by reversing the following instruction for removal. Note: some discolouration of the frames may occur. Removing the aluminium filters:

Pull the relative catch, tilting it downwards until it disengages from the supports.

Reverse these instructions when refitting the filters. Carbon filters Active carbon filters are disposable items designed to remove grease and odours from cooking vapours before the air is channelled back into the kitchen. The active carbon filters must be replaced periodically to work properly, at least once every three months, depending on the frequency with which the wall canopy is used. Accessory Part number Accessory Part number Recirculation kit 791820 Replacement aluminium filter 791824 Replacement carbon filter 791823 Replacement Light bulb 791822 Replacing the light bulb Please note replacement bulbs are not covered by warranty.

Before changing the light bulb, ensure the wall canopy is disconnected from the power supply.

Remove the aluminium grease filters.

Unscrew and remove the easy clean interior panel.

Replace light bulbs with maximum 50 Watts.

Refit the easy clean interior panel and the aluminium filters.11

Warranty information You automatically receive a 2 year Manufacturer’s Warranty with the purchase of this Product covering parts and labour for servicing within the country of purchase. Fisher & Paykel undertakes to: Repair or, at its option, replace without cost to the owner either for material or labour any part of the Product, the serial number of which appears on the Product, which is found to be defective within TWO YEARS of the date of purchase. Note: this Warranty is an extra benefit and does not affect your legal rights. This Warranty DOES NOT cover

Service calls which are not related to any defect in the Product. The cost of a service call will be charged if the problem is not found to be a Product fault. For example:

1. Correcting the installation of the Product.

2. Instructing you how to use the Product.

3. Replacing house fuses or correcting house wiring or plumbing.

4. Correcting fault(s) caused by the user.

5. Noise or vibration that is considered normal, eg fan sounds or user warning beeps.

6. Correcting damage caused by pests, eg rats, cockroaches, etc.

Defects caused by factors other than:

1. Normal domestic use or

2. Use in accordance with the Product’s User Guide.

Defects to the Product caused by accident, neglect, misuse or Act of God.

The cost of repairs carried out by non-authorised repairers or the cost of correcting such unauthorised repairs.

Normal recommended maintenance as set out in the Product’s User Guide.

Repairs when the appliance has been dismantled, repaired or serviced by other than a Fisher & Paykel Authorised Repairer or the selling dealer.

Pick-up and delivery.

Transportation or travelling costs involved in the repair when the Product is installed outside the Fisher & Paykel Authorised Repairer’s normal service area. This Product has been designed for use in a normal domestic (residential) environment. This Product is not designed for commercial use (whatsoever). Any commercial use by a Customer will affect this Product’s Warranty. Service under this Manufacturer’s Warranty must be provided by a Fisher & Paykel Authorised Repairer (refer to the ‘Customer care’ section at the back of this book). Such service shall be provided during normal business hours. This Warranty certificate should be shown when making any claim. For Australian Customers This Warranty is an extra benefit and does not affect your legal rights. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. Please keep this User Guide in a safe place.12

Customer Care Before you call for service or assistance… Check the things you can do yourself. Refer to your User Guide and check:

Your appliance is correctly installed.

You are familiar with its normal operation. If after checking these points you still need assistance, please refer to your nearest Fisher & Paykel Authorised Repairer, or contact us through our local website listed on the back cover. In New Zealand if you need assistance...* Call your Fisher & Paykel retailer who is trained to provide information on your appliance, or if we can be of any further help, please contact our Customer Care Centre, Toll Free: 0800 FP CARE or 0800 37 2273 Fax: (09) 273 0656 Email: customer.care@fp.co.nz Postal address: PO Box 58732, Botany, Manukau 2163 If you need service...* Fisher & Paykel has a network of independent Fisher & Paykel Authorised Repairers whose fully trained technicians can carry out any service necessary on your appliance. Your dealer or our Customer Care Centre can recommend a Fisher & Paykel Authorised Repairer in your area. In Australia if you need assistance...* Call the Fisher & Paykel Customer Care Centre and talk to one of our Customer Care Consultants. Toll Free: 1 300 650 590 Fax: (07) 3826 9298 Email: customer.care@fp.com.au Postal Address: PO Box 798, Cleveland QLD 4163 In United Kingdom if you need assistance...* Phone: (0845) 066 2200 Fax: (0845) 331 2360 Email: customer.care@fisherpaykel.co.uk Postal address: Fisher & Paykel Appliances Ltd, Maidstone Road, Kingston, Milton Keynes, Buckinghamshire, MK10 0BD13

Customer Care For the rest of the world…* Call your Fisher & Paykel Retailer/Dealer from whom you purchased the product. They are trained to provide information on your appliance. If we can be of any further help, please contact us on: Phone: +64 9 273 0660 Fax: +64 9 273 0580 Email: international.enquiries@fp.co.nz Postal Address: Fisher & Paykel Appliances Ltd, PO Box 58550, Botany, Manukau 2163, New Zealand If you need service...* Fisher & Paykel has a network of qualified Fisher & Paykel Authorised Repairers responsible for servicing only Fisher & Paykel branded appliances. Our Customer Care Centre can recommend a qualified Fisher & Paykel Authorised Repairer in your area. *If you call, write or contact our website please provide: your name and address, model number, serial number, date of purchase and a complete description of the problem. This information is needed in order to better respond to your request for assistance. Product details Fisher & Paykel Appliances, Ltd Model/Serial No. Date of Purchase Purchaser Dealer Suburb Town Country1415
