CS16AC - Electric charging station Tripp Lite - Free user manual and instructions

Product Type	Electric Charging Station (charging cabinet for mobile devices)
Brand	Tripp Lite
Model	CS16AC
Dimensions (H x W x D)	549 x 600 x 549 mm (21.6 x 23.63 x 21.6 in)
Net Weight	25 kg (55 lb)
Maximum Load Capacity	90 kg (200 lb) (stationary or mobile)
Input Power	120 V AC, 50/60 Hz, 12 A
Number of Output Outlets	16 NEMA 5-15R outlets
Maximum Total Power	720 W (16 outlets)
Electrical Protection	15 A circuit breaker
Power Cord Length	4.57 m (15 ft)
Housing Material	Metal (steel)
Mounting Configuration	Wall-mountable (19 in rack compatible), optional casters (model SRCASTER)
Security	Lockable front and rear doors, lockable side panels, key locks
Storage Capacity	Up to 16 devices (tablets) with adjustable shelf and dividers
Cable Management	Top and bottom cable access plates with grommets
Operating Temperature	0 °C to 40 °C (32 °F to 104 °F)
Operating Humidity	5 % to 95 % RH, non-condensing
Certifications	UL 60950 (U.S./Canada), NOM (Mexico), RoHS
Warranty	2-year limited
Optional Accessories	SRCASTER caster kit sold separately

Frequently Asked Questions - CS16AC Tripp Lite

What types of devices can I charge with the CS16AC station?

The CS16AC station is designed to charge and store up to 16 mobile devices such as tablets, smartphones or other personal electronic devices that operate on mains power, via its 16 NEMA 5-15R outlets.

How do I mount the CS16AC station on the wall?

Wall installation requires a qualified electrician. Use the 16 keyhole slots on the back of the cabinet to attach M10 or 3/8 in bolts (not included). Ensure the wall can support the total weight (cabinet + devices). Consult the manual for drilling diagrams.

What is the maximum power consumption of the station?

The total power must not exceed 720 watts (12 A at 120 V). It is recommended to use a dedicated 20 A circuit to avoid overloads. Each individual outlet is limited to 12 A.

Are the doors and panels lockable?

Yes, the front and rear doors have key locks. The side panels lock with an L-shaped lever accessible from the inside. Keys are provided with the cabinet.

Can I use the station on casters?

Yes, the optional caster kit SRCASTER (sold separately) allows the station to be moved. The casters attach to the pre-drilled holes on the base. Follow the kit instructions for secure installation.

How do I organize the cables inside the cabinet?

Route the power cords through the retaining rings on the storage shelf to prevent them from slipping. Use the top and bottom cable access plates to route the main power cord to a wall outlet.

What are the dimensions of the storage shelf?

The shelf is 19 inches wide (standard rack format) and can hold up to 16 devices. It is depth-adjustable from 76 to 521 mm (3 to 20.5 in) to accommodate different tablet sizes.

Is the CS16AC station compatible with 230 V power?

No, the built-in AC charger is designed for 120 V AC, 50/60 Hz only. Use with a different voltage may damage the device and void the warranty.

How do I maintain the charging station?

Keep the cabinet in a controlled indoor environment, away from extreme humidity, flammable liquids, dust, and direct sunlight. Clean the exterior with a dry cloth. Do not use abrasive products.

What should I do in case of a failure or electrical problem?

First check the built-in circuit breaker (15 A) on the AC charger. If the problem persists, unplug the device and contact Tripp Lite support at www.tripplite.com/support for repair service under the 2-year warranty.

USER MANUAL CS16AC Tripp Lite

AC Device Charging Station

Models: CS16AC, CS32AC

Table of Contents

1. Important Safety Instructions 2
2. Overview 2
3. Feature Identification 3
4. Enclosure Installation 4

4.1 Preparation 4
4.2 Unpacking 4
4.3 Placement 4
4.4 Power Requirements 4

1. Wall Mounting the Enclosure 5

5.1 Mounting the CS16AC and CS32AC 5

1. Enclosure Configuration 5

6.1 Door Locks 5
6.2 Power Cord/Cable - 6

Access & Management

1. 16-Outlet AC Charger Unit 6

7.1 AC Charger Unit Features 6
7.2 Connecting Devices to the 6 AC Charger Unit

1. Adjusting Storage Shelf Dividers 7

8.1 Adjusting the CS16AC and 7 CS32AC Shelf Dividers

1. Specifications 7
   10.Optional Casters 7
   11.Storage and Service 8
   12.Warranty & Product Registration 8

Español 9

Français 17

PROTECT YOUR INVESTMENT!

Register your product for quicker service and ultimate peace of mind.

You could also win an ISOBAR6ULTRA surge protector—a \$50 value!

www.tripplite.com/warranty

TRIPP·LITE

Manufacturing Excellence.

1. Important Safety Instructions

SAVE THESE INSTRUCTIONS

This Manual contains instructions and warnings that must be followed during the installation and operation of the product described in this manual. Failure to comply may invalidate the warranty and cause property damage or personal injury.

AC Charger Unit:

• To remove the AC charger unit from the supply mains, the appliance inlet serves as a disconnect device.

• If any of the following situations arise, schedule an appointment to have your equipment inspected by a service technician:

• The equipment has been exposed to moisture

• The equipment has been dropped and damaged
• The equipment shows obvious signs of breakage

• The equipment is not functioning properly or is not functioning according to the instructions described in this Owner's Manual

• Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended.

• Do not use this equipment in the presence of a flammable anesthetic mixture with air, oxygen or nitrous oxide.

Enclosure Unit:

• Keep the enclosure in a controlled indoor environment, away from moisture, temperature extremes, flammable liquids and gasses, conductive contaminants, dust and direct sunlight.
• Leave adequate space at the front and rear of the enclosure for proper ventilation. Do not block, cover or insert objects into the external ventilation openings of the enclosure.
• The enclosure is extremely heavy. Use caution when handling the enclosure. Do not attempt to unpack, move or install it unassisted. Use a mechanical device such as a forklift or pallet jack to move the enclosure in the shipping container.
• Do not place any object on the enclosure, especially containers of liquid, and do not attempt to stack the enclosures.
• Inspect the shipping container and the enclosure for shipping damage. Do not use the enclosure if it is damaged.
• Leave the enclosure in the shipping container until it has been moved as close to the final installation location as possible.
• For wall-mounted installations, first make sure that the wall surface can safely support the combined load of the enclosure, equipment and all attached hardware and components.
• For floor installations, make sure the unit is placed in a structurally sound area capable of bearing the weight of the enclosure, all equipment that will be installed, and any other enclosures and/or equipment that will be installed nearby.
  • Enclosure must be installed by a qualified technician.
• Use suitable mounting means when installing to cinder block, concrete, drywall or wood studs.
• Use caution when cutting packing materials. The enclosure could be scratched, causing damage not covered by the warranty.
• Save all packing materials for later use. Repacking and shipping the enclosure without the original packing materials may cause product damage that will void the warranty.

If installing optional casters (SRCASTER—see page 7 for caster installation):

• Do not push the enclosure from the side panels to move it. Pushing from the side panels will cause a tipping hazard.
• When rolling the enclosure on its casters, always push it from behind; never pull it toward you.
• A rolling enclosure can cause personal injury and property damage if not properly supervised. If rolling the enclosure down a ramp is required, use extreme caution. Do not attempt to use ramps that have a slope grade greater than 12% .

2. Overview

Your charging station is an all-in-one solution for storing and charging for up to 16 (CS16AC) or 32 (CS32AC) devices. Housed in a standard, 19-inch rack enclosure, your charging station can be conveniently mounted to walls as well as be configured for desktop or floor placement (with optional rolling casters, sold separately). To prevent theft and device tampering, your tablet charging station enclosure comes equipped with locking steel doors and side panels.

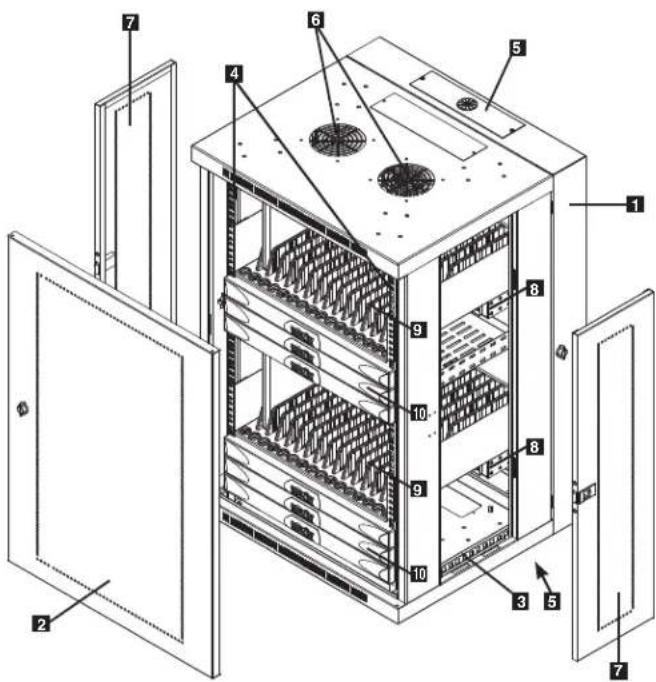

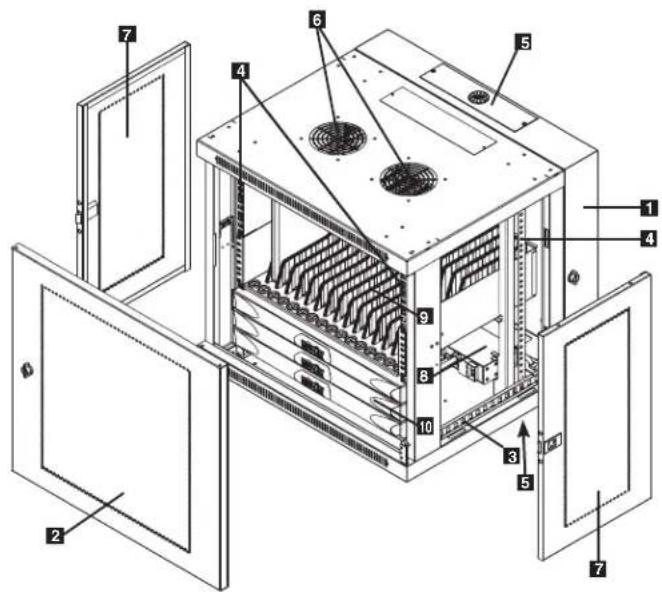

3. Feature Identification

CS16AC

1 Locking Rear Door
2 Locking/Reversible Front Door
3 Horizontal Rails
4 Vertical Mounting Rails
5 Secure Top and Bottom Cable Access Plates
6 Vents
7 Locking/Removable Side Panels
8 1U Rack Mountable 16-Outlet AC Charger Unit
9 Adjustable 16-tablet Storage Shelf
10 Toolless Blanking Panels

CS32AC

1 Locking Rear Door
2 Locking/Reversible Front Door
3 Horizontal Rails
4 Vertical Mounting Rails
5 Secure Top and Bottom Cable Access Plates
6 Vents
7 Locking/Removable Side Panels
8 1U Rack Mountable 16-Outlet AC Charger Units
9 Adjustable 16-tablet Storage Shelf
10 Toolless Blanking Panels

Technical diagram of an internal server rack with numbered components for identification

Technical diagram of a server rack cabinet with numbered components for identification

4. Enclosure Installation

Caution! Read All Instructions and Warnings Before Installation!

Warning: Rack enclosures can be extremely heavy. Do not attempt to unpack, move or install the enclosure without assistance. Use extreme caution when handling the enclosure and be sure to follow all handling and installation instructions. Do not attempt to install equipment without first stabilizing the enclosure.

4.1 Preparation

The enclosure must only be mounted to wall surfaces that can safely support the combined weight of the enclosure, equipment and all attached hardware and components, or floor areas capable of handling the full enclosure load and contents as well as any other enclosures and/or equipment that will be installed nearby. Before unpacking the enclosure, you should transport the shipping container closer to the final installation location to minimize the distance you will need to move the unit after the protective packaging has been removed. If you plan to store the enclosure for an extended period before installation, follow the instructions in the Storage and Service section.

For wall mounting, you will need:

• Level
  • Phillips-head Screwdriver
• Appropriate tools for wall mounting

You also need the following hardware:

- Appropriate hardware for wall mounting (not included)

4.2 Unpacking

Use at least two people to unpack the enclosure.

1 Open box and remove the corner protectors. Upon unpacking, examine the inside of the cabinet for any additional packing material. Make sure to remove all packing materials from the interior and exterior of the unit. Save all packing materials for later use unless you are certain they will not be required. Packing materials are recyclable.
2 With one person on each side, carefully lift the enclosure out of the box and place on a firm, level surface.
3 Examine the enclosure for any damage or loose parts. Confirm all parts are present. If anything is missing or damaged, contact Tripp Lite for assistance. Do not attempt to use the enclosure if it has been damaged.

4.3 Placement

If using the optional casters, you can use the casters to move the enclosure for a short distance over a level, smooth, stable surface by pushing it from the front or rear (not the side panels). Do not attempt to roll the enclosure over long distances. The enclosure should be moved close to its installation location inside its shipping container before it is unpacked.

Warning: Never attempt to lift or install without adequate help. Do not try lifting the enclosure alone.

4.4 Power Requirements

The charging station should be plugged into an AC outlet with a dedicated circuit. An AC outlet with a 20 amp circuit is preferred for powering the charging station. The AC outlet used to power the charging station should not be shared with other electronics. The total wattage of the charging station and all connected components should not exceed 720 watts (CS16AC model) or 1440 watts (CS32AC model).

5. Wall Mounting the Enclosure

5.1 Mounting the CS16AC and CS32AC

Warning: Do not attempt to mount the charging station to the wall with any personal electronic devices inside.

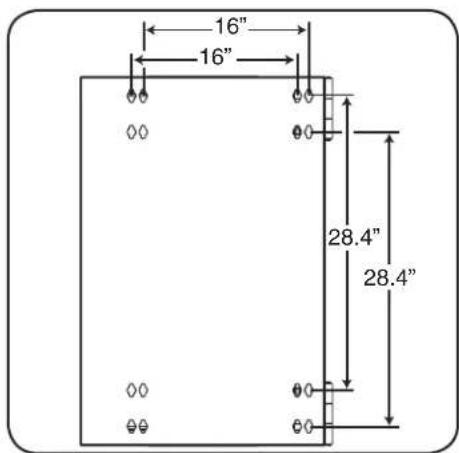

There are 16 keyhole cutouts on the back door of the CS16AC and CS32AC enclosures. Each keyhole can accommodate an M10 or 3/8" bolt (for the CS16AC model) or an M5 or 3/16" bolt (for the CS32AC model). Each of the four keyhole sets are centered 16" apart horizontally and are spaced in 2.25" increments toward the outer edges (see corresponding model diagrams for exact keyhole measurements).

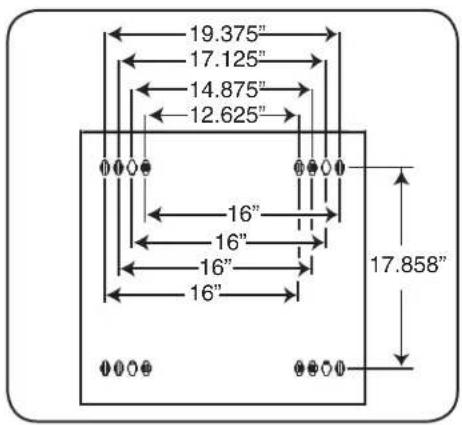

Using a level, measure to position your mounting areas precisely. Use appropriate fasteners (not included) to secure the enclosure to the wall. Once the enclosure is safely hanging on the fasteners and secured to the wall, open the unit from the rear door and tighten all mounting hardware.

19.375" 17.125" 14.875" 12.625" 16" 16" 16" 16" 17.858"

CS16AC

16" 16" 28.4" 28.4"

CS32AC

Note: The charging station enclosure must be installed by a qualified technician. Before mounting, use a level and tape measure to position your mounting area precisely. Use appropriate fasteners (not included) to secure the charging station to the wall. Use suitable mounting means when installing to cinder block, concrete, drywall or wood studs. Warning: The supporting surface must be able to safely support the combined load of the equipment and all attached hardware and components. Go to the Specifications section for more information on your model's weight and dimensions.

6. Enclosure Configuration

6.1 Door Locks

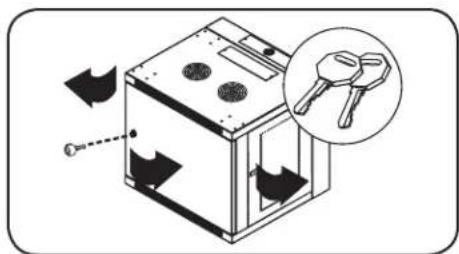

The front and back doors have locks that are accessible with the included keys.

Each side panel locks using an L-shaped lever on the inside of the enclosure.

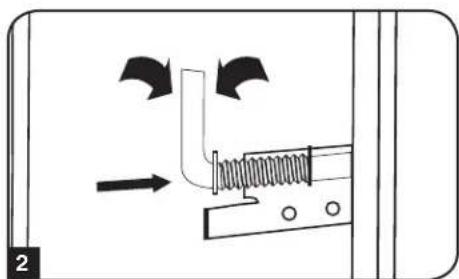

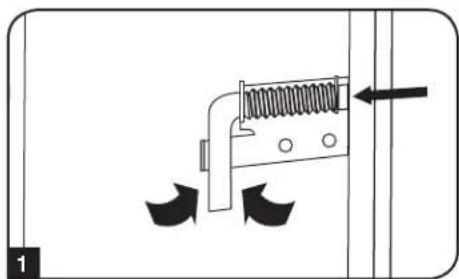

To unlock and remove the side panels, lift the shorter leg of the "L" up and pull it away from the side panel. Pull the tab on the side panel and remove it from the enclosure.

2 To re-lock the side panels, secure it in the proper position, lift the shorter leg of the "L" up and push it toward the side panel, back into the hole that it was in initially. Once it is in place, push the shorter leg of the "L" down to lock it.

Note: To lock and unlock the side panels, you will need to have access to the interior of the enclosure.

Diagram showing a device with labeled components and an inset view of key parts, likely illustrating a mechanical or electrical assembly.

CS16AC

Diagram of a mechanical spring assembly with directional arrows indicating motion (no text or symbols)

Diagram of a mechanical or electrical component with directional arrows indicating flow or movement (no text or symbols)

6. Enclosure Configuration

6.2 Power Cord/Cable - Access and Management

Both charging station models contain secure top and bottom cable access plates that can only be removed by accessing the inside of the enclosure.

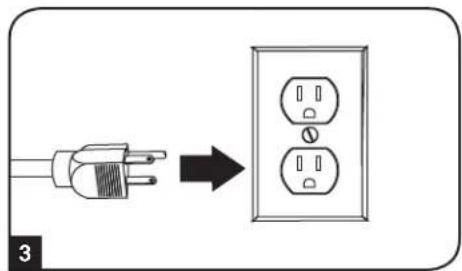

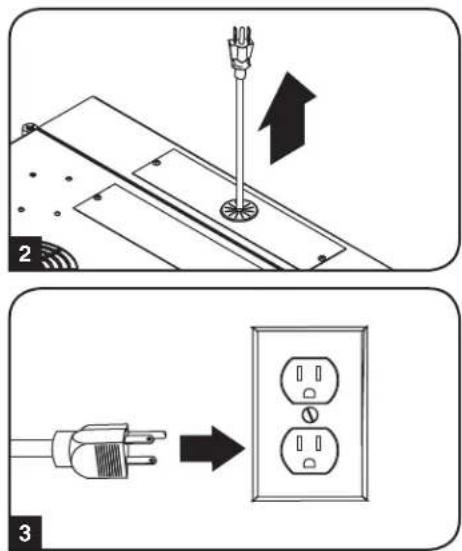

To connect the charging station to a power outlet, run the power cord through the top or bottom cable access plate containing a cord grommet by unlocking the front door and removing one or both of the side panels (as shown in section 6.1) 1. Then push the input plug through the top or bottom cord grommet 2 and run the cord to your nearest 3-prong, grounded wall outlet 3.

7. 16-Outlet AC Charger Unit

7.1 AC Charger Unit Features

• 1U, rack-mountable housing can be configured for professional, educational or personal installations
• 16 x NEMA 5-15R output receptacles
• 15-ft. AC cord with NEMA 5-15P plug
• Lighted power switch confirms power on/off status
• 15A electrical capacity with circuit breaker
• 120V AC, 50/60Hz electrical compatibility

7.2 Connecting Devices to the AC Charger Unit

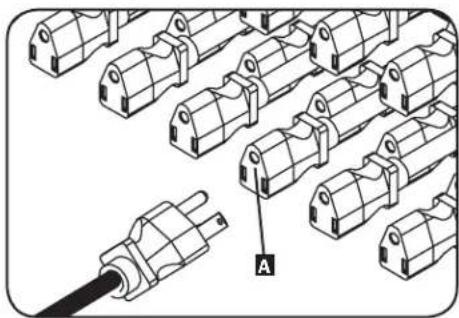

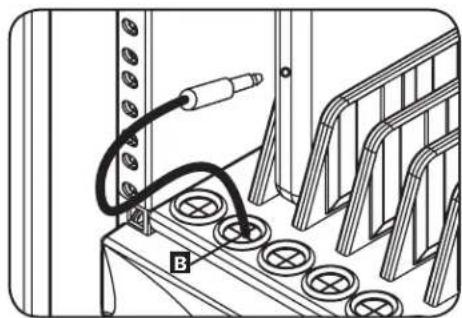

Each storage shelf features 16 strain relief bushings that prevent the device's power connectors from slipping through the bushing. Connect the device's power plug into one of the AC charger unit's dongle receptacles A, then run the power connector through the storage shelf's strain relief bushing to establish a power connection B. Repeat for all devices.

Diagram of multiple electrical connectors with a cable inserted, showing no text or symbols

Technical line drawing of a mechanical assembly with labeled components (no readable text or symbols)

8. Adjusting Storage Shelf Dividers

Your tablet charging station comes with one (CS16AC) or two (CS32AC) storage shelves with adjustable dividers that each can accommodate up to 16 personal electronic devices per shelf.

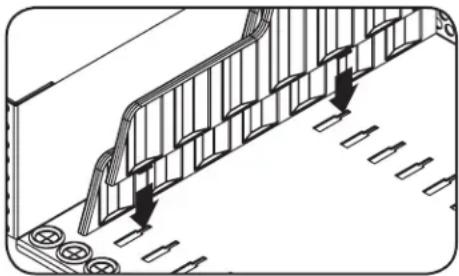

8.1 Adjusting the CS16AC and CS32AC Shelf Dividers

Remove any personal electronic devices stored on the shelf tray. Then unlock and open the rear door to the cabinet. From the front or rear of the cabinet, rearrange the dividers by pulling them out or snapping them into the shelf tray. Repeat as necessary for additional shelf trays.

Technical line drawing of a staircase with stairs and decorative elements (no text or symbols)

9. Specifications

Model CS16AC CS32AC
Cabinet Dimensions (H x W x D) 21.6 x 23.63 x 21.6"(549 x 600 x 549 mm)		35.6 x 23.6 x 21.6"(905 x 600 x 549 mm)
Unit Weight 55 lb (25 kg) 96 lb (43.5 kg)
Load Capacity* 200 lb (90 kg) Stationary or Rolling 250 lb (113 kg) Stationary or Rolling
Cabinet Mounting Depth(Adjustable)	3" to 20.5"(76 to 521 mm)	3" to 20.5"(76 to 521 mm)
AC Receptacles 16 x 5-15R 32 x 5-15R
Power Requirement Input: 120V AC, 50/60 HZ, 12 Amps Input: 120V AC, 50/60 HZ, 12 Amps
Operating Temperature 32° to 104°F0° to 40°C		32° to 104°F0° to 40°C
Operating Humidity 5 to 95% RH, Non-Condensing 5 to 95% RH, Non-Condensing
Number of AC Charger Units	1	2
AC Charger Dimensions per Unit(H x W x D)	2.25 x 19 x 4"(57 x 483 x 241 mm)	2.25 x 19 x 4"(57 x 483 x 241 mm)
Enclosure Material	Metal	Metal
Regulatory Approvals	UL 60950, NOM (Mexico) and RoHS	UL 60950, NOM (Mexico) and RoHS

*Full wall-mount load capacity requires a mounting surface capable of bearing the full load of the tablet charge and sync station and all connected components. Rolling applications require optional SRCASTER accessory kit. Specifications may be subject to change without further notice.

10. Optional Casters

An optional caster accessory kit (Model: SRCASTER) is available for purchase through Tripp Lite (visit www.triplite.com for details). The SRCASTER Kit's 4 casters and mounting hardware install to the pre-drilled holes located on the base of the enclosure. For further installation instructions, refer to the manual included with the SRCASTER Kit.

Technical line drawing of a mechanical component with multiple bolted joints and dashed alignment lines (no text or symbols)

11. Storage and Service

Storage

The enclosure should be stored in a controlled indoor environment, away from moisture, temperature extremes, flammable liquids and gasses, conductive contaminants, dust and direct sunlight. Store the enclosure in its original shipping container if possible.

Service

The enclosure is covered by the limited warranty described in this manual. For more information, visit www.tripplite.com/support.

12. Warranty and Product Registration

2-Year Limited Warranty

Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship for a period of 2 years from the date of initial purchase. If the product should prove defective in material or workmanship within that period, Seller will repair or replace the product, at its sole discretion.

THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTIES, INCLUDING ALL WARRANTIES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCLUDES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction).

WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for the use intended. Since individual applications are subject to great variation, the manufacturer makes no representation or warranty as to the suitability or fitness of these devices for any specific application.

Product Registration

Visit www.tripplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*

* No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

Regulatory Compliance Identification Numbers

For the purpose of regulatory compliance certifications and identification, your Tripp Lite product has been assigned a unique series number. The series number can be found on the product nameplate label, along with all required approval markings and information. When requesting compliance information for this product, always refer to the series number. The series number should not be confused with the marketing name or model number of the product.

FCC Notice, Class B

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

Any changes or modifications to this equipment not expressly approved by Tripp Lite could void the user's authority to operate this equipment.

WEEE Compliance Information for Tripp Lite Customers and Recyclers (European Union)

Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers buy new electrical and electronic equipment from Tripp Lite they are entitled to:

• Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country)
• Send the new equipment back for recycling when this ultimately becomes waste

Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.

TRIPP·LITE

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

Technical diagram of an internal server rack with numbered components for identification

CS32AC

Technical diagram of a server rack cabinet with numbered components for identification

Diagram showing a device with labeled components and an inset view of key parts, likely illustrating a mechanical or electrical setup.

CS16AC

Diagram of a mechanical spring assembly with directional arrows indicating movement (no text or symbols)

Diagram of a mechanical or electrical component with arrows indicating direction, no text or symbols present

Diagram showing a mechanical setup with a screw and rotating component, no text or symbols present

3

Diagram of multiple electrical connectors with a cable inserted, showing no text or symbols

Technical diagram of a mechanical assembly with labeled components (no readable text or symbols)

Technical line drawing of a staircase with stairs and decorative elements (no text or symbols)

9. Especificaciones

Technical line drawing of a mechanical component with multiple bolt holes and mounting brackets (no text or symbols)

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

Technical diagram of an internal server rack with numbered components for identification

CS32AC

Technical diagram of a server rack cabinet with numbered components for identification

Diagram showing a device with labeled components and an inset highlighting key parts, likely illustrating a mechanical or electrical assembly.

CS16AC

Diagram of a mechanical spring assembly with directional arrows indicating movement (no text or symbols)

Diagram of a mechanical or electrical component with arrows indicating flow direction (no text or symbols)

Diagram showing a mechanical setup with a screw and rotating component, no text or symbols present

3

Diagram of multiple electrical connectors with a cable inserted, showing no text or symbols

Technical diagram of a mechanical assembly with labeled components (no readable text or symbols)

Technical line drawing of a staircase with stairs and decorative elements (no text or symbols)

9. Spécifications

Technical line drawing of a mechanical component with multiple bolted pins and mounting brackets (no text or symbols)

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support
