• In the following instructions, a USB memory or USB audio player are referred to as “USB device”. Table of Contents- 3 -- 3 - English MVH-330DAB MVH-130DAB Getting Started Basic operation SRC (source)/OFF USB port M.C. (multi-control) dial BAND/DIMMER Display window DISP (display)/DISP OFF Detach button AUX input jack (3.5 mm stereo jack) SRC (source)/OFF Detach button Display window M.C. (multi-control) dial BAND/DIMMER DISP (display)/DISP OFF DAB button AUX input jack (3.5 mm stereo jack) USB port- 4 - English Frequently used operations The available buttons vary depending on the unit.

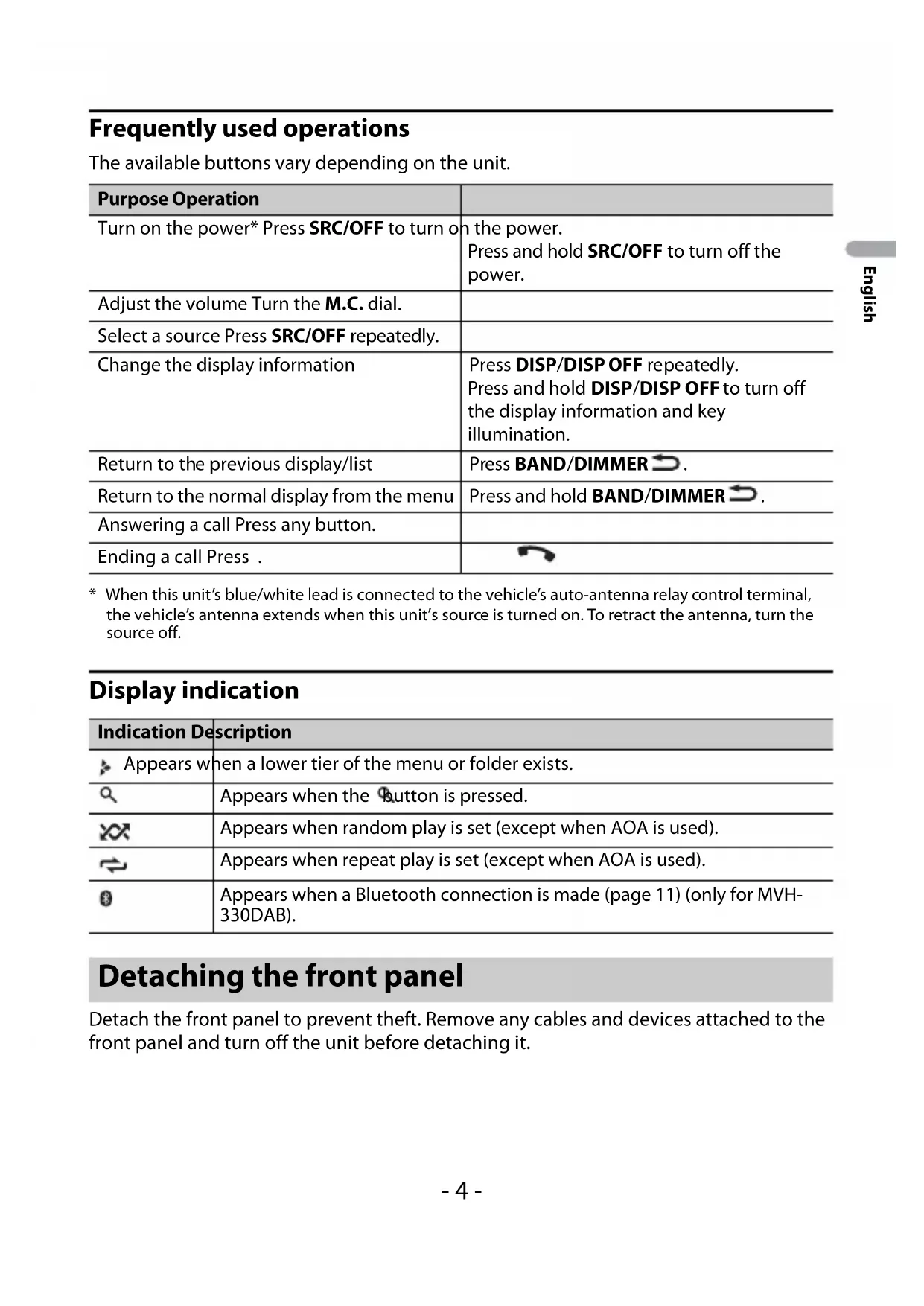

• When this unit’s blue/white lead is connected to the vehicle’s auto-antenna relay control terminal, the vehicle’s antenna extends when this unit’s source is turned on. To retract the antenna, turn the source off. Display indication Detach the front panel to prevent theft. Remove any cables and devices attached to the front panel and turn off the unit before detaching it. Purpose Operation Turn on the power* Press SRC/OFF to turn on the power. Press and hold SRC/OFF to turn off the power. Adjust the volume Turn the M.C. dial. Select a source Press SRC/OFF repeatedly. Change the display information Press DISP/DISP OFF repeatedly. Press and hold DISP/DISP OFF to turn off the display information and key illumination. Return to the previous display/list Press BAND/DIMMER . Return to the normal display from the menu Press and hold BAND/DIMMER . Answering a call Press any button. Ending a call Press . Indication Description Appears when a lower tier of the menu or folder exists. Appears when the button is pressed. Appears when random play is set (except when AOA is used). Appears when repeat play is set (except when AOA is used). Appears when a Bluetooth connection is made (page 11) (only for MVH- 330DAB). Detaching the front panel- 5 -- 5 - English Important

• Avoid subjecting the front panel to excessive shock.• Keep the front panel out of direct sunlight and high temperatures.
• Always store the detached front panel in a protective case or bag. When you turn the ignition switch to ON after installation, [SETUP:YES] appears in the display. 1 Press the M.C. dial. The setup menu disappears after 30 seconds of no operation. If you prefer not to set at this time, turn the M.C. dial to select [NO], then press to confirm. 2 Turn the M.C. dial to select the options, then press to confirm. To proceed to the next menu option, you need to confirm your selection. Setup menu Menu Item DescriptionLANG Select the language to display.[ENG](English), [FRA](French), [DEU](German)CLOCK Set the clock. 1 Turn the M.C. dial to adjust the hour, then press to confirm. The indicator moves to the minute setting automatically. 2 Turn the M.C. dial to adjust the minute, then press to confirm. FM STEP Select the FM tuning step from 100 kHz or 50 kHz.[100KHZ], [50KHZ]DAB ANT Supply power to a DAB antenna. Select this when using the optional DAB antenna (CA-AN-DAB.001, sold separately) with the unit. [ON] [OFF] No power is supplied to a DAB antenna. Select this when using a passive antenna with no booster. Detach Attach- 6 - English 3 [QUIT :YES] appears when all the settings have been made. To return to the first item of the setup menu, turn the M.C. dial to select [QUIT :NO], then press to confirm. 4 Press the M.C. dial to confirm the settings. [UPDATING] appears in the display and the service list will be updated. NOTES

• You can cancel the menu setting by pressing SRC/OFF.

• These settings can be made at any time from the SYSTEM settings (page 18) and INITIAL settings (page 6). 1 Press the M.C. dial to display the main menu. 2 Turn the M.C. dial to select [SYSTEM], then press to confirm. 3 Turn the M.C. dial to select [DEMO OFF], then press to confirm. 4 Turn the M.C. dial to select [YES], then press to confirm. 1 Press and hold SRC/OFF until the unit turns off. 2 Press the M.C. dial to display the main menu. 3 Turn the M.C. dial to select [INITIAL], then press to confirm. 4 Turn the M.C. dial to select an option, then press to confirm. Canceling the demonstration display (DEMO OFF) INITIAL settings Menu Item Description FM Select the FM tuning step from 100 kHz or 50 kHz. [100], [50] DIMMER Change the display brightness. Select [SYNC CLK] to set the duration of activating dimmer. Select [MANUAL] to turn on/off dimmer by a press and hold of BAND/DIMMER button. [SYNC CLK], [MANUAL] RESET Select [YES] to initialize the unit settings. The unit will be restarted automatically. (Some of the settings may be retained even after resetting the unit.)

[YES], [NO]- 7 -- 7 -

English To receive DAB signals, connect a DAB antenna (CA-AN-DAB.001) (sold separately) to the unit. 1 Press SRC/OFF to select [DAB]. 2 Press BAND/DIMMER/ to select the band from [D1], [D2] or [D3]. 3 Press / to select a service component/station. NOTE Press and hold / then release to seek an available service. Scanning stops when the unit receives a service. To select service component/station from service lists

During DAB reception, press . Displays the list of all service components/stations. 2 Select a service component/station from the list you selected, then press the M.C. dial to confirm. NOTE You can update the service list by pressing and holding . To store service components/stations

While receiving the service component/station you want to store, press and hold one of the number buttons (1/ to 6/ ) until it stops flashing. DAB ANT Supply power to a DAB antenna. Select this when using the optional DAB antenna (CA-AN-DAB.001, sold separately) with the unit. [ON] [OFF] No power is supplied to a DAB antenna. Select this when using a passive antenna with no booster. Digital Audio Broadcasting (DAB) Seeking a service component/station Presetting service components/stations Menu Item Description- 8 - English To retrieve stored service components/stations

Select the band, then press a number button (1/ to 6/). The tuner frequencies on this unit are allocated for use in Western Europe, Asia, the Middle East, Africa and Oceania. Use in other areas may result in poor reception. The RDS (radio data system) function only works in areas that broadcast RDS signals for FM stations. The six strongest stations are stored on the number buttons (1/ to 6/). 1 After selecting the band, press the M.C. dial to display the main menu. 2 Turn the M.C. dial to select [FUNCTION], then press to confirm. 3 Turn the M.C. dial to select [BSM], then press to confirm. To seek a station manually

After selecting the band, press / to select a station. Press and hold / then release to seek an available station. Scanning stops when the unit receives a station. To cancel seek tuning, press / . NOTE [SEEK] needs to be set to [MAN] in the FUNCTION settings (page 17). To store stations manually

While receiving the station you want to store, press and hold one of the number buttons (1/ to 6/ ) until it stops flashing. The unit searches for a station by PTY (program type) information. 1 Press during FM reception. 2 Turn the M.C. dial to select a program type from [NEWS/INF], [POPULAR], [CLASSICS] or [OTHERS]. Radio Best stations memory (BSM) Using PTY functions- 9 -- 9 - English 3 Press the M.C. dial. The unit begins to search for a station. When it is found, its program service name is displayed. NOTES

• To cancel the search, press BAND/DIMMER/.
• The program of some stations may differ from that indicated by the transmitted PTY.
• If no station is broadcasting the type of program you searched for, [NOT FND] is displayed for about two seconds and then the tuner returns to the original station. 1 Press SRC/OFF to select [RADIO]. 2 Press BAND/DIMMER to select the band from [F1], [F2], [F3] or [AM]. 3 Press a number button (1/ to 6/). TIP The / buttons can be also used to select a preset station when [SEEK] is set to [PCH] in the FUNCTION settings (page 17).Disconnect headphones from the device before connecting it to the unit. USB devices (including Android™)

Open the USB port cover. 2 Plug in the USB device using an appropriate cable. NOTE To automatically switch to [USB] source when a USB device is connected to the unit, set [USB A] to [ON] in the SYSTEM settings (page 18). CAUTION Use a USB cable (sold separately) to connect the USB device as any device connected directly to the unit will protrude out from the unit, which could be dangerous.Before removing the device, stop playback. Receiving preset stations USB/AUX Playing back- 10 - English AOA connections A device installed with Android OS 5.0 or later (up to Android 7.x)* can be connected to the unit via AOA, using the cable supplied with the device.

• AOA 2.0 does not support Android OS 8.0 or later. This function is compatible with devices that have Android OS 5.0 or later (up to Android 7.x)* installed and also support AOA (Android Open Accessory) 2.0.
• AOA 2.0 does not support Android OS 8.0 or later. 1 Press SRC/OFF to select [USB]. "ANDROID" is displayed after reading. NOTE Some Android devices connected via AOA 2.0 may not work properly or emit sounds due to their own software design, regardless of the OS version. Basic operations AUX

Insert the stereo mini plug into the AUX input jack. 2 Press SRC/OFF to select [AUX] as the source. NOTE If [AUX] is set to [OFF] in the SYSTEM settings, [AUX] cannot be selected as a source (page 18). You can make various adjustments in the FUNCTION settings (page 15). Note that the following operations do not work for an AUX device. To operate an AUX device, use the device itself. Listening to music on Android Purpose Operation Select a track Press or . Pause/resume playback Press 4/. Operations Purpose Operation Select a folder Press 1/ or 2/. Select a track Press or . Fast forward or reverse Press and hold or .- 11 -- 11 - English (Only for MVH-330DAB) 1 Turn on the Bluetooth function of the device. If you make a Bluetooth connection from the device, proceed to step 6. 2 Press to display the phone menu. 3 Turn the M.C. dial to select [BT SETUP], then press to confirm. 4 Turn the M.C. dial to select [ADD DEV], then press to confirm. The unit starts to search for available devices, then displays them in the device list.

• To cancel searching, press the M.C. dial.
• If the desired device is not in the list, select [RE-SRCH].
• If there is no device available, [NOT FND] appears in the display. 5 Turn the M.C. dial to select a device, then press to confirm. Press and hold the M.C. dial to switch the displayed device information between the Bluetooth device address and device name.If you make a Bluetooth connection from the unit, proceed to step 7. 6 Select the unit name shown in the device display. 7 Make sure the same 6-digit number appears on this unit and the device. 8 Perform the pairing operation by operating the unit and the device. Search for a file from a list 1 Press to display the list. 2 Turn the M.C. dial to select the desired file (folder) name, then press to confirm. 3 Turn the M.C. dial to select the desired file, then press to confirm.Playback starts. View a list of the files in the selected folder Press the M.C. dial when a folder is selected. Repeat play Press 6/.Random play Press 5/.Pause/resume playback Press 4/. Bluetooth® Bluetooth connection Purpose Operation- 12 - English NOTES

• Depending on the device, the PIN code is required in step 7. In this case, input [0000].

• Only one single device can be paired/registered at any one time. The previously paired/registered device information is overwritten/deleted when a new device is paired/registered to this unit.

• Disconnect a registered device in the [BT CON] menu when you register a new device. TIP The Bluetooth connection can be also made by detecting the unit from the Bluetooth device. To do so, [VISBL] in the Bluetooth settings needs to be set to [ON]. For details on a Bluetooth device operations, refer to the operating instructions supplied with the Bluetooth device. Bluetooth settings

Press to display the phone menu. 2 Turn the M.C. dial to select [BT SETUP], then press to confirm. First, make a Bluetooth connection with the Bluetooth telephone (page 11). Important

• Leaving the unit on standby to connect to your phone via Bluetooth while the engine is not running can drain the vehicle’s battery.

• Be sure to park your vehicle in a safe place and apply the parking brake before operation. Menu Item Description BT CON Display the paired Bluetooth devices. “*” appears on the device name when the Bluetooth connection is established. [ON], [OFF] ADD DEV Register a new device. A CON Select [ON] to connect to a Bluetooth device automatically. [ON], [OFF] VISBL Select [ON] so that a Bluetooth device can detect the unit. [ON], [OFF] PIN CODE Change the PIN code. 1 Press the M.C. dial to display the setting mode. 2 Turn the M.C. dial to select a number. 3 Press the M.C. dial to move the cursor to the next position. 4 After inputting the PIN code, press and hold the M.C. dial. DEV. INFO Switch the device information on the display between the device name and Bluetooth device address. Bluetooth telephone- 13 -- 13 - English To make a phone call from the phone book

Press to display the phone menu. A phone name appears first then a phone menu will display. 2 Turn the M.C. dial to select [PHN BOOK], then press to confirm. 3 Turn the M.C. dial to select [SRCH :TOP] or [SRCH :A] to [SRCH :Z], then press to confirm. 4 Turn the M.C. dial to select a name, then press to confirm. 5 Turn the M.C. dial to select a phone number, then press to confirm. The phone call starts. To make a phone call from the call history

Press to display the phone menu. A phone name appears first then a phone menu will display. 2 Turn the M.C. dial to select [RECENTS], then press to confirm. 3 Turn the M.C. dial to select [MISSED], [DIALLED] or [RECEIVED], then press to confirm. 4 Turn the M.C. dial to select a name or phone number, then press to confirm. The phone call starts. To answer an incoming call

Press any button when a call is received. Basic operations Purpose Operation End a call Press . Reject an incoming call Press and hold when a call is received. Switch between the current caller and a caller on hold Press the M.C. dial. Cancel a caller on hold Press and hold . Adjust the volume of the caller’s voice (When private mode is on, this function is not available.) Turn the M.C. dial during the call. Turn the private mode on or off Press BAND/DIMMER/ during the call.- 14 - English Phone menu

• Depending on the Bluetooth audio player connected to this unit, the available operations will be limited to the following two levels: – A2DP (Advanced Audio Distribution Profile) can only play back songs on your audio player. – AVRCP (Audio/Video Remote Control Profile) can perform functions such as playback, pause, select song, etc.
• The sound of the Bluetooth audio player will be muted when the phone is in use.

• When the Bluetooth audio player is in use, you cannot connect to a Bluetooth telephone automatically.
• Depending on the type of Bluetooth audio player you have connected to this unit, operation and information displayed may vary based on availability and functionality. 1 Make a Bluetooth connection with the Bluetooth audio player. 2 Press SRC/OFF to select [BT AUDIO] as the source. Playback starts automatically. Menu Item Description RECENTS Display the missed call history. [MISSED] [DIALLED] Display the dialed call history. [RECEIVED] Display the received call history. PHN BOOK Display the contacts. ANSR Select [ON] to answer an incoming call automatically. [ON], [OFF] RING Select [ON] if the ring tone does not come out from the car speakers. Depending on the connected phone, this function may not work. [ON], [OFF] SYNC Select [ON] to synchronize the contacts on this unit's phone book with the contacts on your phone when the phone is connected. NOTE Confirm the Bluetooth setting on your phone if the contacts on your phone cannot be displayed on the unit even though [ON] is selected. [ON], [OFF] BT SETUP You can adjust various settings for Bluetooth connections. For details on Bluetooth settings, see page 12. Bluetooth audio- 15 -- 15 - English Basic operations You can make various adjustments in the FUNCTION settings (page 15).
• Depending on the connected device, these operations may not be available. You can adjust various settings in the main menu. 1 Press the M.C. dial to display the main menu. 2 Turn the M.C. dial to select one of the categories below, then press to confirm.

• SYSTEM settings (page 18) 3 Turn the M.C. dial to select the options, then press to confirm. NOTE The Bluetooth-related menu items in the following tables are only available for MVH-330DAB. The menu items vary according to the source. Purpose Operation Fast forward or reverse Press and hold or . Select a track Press or . Repeat play* Press 6/. Random play* Press 5/. Pause/resume playback Press 4/. Search for a file from a list* 1 Press to display a list. 2 Turn the M.C. dial to select the desired folder name, then press to confirm. 3 Turn the M.C. dial to select the desired file, then press to confirm. Playback starts. Settings FUNCTION settings- 16 - English Menu Item Description S FOL [ON], [OFF] Search for another ensemble that supports the same service component/station with better reception. If no alternative service component/ station can be found or reception remains poor, the unit will automatically switch to an identical FM broadcast. S LNK*1*2 [ON], [OFF] If the reception of the service component/ station being received becomes poor, the unit will automatically switch to a station with a similar broadcast. PTY [NEWS/INF], [POPULAR], [CLASSICS], [OTHERS] Displays the service list that has the selected program type information. ENSEMBLE Displays the list of relevant ensembles. BSM Store the six strongest stations on the number buttons (1/ to 6/ ) automatically. LOCAL

Restrict the tuning station according to the signal strength. TA SET [DAB+RDS] Receive current traffic information for DAB and RDS (DAB has priority) if available. [RDS ONLY] Receive current traffic information for only RDS if available. [TA OFF] Disables this function.

[ON], [OFF] Allow the unit to retune to a different frequency providing the same station. (Available only when FM band is selected.)- 17 -- 17 - English *1 Only available in areas where [S LNK] function is supported. *2 Not available when [S FOL] function is turned off. NEWS [ON], [OFF] Interrupt the currently selected source with news programs. (Available only when FM band is selected.) SEEK [MAN], [PCH] Assign or buttons to seek the stations one by one (manual tuning) or select a station from the preset channels. PLAY Start playback. STOP Stop playback. AUDIO settings Menu Item Description FADE R*1 Adjust the front and rear speaker balance. BALANCE Adjust the left and right speaker balance. BASS&TRE [FLAT], [CUSTOM], [EQ : 1], [EQ : 2], [EQ : 3] Select Bass or Treble and level to customize sound. Tone control: [BASS], [TRE] Equalizer level: [+6] to [–6] Select the bass & treble setting. LOUD [ON], [OFF] Compensate for clear sound at low volume. SLA [+2] to [-1] Adjust the volume level for each source except RADIO. Menu Item Description- 18 - English You can also access to these menus by pressing the M.C. dial when the unit is turned off. SYSTEM settings Menu Item Description LANG [ENG](English), [FRA](French), [DEU](German) Select the language to display. CLOCK Set the clock (page 5). 12/24 [12H], [24H] Select the time notation. AUX [ON], [OFF] Set to [ON] when using an auxiliary device connected to the unit. BT-A [ON], [OFF] Set to [ON] when using the Bluetooth audio player connected to the unit. BT CLEAR [YES], [CANCEL] Clear the Bluetooth device data (device information, PIN code) stored in the unit. [CLEARED] appears when data is successfully deleted. BT VER Displays the system version of the Bluetooth module. USB A [ON], [OFF] Select [ON] to automatically switch to [USB] source when a USB device/Android is connected to the unit. Select [OFF] when a USB device/Android is being connected to the unit just for charging. SCRL [ONE], [YES], [NO] Select the auto text scroll setting for text information. [ONE] is to scroll text information only once.- 19 - English The display automatically returns to the normal display.

• No operations have been made for about 30 seconds. – Perform an operation. The repeat play range changes unexpectedly.

• Depending on the repeat play range, the selected range may change when another folder or track is being selected or during fast forwarding/reversing. – Select the repeat play range again. A subfolder is not played back.

• Subfolders cannot be played when [FLD] (folder repeat) is selected. – Select another repeat play range. The sound is intermittent.

• You are using a device, such as a cellular phone, that may cause audible interference. – Move electrical devices that may be causing the interference away from the unit. The sound from the Bluetooth audio source is not played back.

• There is a call in progress on a Bluetooth-connected cellular phone. – The sound will be played back when the call is terminated.

• A Bluetooth-connected cellular phone is currently being operated. – Stop using the cellular phone.

• The connection between the unit and the cellular phone is not established correctly after a call made by a Bluetooth-connected cellular phone. – Make a Bluetooth connection between the unit and the cellular phone again. Common NO XXXX (NO TITLE, for example)

• There is no embedded text information. – Switch the display or play another track/file. USB device READING

• Sometimes there is a delay between the start of playback and when you start to hear any sound. – Wait until the message disappears and you hear sound. NO AUDIO

• There are no songs. – Transfer the audio files to the USB device and connect.

• The connected USB device has security enabled. –Follow the USB device instructions to disable the security. SKIPPED

• The connected USB device contains DRM protected files. – The protected files are skipped. PROTECT

• All the files on the connected USB device are embedded with DRM. –Replace the USB device.

• The connected USB device is not supported by this unit. Additional Information Troubleshooting Error messages- 20 - English – Disconnect your device and replace it with a compatible USB device. HUB ERR

• The USB device connected via a USB hub is not supported by this unit. – Connect the USB device directly to this unit using a USB cable. CHECK:USB

• The USB connector or USB cable has short-circuited. – Check that the USB connector or USB cable is not caught in something or damaged.

• The connected USB device consumes more than maximum allowable current. – Disconnect the USB device and do not use it. Turn the ignition switch OFF and back to ACC or ON. Connect only compliant USB devices. ERROR-19

• Communication failed. –Perform one of the following operations, then return to the USB source.

• Turn the ignition switch OFF and back to ON.

• Disconnect the USB device.

• Change to a different source. ERROR-23

• USB device was not formatted properly. –Format the USB device with FAT12, FAT16 or FAT32. Bluetooth device (MVH- 330DAB) ERROR-10

• The power failed for the Bluetooth module of the unit. – Turn the ignition switch OFF and back to ACC or ON. USB storage device

• Connections via USB hubs are not supported.

• Firmly secure the USB storage device before driving. Do not let the USB storage device fall onto the floor, where it may become jammed under the brake or accelerator pedal.

• Depending on the USB storage device, the following problems may occur. –Operations may vary. –The storage device may not be recognized. –Files may not be played back properly. – The device may cause audible interference when you are listening to the radio.

• Only the first 32 characters can be displayed as a file name (including the file extension) or a folder name.

• The unit may not work properly depending on the application used to encode WMA files.

• There may be a slight delay at the start of the playback of audio files embedded with image data, or audio files stored on a USB device with numerous folder hierarchies. CAUTION

• Pioneer cannot guarantee compatibility with all USB mass storage devices, and assumes no responsibility for any loss of data on media players, smartphones, or other devices while using this product.

• Do not leave a USB storage device in any place that is subject to high temperatures. Handling guidelines Compressed audio compatibility- 21 - English WMA files MP3 files WAV files FLAC files

• FLAC files may not be playable, depending on the encoder. USB device

• There may be a slight delay when starting playback of audio files on a USB storage device with numerous folder hierarchies. The user cannot assign folder numbers and specify playback sequences with this unit. Sequence of audio file depends on the connected device. Note that the hidden files in a USB device cannot be played back. Example of a hierarchy Bluetooth The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, File extension .wmaBit rate 48 kbps to 320 kbps (CBR), 48 kbps to 384 kbps (VBR)Sampling frequency 32 kHz, 44.1 kHz, 48 kHz Windows Media™ Audio Professional, Lossless, Voice/DRM Stream/Stream with videoNot compatibleFile extension .mp3Bit rate CBR (8 kbps to 320 kbps)/VBRSampling frequency 16 kHz to 48 kHz (32 kHz, 44.1 kHz, 48 kHz for emphasis)Compatible ID3 tag version2.2, 2.3, 2.4M3u playlist Not compatibleMP3i (MP3 interactive), mp3 PRONot compatibleFile extension .wavQuantization bits 8 and 16 (LPCM)Sampling frequency 16 kHz to 48 kHz (LPCM)File extension .flacSampling frequency 8/11.025/12/16/22.05/24/32/44.1/48 kHzQuantization bit rate 16 bitChannel mode 1/2 chPlayable folder hierarchyUp to eight tiers (A practical hierarchy is less than two tiers.)Playable folders Up to 500Playable files Up to 15 000Playback of copyright-protected filesNot compatiblePartitioned USB deviceOnly the first partition can be played. Sequence of audio files Copyright and trademark FolderCompressed audio file to : Playback sequence01 to 05: Folder number- 22 - English Inc. and any use of such marks by Pioneer Corporation is under license. Other trademarks and trade names are those of their respective owners. WMA Windows Media is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries. This product includes technology owned by Microsoft Corporation and cannot be used or distributed without a license from Microsoft Licensing, Inc. FLAC Copyright © 2000-2009 Josh Coalson Copyright © 2011-2013 Xiph.Org Foundation Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: – Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. – Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. – Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.
