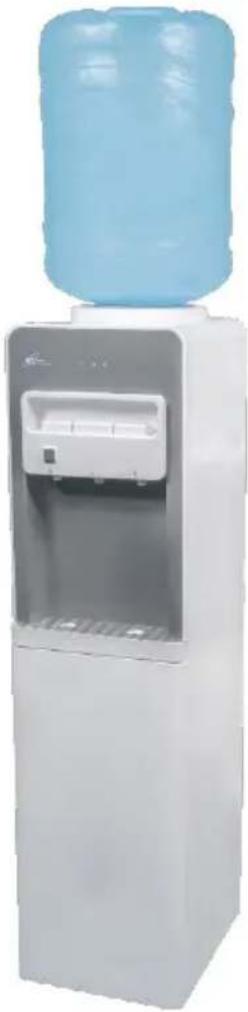

USER MANUAL RWD800W Royal Sovereign

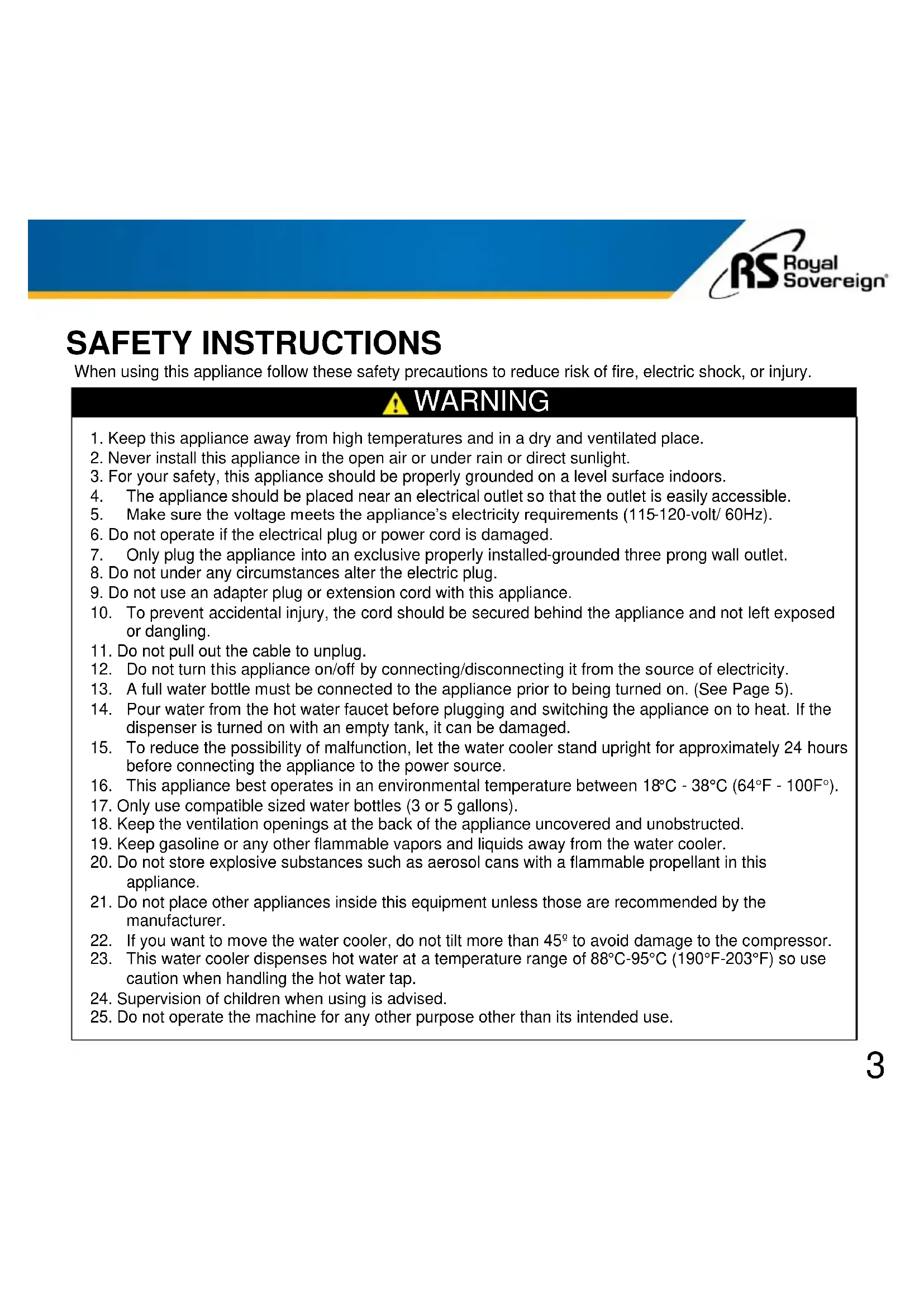

Read & Fully Understand This Owner’s Manual Before Using This Machine. 2When using this appliance follow these safety precautions to reduce risk of fire, electric shock, or injury. SAFETY INSTRUCTIONS WARNING

1. Keep this appliance away from high temperatures and in a dry and ventilated place.

2. Never install this appliance in the open air or under rain or direct sunlight.

3. For your safety, this appliance should be properly grounded on a level surface indoors.

4. The appliance should be placed near an electrical outlet so that the outlet is easily accessible.

5. Make sure the voltage meets the appliance’s electricity requirements (115-120-volt/ 60Hz).

6. Do not operate if the electrical plug or power cord is damaged.

7. Only plug the appliance into an exclusive properly installed-grounded three prong wall outlet.

8. Do not under any circumstances alter the electric plug.

9. Do not use an adapter plug or extension cord with this appliance.

10. To prevent accidental injury, the cord should be secured behind the appliance and not left exposed

11. Do not pull out the cable to unplug.

12. Do not turn this appliance on/off by connecting/disconnecting it from the source of electricity.

13. A full water bottle must be connected to the appliance prior to being turned on. (See Page 5).

14. Pour water from the hot water faucet before plugging and switching the appliance on to heat. If the

dispenser is turned on with an empty tank, it can be damaged.

15. To reduce the possibility of malfunction, let the water cooler stand upright for approximately 24 hours

before connecting the appliance to the power source.

16. This appliance best operates in an environmental temperature between 18°C - 38°C (64°F - 100F°).

17. Only use compatible sized water bottles (3 or 5 gallons).

18. Keep the ventilation openings at the back of the appliance uncovered and unobstructed.

19. Keep gasoline or any other flammable vapors and liquids away from the water cooler.

20. Do not store explosive substances such as aerosol cans with a flammable propellant in this

21. Do not place other appliances inside this equipment unless those are recommended by the

22. If you want to move the water cooler, do not tilt more than 45º to avoid damage to the compressor.

24. Supervision of children when using is advised.

25. Do not operate the machine for any other purpose other than its intended use.

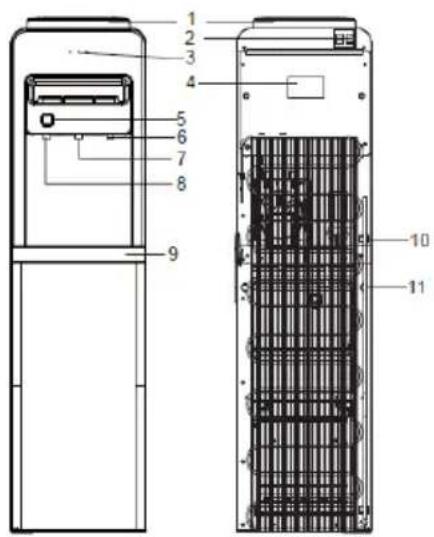

3PRODUCT VIEW / SET-UP

BEFORE PLUGGING IN THE UNIT TO A POWER SOURCE:

1. Let the appliance stand upright for about 24 hours. This will reduce the chance of malfunction in the

cooling system from possible mishandling during delivery.

WARNING: The drain cap on the back of the unit may become loose during shipping. Fasten the

drain cap tightly before you start to operate the unit. If the drain cap is loose, the unit may leak and cause floor damage.

2. Insert water bottle vertically through the water funnel.

3. Place a container under the hot and cold water taps then push down both buttons to test if water is

flowing through the unit. To use the hot water, first press the hot water safety button.

WARNING: Before plugging and switching the appliance ON to heat, Make sure to have poured

water from the hot water faucet. IF THE DISPENSER IS TURNED ON WITH AN EMPTY WATER TANK, IT CAN BE DAMAGED. 4PRODUCT OPERATION When operating the water dispenser for the first time, you will need at least 15-30 minutes for the hot water to reach the desired temperature and 1 hour for the cold water to reach the desired temperature. The water dispenser has 3 indicator lights on the front panel.

• When the right indicator light is on, the unit is in the process of cooling water inside the cooling tank.

• When the left indicator light is on, the water dispenser is heating water inside the heated water tank.

• When you plug the water dispenser in, the middle power indicator will be turned on. This means that room temperature water can be dispensed. Using the Water dispenser

• To dispense HOT water, press the hot water safety button and then push the hot water button down.

• To dispense COLD water, push the cold water button down.

• To dispense Room Temperature water, press the room temperature button down.

• It is recommended that if the hot water option is not used, the hot water button (red button) be turned OFF. This will help conserve energy.

1. Insert the power plug into the wall socket.

2. First, turn the Hot Water switch on the back of the unit into the ON position. Next,

turn the Cold Water switch into the ON position. DO NOT TURN ON BOTH SWITCHES AT THE SAME TIME. Once this is completed both cooling and heating indicator lights should light up. NOTE: The appliance is designed to provide hot or cold water whenever you need it. It will automatically turn on and off when hot and cold water reaches the desired temperatures. 5WARNING: Before cleaning, turn the power switch off and disconnect the power cord from the wall.

1. Before the first use and after a long period of not using the appliance, the water

tank and water pipes should be cleaned. It is recommended to wash and disinfect the system every 3-6 months.

2. To begin cleaning, all water must be drained from the unit. (turn heating switch to

OFF while draining the system).

3. To clean, rinse the unit and its parts several times with boiling or purified water.

After rinsing, tilt the dispenser to drain any remaining water. Once this is done, dry the unit with a rag or soft cloth.

4. If the appliance is not going to be used for a long period of time, unplug it and

drain all water in its interior.

5. Do not clean the outside of the appliance with water to avoid electric shock. Clean

it with a soft cloth.

6. If the power cable suffers any damage, contact the manufacturer, service

representative or qualified personnel. Do not attempt to repair the cable yourself.

7. If you are not using the appliance for a long period of time or during the night, you

can turn it OFF to save energy. MACHINE MAINTENANCE 6TROUBLESHOOTING MODEL RWD-800W Voltage - Frequency 115V – 60 Hz Heating Power 420W Hot Tank Capacity/ Cold Tank Capacity 5 L (1.32 gal.) per hour / 2 L (0.53 gal.) per hour Bottle Size 3 / 5 Gallon Temperatures Hot / Room/ Cold Cooling Type Compressor Dimensions 10.2”W x 13.0”D x 39.8” H 260 mm x 330 mm x 1010 mm Weight 29.1 lbs. / 13.2 kgs SPECIFICATIONS Symptom Solutions Power indicator is not lit

• Make sure that the power switch is ON and the plug is connected to the outlet correctly. Leaking • Check the water container, water pipe and faucet for damages. If broken a replacement must be made. Not heating or cooling • Check the electrical connections and make sure they are not loose. Repair the connections if damages are detected.

• Replace the heating and cooling switches .

• Replace the heating tank because it may be burnt out. NOTE: For all replacements and repairs that need to be made, contact Royal Sovereign Customer Service at +1) 800-397-1025 In case of problems, first turn off the water dispenser and disconnect from the source of electricity. 7Royal Sovereign International, Inc. warranties this product to be free from defects in material and workmanship for a period of one (1) year. This warranty is extended to the original purchaser only. This warranty only covers products that are properly installed, properly maintained, and properly operated in accordance with the instructions provided. This limited warranty does not cover any failures or operating difficulties due to normal wear and tear, accident, abuse, misuse, alteration, misapplication, improper installation, or improper maintenance and service by you or any third party. Returned product will not be accepted without a Return Authorization number. To request a Return Authorization number, please visit us at www.royalsovereign.com. All transportation costs for the return of damaged product or parts will be the responsibility of the purchaser. Return defective product, in original packaging, to the address below. Royal Sovereign International, Inc. requires reasonable proof of your date of purchase from an authorized retailer or distributor. Therefore, you should keep your receipt, invoice, or canceled check from the original purchase. The limited warranty shall be limited to the repair or replacement of parts which prove defective under normal use and service within the warranty period. Royal Sovereign International, Inc. (and its affiliated companies) SHALL HAVE NO LIABILITY WHATSOEVER TO PURCHASER OR ANY THIRD PARTY FOR ANY SPECIAL, INDIRECT, PUNITIVE, INCIDENTAL,OR CONSEQUENTIAL DAMAGES. Some states do not allow the exclusion or limitation of incidental or consequential damages so the above exclusion and limitations may not apply to you. For product support and warranty questions, please visit us at www.royalsovereign.com/CustomerSupport ROYAL SOVEREIGN INTERNATIONAL, INC. 2 Volvo Dr., Rockleigh, NJ 07647 USA

TEL: +1) 800-397-1025

Email: info@royalsovereign.com

Email: info@royalsovereign.com

www.royalsovereign.ca
