Product type	Decorative LED light chain
Brand	Eurolite
Model	Rubberlight LED 9m
Length	9 m
Tube diameter	13 mm
Weight	1.5 kg
Power supply	230 V AC, 50 Hz
Maximum power	30 W
LED type	LEDs (36 per meter)
LED spacing	28 mm
Protection rating	IP44 (water splashes)
Ambient temperature	-5°C to +45°C
Minimum bending radius	3 cm
Cuttable	Yes, at marked positions (every 1.5 m or 3 m depending on color)
Double insulation	Yes, class II
Controller compatibility	Yes, for chaser effect
Available colors	6 colors + 2 white temperatures
Usage	Indoor and outdoor
Minimum distance to flammable surfaces	0.5 m
Minimum distance to illuminated object	0.1 m
Maintenance	Disconnect before cleaning; use a damp, lint-free cloth
Optional accessories	Fixing clips (50510100), suction cups (50510150), installation channel (50510170)
Warranty	Void if unauthorized modification

Frequently Asked Questions - Rubberlight LED 9m Eurolite

How to install the Rubberlight chain?

Before installation, unroll the chain and plug it in for a few minutes to make it more flexible. Then unplug it. Draw your pattern, install fixing clips. To maintain the shape, attach a wire using cable ties. Add suction cups if necessary. Observe a minimum bending radius of 3 cm.

Can I cut the tube anywhere?

No, only cut at marked positions. For white/green/blue tubes, cut every 54 LEDs (1.5 m). For red/yellow tubes, every 108 LEDs (3 m).

What is the maximum electrical power?

The maximum power is 30 W at a voltage of 230 V AC, 50 Hz.

Can I use this chain outdoors?

Yes, the chain is protected against water splashes (IP44) and can be used both indoors and outdoors.

How to clean the chain?

Always disconnect the device before cleaning. Use a damp, lint-free cloth. Never use alcohol or detergents.

Can I connect multiple chains together?

No, it is forbidden to electrically connect this chain with another chain. This could cause damage or fire hazards.

What is the allowed ambient temperature?

The ambient temperature must be between -5°C and +45°C. Avoid direct sunlight exposure during transport.

What to do in case of a thunderstorm?

In case of a thunderstorm, disconnect the device from the mains (pull the plug) to avoid damage due to power surge.

What accessories are available?

Optional accessories include: fixing clips (ref. 50510100, pack of 50), fixing suction cups (ref. 50510150), and installation channel (ref. 50510170).

How to attach the chain to a surface?

Use the fixing clips supplied separately. For smooth surfaces, the fixing suction cups can hold the tube. Avoid using a hammer or hard objects that could damage the lamps.

USER MANUAL Rubberlight LED 9m Eurolite

Coiled transparent plastic strip with black cable and plug, no visible text or symbols

MULTI-LANGUAGE-INSTRUCTIONS

Inhaltsverzeichnis

Table of contents

Sommaire

Contenido

Deutsch

EINFÜHRUNG......4

Features 4

SAFETY INSTRUCTIONS 8

OPERATING DETERMINATIONS....9

INSTALLATION 9

OPERATION 10

CLEANING AND MAINTENANCE 10

TECHNICAL SPECIFICATIONS.... 11

Français

INTRODUCTION 12

Features 12

INSTRUCTIONS DE SÉCURITÉ 12

EMPLOI SELON LES PRESCRIPTIONS.... 13

INSTALLATION 14

MANIEMENT 14

NETTOYAGE ET MAINTENANCE 14

CARACTÉRISTIQUES TECHNIQUES 15

Español

INTRODUCCIÓN....16

Features 16

Rubberlight LED RL1-230, 9 m

Rubberlight LED RL1-230, 9 m

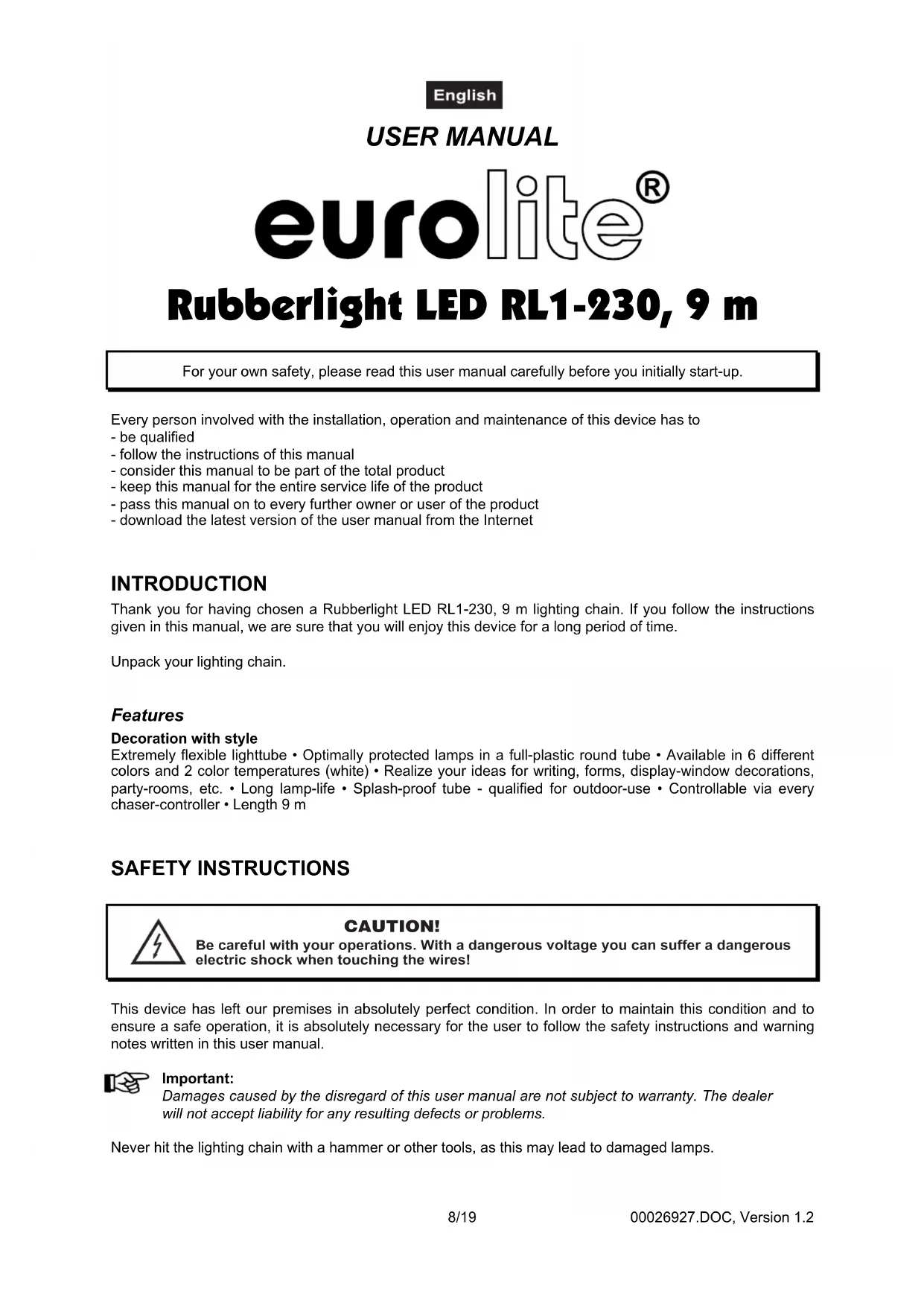

For your own safety, please read this user manual carefully before you initially start-up.

Every person involved with the installation, operation and maintenance of this device has to

• be qualified
• follow the instructions of this manual
• consider this manual to be part of the total product
• keep this manual for the entire service life of the product
• pass this manual on to every further owner or user of the product
• download the latest version of the user manual from the Internet

INTRODUCTION

Thank you for having chosen a Rubberlight LED RL1-230, 9 m lighting chain. If you follow the instructions given in this manual, we are sure that you will enjoy this device for a long period of time.

Unpack your lighting chain.

Features

Decoration with style

Extremely flexible lighttube • Optimally protected lamps in a full-plastic round tube • Available in 6 different colors and 2 color temperatures (white) • Realize your ideas for writing, forms, display-window decorations, party-rooms, etc. • Long lamp-life • Splash-proof tube - qualified for outdoor-use • Controllable via every chaser-controller • Length 9 m

SAFETY INSTRUCTIONS

CAUTION!

Be careful with your operations. With a dangerous voltage you can suffer a dangerous electric shock when touching the wires!

This device has left our premises in absolutely perfect condition. In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this user manual.

Important:

Damages caused by the disregard of this user manual are not subject to warranty. The dealer will not accept liability for any resulting defects or problems.

Never hit the lighting chain with a hammer or other tools, as this may lead to damaged lamps.

English

Never operate the device in the packaging or wrapped in order to avoid heating-up.

Never let the power-cord come into contact with other cables! Handle the power-cord and all connections with the mains with particular caution!

Make sure that the available voltage is not higher than stated on the technical sticker.

Make sure that the power-cord is never crimped or damaged by sharp edges. Check the device and the power-cord from time to time.

This device falls under protection-class II and features a protective insulation.

Always disconnect from the mains, when the device is not in use or before cleaning it. Only handle the power-cord by the plug. Never pull out the plug by tugging the power-cord.

If there are reasons for supposing that risk-free operation is no longer possible, the lighting chain must be deactivated and protected against accidental operation. Risk-free operation can no longer be supposed when the lighting chain

• no longer functions
  • is visibly damaged
• has been stored long-term under adverse conditions, or
  • has been exposed to stress during transport.

Please consider that damages caused by manual modifications to the device are not subject to warranty.

Keep away children and amateurs!

OPERATING DETERMINATIONS

This device is a lighting chain for creating decorative effects. This product is only allowed to be operated with an alternating voltage of 230 V, 50 Hz.

The lighting chain is splash-proof (protection-degree IP44) and can therefore be used inside and outside.

Do not shake the device. Avoid brute force when installing or operating the device.

The ambient temperature must always be between -5^ C and +45^ C. Keep away from direct insulation (particularly in cars) and heaters.

This device must only be operated in an altitude between -20 and 2000 m over NN.

Never use the device during thunderstorms. Over voltage could destroy the device. Always disconnect the device during thunderstorms.

Operate the device only after having familiarized with its functions. Do not permit operation by persons not qualified for operating the device. Most damages are the result of unprofessional operation!

Please use the original packaging if the device is to be transported.

Please consider that unauthorized modifications on the device are forbidden due to safety reasons!

This lighting chain must never be electrically connected with another chain.

If this device will be operated in any way different to the one described in this manual, the product may suffer damages and the guarantee becomes void. Furthermore, any other operation may lead to dangers like short-circuit, burns, electric shock, etc.

INSTALLATION

Unpack the lighting chain.

English

Unroll the tube, connect it with the mains and wait some minutes until it has warmed up. Disconnect from mains and start with the installation.

In order to design the desired patterns, draw the form onto the surface and attach the mounting-clips. For free forms, you can use a stable wire in order to bring the tube into the desired form. Use tie straps in order to connect the tube with the wire. You can fix the tie straps with the suction cups.

The minimum bending radius is 3 cm.

Only cut the tube where marked.

The white/green/blue tube can be cut after every 54 LEDs (1.5 m distance).

The red/yellow tube can be cut after every 108 LEDs (3 m distance).

How to connect the tube to the power supply:

Connect the device to the mains with the power-plug. Make sure that the outlet is in a dry area.

How to connect a controller:

Connect the power cord with your controller.

After the installation, the power supply cable, the plug and the connector must be free of any tractive forces and rotary forces.

The lighting chain must never be covered with any object.

OPERATION

After you connected the lighting chain to the mains, the lamps start burning.

CLEANING AND MAINTENANCE

DANGER TO LIFE!

Disconnect from mains before starting maintenance operation!

We recommend a frequent cleaning of the device. Please use a moist, lint-free cloth. Never use alcohol or solvents!

There are no serviceable parts inside the device. If defective, please dispose of the unusable lighting chain in accordance with the current legal regulations.

Should you have further questions, please contact your dealer.

TECHNICAL SPECIFICATIONS

Power supply: 230 V AC, 50 Hz ~
Power consumption: max. 30 W
Maximum ambient temperature T_a :	45°C
Maximum housing temperature T_c (steady state):	60°C
Min. distance from flammable surfaces: 0.5 m
Min. distance to lighted object: 0.1 m
LEDs/tube: 36/meter
LED-distance: 28 mm
Tube-diameter: 13 mm
Weight: 1.5 kg

Accessories: No.:
RUBBERLIGHT mounting-clip, 50 pieces 50	510100
Self-adhesive mounting with tie-strap 50510	150
Installation-channel for RUBBERLIGHT 505	10170

Please note: Every information is subject to change without prior notice. 17.10.2008 ©
