L1975NW - Monitor WESTINGHOUSE - Free user manual and instructions

Product Type	19" Giant Screen LCD Monitor
Screen Size	19 inches (48.26 cm)
Optimal Resolution	1440 x 900
Response Time	5 ms
Contrast Ratio	700:1
Maximum Brightness	300 cd/m²
Viewing Angles	150° horizontal / 130° vertical
Video Connectors	VGA (D-Sub 15-pin), DVI-D
Audio Input	3.5 mm mini-stereo jack
Power Supply	100-240 V AC, 50/60 Hz, 1.5 A
Power Consumption	On: <36 W; Standby: <2 W
Dimensions (W x H x D)	41.6 x 37.3 x 20.6 cm
Weight	4.3 kg
Built-in Speakers	Yes
Preset Display Modes	Economy, Text, Image
Power Saving Features	Power Saver, Energy Star compliant
Auto Configuration	Plug and Play (DDC/EDID)
Security	Kensington Lock compatible
Screen Maintenance	Soft lint-free cloth; ammonia-free and alcohol-free glass cleaner
Cabinet Maintenance	Soft dry cloth or mild detergent without ammonia or alcohol
Operating Temperature	0°C to 35°C
Lamp Life	40,000 hours

Frequently Asked Questions - L1975NW WESTINGHOUSE

How to turn on the monitor?

Press the Power button located on the side of the monitor. The LED indicator turns green if an input signal is detected, orange if no signal is detected.

What to do if the screen remains black while the monitor is on?

Check that the VGA or DVI cables are properly connected to the computer and monitor. Make sure the computer is on and that the resolution and frequency are compatible (1440x900 at 60 Hz is recommended). Use the Auto Adjustment function by pressing the Auto button.

How to adjust brightness and contrast?

Press the Menu button to display the OSD. Use the ▲/▼ keys to select the Image menu, then adjust Brightness and Contrast with the ◄/► keys. You can also quickly adjust brightness by pressing ► or contrast by pressing ◄ when the menu is not displayed.

How to change the screen resolution?

The optimal resolution is 1440 x 900 at 60 Hz. To change it, use your computer's display settings (right-click on desktop, display settings, resolution). Make sure to select a resolution supported by the monitor (see Display Modes in the manual).

What to do if the image is blurry or distorted?

Use the Auto Adjustment function by pressing the Auto (▼) button when the OSD menu is not displayed. If the problem persists, go to the OSD Image menu and adjust the Clock and Phase settings (VGA only). You can also reset the monitor via the Other menu > Reset.

How to safely clean the LCD screen?

Turn off the monitor. Wipe the screen with a clean, soft, lint-free cloth to remove dust. If necessary, dampen the cloth with a small amount of ammonia-free and alcohol-free glass cleaner and wipe gently. Never use harsh chemicals or spray liquids directly onto the screen.

How to use the built-in speakers?

Connect a 3.5 mm mini-stereo audio cable from your computer's audio output to the Audio input on the monitor. Volume is adjusted via the OSD Audio menu (Menu button > Audio > Volume). You can also mute the sound with the Mute option.

How to switch to power saving mode to save energy?

Press the Turbo/▲ button (when the OSD menu is not displayed) to cycle between Economy, Text, and Image modes. Economy mode reduces brightness and power consumption. The LED indicator turns orange in standby.

How to connect a DVI cable?

Make sure the monitor and computer are turned off. Connect one end of the DVI cable to the DVI-D port on the back of the monitor and the other end to the DVI output on the computer. Connect the power cord, turn on the monitor first, then the computer. The monitor automatically detects the DVI source.

What to do if the displayed colors are incorrect?

Go to the OSD Color menu and choose a preset Color Temperature (9300K, 7500K, 6500K, sRGB) or manually adjust the Red, Green, and Blue levels. Also check that the VGA/DVI cable is properly connected and that the computer is using the correct color profile.

USER MANUAL L1975NW WESTINGHOUSE

IMPORTANT PRODUCT SAFETY INSTRUCTIONS....2

SAFETY GUIDELINES....3

FCC COMPLIANCE STATEMENT ....3

CLEANING THE LCD MONITOR....4

FEATURES......5

POWER SAVER....5

PLUG & PLAY 5

INSTALLATION....6

PACKAGE CONTENTS 6

CONTROL PANEL BUTTONS....7

INPUT CONNECTORS......8

1. ATTACHING THE BASE STAND TO THE LCD MONITOR....9

2. CONNECT AUDIO AND VIDEO CABLES TO A PC 9

3. CONNECT POWER CABLES....10

4. TURN THE POWER ON....10

OSD MENU FUNCTIONS....11

IMAGE MENU....12

AUDIO MENU....13

COLOR MENU 14

MISCELLANEOUS MENU 15

INFORMATION MENU 16

QUICK BRIGHTNESS OR CONTRAST ADJUSTMENT....17

DISPLAY MODES ......18

APPENDIX 19

SPECIFICATIONS....19

TROUBLESHOOTING....20

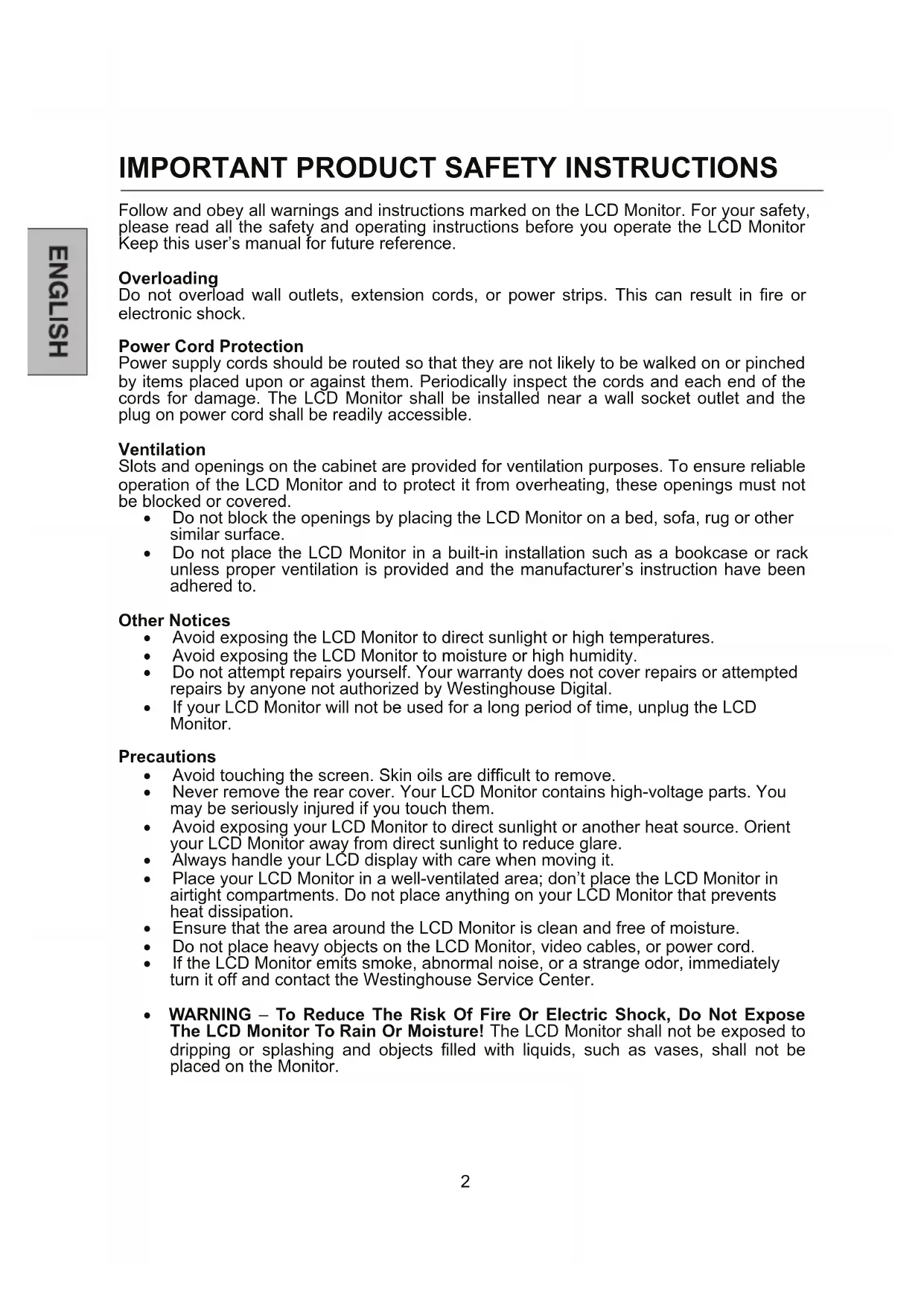

IMPORTANT PRODUCT SAFETY INSTRUCTIONS

Follow and obey all warnings and instructions marked on the LCD Monitor. For your safety, please read all the safety and operating instructions before you operate the LCD Monitor. Keep this user's manual for future reference.

Overloading

Do not overload wall outlets, extension cords, or power strips. This can result in fire or electronic shock.

Power Cord Protection

Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them. Periodically inspect the cords and each end of the cords for damage. The LCD Monitor shall be installed near a wall socket outlet and the plug on power cord shall be readily accessible.

Ventilation

Slots and openings on the cabinet are provided for ventilation purposes. To ensure reliable operation of the LCD Monitor and to protect it from overheating, these openings must not be blocked or covered.

• Do not block the openings by placing the LCD Monitor on a bed, sofa, rug or other similar surface.
• Do not place the LCD Monitor in a built-in installation such as a bookcase or rack unless proper ventilation is provided and the manufacturer's instruction have been adhered to.

Other Notices

• Avoid exposing the LCD Monitor to direct sunlight or high temperatures.
• Avoid exposing the LCD Monitor to moisture or high humidity.
• Do not attempt repairs yourself. Your warranty does not cover repairs or attempted repairs by anyone not authorized by Westinghouse Digital.
• If your LCD Monitor will not be used for a long period of time, unplug the LCD Monitor.

Precautions

• Avoid touching the screen. Skin oils are difficult to remove.
• Never remove the rear cover. Your LCD Monitor contains high-voltage parts. You may be seriously injured if you touch them.
• Avoid exposing your LCD Monitor to direct sunlight or another heat source. Orient your LCD Monitor away from direct sunlight to reduce glare.
  • Always handle your LCD display with care when moving it.
• Place your LCD Monitor in a well-ventilated area; don't place the LCD Monitor in airtight compartments. Do not place anything on your LCD Monitor that prevents heat dissipation.
• Ensure that the area around the LCD Monitor is clean and free of moisture.
• Do not place heavy objects on the LCD Monitor, video cables, or power cord.
• If the LCD Monitor emits smoke, abnormal noise, or a strange odor, immediately turn it off and contact the Westinghouse Service Center.
• WARNING – To Reduce The Risk Of Fire Or Electric Shock, Do Not Expose The LCD Monitor To Rain Or Moisture! The LCD Monitor shall not be exposed to dripping or splashing and objects filled with liquids, such as vases, shall not be placed on the Monitor.

Safety Guidelines

CAUTION: The power supply outlet should be located near the LCD Monitor and should be easily accessible. Always use the appropriate AC cord that is certified for your specific country. Some examples are listed below:

USA......UL Switzerland ......SEV

Canada......CSA Britain ......BASE/BS

Germany.....VDE Japan .....Electric Appliance Control Act

IMPORTANT NOTICE CONCERNING POWER CORD SELECTION

The specific power cord for this LCD Monitor is enclosed and has been selected according to the country of destination and must be used to prevent electric shock. Use the following guidelines if it is necessary to replace the original cord set, or if the cord set is not enclosed. The female receptacle of the cord set must meet IEC-60320 requirements and should look like Figure A1 below:

Figure A1 Figure A2

For the United States and Canada

In the United States and Canada the male plug is a NEMA5-15 style (Figure A2), UL Listed, and CSA Labeled. For LCD Monitors that are placed on a desk or table, type SVT or SJT cord sets may be used. For LCD Monitors placed directly on the floor, only SJT type cord sets may be used. The cord set must be selected according to the current rating for the LCD Monitor. Please consult the table below for the selection criteria for power cords used in the United States and Canada.

Cord Type Size of Conductors in Cord Maximum Current Rating of Unit
SJT	18 AWG	10 Amps
	16 AWG	12 Amps
	14 AWG	12 Amps
SVT	18 AWG	10 Amps
	17 AWG	12 Amps

FCC Compliance Statement

This equipment has been tested and complies with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and may cause harmful interference to radio communications if not installed and used in accordance with the instructions. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
- Increase the separation between the LCD Monitor and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the Westinghouse Service Center or an experienced radio/Monitor technician for assistance.

FCC Warning

To assure continued FCC compliance, the user must use a grounded power supply cord and the provided shielded video interface cable with bonded ferrite cores. If a BNC cable used, use only a shielded BNC (5) cable. Also, any unauthorized changes or modifications not expressly approved by Westinghouse Digital will void the user's authority to operate this device.

• MAKE SURE THE LCD MONITOR IS TURNED OFF
• NEVER SPRAY OR POUR ANY LIQUID DIRECTLY ONTO THE SCREEN OR CASE

To clean the screen:

1. Wipe the screen with a clean, soft, lint-free cloth. This removes dust and other particles.
2. If it still is not clean, apply a small amount of non-ammonia, non-alcohol based glass cleaner onto a clean, soft, lint-free cloth, and wipe the screen.

To clean the case:

1. Use a soft, dry cloth.
2. If it still is not clean, apply a small amount of non-ammonia, non-alcohol based, mild non-abrasive detergent onto a clean, soft, lint-free cloth, then wipe the surface.

Disclaimer

Westinghouse Digital does not recommend the use of any ammonia or alcohol-based cleaners on the LCD Monitor screen or case. Some chemical cleaners have been reported to damage the screen and/or LCD Monitor case. Westinghouse Digital will not be liable for damage resulting from the use of any ammonia or alcohol-based cleaners.

• Bright Display Image
  • Ultra Fast Response Time
  • Built-in Speakers
• Power Saver
• Plug & Play
  • Kensington Security Lock Compatible

Power Saver

A power control system, Power Saver, is installed inside the LCD monitor. If the LCD monitor has not been used for a certain period of time, the system will turn the LCD monitor to low voltage mode to save electrical power. Slight movement of the mouse or pressing any key on the keyboard will return the original screen image. You can use your PC to set the function.

The LCD monitor is compatible with EPA ENERGY STAR and NÜTEK if used with a VESA DPMS computer. To save power, turn off the LCD monitor power when not in use.

Plug & Play

VESA Plug and Play eliminates the complicated and time-consuming installation process. Your computer system will identify and automatically adjust the LCD monitor. The LCD monitor uses Display Data Channel (DDC) to send Extended Display Identification Data (EDID) to the computer system, so the computer system can automatically adjust the LCD monitor.

INSTALLATION

Congratulations on your purchase of a Westinghouse 19" Widescreen LCD Monitor. Sleek and practical, this lightweight LCD monitor delivers a crisp and clear display optimized for 1440 x 900 display resolution.

Package Contents

Your product package includes:

• 19" Westinghouse Widescreen LCD Monitor
- Detachable Base Stand
- AC Power Cord
• VGA Male – Male Cable
- Audio Cable
- User's Manual
- Warranty Card

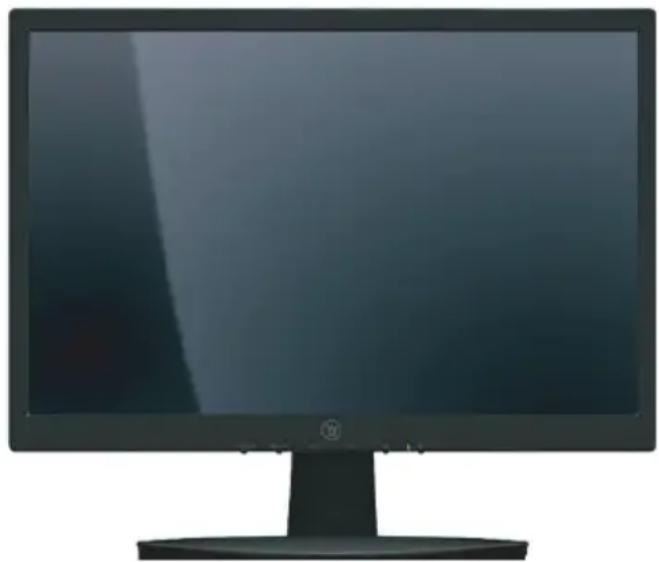

Front view of a black computer monitor with a stand (no visible text or symbols)

Control Panel Buttons

Use the control buttons on the side of the LCD Monitor to display the On Screen Display (OSD). Below is a list of the control button functions. The OSD controls are defined in "OSD Functions" on page 11.

4 5 62 31

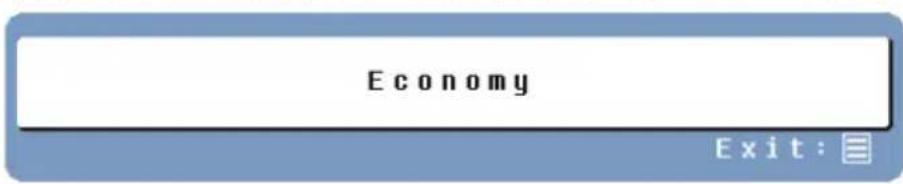

1.Turbo/▲	Switch between picture, text and economy modes.Scroll up the OSD sub-menu list when the OSD is displayed.
2.Auto/▼	Automatically optimize positions, phase, and clock when the OSD is not displayed (Auto Adjust).Scroll down the OSD sub-menu list when the OSD is displayed.
3./◀	Quick contrast adjustment or decrease contrast/brightness.Move a selection left when the OSD is displayed.
4./▶	Quick brightness adjustment and increase contrast/brightness.Move a selection right when the OSD is displayed.
5. [IMAGE]	Enter and exit the OSD menu
6. ⏻	Power On and Off buttonLED Power Indicator LightGreen: NormalOrange: Power SavingOff: Power Off

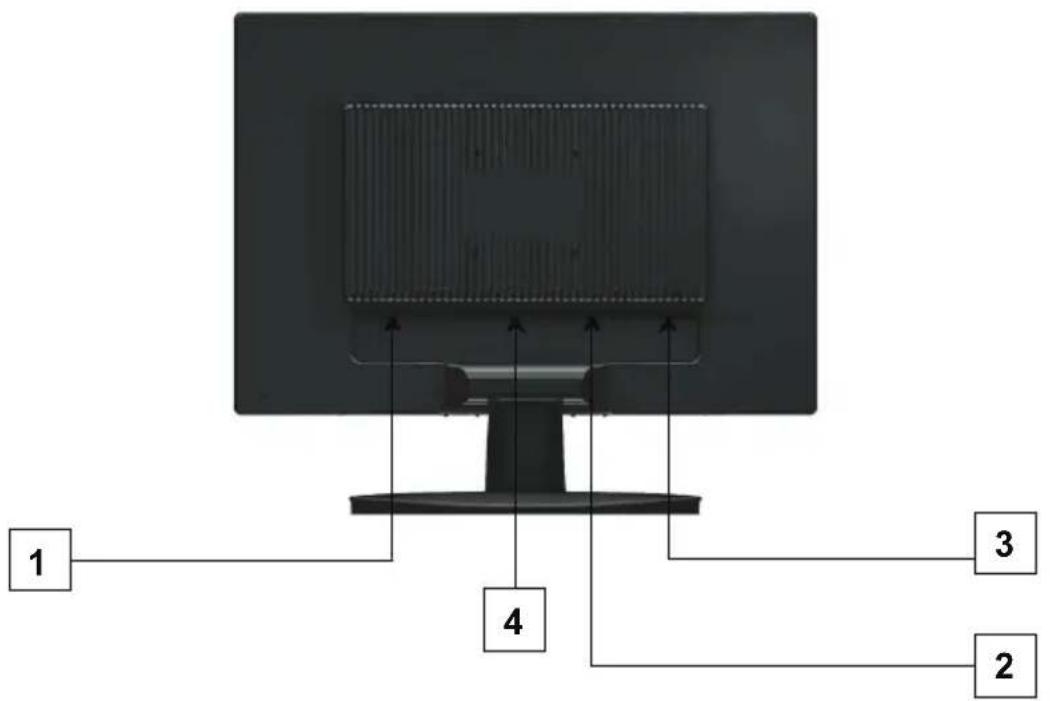

Input Connectors

1 4 3 2

1. AC IN (Power)	Connect the power cord from AC IN to a power source.
2. DVI-D	Using a DVI cable, connect to a computer with a DVI output.
3. D-SUB (VGA)	Using the enclosed 15-pin VGA cable, connect to a computer or other device with a VGA output.
4. Audio	Using the enclosed 3.5 mm stereo cable, connect to the audio output of computer

Installation

1. Attaching the Base Stand to the LCD Monitor

Attach the base stand to the LCD monitor stand neck by aligning the holes and tabs. Press in and snap the base into place. To remove the base stand, press the tabs on the bottom of the stand neck and remove the base.

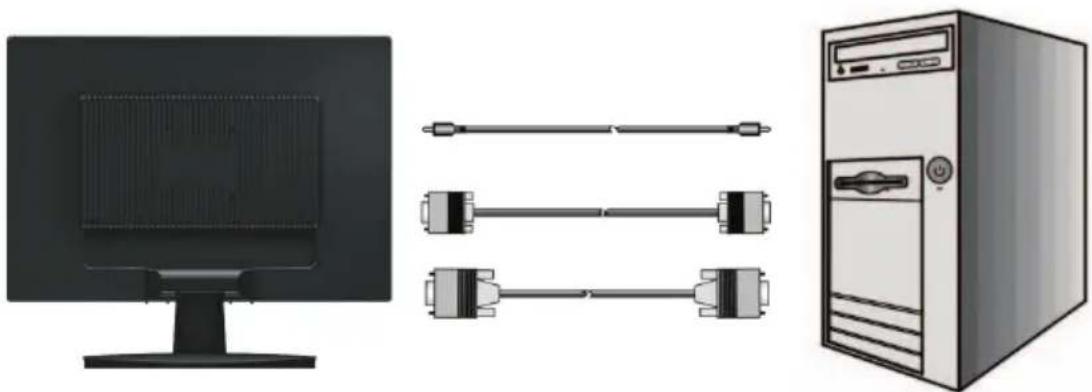

2. Connect Audio and Video Cables to a PC

Connect one of the following into the back of the LCD Monitor:

IMPORTANT: Before beginning, make sure all devices are turned off.

AUDIO CONNECTION: Connect a stereo mini cable from the PC's AUDIO-OUT port to the AUDIO-IN port on the LCD Monitor.

DVI-D CONNECTION: Connect a Digital DVI cable from your computer to the LCD Monitor DVI-D port.

VGA CONNECTION: Connect an analog VGA cable from your computer VGA OUT port to the LCD Monitor D-SUB port.

Illustration of a desktop computer monitor, three connected cable connectors, and a tower tower (no text or symbols)

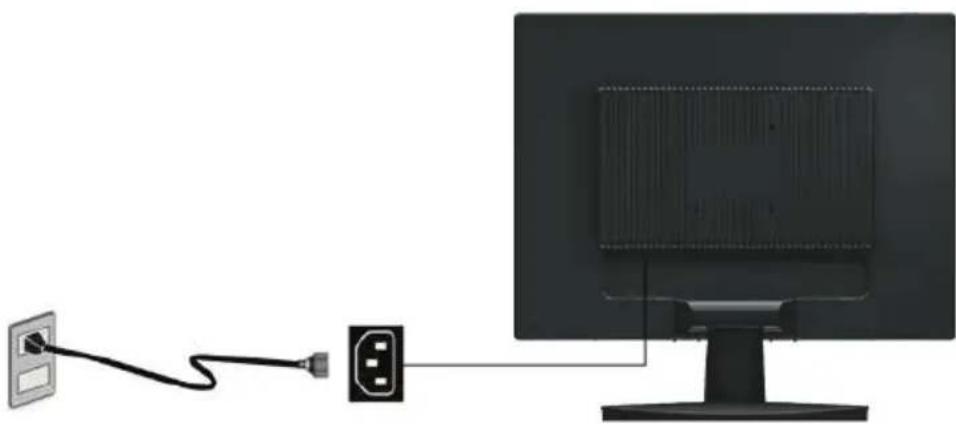

3. Connect Power Cables

Connect the AC power cord to the LCD Monitor (to the connector labeled "AC-IN") and then connect the cord into a properly grounded AC outlet.

Diagram showing a cable being inserted into a computer monitor via an external plug (no text or symbols present)

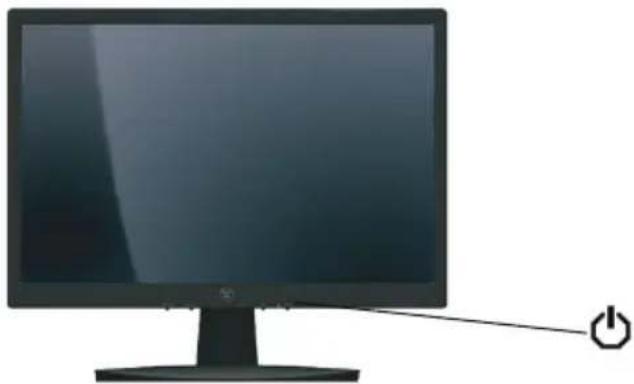

4. Turn the Power On

Press the power button on the side of the LCD monitor. The LED light will turn green if a signal input is detected or it will be orange if no input is detected.

NOTE: If you have a problem with the video image, adjust the computer's resolution to 1440 x 900 or turn off and reboot the computer. In addition, you may need to download the latest drivers for the graphics card used in your computer.

Computer monitor with a power button icon pointing to its side (no text or symbols visible)

All the function settings for the LCD monitor are controlled via the control keys located on the side of the monitor. To display the OSD main menu, press the "Menu" keypad button on the control panel. (Note: The OSD menu display will disappear automatically after approximately 10 seconds, if no action is taken.)

The LCD monitor has been adjusted to optimal settings before shipment. Adjustments to the monitor settings can be made using the OSD menu.

• Press the "Menu" button to display the OSD.
• Press the Turbo/▲ or Auto/▼ button to scroll through the sub-menus (Image, Audio, Color, Miscellaneous, and Information Sub-Menus).
• Press the 📞/▶ button to enter the sub-menu.
• Press the Turbo/▲ or Auto/▼ button to select the function to be adjusted.
• Press the ◎/◀ or ⚙/▶ buttons to change the current setting of the sub-function.
• To go back to the previous menu, press the ☐ button. Changes are saved automatically.
• To exit the OSD menu press "Menu" ☐ again. It automatically will save any changes that have been made.

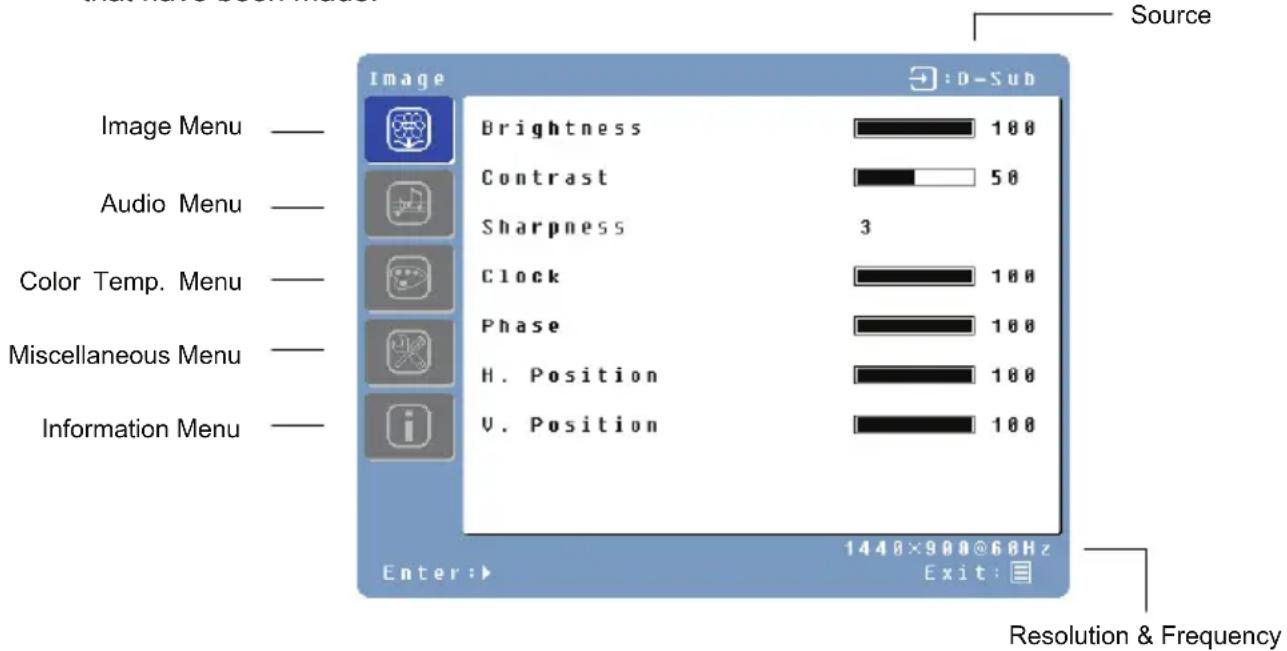

Source Image Image Menu — Audio Menu — Color Temp. Menu — Miscellaneous Menu — Information Menu — Brightness 100 Contrast 50 Sharpness 3 Clock 100 Phase 100 H. Position 100 V. Position 100 Enter:► 1448×900@66Hz Exit: Resolution & Frequency

NOTES:

• Any changes are automatically saved in memory when the OSD turns off. Turning off the power should be avoided while using the OSD menu.
• Adjustments for clock, phase, and positions are saved for each individual signal timing. Except for these adjustments, all other adjustments have only one setting, which applies to all signal timings.
• The icon color will change from gray to blue when a sub-menu is selected.

The following is a list of the OSD sub-menus for the LCD monitor:

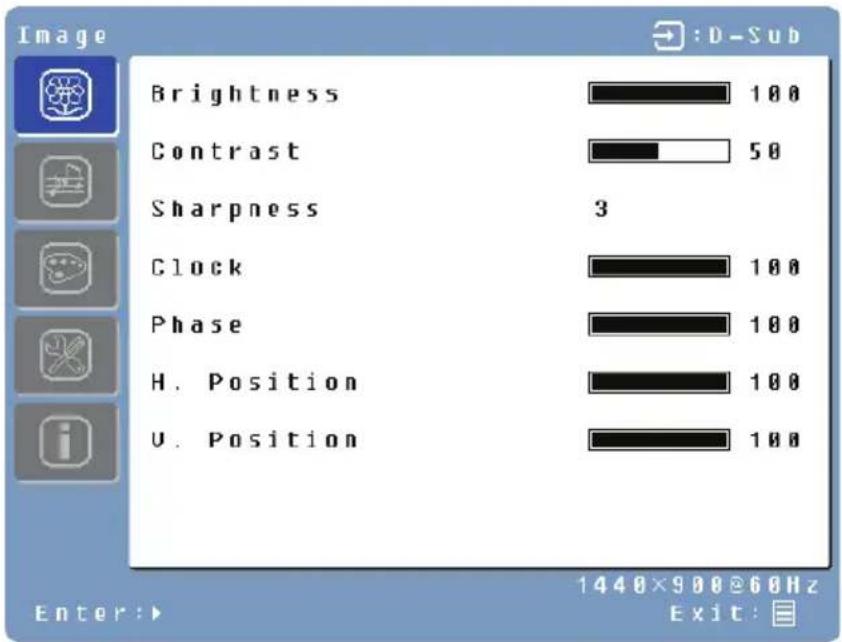

Image Menu

Image Brightness 100 Contrast 50 Sharpness 3 Clock 100 Phase 100 H. Position 100 U. Position 100 Enter: 1440×900@60Hz Exit:

Function	Description
Brightness	Adjust the brightness of the screen.
Contrast	Adjust the contrast of the image.
Sharpness	Adjust the picture sharpness of low resolution pictures.
Clock	Adjust the LCD monitor clock. (VGA only)
Phase	Adjust the LCD monitor phase. (VGA only)
H. Position	Move the image left or right on the screen. (VGA only)
V. Position	Move the image up or down on the screen. (VGA only)

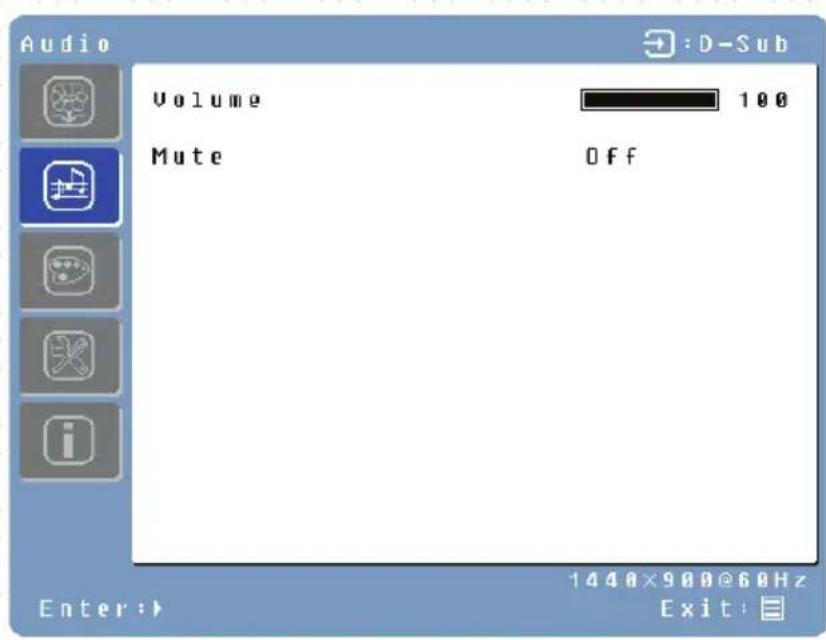

Audio Menu

Audio Volume 100 Mute Off Enter: 1440×900@60Hz Exit:

Function	Description
Volume	Turn volume up and down
Mute	Turn volume off and on

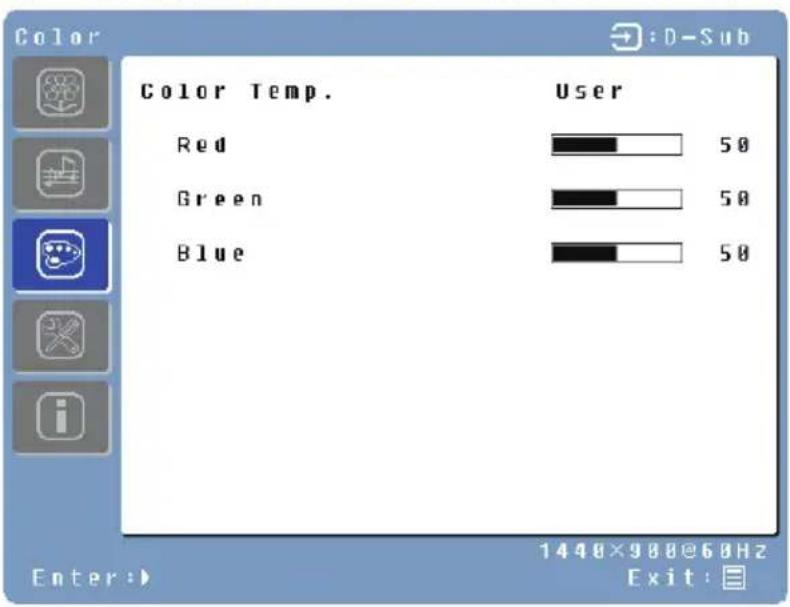

Color Menu

Color Color Temp. User Red 50 Green 50 Blue 50 Enter: 1440×988@60Hz Exit:

Function	Description
Color temp	User/9300K/7500K/6500K/sRGB
Red	Adjust red color.
Green	Adjust green color.
Blue	Adjust blue color.

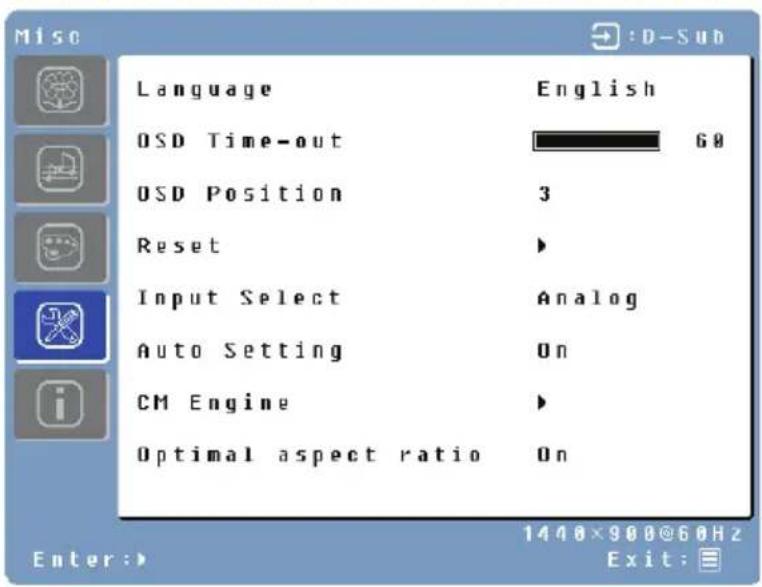

Miscellaneous Menu

Miso Language English OSD Time-out 60 OSD Position 3 Reset Input Select Analog Auto Setting On CM Engine Optimal aspect ratio On Enter: 1448×900@60Hz Exit:

Function	Description
Language	English, Français, Deutsch, Español, Italiano, 日本語, Русский, 繁體中文, 筒体中文, 한국어
OSD time-out	Adjust OSD display time setting.
OSD position	Move OSD display position to any one of the following 5 positions within the overall screen.
Reset	Restore the LCD monitor to the factory settings.
Input Select	Analog / Digital
Auto setting	Adjust clock, phase and positions automatically. (VGA only)
CM Engine	Color Management Engine. (VGA only)
Optimal Aspect Ratio	Set Aspect Ratio on or off

Information Menu

Resolution 1288×1024 Horizontal Frequency 64.6KHz Vertical Frequency 59.9Hz version 002

Function	Description
Resolution	Displays resolution.
Horizontal frequency	Displays horizontal frequency.
Vertical frequency	Displays vertical frequency.
Version	Displays firmware version number.

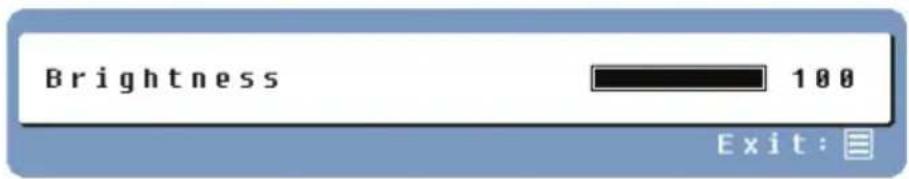

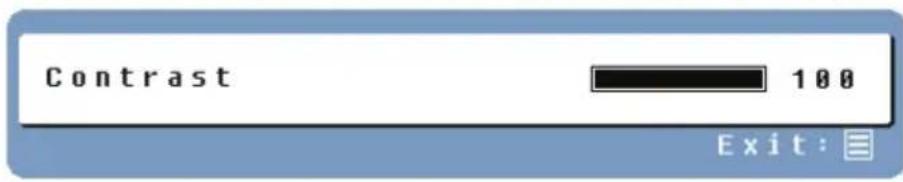

Quick Brightness or Contrast Adjustment

A Brightness or Contrast adjustment scale can be displayed directly by using the following button operations:

- Brightness: Press the ⚙/▶ Brightness button when the Menu is not displayed.

Brightness 100 Exit:

- Contrast: Press the ⏻/◄ Contrast button when the Menu is not displayed.

Contrast 100 Exit:

• Auto Adjustment: Press the Auto button when the Menu is not displayed.

Auto Adjust...

- Turbo: Press the Turbo/▲ button when the Menu is not displayed to switch between Display Modes. See page 17 for more detail.

Display Modes

The monitor backlighting can be adjusted by using the Turbo/▲ button on the control panel. There are 3 modes: Economy, Text, and Picture. To toggle between these modes, press the Turbo/▲ key until the mode you desire is selected. These modes automatically change the monitor backlight levels between bright, brighter, and brightest.

1. Economy Mode – Reduced brightness

E conomy Exit :

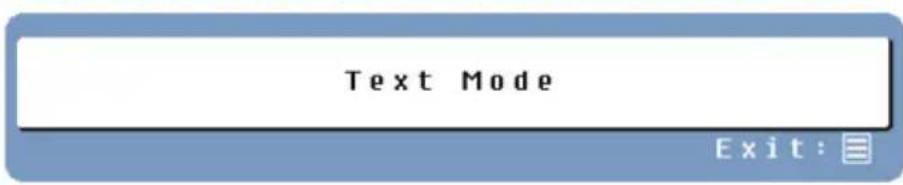

2. Text Mode – Normal brightness

Text Mode Exit:

3. Picture Mode – High brightness

Picture Mode Exit:

NOTES:

• Changing to a lower brightness mode can lessen eye fatigue.
• Change from Picture Mode to Text Mode when working with text.
• Change from Text Mode to Economy Modes when viewing the screen for long periods.

Specifications

Item		Specification
Panel Size	Type	19" Color TFT Active Matrix LCD. Anti-static and hard coated.
Optimum Resolution		1440 x 900
Response Time		5 ms
Contrast Ratio		700:1
Maximum Brightness		300 Nits
Viewing Angles		150° (H) / 130° (V)
Input Signal	Video HD-15 pin D	Sub (VGA connector)DVI-D
	Audio 3.5mm Mini-	Stereo jack
Power	Voltage 100-240 V	AC, 50/60 Hz (auto switch), 1.5A
Operating Conditions	Temperature 32°F	to +95°F (0°C to +35°C)
	Humidity 20% to 90% (no condensation)
	Altitude Up to 3,000 meters
Storage Conditions	Temperature -4°F	to +140°F (-20°C to +60°C)
	Humidity 10% to 90% (no condensation)
	Altitude Up to 12,000 meters
Dimensions	Unit 17.3 (w) x 14.7 (h) x 8.1 (d) in
	Carton 21.4 (w) x 18.5 (h) x 5.8 (d) in
Weight	Unit 9.5 lb (4.3 kg)
Regulations		FCC-B, UL, CSA (CUL), Energy Star®, CCC, VCCI, Plug & Play
Power consumption	AC On <36W (Green LED)
	AC Off <2W (Orange LED)
Lamp Life		40,000 hours

Troubleshooting

No Power

• Make sure the AC cord is plugged into the back of the LCD monitor.
• Make sure the AC power cord is securely connected to an AC outlet.
- Plug another electrical device (like a radio) to the power outlet to verify that the outlet is supplying the proper voltage.

No Image

• Make sure the power button is ON.
- Check whether the LCD monitor and computer power cords are plugged in and check the power supply.

Power is ON but No Screen Image

• Adjust the brightness and contrast levels.
• Make sure the VGA or DVI cable is securely connected to both the computer and monitor.

"Out Of Range"

- Check the computer image output resolution and frequency and compare the value with the preset values of the computer's graphics card.

Fuzzy Image

- Adjust the Phase setting on the monitor.

Image Too Bright or Too Dark

• Adjust the brightness and contrast levels using the OSD.
  • Make sure that the computer is not displaying an irregular image.
• Check the VGA or DVI connection between the computer and LCD monitor.
  • Perform Auto Adjust.

Distorted Image

• Reset the LCD monitor by performing the "Reset" function using the OSD.
• Remove extra accessories (such as a VGA extension cord).

Image is Not Centered (size is not scaled correctly)

• Perform Auto Adjust
- Adjust the horizontal and/or vertical position using the OSD.
- Check image size setting.

Colors are Incorrect

- Adjust the color setting using the OSD.

Cannot display the LCD monitor with resolution 1440 x 900

- Please download the video card driver from websites below: Nvidia: http://www.nvidia.com/content/drivers/drivers.asp Intel: http://downloadfinder.intel.com/scripts-df/support_intel.asp

ATI: https://support.ati.com/ics/support/default.asp?deptID=894

Additional Questions

• See our website at www.westinghousedigital.com.
- Contact Westinghouse Digital Customer Service at [phone] or write us at [e-mail].

TABLE DES MATIERES

CONSIGNES DE SÉCURITÉ IMPORTANTES ......2

DIRECTIVES DE SÉCURITÉ ....3

DÉCLARATION DE CONFORMITÉ À LA FCC....3

NETTOYAGE DU MONITEUR LCD ....5

CARACTERISTIQUES......6

ECONOMISEUR D'ÉNERGIE....6

AUTOCONFIGURATION....6

INSTALLATION....7

CONTENU DE L'EMBALLAGE 7

TOUCHES DU PANNEAU DE COMMANDE 8

CONNECTEURS D'ENTREE 9

1. POUR ATTACHER LE TRÉPIED AU MONITEUR LCD ....10

2. POUR RACCORDER LES CÂBLES AUDIO ET VIDÉO À L'ORDINATEUR....10

3. POUR RACCORDER LES CÂBLES D'ALIMENTATION .... 11

4. POUR ALLUMER LE MONITEUR 11

FONCTIONS DU MENU OSD ....12

MENU IMAGE [IMAGE MENU]....13

MENU AUDIO [AUDIO MENU] 14

Front view of a black computer monitor with a stand (no visible text or symbols)

Illustration of a desktop computer monitor connected to a server tower via cable links (no text or symbols)

Diagram showing a cable being inserted into a wall-mounted computer monitor (no text or symbols present)

Computer monitor with a power button icon pointing to its side (no text or symbols visible)

Menu – Divers [Miscellaneous Menu]

Misc Language English OSD Time-out 60 OSD Position 3 Reset Input Select Analog Auto Setting On CM Engine Optimal aspect ratio On Enter: 1448×900@60Hz Exit:

ATI: https://support.ati.com/ics/support/default.asp?deptID=894

Front view of a black computer monitor with a stand (no visible text or symbols)

Botones del Panel de Control

Illustration of a desktop computer monitor, three connected cable connectors, and a server tower (no text or symbols)

Diagram showing connection between a power outlet cable and an external port connected to a computer monitor (no text or symbols present)

Front view of a black computer monitor with a power button indicator (no text or symbols on the screen)

Misc Language English OSD Time-out 60 OSD Position 3 Reset Input Select Analog Auto Setting On CM Engine Optimal aspect ratio On Enter: 1448×900@60Hz Exit:
