USER MANUAL TX24JSW354 PANASONIC

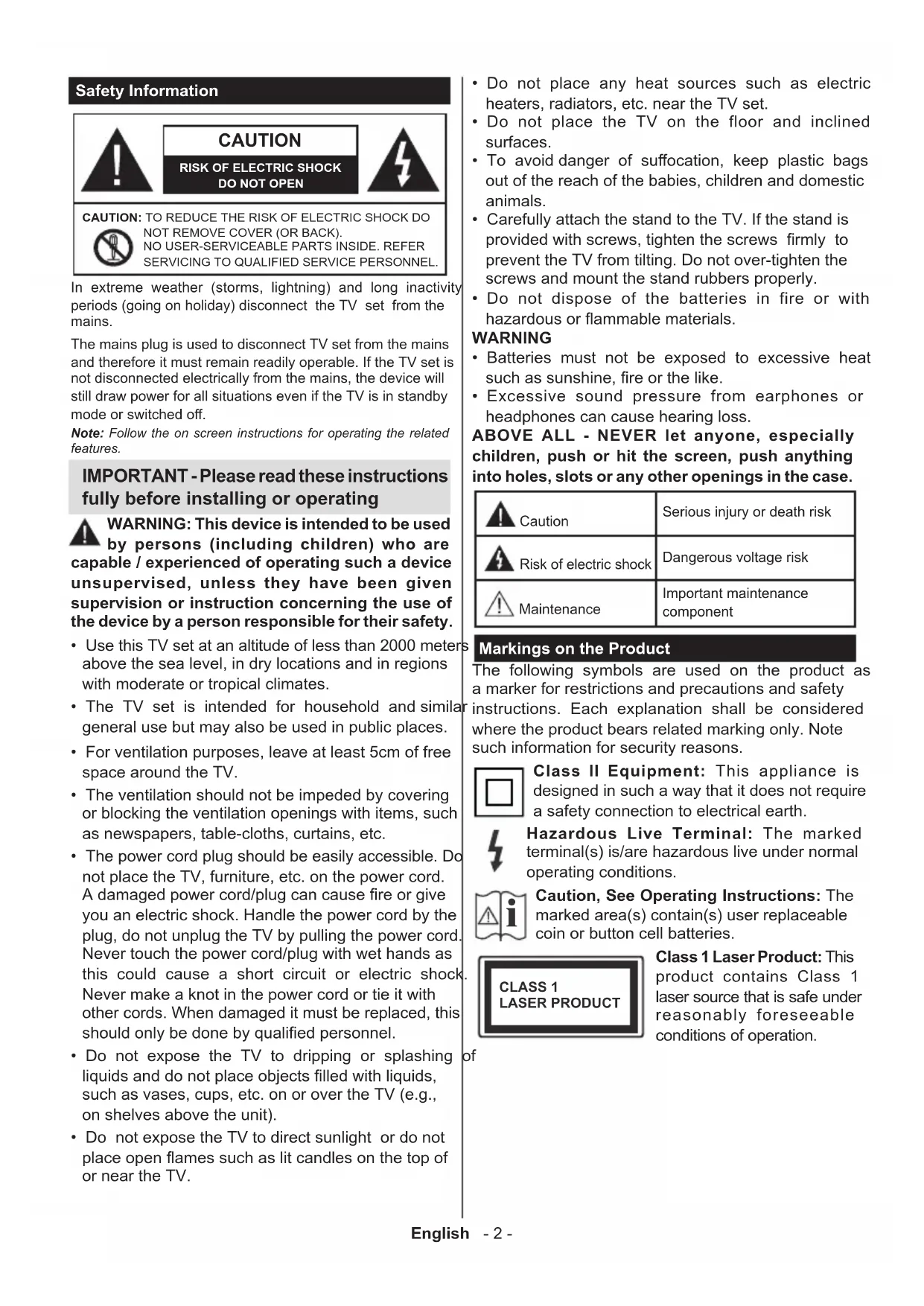

WARNING: This device is intended to be used

by persons (including children) who are capable / experienced of operating such a device unsupervised, unless they have been given supervision or instruction concerning the use of the device by a person responsible for their safety.

• Use this TV set at an altitude of less than 2000 meters above the sea level, in dry locations and in regions with moderate or tropical climates.

• The TV set is intended for household and similar general use but may also be used in public places.

• For ventilation purposes, leave at least 5cm of free space around the TV.

• The ventilation should not be impeded by covering or blocking the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.

• The power cord plug should be easily accessible. Do not place the TV, furniture, etc. on the power cord. A damaged power cord/plug can cause re or give you an electric shock. Handle the power cord by the plug, do not unplug the TV by pulling the power cord. Never touch the power cord/plug with wet hands as this could cause a short circuit or electric shock. Never make a knot in the power cord or tie it with other cords. When damaged it must be replaced, this should only be done by qualied personnel.

• Do not expose the TV to dripping or splashing of liquids and do not place objects lled with liquids, such as vases, cups, etc. on or over the TV (e.g., on shelves above the unit).

• Do not expose the TV to direct sunlight or do not place open ames such as lit candles on the top of or near the TV.

• Do not place any heat sources such as electric heaters, radiators, etc. near the TV set.

• Do not place the TV on the floor and inclined surfaces.

• To avoid danger of su󰀨ocation, keep plastic bags out of the reach of the babies, children and domestic animals.

• Carefully attach the stand to the TV. If the stand is provided with screws, tighten the screws rmly to prevent the TV from tilting. Do not over-tighten the screws and mount the stand rubbers properly.

• Do not dispose of the batteries in fire or with hazardous or ammable materials. WARNING

• Batteries must not be exposed to excessive heat such as sunshine, re or the like.

• Excessive sound pressure from earphones or headphones can cause hearing loss. ABOVE ALL - NEVER let anyone, especially children, push or hit the screen, push anything into holes, slots or any other openings in the case. Caution Serious injury or death risk Risk of electric shock Dangerous voltage risk Maintenance Important maintenance component Markings on the Product The following symbols are used on the product as a marker for restrictions and precautions and safety instructions. Each explanation shall be considered where the product bears related marking only. Note such information for security reasons. Class II Equipment: This appliance is designed in such a way that it does not require a safety connection to electrical earth. Hazardous Live Terminal: The marked terminal(s) is/are hazardous live under normal operating conditions.

Caution, See Operating Instructions: The marked area(s) contain(s) user replaceable coin or button cell batteries. CLASS 1 LASER PRODUCT Class 1 Laser Product: This product contains Class 1 laser source that is safe under reasonably foreseeable conditions of operation.English - 3 - WARNING Do not ingest the battery, Chemical Burn Hazard This product or the accessories supplied with the prod

uct may contain a coin/button cell battery. If the coin/ button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention. – – – – – – – – – – – – A television may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

• ALWAYS use cabinets or stands or mounting methods recommended by the manufacturer of the television set.

• ALWAYS use furniture that can safely support the television set.

• ALWAYS ensure the television set is not overhanging the edge of the supporting furniture.

• ALWAYS educate children about the dangers of climbing on furniture to reach the television set or its controls.

• ALWAYS route cords and cables connected to your television so they cannot be tripped over, pulled or grabbed.

• NEVER place a television set in an unstable location.

• NEVER place the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.

• NEVER place the television set on cloth or other materials that may be located between the television set and supporting furniture.

• NEVER place items that might tempt children to climb, such as toys and remote controls, on the top of the television or furniture on which the television is placed.

• The equipment is only suitable for mounting at heights ≤2 m. If the existing television set is going to be retained and relocated, the same considerations as above should be applied. – – – – – – – – – – – – Apparatus connected to the protective earthing of the building installation through the MAINS connection or through other apparatus with a connection to protective earthing – and to a television distribution system using coaxial cable, may in some circumstances create a re hazard. Connection to a television distribution system has therefore to be provided through a device providing electrical isolation below a certain frequency range (galvanic isolator)

WALL MOUNTING WARNINGS

• Read the instructions before mounting your TV on the wall.

• The wall mount kit is optional. You can obtain from your local dealer, if not supplied with your TV.

• Do not install the TV on a ceiling or on an inclined wall.

• Use the specied wall mounting screws and other accessories.

• Tighten the wall mounting screws rmly to prevent the TV from fall. Do not over-tighten the screws. WARNING

• Using other wall-hanging brackets, or installing a wall-hanging bracket by yourself have the risk of personal injury and product damage. In order to maintain the unit’s performance and safety, be absolutely sure to ask your dealer or a licensed contractor to secure the wall-hanging brackets. Any damage caused by installing without a qualied installer will void your warranty.

• Carefully read the instructions accompanying optional accessories, and be absolutely sure to take steps to prevent the TV from falling o󰀨.

• Handle the TV carefully during installation since subjecting it to impact or other forces may cause product damage.

• Take care when xing wall brackets to the wall. Always ensure that there are no electrical cables or pipes in the wall before hanging bracket.

• To prevent fall and injury, remove the TV from its xed wall position when it is no longer in use. Figures and illustrations in this user manual are provided for reference only and may di󰀨er from the actual product appearance. Product design and specications may be changed without notice.English - 4 - Assembling / Removing the pedestal Preparations Take out the pedestal(s) and the TV from the packing case and put the TV onto a work table with the screen panel down on the clean and soft cloth (blanket, etc.)

• Use a at and rm table bigger than the TV.

• Do not hold the screen panel part.

• Make sure not to scratch or break the TV. Assembling the pedestal

1. The stand of the TV consists of two pieces. Install

these pieces together.

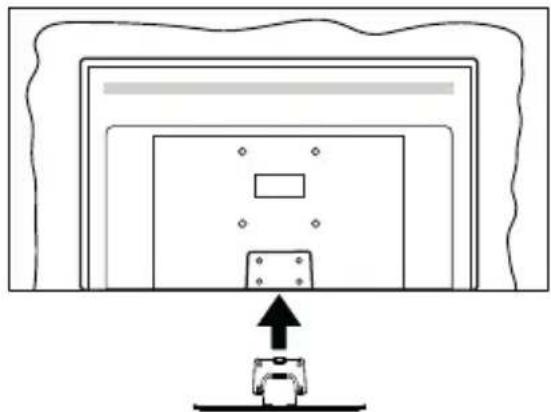

2. Place the stand(s) on the stand mounting

pattern(s) on the rear side of the TV.

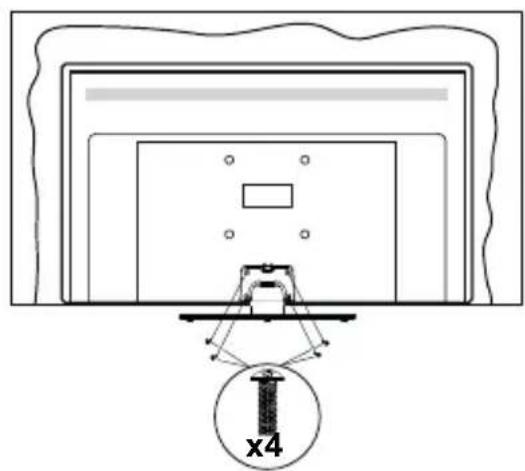

3. Insert the screws (M4 x 12) provided and tighten

them gently until the stand is properly tted.

Maintenance First, remove the mains plug from the mains socket. Display panel, Cabinet, Pedestal Regular care: Gently wipe the surface of the display panel, cabinet, or pedestal by using a soft cloth to remove dirt or ngerprints. For stubborn dirt:

1. First clean the dust from the surface.

2. Dampen a soft cloth with clean water or diluted

neutral detergent (1 part detergent to 100 parts water).

3. Wring out the cloth rmly. (Please note, do not

let liquid enter the TV inside as it may lead to product failure.)

4. Carefully wipe moisten and wipe away the

5. Finally, wipe away all the moisture.

Caution Do not use a hard cloth or rub the surface too hard, otherwise this may cause scratches on the surface.

• Take care not to subject the surfaces to insect repellent, solvent, thinner or other volatile substances. This may degrade surface quality or cause peeling of the paint.

• The surface of the display panel is specially treated and may be easily damaged. Take care not to tap or scratch the surface with your ngernail or other hard objects.

• Do not allow the cabinet and pedestal to make contact with a rubber or PVC substance for a long time. This may degrade surface quality. Mains plug Wipe the mains plug with a dry cloth at regular intervals. Moisture and dust may cause re or electrical shock.EnglishEnvironmental Information Energy Saving Minimum, Medium, Maximum Auto BacklightCustom Backlight Energy Saving O󰀨󰀨 Note: Available Energy Saving options may dier depending on the selected Mode in the Settings>Picture menu.Energy Saving Set-tings>Picture“Screen will be o󰀨 in 15 seconds.ProceedOK 󰀨 󰀨Note: Screen O option is not available if the Mode is set to Game. Removing the pedestal from the TV

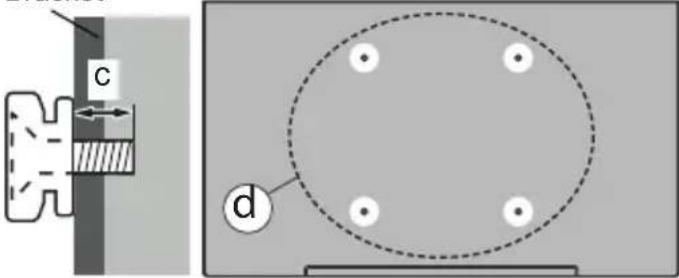

• • • When using the wall-hanging bracket Rear of the TV

a (mm) b (mm) View from the side

(d) Depth of screw (c)min. 7 mmmax. 10 mmDiameter M4Note: The screws for xing the TV onto the wall-hanging bracket are not supplied with the TV.English - 6 - Features

• Remote controlled colour TV

• Fully integrated digital terrestrial/cable/satellite TV (DVB-T-T2/C/S-S2)

• HDMI inputs to connect other devices with HDMI sockets

• Back AV inputs for external devices (such as DVD Players, PVR, video games, etc.)

• Headphone connection

• Automatic programming system

• Automatic power down after up to eight hours

• PLL (Frequency Search)

• Ethernet (LAN) for Internet connectivity and service

• 802.11 a/b/g/n built in WLAN Support

• HbbTV High Dynamic Range (HDR) / Hybrid Log- Gamma (HLG) Using this feature the TV can reproduce greater dynamic range of luminosity by capturing and then combining several di󰀨erent exposures. HDR/HLG promises better picture quality thanks to brighter, more realistic highlights, more realistic colour and other improvements. It delivers the look that lmmakers intended to achieve, showing the hidden areas of dark shadows and sunlight with full clarity, colour and detail. HDR/HLG contents are supported via native and market applications, HDMI, USB inputs and over DVB-S broadcasts. Accessories Included

• Stand mounting screws (M4 x 12) Standby Picture You can use your TV as a digital picture frame using the Standby Picture feature. In order to do this follow the steps below.

tem>More menu as On. This option is set as O󰀨 by default.

• Create a separate folder named as standby_picture in the USB storage device's root directory and copy the les you want to use into that folder and then connect the USB storage device to your TV.

• Press the Standby button on the remote briey to switch your TV into standby picture mode. Note that once the Standby Picture option is set as On, the function of the Standby button on the remote will change. After this you will need to press and hold the button to switch the TV into standby mode while the TV is in normal operating mode. If there are more than 1 picture le available in the folder all picture les will be displayed as a slide show in succession. If the necessary folder is not created or there isn't any picture le in the folder, a warning message will be displayed on the screen for a few seconds and then disappear. In standby picture mode the backlight level of the screen will be decreased by 50 % and Smart Center features will not be usable, if Smart Center is available for your TV model. To switch your TV from standby picture mode back to normal operating mode press the Standby button on the remote briey. Beside the remote control you can also use the control unit on the TV to switch into standby picture mode and back to normal operating mode. In order to do that follow the same instructions as described in the TV Control & Operation section for switching the TV into the standby mode. Note that you will not be able to switch the TV into standby mode using the control unit on the TV while the TV is in standby picture mode. Note: The availability of this feature depends on the TV model and its features. Refer to the Supported File Formats for USB Mode section for the supported media le formats. Standby Notications If the TV does not receive any input signal (e.g. from an aerial or HDMI source) for 3 minutes, it will go into standby. When you next switch-on, the following message will be displayed: “TV switched to stand-by mode automatically because there was no signal for a long time.” The Auto Power Down option(in the Settings>System >More menu) could have been set to a value between 1 and 8 hours by default. If this setting is not set as O󰀨English

“TV switched to stand-by mode automatically because no operation was made for a long time.”

Notes: If you turn the TV o, this cycle starts again beginning with the volume setting. Main menu OSD cannot be displayed via control button. Operation with the Remote Control Home

Changing Channels and Volume

Home Delete MoveOK English

Electronic Programme Guide 3.2. Channels Channels Using the Channel List

Edit Selected Timer OK.

Delete Selected Timer OK Yes

OK, Options Set/Cancel

English - 9 - Inserting the Batteries into the Remote Remove the back cover to reveal the battery compart

ment. Insert two size AA batteries. Make sure the (+) and (-) signs match (observe correct polarity). Do not mix old and new batteries. Replace only with same or equivalent type. Place the cover back on. A message will be displayed on the screen when the batteries are low and must be replaced. Note that when the batteries are low, the performance of the remote control may be impaired. Batteries should not be exposed to excessive heat such as sunshine, re or the like. Power Connection IMPORTANT: The TV set is designed to operate on a 220-240V AC, 50 Hz supply. After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the mains. Plug the power cable to the mains socket outlet. Antenna Connection Connect the aerial or cable TV plug to the aerial input (ANT) socket or satellite plug to the satellite input (LNB) socket located on the rear side of the TV. Rear side of the TV

If you want to connect a device to the TV, make sure that both the TV and the device are turned o󰀨 before making any connection. After the connection is done, you can turn on the units and use them. License Notication The terms HDMI, HDMI High-Denition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation. YouTube and the YouTube logo are trademarks of Google Inc. This product contains technology subject to certain intellectual property rights of Microsoft. Use or distribution of this technology outside of this product is prohibited without the appropriate license(s) from Microsoft. Content owners use Microsoft PlayReady™ content access technology to protect their intellectual property, including copyrighted content. This device uses PlayReady technology to access PlayReady-protected content and/or WMDRM-protected content. If the device fails to properly enforce restrictions on content usage, content owners may require Microsoft to revoke the device’s ability to consume PlayReady-protected content. Revocation should not a󰀨ect unprotected content or content protected by other content access technologies. Content owners may require you to upgrade PlayReady to access their content. If you decline an upgrade, you will not be able to access content that requires the upgrade. The “CI Plus” Logo is a trademark of CI Plus LLP. This product is protected by certain intellectual property rights of Microsoft Corporation. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft or an authorized Microsoft subsidiary.English Disposal of Old Equipment and Batteries Only for European Union and countries with recycling systems

Note for the battery symbol (bottom symbol):

Declaration of Conformity (DoC)

Number of Preset Channels

Channel Indicator RF Aerial Input Operating Voltage Audio Headphone Audio Output Power (WRMS.) (10% THD)

Power Consumption (W) 45 W Networked Standby Power Consumption (W) < 2 Weight (kg) TV Dimensions DxLxH (with stand) (mm)

TV Dimensions DxLxH (without stand) (mm)

Operation temperature and operation humidity

vant EU directive) without any limitation except for the countries mentioned below. Country Restriction Bulgaria General authorization required for outdoor use and public service Italy If used outside of own premises, general authorization is required Greece In-door use only for 5470 MHz to 5725 MHz band Luxembourg General authorization required for network and service supply(not for spectrum) Norway Radio transmission is prohibited for the geographical area within a radius of 20 km from the centre of Ny-Ålesund Russian Fed

eration In-door use only Israel 5 GHz band only for 5180 MHz-5320 MHz range The requirements for any country may change at any time. It’s recommended that user checks with local authorities for the current status of their national reg- ulations for 5 GHz wireless LAN’s. Standard IEEE 802.11.a/b/g/n Host Interface USB 2.0 Security

WEP 64/128, WPA, WPA2, TKIP, AES, WAPI

Notice DVB / Data broadcasting / IPTV functions

• This TV is designed to meet the standards (as of August, 2019) of DVB-T / T2 (MPEG2, MPEG4- AVC(H.264) and HEVC(H.265)) digital terrestrial services, DVB-C (MPEG2, MPEG4-AVC(H.264) and HEVC(H.265)) digital cable services and DVB-S (MPEG2, MPEG4-AVC(H.264) and HEVC(H.265)) digital satellite services. Consult your local dealer for availability of DVB-T / T2 or DVB-S services in your area. Consult your cable service provider for availability of DVB-C services with this TV.

• This TV may not work correctly with the signal which does not meet the standards of DVB-T / T2, DVB-C or DVB-S.

• Not all the features are available depending on the country, area, broadcaster, service provider, satellite and network environment.

• Not all CI modules work properly with this TV. Consult your service provider about the available CI module.

• This TV may not work correctly with CI module that is not approved by the service provider.

• Additional fees may be charged depending on the service provider.

• The compatibility with future services is not guaranteed.

• Internet apps are provided by their respective service providers, and may be changed, interrupted, or discontinued at any time. Panasonic assumes no responsibility and makes no warranty for the availability or the continuity of the services.

• Panasonic does not guarantee operation and performance of peripheral devices made by other manufacturers; and we disclaim any liability or damage arising from operation and/or performance from usage of such other maker’s peripheral devices.English - 12 - Remote Control EXIT LANG.LANG.

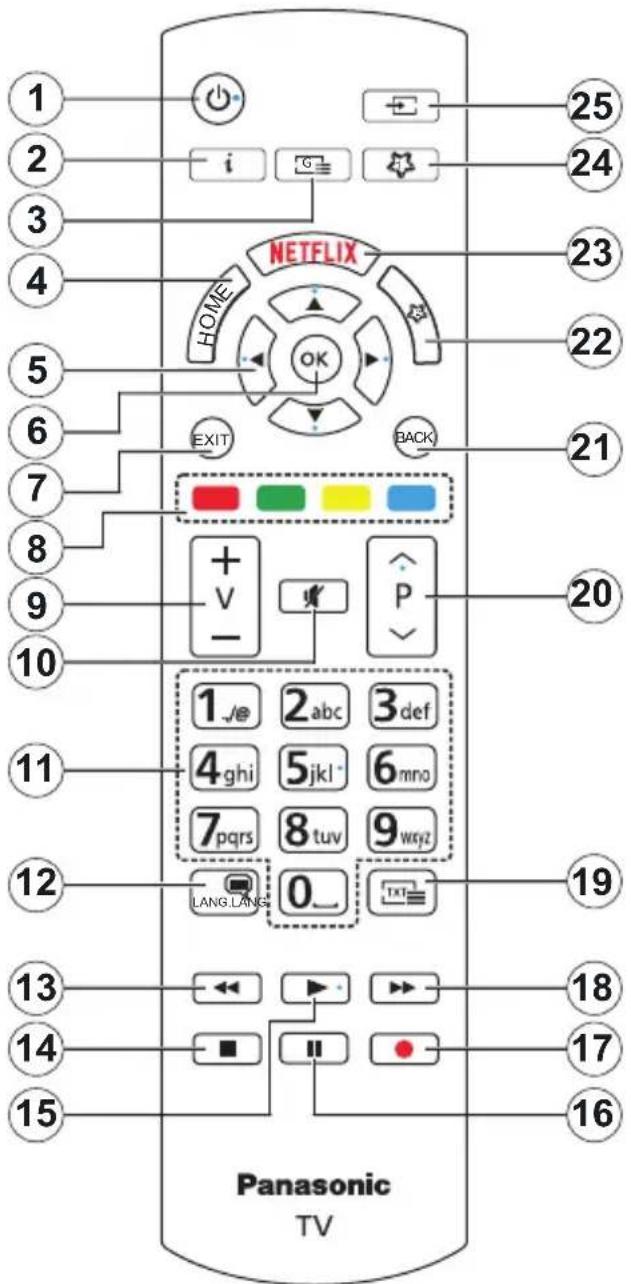

(*) MY BUTTON 1 & MY BUTTON 2: These buttons may have default functions depending on the model. However you can set a special function to these buttons by pressing on them for more than three seconds when on a desired source, channel or application. A conrmation message will be displayed on the screen. Now the selected My Button is associated with the selected function. Note that if you perform First Time Installation, My Button 1&2 will return to their default function.

1. Standby: Switches On / O󰀨 the TV

2. Info: Displays information about on-screen content,

shows hidden information (reveal - in TXT mode)

5. Directional buttons: Helps navigate menus,

content etc. and displays the subpages in TXT mode when pressed Right or Left

6. OK: Conrms user selections, holds the page (in

TXT mode), views Channels menu (DTV mode)

7. Exit: Closes and exits from displayed menus or

returns to previous screen

8. Coloured Buttons: Follow the on-screen instruc-

10. Mute: Completely turns o󰀨 the volume of the TV

11. Numeric buttons: Switches the channel, enters

a number or a letter in the text box on the screen, switches the TV on when in standby mode

12. Language: Switches among sound modes (an-

alogue TV), displays and changes audio/subtitle language and turns subtitles on or o󰀨 (digital TV, where available)

13. Rewind: Moves frames backwards in media such

14. Stop: Stops the media being played

15. Play: Starts to play selected media

16. Pause: Pauses the media being played

again to superimpose the teletext over a normal broadcast picture (mix)

20. Programme +/-: Programme up-down, Page up-

down (in TXT mode), switches the TV on when in standby mode

21. Back/Return: Returns to previous screen, previous

menu, opens index page (in TXT mode). Quickly cycles between previous and current channels or sources

25. Source: Shows available broadcast and content

sourcesEnglish - 13 - Connections Connector Type Cables Device VGA Connection (back) AUDIO IN PC/YPbPr Audio Connection (back) YPbPr/PC Audio Cable HDMI Connection (side&back) SPDIF SPDIF (Coaxial Out) Connection (back) BACK AV Back AV (Audio/Video) Connection (back) Audio Video Cable HEADPHONE Headphone Connection (side) YPBPR YPbPr Video Connection (back) PC to YPbPr Connection Cable USB Connection (side)

See the illustrations on the left side. You can use YPbPr to VGA cable to enable YPbPr signal via VGA input. You cannot use VGA and YPbPr at the same time. To enable PC/YPbPr audio, you will need to use the back audio inputs with a YPbPr/PC audio cable for audio connection. When using the wall mounting kit (available from a third party in the market, if not supplied), we recommend that you plug all your cables into the back of the TV before mounting on the wall. Insert or remove the CI module only when the TV is SWITCHED OFF. You should refer to the module instruction manual for details of the settings. The/ Each USB input of your TV supports devices up to 500mA. Connecting devices that have current value above 500mA may damage your TV. When connecting equipment using a HDMI cable to your TV, to guarantee sucient immunity against parasitic frequency radiation, you have to use a high speed shielded (high grade) HDMI cable with ferrites. If you want to connect a device to the TV, make sure that both the TV and the device are turned o󰀨 before making any connection. After the connection is done, you can turn on the units and use them.English - 14 - Switching On/O󰀨 To Switch the TV On Connect the power cord to a power source such as a wall socket (220-240V AC, 50 Hz). To switch on the TV from standby

• Press the Standby button, Programme +/- or a numeric button on the remote control.

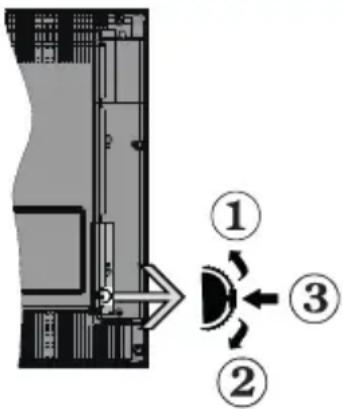

• Press the centre of the control button on the TV in. To switch on the TV from hard standby

• Press the centre of the control button on the TV in. To switch the TV into standby Press the Standby button on the remote control, the TV will switch into standby mode. To switch the TV into hard standby Press the centre of the control button on the TV in and hold it down for more than 3 seconds, the TV will switch into hard standby mode. To switch o󰀨 the TV To power down the TV completely, unplug the power cord from the mains socket. Note: When the TV is switched into standby mode, the standby LED can blink to indicate that features such as Standby Search, Over Air Download or Timer is active. The LED can also blink when you switch on the TV from standby mode. First Time Installation When turned on for the first time, the language selection screen is displayed. Select the desired language and press OK. In the following steps of the installation guide, set your preferences using the directional buttons and OK button. After the language selection, you will be asked whether you want to change accessibility settings. Highlight Yes and press OK to change. Refer to System Menu Content section for detailed information on available options. Set your country preference on the next screen. Depending on the Country selection you may be asked to set and conrm a PIN at this point. The selected PIN cannot be 0000. You have to enter it if you are asked to enter a PIN for any menu operation later. You can activate Store Mode option in the next step. This option will congure your TV’s settings for store environment and depending on the TV model being used, the supported features of it may be displayed on the screen as an info banner. This option is intended only for store use. It is recommended to select Home Mode for home use. This option will be available in Settings>System>More menu and can be turned o󰀨/ on later. Make your selection and press OK to continue. The picture mode selection screen will then be displayed. In order for your TV to consume less energy and be more environmentally friendly select Natural and press OK to continue. You can change your selection later using the Mode option in the Settings>Picture menu. Depending on the model of your TV and the country selection Privacy Settings menu may appear at this point. Using this menu you can set your privacy privileges. Highlight a feature and use Left and Right directional buttons to enable or disable. Read the related explanations displayed on the screen for each highlighted feature before making any changes. You can use Programme +/- buttons to scroll up and down to read the entire text. You will be able to change your preferences at any time later from the Settings>System>Privacy Settings menu. If the Internet Connection option is disabled Network/Internet Settings screen will be skipped and not displayed. If you have any questions, complaints or comments regarding this privacy policy or its enforcement, please contact by email at smarttvsecurity@vosshub.com. Highlight Next and press OK button on the remote control to continue and the Network/Internet Settings menu will be displayed. Please refer to Connectivity section to congure a wired or a wireless connection. If you want your TV to consume less power in standby mode, you can disable the Wake On option by setting it as O󰀨. After the settings are completed highlight Next and press OK button to continue. On next screen you can set broadcast types to be searched, set your encrypted channel searching and time zone (depending on the country selection) preferences. Additionally you can set a broadcast type as your favourite one. Priority will be given to the selected broadcast type during the search process and the channels of it will be listed on the top of the channel list. When nished, highlight Next and press OK to continue. About Selecting Broadcast Type To turn a search option for a broadcast type highlight it and press OK. The checkbox next to the selected option will be checked. To turn the search option o󰀨 clear the checkbox by pressing OK after moving the focus on the desired broadcast type option. Digital Aerial: If D. Aerial broadcast search option is turned on, the TV will search for digital terrestrial broadcasts after other initial settings are completed. Digital Cable: If D. Cable broadcast search option is turned on, the TV will search for digital cable broadcasts after other initial settings are completed. A message will be displayed before starting to search asking if you want to perform cable network search. If you select Yes and press OK you can select Network or set values such as Frequency, Network ID and Search Step on the next screen. If you select No and press OK you can set Start Frequency, Stop Frequency and Search Step on the next screen.English - 15 - When nished, highlight Next and press OK button to continue. Note: Searching duration will change depending on the selected Search Step. Satellite: If Satellite broadcast search option is turned on, the TV will search for digital satellite broadcasts after other initial settings are completed. Before satellite search is performed some settings should be made. Antenna Type menu will be displayed rst. You can select Antenna Type as Direct, Single Satellite Cable or DiSEqC switch by using Left or Right buttons. After selecting your antenna type press OK to see the options to proceed. Continue, Transponder list and Congure LNB options will be available. You can change the transponder and LNB settings using the related menu options.

• Direct: If you have a single receiver and a direct satellite dish, select this antenna type. Press OK to continue. Select an available satellite on the next screen and press OK to scan for services.

• Single Satellite Cable: If you have multiple receivers and a single satellite cable system, select this antenna type. Press OK to continue. Congure settings by following instructions on the next screen. Press OK to scan for services.

• DiSEqC switch: If you have multiple satellite dishes and a DiSEqC switch, select this antenna type. Then set the DiSEqC version and press OK to continue. You can set up to four satellites (if available) for version v1.0 and sixteen satellites for version v1.1 on the next screen. Press OK button to scan the rst satellite in the list. Analogue: If Analogue broadcast search option is turned on, the TV will search for analogue broadcasts after other initial settings are completed. After the initial settings are completed TV will start to search for available broadcasts of the selected broadcast types. While the search continues current scan results will be displayed at the bottom of the screen. After all the available stations are stored, Channels menu will be displayed. You can edit the channel list according to your preferences using the Edit tab options or press the Home button to quit and watch TV. While the search continues a message may appear, asking whether you want to sort channels according to the LCN(*). Select Yes and press OK to conrm. (*) LCN is the Logical Channel Number system that organizes available broadcasts in accordance with a recognizable channel number sequence (if available). Note: Do not turn off the TV while initializing first time installation. Note that, some options may not be available depending on the country selection. After the first time installation is completed HD+ operator application screen may be displayed depending on selections you made during the installation process. In order to access operator services this application needs to be activated. If you activate the application, the elements of the user interface such as channel info banner and electronic programme guide, which are normally provided by the TV, will be replaced by the operator application. If you do not perform satellite or HD+ installation and want to activate the application at a later time, highlight the HD+ application on the Home menu and press OK. You will be directed to a screen where you can carry out the activation. Media Playback via USB Input You can connect 2.5” and 3.5” inch (HDD with external power supply) external hard disk drives or USB memory stick to your TV by using the USB inputs of the TV. IMPORTANT! Back up the les on your storage devices before connecting them to the TV. Manufacturer will not be responsible for any le damage or data loss. Certain types of USB devices (e.g. MP3 Players) or USB hard disk drives/memory sticks may not be compatible with this TV. The TV supports FAT32 and NTFS disk formatting. Wait a little while before each plugging and unplugging as the player may still be reading les. Failure to do so may cause physical damage to the USB player and the USB device itself. Do not pull out your drive while playing a le. You can use USB hubs with your TV’s USB inputs. External power supplied USB hubs are recommended in such a case. It is recommended to use the TV’s USB input(s) directly, if you are going to connect a USB hard disk. Note: When viewing image les the Media Browser menu can only display 1000 image les stored on the connected USB device. Media Browser You can play back music and movie les and display photo files stored on a USB storage device by connecting it to your TV. Connect a USB storage device to one of the USB inputs located on the side of the TV. After connecting a USB storage device to your TV Media Browser menu will be displayed on the screen. You can access the content of the connected USB device any time later from the Sources menu. Select the related USB input option from this menu and press OK. You can also press the Source button on the remote and then select your USB storage device from the list of sources. Then select the le of your choice and press OK to display or play it back. You can set your Media Browser preferences by using the Settings menu. Settings menu can be accessed via the information bar which is displayed on the bottom of the screen while playing back a video le or displaying a picture le. Press the Info button if the information bar has disappeared, highlight theEnglish - 16 - gear wheel symbol positioned on the right side of the information bar and press OK. Picture Settings, Sound Settings, Media Browser Settings and Options menus will be available. The content of the Settings menu may change according to the type of the currently open media le. Only Sound Settings menu will be available while playing back audio les. Loop/Shue Mode Operation Start playback and activate All les in the list will be continuously played in original order Start playback and activate The same le will be played continuously (repeat) Start playback and activate All les in the list will be played once in random order Start playback and activate

All les in the list will be continuously played in the same random order To use the functions on the information bar highlight the symbol of the function and press OK. To change the status of a function highlight the symbol of the function and press OK as much as needed. If the symbol is marked with a red cross, that means it is deactivated. CEC This function allows to control the CEC-enabled devices, that are connected through HDMI ports by using the remote control of the TV. The CEC option in the Settings>System>Device Settings menu should be set as Enabled at rst. Press the Source button and select the HDMI input of the connected CEC device from the Sources List menu. When new CEC source device is connected, it will be listed in source menu with its own name instead of the connected HDMI ports name(such as DVD Player, Recorder 1 etc.). The TV remote is automatically able to perform the main functions after the connected HDMI source has been selected. To terminate this operation and control the TV via the remote again, press and hold the “0- Zero” button on the remote control for 3 seconds. You can disable the CEC functionality by setting the related option under the Settings>System>Device Settings menu accordingly. The TV supports ARC (Audio Return Channel). This feature is an audio link meant to replace other cables between the TV and an audio system (A/V receiver or speaker system). When ARC is active, the TV will mute its other audio outputs, except the headphone jack, automatically and volume control buttons are directed to connected audio device. To activate ARC set the Sound Output option in the Settings>Sound menu as HDMI ARC. Note: ARC is supported only via the HDMI2 input. System Audio Control Allows an Audio Amplier/Receiver to be used with the TV. The volume can be controlled using the remote control of the TV. To activate this feature set the Sound Output option in the Settings>Sound menu as HDMI ARC. When HDMI ARC option is selected, CEC option will be set as Enabled automatically, if it is not already set. The TV speakers will be muted and the sound of the watched source will be provided from the connected sound system. Note: The audio device should support System Audio Control feature.English - 17 - Settings Menu Content Picture Menu Content Mode You can change the picture mode to suit your preference or requirements. Picture mode can be set to one of these options: Cinema, Game(optional), Sports, Dynamic and Natural. Contrast Adjusts the light and dark values on the screen. Brightness Adjusts the brightness values on the screen. Sharpness Sets the sharpness value for the objects displayed on the screen. Colour Sets the colour value, adjusting the colours. Energy Saving For setting the Energy Saving to Custom, Minimum, Medium, Maximum, Auto, Screen O󰀨 or O󰀨. Note: Available options may dier depending on the selected Mode. Backlight This setting controls the backlight level. The backlight function will be inactive if the Energy Saving is set to an option other than Custom. Picture Zoom Sets the desired image size format. Picture Shift This option may be available depending on the Picture Zoom setting. Highlight and press OK, then use directional buttons to shift the picture upwards or downwards. PC Position Appears only when the input source is set to VGA/PC. Autoposition If the image is not centered in VGA mode use this option to automatically adjust the position of the image. Press OK to start the auto adjustment. H Position This item shifts the image horizontally to the right hand side or left hand side of the screen. V Position This item shifts the image vertically towards the top or bottom of the screen. Dot Clock Dot Clock adjustments correct the interference that appear as vertical banding in dot intensive presentations like spreadsheets or paragraphs or text in smaller fonts. Phase Depending on the input source(computer etc.) you may see a hazy or noisy picture on the screen. You can use phase to get a clearer picture by trial and error. Advanced Settings Dynamic Contrast You can change the dynamic contrast ratio to desired value. Colour Temp Sets the desired colour temperature value. Cool, Normal, Warm and Custom options are available. White Point If the Colour Temp option is set as Custom, this setting will be available. Increase the ‘warmth’ or ‘coolness’ of the picture by pressing Left or Right buttons. Vivid Blue White colour enhancement function that makes white colour more cooler in order to make more bright picture. Set as On to enable. Vivid Dimming Low, Medium, High and O󰀨 options are available. While Micro Dimming is active, it will enhance contrast locally for each dened zone. Noise Reduction Low, Medium, High and O󰀨 options are available. If the signal is weak and the picture is noisy, use the Noise Reduction setting to reduce the amount of noise. Film Mode Films are recorded at a di󰀨erent number of frames per second to normal television programmes. Turn this feature on when you are watching lms to see the fast motion scenes clearly. Skin Tone Skin tone can be changed between -5 and 5. Colour Shift Adjust the desired colour tone. Colour Tuner Opens colour tuner settings. Set the Colour Tuner as enabled to adjust the Hue, Colour and Brightness values manually. Gamut Mapping You can use this option to set the range of colours displayed on your TV screen. When set as On, colours are set according to the source signal. When set as O󰀨, the TV’s maximum colour capacity is used by default (recommended option). Note: This option may not be available depending on the TV model and its features. HDMI Full Range While watching from a HDMI source, this feature will be visible. You can use this feature to enhance blackness in the picture. Reset Resets the picture settings to factory default settings (except Game mode). While in VGA (PC) mode, some items in Picture menu will be unavailable. Instead, VGA mode settings will be added to the Picture menu while in PC mode.English - 18 - Sound Menu Content Dolby Audio Smart, Movie, Music, News and O󰀨 options will be available. Set as O󰀨 to disable. Note: Some items in Sound menu will be grayed out and unavailable if set to an option other than O. Surround Sound Surround Sound mode can be changed as On or O󰀨. Sound Output Sets the sound output preference. TV, S/PDIF, HDMI ARC, Headphone Only and Lineout options will be available. There will be no sound output except through the selected option and the headphone jack. When you connect an external amplier to your TV using the headphone jack, you can select this option as Lineout. If you have connected headphones to the TV, set this option as Headphone Only. Please ensure before using headphones that this menu item is set to Headphone Only. If it is set to Lineout, the output from the headphone socket will be set to maximum which could damage your hearing. If HDMI ARC option is selected, CEC feature will be enabled. Note: Depending on the selected option some items in Sound menu will appear as grayed out and will be unavailable. AVL (Automatic Volume Limiting) Sets the sound to obtain xed output level between programmes. If the Dolby Audio menu item is set to an option other than O󰀨 the AVL setting options will change. Auto, Night, Normal and O󰀨 options will be available. In Auto mode the TV will switch to Normal or Night mode automatically according to the current time information. If no time information is available this option will always function as Normal. When the TV switches to Night mode for the rst time after setting this option as Auto, an information bar will pop up on the screen. Please note that compared to Normal mode Night mode provides more aggressive dynamic compression control which is suitable for silent environments. Advanced Settings Equalizer Selects the equalizer mode. Custom settings can be made only when in User mode. Dynamic Bass Enables or disables the Dynamic Bass. Sound Mode You can select a sound mode (If the viewed channel supports). Digital Out Sets digital out audio type. Headphone Sets headphone volume. This option will not be available if the Sound Output option is set as Lineout. Please ensure before using headphones that the headphone volume is set to a low level, to prevent damage to your hearing. Balance Sets sound balance. This feature will be activated if Sound Output option is set as TV or Headphone Only. Balance item adjusts the balance level of the TV speakers and headphone together. Reset Resets some of the sound settings to factory defaults.English Network Menu Content Network Type

Scan Wireless Networks Network Type Wireless Device. Press WPS on your

Wake On On󰀨. Note: For detailed information on the options of this menu refer to the Connectivity section. Installation Menu Content Automatic channel scan (Retune) D. Aerial: D. Cable:Analogue:

Satellite Settings Satellite list:Add, DeleteEditAntenna installation: You can

(*) Availability depends on model. Clear Service List Country

Select Active Network

First time installation English - 20 - System Menu Content Conditional Access Controls conditional access modules when available. Language You may set a di󰀨erent language depending on the broadcaster and the country. Privacy Settings Manage your privacy privileges for smart TV related applications. Press OK to enter the menu and set according to your preferences. Parental Enter correct password to change parental settings. You can easily adjust Menu Lock, Maturity Lock, Child Lock or Guidance in this menu. You can also set a new PIN or change the Default CICAM PIN using the related options. Note: Some menu options may not be available depending on the country selection in the First Time Installation. Default PIN could have been set to 0000 or 1234. If you have dened the PIN(is requested depending on the country selection) during the First Time Installation use the PIN that you have dened. Date/Time Sets date and time. Sources Edit the names, enable or disable selected source options. Accessibility Displays accessibility options of the TV. High Contrast Increase the contrast of the menu options and texts to make them easier to read. White Text, Yellow Text and O󰀨 options will be available. Hard of Hearing Enables any special feature sent from the broadcaster. Audio Description A narration track will be played for the blind or visually impaired audience. Press OK to see all available Audio Description menu options. This feature is available only if the broadcaster supports it. Dialogue Enhancement This feature provides sound post-processing options for speech-gated dialogue enhancement. O󰀨, Low, Medium and High options will be available. Set according your preference. Note: This feature has an eect only if input audio format is AC-4 and this eect only applies to TV loudspeaker output. Spoken Subtitles Default preference of spoken subtitles is selected with this setting option. To make spoken subtitles priority higher than normal ones, this option should be set to On. This option may not be available depending on the model of your TV and is only visible when the source is set to TV. Magnication Enables the use of button combinations to magnify the screen. On and O󰀨 options will be available. Set as On to enable. Magnication support will be enabled or disabled with long-press of the numeric button

5. First top-left quadrant of the screen will be zoomed. After the magnication support

is enabled, long-press of the numeric buttons 2, 4, 6, 8 will move the zoomed area to up, left, right and down. Minimap Minimap is enabled and deactivated by default. It will be activated when Magnication feature is enabled. With this option, you can prevent magnication feature from displaying the minimap. Click Sound This option enables the key click sound on TV menu. Set to On to enable. Highlight programmes with [S] Subtitle If this option is enabled and if any electronic programme guide event has "Subtitle" access service, this events will be highlighted with another colour. [SL] Sign Language If this option is enabled and if any electronic programme guide event has "Sign Language" access service, this events will be highlighted with another colour. [AD] Audio Description If this option is enabled and if any electronic programme guide event has "Audio Description" access service, this events will be highlighted with another colour. Netix If this feature is supported by your TV, you can view your ESN(*) number and deactivate Netix. (*) ESN number is an unique ID number for Netix, created especially to identify your TV. Device SettingsEnglish - 21 - CEC With this setting you can enable and disable CEC functionality completely. Press Left or Right button to enable or disable the feature. CEC Auto Power

This function allows the connected HDMI-CEC compatible device to turn on the TV and switch to its input source automatically. Press Left or Right button to enable or disable the feature. Voice Assistant Alexa Built-in Starts the setup process for this feature manually. If the setup is priorly completed Alexa Language, Alexa On Standby, Alexa Alarm Volume and Sign Out options will be available. Refer to Alexa Ready section for more information. Alexa On Standby Enables or disables Alexa On Standby feature. If enabled Alexa will be available while the TV is in standby mode. Note: This feature may aect your TV’s power consumption. Alexa Alarm Volume Sets the volume level for Alexa alarms. Sign Out You can use this option to sign out. If you sign out Alexa Built-in feature will be disabled.. Works With Alexa Starts the setup process for this feature manually. If the setup is priorly completed Sign Out option will be available. Refer to Alexa Ready section for more information. Sign Out You can use this option to sign out. If you sign out Works With Alexa feature will be disabled. Google Assistant Starts the setup process to enable your TV to work with Google Assistant devices. Highlight Start and press OK. If the setup is priorly completed Sign Out option will be available. If you sign out Google Assistant feature will be disabled. Refer to Google Assistant section for more information. More Displays other setting options of the TV. Menu Timeout Changes timeout duration for menu screens. Standby LED If set as O󰀨 the standby LED will not light up when the TV is in standby mode. Software Upgrade Ensures that your TV has the latest rmware. Press OK to see the menu options. Application Version Displays current software version. Auto Power Down Sets the desired time for the TV to automatically go into standby mode when not being operated. This option can be set from 1 to 8 hours in steps of 1 hour. You can also disable this option by setting as O󰀨. Subtitle Mode This option is used to select which subtitle mode will be on the screen (DVB subtitle / Teletext subtitle) if both is available. Default value is DVB subtitle. This feature is available only for the country option of Norway. Biss Key Biss is a satellite signal scrambling system that is used for some broadcasts. If you need to enter Biss key on a broadcast, you can use this setting. Highlight Biss Key and press OK to enter keys on the desired broadcast. Store Mode Select this mode for store display purposes. Whilst Store Mode is enabled, some items in the TV menu may not be available. Audio Video Sharing This feature allows you to share les stored on your smartphone or tablet pc. If you have a compatible smartphone or tablet pc and the appropriate software is installed, you can share/play photos on your TV. See instructions of your sharing software for more information. Power Up Mode This setting congures the power up mode preference. Last State and Standby options are available. Virtual Remote Enable or disable the virtual remote feature. OSS Displays Open Source Software license information. Application Priority You can set your preference regarding the priority between the broadcast applications and CICAM AppMMI applications using this option. In case a CICAM is inserted into the TV and a contention occurs between the applications the priority will be given to the selected type of application. Note: Some options may not be available depending on the model of your TV and the selected country in the First Time Installation.English - 22 - General TV Operation Using the Channel List The TV sorts all stored stations in the channel list. You can edit this channel list, set favourites or set active stations to be listed by using the Channels menu options. Press the OK button to open the channel list. You can lter the listed channels or make advanced changes in the current list using the Filter and Edit tab options. Highlight the tab you want and press OK to see available options. Managing the Favourite Lists You can create four di󰀨erent lists of your favourite channels. Enter the TV>Channels menu or press the OK button in order to open the Channels menu. Highlight the Edit tab and press OK to see the editing options and select the Tag/Untag channel option. Select the desired channel on the list by pressing the OK button while the channel is highlighted. You can make multiple choices. You can also use the Tag/ Untag all option to select all channels on the list. Then press Back/Return button to return to the Edit menu options. Select Add/Remove Favourites option and press the OK button again. Favourite channel list options will be displayed. Set the desired list option to On. The selected channel/s will be added to the list. In order to remove a channel or channels from a favourite list follow the same steps and set the desired list option to O󰀨. You can use the ltering function in the Channels menu to lter the channels in the channel list permanently according to your preferences. For instance, using the options of the Filter tab, you can set one of your four favourite lists to be displayed every time the channel list is opened. Conguring Parental Settings The Parental menu options can be used to prohibit users from viewing of certain programmes, channels and using of menus. These settings are located in the Settings> System>Parental menu. To display parental lock menu options, a PIN should be entered. After coding the correct PIN, Parental menu will be displayed. Menu Lock: This setting enables or disables access to all menus or installation menus of the TV. Maturity Lock: If this option is set, TV gets the maturity information from the broadcast and if this maturity level is disabled, prohibits access to the broadcast. Note: If the country option in the First Time Installation is set as France, Italy or Austria, Maturity Lock’s value will be set to 18 as default. Child Lock: If this option is set to On, the TV can only be controlled by the remote control. In this case the control buttons on the TV will not work. Internet Lock: If this option is set to ON, the internet using applications will be disabled. Set to OFF to release these applications again. Set PIN: Denes a new PIN number. Default CICAM PIN: This option will appear as greyed out if no CI module is inserted into the CI slot of the TV. You can change the default PIN of the CI CAM using this option. Note: Default PIN could have been set to 0000 or 1234. If you have dened the PIN(is requested depending on the country selection) during the First Time Installation use the PIN that you have dened. Some options may not be available depending on the model and/or on the country selection in the First Time Installation. Electronic Programme Guide By means of electronic programme guide function of your TV you can browse the event schedule of the currently installed channels on your channel list. It depends on the related broadcast whether this feature is supported or not. To access the programme guide, press the Guide button on your remote. You can also use the Guide option under TV menu. There are 2 different types of schedule layouts available, Timeline Schedule and Now/Next. To switch between these layouts highlight the tab with the name of the alternative layout on the upper side of the screen and press OK. Use the directional buttons to navigate through the programme guide. Use the Back/Return button to use the tab options on the upper side of the screen. Timeline Schedule In this layout option, all events of the listed channels will be displayed by timeline. You can use the directional buttons to scroll through the list of the events. Highlight an event and press OK to display event options menu. Press Back/Return button to use available tab options. Highlight Filter tab and press OK to see the ltering options. To change the layout highlight Now/Next and press OK. You can use the Previous Day and Next Day options to display the events of the previous and next day. Highlight Extras tab and press OK to access below options. Highlight Genre: Displays Highlight Genre menu. Select a genre and press OK. The events in the programme guide matching the selected genre will be highlighted. Guide Search: Displays searching options. Using these options, you can search the programme guide database in accordance with the selected criteria. Matching results will be listed. Now: Displays current event of the highlighted channel.English - 23 - Zoom: Highlight and press OK to see events in a wider time interval. Now/Next Schedule In this layout option, only the current and next events of the listed channels will be displayed. You can use the directional buttons to scroll through the list of the events. Press Back/Return button to use available tab options. Highlight Filter tab and press OK to see the ltering options. To change the layout highlight Timeline Schedule and press OK. Event Options Use the directional buttons to highlight an event and press OK button to display Options menu. The following options are available. Select Channel: Using this option, you can switch to the selected channel in order to watch it. The programme guide will be closed. More Info: Display detailed information on the selected event. Use up and down directional buttons to scroll through the text. Set Timer on Event / Delete Timer on Event: Select Set Timer on Event option and press OK. You can set timers for future events. To cancel an already set timer, highlight that event and press the OK button. Then select Delete Timer on Event option. The timer will be cancelled. Notes: You cannot switch to any other channel while there is an active timer on the current channel. It is not possible to set timer for two or more individual events at the same time interval. Teletext Services Press the Text button to enter. Press again to activate mix mode, which allows you to see the teletext page and the TV broadcast at the same time. Press once more to exit. If available, sections in the teletext pages will become colour-coded and can be selected by pressing the coloured buttons. Follow the instructions displayed on the screen. Digital Teletext Press the Text button to view digital teletext information. Operate it with the coloured buttons, cursor buttons and the OK button. The operation method may di󰀨er depending on the contents of the digital teletext. Follow the instructions displayed on the digital teletext screen. When the Text button is pressed again, the TV returns to television broadcast. Software Upgrade Your TV is capable of nding and updating the rmware automatically via the broadcast signal or via Internet. Software upgrade search via user interface On the main menu select Settings>System and then More. Navigate to Software upgrade and press the OK button. Then select Scan for upgrade and press OK button to check for a new software upgrade. If a new upgrade is found, it starts to download the upgrade. After the download is completed, a warning will be displayed, press OK button to complete software upgrade process and restart TV. 3 AM search and upgrade mode Your TV will search for new upgrades at 3:00 o’clock if Automatic scanning option is set to Enabled and if the TV is connected to an aerial signal or to Internet. If a new software is found and downloaded successfully, it will be installed at the next power on. Note: Do not unplug the power cord while led is blinking during the reboot process. If the TV fails to come on after the upgrade, unplug, wait for two minutes then plug it back in. All updates are automatically controlled. If a manual search is carried out and no software is found then this is the current version. Troubleshooting & Tips TV will not turn on Make sure the power cord is plugged in securely to a wall outlet. Press the Power button on the TV. Poor picture

• Check if you have correctly tuned the TV.

• Low signal level can cause picture distortion. Please check antenna connections.

• Check if you have entered the correct channel frequency if you have performed manual tuning. No picture

• TV is not receiving any signal. Make sure the correct source has been selected.

• Is the antenna connected properly?

• Is the antenna cable damaged?

• Are suitable plugs used to connect the antenna?

• If you are in doubt, consult your dealer. No sound

• Check if the TV sound is muted. Press the Mute button or increase the volume to check.

• Sound may be coming from only one speaker. Check the balance settings from Sound menu. Remote control - no operation

• The batteries may be exhausted. Replace the batteries.

• The batteries maybe inserted incorrectly. Refer to the section “Inserting the Batteries into the Remote”. No signal on an input source

• It is possible that no device is connected.

• Check the AV cables and connections from your device.English - 24 -

• Check the device is switched on. The Image is not centered in VGA source To have your TV automatically center the image, enter the PC Position menu in Picture menu, highlight Autoposition and press OK. Wait for it to nish. In order to set the position of the image manually you can use H Position and V Position options. Select the desired option and use Left and Right directional buttons on the remote to set. PC Input Typical Display Modes The following table is an illustration of some of the typical video display modes. Your TV may not support all resolutions. Index Resolution Frequency 1 640x480 60Hz 2 640x480 75Hz 3 800x600 56Hz 4 800x600 60Hz 5 800x600 72Hz 6 800x600 75Hz 7 1024x768 60Hz 8 1024x768 70Hz 9 1024x768 75Hz 10 1152x864 75Hz 11 1280x768 60Hz 12 1360x768 60Hz 13 1280x960 60Hz 14 1280x1024 60Hz 15 1280x1024 75Hz 16 1400x1050 60Hz 17 1440x900 60Hz 18 1440x900 75Hz 19 1920x1080 60Hz AV and HDMI Signal Compatibility Source Supported Signals Available Back AV PAL O SECAM O NTSC4.43 O NTSC3.58 O YPbPr 480i, 480p 60Hz O 576i, 576p 50Hz O 720p 50Hz,60Hz O 1080i 50Hz,60Hz O HDMI 480i, 480p 60Hz O 576i, 576p 50Hz O 720p 50Hz,60Hz O 1080i 50Hz,60Hz O 1080p 24Hz, 25Hz, 30Hz, 50Hz, 60Hz

(X: Not Available, O: Available) In some cases a signal on the TV may not be displayed properly. The problem may be an inconsistency with standards from the source equipment (DVD, Set-top box, etc. ). If you do experience such a problem please contact your dealer and also the manufacturer of the source equipment.English - 25 - Supported File Formats for USB Mode Video File Formats Extension Video Codec Max. Resolution & Frame Rate & Bit Rate .mpg, .mpeg, .dat, .vob

.mp4 Supported DVI Resolutions

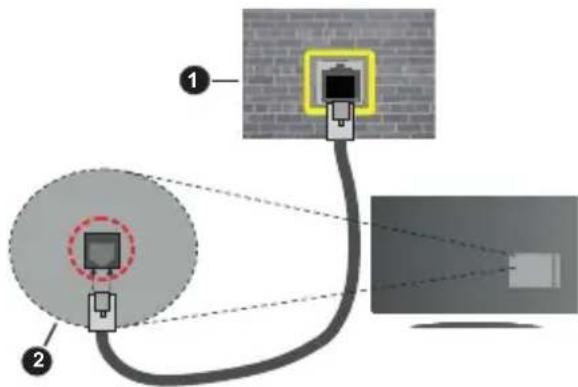

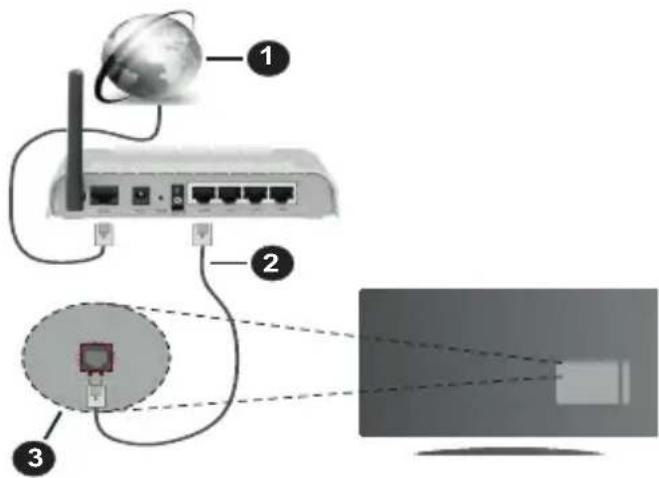

xEnglish Connectivity Wired Connectivity To Connect to a Wired Network

Advanced Settings Advanced Settings OK

Wireless Connectivity To Connect to a Wireless Network

Note: If the modem supports N mode, you should set N mode settings.

Connected Not Connected

Note: This feature may not be supported on all mobile devices. Handling of the customer information

[HOME] Installation>First time installation

Disruption during playback or slow reactions

Wired/Wireless Connectivity English

4. Play Shared Files via Media Browser

Notes: Possible application dependent problems may be caused by the content service provider.

restricted at any time. Internet Browser Home

Speed Dial VewdOK Add to Speed Dial OKNameAddress

English - 31 - In some circumstances video contents might not be able to be played. HBBTV System HbbTV (Hybrid Broadcast Broadband TV) is a new industry standard that seamlessly combines TV services delivered via broadcast with services delivered via broadband and also enables access to Internet only services for consumers using connected TVs and set- top boxes. Services delivered through HbbTV include traditional broadcast TV channels, catch-up services, video-on-demand, electronic programme guide, interactive advertising, personalisation, voting, games, social networking and other multimedia applications. HbbTV applications are available on channels where they are signalled by the broadcaster. The broadcaster marks one application as “autostart” and this one is started by the platform automatically. The autostart applications are generally launched with a small red button icon to notify the user that there is an HbbTV application on that channel. Press the red button to open the application page. After the page is displayed you can go back to the initial red button icon state by pressing the red button again. You can toggle between the red button icon mode and full UI mode of the application via pressing red button. It should be noted that the red button switching capability is provided by the application and some application may behave di󰀨erently (other colour buttons such as green, yellow, blue, may be dened for some other functions, e.g. shurtcuts). If you switch to another channel while an HbbTV application is active (either in red button icon mode or full UI mode), the following scenarios can occur.

• The application can continue running.

• The application can be terminated.

• The application can be terminated and another autostart red button application can be launched. HbbTV allows the applications to be retrieved both from broadband or broadcast. The broadcaster may enable both ways or one of them. If the platform does not have an operational broadband connection, the platform can still launch applications transmitted on broadcast. The autostart red button applications generally provide links to other applications. The user then can switch to other applications by using the links provided. The applications should provide a way to terminate themselves, usually Exit button is used for this. HbbTV applications use keys on the remote control to interact with the user. When an HbbTV application is launched, the control of some keys are owned by the application. For example, numeric channel selection may not work on a teletext application where the numbers indicate teletext pages. HbbTV requires AV streaming capability for the platform. There are numerous applications providing VOD (video on demand) and catch-up TV services. The user can use play, pause, stop, forward, and rewind keys on the remote control to interact with the AV content. Note: You can enable or disable this feature from the Privacy Settings menu in Settings>System menu. Alexa Ready Alexa is Amazon’s cloud-based voice service available on many voice controlled assistant devices. By means of the Alexa built-in and Works With Alexa features you can use your TV as an Alexa device and control the functions of your TV with Alexa. Alexa Built-in You can use your TV as an Alexa device. In order to do this, a Microphone Box(*) will be required. After connecting your Microphone Box to your TV the setup process should be completed. The setup can be carried out in the ways described below. (*) The Microphone Box can be purchased separately if not supplied with the unit. For more information contact your local dealer or retail outlet where you bought your TV.

• Connect your Microphone Box to your TV

• Carry out rst time installation on your TV. The setup wizard will be displayed after the installation process is completed The wizard will guide you through the setup process. Refer to the user manual of the Microphone Box for detailed information. Works With Alexa You can control the functions of your TV with Alexa. In order to do this, the setup process should be completed. The setup can be carried out in the ways described below.

• Use the Works With Alexa option in the Set

• Carry out rst time installation on your TV. The setup wizard will be displayed after the installation process is completed Setup process The wizard will guide you through the setup process.

• If you carry out rst time installation on your TV, the Alexa setup wizard will be displayed after the installation process is completed. On the rst screen highlight Learn More option and press OK. On the next screen you will be informed about the feature. Highlight Start and press OK to proceed. If you skip the setup wizard after the rst time installa

tion you can use the Works With Alexa option in the Settings>System>Voice Assistant menu to carry out the setup later manually. On the rst screen youEnglish - 32 - will be informed about the feature. Highlight Start and press OK to proceed.

• An authentication code will be created and displayed on the screen. Use your computer or any other device with internet access to go to the internet address (URL) shown on the screen. You will be directed to a page where you can sign in to your Amazon account rst, if you are not already signed in. Then you will be directed to a page where you can enter the authentication code you see on the TV and link your TV to your Amazon account.

• If the linking process was successful you will be asked to determine a name for your TV, called ‘Friendly Name’(FN). A ‘Friendly Name’ is a name that reminds you of your TV, such as ‘Living Room TV’, ‘Kitchen TV’, ‘Dining Room TV’, etc. Choose an easy-to-say name. You will say this name to tell Alexa which TV to control. When you are done, highlight OK and press OK.

• Examples about the use of the feature will be displayed on the next screen. Press OK to nish the setup. If you carried out the setup after the rst time instal

lation you will return to the rst screen of the setup wizard when you press OK. In that case press Exit or highlight Setup Later and press OK in order to exit the setup. Once the setup is complete, you will be able to control the functions of your TV with Alexa. Note: Make sure that the devices are connected to the internet. Example Commands Here are some voice commands that you can use: Command Function Alexa, turn on ‘FN’ Powers on the TV Alexa, turn o󰀨 ‘FN’ Powers o󰀨 the TV Alexa, play ‘FN’ Starts media playback Alexa, pause ‘FN’ Pauses media playback Alexa, resume ‘FN’ Resumes media playback Alexa, stop ‘FN’ Stops media playback Alexa, fast forward on ‘FN’ Advances media in fast forward mode Alexa, rewind on ‘FN’ Rewinds media Alexa, set the volume of ‘FN’ to 50 Sets the volume to the specied level Alexa, turn the volume up on ‘FN’ Increases volume by 10 units Alexa, turn the volume down on ‘FN’ Decreases volume by 10 units Alexa, mute ‘FN’ Mutes sound Alexa, unmute ‘FN’ Unmutes sound Command Function Alexa, change the input to “input_name” on ‘FN’ The TV switches to the input source with the spec

ied name (e.g., HDMI 1) Alexa, change channel to "channel_number" on ‘FN’ The TV switches to the channel with the specied number (e.g., channel 200) Alexa, change channel to “channel_name" on ‘FN’ The TV switches to the channel with the specied name Alexa, channel up on ‘FN’ The TV switches to the next higher channel, if any available Alexa, channel down on ‘FN’ The TV switches to the next lower channel, if any available Alexa, next channel on ‘FN’ The TV switches to the next channel on the channel list FN is the abbreviation for ‘Friendly Name’. Google Assistant Your TV works with Ok Google for voice control of your connected devices and appliances. Works With Ok Google By means of this feature you can control the functions of your TV with Google Assistant devices. In order to do this, the setup process should be completed. Before the setup Complete the following procedures before you start the setup on your TV.

• Install the Google Home application on your mobile phone and login to your account

• Add the assistant device to your account

• Select the Vsmart TV action from the list of actions within the application

• A screen will be displayed where you will enter the authentication code which will be created during the setup process on your TV in order to link your TV to your account. Continue with the setup on your TV to get the authentication code Setup process The setup can be carried out by using the Google Assistant option in the Settings>System>Voice Assistant menu. The wizard will guide you through the setup process.

• On the rst screen highlight Start and press OK to proceed

• You will be asked to determine a name for your TV on the next screen, called ‘Friendly Name’(FN). A ‘Friendly Name’ is a name that reminds you of your TV, such as ‘Living Room TV’, ‘Kitchen TV’, ‘DiningEnglish - 33 - Room TV’, etc. Choose an easy-to-say name. When you are done, highlight OK and press OK

• An authentication code will be created and displayed on the screen. Enter the code you see on the TV on the Google Home application Once the setup is complete, you will be able to control the functions of your TV with Google Assistant. Note: Make sure that the devices are connected to the internet. You can link only one TV to your account. Example Commands Just say “Ok Google” to control your TV using just your voice. Command Function turn on ‘FN’ Powers on the TV turn o󰀨 ‘FN’ Powers o󰀨 the TV pause on ‘FN’ Pauses media playback resume on ‘FN’ Resumes media playback stop on ‘FN’ Stops media playback volume up on ‘FN’ Increases volume volume down on ‘FN’ Decreases volume set mute volume on ‘FN’ Mutes sound switch input to “input_ name” on ‘FN’ The TV switches to the input source with the spec

ied name (e.g., HDMI 1) switch to “input_name” on ‘FN’ change channel to "chan

nel_number" on ‘FN’ The TV switches to the channel with the specied number (e.g., channel 200) change channel to “chan

CLASS 1LASER PRODUCT

WEP 64/128, WPA, WPA2, TKIP, AES, WAPI
