USER MANUAL CMGH31B CANDY

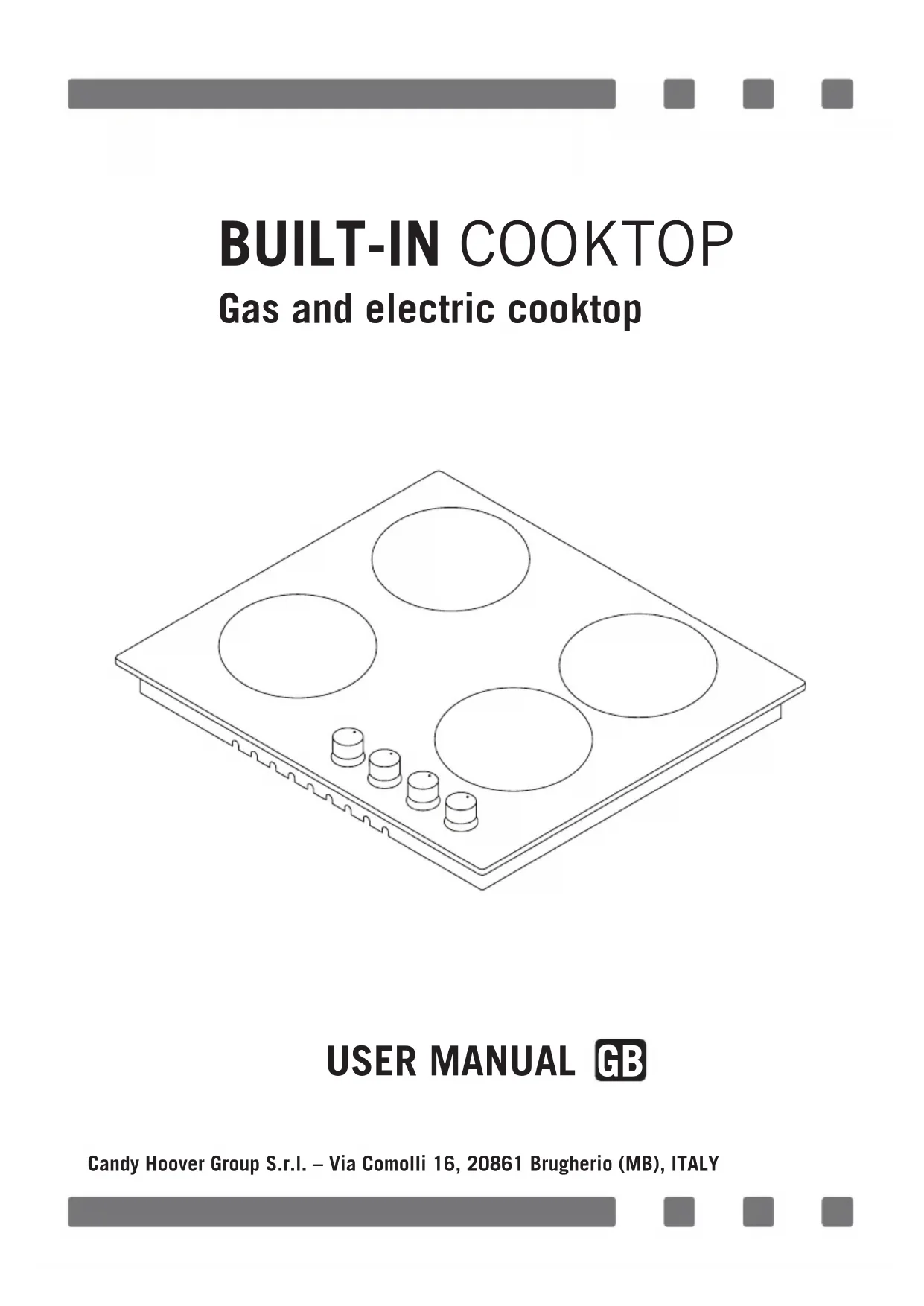

BUILT-IN COOKTOP USER MANUAL

Gas and electric cooktop Candy Hoover Group S.r.l. – Via Comolli 16, 20861 Brugherio (MB), ITALY2 Dear User, Our objective is to make this product provide you with the best output which is manufactured in our modern facilities in a careful working environment, in compliance with total quality concept. Therefore, we suggest you to read the user manual carefully before using the product and, keep it permanently at your disposal. Note: This user manual is prepared for more than one model. Some of the features specied in the Manual may not be available in your appliance. All our appliances are only for domestic use, not for commercial use. Products marked with (*) are optional. By placing the mark on this product, we are conrming compliance to all relavant European safety, health and evironmental requirements which are applicable in legislation for this product. “Conforms with the WEEE Regulations.”3 Contens Important warnings 4 Electrical connection 13 Gas connection 14 Introduction of the appliance 17 Technical features 18 Installation of cooktop 20 Counter cutting sizes 23 Control panel 24 Usage of your cooktop 25 Maintenance and cleaning 28 Troubleshooting 29 Handling rules 30 Environmentally-friendly disposal 30 Package information 304 IMPORTANT WARNINGS

1. Installation and repair should always be performed

by “AUTHORIZED SERVICE”. Manufacturer shall not be held responsible for operations performed by unauthorized persons.

2. Please read this operating instructions carefully.

Only by this way you can use the appliance safely and in a correct manner.

3. The cooker should be used according to operating

4. Keep children below the age of 8 and pets away

5. WARNING: Fire hazard; do not store the materials on

the cooking surface.

6. WARNING: The appliance and its accessible parts are

hot during operation.

7. Setting conditions of this device are specied on

the label. (Or on the data plate)

8. The accessible parts may be hot when the grill is

used. Small children should be kept away.

9. WARNING: This appliance is intended for cooking. It

should not be used for other purposes like heating a room.

10. To clean the appliance, do not use steam cleaners.

11. NEVER try to put out the re with water. Only shut

down the device circuit and then cover the ame with a cover or a re blanket.5

12. Children under 8 years of age should be kept away,

if they cannot be monitored continuously.

13. Touching the heating elements should be avoided.

14. CAUTION: Cooking process shall be supervised.

Cooking process shall always be supervised.

15. The appliance is not suitable for use with an external

timer or a separate remote control system.

16. This device can be used by children over 8 years of

age, people with physical, hearing or mental challenges or people with lack of experience or knowledge; as long as control is ensured or information is provided regarding the dangers.

17. This device has been designed for household use

18. Children must not play with the appliance. Cleaning

or user maintenance of the appliance shall not be performed by children unless they are older than 8 years and supervised by adults.

19. Keep the appliance and its power cord away from

children less than 8 years old.

20. Put curtains, tulles, paper or any flammable

(ignitable) material away from the appliance before starting to use the appliance. Do not put ignitable or ammable materials on or in the appliance.

21. Keep the ventilation channels open.

22. Do not heat closed cans and glass jars. The pressure

may lead jars to explode.6

23. Do not use the product in states like medicated

and/or under inuence of alcohol which may affect your ability of judgement.

24. After each use, check if the unit is turned off.

25. Be careful when using alcohol in your foods. Alcohol

will evaporate at high temperatures and may catch re to cause a re if it comes in contact with hot surfaces.

26. If the appliance is faulty or has a visible damage,

do not operate the appliance.

27. Do not put objects that children may reach on the

28. The packaging materials are dangerous for children.

Keep packaging materials away from the reach of children.

29. Cooker supply can be disconnected during any

construction work at home. After completing the work, re-connecting the cooker shall be done by authorized service.

30. Do not place metal utensils such as knife, fork,

spoon on the surface of the appliance, since they will get hot.

31. To prevent overheating, the appliance should not

be installed behind of a decorative cover.

32. Turn off the appliance before removing the

safeguards. After cleaning, install the safeguards according to instructions.7

33. Cable xing point shall be protected.

34. CAUTION: If the glass of the stove is broken, turn

off any heating element immediately and disconnect the appliance from power source, do not touch the surface of the appliance and do not use the appliance.

35. User should not handle the cooker by himself.

36.Use shall be careful when cleaning gas burners. It may cause personal injuries.

37. Since the hob is hot during cooking or right after

cooking, scalding may occur due to extreme temperature and steam.

38. When not turning of the cooker during cooking,

user can touch hot surfaces causing burns.

39. If heavier loads are places on the cooker, these

loads can trip over. It may cause personal injuries.

40. Allow disconnection of the appliance after installation,

by accessible plug or a switch in the xed wiring, unless.8 Electrical Safety

1. Plug the appliance in a grounded socket protected by

a fuse conforming to the values specied in the technical specications chart.

2. Have an authorized electrician set grounding

equipment. Our company shall not be responsible for the damages that shall be incurred due to using the product without grounding according to local regulations.

3. WARNING: If the surface is cracked, turn off the

appliance to avoid risk of electric shock.

4. Never wash the appliance by spraying or pouring

water on it. There is a risk of electrocution.

5. Do not touch the plug with wet hands. Do not pull

the cord to plug off, always hold the plug.

6. Unplug the unit during installation, maintenance,

cleaning and repair.

7. Make sure the plug is inserted rmly into wall socket

8. If the power supply cord (the cord with plug) is

damaged, this cord shall be replaced by the manufacturer or its service agent or an equally qualied personnel to prevent a hazardous situation.

9. Do not use cut or damaged cords or extension cords

other than the original cord.

10. Do not use steam cleaners for cleaning the appliance,

otherwise electric shock may occur.9

11. Make sure there is no liquid or humidity in the

outlet where the product plug is installed.

12. An omnipolar switch capable to disconnect power

supply is required for installation. Disconnection from power supply shall be provided with a switch or an integrated fuse installed on xed power supply according to building code.

13. The power supply cord (the cord with plug) shall

not contact the hot parts of the appliance.

14. Unplug the unit during installation, maintenance,

cleaning and repair.

15. Appliance is equipped with a type ‘’Y’’ cord cable.

16. The circuit breaker switches of the cooker shall

be placed so that end user can reach them when the cooker is installed.

17. Fixed connections shall be connected to a

power supply enabling omnipolar disconnection. For appliances with over voltage category below III, disconnection device shall be connected to xed power supply according to wiring code.

18. Do not remove ignition switches from the appliance.

Otherwise, live electric cables can be accessed. It may cause an electric shock.10 Gas Safety

1. This appliance is not connected to burning products

evacuation apparatus. This appliance must be connected and installed according to the installation regulations in force. Conditions regarding ventilation must be considered.

2. When a gas cooking appliance is used; humidity,

heat and burning products are generated in the room. First of all, make sure the kitchen is well ventilated when operating the appliance and maintain natural ventilation openings or install a mechanical ventilation equipment.

3. After using the appliance heavily for en extended

period of time, additional ventilation may be required. For example open a window or adjust a higher speed for mechanical ventilation, if any.

4. This appliance must be used only in well ventilated

locations in accordance with the regulations in force. Please read the manual before installing or using this product.

5. Before positioning the appliance, make sure local

network conditions (gas type and gas pressure) meets appliance requirements.

6. The mechanism cannot be run for longer than 15

seconds. If the burner is not on after 15 seconds, stop the mechanism and wait for at least one minute before trying to ignite the burner again.11

7. All kinds of operations to be performed on gas

installation must be performed by authorized and competent people.

8. This appliance is adjusted for natural gas (NG). If

you have to use your product with a different gas type, you have to apply to authorized service for the conversion.

9. For proper operation, hood, gas pipe and clamp

should be replaced periodically accordint to manufacturer recommendations and when required.

10. Gas should burn well in gas products. Well

burning gas can be understood from blue ame and continuous burning. If gas does not burn sufciently, carbon monoxide (CO) can be generated. Carbon monoxide is a colourless, odourless and very toxic gas; even small amounts have lethal effect.

11. Ask your local gas supplies about the phone

numbers for emergencies related to gas and the measures to be taken upon gas odour is detected.12 What To Do When Gas Odour Is Detected

1. Do not use naked ame, and do not smoke.

2. Do not operate any electrical switch.

(For example: lamp switch or doorbell)

3. Do not use telephone or mobile phone.

4. Open the doors and windows.

5. Close all valves on the appliances that utilize gas

and the gas counters.

6. Check all hoses and their connections against

leaks. If you still smell gas, leave the house and warn your neighbours.

7. Call re brigade from a telephone outside the home.

8. Do not enter into the house until authorities clarify

it is safe. Intended Use

1. This product is designed for home use. Commercial

use of the appliance is not permitted.

2. This appliance may only be used for cooking

purposes. It shall not be used for other purposes like heating a room.

3. The manufacturer assumes no responsibility for any

damage due to misuse or mishandling.

4. Operational life of the product you have purchased

is 10 years. This is the period for which the spare parts required for the operation of this product as dened is provided by the manufacturer.13 Electrical Connection

1. Setting conditions of this appliance is indicated in tag or data plate.

2. Your appliance should be plugged in a fuse appropriate for electric

power. If necessary, it is recommended that installation is done by authorized service.

3. Your appliance is congured in accordance with electrical supply of

4. If main electrical network is different from these values, contact with

your authorized service.

5. Electrical connections of your appliance should only be made to the

fuses having suitably wired grounding (grounded) system. If no convenient fuse is available in the place where your appliance is to be installed, contact with authorized service immediately. Manufacturing rm is not responsible denitely for the damages that fuses whose grounding is not made and connected to the appliance can cause.

6. Plug of the appliance should be close to be accessed easily to the

fuse whose grounding is made without use of extension cord.

7. Do not allow contacting the power cable of your appliance with hot

regions. Similarly, keep away it from sharp edges and corners.

8. If feeder cord is damaged, this cord should be replaced either by

manufacturer or its service agency or same degree qualied personnel in order to hinder a dangerous situation.

9. Wrong electrical connection may give damage to the appliance.In

this case, your appliance will remain out of guarantee scope. Electrical connection of your appliance should be done by authorized service. Electrical connection scheme Get electrical connection of your appliance done to authorized person in line with the following scheme.

WARNING: Before starting any work related with gas installation, turn off

gas supply. Risk of explosion.

1. Connect your appliance to gas cock from the shortest way and in a

manner to prevent any leakage. For safety, the hose used should be maximum 125 cm and minimum 40 cm.

2. While making gas leakage control; never use lighter, match, glowing

cigarette or similar inammable matter.

3. Apply soap bubble on connection point. If any leak/leakage exists,

foaming will occur on soaped region.

4. If the cooktop is to be mounted on a cabinet or openable drawer, a

heat protection panel having 15 mm minimum opening should be mounted under the cooktop. For LPG connection; For LPG (cylinder) connection, afx metal clamp on the hose coming from LPG cylinder. Afx an edge of the hose on hose inlet connector behind the appliance by pushing to end through heating the hose in boiled water. Afterward, bring the clamp towards end section of the hose and tighten it with screwdriver. The gasket and hose inlet connector required for connection is as the picture shown below. NOTE: The regulator to be afxed on LPG cylinder should have 300 mmSS feature. Main gas pipe Gasket Hose inlet connector Metal clamp Lpg connection hose15

WARNING: Gas hose and electric connection of the appliance should not

pass next to hot areas such as back of the appliance. Gas hose should be connected by making wide angle turns against breaking possibility. Movement of appliance whose gas connection is made may cause gas leakage. For natural gas connection; Transformation from natural gas to LPG and from LPG to natural gas

1. Turn off gas and electricity of the cooktop. If your cooktop is hot, wait

2. For injector change, use a screwdriver whose edge is as the gure 1.

3. As seen in gure 2, demount burner lid and burner of the cooktop and

ensure visibility of injector.

4. Remove injector by turning as shown in gure 3 with screwdriver and

replace it with a new one. Correct Incorrect Correct Correct Main gas pipe Gasket Nut Natural gas Connection hose

WARNING: Natural gas connection should

be done by authorized service. For natural gas connection, place gasket in the nut at the edge of natural gas connection hose. To install the hose on main gas pipe, turn the nut. Complete the connection by making gas leakage control. Figure 1 Figure 2 Figure 316

5. After that, detach control switches of the cooktop. Make setting by

turning the screw in the middle of gas cocks with a small screwdriver in the manner shown in the following picture. To adjust ow rate screw, use a screwdriver having suitable dimension. For LPG, turn the screw clockwise. For natural gas, turn the screw one time counter clockwise. At low position, length of normal ame should be 6-7 mm. For the last control, check out whether ame is open or closed. Setting of your appliance may differ according to the type of gas cock used. Ventilation Of Room The air needed for burning is received from room air and the gases emitted are given directly in room. For safe operation of your product, good room ventilation is a precondition. If no window or room to be utilized for room ventilation is available, additional ventilation should be installed. However, room has a door opening outside, it is no needed to vent holes. Room size Ventilating opening Smaller than 5 m³ min. 100 cm² Between 5 m³ - 10 m³ min. 50 cm² Bigger than 10 m³ no need In basement or cellar min. 65 cm² Figure 4 Figure 517

INTRODUCTION OF THE APPLIANCE

WARNING: Diameter values written on the injector are specied without

a comma. For example; The diameter of 1,70 mm is specied as 170 on the injector.

WARNING: For the modication to be done by authorized service, this

table should be considered. Manufacturer may not be held responsible for any problems rising because of any faulty modication.

WARNING: In order to increase the product quality, the technical

specications may be changed without prior notice.

WARNING: The values provided with the appliance or its accompanying

documents are laboratory readings in accordance with the respective standards. These values may differ depending on the use and ambient conditions.20

INSTALLATION OF COOKTOP

Check if the electrical installation is proper to bring the appliance in operating condition. If electricity installation is not suitable, call an electrician and plumber to arrange the utilities as necessary. Manufacturer shall not be held responsible for damages caused by operations performed by unauthorized persons.

WARNING: It is customer’s responsibility to prepare the location the

product shall be placed on and also to have the electrical installation prepared.

WARNING: The rules in local standards about electrical installations

shall be followed during product installation.

WARNING: Check for any damage on the appliance before installing it.

Do not have the product installed if it is damaged. Damaged products cause a risk for your safety. Correct Place For Installation Product is designed in accordance with the kitchen counters supplied from market. A safe distance should be left between the product and kitchen walls and furniture. If hood/aspirator will be installed over your appliance, obey to the recommendation of hood / aspirator manufacturer for assembly height. (min. 65 cm) The gap that cooktop is to be placed on the counter should be cut in line with cooktop installation dimen- sions. For installation of the product, the rules specied in local standards related to electricity should be complied. 650 mm min.21 Installation

1. Detach the burners, burner hoods and grills from the product.

2. Turn the cooktop down and place on smooth ground.

3. In order to prevent entrance of foreign substances and liquids

between cooktop and counter, apply the paste given in package to the sides of lower guard of counter. For corners, curl paste and increase curls till lling corner gaps.

4. Turn cooktop again and align with and place on counter.

5. Fasten up your cooktop on counter by using the clamp and screws

supplied. Installation Diagram Wick22

6. When product is mounted on a drawer, if it is possible to touch lower

side of product, this section should be separated with a wooden shelf.

7. While mounting cooktop on a closet, as shown in the gure above, in

order to separate between closet and cooktop, a shelf should be mounted. If it is mounted on a built-in oven, there is no need to do that.

8. If your cooktop will be mounted next to right or left wall, the minimum

distance between wall and cooktop should be 50 mm. If Built-In Oven Is Placed Under Cooktop;

Gas pipe should be afxed in a way not to touch the oven below, sharp edges and corners, not to be pulled in a manner to be twisted and strained. Make gas connection from right part of the cooktop, fasten the hose by use of clamp. min. 30 mm

WARNING: The control panels above is only for illustration purposes.

Consider the control panel on your device.

1. Before starting to use your cooktop, be sure burner hoods are at

correct position. Correct placement of burner hoods are shown in the following gure.

2. Gas cocks have a special locking mechanism. Therefore, to operate

cooktop zone, press button by pushing ahead and while opening or closing the cock, hold down the button. Closed Fully open Half open

3. For automatic igniting models, igniting is realized via electricity.

Therefore, before operating appliance, be sure that appliance has electric connection. Igniting for these models is as follows.

4. Pay attention that cooktop grills are placed on cooktop table completely.

In case of failure about this matter can cause pouring of the materials to be put on that.

5. For the models having gas putting out safety, following realizing ignition

procedure according to the guidelines above, wait for 5-10 seconds by pushing button ahead without keeping your hands off. Safety mechanism will step in this duration and ensures operation of the cooktop. With regard to gas putting out appliance, gas cock cuts the gas going to cooktop zone in case of putting out of cooktop ame due to any reason. Figure 6 Figure 7 Cooktop cock is at closed position. To ignite cooktop, rstly press the button towards ahead. While holding down the button, lighter steps in and starts to ignition. By turning the button left while holding down, you can provide ignition at ame length you want.26

7. While using coffee pot apparatus supplied along with the cooktop, be

sure that foots of apparatus are placed on cooktop grill exactly and remain on cooktop zone in centred way. Use the apparatus only on small burner.

8. While utilizing gas cooktops, use saucepan, placed on cooktop surface

as far as possible. Thanks to that, you can save energy. In the following table, cooking pot diameters recommended to be used as per burners are given. Characteristic of Wok cooktop zone is to cook quickly.

9. Ensure that the grates are fully seated on the cooktop plate. If the

grate is not properly seated, this may cause spillage of materials placed on it.

10. Place the pots and pans so that their handles are not placed above

the hobs to prevent heating of the handles.

11. Place suitable amount of food to the pots and pans. Thus, you may

prevent overowing of meals and avoid unnecessary cleaning.

12. The size of the container and the gas ame shall match each other.

Set gas ames so that they do not extend further than the base of the container.

13. Do not use containers that are unstable and that may be easily

tipped over on the cooktop.

14. Do not put empty pots and pans on the hobs with their ames on.

15. Always turn off the hobs after each use.

16. Do not put containers that may be affected by heat on the product.

17. Do not operate the hobs without any pots and pans placed on them.

18. Do not place the lids of the pots and pans on the hobs.

19. When you want to put the pot on another hob, take the pot up and

place it again instead of sliding it.

20. Keep the lid of container you use for heating oil open.

21. Do not put oil with a volume more than one third of the pan. Do not

leave the oil unattended when the oil is being heated. Extremely hot oils may cause re. FFD

6. Flame cut-off safety device (FFD) *; operates instantly

when safety mechanism activates due to overown liquid over upper hobs.27 Wok Burner * As it possesses double ring ame system, it gives homogenous heat distribution at the bottom of cooking pot at high temperature. It is ideal for short term and high temperature cooking. When you want to use regular cooking pot on wok burner, it is necessary that you remove wok cooking pot carrier from cooktop. Pot Sizes Recommended pot diameters to be used are provided in the following tables. Glass hobs 30 cm hobs 45 cm hobs 60 cm hand control 60 cm control front 70 cm control front 90 cm control front Small burner 12-18 cm 12-18 cm 12-18 cm 12-18 cm 12-18 cm 12-18 cm Middle burner --- 18-20 cm 18-20 cm 18-20 cm 18-20 cm 18-22 cm Big burner 18-24 cm 22-24 cm 22-24 cm 22-24 cm 22-24 cm 22-26 cm Wok burner 24-26 cm --- 24-26 cm 24-26 cm 24-26 cm 26-30 cm Metal hobs 30 cm hobs 45 cm hobs 60 cm hand control 60 cm control front 70 cm control front 90 cm control front Small burner 12-18 cm 12-18 cm 12-18 cm 12-18 cm 12-18 cm 12-18 cm Middle burner --- 18-20 cm 18-20 cm 18-20 cm 18-20 cm 18-22 cm Big burner 18-22 cm 22-24 cm 22-26 cm 22-24 cm 22-24 cm 22-26 cm Wok burner 24-26 cm 24-26 cm 24-26 cm 24-26 cm 24-26 cm 26-32 cm

WARNING: Cooking pot to be used with products should have minimum

120 mm diameter. Splashes and overow may cause damage to the cooktop surface and re. Use pots and pans with at bases only. If the diameter of the pot is smaller than the diameter of the hob, thisshall waste energy. Do not use containers with convex or concave bases.28

MAINTENANCE AND CLEANING

Before starting to maintenance or cleaning, rstly unplug the plug supplying electricity to cooktop and turn down gas valve. If cooktop is hot, wait for cooling down.

1. For the purpose that your cooktop has long and economic life, regular

cleaning and maintenance should be performed on your cooktop.

2. Do not clean your cooktop with scratching tools such as bristle brush,

wire wool or knife. Do not use abrasive, scratching, acid materials or detergent.

3. Following mopping parts of your cooktop with soapy cloth, rinse it,

later rinse well with a soft cloth.

4. Clean glass surfaces with special glass cleaning substances. As

scratching of glass surfaces leads to breaking, while cleaning glass surfaces, do not use abrasive cleaners or sharp metal scrapers.

5. Do not clean your cooktop with steamy cleaners.

6. Clean channels and lids of cooktop zones with soapy water and clean

gas channels with a brush.

7. In the course of cleaning your cooktop, never use ammable materials

such as acid, thinner and gas.

8. Do not wash plastic and aluminium parts of your cooktop in dishwasher.

9. Clean vinegar, lemon, salt, coke and similar acid and alkaline

containing substances poured on your cooktop immediately.

10. In time, cooktop buttons turns hard or never turn any more, in such

circumstances, it may be necessary that buttons are changed. The change should only be done by authorized service.29 TROUBLESHOOTING You may solve the problems you may encounter with your product by checking the following points before calling the technical service. Check Points In case you experience a problem about the cooker, rst check the table below and try out the suggestions. Problem Possible cause Remedy No Ignition. No sparks. Check power supply. Cooker cover is not tted properly. Fit the cover properly. Gas supply is closed. Fully open gas supply. Not Proper Ignition. Gas supply not fully open. Fully open gas supply. Cooker cover is not tted properly. Fit the cover properly. Ignition plug is clogged with foreign materials. Wipe off foreign materials with a cloth. Hobs are wet. Carefully dry the hobs. Flame spreader holes are clogged. Clean the ame spreader. Noise coming when burning or during ignition. Cooker cover is not tted properly. Fit the cover properly. Flame turns off during operation. Flame observer device is clogged by foreign material. Clean ame observer device. Overow food turns off the ame. Switch off the hob. Wait for one minute and ignite again. A strong air ow turns off the ame. Please check related hob and check the cooking area for air flows, for example, from an open window. Wait for one minute and ignite again. Yellow ame. Flame spreader holes are clogged. Clean the ame spreader. Different gas is being used. Check the gas being used. Unstable ame. Cooker cover is not tted properly. Fit the cover properly. Gas odour. Hob spout left open. Check if any hob spouts are left open. Leakage from connection of gas cylinder to cooker. Make sure connections are leak-proof. Lighter not operating. Tips or body of ignition plugs are clogged. Clean tips or body of ignition plugs of gas burners. Gas burner pipes are clogged. Clean gas burner pipes.30 HANDLING RULES

1. Carry out the movement and transportation in the original packaging.

2. Pay maximum attention to the appliance while loading/unloading and

3. Make sure that the packaging is securely closed during handling and

4. Protect from external factors (such as humidity, water, etc.) that may

damage the packaging.

5. Be careful not to damage the appliance due to bumps, crashes, drops,

etc. while handling and transporting and not to break or deform it during operation. ENVIRONMENTALLY-FRIENDLY DISPOSAL This appliance is labelled in accordance with European Directive 2012/19/EU regarding electric and electronic appliances (WEEE). The WEEE contain both polluting substances (that can have a negative effect on the en- vironment) and base elements (that can be reused). It is important that the WEEE undergo specic treatments to correctly remove and dispose of the pollutants and recover all the materials. Individuals can play an important role in ensuring that the WEEE do not become an environmental problem, it is essential to follow few basic rules: - the WEEE should not be treated as domestic waste; - the WEEE should be taken to dedicated collection areas managed by the town council or a registered company. In may countries domestic collections may be available for large WEEEs. When you buy a new appliance, the old one can be returned to the vendor who must accept it free of charge as a one-off, as long as the appliance is of an equivalent type and has the same functions as the purchased appliance. PACKAGE INFORMATION Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.PIANO DI COTTURA DA INCASSO Piano di cottura a gas e elettrico

Abra as portas e as janelas.
