USER MANUAL KD65X85TJ SONY

This TV comes with the following manuals. Please retain the manuals for future reference.

Setup Guide

• TV installation and setup.

Reference Guide (this manual) / Safety Documentation

- Safety information, remote control, troubleshooting, wall-mount installation, specification, etc.

Help Guide (On screen Manual)

• Settings, functions, Internet connection, troubleshooting, etc.
• To open it, press the HELP button on the remote control and select Help Guide.

- You can refer to the Help Guide with your smartphone.

https://rd1.sony.net/help/tv/iaep1/h_aep/

Setting menus are subject to change without notice.

IMPORTANT - Read the End User Software Licence

Agreement before using your Sony product. Using your product indicates your acceptance of the End User Software Licence Agreement. The software licence agreement between you and Sony is available online at Sony website (https://www.sony.net/tv-software-licenses/) or on your product screen. Press Quick Settings) on the remote control and select [Settings] → [System] → [About] → [Legal information] → [Notices and licences].

Note

• Before operating the TV, please read the "Safety Information".
• Read the supplied safety documentation for additional safety information.
• Images and illustrations used in the Setup Guide and this manual are for reference only and may differ from the actual product.
• The "x"/"xx" that appears in the model name corresponds to a numeric digit, related to design, colour or TV system.

Location of the identification label

Labels for the TV Model No., Production Date (year/month)* and Power Supply rating are located on the rear of the TV or package.

* Only on limited region/country/TV model.

IMPORTANT NOTICE

Notice for Radio Equipment

Hereby, Sony Corporation declares that the radio equipment types KD-85X85J, KD-75X89J, KD-75X85J, KD-65X89J, KD-65X85J, KD-55X89J, KD-55X85J, KD-50X89J, KD-50X85J, KD-43X89J, KD-43X85J are in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://compliance.sony.eu

For this radio equipment, the following restrictions on putting into service or of requirements for authorization of use apply in AT, BE, HR, CY, CZ, DK, EE, FI, FR, DE, EL, HU, IE, IT, LV, LT, LU, MT, NL, PL, PT, SK, SI, ES, SE, UK, UK (NI), IS, LI, NO, CH, BG, RO, TR, AL, BA, MK, MD, RS, ME, Kosovo : 5150 - 5350 MHz band is restricted to indoor operations only.

Safety Information

Installation/Set-up

Install and use the TV set in accordance with the instructions below in order to avoid any risk of fire, electric shock or damage and/or injuries.

Installation

• The TV set should be installed near an easily accessible mains socket.
• Place the TV set on a stable, level surface to prevent it from falling over and causing personal injury or property damage.
  • Install the TV where it cannot be pulled, pushed, or knocked over.
• Install the TV so that the TV's Table-Top Stand does not protrude out from the TV stand (not supplied). If the Table-Top Stand protrudes out from the TV stand, it may cause TV set to topple over, fall down, and cause personal injury or damage to the TV.

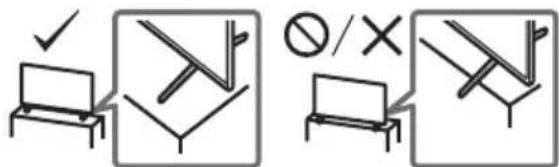

Diagram illustrating correct and incorrect assembly methods for table lighting, with checkmark and prohibition symbols indicating correct and incorrect states.

Transporting

• Before transporting the TV set, disconnect all cables.

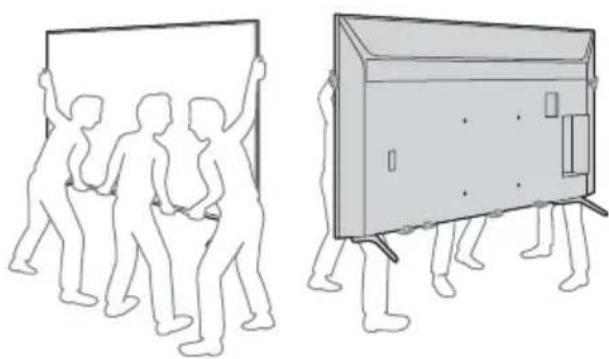

• Two or more people (three or more people for KD-85X8xJ / 85X8xTJ) are needed to transport a large TV set.
• When transporting the TV set by hand, hold it as shown below. Do not put stress on the LCD panel and the frame around the screen.
• When lifting or moving the TV set, hold it firmly from the bottom.

KD-85X8xJ / 85X8xTJ

Two line drawings of people carrying a large rectangular object, one with raised arms and the other with extended legs (no text or symbols)

KD-75X8xJ / 75X8xTJ / 65X8xJ / 65X8xTJ / 55X8xJ / 55X8xTJ / 50X8xJ / 50X8xTJ / 43X8xJ / 43X8xTJ

Illustration of two silhouetted figures holding a rectangular device (no text or symbols visible)

• When transporting the TV set, do not subject it to jolts or excessive vibration.
• When transporting the TV set for repairs or when moving, pack it using the original carton and packing material.

Topple prevention

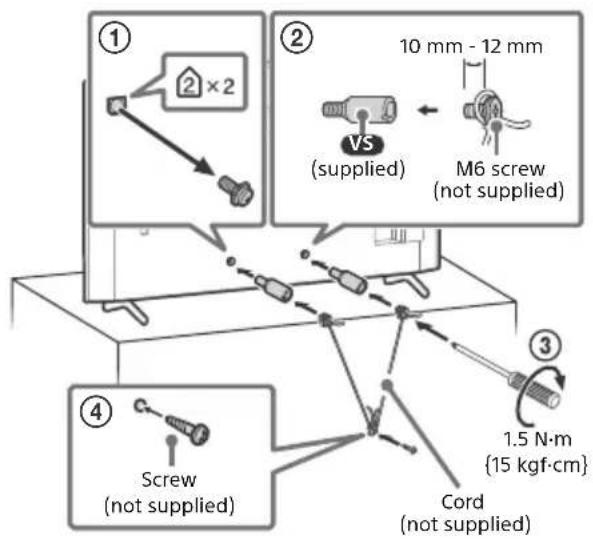

① ② 10 mm - 12 mm VS (supplied) M6 screw (not supplied) ③ 1.5 N·m {15 kgf·cm} Cord (not supplied) ④ Screw (not supplied)

Remote Control and TV

The remote control shape, layout, availability and function of remote control buttons may vary depending on your region/country/TV model/TV settings.

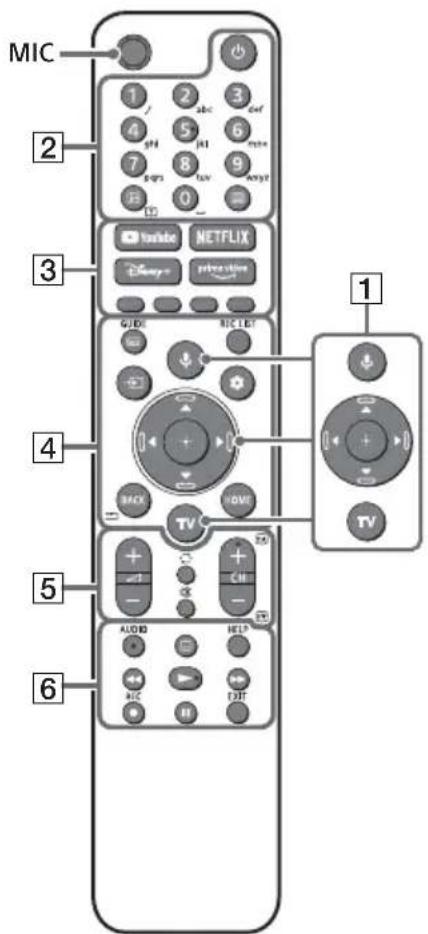

MIC 1 2 3 4 5 6 7 8 9 0 3 YouTube NETFLIX Disney+ private statics GIBB MICE LET BACK HIVE TV 1 TV 5 AUDIO HELP 6

1 ↓(Microphone) / (Google Assistant): Use Google Assistant*1*2 or voice search*2 For hints on how to control your TV, press the microphone button on the remote control and say "voice hints".

▲/▼/◄/►/⊕: On screen menu navigation and selection.

TV: Display TV channel list or switch to input.

2 ⏻ (Power)

Number buttons

i+/Info/Text reveal): Display information.
☐ (Text): Display text information.

3 YouTube™ / NETFLIX / Disney+ / Prime Video / Colour buttons

4 GUIDE: Display the digital programme guide of TV or TV box ^*3 .

REC LIST: Display the Rec list of USB HDD ^4 /DVR ^3 .

→ (Input select): Display and select the input source, etc.

(Quick settings): Display Quick Settings.

BACK/

HOME

5 ∠ +/- (Volume)

(Jump)

(Mute)*5

CH +/−/≡/≡: Select the channel, or next (≡) / previous (≡) page.

6 AUDIO: Select the sound of multilingual source or dual sound (depend on programme source).

(Subtitle setting)

HELP: Display the Help menu.

◀/▶/▶▶/||

- RECRecord the currently viewed programme on USB HDD*4/DVR*3.

EXIT

7 ⏻ (Power)

8 Remote Control sensor / Light sensor / LED

*1 Only on limited region/country/TV model/language.
*2 Google Assistant or voice search requires an Internet connection.
*3 [TV box setup] setting is required.
*4 Not available for Italy.
*5 Accessibility shortcut is available by pressing and holding ☐ (Mute).

For more information, refer to the Help Guide.

Installing the TV to the Wall

Using the optional Wall-Mount Bracket (SU-WL850 or SU-WL450)\* (not supplied)

To Customers:

For product protection and safety reasons, Sony strongly recommends that installation of your TV be performed by Sony dealers or licensed contractors. Do not attempt to install it yourself.

To Sony Dealers and Contractors:

Provide full attention to safety during the installation, periodic maintenance and examination of this product.

Wall-Mount Bracket Installation Information

For instructions on Wall-Mount Bracket installation, see the Installation Information (Wall-Mount Bracket) on the product page for your TV model.

https://www.sony.eu/support

• Follow the instruction guide provided with the Wall-Mount Bracket for your model. Sufficient expertise is required in installing this TV, especially to determine the strength of the wall for withstanding the TV's weight.
• Sony is not liable for any damage or injury caused by mishandling or improper installation.
• Only qualified service personnel should carry out wall-mount installations.
• For safety reasons, it is strongly recommended that you use Sony accessories, including: —Wall-Mount Bracket SU-WL850 —Wall-Mount Bracket SU-WL450
• Be sure to use the screws supplied with the Wall-Mount Bracket when attaching the Wall-Mount Bracket to the TV set. The supplied screws are designed as indicated by illustration when measured from the attaching surface of the Wall-Mount Bracket.

The diameter and length of the screws differ depending on the Wall-Mount Bracket model. Use of screws other than those supplied may result in internal damage to the TV set or cause it to fall, etc.

10 mm - 12 mm Screw (M6) Wall-Mount Bracket VS

• Be sure to store the unused screws and Table-Top Stand in a safe place until you are ready to attach the Table-Top Stand. Keep the screws away from small children.
  * Only on limited region/country/TV model.

Troubleshooting

General troubleshooting for issues like: black screen, no sound, frozen picture, TV does not respond, or network is lost, do the following steps.

1 Restart your TV by pressing the power button on the remote control for about five seconds. The TV will restart. If the TV does not recover, try unplugging the mains lead then press the power button on the TV and release it. Wait for two minutes, and plug in the mains lead. Or, press the power button on the TV for about 40 seconds until the TV turns off.
2 Refer to the Help menu by pressing HELP on the remote control.
3 Connect your TV to the Internet and perform a software update. Sony recommends you to keep your TV software updated. Software updates provide new features and performance improvements.
4 Visit Sony support website (information provided at the end of this manual).

When you plug in the TV, the TV may not be able to turn on for a while even if you press the power button on the remote control or the TV.

It takes time to initialize the system. Wait for about one minute, then operate it again.

The remote control does not function.

- Replace the batteries.

The parental lock password has been forgotten.

- Enter 9999 for the PIN and enter the new PIN.

For more information on troubleshooting, refer to the Help Guide.

Specifications

System

Panel system: LCD (Liquid Crystal Display) Panel, LED Backlight

TV system: Depend on your country/area selection/TV model

Analogue: B/G, D/K, I

Digital: DVB-T/DVB-C/DVB-T2

Satellite: DVB-S/DVB-S2

Colour system: PAL/SECAM/NTSC3.58 (Video only)/NTSC4.43 (Video only)

Channel coverage: Depend on your country/area selection/TV model

Analogue: UHF/VHF/Cable

Digital: UHF/VHF/Cable

Satellite: IF Frequency 950-2150 MHz

Sound output: 10 W + 10 W

Wireless technology

Protocol IEEE 802.11a/b/g/n/ac

Bluetooth® Version 4.2

Frequency band(s)

Frequency range Output power
Wireless LAN (TV)
2400-2483.5 MHz	< 20.0 dBm
5150-5250 MHz	< 23.0 dBm
5250-5350 MHz	< 20.0 dBm
5470-5725 MHz	< 20.0 dBm
5725-5850 MHz	< 13.9 dBm
Bluetooth® (TV)
2400-2483.5 MHz < 10.0 dBm
Bluetooth® (Remote control)
2400-2483.5 MHz < 10.0 dBm

Input/Output jacks

Antenna (aerial)/cable

75 ohm external terminal for VHF/UHF

Satellite antenna

Female F Type Connector, 75 ohm.

DiSEqC 1.0, LNB 13 V/18 V & 22 kHz tone, Single

Cable Distribution EN50494.

→ / → AV IN

Video/Audio input (mini jack)

HDMI IN 1/2/3/4 (HDCP 2.3-compatible)

Video:

4096 × 2160p (50, 60 Hz)^12, 4096 × 2160p

(24 Hz)*1, 3840 × 2160p (50, 60 Hz)*2,

3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50,

60, 100, 120 Hz), 1080/24p, 1080i (50, 60 Hz),

720p (30, 50, 60 Hz), 720/24p, 576p, 480p,

PC Formats ^*3

3840 × 2160p (100, 120 Hz)* ^2*4

Audio:

In eARC (Enhanced Audio Return Channel)

mode

Refer to the online Help Guide for details.

Except eARC mode

5.1 channel linear PCM: 32/44.1/48/88.2/

96/176.4/192 kHz 16/20/24 bits, Dolby

Audio, Dolby Atmos, DTS

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (HDMI IN 3 only) ^*5

In eARC mode

Refer to the online Help Guide for details.

In ARC mode

Two channel linear PCM: 48 kHz 16 bits,

Dolby Audio, Dolby Atmos, DTS

DIGITAL AUDIO OUT (OPTICAL)

Digital optical jack (Two channel linear PCM:

48 kHz 16 bits, Dolby Audio, DTS)

USB device port (•2 USB HDD device for REC feature)

USB port 1 supports High Speed USB (USB 2.0)

USB port 2 supports Super Speed USB (USB 3.1 Gen 1)

CAM (Conditional Access Module) slot

LAN

10BASE-T/100BASE-TX connector (Depending on the operating environment of the network, connection speed may differ. The communication rate and quality are not guaranteed.)

Power, Product Fiche and others

Power requirements

220 V - 240 V AC, 50 Hz

Energy Efficiency Class ^4

(Except Egypt)

KD-85X8xJ / 85X8xTJ / 65X8xJ / 65X8xTJ /

55X8xJ / 55X8xTJ / 50X8xTJ: A

Screen size (measured diagonally) (Approx.)

(Except Egypt)

KD-85X8xJ / 85X8xTJ: 214.8 cm / 85 inches

KD-75X8xJ / 75X8xTJ: 189.3 cm / 75 inches

KD-65X8xJ / 65X8xTJ: 163.9 cm / 65 inches

KD-55X8xJ / 55X8xTJ: 138.8 cm / 55 inches

KD-50X8xJ / 50X8xTJ: 125.7 cm / 50 inches

KD-43X8xJ / 43X8xTJ: 108.0 cm / 43 inches

(For Egypt only)

KD-85X85TJ: 85 inches / 214.8 cm

KD-75X85TJ: 75 inches / 189.3 cm

KD-65X85TJ: 65 inches / 163.9 cm

KD-55X85TJ: 55 inches / 138.8 cm

KD-50X85TJ: 50 inches / 125.7 cm

Power consumption ^4

In [Standard] mode

(Except Egypt)

KD-85X8xJ / 85X8xTJ: 236 W

KD-75X8xTJ: 226 W

KD-65X8xJ / 65X8xTJ: 145 W

KD-55X8xJ / 55X8xTJ: 116 W

KD-50X8xTJ: 95 W

Annual energy consumption ^*7

(Except Egypt)*8

KD-85X8xJ / 85X8xTJ: 327 kWh per year

KD-75X8xTJ: 313 kWh per year

KD-65X8xJ / 65X8xTJ: 201 kWh per year

KD-55X8xJ / 55X8xTJ: 161 kWh per year

KD-50X8xTJ: 132 kWh per year

KD-43X8xJ / 43X8xTJ: 105 kWh per year (For Egypt only) ^*9

KD-85X85TJ: 649 kWh per year

KD-75X85TJ: 629 kWh per year

KD-65X85TJ: 396 kWh per year

KD-55X85TJ: 320 kWh per year

KD-50X85TJ: 265 kWh per year

Standby power consumption*7*10*11

0.50 W (25 W in software/EPG update mode)

Display resolution (horizontal × vertical) (pixels)

3840 × 2160

Output rating

500 mA (for USB 1), 900 mA (for USB 2)

Dimensions (Approx.) (w × h × d) (cm)

with Table-Top Stand

KD-85X85J / 85X85TJ: 189.9 × 117.6 × 45.6

KD-75X89J: 167.5 × 103.4 × 41.5

KD-75X85J / 75X85TJ: 167.5 × 104.0 × 41.0

KD-65X89J: 145.2 × 90.3 × 35.4

KD-65X85J / 65X85TJ: 145.2 × 90.5 × 33.8

KD-55X89J: 123.3 × 78.3 × 32.4

KD-55X85J / 55X85TJ: 123.3 × 78.4 × 33.8

KD-50X89J: 111.9 × 71.3 × 29.6

KD-50X85J / 50X85TJ: 111.9 × 71.5 × 28.6

KD-43X89J: 96.4 × 62.6 × 29.6

KD-43X85J / 43X85TJ: 96.4 × 62.8 × 28.6

without Table-Top Stand

KD-85X8xJ / 85X8xTJ: 189.9 × 108.9 × 7.1

KD-75X8xJ / 75X8xTJ: 167.5 × 96.2 × 7.3

KD-65X8xJ / 65X8xTJ: 145.2 × 83.4 × 7.2

KD-55X8xJ / 55X8xTJ: 123.3 × 71.1 × 7.2

KD-50X8xJ / 50X8xTJ: 111.9 × 64.9 × 7.0

KD-43X8xJ / 43X8xTJ: 96.4 × 56.3 × 6.9

Stand width (Approx.) (cm)

Standard position:

KD-85X85J / 85X85TJ: 153.2

KD-75X89J: 167.4

KD-75X85J / 75X85TJ: 133.0

KD-65X89J: 145.0

KD-65X85J / 65X85TJ: 120.8

KD-55X89J: 123.0

KD-55X85J / 55X85TJ: 106.1

KD-50X89J: 111.7

KD-50X85J / 50X85TJ: 66.5

KD-43X89J: 96.2

with Table-Top Stand

KD-85X85J / 85X85TJ: 46

KD-75X89J: 34.7

KD-75X85J / 75X85TJ: 33.8

KD-65X89J: 23.8

KD-65X85J / 65X85TJ: 23

KD-55X89J: 18.1

KD-55X85J / 55X85TJ: 17.7

KD-50X89J: 13.9

KD-50X85J / 50X85TJ: 13.3

KD-43X89J: 11.2

Optional accessories

Wall-Mount Bracket: SU-WL850

(KD-75X8xJ / 75X8xTJ / 65X8xJ / 65X8xTJ /

55X8xJ / 55X8xTJ only)

Wall-Mount Bracket: SU-WL450

Operating temperature: 0 °C – 40 °C

Operating humidity: 10 % – 80 % RH (non-condensing)

*1 When 4096 × 2160p is input and [Wide mode] is set to [Normal], the resolution is displayed as 3840 × 2160p . To display 4096 × 2160p , set [Wide mode] setting to [Full 1] or [Full 2].

*2 Refer to the on screen menu to set [HDMI signal format].

*3 Refer to the online Help Guide for details.

*4 HDMI IN 3 & 4 only. Use the Ultra High Speed HDMI Cable to connect.

*5 Connect your audio system to the HDMI IN 3 to route TV audio to your audio system.

*6 Function not available in Italy.

*7 This information is for EU and other countries whose relevant regulation is based on EU energy labelling regulation.

*8 Energy consumption in kWh per year, based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used.

*9 Energy consumption in kWh per year, based on the power consumption of the television operating 8 hours per day for 365 days. The actual energy consumption will depend on how the television is used.

*10 Specified standby power is reached after the TV finishes necessary internal processes.

*11 Standby power consumption will increase when your TV is connected to the network.

Note

• Optional accessories availability depends on countries/region/TV model/stock.
• Design and specifications are subject to change without notice.
• Subscriptions for services and applications may be required and additional terms, conditions and/or charges may apply when using Google Assistant.
• Product fiche in this manual is for COMMISSION DELEGATED REGULATION (EU) 1062/2010. Refer to its website for (EU) 2019/2013 information.

Notes on Digital TV function

• Digital TV (DVB terrestrial, satellite and cable), interactive services and network functions may not be available in all countries or areas. Some functions might not be enabled or might not operate correctly with some providers and network environments. Some TV service providers may charge a fee for their services.
• This TV supports digital broadcasting using MPEG-2, H.264/MPEG-4 AVC and H.265/HEVC codecs, but compatibility with all operator/service signals, which may change over time, cannot be guaranteed.

Trademark information

• The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
• Dolby, Dolby Vision, Dolby Atmos, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation. Manufactured under license from Dolby Laboratories. Confidential unpublished works. Copyright © 1992-2020 Dolby Laboratories. All rights reserved.
• Gracenote, the Gracenote logo and logotype, "Powered by Gracenote" logo are either registered trademarks or trademarks of Gracenote, Inc. in the United States and/or other countries.
• Google TV and related logos are trademarks of Google LLC.
• For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. DTS, Digital Surround, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2020 DTS, Inc. ALL RIGHTS RESERVED.
• Netflix is a registered trademark of Netflix, Inc.
• DiSEqC™ is a trademark of EUTELSAT. This TV supports DiSEqC 1.0. This TV is not intended for controlling motorized antennas.
• TUXERA is a registered trademark of Tuxera Inc. in the US and other countries.

- All other trademarks are the property of their respective owners.

Product registration number (COMMISSION DELEGATED REGULATION (EU) 2019/2013)

KD-85X85J (436516), KD-75X89J (436514), KD-75X85J (436475), KD-65X89J (454679), KD-65X85J (454669), KD-55X89J (454665), KD-55X85J (454658), KD-50X89J (454653), KD-50X85J (454646), KD-43X89J (454643), KD-43X85J (454633).

https://rd1.sony.net/help/tv/iaep1/h_aep/

Diagram illustrating three different types of lighting or fixture installation methods, marked with check and no/x symbols.

Transport

Two line drawings of people carrying a large rectangular panel and a smaller cabinet (no text or symbols)

KD-75X8xJ / 75X8xTJ / 65X8xJ / 65X8xTJ / 55X8xJ / 55X8xTJ / 50X8xJ / 50X8xTJ / 43X8xJ / 43X8xTJ

Illustration of two silhouetted figures holding a rectangular device (no text or symbols visible)

https://www.sony.eu/support

—Support de fixation murale SU-WL850

—Support de fixation murale SU-WL450

2160p (24 Hz)*1, 3840 × 2160p (50, 60 Hz)*2,

3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50,

60, 100, 120 Hz), 1080/24p, 1080i (50, 60 Hz),

720p (30, 50, 60 Hz), 720/24p, 576p, 480p,

Formats PC*3

3840 × 2160p (100, 120 Hz)* ^2*4

Audio :

En mode eARC (Enhanced Audio Return

Channel)

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (HDMI IN 3

uniquement)*5

En mode eARC

DIGITAL AUDIO OUT (OPTICAL)

https://rd1.sony.net/help/tv/iaep1/h_aep/

Diagram illustrating three different types of lighting or fixture configurations with checkmark and prohibition symbols

Transporte

Two line drawings showing people carrying a large rectangular object, one with arms raised and the other with legs extended (no text or symbols)

KD-75X8xJ / 75X8xTJ / 65X8xJ / 65X8xTJ / 55X8xJ / 55X8xTJ / 50X8xJ / 50X8xTJ / 43X8xJ / 43X8xTJ

Illustration of two silhouetted figures holding a rectangular device (no text or symbols visible)

https://www.sony.eu/support

Digital: UHF/VHF/Cable

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (Sólo HDMI IN 3)*5

En el modo eARC

→ DIGITAL AUDIO OUT (OPTICAL)

Toma digital óptica (PCM lineal de dos

canales: 48 kHz 16 bits, Dolby Audio, DTS)

https://rd1.sony.net/help/tv/iaep1/h_aep/

Diagram illustrating three different types of lighting or fixture configurations with checkmark and prohibition symbols

Transport

Two line drawings of people carrying a large rectangular object, one with arms raised and the other with legs extended (no text or symbols)

KD-75X8xJ / 75X8xTJ / 65X8xJ / 65X8xTJ / 55X8xJ / 55X8xTJ / 50X8xJ / 50X8xTJ / 43X8xJ / 43X8xTJ

Illustration of two human silhouettes holding a rectangular device (no text or symbols visible)

3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50,

60, 100, 120 Hz), 1080/24p, 1080i (50, 60 Hz),

720p (30, 50, 60 Hz), 720/24p, 576p, 480p, Pc-formaten ^*3

3840 × 2160p (100, 120 Hz)* ^2*4

Audio:

In eARC (Enhanced Audio Return Channel)-modus

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (alleen HDMI IN 3)*5

In eARC-modus

→ DIGITAL AUDIO OUT (OPTICAL)

Afmetingen (ong.) (b × h × d) (cm)

met tafelstandaard

KD-85X85J / 85X85TJ: 189,9 × 117,6 × 45,6

KD-75X89J: 167,5 × 103,4 × 41,5

KD-75X85J / 75X85TJ: 167,5 × 104,0 × 41,0

KD-65X89J: 145,2 × 90,3 × 35,4

KD-65X85J / 65X85TJ: 145,2 × 90,5 × 33,8

KD-55X89J: 123,3 × 78,3 × 32,4

KD-55X85J / 55X85TJ: 123,3 × 78,4 × 33,8

KD-50X89J: 111,9 × 71,3 × 29,6

KD-50X85J / 50X85TJ: 111,9 × 71,5 × 28,6

KD-43X89J: 96,4 × 62,6 × 29,6

KD-43X85J / 43X85TJ: 96,4 × 62,8 × 28,6

https://rd1.sony.net/help/tv/iaep1/h_aep/

Diagram illustrating three different types of lighting or fixture installation methods, marked with check and X symbols.

Transport

Two line drawings showing people carrying a large rectangular box and a smaller cabinet (no text or symbols)

KD-75X8xJ / 75X8xTJ / 65X8xJ / 65X8xTJ / 55X8xJ / 55X8xTJ / 50X8xJ / 50X8xTJ / 43X8xJ / 43X8xTJ

Illustration of two silhouetted figures holding a rectangular device (no text or symbols visible)

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p,

Computerformate*3

3840 × 2160p (100, 120 Hz)*2*4

Audio:

Im eARC (Enhanced Audio Return Channel)-

Modus

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (nur HDMI IN 3)*5

Im eARC-Modus

→ DIGITAL AUDIO OUT (OPTICAL)

https://rd1.sony.net/help/tv/iaep1/h_aep/

Diagram illustrating three different viewing or dissection methods with checkmark and prohibition symbols

Transporte

Two line drawings of human figures carrying a large rectangular box and a smaller cabinet (no text or symbols)

KD-75X8xJ / 75X8xTJ / 65X8xJ / 65X8xTJ / 55X8xJ / 55X8xTJ / 50X8xJ / 50X8xTJ / 43X8xJ / 43X8xTJ

Illustration of two silhouetted figures holding a rectangular device (no text or symbols visible)

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p,

Formatos PC*3

3840 × 2160p (100, 120 Hz)*2*4

Áudio:

No modo eARC (Enhanced Audio Return

Channel)

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (Apenas HDMI IN 3)*5

No modo eARC

DIGITAL AUDIO OUT (OPTICAL)

Tomada digital ótica (PCM linear de dois canais: 48 kHz 16 bits, Dolby Audio, DTS)

https://rd1.sony.net/help/tv/iaep1/h_aep/

Diagram illustrating three different types of lighting or fixture configurations with checkmark and prohibition symbols

Trasporto

Two line drawings of people carrying a large rectangular device, no text or symbols present

KD-75X8xJ / 75X8xTJ / 65X8xJ / 65X8xTJ / 55X8xJ / 55X8xTJ / 50X8xJ / 50X8xTJ / 43X8xJ / 43X8xTJ

Illustration of two human silhouettes holding a rectangular device with internal components (no text or symbols)

https://www.sony.eu/support

3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50,

60, 100, 120 Hz), 1080/24p, 1080i (50, 60 Hz),

720p (30, 50, 60 Hz), 720/24p, 576p, 480p,

Formati PC ^4

3840 × 2160p (100, 120 Hz)* ^2*4

Audio:

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (Solo HDMI IN 3)*5

In modalità eARC

DIGITAL AUDIO OUT (OPTICAL)

https://rd1.sony.net/help/tv/iaep1/h_aep/

Diagram illustrating three different types of lighting or fixture installation methods, marked with check and no/x symbols.

Transport

Two line drawings of people carrying a large rectangular device, no text or symbols present

KD-75X8xJ / 75X8xTJ / 65X8xJ / 65X8xTJ / 55X8xJ / 55X8xTJ / 50X8xJ / 50X8xTJ / 43X8xJ / 43X8xTJ

Illustration of two silhouetted figures carrying a rectangular device (no text or symbols visible)

3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50,

60, 100, 120 Hz), 1080/24p, 1080i (50, 60 Hz),

720p (30, 50, 60 Hz), 720/24p, 576p, 480p,

PC-format ^4

3840 × 2160p (100, 120 Hz)* ^2*4

Ljud:

I eARC (Enhanced Audio Return Channel)-

läge

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (Endast HDMI IN 3)*5

I eARC-läge

DIGITAL AUDIO OUT (OPTICAL)

https://rd1.sony.net/help/tv/iaep1/h_aep/

Diagram illustrating three different electrical circuit symbols: check, switch, and crossed-out, with corresponding schematic diagrams.

Transport

Two line drawings showing people carrying a large rectangular object, one with arms raised and the other with a cabinet (no text or symbols)

KD-75X8xJ / 75X8xTJ / 65X8xJ / 65X8xTJ / 55X8xJ / 55X8xTJ / 50X8xJ / 50X8xTJ / 43X8xJ / 43X8xTJ

Illustration of two silhouetted figures holding a rectangular device (no text or symbols visible)

https://www.sony.eu/support

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p,

Pc-formater ^*3

3840 × 2160p (100, 120 Hz)* ^2*4

Lyd:

I eARC (Enhanced Audio Return Channel)-tilstand

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (kun HDMI IN 3)*5

I eARC-tilstand

DIGITAL AUDIO OUT (OPTICAL)

Digitalt optisk stik (to-kanals lineær PCM:

48 kHz 16 bit, Dolby Audio, DTS)

○ (Stereo-minijack)

Hovedtelefoner

(HDD ^6 REC)*

USB-port (2 USB HDD-enhed for REC-funktion)

USB-port 1 understøtter High Speed USB (USB 2.0)

USB-port 2 understøtter Super Speed USB (USB 3.1 Gen 1)

AM (Conditional Access Module)-holder

10BASE-T/100BASE-TX-stik

I [Standard] tilstand

KD-85X8xJ / 85X8xTJ: 236 W

KD-75X8xTJ: 226 W

KD-65X8xJ / 65X8xTJ: 145 W

KD-55X8xJ / 55X8xTJ: 116 W

KD-50X8xTJ: 95 W

500 mA (for USB 1), 900 mA (for USB 2)

Mål (Ca.) (b × h × d) (cm)

Inkl. TV-fod

KD-85X85J / 85X85TJ: 189,9 × 117,6 × 45,6

KD-75X89J: 167,5 × 103,4 × 41,5

KD-75X85J / 75X85TJ: 167,5 × 104,0 × 41,0

KD-65X89J: 145,2 × 90,3 × 35,4

KD-65X85J / 65X85TJ: 145,2 × 90,5 × 33,8

KD-55X89J: 123,3 × 78,3 × 32,4

KD-55X85J / 55X85TJ: 123,3 × 78,4 × 33,8

KD-50X89J: 111,9 × 71,3 × 29,6

KD-50X85J / 50X85TJ: 111,9 × 71,5 × 28,6

KD-43X89J: 96,4 × 62,6 × 29,6

KD-43X85J / 43X85TJ: 96,4 × 62,8 × 28,6

Uden TV-fod

KD-85X8xJ / 85X8xTJ: 189,9 × 108,9 × 7,1

KD-75X8xJ / 75X8xTJ: 167,5 × 96,2 × 7,3

KD-65X8xJ / 65X8xTJ: 145,2 × 83,4 × 7,2

KD-55X8xJ / 55X8xTJ: 123,3 × 71,1 × 7,2

KD-50X8xJ / 50X8xTJ: 111,9 × 64,9 × 7,0

KD-43X8xJ / 43X8xTJ: 96,4 × 56,3 × 6,9

Stativets bredde (Ca.) (cm)

Standardposition:

KD-85X85J / 85X85TJ: 153,2

KD-75X89J: 167,4

KD-75X85J / 75X85TJ: 133,0

KD-65X89J: 145,0

KD-65X85J / 65X85TJ: 120,8

KD-55X89J: 123,0

KD-55X85J / 55X85TJ: 106,1

KD-50X89J: 111,7

KD-50X85J / 50X85TJ: 66,5

KD-43X89J: 96,2

https://rd1.sony.net/help/tv/iaep1/h_aep/

Diagram illustrating three different electrical circuit symbols: check, switch, and no/x absence.

Two line drawings of people carrying a large rectangular box and a smaller cabinet, no text or symbols present.

KD-75X8xJ / 75X8xTJ / 65X8xJ / 65X8xTJ / 55X8xJ / 55X8xTJ / 50X8xJ / 50X8xTJ / 43X8xJ / 43X8xTJ

Illustration of two silhouetted figures holding a rectangular device (no text or symbols visible)

https://www.sony.eu/support

(24 Hz)*1, 3840 × 2160p (50, 60 Hz)*2,

3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50,

60, 100, 120 Hz), 1080/24p, 1080i (50, 60 Hz),

720p (30, 50, 60 Hz), 720/24p, 576p, 480p,

PC-muodot ^*3

3840 × 2160p (100, 120 Hz) ^24

Audio:

eARC (Enhanced Audio Return Channel)-tilassa

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (Vain HDMI IN 3) ^*5 eARC-tilassa

DIGITAL AUDIO OUT (OPTICAL)

https://rd1.sony.net/help/tv/iaep1/h_aep/

Innstillingsmenyer kan endres uten varsel.

Diagram illustrating correct and incorrect viewing conditions for a TV, with checkmark and prohibition symbols indicating correct/incorrect views.

Bæring

Two line drawings of people carrying a large rectangular object, one with raised arms and the other with extended legs (no text or symbols)

KD-75X8xJ / 75X8xTJ / 65X8xJ / 65X8xTJ / 55X8xJ / 55X8xTJ / 50X8xJ / 50X8xTJ / 43X8xJ / 43X8xTJ

Illustration of two silhouetted figures holding a rectangular device (no text or symbols visible)

(Teksting-innstilling)

HELP: Vis Hjelp-menyen.

◀/▶/▶/||

- RECTa opp programmet som vises på USB HDD*4/DVR*3.

EXIT

7 ⏻ (Strøm)

8 Fjernkontroll-sensor / Lyssensor / LED

https://www.sony.eu/support

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (Kun HDMI IN 3)*5

I eARC-modus

DIGITAL AUDIO OUT (OPTICAL)

Digital optisk kontakt (tokanals lineær PCM: 48 kHz 16 biter, Dolby Audio, DTS)

Ω (minijack, stereo)

Hodetelefon

1, 2 (HDD REC)* 6

AM-spor (Conditional Access Module)

10BASE-T/100BASE-TX-kontakt

500 mA (for USB 1), 900 mA (for USB 2)

Mål (ca.) (b × h × d) (cm)

med bordstativ

KD-85X85J / 85X85TJ: 189,9 × 117,6 × 45,6

KD-75X89J: 167,5 × 103,4 × 41,5

KD-75X85J / 75X85TJ: 167,5 × 104,0 × 41,0

KD-65X89J: 145,2 × 90,3 × 35,4

KD-65X85J / 65X85TJ: 145,2 × 90,5 × 33,8

KD-55X89J: 123,3 × 78,3 × 32,4

KD-55X85J / 55X85TJ: 123,3 × 78,4 × 33,8

KD-50X89J: 111,9 × 71,3 × 29,6

KD-50X85J / 50X85TJ: 111,9 × 71,5 × 28,6

KD-43X89J: 96,4 × 62,6 × 29,6

KD-43X85J / 43X85TJ: 96,4 × 62,8 × 28,6

uten bordstativ

KD-85X8xJ / 85X8xTJ: 189,9 × 108,9 × 7,1

KD-75X8xJ / 75X8xTJ: 167,5 × 96,2 × 7,3

KD-65X8xJ / 65X8xTJ: 145,2 × 83,4 × 7,2

KD-55X8xJ / 55X8xTJ: 123,3 × 71,1 × 7,2

KD-50X8xJ / 50X8xTJ: 111,9 × 64,9 × 7,0

KD-43X8xJ / 43X8xTJ: 96,4 × 56,3 × 6,9

Stativbredde (ca.) (cm)

Standardplassering:

KD-85X85J / 85X85TJ: 153,2

KD-75X89J: 167,4

KD-75X85J / 75X85TJ: 133,0

KD-65X89J: 145,0

KD-65X85J / 65X85TJ: 120,8

KD-55X89J: 123,0

KD-55X85J / 55X85TJ: 106,1

KD-50X89J: 111,7

KD-50X85J / 50X85TJ: 66,5

KD-43X89J: 96,2

https://rd1.sony.net/help/tv/iaep1/h_aep/

Diagram illustrating three different types of lighting or fixture installation methods, marked with check, cross, and no/x symbols.

Transport

Two line drawings of human figures carrying a large rectangular object, no text or symbols present.

KD-75X8xJ / 75X8xTJ / 65X8xJ / 65X8xTJ / 55X8xJ / 55X8xTJ / 50X8xJ / 50X8xTJ / 43X8xJ / 43X8xTJ

Illustration of two human silhouettes holding a rectangular device (no text or symbols visible)

https://www.sony.eu/support

3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50,

60, 100, 120 Hz), 1080/24p, 1080i (50, 60 Hz),

720p (30, 50, 60 Hz), 720/24p, 576p, 480p,

W trybie eARC (Enhanced Audio Return

Channel)

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (tylko HDMI IN 3)*5

W trybie eARC

DIGITAL AUDIO OUT (OPTICAL)

https://rd1.sony.net/help/tv/iaep1/h_aep/

Diagram illustrating three different types of lighting or fixture configurations with checkmark and prohibition symbols

Přeprava

Two line drawings of people carrying a large rectangular panel and a smaller cabinet (no text or symbols)

KD-75X8xJ / 75X8xTJ / 65X8xJ / 65X8xTJ / 55X8xJ / 55X8xTJ / 50X8xJ / 50X8xTJ / 43X8xJ / 43X8xTJ

Illustration of two silhouetted figures holding a rectangular device (no text or symbols visible)

https://www.sony.eu/support

→ DIGITAL AUDIO OUT (OPTICAL)

https://rd1.sony.net/help/tv/iaep1/h_aep/

Diagram illustrating three different types of lighting or fixture configurations with checkmark and prohibition symbols

Preprava

Two line drawings of people carrying a large rectangular object, one with arms raised and the other with legs extended (no text or symbols)

KD-75X8xJ / 75X8xTJ / 65X8xJ / 65X8xTJ / 55X8xJ / 55X8xTJ / 50X8xJ / 50X8xTJ / 43X8xJ / 43X8xTJ

Illustration of two silhouetted figures holding a rectangular device (no text or symbols visible)

(24 Hz)*1, 3840 × 2160p (50, 60 Hz)*2,

3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50,

60, 100, 120 Hz), 1080/24p, 1080i (50, 60 Hz),

720p (30, 50, 60 Hz), 720/24p, 576p, 480p, Formáty PC ^*3

3840 × 2160p (100, 120 Hz)*2*4

Audio:

V režime eARC (Enhanced Audio Return Channel)

Podrobnosti nájdete v online Príručke.

Okrem režimu eARC

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (len model HDMI IN 3)*5

V režime eARC

Podrobnosti nájdete v online Príručke.

V režime ARC

Dvojkanálový lineárny PCM: 48 kHz 16 bitov,

Dolby Audio, Dolby Atmos, DTS

→ DIGITAL AUDIO OUT (OPTICAL)

https://rd1.sony.net/help/tv/iaep1/h_aep/

https://compliance.sony.eu

Diagram illustrating three different types of lighting or fixture configurations with checkmark and prohibition symbols

Szállítás

Two line drawings showing people carrying a large rectangular object, one with raised arms and the other with extended legs (no text or symbols)

KD-75X8xJ / 75X8xTJ / 65X8xJ / 65X8xTJ / 55X8xJ / 55X8xTJ / 50X8xJ / 50X8xTJ / 43X8xJ / 43X8xTJ

Illustration of two silhouetted figures holding a rectangular device (no text or symbols visible)

https://www.sony.eu/support

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p, PC

formátumok*3

3840 × 2160p (100, 120 Hz)*2*4

Audio:

eARC (Enhanced Audio Return Channel)

üzemmodban

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (Csak HDMI IN 3)*5

eARC üzemmodban

→ DIGITAL AUDIO OUT (OPTICAL)

https://rd1.sony.net/help/tv/iaep1/h_aep/

INFORMATIE IMPORTANTĂ

https://compliance.sony.eu

Diagram illustrating three different types of lighting or fixture configurations with checkmark and prohibition symbols

Transportul

Two line drawings of people carrying a large rectangular device, no text or symbols present

KD-75X8xJ / 75X8xTJ / 65X8xJ / 65X8xTJ / 55X8xJ / 55X8xTJ / 50X8xJ / 50X8xTJ / 43X8xJ / 43X8xTJ

Illustration of two human silhouettes holding a rectangular device (no text or symbols visible)

Analogic: B/G, D/K, I

Digital: DVB-T/DVB-C/DVB-T2

Satelit: DVB-S/DVB-S2

Sistem culoare: PAL/SECAM/NTSC3.58 (Numai video)/NTSC4.43 (Numai video)

Analogic: UHF/VHF/Cablu

Digital: UHF/VHF/Cablu

Satelit: Frecvență IF 950-2150 MHz

Ieşire audio: 10 W + 10 W

Tehnologie wireless

Protocol IEEE 802.11a/b/g/n/ac

Bluetooth ^® versiunea 4.2

3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50,

60, 100, 120 Hz), 1080/24p, 1080i (50, 60 Hz),

720p (30, 50, 60 Hz), 720/24p, 576p, 480p,

Formate PC*3

3840 × 2160p (100, 120 Hz)* ^2*4

Audio:

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (Numai HDMI IN 3)*5

În modul eARC

DIGITAL AUDIO OUT (OPTICAL)

https://rd1.sony.net/help/tv/iaep1/h_aep/

Diagram illustrating three different types of lighting or fixture installation methods, marked with check and no/x symbols.

Пренасяне

Two line drawings of human figures carrying a large rectangular device, no text or symbols present.

KD-75X8xJ / 75X8xTJ / 65X8xJ / 65X8xTJ / 55X8xJ / 55X8xTJ / 50X8xJ / 50X8xTJ / 43X8xJ / 43X8xTJ

Illustration of two human figures holding a rectangular device (no text or symbols visible)

https://www.sony.eu/support

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p, PC

формати*3

3840 × 2160p (100, 120 Hz)* ^2*4

Аудио:

В режим eARC (Enhanced Audio Return

Channel)

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (camo HDMI IN 3)*5

В режим eARC

DIGITAL AUDIO OUT (OPTICAL)

https://rd1.sony.net/help/tv/iaep1/h_aep/

Diagram illustrating three different types of lighting or fixture installation methods, marked with check and X symbols.

Μεταφορά

Two line drawings showing people carrying a large rectangular box and a smaller cabinet (no text or symbols)

KD-75X8xJ / 75X8xTJ / 65X8xJ / 65X8xTJ / 55X8xJ / 55X8xTJ / 50X8xJ / 50X8xTJ / 43X8xJ / 43X8xTJ

Illustration of two silhouetted figures holding a rectangular device (no text or symbols visible)

MIC 2 3 4 5 6 1 1 TV NBC TV RCS AI/302 HUNT FVC BTC RST RST RST RST RST RST RST RST RST RST RST RST RST RST RST RST RST RST RST RST RST RST RST RST RST RST RST RST RST RST RST RST RST RST

3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50,

60, 100, 120 Hz), 1080/24p, 1080i (50, 60 Hz),

720p (30, 50, 60 Hz), 720/24p, 576p, 480p,

eARC/ARC (Enhanced Audio Return Channel/

DIGITAL AUDIO OUT (OPTICAL)

https://rd1.sony.net/help/tv/iaep1/h_aep/

Diagram illustrating three different types of lighting or fixture configurations with checkmark and prohibition symbols

Nakliye

Two line drawings of people carrying a large rectangular device, no text or symbols present

KD-75X8xJ / 75X8xTJ / 65X8xJ / 65X8xTJ / 55X8xJ / 55X8xTJ / 50X8xJ / 50X8xTJ / 43X8xJ / 43X8xTJ

Illustration of two silhouetted figures holding a rectangular device (no text or symbols visible)

Dijital: UHF/VHF/Kablolu

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (Sadece HDMI IN 3)*5

eARC modunda

DIGITAL AUDIO OUT (OPTICAL)

https://rd1.sony.net/help/tv/iaep1/h_aep/

Diagram illustrating three different types of lighting or fixture installation methods, marked with check and X symbols.

Перемещение

Two line drawings of people carrying a large rectangular box and a smaller cabinet (no text or symbols)

KD-75X8xTJ / 65X8xJ / 65X8xTJ / 55X8xJ / 55X8xTJ / 50X8xTJ / 43X8xJ / 43X8xTJ

Illustration of two silhouetted figures holding a rectangular device (no text or symbols visible)

DIGITAL AUDIO OUT (OPTICAL)

https://rd1.sony.net/help/tv/iaep1/h_aep/

Diagram illustrating three different types of lighting or fixture configurations with checkmark and prohibition symbols

Транспортування

Two line drawings of human figures carrying a large rectangular device, no text or symbols present

KD-75X8xTJ / 65X8xJ / 65X8xTJ / 55X8xJ / 55X8xTJ / 50X8xTJ / 43X8xJ / 43X8xTJ

Illustration of two silhouetted figures holding a rectangular device (no text or symbols visible)

https://www.sony.eu/support

eARC/ARC (Enhanced Audio Return Channel/

→ DIGITAL AUDIO OUT (OPTICAL)

32.4 × 78.3 × 123.3 :KD-55X89J

33.8×78.4×123.3:55X85TJ/KD-55X85J

29.6×71.3×111.9:KD-50X89J

28.6×71.5×111.9:50X85TJ/KD-50X85J

29.6 × 62.6 × 96.4 :KD-43X89J

28.6×62.8×96.4:43X85TJ/KD-43X85J

eARC/ARC (Enhanced Audio Return Channel/Audio Return

^5* (Eq. HDMI IN 3) Channel)

eARC في الوضع

DIGITAL AUDIO OUT (OPTICAL)

(快捷ة CAM) (widening Household Management)

LAN

https://www.sony.eu/support

Line drawing of four stylized human figures holding a blank board (no text or symbols)

Line drawing of a person walking toward a large rectangular device with a door and windows (no text or symbols)

/ 55X8xTJ / 55X8xJ / 65X8xTJ / 65X8xJ / 75X8xTJ / KD-75X8xJ

43X8xTJ / 43X8xJ / 50X8xTJ / 50X8xJ

Illustration of two human silhouettes holding a rectangular device (no text or symbols visible)

https://rd1.sony.net/help/tv/iaep1/h_aep/

Diagram illustrating correct and incorrect assembly methods for a table, including checkmark and prohibition symbols

النقل

https://compliance.sony.eu

https://www.sony.eu/support
