DO9227P - Saucepan DOMO - Free user manual and instructions

Brand	DOMO
Model	DO9227P
Product type	Electric crepe maker
Number of plates	2 removable plates (large area + 5 small areas)
Temperature setting	5 positions (1 to 5)
Indicator lights	Red light (on) and green light (ready)
Coating	Non-stick
Included accessories	Spatula and batter spreader
Power supply	220-240 V ~ 50/60 Hz
Power	1200 W (estimated)
Dimensions (approx.)	30 x 20 x 10 cm
Net weight	Approximately 1.5 kg
Cord length	Approximately 80 cm
Material	Plastic and metal
Usage	Indoor only
Warranty	2 years (accessories and wear parts: 6 months)
Maintenance	Clean with a damp cloth; plates washable in hot water with mild detergent
Safety	Do not immerse, do not use unattended, heat-resistant surface
Certifications	CE
Country of origin	China

Frequently Asked Questions - DO9227P DOMO

How to remove the burnt smell and smoke during first use?

This is normal: the heating plates emit a slight smoke and odor. Clean the appliance with absorbent paper or a clean, dry cloth, then apply a thin layer of vegetable oil before first cooking.

How to clean the DOMO DO9227P crepe maker?

Turn off and unplug the appliance. Let it cool completely. Wipe the body with a damp cloth. The removable plates and accessories can be cleaned in hot water with mild detergent. Never immerse the appliance in water.

What temperature to choose for crepes?

The crepe maker has 5 positions. Start with a medium setting (3) and adjust according to your recipe. The green light indicates that the desired temperature is reached.

Can I use metal utensils on the non-stick plate?

No, only use wooden or heat-resistant plastic spatulas to avoid damaging the non-stick coating.

Is the DO9227P crepe maker delivered with plates?

Yes, it comes with two removable plates: one large and one plate for 5 small crepes, along with a spatula and a batter spreader.

How to know when the crepe maker is ready to use?

The red light turns on as soon as it is powered on. When the light turns green, the appliance has reached the set temperature and you can pour the batter.

Can I leave the crepe maker on unattended?

No, never leave the appliance unattended while operating. Unplug it after use.

How to store the crepe maker after use?

Let the appliance cool completely, clean it, then store it in a dry place. Avoid winding the cord around the appliance.

What to do if crepes stick to the plate?

Make sure you applied a thin layer of vegetable oil before first use. If the problem persists, clean the plate and reapply oil.

Does the warranty cover the non-stick plates?

The general warranty is 2 years, but accessories and wear parts (including the plates) have a 6-month warranty. Keep your receipt.

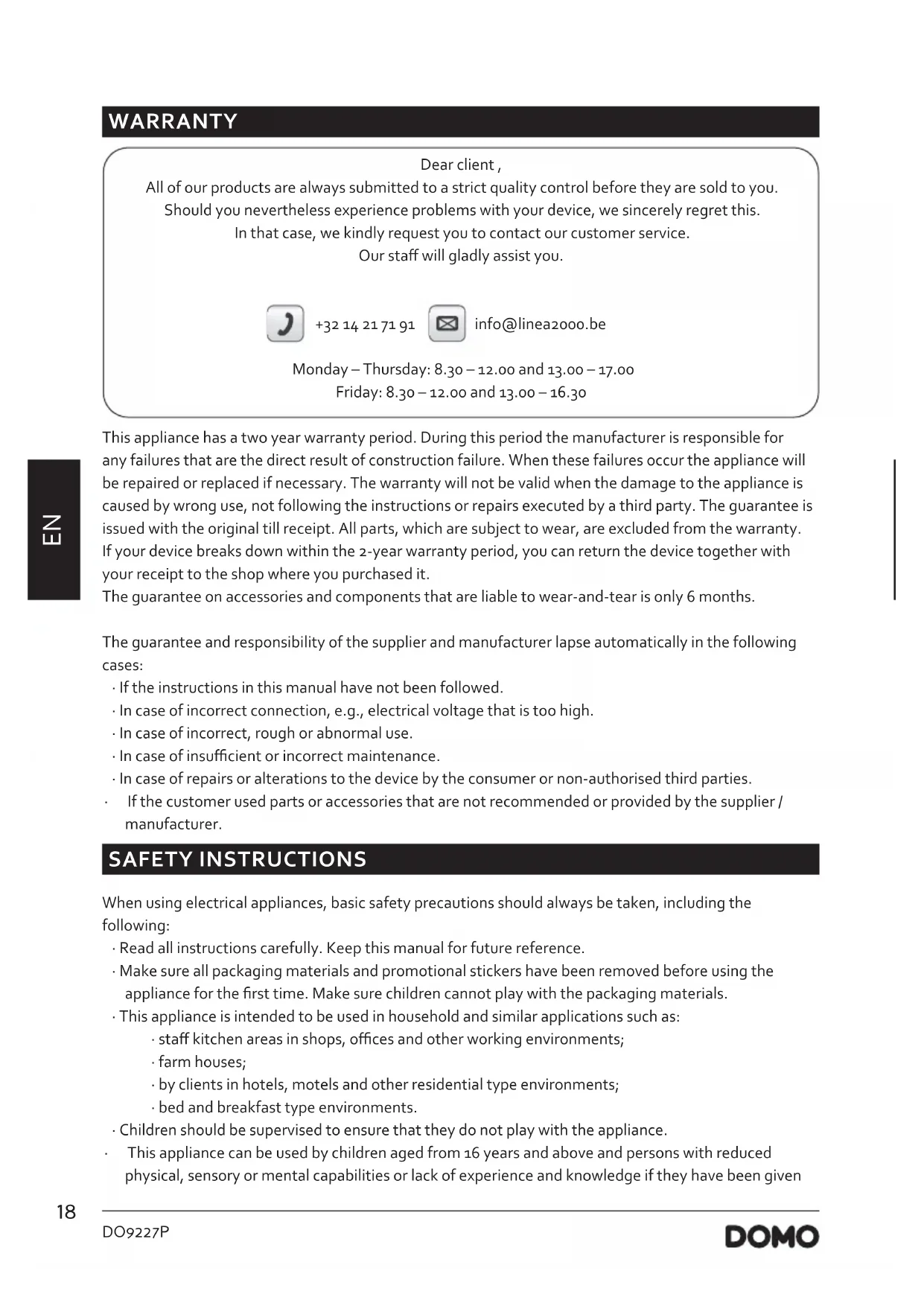

USER MANUAL DO9227P DOMO

All of our products are always submitted to a strict quality control before they are sold to you. Should you nevertheless experience problems with your device, we sincerely regret this. In that case, we kindly request you to contact our customer service. Our staff will gladly assist you.

[phone]

[e-mail]

Monday-Thursday:8.30-12.oo and 13.00-17.oo

Friday: 8.30-12.00 and 13.00-16.30

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

The guarantee on accessories and components that are liable to wear-and-tear is only 6 months.

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

If the instructions in this manual have not been followed.
In case of incorrect connection, e.g., electrical voltage that is too high.
In case of incorrect, rough or abnormal use.
In case of insufficient or incorrect maintenance.
In case of repairs or alterations to the device by the consumer or non-authorised third parties.

If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.

SAFETYINSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.

• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.
  This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
  farm houses;

• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

Children should be supervised to ensure that they do not play with the appliance.

This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given

supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 16 and supervised.

• Keep the appliance and its cord out of reach of children younger than 16 years.

• Attention: This appliance cannot be used with an external timer or a separate remote control.

• Before use, check if the voltage stated on the appliance corresponds with the voltage of the power net at your home.
• Do not let the cord hang on a hot surface or on the edge of a table or counter top.
• Never use the appliance when the cord or plug is damaged, after malfunction or when the appliance itself is damaged. In that case, take the appliance to the nearest qualified service center for check-up and repair.

• Close supervision is necessary when the appliance is used near or by children.

• The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries.

• Unplug the appliance when it is not in use, before assembling or disassembling any parts and before cleaning the appliance. Put all buttons and knobs into the 'off' position and unplug the appliance by grasping the plug. Never unplug by pulling the cord.
• Do not leave a working appliance unattended.
• Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.
• Do not use the appliance outdoors.
• Only use the appliance for its intended use.
• Always use the appliance on a steady, dry and level surface.
• Only use the appliance for domestic use. The manufacturer can not be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.
• All repairs should be carried out by the manufacturer or its aftersales service.
• Never immerse the appliance, the cord or the plug in water or any other liquid.
• Make sure that children do not touch the cord or appliance.
• Keep the cord away from sharp edges and hot parts or other heat sources.
• Never use the appliance if it is damaged.
• Do not immerse the appliance in water or any other liquid.
• Only use the appliance indoors and be careful with hot areas and materials such as curtains, tablecloths, etc.
• Preferably use a heat resistant mat underneath the appliance base is flat and level.
  To remove the plug from the socket hold onto the plug and never pull on the electric lead.
• Prevent the plug and electric lead from coming into contact with hot parts.
• Allow the appliance to cool off completely before cleaning or storing it.
• Use only the parts supplied by the manufacturer.
• Never touch any hot parts while the appliance is switched on and being used.
• Never leave the appliance unattended
• Make sure nothing can touch the heating element.
• Do not move the appliance when it is warm or hot.
  Clean the appliance directly after use because it has been in contact with foodstuffs.

• Keep the appliance free of oil on its parts. Oil is very inflammable.

• Never use any sharp objects such as knives or forks on the different parts, always use wooden spoons/ spatulas.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

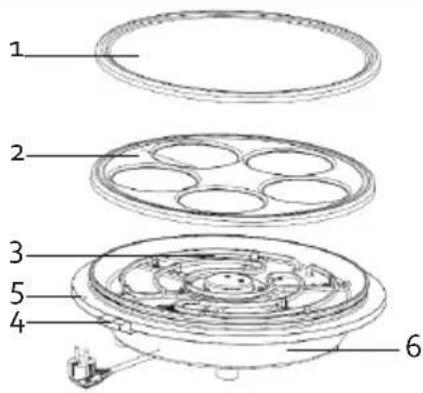

PARTS

1. Heating plate
2. Heating plate for 5 small pancakes
3. Heating element
4. Setting of temperature
5. 'On/off' and 'Ready to use' indicator light
6. Base
7. Spatula
8. Batter spreader

BEFORE THE FIRST USE

• Remove all packing materials and carefully clean the appliance and accessories before first use (see Cleaning).
• Attention: when using the appliance for the first time, the baking trays may emit a small amount of smoke and odour. This is normal. Clean the appliance with absorbent paper or a clean, dry cloth to remove any residue.
• Apply a thin layer of vegetable oil to the baking tray. This will prevent sticking and cleaning after use will be easier.
• Place the unit preferably on a surface that is easy to clean. The surface should also be heat-resistant. Do not place the appliance on an untreated wooden surface.
• Make sure that there is enough ventilation around the grill.
• Make sure that the grill is switched off. Plug into an earthed socket.

USE

This appliance gives you the choice between a heating plate with one large baking zone or a heating plate with 5 small baking zones. Choose one of these heating plates and place it on top of the heating element.

1. Plug the power cord into a socket. The red indicator light means the appliance is switched on.
2. Slide the temperature setting to the desired position. This ranges from minimum 1 to maximum 5. The appliance will start to heat up.
3. When the indicator light turns green, the unit has reached the desired temperature.
4. Pour the pancake batter over the baking zones with the ladle.
5. Use the batter spreader to distribute the batter over the plate.
6. Let the pancakes bake until they are cooked to your taste. Remove the pancakes with a wooden or heat-resistant plastic spatula or scraper, so as not to damage the non-stick coating.
7. After baking, slide the temperature setting back to 1 and unplug the plug from the socket. Allow the appliance to cool down before cleaning.

CLEANING AND MAINTENANCE

• Unplug the appliance before cleaning. Allow the appliance to cool down completely.

• Wipe the appliance clean with a damp cloth. Make sure that no moisture or grease gets into the ventilation holes. Then dry it well.

• The removable heating plates and accessories can be cleaned in warm water with a mild detergent. Make sure all the parts are completely dry before reuse.

• Do not use abrasive or aggressive cleaning agents.
• Never immerse the appliance, electrical cord, or plug in water or any other liquid.

PANCAKE BATTER RECIPE

INGREDIENTS

• 625 g self-rising flour
  5 eggs
  50g sugar
• 500 ml milk
• 500 ml lukewarm water
• 5 tsp of vegetable oil
  A pinch of salt

PREPARATION

1. Put the self-rising flour in a bowl and make a well in the flour.
2. Add a pinch of salt and pour the oil into the well. Add the eggs.
3. Mix half of the sugar with the milk in a measuring jug. Mix the other half of the sugar with the water in a measuring jug.
4. Combine the ingredients in the bowl and gradually add the milk and water, until you obtain a smooth mixture.

ENVIRONMENTAL GUIDELINES

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat the packaging ecologically.
