USER MANUAL KG55NVWF0N SIEMENS

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Ремонт

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with directional arrows (no text or symbols)

Diagram showing three-step installation of a screwdriver on a door, with numbered instructions for each step.

Diagram illustrating a refrigerator interior with warning sign and structural change, showing exterior and floor views.

Ремонт

Technical diagram illustrating a mechanical assembly process with numbered steps and a close-up of a box.

Diagram illustrating a fire resistance system with warning sign, showing a rectangular refrigerator and its side view with a ladder and floor structure.

Ремонт

Diagram illustrating the step-by-step installation of a refrigerator with labeled parts and a close-up of the interior.

Technical diagram illustrating a mechanical assembly with numbered steps and an inset showing a component detail.

Technical diagram showing four steps of a mechanical assembly or mounting process with numbered annotations

Diagram of a mechanical component with an arrow indicating direction, no text or symbols present

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Рафтът е свален.

Diagram of a roof drainage system with wavy roof lines and a black arrow indicating flow direction (no text or symbols)

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Diagram of a mechanical or architectural component with directional arrows indicating movement or force (no text or symbols present)

Diagram of a refrigerator with an open door and directional arrows indicating movement (no text or symbols)

Diagram showing two labeled storage compartments with arrows indicating flow or movement, likely illustrating a storage or inventory system.

Diagram of a refrigerator drawer with numbered arrows indicating movement or assembly steps

LED spot LED spot

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

Diagram of a mechanical assembly with a tool inserted into a component, no visible text or symbols

Ремонт

Diagram showing a device with a red arrow pointing to a component labeled '红光灯' (red light bulb) and Chinese text '红光灯' (red light bulb)

Close-up of a refrigerator interior showing a glass door and lid, with no visible text or symbols.

Ремонт

Interior view of a refrigerator showing the door and shelf, with a black arrow pointing to the door panel (no text or symbols visible)

0 N/A/5/16

Abstract graphic with a rectangular panel and two arrows pointing inward, no text or symbols present.

Ремонт

Diagram showing a tool interacting with a rectangular device, no text or symbols present

3D rendering of a rectangular device mounted on a wall with a red panel and cable, against a gray background (no text or symbols visible)

Illustration of hands connecting a cable to a rectangular panel with shelves, no text or symbols present

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a refrigerator with an eye icon above, showing shelves and doors (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Popravak

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Brtva vrata je postavljena.

Popravak

Diagram showing three-step installation of a screwdriver on a door, with numbered instructions for each step.

Nastavak Torx TX20 6.3 mm (1/4") [00340865]

UPOZORENJE Teški, veliki uredaji! Ozljede leđa i kralježnice ► Uklanjanje vrata uredaja sn ► Za pomicanje uredaja potre ► Koristite samo prikladan ala

Zahtjev:

Diagram illustrating a refrigerator interior with warning sign and structural change, showing front and side views.

Popravak

1. 1. Pritisnite poklopac gornjeg zgloba s obje strane (1).

2. Izvadite poklopac gornjeg zgloba (2).

3. Okrenite poklopac zgloba (3).
4. Uklonite poklopac gornjeg zgloba (4).
5. Odvijte dva vijka (5).
6. Uklonite gornji zglob (6)/

Technical diagram illustrating a mechanical assembly process with numbered steps and a close-up of a box.

Gomji je zglob uklonjen.

4.3.2 Postavljanje gornjeg zgloba vrata

▶ Postavite obratnim redoslijedom.

Popravak

Diagram illustrating a refrigerator with warning sign and structural change, alongside a close-up of the refrigerator's exterior view.

Popravak

1. 1. Uklonite poklopac gornjeg zgloba (1).

2. Uklonite poklopac kutije za kabele (2).

3. Odvojite električni priključak (3)
4. Odvijte vijak priključka za uzemljenje (4).
5. Uklonite zaštitu kabela (5).
6. Odvijte vijak (6)

Diagram illustrating the step-by-step installation of a refrigerator with labeled parts and a close-up of the interior.

Gomji je zglob uklonjen.

4.4.2 Postavljanje gornjeg zgloba vrata

▶ Postavite obratnim redoslijedom.

Popravak

Nastavak Torx TX20 6.3 mm (1/4") [00340865]

Teški, veliki uređaji!

Technical diagram illustrating a mechanical assembly with numbered steps and an inset showing a component detail.

Srednji je zglob uklonjen.

4.5.2 Postavljanje srednjeg zgloba vrata

▶ Postavite obratnim redoslijedom.

Popravak

4.6 Zamjena donjeg zgloba vrata

Specijalni alati:

Nastavak Torx TX20 6.3 mm (1/4") [00340865]

Zahtjev:

Technical diagram showing four steps of a mechanical assembly or mounting process, labeled ① to ④ with directional arrows and component illustrations.

Diagram of a mechanical component with an arrow indicating direction, no text or symbols present

Donji je zglob vrata uklonjen.

4.6.2 Postavljanje donjeg zgloba vrata

▶ Postavite obratnim redoslijedom.

Popravak

4.7 Zamjena police

Zahtjev:

Vrata su otvorena.

4.7.1 Uklanjanje police

- Izvucite policu.

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Diagram of a roof drainage system with wavy roof lines and black directional arrows indicating flow or movement (no text or symbols)

Polica za boce je uklonjena.

4.8.2 Postavljanje police za boce

▶ Postavite obratnim redoslijedom.

Popravak

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Diagram of a mechanical or architectural component with directional arrows indicating movement or force (no text or symbols present)

Prilagodljiva posuda za vrata je uklonjena.

4.10.2 Postavljanje prilagodljive posude za vrata

▶ Postavite obratnim redoslijedom.

Popravak

4.11 Zamjena spremnika za zamrznute namirnice

Zahtjev:

Vrata su otvorena.

4.11.1 Uklanjanje spremnika za zamrznute namirnice

Diagram of a refrigerator with an open door and directional arrows indicating movement (no text or symbols)

Spremnik za zamrznute namirnice je uklonjen.

4.11.2 Postavljanje spremnika za zamrznute namirnice

▶ Postavite obratnim redoslijedom.

Popravak

4.12 Zamjena spremnika

Zahtjev:

Vrata su otvorena.

4.12.1 Uklanjanje spremnika

1. Izvadite donji spremnik hladnjaka (1).
2. Izvadite gornji spremnik hladnjaka (2).

Diagram showing three labeled storage bins with arrows indicating flow or movement, likely illustrating a storage or inventory system.

Spremnici su uklonjeni.

Diagram of a refrigerator drawer with numbered arrows indicating movement or assembly steps

- Izvlačni spremnik je uklonjen.

4.13.2 Postavljanje izvlačnog spremnika

▶ Postavite obratnim redoslijedom.

Popravak

LED spot LED spot

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

Diagram of a screwdriver interacting with a red component, no text or symbols present

Popravak

Diagram showing a device with a red arrow pointing to a component labeled '红光灯' (red light bulb) and Chinese text '红光灯' (red light bulb)

Close-up of a refrigerator interior showing a door, shelf, and door panel (no text or symbols visible)

Popravak

Interior view of a refrigerator showing the door, shelves, and a circular vent (no text or symbols visible)

Abstract graphic with a rectangular panel and arrows pointing to it, set against a dark background with curved lines (no text or symbols)

Popravak

Diagram of a screwdriver interacting with a rectangular device, showing internal components and wiring (no text or symbols)

3D rendering of a monitor mounted on a wall with a red panel, against a gray background (no text or symbols visible)

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon, showing internal compartments and directional arrows (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Oprava

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Diagram showing three-step installation of a screwdriver on a door, with numbered instructions for each step.

Diagram illustrating a refrigerator interior with warning sign and structural change, showing exterior and floor views.

Oprava

Technical diagram illustrating a door handle mechanism with numbered steps and a close-up of the device.

Diagram illustrating a fire resistance warning and installation procedure, showing a fire-resistant refrigerator with a warning symbol.

Oprava

Diagram illustrating the step-by-step installation of a refrigerator with labeled parts and a close-up of the interior.

Technical diagram illustrating a mechanical assembly with numbered steps and a close-up inset showing a component detail.

Technical diagram illustrating a mechanical assembly process with numbered steps and component illustrations

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Diagram of a roof drainage system with wavy roof lines and black directional arrows indicating flow or movement (no text or symbols)

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Diagram of a mechanical component with directional arrows indicating movement or force (no text or symbols)

Diagram of a refrigerator with an open door and directional arrows indicating movement (no text or symbols)

Diagram showing two labeled storage compartments with arrows indicating flow or movement, likely illustrating a storage or inventory system.

Diagram of a refrigerator drawer with numbered arrows indicating movement or assembly steps

LED spot LED spot

Pure diagram of a mechanical or electrical component with no visible text, numbers, or symbols

Diagram of a tool interacting with a red rectangular object, possibly a component or device (no text or symbols visible)

Oprava

Diagram showing a device with a red arrow pointing to a component labeled '红光灯' (red light bulb) and Chinese text '红光灯' (red light bulb)

Close-up of a refrigerator interior showing a glass door and shelf, with no visible text or symbols.

Oprava

Close-up of a refrigerator interior showing glass shelves and a circular door (no text or symbols visible)

0 N/A/S/N

Abstract graphic with two arrows pointing to a rectangular object, no text or symbols present

Oprava

Diagram of a tool interacting with a device, showing motion lines and a red highlighted section (no text or symbols)

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a door handle with hand gestures indicating left and right motion (no text or symbols)

Reparation

1. Tryk hele pakningen trinvist i rillen.

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Diagram showing three-step installation of a screwdriver on a door, with numbered instructions for each step.

Diagram illustrating a refrigerator interior with warning sign and structural change, showing front and side views.

Reparation

Technical diagram illustrating a mechanical assembly process with numbered steps and a close-up of a box component.

Diagram illustrating a fire resistance experiment with warning sign, showing fire resistance to a refrigerator and subsequent installation steps.

Reparation

Diagram illustrating the step-by-step installation of a refrigerator with labeled parts and a close-up of the interior.

Technical diagram illustrating a mechanical assembly with numbered steps and a close-up inset showing a component detail.

Technical diagram showing four steps of a mechanical assembly or mounting process with numbered components and directional arrows.

Diagram of a device with a labeled component and arrow, no readable text or symbols present

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Hylden er fjernet.

Abstract diagram with wavy lines and a black arrow pointing downward (no text or symbols)

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Diagram of a mechanical or electrical component with directional arrows indicating movement (no text or symbols)

Diagram of a refrigerator with an open door and directional arrows indicating movement (no text or symbols)

Diagram showing two labeled storage compartments with arrows indicating flow or movement, likely illustrating a storage or inventory system.

Diagram of a refrigerator drawer with numbered arrows indicating movement or assembly steps

LED spot LED spot

1. Afbryd LED-spotlampens elektriske tilslutninger.
   LED-spotlampen er fjernet.

4.14.2 Montering af LED-spotlampe

Diagram of a mechanical or electrical component with a red rectangular block and arrow indicating direction (no text or symbols)

Diagram of a screwdriver inserted into a red component, with no visible text or symbols

Reparation

Diagram showing a device with a red arrow pointing to a component labeled '红光灯' (red light bulb) and Chinese text '红光灯' (red light bulb) on the screen.

Close-up of a refrigerator interior showing a glass door and shelf, with a circular component inserted (no text or symbols visible)

Reparation

Close-up of a refrigerator interior showing glass shelves and a circular door (no text or symbols visible)

Abstract graphic with a rectangular block and two arrows pointing outward, no text or symbols present.

Reparation

Diagram of a tool interacting with a device, showing motion lines and a red highlighted section (no text or symbols)

1. Afbryd LED-spotlampens elektriske tilslutning.

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Reparatie

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with directional arrows (no text or symbols)

Apparaat is losgekoppeld is van de stroomvoorziening.
Deur is open.

Diagram showing three-step installation of a screwdriver on a door, with numbered instructions for each step.

Diagram illustrating a refrigerator interior with warning sign and structural change, showing front and side views.

Reparatie

Technical diagram illustrating a mechanical assembly process with numbered steps and a final box, likely for assembly or maintenance.

Diagram illustrating a refrigerator with warning sign and structural change, showing front and side views of the refrigerator.

Reparatie

Diagram illustrating the step-by-step installation of a refrigerator with labeled parts and a close-up of the front panel.

Technical diagram illustrating a mechanical assembly with numbered steps and a close-up inset showing a light bulb component.

Technical diagram showing mechanical assembly steps with numbered components and directional arrows

Diagram of a mechanical device with a labeled component (①) and an arrow indicating direction, no text or symbols present.

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Diagram of a roof drainage system with wavy roof lines and black directional arrows indicating flow or movement (no text or symbols)

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Diagram of a mechanical component with directional arrows indicating movement or force (no text or symbols)

Diagram of a refrigerator with an open door and directional arrows indicating movement (no text or symbols)

Diagram showing three labeled storage bins with arrows indicating flow or movement, likely illustrating a storage or inventory system.

Diagram of a refrigerator drawer with numbered arrows indicating movement or assembly steps

Apparaat is losgekoppeld is van de stroomvoorziening.
Deur is open.

LED spot LED spot

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

Diagram of a mechanical or electrical component with a tool inserted, showing a red rectangular block and vertical supports (no text or symbols visible)

Reparatie

Diagram of a mechanical assembly with a red component and a black arrow indicating direction (no text or symbols)

Close-up of a refrigerator interior showing a glass door and shelf, with no visible text or symbols.

Reparatie

Close-up of a refrigerator interior showing glass panels and a circular button with an arrow pointing to the door (no text or symbols visible)

0 #/R/S/R

Abstract graphic with a rectangular panel and two arrows pointing outward, set against a dark gray background (no text or symbols)

Reparatie

Diagram of a screwdriver interacting with a rectangular device, showing internal components and wiring (no text or symbols)

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

Repair hints - Fridge-freezer

i Concerning this document.... 148

1.1 Important information.... 148

1.1.1 Purpose.... 148

1.2 Explanation of symbols 148

1.2.1 Danger levels.... 148

1.2.2 Hazard symbols 148

1.2.3 Structure of the warnings.... 149

1.2.4 General symbols.... 149

Safety....

2.1 General Safety instructions 150

2.1.1 All domestic appliances 150

Tools and aids.... 1

Repair

4.4 Replacing door upper hinge (door with display) 158

4.4.1 Removing door upper hinge.... 158

4.4.2 Installing door upper hinge.... 159

4.5 Replacing door middle hinge 160

4.5.1 Removing door middle hinge 160

4.5.2 Installing door middle hinge 160

4.6 Replacing door lower hinge.... 161

4.6.1 Removing door lower hinge 161

4.6.2 Installing door lower hinge 161

4.7 Replacing shelf....162

4.7.1 Removing shelf.... 162

4.7.2 Installing shelf.... 162

4.8 Replacing bottle tray 163

4.8.1 Removing bottle tray.... 163

4.8.2 Installing bottle tray 163

4.9 Replacing door rack 164

4.9.1 Removing door rack.... 164

4.14 Replacing LED spot light 169

4.14.1 Removing LED spot light.... 169

4.14.2 Installing LED spot light 169

4.15 Replacing LED top light 170

4.15.1 Removing LED light.... 170

4.15.2 Installing top LED light 171

4.16 Replacing LED side bar light.... 172

4.16.1 Removing LED side bar light 172

4.16.2 Installing LED side bar light.... 173

4.17 Replacing LED spot light 174

4.17.1 Removing LED spot light.... 174

4.17.2 Installing LED spot light 175

i Concerning this document

1.1 Important information

1.1.1 Purpose

These repair hints support consumer to repair appliances by himself according to the applicable eco-design regulation (as of 03/2021).

They contain information how to exchange defined spare parts including warnings and risks.

In case of questions, please contact our customer service. We will only be liable for damages if the repair hints have been followed properly.

1.2 Explanation of symbols

1.2.1 Danger levels

The warning levels consist of a symbol and a signal word. The signal word indicates the severity of the danger.

Warning level Meaning
Danger	Non-observance of the warning message will result in death or serious injuries.
Warning	Non-observance of the warning message could result in death or serious injuries.
Caution	Non-observance of the warning message could result in minor injuries.
Notice	Non-observance of the warning message could result in damage to property.

Table 1: Danger levels

1.2.2 Hazard symbols

Hazard symbols are symbolic representations which give an indication of the kind of danger.

The following hazard symbols are used in this document:

	Hazard symbol Meaning
		General warning message
		Danger from electrical voltage
		Risk of explosion
		Danger of cuts
		Danger of crushing

i Concerning this document

Hazard symbol Meaning
		Danger from hot surfaces
		Danger from strong magnetic field
		Danger from non-ionizing radiation

Table 2: Hazard symbols

1.2.3 Structure of the warnings

Warnings in this document have a standardised appearance and a standardised structure.

Type and source of danger!

Possible consequences of ignoring the danger / warning.

▶ Measures and prohibitions for preventing the danger.

The following example shows a warning that warns against electric shock due to live parts. The measure for avoiding the danger is mentioned.

Risk of electric shock due to live parts!

Death by electrocution

- Disconnect appliances from electrical supply at least 60 seconds before starting repairs.

1.2.4 General symbols

The following general symbols are used in this document:

Gen. symbol Meaning
	Identification of a special tip (text and/or graphic)
	Identification of a simple tip (only text)
	Identification of a link to a video tutorial

Gen. symbol Meaning
	Identification of required tools
	Identification of required preconditions
	Identification of a condition (if ..., then ...)
	Identification of a result
StartIdentification of a key or button
[00123456] Identification of a material number
StatusIdentification of displayed text / window(in the appliance's display)

Table 3: General symbols

Safety

2.1 General Safety instructions

2.1.1 All domestic appliances

Risk of electric shock due to live parts!

• Errors by repairs involving electrical components can lead to electrical shock!
  ■ Disconnect the appliance from the mains for at least 60 seconds before starting work.
  ■ After the repair have a safety test according VDE 0701 or country-specific regulations performed.

Risk of injury from sharp edges!

■ Wear protective gloves.

Risk of crushing during repair, maintenance, troubleshooting and service due to heavy and moving components

■ Wear protective shoes.
■ Secure heavy components from falling down.
■ Do not stick body parts into moving components.

Risk to the appliance's safety / function!

■ Only use original spare parts.

Risk of damage to electrostatically sensitive components (ESDs)!

- Do not touch the modules, including connections and conductor paths.

Tools and aids

Designation Details Images
Protection cloth[00342013]	60 cm x 50 cm
Slotted screwdriver	Blade 2.4 mm x 0.4 mm x60 mm, in the kit [00341820]
Special tool[00342180]
Suction cup[00342224]	∅50 mm
Torx Bit TX20[00340865]	6,3 mm (1/4")
Slotted screwdriver	Blade 10 mm x 1.6 mm x200 mm

Repair

1. Release door gasket from the groove on right and left corner.

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

1. Pull out door gasket from groove.

Illustration of hands holding a cable inside a rectangular appliance with a curved arrow indicating rotation (no text or symbols)

Door gasket is removed.

	Thickness of new door gasket may deviate slightly from thickness of old door gasket. This will not affect closing behavior and long-term function.
	If your appliance has adjustable hinges or hinge attachments, you can optimize the closing behavior subsequently.
	Small side holes in door gasket are functional (required for ventilation). These are not production faults.

Repair

1. Check groove for gasket for damage.

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

1. (if) If groove for gasket is it is damaged.

2. Contact customer service.

3. i Slight deformation of door gasket is normal and does not affect its function. It is recommended to straighten door gasket before inserting it into appliance.

Heat door gasket with a hair dryer or hot water and manually reshape it.

1. Push corners of gasket at the top and bottom to the groove.

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Repair

1. Press whole gasket step by step into the groove.

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Door gasket is installed.

Repair

4.2 Replacing door handle

Required tools:

Torx Bit TX20 6,3 mm (1/4") [00340865]

Slotted screwdriver Blade 10 mm x 1.6 mm x 200 mm

Prerequisite:

√ Appliance is disconnected from power supply.
√ Door is open.

4.2.1 Removing door handle

1. Remove two screw caps (1).
2. Unscrew two screws (2).
3. Remove door handle (3).

Diagram showing three-step installation of a screwdriver tool, with numbered instructions for each step.

Door handle is removed.

Door handle for the second door can be removed in the same manner.

▶ Install in reverse order.

Repair

Warning Heavy, bulky appliances! Back and muscle injuries • Appliance door removal op trained specialists. • To move the appliance, two • Use only suitable tools and

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance interior fittings are removed.

1. Place appliance on the back side.

Diagram illustrating a refrigerator interior with warning sign and structural change, showing front and side views.

Repair

1. 1. Press upper hinge cover on both sides (1).

2. Move out upper hinge cover (2)

3. Rotate hinge cover (3).
4. Remove upper hinge cover (4).
5. Unscrew two screws (5).
6. Remove upper hinge (6)

Technical diagram illustrating a door handle mechanism with numbered steps and a close-up of the device.

Upper hinge is removed.

▶ Install in reverse order.

Repair

4.4 Replacing door upper hinge (door with display)

Required tools:

Torx Bit TX20 6,3 mm (1/4") [00340865]

Heavy, bulky appliances!

Back and muscle injuries

▶ Appliance door removal operation should only be carried out by
trained specialists.
To move the appliance, two people are required.
▶ Use only suitable tools and equipment.

Sharp edges!

Cut injuries

▶ Wear protective gloves.

Slipping of tilted appliances!

Bone fractures / crush injuries

- Secure appliances against slipping

Risk of falling parts due to released screws!

Injury because of falling parts.

- Secure component from falling down.

Risk of falling parts due to released screws!

Damage to other parts of the appliance or at customers home e.g. bot-

tom.

- Secure component from falling down.

Risk of electric shock due to live parts!

Danger to life through electric shock in case of improper repair

▶ Electric parts should be repaired by a qualified electricians.
After the repair have a safety test according VDE 0701 or country-specific regulations performed.

Risk of electric shock due to live parts!

Death by electrocution

- Disconnect appliances from electrical supply at least 60 seconds before starting repairs.

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance interior fittings are removed.

1. Place appliance on the back side.

Diagram illustrating a refrigerator with warning sign and structural change, alongside a close-up of the exterior wall detail.

Repair

1. 1. Remove upper hinge cover (1).

2. Remove cable box cover (2).

3. Disconnect electrical connection (3)
4. Unscrew ground connection screw (4).
5. Remove cable protection (5).
6. Unscrew the screw (6)

Diagram illustrating the step-by-step installation of a refrigerator with labeled parts and a close-up of the interior.

Upper hinge is removed.

▶ Install in reverse order.

Repair

4.5 Replacing door middle hinge

Required tools:

Torx Bit TX20 6,3 mm (1/4") [00340865]

Warning Heavy, bulky appliances! Back and muscle injuries • Appliance door removal op trained specialists. • To move the appliance, two • Use only suitable tools and

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance interior fittings are removed.
√ Door upper hinge is removed.

4.5.1 Removing door middle hinge

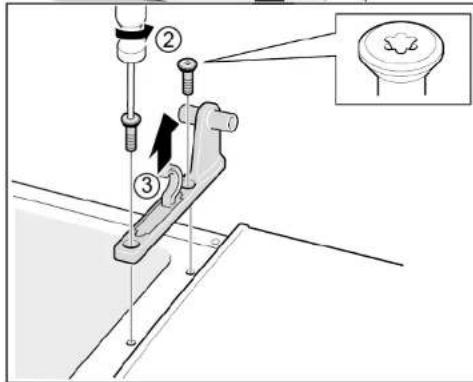

▶ 1. Remove fridge compartment door (1).
2. Unscrew two screws (2).
3. Remove middle hinge (3).

Technical diagram illustrating a mechanical assembly with numbered steps and a close-up inset showing a component detail.

Middle hinge is removed.

4.5.2 Installing door middle hinge

▶ Install in reverse order.

Repair

4.6 Replacing door lower hinge

Required tools:

Torx Bit TX20 6,3 mm (1/4") [00340865]

Warning Heavy, bulky appliances! Back and muscle injuries • Appliance door removal op trained specialists. • To move the appliance, two • Use only suitable tools and

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance interior fittings are removed.
√ Upper hinge is removed.

√ Middle hinge is removed.

4.6.1 Removing door lower hinge

▶ 1. Remove freezer compartment door (1).
2. Unscrew the screw (2).
3. Turn lower hinge out (3).
4. Remove lower hinge (4).

Technical diagram illustrating a mechanical assembly process with numbered steps and component illustrations

Door lower hinge is removed.

▶ Install in reverse order.

Repair

4.7 Replacing shelf

Prerequisite:

Door is open.

4.7.1 Removing shelf

▶ Pull out shelf.

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Shelf is removed.

4.7.2 Installing shelf

▶ Install in reverse order.

Repair

4.8 Replacing bottle tray

Prerequisite:

√ Door is open.

4.8.1 Removing bottle tray

▶ Pull out bottle tray.

Diagram of a roof drainage system with wavy roof lines and black directional arrows indicating flow or movement (no text or symbols)

→ Bottle tray is removed.

4.8.2 Installing bottle tray

▶ Install in reverse order.

Repair

4.9 Replacing door rack

Prerequisite:

√ Door is open.

▶ Lift door rack upwards.

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Door rack is removed.

▶ Install in reverse order.

Repair

4.10 Replacing adjustable door rack

Prerequisite:

√ Door is open.

4.10.1 Removing adjustable door rack

- Move high-adjustable door rack upwards until the door rack is released from the holder.

Diagram of a mechanical component with directional arrows indicating movement or force (no text or symbols)

Adjustable door rack is removed.

4.10.2 Installing adjustable door rack

▶ Install in reverse order.

Repair

4.11 Replacing frozen food container

Prerequisite:

√ Door is open.

4.11.1 Removing frozen food container

1. Pull out frozen food container all the way (1).
2. Remove food container (2).

Diagram of a refrigerator with an open door and directional arrows indicating movement (no text or symbols)

Frozen food container is removed.

4.11.2 Installing frozen food container

▶ Install in reverse order.

Repair

4.12 Replacing container

Prerequisite:

√ Door is open.

4.12.1 Removing container

1. Move out lower fridge container (1).
2. Move out upper fridge container (2).

Diagram showing three labeled storage bins with arrows indicating flow or movement, likely illustrating a storage or inventory system.

Containers are removed.

4.12.2 Installing container

▶ Install in reverse order.

Repair

4.13 Replacing extendable container

Prerequisite:

√ Door is open.

4.13.1 Removing extendable container

1. Pull extendable container out all the way (1).
2. Remove extendable container (2).

Diagram of a refrigerator drawer with numbered arrows indicating movement or assembly steps

Extendable container is removed.

4.13.2 Installing extendable container

▶ Install in reverse order.

Repair

4.14 Replacing LED spot light

Required tools:

Special tool [00342180]

Your appliance features a maintenance-free LED light. These lights may be repaired by customer service or authorised technicians only!

Risk of electric shock due to live parts!

Danger to life through electric shock in case of improper repair

▶ Electric parts should be repaired by a qualified electricians.

After the repair have a safety test according VDE 0701 or country-specific regulations performed.

Risk of electric shock due to live parts!

Death by electrocution

- Disconnect appliances from electrical supply at least 60 seconds before starting repairs.

Sharp edges!

Cut injuries

▶ Wear protective gloves.

Prerequisite:

√ Appliance is disconnected from power supply.
√ Door is open.

4.14.1 Removing LED spot light

1. Use special tool to pull out LED spot light (1).

LED spot LED spot

1. Unplug electrical connections of LED spot light.

→ LED spot light is removed.

4.14.2 Installing LED spot light

▶ Install in reverse order.

Repair

4.15 Replacing LED top light

Required tools:

Slotted screwdriver Blade 2.4 mm x 0.4 mm x 60 mm, in the kit [00341820]

Your appliance features a maintenance-free LED light. These lights may be repaired by customer service or authorised technicians only!

⚠️ Danger Risk of electric shock due to live Danger to life through electric shock • Electric parts should be rep • After the repair have a safe specific regulations perform

Danger Risk of electric shock due to live Death by electrocution ▶ Disconnect appliances from before starting repairs.

Caution Sharp edges! Cut injuries ▶ Wear protective gloves.

Prerequisite:

√ Appliance is disconnected from power supply.
Door is open.
√ Upper interior fittings are removed.

4.15.1 Removing LED light

1. Move the LED light to the left side.

Diagram of a mechanical or electrical component with a red rectangular block and an arrow pointing to it, no visible text or symbols.

LED light electrical connection is disconnected.

1. Release LED light hooks.

Diagram of a mechanical or electrical component with a tool inserted, showing a red block and vertical supports (no text or symbols visible)

Repair

1. Remove LED light moving it forward.

Diagram showing a device with a red arrow pointing to a component labeled '红光灯' (red light bulb) and Chinese text '红光灯' (red light bulb)

LED light is removed.

4.15.2 Installing top LED light

▶ Install in reverse order.

Repair

4.16 Replacing LED side bar light

Required tools:

Suction cup ∅50 mm [00342224]

Your appliance features a maintenance-free LED light. These lights may be repaired by customer service or authorised technicians only!

Risk of electric shock due to live parts!

Danger to life through electric shock in case of improper repair

▶ Electric parts should be repaired by a qualified electricians.

After the repair have a safety test according VDE 0701 or country-specific regulations performed.

Risk of electric shock due to live parts!

Death by electrocution

- Disconnect appliances from electrical supply at least 60 seconds before starting repairs.

Sharp edges!

Cut injuries

▶ Wear protective gloves.

Prerequisite:

√ Appliance is disconnected from power supply.
√ Door is open.
√ Fridge compartment shelves are removed.

4.16.1 Removing LED side bar light

1. Stick the suction cup on the upper third of LED side bar light.

Close-up of a refrigerator interior showing a door, shelf, and door panel (no text or symbols visible)

Repair

1. Pull suction cup with forward LED side bar light in one rotary movement.

Close-up of a refrigerator interior showing glass panels and a circular button with an arrow pointing to the door (no text or symbols visible)

1. Disconnect electrical connection of LED side bar light.

LED side bar light is removed.

4.16.2 Installing LED side bar light

1. Connect electrical connection of LED side bar light.
2. Fix LED side bar light into it's location on compartment wall (hooks click).
   LED side bar light is installed.

Repair

4.17 Replacing LED spot light

Required tools:

Special tool [00342180]
Slotted screwdriver Blade 2.4 mm x 0.4 mm x 60 mm, in the kit [00341820]

Your appliance features a maintenance-free LED light. These lights may be repaired by customer service or authorised technicians only!

Risk of electric shock due to live parts!

Danger to life through electric shock in case of improper repair - Electric parts should be repaired by a qualified electricians. - After the repair have a safety test according VDE 0701 or country-specific regulations performed.

Risk of electric shock due to live parts!

Death by electrocution - Disconnect appliances from electrical supply at least 60 seconds before starting repairs.

Sharp edges!

Cut injuries ▶ Wear protective gloves.

Prerequisite:

√ Appliance is disconnected from power supply.
√ Door is open.
√ Fridge compartment shelves are removed.

4.17.1 Removing LED spot light

1. Release LED spot light cover.

0 W/3/16

1. Pull LED spot light cover inwards and simultaneously push forwards.

Abstract graphic with two arrows pointing to a rectangular object, no text or symbols present

Repair

1. Detach LED spot light module.

Diagram of a screwdriver inserted into a rectangular component with a red edge, against a dark background (no text or symbols)

1. Disconnect LED spot light electrical connection.

3D rendering of a rectangular device mounted on a wall with a red panel and cable, against a gray background (no text or symbols visible)

LED spot light is removed.

4.17.2 Installing LED spot light

▶ Install in reverse order.
