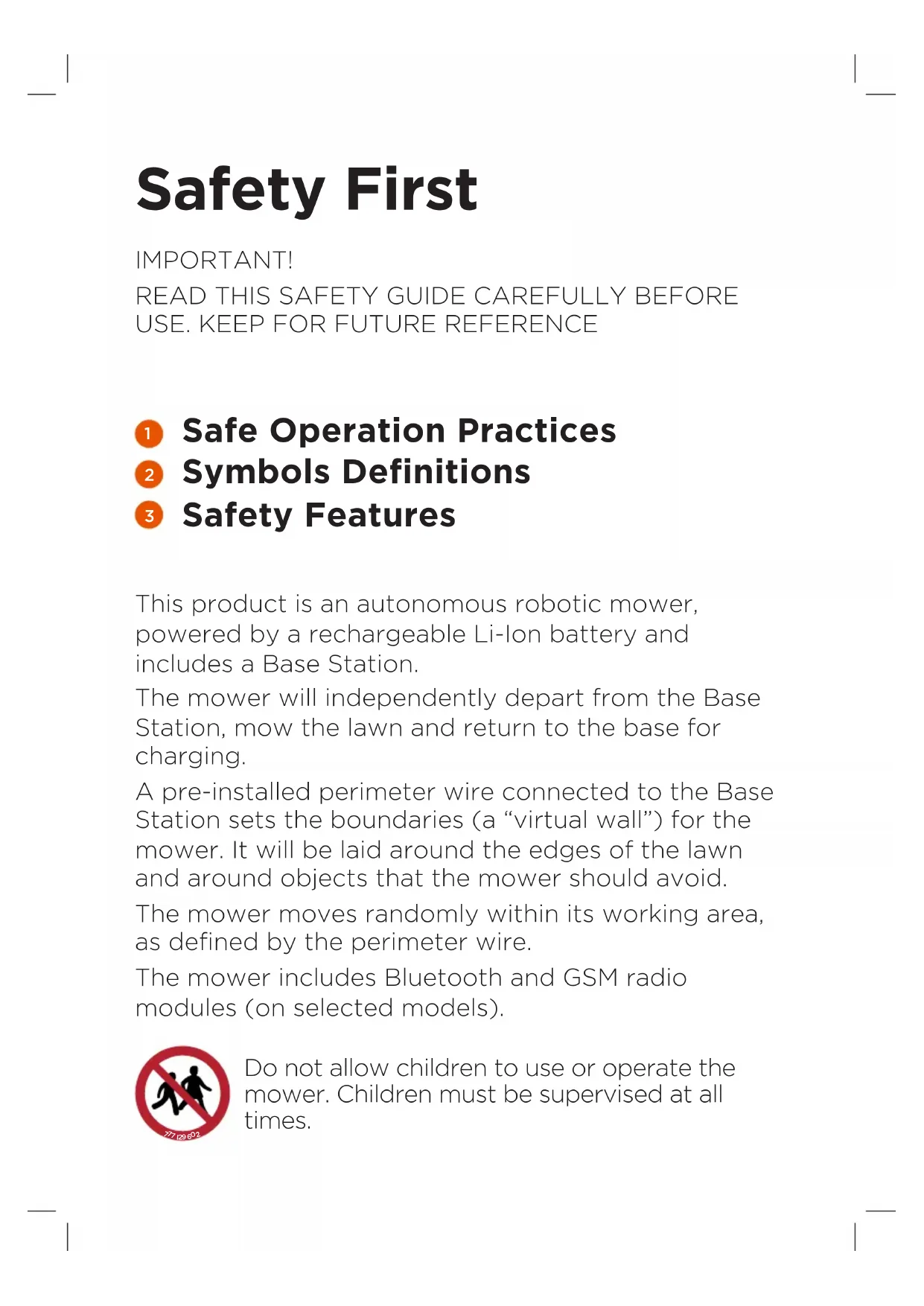

This product is an autonomous robotic mower, powered by a rechargeable Li-Ion battery and includes a Base Station. The mower will independently depart from the Base Station, mow the lawn and return to the base for charging. A pre-installed perimeter wire connected to the Base Station sets the boundaries (a “virtual wall”) for the mower. It will be laid around the edges of the lawn and around objects that the mower should avoid. The mower moves randomly within its working area, as defined by the perimeter wire. The mower includes Bluetooth and GSM radio modules (on selected models). Safe Operation Practices Symbols Definitions Safety Features Do not allow children to use or operate the mower. Children must be supervised at all times.

This guide includes the original manufacturer’s instructions in terms of Directives 2006/42/EC and 2014/53/EU. It may describe models that are not available in your country. Please note the terminology below when using this guide. Front and Rear of the mower: The Front is the opposite side of the (red) STOP button. It is the direction of travel of the mower and where the passive wheel/s are located. The Rear is where the (red) STOP button is located, and where the traction drive wheels are located. Left and Right directions are determined when standing behind the Rear of the mower and looking at its Front. Safety Guidelines Describes situations, where, if the hazard is not avoided, it will cause death or serious injury.Describes situations, where, if the hazard is not avoided, it may result in death or serious injury.Describes situations, where, if the hazard is not avoided, it could result in minor or moderate injury, or damage to property and/or the product.Provides information for proper use of the product and avoidance of possible operation malfunctions.

Always connect the power supply to the indoor, weather- protected power supply circuit protected by a residual current device (RCD) with a tripping current of not more than 30 mA. Follow local electric installation instructions. Allow the blades to completely stop rotating before lifting or tilting the mower or approaching the blades. The AC power supply cord must not be replaced! If the cord is damaged, the entire power supply should be replaced. Do not connect a damaged power cord to the supply and do not touch such cord as it can cause electric shock. Keep all power cords away from underneath the mower to prevent damage. It is your responsibility to:

• Restrict the use of this mower to persons who have read, understood and follow the warnings and instructions in this guide and in the mower

• Inform your neighbors you have a robot mower in operation and that they may be injured if they enter your lawn during operation Important Safety Information In case of a lightning storm, disconnect the perimeter wire from the the Base Station and unplug its power supply from the AC socket. CAUTION DANGER DANGER WARNING WARNING EN4

Safe Operation Practices A. General Information 1. Read, understand and follow all instructions on the mower and in the manual(s) before attempting to assemble and operate. Keep this manual in a safe place for future and regular reference and for ordering replacement parts.2. Be familiar with all controls and their proper operation.3. It is your responsibility to inform your neighbors you have a robotic mower and the risk of injury if they enter your lawn during its operation.4. If your lawn is open to the street and/or your neighbor’s property, you must be present during the mower’s operation to prevent others from contacting the mower during operation. Alternatively, you must fence your lawn so that others do not access the lawn during operation.5. Never allow children under 14 years of age to operate the mower using the remote control app. Children 14 and over should read and understand the instructions and safe operation practices in this manual and on the mower and should be trained and supervised by an adult.6. Never allow children, persons with reduced physical, sensory or mental capabilities, or people who are unfamiliar with these instructions to operate the mower.7. If situations occur which are not covered in this manual, use care and good judgment. Contact your customer service representative for assistance.8. This mower is a precision piece of power equipment, not a plaything. Therefore, exercise extreme caution at all times. This mower has been designed to perform one job: to mow grass. Do not use it for any other purpose. B. Preparations Before Operating PRIOR TO FIRST USE, ENSURE THAT PRODUCT HAS BEEN CHARGED CONTINUOUSLY FOR 48 HOURS. 1. Ensure the correct installation of the Perimeter Wire, as instructed in the Getting Started guide.2. Thoroughly inspect the area where the mower is to be used. Remove all stones, sticks, wire, bones, toys and other foreign objects which could damage the blade or be picked up and thrown by the blade. Thrown objects can cause serious personal injury.

3. Keep bystanders, children and pets inside while the mower is in

operation. Stop mower if anyone enters the mowing area.

4. When there is a risk of a lightning storm, keep the mower in a

protected area and disconnect the power supply. EN6

C. Operation Do not allow the mower to operate unattended if you know that there are or may be pets, children or people in the vicinity. WARNING

1. Your robotic mower is a dangerous power tool. Exercise care when

operating it and follow all safety instructions and warnings.

2. In the event of an accident or malfunction during operation

immediately press the red STOP control.

3. Do not allow your mower to operate if any safety feature or any

part is damaged, worn or inoperable.

4. Always turn off the mower by removing the disabling device before

lifting the mower or clearing blockage of the mowing blade(s) and/or driving wheels or making any adjustments. Activating the disabling device cuts power to the wheel drive and blade.

5. Never pick up or carry the mower while the wheels are turning or

blade is moving. Do not touch the blade before it has completely stopped rotating.

6. Do not use the mower for any purpose other than cutting grass.

7. Never attempt to bypass a safety device, or to remove a guard or

cover. Doing so may result in personal injury through contact with the rotating blade. The sensors are safety devices.

8. The cutting blade continues to rotate for up to two (2) seconds

after a safety sensor is triggered or the red STOP control is pressed. Never place any part of the body in the blade area until you are certain the blade has stopped rotating.

9. If the mower should start to vibrate abnormally, stop the motor and

check immediately for the cause. Vibration is generally a warning of trouble.

10. Always wear safety glasses during remote control operation and

while performing an adjustment or repair to protect your eyes. Thrown objects which ricochet can cause serious injury to the eyes.

11. Never operate mower with a damaged safety device, guard or

cover. Failure to follow this warning can result in personal injury.

12. Do not put hands or feet near rotating parts or under the cutting

deck. Contact with the blade(s) can amputate hands and feet.

13. Watch for holes, ruts, bumps, rocks or other hidden objects. Uneven

terrain or hidden objects could cause an accident. Tall grass can hide obstacles.

14. Your mower is designed to cut normal residential grass of a height

no more than 6” (15 cm). Do not attempt to mow through unusually tall grass (e.g., pasture). EN6

15. Do not operate the mower without the cover door closed.

16. Set the weekly program so the mower is in operation when there

are no people likely to be on the grass.

17. Do not connect a damaged power cord to the supply, or touch a

damaged cord before it is disconnected from the supply as it can lead to electric shock.

18. Keep all power cords away from underneath the mower to prevent

damage. A damaged power supply cord can lead to electric shock. Disconnect the AC plug from the mains if the cord is damaged or entangled. DO NOT TOUCH THE CORD BEFORE DISCONNECTING THE SUPPLY. When the AC/DC power supply installed outdoor, do not operate or disconnect it when the temperature exceeds 0...40C range to avoid the risk of fire.

19. Steering the mower manually only when it is within your range of

vision. Stay within 6 meters of the mower when you are operating it manually. D. Children

1. Tragic accidents can occur if you are not alert to the presence of

children. Children are often attracted to the mower and the mowing activity. They do not understand the dangers. Never assume that children will remain where you last saw them. Never assume that children will stay away from the mower while it is operating.

2. Keep bystanders, children and pets inside while the mower is in

operation and under the watchful care of a responsible adult. Stop mower if anyone enters the area.

4. Do not allow children to ride on the mower. It is not a toy.

5. Never allow children to play in the yard while the mower is in

operation. Teach your children that the mower is dangerous and they must stay away from it.

6. Never allow children under 14 years of age to operate this mower

using the remote control app. Children 14 and over should read and understand the instructions and safe operation practices in this manual and on the mower and should be trained and supervised by an adult. E. Transportation Before moving or transporting your mower, follow the steps below:

1. Press or pull the red STOP control to stop the mower.

2. You may use the Remote Control (via the mobile app) to drive your

mower from one place to another. EN8

3. If you elect to carry your mower:

• For BCRMW121, BCRMW122, BCRMW123 models: Switch the mower off by pressing the “OFF” button. Lift the mower using the carrying handle.

4. Always carry with blades facing away from you. Be careful to avoid

contacting the sharp edge of the blade when lifting or carrying the mower. F. Remote Operation

1. Refer to the separate operator’s manual provided with the

downloadable app. Follow all warnings and instructions provided.

2. Always operate the mower according to the app instructions while

standing away from the mower.

3. Keep a safe distance between you and the mower when it is in

operation. Always stop the mower operation before approaching it for any reason.

4. Use extreme caution when operating the mower towards you.

5. Operate the mower by remotely only in daylight or in good artificial

light, and avoid operating on wet grass.

6. Never operate the mower remotely in bare feet, sandals, slippery or

lightweight (e.g. canvas) shoes. Always wear substantial footwear and long pants; always make sure of your footing on slopes. G. Batteries

1. Use only genuine batteries provided by the manufacturer. Batteries

part numbers are specified in the ‘Additional Information’ booklet.

2. Do not open, drop, or damage the sealed Battery Pack. Do not use

the battery with visible defects or deformations, when it is broken or cracked

3. DO NOT ATTEMPT TO REPAIR OR MODIFY BATTERIES! Repair

attempts may result in severe personal injury, due to explosion or electrical shock. If a leak develops, released electrolytes are corrosive and toxic

4. Do not attempt to remove or destroy any of the battery

5. The Battery Pack contains electrolytes. In the case of electrolyte

leakage from the Battery Pack, the following action should be taken:

• Skin contact: Wash the contact areas off immediately with water and soap.

• Eye contact: Flush the eyes with plenty of clean water for at least 15 minutes. Do not rub.

• Get medical assistance.

6. Do not dispose of the battery in a fire. The cell may explode.

7. The battery is intended to be charged when it is inside the mower

and properly connected to the mower. Always use the power supply provided with the mower. Incorrect usage may result in electric shock, overheating or fire.

8. Do not use the battery for any purpose other than powering the

dedicated Robotic Lawnmower. Altering the battery to make it powering another product is extremely unsafe.

9. Observe proper disposal laws and regulations for batteries to

protect the environment. Refer to the “Rechargeable Battery Disposal” section of this User Guide for additional information.

10. When replacing the battery, be sure to insert the battery plug

correctly. Reversing the battery polarity may cause damage to the battery and mower. H. Slope Operation

1. All slopes require extra caution. If you feel the mower cannot

maintain traction on the slope, it is too steep to mow. Wet grass will decrease traction and may cause the mower to slip and slide on the slope. Serious injury or property damage could result.

2. 2. For your safety, measure any slope before using the mower on

the sloped area. Use a slope measuring device before setting up the mowing zones or operating the mower on a sloped or hilly area. Smart phone applications can also be utilised to measure slopes. If the slope at the perimeter is greater than 17 degrees (30%), BCRMW121, BCRMW122, BCRMW123 models may slide out of the mowing zone.

3. Do not mow on slopes greater than 17 degrees (30%).

4. Do not operate the mower under any conditions where traction

or stability is in question. Always be sure of the mowing surface. A tip or overturn could cause serious personal injury or property damage.

5. Stay at least 4 feet (1.2 meter) from drop-offs, ditches,

embankments or the edge of water to help ensure the mower does not get out of the mowing zone. You could damage the mower or cause a serious injury. EN10

I. Maintenance and Special

1. Keep the mower in good working order. Replace worn, damaged or

broken parts. Manufacturer part numbers of the batteries, blades and power supplies are specified in the ‘Additional Information’ booklet.

2. To avoid serious injury do not modify the mower in any way.

3. Mower blades are sharp. Wrap the blade or wear gloves and use

extra caution when changing the blade.

4. Always switch off the mower by removing the disabling device

before servicing or clearing blockage of the mowing blade(s) and/or driving wheels or inspecting. Never attempt to service or adjust the mower while it is in operation. Before cleaning, repairing or inspecting, make certain the blade and all moving parts have stopped.

5. The blade should come to a complete stop within two (2) seconds

after pressing the red stop control. If you do not hear the blade stop in less than two (2) seconds, your mower must be serviced professionally by an authorized service dealer.

6. Never use a high pressure power washer or hose to clean the

mower. Water can damage components and the programmable controller. Use a damp cloth to wipe the display clean.

7. Visually inspect blade for damage (e.g., excessive wear, bent,

cracked). Replace the blade with the original equipment manufacturer’s (O.E.M.) blade only. Non-O.E.M. blades will not fit properly and could potentially be unsafe.

8. Use of service parts which do not meet the original equipment

specifications may lead to improper performance and compromise safety.

9. After striking a foreign object, or getting hung up, stop the mower.

Thoroughly inspect the mower for any damage. Repair the damage before starting and operating.

10. For areas close to a children’s play area, bodies of water, drop offs

or public roads, supplement the perimeter wire with a rigid (wood/ stone) boundary edge at least 15 cm (6 inches) high which will help prevent the mower from exiting the mowing zone.

11. If your mower is installed and operated in an open yard or in

a public location, you must place warning signs around those mowing areas, showing the substance of the following: “Automatic Lawnmower! Keep away from the machine! Supervise children!”

12. Clean or replace safety and instruction labels, as necessary.

J. Winter Storage The Mower Fully charge the mower in its Base Station. Switch it off. Clean the mower and store it in dry indoor conditions at ambient temperatures above 0˚C. Base Station No special winter storage instructions are required for the Base Station. It can be left on the lawn during winter period. It is recommended to disconnect the Power Supply from the mains during winter. Annual Service To keep your mower in good condition, it is recommended to bring it to a certified dealer for service before or after winter storage. The annual service may vary between different service providers and will include all or some of the following: cleaning mower’s parts and mowing deck, checking for worn parts (such as blades, drive wheels and other moving parts) and replacing them if required, testing the mower’s functions and safety components, checking the battery and uploading a latest software version, possibly including newly added features. k. Product End of Use

1. The mower and its accessories should be properly disposed of at

the end of their useful life to prevent waste electrical and electronic equipment from ending up in landfill sites, and to protect and improve the quality of the environment. Check with your local trash facility or municipality regarding disposal laws. Many municipalities provide special waste collection sites for the disposal of batteries and electronic equipment.

2. Do not dispose of the Battery Pack or the mower in unsorted

municipal/household trash.

3. Do not dispose of the Battery Pack in a fire.

4. See local and state regulations for any special disposal or recycling

laws and requirements. Refer to end of the Quick Reference section for disposal instructions. EN12

Symbol Description WARNING — READ THE OPERATOR’S MANUAL(S) Read, understand and follow all the safety rules and instructions in the manual(s) and on the mower before attempting to operate this mower. Failure to comply with this information may result in personal injury or death. Keep this manual in a safe location for future and regular reference.

DANGER — AVOID AMPUTATION INJURY

Do not put hands or feet near or under the cutting deck. Contact with the blade can amputate hands and feet. WARNING — AVOID CRASH/BLADE INJURY. KEEP A SAFE DISTANCE FROM THE MACHINE WHEN OPERATING. Do not mow when children or others are around. To help avoid blade contact or a thrown object injury keep others away from the mower while it is in operation. Keep bystanders, children and pets inside while the mower is in operation. Stop mower if anyone enters the area.

WARNING — AVOID THROWN OBJECT INJURY

Keep bystanders at least 15’ (5 meters) from mower during operation. Remove all stones, sticks, wire, bones, toys and other foreign objects which could be picked up and thrown by the blade(s). Do not operate the mower without the entire cover or guards in their proper place.

WARNING — AVOID CRASH/BLADE INJURY

Do not allow children to ride on the mower. It is not a toy. WARNING Shut off the mower before attempting to service it. WARNING Remove the disabling device before working on or lifting the machine WARNING - USE ONLY ORIGINAL POWER SUPPLY Do not alter the power supply connection! Use only the original power supply unit provided by the manufacturer, with the mower or as a spare part. The correct part number is indicated on the product, on this label. A non-original power supply may result in fire and damage to the base station and the mower. Symbols Definitions

Your mower is equipped with numerous built-in safety features. However, the mower is a hazardous device with sharp blades, which can cause major injury to anyone who comes in contact with it.Therefore, it is absolutely forbidden to be on the lawn while the mower is working. A. Child Lock The Child Lock prevents unintended operation of the mower by an accidental press of one of the buttons. Only pressing two buttons in the right order will initiate the operation. It is required to activate the Child Lock feature if children under age 6 may come in contact with the mower. B. Anti-Theft Device (Code protected disabling device) The Anti-Theft Device system function will prevent anyone from using or driving the mower unless they have a valid code to enter. You will be prompted to enter a four digit code of your choice to use as your personal security code (BCRMW121, BCRMW122, BCRMW123 is available using the mobile app). It is highly recommended to activate this feature to prevent operation of the mower by children or people who are unfamiliar with the mower or not allowed to use it. Safety Features WARNING

C. Lift Sensor If the mower is manually lifted off the ground, the mower and rotation of the blade will stop in two (2) seconds. D. Tilt Sensor If the mower is tilted up towards a vertical position, the mower and rotation of the blade will stop in two (2) seconds. E. Obstruction Sensor Your mower detects interfering obstacles in its way during operation. When the mower collides with an obstacle it will stop movement in that direction, reverse itself away from the obstacle and the mower and rotation of the blade will stop in two (2) seconds. F. Quick Stop Control Quick Stop Control Pressing down (BCRMW121, BCRMW122, BCRMW123 models) the red STOP control at any time during operation will stop the mower and the blade in two (2) seconds. G. Removable Disabling Device Pulling out the disabling device will prevent any operation of the mower. It is required to pull the disabling device before lifting the mower and before any maintenance is done. H. Base Station/Perimeter Switch and Perimeter Wire The mower cannot operate without a Perimeter Wire installed and activated through the Base Station/ Perimeter Switch. In the event the Perimeter Wire signal is turned off, the mower will stop operating. 769-25922 ENSicherheit zuerst WICHTIG!
