Product Type	Exhaust fan with light
Brand	Air King
Model	AKLC703
Intended Use	General ventilation only, exhaust to outside
Installation	Ceiling or wall, mount on joist or between joists with provided crossbars
Power Supply	120 V AC (fixed wiring, requires qualified electrician)
Bulb Type	2 x A19 incandescent bulbs, max 60 W each (not included)
Duct Diameter	15.2 cm (6 in) minimum
Required Clearance	15.2 cm (6 in) from wall or ceiling
Drywall Thickness	Up to 1.9 cm (3/4 in)
Housing Material	Metal (steel)
Grille Color	White (model AKLC703)
Functions	Air exhaust and integrated lighting
Control	Wall switch (separate or common wiring for fan and light)
Sound Level	Not specified
Airflow	Not specified
Maintenance and Cleaning	Washable grille with mild detergent, do not immerse electrical parts
Safety	Grounding required, do not use with speed control, do not install above bathtub or shower, do not use in kitchens
Warranty	1 year (parts and labor)
Customer Service	Toll-free [phone], Mon-Fri 8am-4pm EST
Replacement Parts	Available (see list in manual), e.g., part #5S1299002 (crossbars), #5S2234007 (blower assembly)

Frequently Asked Questions - AKLC703 Air King

The fan does not work, what to do?

First check the fuse or circuit breaker. Then, turn off power, remove the grille, and make sure the motor plug is securely inserted into the receptacle. Also check that all wires are properly connected. If nothing works, the motor may be defective and must be replaced.

How to clean the grille and lenses?

Remove the grille and lenses following the manual instructions. Clean with mild detergent (dish soap) and a soft cloth, then dry completely. Never use abrasives or scouring powder. Never immerse electrical parts in water.

Can I use this fan in a kitchen?

No, this fan is designed for general ventilation only and must not be used in kitchens to exhaust cooking vapors.

What type of bulb to use?

Use two medium-base A19 incandescent bulbs, 60 watts maximum each. Bulbs are not included.

Airflow is weak, why?

An obstruction in the exhaust ducts is the most common cause. Check the duct and the wall or roof cap for obstructions like bird nests.

How to install the fan in an existing construction?

Trace the outline of the housing on the ceiling, cut the opening being careful not to damage cables, then install mounting crossbars or tabs to secure the housing to the joists. Ensure the housing is flush with the finished ceiling.

Is this fan noisy?

Abnormal noise may be due to a loose motor or a blade rubbing against the housing. Turn off power, remove the grille, and check that all screws are tight. If the problem persists, contact a technician.

Can I use a speed control with this fan?

No, do not use this fan with an electronic speed control, as it could cause a fire or electric shock.

How to replace the bulb?

Turn off power, remove the light lens according to instructions (twist, slide, or unscrew depending on model), replace the bulb with a new one of the same type, then reinstall the lens by reversing the procedure.

What does the warranty cover?

The warranty is 1 year for the original purchaser and covers manufacturing defects. Air King repairs or replaces the product. Accidental damage, misuse, and unauthorized repairs are not covered. Return shipping costs are the customer's responsibility.

USER MANUAL AKLC703 Air King

IMPORTANT INSTRUCTIONS - OPERATING MANUAL

AKLC70 Series

Exhaust Fan with Light

READ AND SAVE THESE INSTRUCTIONS

READ CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE, INSTALL, OPERATE OR MAINTAIN THE PRODUCT DESCRIBED. PROTECT YOURSELF AND OTHERS BY OBSERVING ALL SAFETY INFORMATION. FAILURE TO COMPLY WITH INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE!

RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.

GENERAL SAFETY INFORMATION

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock and injury to person, including the following:

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK AND INJURY TO PERSON, OBSERVE THE FOLLOWING:

a) Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.
b) Before servicing or cleaning the unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK AND INJURY TO PERSON, OBSERVE THE FOLLOWING:

a) Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-related construction.

b) Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent back drafting. Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA) and the American Society for Heating, Refrigeration, and Air Conditioning Engineers (ASHRAE), and the local code authorities.

c) When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.

CAUTION: FOR GENERAL VENTILATING USE ONLY. DO NOT USE TO EXHAUST HAZARDOUS OR EXPLOSIVE MATERIALS AND VAPORS.

d) Ducted fans must always be vented to the outdoors.
e) This unit must be grounded.
f) To avoid motor bearing damage and noisy and/or unbalanced impellers, keep drywall spray, construction dust, etc. off power unit.
g) Read all instructions before installing or using exhaust fan.

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, DO NOT USE THIS FAN WITH ANY SOLID-STATE SPEED CONTROL DEVICE.

WARNING: DO NOT INSTALL OVER A TUB OR MOUNT IN A SHOWER STALL ENCLOSURE.

WARNING: DO NOT USE IN KITCHENS.

SAVE THESE INSTRUCTIONS

INSTALLATION INSTRUCTIONS

CAUTION: MAKE SURE POWER IS SWITCHED OFF AT SERVICE PANEL BEFORE STARTING INSTALLATION.

SECTION 1

Preparing the Exhaust Fan

1. Unpack fan from the carton and confirm that all pieces are present. In addition to the exhaust fan you should have:

1 - Grill with Glass Light Lens
1 - Damper Assembly (attached)
2 - #8 Screws
2 - Lockwashers
4 - Mounting Rails
1 - Instruction/Safety Sheet

1. Choose the location for your fan. To ensure the best air and sound performance, it is recommended that the length of ducting and the number of elbows be kept to a minimum, and that insulated hard ducting be used. Larger duct sizes will reduce noise and airflow restrictions. This fan will require at least 6" of clearance in the ceiling or wall, and will mount through drywall up to 3/4" thick. The fan can be mounted directly to the joist using the mounting tabs on the sides of the housing or between 16" on center joists using the 4 provided mounting rails.

SECTION 2

New Construction

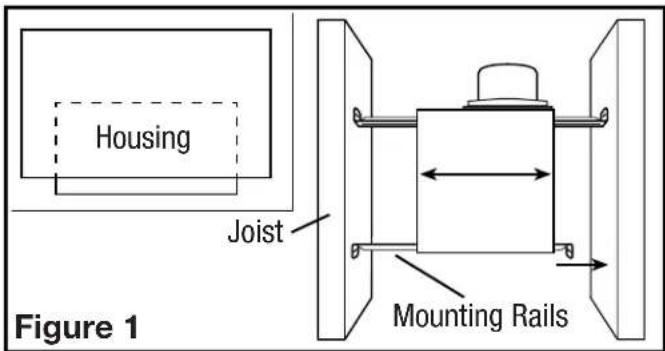

1. Mounting Rail Installation: Install the rails on the housing and position the housing next to the joist. Using the gauge on the fan's housing, line up housing so that it will be flush with the finished ceiling. Secure the ends of the rails with screws or nails (not included) to the joists and slide the housing into the final position (Figure 1).

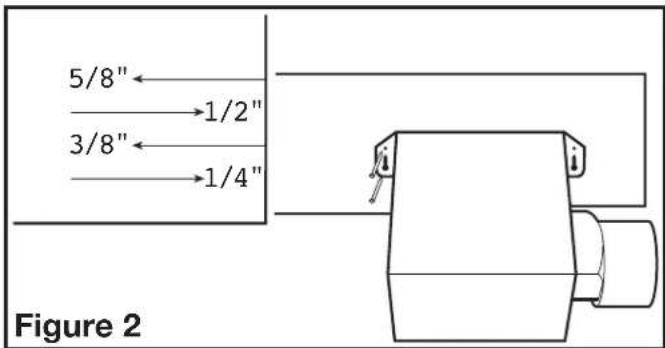

1. Mounting Tab Installation: Using the gauge on the fan's housing, line up housing so that it will be flush with the finished ceiling. Position the fan so that the tabs rest flat against the joist and secure with four nails or screws (not provided) to ensure proper installation (Figure 2).

SECTION 3

Existing Construction

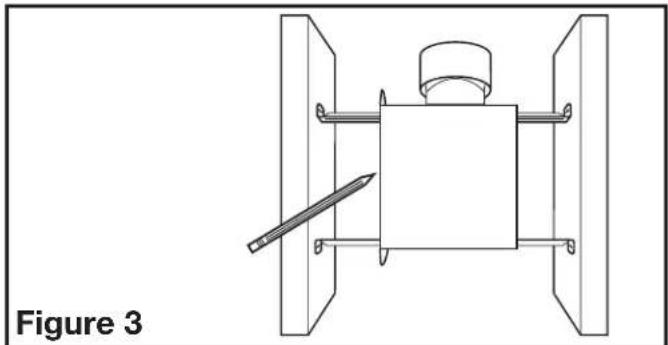

1a. Mounting Rail Installation: Set housing in position between the joist and trace an outline onto the ceiling material (Figure 3). Set housing aside and cut opening, being careful not to cut or damage any electrical or other hidden utilities. Install the rails on the housing and position the housing in the previously cut hole so that it is flush with the finished ceiling. Secure the ends of the rails to the joists with nails or screws (not provided) (Figure 1).

Technical line drawing of a mechanical assembly with a pencil inserted, labeled Figure 3 (no text or symbols on the diagram itself)

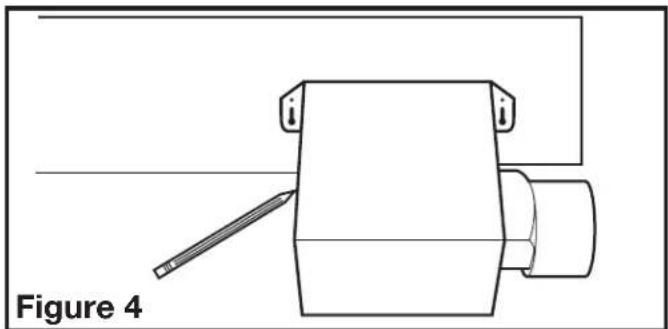

1b. Mounting Tab Installation: Position housing against the joist and trace an outline of the housing onto the ceiling material (Figure 4). Set housing aside and cut opening, being careful not to cut or damage any electrical or other hidden utilities. Place housing next to the joist and insure that it is flush with the finished ceiling. Secure with four nails or screws (not provided) to ensure proper installation (Figure 2).

Technical line drawing of a mechanical component with a tool inserted, labeled Figure 4 (no text or symbols on the diagram itself)

SECTION 4

Ducting

CAUTION: ALL DUCTING MUST COMPLY WITH LOCAL AND NATIONAL BUILDING CODES.

1. Connect the ducting to the fan's duct collar (Figure 5). Secure in place using tape or screw clamp. Always duct the fan to the outside through a wall or roof cap.

Technical diagram showing a mechanical component with arrows indicating direction, labeled Figure 5 (no text or symbols on the diagram itself)

NOTE: If damper detaches from unit, reattach by snapping the collar back onto the unit. It is designed to only fit one way.

SECTION 5

Wiring

CAUTION: MAKE SURE POWER IS SWITCHED OFF AT SERVICE PANEL BEFORE STARTING INSTALLATION.

CAUTION: ALL ELECTRICAL CONNECTIONS MUST BE MADE IN ACCORDANCE WITH LOCAL CODES, ORDINANCES, OR NATIONAL IF YOU ARE UNFAMILIAR WITH METHODS OF INSTALLING ELECTRICAL THE SERVICES OF A QUALIFIED ELECTRICIAN.

NOTE: This unit includes a side access panel for wiring that does not require the removal of the fan's blower assembly. If you choose to wire the unit from the inside, you will need to remove the blower assembly and internal wiring compartment. Both methods are equally effective.

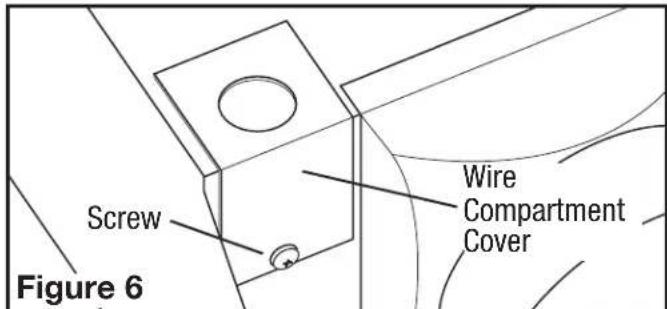

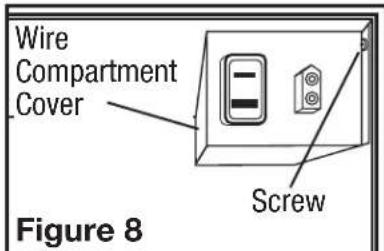

1a. External Wire Compartment: Remove the wire compartment cover screw and place cover in a secure place (Figure 6).

1b. Internal Wire Compartment: Remove the screw holding the blower assembly in place. Lift up on the assembly and tilt it at a 45^irc angle to remove from the housing (Figure 7). Remove the wire compartment cover screw and place the cover in a secure place (Figure 8).

NOTE: If the fan motor plug is connected to the fan housing receptacle, unplug so the blower assembly can be completely removed.

2a. Wiring Fan/Light Independently: Run wiring from an approved wall switch carrying the appropriate rating. One neutral (white), one ground (green or bare copper), and two hot (black lead connected to the switch). Secure the electrical wires to the housing with an approved electrical connector. Make sure you leave enough wiring in the box to make the connection to the fan's receptacle.

2b. From where you have access to inside the fan's junction box, connect the one white wire from the house to both the white wire from the fan's light receptacle and the white wire from the fan's exhaust receptacle. Connect the first black wire from the wall switch to the red wire from the fan's light receptacle. Connect the second black wire from the switch to the fan's exhaust receptacle. Connect the ground wire from the house to the green wire from the fan's grounding screw (Figure 9). Use approved methods for all connections.

3a. Wiring Fan/Light together: Run wiring from an approved wall switch carrying the appropriate rating. One neutral (white), one ground (green or bare copper), and one hot (black lead connected to the switch). Secure the electrical wires to the housing with an approved electrical connector. Make sure you leave enough wiring in the box to make the connection to the fan's receptacle.

3b. From where you have access to inside the fan's junction box, connect the one white wire from the house to both the white wire from the fan's light receptacle and the white wire from the fan's exhaust receptacle. Connect the black wire from the wall switch to both the red wire from the fan's light receptacle and the black wire from the fan's exhaust receptacle. Connect the ground wire from the house to the green wire from the fan's grounding screw (Figure 10). Use approved methods for all connections.

1. Carefully tuck wire back inside wire compartment and replace wire compartment cover securing with the screw that was removed earlier.

SECTION 6

Completing the Installation

1. If the fan's blower assembly was removed during the wiring process, reinstall the blower by reversing the directions in Step 1b in Section 5 Wiring.
2. Insert the fan's plug into the receptacle (Figure 7).
3. Remove light lens from grill as follows:

AKLC70RCB: Gently twist the light lens counter clockwise to release from the grill (Figure 11).

AKLC70SLN, AKLC70SLW: Slide the glass light lens out either side of the grill (Figure 12).

AKLC70SNS, AKLC70DRSB, AKLC701, AKLC702, AKLC703: Unscrew the finial at the top of the glass light lens. Make sure you support the light lens as you unscrew (Figure 13).

AKLC70DW: Remove glass light lens from grill by pulling the tension springed hook outward and sliding the glass out of the hooks (Figure 14).

1. Plug cord from lamp holders into the appropriate receptacle.
2. Line up slots in the grill with lances on inside of housing. Insert included #8 screws through grill slots and into housing lances. Tighten both screws until the grill fits snugly to the ceiling. DO NOT OVER TIGHTEN (Figure 15).

5a. AKLC70RCB Only: Install the included light fixture mounting bracket to the fan housing by lining up the holes in the bracket with the lances on the fan housing. Using the included #8 screws attach the bracket to the housing. DO NOT OVERTIGHTEN.

Line up the hole in the grill to the threaded insert on the light fixture mounting bracket. Using the included screw and washer, secure the light fixture to the bracket (Figure 16).

CAUTION: FAILURE TO SECURE THE GRILL MAY RESULT IN A RATTLING OR HUMMING NOISE.

1. Install the appropriate number of 60 watt maximum, type A19 medium base incandescent bulbs (not included).
2. Reinstall the lens in place by reversing the directions in Step 3.
3. Restore power and test your installation.

SECTION 7

Use and Care

CAUTION: MAKE SURE POWER IS SWITCHED OFF AT SERVICE PANEL BEFORE STARTING INSTALLATION.

1. Cleaning the Grill: Refer to instructions in Section 6 Completing the Installation, to remove grill and glass light lens. Use a mild detergent, such as dishwashing liquid, and dry with a soft cloth. NEVER USE ANY ABRASIVE PADS OR SCOURING POWDERS. Completely dry all parts before reinstalling. Refer to instructions in Section 6 Completing the Installation, to reinstall grill and glass light lens.
2. Cleaning the Fan Assembly: Wipe all parts with a dry cloth or gently vacuum the fan. NEVER IMMERSE ELECTRICAL PARTS IN WATER.

CAUTION: ALLOW BULBS TO COOL BEFORE REPLACING.

1. Changing the Light Bulb: Disconnect power to the unit. Remove light lens from grill by following the instructions in Step 3 of SECTION 6 - Completing the Installation. Replace light bulb(s) with the appropriately bulb(s) as marked on the light receptacle.
2. Reinstall the lens by reversing the instructions in Step 3 of SECTION 6 - Completing the Installation.

CALIFORNIA RESIDENTS ONLY:

WARNING: THIS PRODUCT CAN EXPOSE YOU TO A CHEMICAL [OR CHEMICALS] KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER.

WARNING: THIS PRODUCT CAN EXPOSE YOU TO A CHEMICAL [OR CHEMICALS] KNOWN TO THE STATE OF CALIFORNIA TO CAUSE REPRODUCTIVE TOXICITY.

LIMITED WARRANTY

WHAT THIS WARRANTY COVERS: This product is warranted against defects in workmanship and/or materials.

HOW LONG THIS WARRANTY LASTS: This warranty extends only to the original purchaser of the product and lasts for one (1) year from the date of original purchase or until the original purchaser of the product sells or transfers the product, whichever first occurs.

WHAT AIR KING WILL DO: During the warranty period, Air King will, at its sole option, repair or replace any part or parts that prove to be defective or replace the whole product with the same or comparable model.

WHAT THIS WARRANTY DOES NOT COVER: This warranty does not apply if the product was damaged or failed because of accident, improper handling or operation, shipping damage, abuse, misuse, unauthorized repairs made or attempted. This warranty does not cover shipping costs for the return of products to Air King for repair or replacement. Air King will pay return shipping charges from Air King following warranty repairs or replacement

ANY AND ALL WARRANTIES, EXPRESSED OR IMPLIED (INCLUDING, WITHOUT LIMITATION, ANY IMPLIED WARRANTY OF MERCHANTABILITY), LAST ONE YEAR FROM THE DATE OF ORIGINAL PURCHASE OR UNTIL THE ORIGINAL PURCHASER OF THE PRODUCT SELLS OR TRANSFERS THE PRODUCT, WHICHEVER FIRST OCCURS AND IN NO EVENT SHALL AIR KING'S LIABILITY UNDER ANY EXPRESS OR IMPLIED WARRANTY INCLUDE (I) INCIDENTAL OR CONSEQUENTIAL DAMAGES FROM ANY CAUSE WHATSOEVER, OR (II) REPLACEMENT OR REPAIR OF ANY HOUSE FUSES, CIRCUIT BREAKERS OR RECEPTACLES. NOTWITHSTANDING ANYTHING TO THE CONTRARY, IN NO EVENT SHALL AIR KING'S LIABILITY UNDER ANY EXPRESS OR IMPLIED WARRANTY EXCEED THE PURCHASE PRICE OF THE PRODUCT AND ANY SUCH LIABILITY SHALL TERMINATE UPON THE EXPIRATION OF THE WARRANTY PERIOD.

Some states and provinces do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so these exclusions or limitations may not apply to you. This warranty gives you specific legal rights. You may also have other rights which vary from state to state and province to province. Proof of purchase is required before a warranty claim will be accepted.

CUSTOMER SERVICE:

Toll-Free [phone]

Our Customer Service team is available to assist you with product questions, service center locations, and replacement parts. They can be reached Monday through Friday, 8am-4pm Eastern.

Please have your model number available, as well as the type and style (located on the label inside of your product).

Please do not return product to place of purchase.

www.airkinglimited.com

PARTS FOR DISCONTINUED, OBSOLETE AND CERTAIN OTHER PRODUCTS MAY NOT BE AVAILABLE. DUE TO SAFETY REASONS, MANY ELECTRONIC COMPONENTS AND MOST HEATER COMPONENTS ARE NOT AVAILABLE TO CONSUMERS FOR INSTALLATION OR REPLACEMENT.

Troubleshooting Guide

Trouble Probable Cause Suggested Remedy
1. Fan does not operate when the switch is on.1d. Motor has stopped operating. 1d. Replace motor.	1a. A fuse may be blown or a circuit tripped.1b. Connector plug from motor is not plugged in.1c. Wiring is not connected properly.	1a. Replace fuse or reset circuit breaker.1b. Turn off power to unit. Remove Grill and plug motor into receptacle in housing. Restore power to unit.1c. Turn off power to unit. Check that all wires are connected.
2. Fan is operating, but air moves slower than normal.	2. Obstruction in the exhaust ducting.	2. Check for any obstructions in the ducting. The most common are bird nests in the roof cap or wall cap where the fan exhausts to the outside.
3. Fan is operating louder than normal.3b. Fan blade is hitting housing of unit. 3b. Call your dealer for service.	3a. Motor is loose.	3a. Turn off power to unit. Remove grill and check that all screws are fully tightened. Restore power to unit.

Installer:

Place of Purchase:

Installation Date:

Model Number:

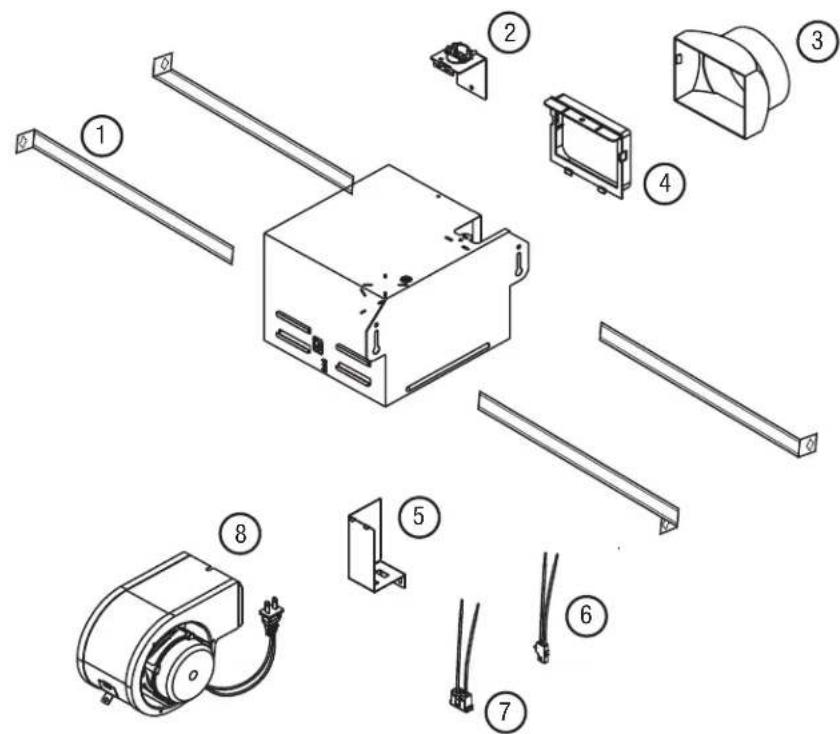

REPLACEMENT PARTS DIAGRAM

Simple diagram of three concentric ovals with a circled number 9 at the bottom (no text or symbols within the shapes)

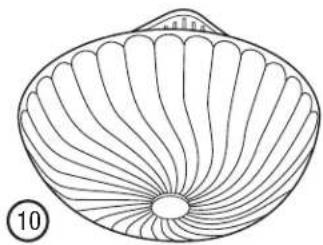

Line drawing of a seashell with radial ridges and a central hub, labeled with number 10 (no text or symbols on the diagram itself)

Simple line drawing of a circular object with a central hole and decorative top (no text or symbols)

# Qty. Description Replacement Part #
1 4	Mounting Rails 5S1299002
2 1	External Wire Cover 5S2299014
3 1	Collar/Damper 5S1299111
4 1	Gasket - Collar 5S2299015
5 1	Interior Wire Cover 5S2234001
6 1	Connector 5S1299008
7 1	Polarized Receptacle 5S1999001
8 1	Blower Assembly 5S2234007
9 1	Light Assembly - AKLC70RCB 5S9204301
10	1 Light Assembly - AKLC70SNS		5S9204302
11	1	Light Assembly - AKLC70DRSB	5S9204303
12	1	Light Assembly AKLC701, DRLC701 (Bronze)	5S5231001
	1	Light Assembly AKLC702, DRLC702 (Nickel)	5S5231002
	1	Light Assembly AKLC703, DRLC703 (White)	5S5231003
	1 Light Assembly DRLC709 (Brass)		5S5231009
13	1	Light Assembly - AKLC70SLN (Nickel)	5S5204119
	1	Light Assembly - AKLC70SLW (White)	5S5204113
14	1 Light Assembly - AKLC70DW		5S9204304

Line drawing of a circular, fan-shaped object with radial ridges and a central hole, labeled with number 12 (no text or symbols on the object itself)

Simple line drawing of a 3D geometric shape resembling a truncated prism or folded paper (no text or symbols)

Simple line drawing of a symmetrical object with two protruding blades, labeled with number 14 (no text or symbols on the object itself)
