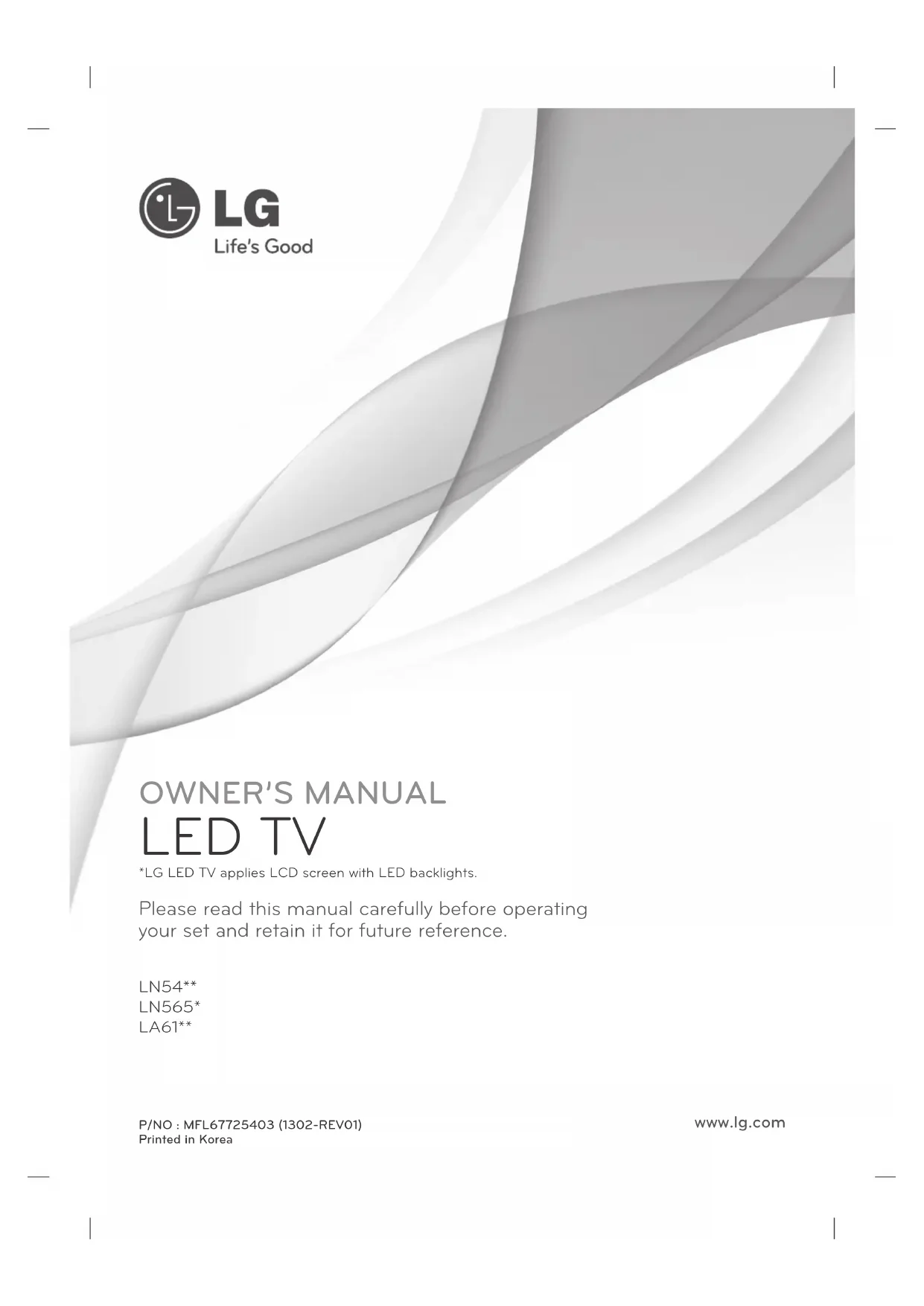

USER MANUAL 42LN5430 LG

Printing specification :5. Bindery :6. Language :7. Number of pages :Model name :2nd, 3rd Suffix :Brand name :Product name :1. Trim size (Format)

2. Printing Specification

Eng/Fra/Por/Ara (4) 182 mm x 257 mm (B5) 1 Color (Black) 1 Color (Black) Coated, Snow white paper 150 g/㎡ Uncoated, wood-free paper 60 g/㎡ Off set Perfect binding

“This part contains Eco-hazardous substances (Pb, Cd, Hg, Cr6+, PBB, PBDE, etc.) within LG standard level, Details should be followed Eco-SCM management standard[LG(56)-A-2524]. Especially, Part should be followed and controlled the following specification. (1) Eco-hazardous substances test report should be submitted when Part certification test and First Mass Production. (2) Especially, Don’t use or contain lead(Pb) and cadmium(Cd) in ink.

:LGEAK :LGEKR :LGERS

:LGEAZ :LGEMA :LGESY

:LGEEG :LGEMX :LGETH

:LGEIL :LGEND :LGEVN

:LGEIN :LGERA :LGEWR

Printed in Mexico Printed in Poland Printed in Kazakhstan Printed in Brazil Printed in Korea Rev. Number MMM/DD/YYYY

Printed in MexicoPrinted in Egypt Printed in India Printed in Indonesia Added the contents of LA6130 model.EKLD200453Mingyun.kangFeb/05/2013 Signature Change ContentsECO Number Printed in Russia Printed in China Printed in China Printed in Thailand Printed in Vietnam Printed in Poland

If you ignore the warning message, you may be seriously injured or there is a possibility of accident or death. CAUTION

If you ignore the caution message, you may be slightly injured or the product may be damaged. NOTE

The note helps you understand and use the product safely. Please read the note carefully before using the product.

9 Unpacking 11 Separate purchase 12 Parts and buttons 13 Lifting and moving the TV 14 Setting up the TV

14 - Attaching the stand

15 Mounting on a table 17 Mounting on a wall 18 Tidying cables 19 MAKING CONNECTIONS 19 Antenna connection 20 HDMI connection 20 Component connection 21 Composite connection 21 USB connection 22 Headphone connection 22 Audio Connection

Do not place the TV and/ or remote control in the following environments:

- A location exposed to direct sunlight

- An area with high humidity such as a bathroom

- Near any heat source such as stoves and other devices that produce heat

- Near kitchen counters or humidifiers where they can easily be exposed to steam or oil

- An area exposed to rain or wind

- Near containers of water such as vases Otherwise, this may result in fire, electric shock, malfunction or product deformation.

Do not place the product where it might be exposed to dust. This may cause a fire hazard.

Mains Plug is the TV connecting/disconnecting device to AC mains electric supply. This plug must remain readily attached and operable when TV is in use.

Do not touch the power plug with wet hands. Additionally, if the cord pin is wet or covered with dust, dry the power plug completely or wipe dust off. You may be electrocuted due to excess moisture.

Make sure to connect Mains cable to compliant AC mains socket with Grounded earth pin. (Except for devices which are not grounded on earth.) Otherwise possibility you may be electrocuted or injured.

Insert power cable plug completely into wall socket otherwise if not secured completely into socket, fire ignition may break out.

Ensure the power cord does not come into contact with hot objects such as a heater. This may cause a fire or an electric shock hazard.

Do not place a heavy object, or the product itself, on power cables. Otherwise, this may result in fire or electric shock.

Bend antenna cable between inside and outside building to prevent rain from flowing in. This may cause water damaged inside the Product and could give an electric shock.

When mounting TV onto wall make sure to neatly install and isolate cabling from rear of TV as to not create possibility of electric shock / fire hazard.

Do not plug too many electrical devices into a single multiple electrical outlet. Otherwise, this may result in fire due to over-heating.

Do not drop the product or let it fall over when connecting external devices. Otherwise, this may result in injury or damage to the product. SAFETY INSTRUCTIONS Please read these safety precautions carefully before using the product.4 ENG ENGLISH SAFETY INSTRUCTIONS

Keep the anti-moisture packing material or vinyl packing out of the reach of children. Anti-moisture material is harmful if swallowed. If swallowed by mistake, force the patient to vomit and visit the nearest hospital. Additionally, vinyl packing can cause suffocation. Keep it out of the reach of children.

Do not let your children climb or cling onto the TV. Otherwise, the TV may fall over, which may cause serious injury.

Dispose of used batteries carefully to ensure that a small child does not consume them. Please seek Doctor- Medical Attention immediately if child consumes batteries.

Do not insert any metal objects/conductors (like a metal chopstick/cutlery/ screwdriver) between power cable plug and input Wall Socket while it is connected to the input terminal on the wall. Additionally, do not touch the power cable right after plugging into the wall input terminal. You may be electrocuted. (Depending on model)

Do not put or store inflammable substances near the product. There is a danger of combustion/ explosion or fire due to careless handling of the inflammable substances.

Do not drop metallic objects such as coins, hair pins, chopsticks or wire into the product, or inflammable objects such as paper and matches. Children must pay particular attention. Electrical shock, fire or injury can occur. If a foreign object is dropped into the product, unplug the power cord and contact the service centre.

Do not spray water on the product or scrub with an inflammable substance (thinner or benzene). Fire or electric shock accident can occur.

Do not allow any impact, shock or any objects to fall into the unit, and do not drop anything onto the screen. You may be injured or the product can be damaged.

Never touch this product or antenna during a thunder or lighting storm. You may be electrocuted.

Never touch the wall outlet when there is leakage of gas, open the windows and ventilate. It may cause a fire or a burn by a spark.

Do not disassemble, repair or modify the product at your own discretion. Fire or electric shock accident can occur. Contact the service centre for check, calibration or repair.

If any of the following occur, unplug the product immediately and contact your local service centre.

- The product has been impacted by shock

- The product has been damaged

- Foreign objects have entered the product

- The product produced smoke or a strange smell This may result in fire or electric shock.5 ENGENGLISH SAFETY INSTRUCTIONS

Unplug the TV from AC mains wall socket if you do not intend to use the TV for a long period of time. Accumulated dust can cause fire hazard and insulation deterioration can cause electric leakage/shock/fire.

Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus. CAUTION

Install the product where no radio wave occurs.

There should be enough distance between an outside antenna and power lines to keep the former from touching the latter even when the antenna falls. This may cause an electric shock.

Do not install the product on places such as unstable shelves or inclined surfaces. Also avoid places where there is vibration or where the product cannot be fully supported. Otherwise, the product may fall or flip over, which may cause injury or damage to the product.

If you install the TV on a stand, you need to take actions to prevent the product from overturning. Otherwise, the product may fall over, which may cause injury.

If you intend to mount the product to a wall, attach VESA standard mounting interface (optional parts) to the back of the product. When you install the set to use the wall mounting bracket (optional parts), fix it carefully so as not to drop.

Only use the attachments / accessories specified by the manufacturer.

When installing the antenna, consult with a qualified service technician. If not installed by a qualified technician, this may create a fire hazard or an electric shock hazard.

We recommend that you maintain a distance of at least 2 to 7 times the diagonal screen size when watching TV. If you watch TV for a long period of time, this may cause blurred vision.

Only use the specified type of battery. This could cause damage to the remote control.

Do not mix new batteries with old batteries. This may cause the batteries to overheat and leak.

Batteries should not be exposed to excessive heat. For example, keep away from direct Sunlight , open fireplace and electric heaters.

Do not place non-rechargeable batteries in charging device.

Make sure there are no objects between the remote control and its sensor.

Signal from Remote Control can be interrupted due to external/internal lighting eg Sunlight, fluorescent lighting. If this occurs turn off lighting or darken viewing area.

When connecting external devices such as video game consoles, make sure the connecting cables are long enough. Otherwise, the product may fall over, which may cause injury or damage the product.

Do not turn the product On/Off by plugging-in or unplugging the power plug to the wall outlet. (Do not use the power plug for switch.) It may cause mechanical failure or could give an electric shock.6 ENG ENGLISH SAFETY INSTRUCTIONS

Please follow the installation instructions below to prevent the product from overheating.

- The distance between the product and the wall should be more than 10 cm.

- Do not install the product in a place with no ventilation (e.g., on a bookshelf or in a cupboard).

- Do not install the product on a carpet or cushion.

- Make sure the air vent is not blocked by a tablecloth or curtain. Otherwise, this may result in fire.

Take care not to touch the ventilation openings when watching the TV for long periods as the ventilation openings may become hot. This does not affect the operation or performance of the product.

Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer.

Prevent dust collecting on the power plug pins or outlet. This may cause a fire hazard.

Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance.

Do not press strongly upon the panel with a hand or sharp object such as nail, pencil or pen, or make a scratch on it, as it may cause damage to screen.

Avoid touching the screen or holding your finger(s) against it for long periods of time. Doing so may produce some temporary or permanent distortion/damage to screen.

When cleaning the product and its components, unplug the power first and wipe it with a soft cloth. Applying excessive force may cause scratches or discolouration. Do not spray with water or wipe with a wet cloth. Never use glass cleaner, car or industrial shiner, abrasives or wax, benzene, alcohol etc., which can damage the product and its panel. Otherwise, this may result in fire, electric shock or product damage (deformation, corrosion or breakage).

As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source even if you turn off this unit by SWITCH.

When unplugging the cable, grab the plug and unplug it, by pulling at the plug. Don’t pull at the cord to unplug the power cord from the power board, as this could be hazardous.

When moving the product, make sure you turn the power off first. Then, unplug the power cables, antenna cables and all connecting cables. The TV set or power cord may be damaged, which may create a fire hazard or cause electric shock.

When moving or unpacking the product, work in pairs because the product is heavy. Otherwise, this may result in injury.7 ENGENGLISH SAFETY INSTRUCTIONS

Contact the service centre once a year to clean the internal parts of the product. Accumulated dust can cause mechanical failure.

Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

If the product feels cold to the touch, there may be a small “flicker” when it is turned on. This is normal, there is nothing wrong with product.

The panel is a high technology display product with resolution of two million to six million pixels. You may see tiny black dots and/ or brightly coloured dots (red, blue or green) at a size of 1 ppm on the panel. This does not indicate a malfunction and does not affect the performance and reliability of the product. This phenomenon also occurs in third-party products and is not subject to exchange or refund.

You may find different brightness and colour of the panel depending on your viewing position(left/right/ top/down). This phenomenon occurs due to the characteristic of the panel. It is not related with the product performance, and it is not malfunction.

Displaying a still image (e.g., broadcasting channel logo, on-screen menu, scene from a video game) for a prolonged time may cause damage to the screen, resulting in retention of the image, which is known as image sticking. The warranty does not cover the product for image sticking. Avoid displaying a fixed image on your television’s screen for a prolonged period (2 or more hours for LCD, 1 or more hours for Plasma). Also, if you watch the TV at a ratio of 4:3 for a long time, image sticking may occur on the borders of the panel. This phenomenon also occurs in third-party products and is not subject to exchange or refund.

Generated Sound “Cracking” noise: A cracking noise that occurs when watching or turning off the TV is generated by plastic thermal contraction due to tempera- ture and humidity. This noise is common for products where thermal deformation is required. Electrical circuit humming/panel buzzing: A low level noise is generated from a high-speed switching circuit, which supplies a large amount of current to operate a product. It varies depend- ing on the product. This generated sound does not affect the performance and reliability of the product.8 ENG ENGLISH SAFETY INSTRUCTIONS Viewing 3D Imaging (Only 3D models) WARNING Viewing Environment

Viewing Time - When watching 3D contents, take 5 - 15 minute breaks every hour. Viewing 3D contents for a long period of time may cause headache, dizziness, fatigue or eye strain. Those that have a photosensitive seizure or chronic illness

Some users may experience a seizure or other abnormal symptoms when they are exposed to a ashing light or particular pattern from 3D contents.

Do not watch 3D videos if you feel nausea, are pregnant and/ or have a chronic illness such as epilepsy, cardiac disorder, or blood pressure disease, etc.

3D Contents are not recommended to those who suffer from stereo blindness or stereo anomaly. Double images or discomfort in viewing may be experienced.

If you have strabismus (cross-eyed), amblyopia (weak eyesight) or astigmatism, you may have trouble sensing depth and easily feel fatigue due to double images. It is advised to take frequent breaks than the average adult.

If your eyesight varies between your right and left eye, revise your eyesight prior to watching 3D contents. Symptoms which require discontinuation or refraining from watching 3D contents

Do not watch 3D contents when you feel fatigue from lack of sleep, overwork or drinking.

When these symptoms are experienced, stop using/ watching 3D contents and get enough rest until the symptom subsides. - Consult your doctor when the symptoms persist. Symptoms may include headache, eyeball pain, dizziness, nausea, palpitation, blurriness, discomfort, double image, visual inconvenience or fatigue. CAUTION Viewing Environment

Viewing Distance - Maintain a distance of at least twice the screen diagonal length when watching 3D contents. If you feel discomfort in viewing 3D contents, move further away from the TV. Viewing Age

Infants/Children - Usage/ Viewing 3D contents for children under the age of 5 are prohibited. - Children under the age of 10 may overreact and become overly excited because their vision is in development (for example: trying to touch the screen or trying to jump into it. Special monitoring and extra attention is required for children watching 3D contents. - Children have greater binocular disparity of 3D presentations than adults because the distance between the eyes is shorter than one of adults. Therefore they will perceive more stereoscopic depth compared to adults for the same 3D image.

Teenagers - Teenagers under the age of 19 may react with sensitivity due to stimulation from light in 3D contents. Advise them to refrain from watching 3D contens for a long time when they are tired.

Elderly - The elderly may perceive less 3D effect compared to the youth. Do not sit closer to the TV than the recommended distance. Cautions when using the 3D glasses

Make sure to use LG 3D glasses. Otherwise, you may not be able to view 3D videos properly.

Do not use 3D glasses instead of your normal glasses, sunglasses or protective goggles.

Using modied 3D glasses may cause eye strain or image distortion.

Do not keep your 3D glasses in extremely high or low temperatures. It will cause deformation.

The 3D glasses are fragile and are easy to be scratched. Always use a soft, clean piece of cloth when wiping the lenses. Do not scratch the lenses of the 3D glasses with sharp objects or clean/wipe them with chemicals.9

Image shown may differ from your TV.

Your TV’s OSD (On Screen Display) may differ slightly from that shown in this manual.

The available menus and options may differ from the input source or product model that you are using.

New features may be added to this TV in the future.

The TV can be placed in standby mode in order to reduce the power consumption. And the TV should be turned off if it will not be watched for some time, as this will reduce energy consumption.

The energy consumed during use can be significantly reduced if the level of brightness of the picture is reduced, and this will reduce the overall running cost. INSTALLATION PROCEDURE 1 Open the package and make sure all the accessories are included.2 Attach the stand to the TV set.3 Connect an external device to the TV set.

ASSEMBLING AND PREPARING

Unpacking Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your product. The illustrations in this manual may differ from the actual product and item. CAUTION

Do not use any unapproved items to ensure the safety and product life span.

Any damages or injuries by using unapproved items are not covered by the manufacturer’s warranty.

Some models have a thin film attached on to the screen and this must not be removed. NOTE

The items supplied with your product may vary depending on the model.

Product specifications or contents of this manual may be changed without prior notice due to upgrade of product functions.

For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm thick and 18 mm width. Use an extension cable that supports USB 2.0 if the USB cable or USB memory stick does not fit into your TV’s USB port.

ASSEMBLING AND PREPARING

Remote control and batteries (AAA) (See p.24, 25) Owner’s manual Cable holder (Depending on model) (See p.18) Power Cord Stand Screws 3EA, P5 x 25 4EA, M4 x 14 (Only LN54**, LN565*) (See p.14) Desk-mount Screw (2EA : Only LA61**) (1EA : Only 32/37/39/42/47/50/ 60LN54**, LN565*) (See p.16) Stand Screws 8EA, M4 x 14 (Only LA61**) (See p.14) Desk-mount Cable 2EA (Only LA61**) (See p.16) Bracket Screw 2EA, M4 x 8 (Only 32/42LA61**) 2EA, P4 x 8 (Only 50LA61**) (See p.16) Stand Body / Stand Base (Only LA61**) (See p.14) Stand Body / Stand Base (Only LN54**, LN565*) (See p.14) Cinema 3D Glasses The number of 3D glass- es may differ depending on the model or country. (Only LA61**)11 ENGENGLISH

ASSEMBLING AND PREPARING

Separate purchase Separate purchase items can be changed or modified for quality improvement without any notification. Contact your dealer to buy these items. These devices only work with certain models. AG-F*** Cinema 3D glasses AG-F***DP Dual play glasses LG Audio Device Compatibility LA61** LN54**, LN565* AG-F*** Cinema 3D glasses

AG-F***DP Dual play glasses

LG Audio Device • The model name or design may be changed depending on the upgrade of product functions, manufacturer’s circumstances or policies.12 ENG ENGLISH

ASSEMBLING AND PREPARING

Parts and buttons Button Description

Scrolls through the saved programmes.

Adjusts the volume level.

Accesses the main menu, or saves your input and exits the menus.

Changes the input source. Turns the power on or off. LAN(PC)RGB IN(RGB/HDMI-PC)AUDIO

You can set the power indicator light to on or off by selecting OPTION in the main menus.13 ENGENGLISH

ASSEMBLING AND PREPARING

Lifting and moving the TV Please note the following advice to prevent the TV from being scratched or damaged and for safe transportation regardless of its type and size. CAUTION

Avoid touching the screen at all times, as this may result in damage to the screen.

It is recommended to move the TV in the box or packing material that the TV originally came in.

Before moving or lifting the TV, disconnect the power cord and all cables.

When holding the TV, the screen should face away from you to avoid damage.

Hold the top and bottom of the TV frame rmly. Make sure not to hold the transparent part, speaker, or speaker grill area.

When transporting a large TV, there should be at least 2 people.

When transporting the TV by hand, hold the TV as shown in the following illustration.

When transporting the TV, do not expose the TV to jolts or excessive vibration.

When transporting the TV, keep the TV upright, never turn the TV on its side or tilt towards the left or right.

Do not apply excessive pressure to cause exing / bending of frame chassis as it may damage screen.14 ENG ENGLISH

ASSEMBLING AND PREPARING

Setting up the TV Image shown may differ from your TV. Attaching the stand Stand Base M4 x 14 4 EA Stand Body

When attaching the stand to the TV set, place the screen facing down on a cushioned table or flat surface to protect the screen from scratches.

Make sure that the screws are inserted correctly and fastened securely. (If they are not fastened securely enough, the TV may tilt forward after being installed.) Do not use too much force and over tighten the screws; otherwise screw may be damaged and not tighten correctly. NOTE

Remove the stand before installing the TV on a wall mount by performing the stand attachment in reverse. Mounting on a table 1 Lift and tilt the TV into its upright position on a table. - Leave a 10 cm (minimum) space from the wall for proper ventilation. 10 cm 10 cm10 cm10 cm2 Connect the power cord to a wall outlet. CAUTION

Do not place the TV near or on sources of heat, as this may result in fire or other damage. Using the Kensington security system (This feature is not available for all models.)The Kensington security system connector is located at the rear of the TV. For more information of installation and using, refer to the manual provided with the Kensington security system or visit http://www.kensington.com.Connect the Kensington security system cable between the TV and a table. Adjusting the angle of the TV to suit view (Only LA61**) Swivel 15 degrees to the left or right and adjust the angle of the TV to suit your view.

When adjusting the angle adof the product, watch out for your fingers.

Personal injury may occur if hands or fingers are pinched. If the product is tilted too much, it may fall, causing damage or injury.<Rear> <Front>16 ENG ENGLISH

ASSEMBLING AND PREPARING

Securing the TV to a wall (This feature is not available for all models.) 1 Insert and tighten the eye-bolts, or TV brackets and bolts on the back of the TV. - If there are bolts inserted at the eye-bolts position, remove the bolts first. 2 Mount the wall brackets with the bolts to the wall. Match the location of the wall bracket and the eye- bolts on the rear of the TV. 3 Connect the eye-bolts and wall brackets tightly with a sturdy rope. Make sure to keep the rope horizontal with the flat surface. CAUTION

Make sure that children do not climb on or hang on the TV. NOTE

Use a platform or cabinet that is strong and large enough to support the TV securely.

Brackets, bolts and ropes are not provided. You can obtain additional accessories from your local dealer. Securing the TV to a table Fix the TV to a table to prevent from tilting forward, damage, and potential injury. To secure the TV to a table, insert and tighten the supplied screw on the rear of the stand. (Only 32/37/39/42/47/50/60LN54**, LN565*) (Only LA61**)

1. Connect the Desk-mount Cables to the Stand

Base using the Bracket Screws.

3. Once the TV is fixed, move the table close to the

wall. Children may go in, causing injuries. WARNING

To prevent TV from falling over, the TV should be securely attached to the floor/wall per installation instructions. Tipping, shaking, or rocking the TV may cause injury.17 ENGENGLISH

ASSEMBLING AND PREPARING

Mounting on a wall Attach an optional wall mount bracket at the rear of the TV carefully and install the wall mount bracket on a solid wall perpendicular to the floor. When you attach the TV to other building materials, please contact qualified personnel. LG recommends that wall mounting be performed by a qualified professional installer. 10 cm 10 cm 10 cm10 cm Make sure to use screws and wall mount bracket that meet the VESA standard. Standard dimensions for the wall mount kits are described in the following table. Separate purchase(Wall Mounting Bracket) Model 32LN54** 32LN565* 32LA61** 37/39/42LN54** 42LA61** VESA (A x B) 200 x 100 200 x 200 Standard screw M4 M6 Number of screws 4 4 Wall mount bracket LSW130B LSW230B Model 47/50/55/60LN54** 50LA61** VESA (A x B) 400 x 400 Standard screw

If a television is not positioned in a sufficiently stable location, it can be potentially hazardous due to falling. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

Using cabinets or stands recommended by the manufacturer of the television.

Only using furniture that can safely support the television.

Ensuring the television is not overhanging the edge of the supporting furniture.

Not placing the television on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television to a suitable support.

Not standing the televisions on cloth or other materials placed between the television and supporting furniture.

Educating children about the dangers of climbing on furniture to reach the television or its controls.18 ENG ENGLISH

ASSEMBLING AND PREPARING

Disconnect the power first, and then move or install the TV. Otherwise electric shock may occur.

If you install the TV on a ceiling or slanted wall, it may fall and result in severe injury. Use an authorized LG wall mount and contact the local dealer or qualified personnel.

Do not over tighten the screws as this may cause damage to the TV and void your warranty.

Use the screws and wall mounts that meet the VESA standard. Any damages or injuries by misuse or using an improper accessory are not covered by the manufacturer’s warranty. NOTE

Use the screws that are listed on the VESA standard screw specifications.

The wall mount kit includes an installation manual and necessary parts.

The wall mount bracket is not provided. You can obtain additional accessories from your local dealer.

The length of screws may differ depending on the wall mount. Make sure to use the proper length.

For more information, refer to the manual supplied with the wall mount. Tidying cables (Only LA61**) 1 Use Cable Holder to neatly secure and position cables together. 2 Fix the Cable Management firmly to the TV. Cable Holder Cable Management (Only LN54**, LN565*) Use Cable Holder to neatly secure and position cables together. Cable Holder CAUTION

Do not move the TV by holding the cable holder, as the cable holders may break, and injuries and damage to the TV may occur.19 ENGENGLISHMAKING CONNECTIONS MAKING CONNECTIONS This section on MAKING CONNECTIONSmainly uses diagrams for the LN54** models.Connect various external devices to the TV and switch input modes to select an external device. For more information of external device’s connection, refer to the manual provided with each device.Available external devices are: HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC, gaming devices, and other external devices. NOTE

The external device connection may differ from the model.

Connect external devices to the TV regardless of the order of the TV port.

If you record a TV programme on a DVD recorder or VCR, make sure to connect the TV signal input cable to the TV through a DVD recorder or VCR. For more information of recording, refer to the manual provided with the connected device.

Refer to the external equipment’s manual for operating instructions.

If you connect a gaming device to the TV, use the cable supplied with the gaming device.

In PC mode, there may be noise associated with the resolution, vertical pattern, contrast or brightness. If noise is present, change the PC output to another resolution, change the refresh rate to another rate or adjust the brightness and contrast on the PICTURE menu until the picture is clear.

In PC mode, some resolution settings may not work properly depending on the graphics card. Antenna connection Connect the TV to a wall antenna socket with an RF cable (75 Ω). ANTENNA/ CABLE IN NOTE

Use a signal splitter to use more than 2 TVs.

If the image quality is poor, install a signal amplifier properly to improve the image quality.

If the image quality is poor with an antenna connected, try to realign the antenna in the correct direction.

An antenna cable and converter are not supplied.

Supported DTV Audio: MPEG, Dolby Digital, Dolby Digital Plus, HE-AAC20 ENGENGLISHMAKING CONNECTIONS HDMI connection Transmits the digital video and audio signals from an external device to the TV. Connect the external device and the TV with the HDMI cable as shown. HDMI

It is recommended to use the TV with the HDMI connection for the best image quality.

Use the latest High Speed HDMI™ Cable with CEC (Customer Electronics Control) function.

High Speed HDMI™ Cables are tested to carry an HD signal up to 1080p and higher.

If you use DVI to HDMI cable for PC, you have to use external speaker for PC audio sound. Component connection Transmits analog video and audio signals from an external device to the TV. Connect the external device and the TV with a component cable as shown. AUDIOVIDEO L R DVD/ Blu-Ray / HD Cable BoxGREENGREEN BLUE BLUE RED RED RED RED WHITEWHITE(*Not Provided) NOTE

If cables are not installed correctly, it could cause this image to display in black and white or with distorted colours.21 ENGENGLISH MAKING CONNECTIONS Composite connection Transmits analog video and audio signals from an external device to the TV. Connect the external device and the TV with the composite cable as shown. VIDEO MONO

AUDIOL R YELLOW WHITE RED RED YELLOW WHITE (*Not Provided) DVD/ Blu-Ray / HD Cable Box / VCR USB connection Connect a USB storage device such as a USB flash memory, external hard drive, or a USB memory card reader to the TV and access the My media menu to use various multimedia files. USB IN USB (*Not Provided)22 ENG ENGLISH MAKING CONNECTIONS Headphone connection Transmits the headphone signal from the TV to an external device. Connect the external device and the TV with the headphone as shown.

AUDIO menu items are disabled when connecting a headphone.

When changing AV MODE with a headphone connected, the change is applied to video but not to audio.

Optical Digital Audio Out is not available when connecting a headphone. (Only LA61**)

Headphone impedance: 16 Ω

Max audio output of headphone: 9 mW to 15 mW

Headphone jack size: 0.35 cm Audio Connection (Only LA61**) You may use an optional external audio system instead of the built-in speaker. Digital optical audio connection Transmits a digital audio signal from the TV to an external device. Connect the external device and the TV with the optical audio cable as shown.

Do not look into the optical output port. Looking at the laser beam may damage your vision.

Audio with ACP (Audio Copy Protection) function may block digital audio output.23 ENGENGLISH MAKING CONNECTIONS MHL connection Mobile High-definition Link (MHL) is an interface for transmitting digital audiovisual signals from mobile phones to television sets. IN 2 (MHL) MHL passive cable (*Not Provided) Mobile phone NOTE

Connect the mobile phone to the HDMI IN 2 (MHL) port to view the phone screen on the TV.

The MHL passive cable is needed to connect the TV and a mobile phone.

This only works for the MHL-enabled phone.

Some applications can be operated by the remote control.

Remove the MHL passive cable from the TV when: - The MHL function is disabled. - Your mobile device is fully charged in standby mode.24 ENGENGLISHREMOTE CONTROL REMOTE CONTROL The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully and use the TV correctly.To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching the and ends to the label inside the compartment, and close the battery cover. To remove the batteries, perform the installation actions in reverse.

Do not mix old and new batteries, as this may damage the remote control. In Analogue TV and some countries, some remote control buttons may not work.Make sure to point the remote control toward the remote control sensor on the TV.(Only LA61**)RATIOINPUT TV/ RAD

(POWER)Turns the TV on or off.TV/RAD Selects Radio, TV and DTV programme. RATIOResizes an image. INPUTChanges the input source.AV MODESelects an AV mode.Number buttons Enters numbers. LIST Accesses the saved programme list.Q.VIEWReturns to the previously viewed programme. FAV Accesses your favourite programme list.Used for viewing 3D video.MUTE Mutes all sounds. Adjusts the volume level. Scrolls through the saved programmes. PAGE Moves to the previous or next screen.SETTINGSAccesses the main menus. INFO Views the information of the current programme and screen.Q.MENUAccesses the Quick menus.3D OPTIONUse this to view 3D video.Navigation buttons (up/down/left/right)Scrolls through menus or options.

Selects menus or options and confirms your input. BACKReturns to the previous level.GUIDEShows programme guide. EXIT Clears on-screen displays and return to TV viewing. Coloured buttonsThese access special functions in some menus.( : Red, : Green, : Yellow, : Blue) TELETEXT BUTTONSThese buttons are used for teletext.SUBTITLERecalls your preferred subtitle in digital mode.Control buttons( )Controls the MY MEDIA menus, or the SIMPLINK compatible devices (USB,SIMPLINK).Accesses the AV devices connected with the HDMI cable through HDMI-CEC. Opens the SIMPLINK menu.25 ENGENGLISH REMOTE CONTROL (POWER) Turns the TV on or off. TV/RAD Selects Radio, TV and DTV programme. SUBTITLE Recalls your preferred subtitle in digital mode. AV MODE Selects an AV mode. RATIO Resizes an image. INPUT Changes the input source. Number buttons Enters numbers. LIST Accesses the saved programme list. Q.VIEW Returns to the previously viewed programme. FAV Accesses your favourite programme list. GUIDE Shows programme guide. MUTE Mutes all sounds. Adjusts the volume level.

Scrolls through the saved programmes. PAGE Moves to the previous or next screen.

TELETEXT BUTTONS These buttons are used for teletext. INFO Views the information of the current programme and screen. SETTINGS Accesses the main menus. Q.MENU Accesses the Quick menus. Navigation buttons (up/ down/left/right) Scrolls through menus or options.

Selects menus or options and confirms your input. BACK Returns to the previous level. EXIT Clears on-screen displays and return to TV viewing. Accesses the AV devices connected with the HDMI cable through HDMI-CEC. Opens the SIMPLINK menu. SLEEP Sets the sleep timer. Control buttons

Coloured buttons These access special functions in some menus. ( : Red, : Green, : Yellow, : Blue)

1 Press SETTINGS to access the main menus. 2 Press the RED button to access the Customer Support menus. 3 Press the Navigation buttons to scroll to User Guide and press OK. PICTURE AUDIO SETUP TIMEMY MEDIAINPUTOPTIONLOCKPress OK( ) to set picture settings.Customer Support ExitSoftware UpdatePicture TestSound TestSignal TestProduct/Service Info.User GuideClose

Allows to select the category you want.

Allows to select the item you want. You can use

to move between pages.

Allows to browse the description of the function you want from the index.

User Guide OPTION > To set language SETTINGS OPTION LanguageYou can select the language of the menu displayed on the screen and the digital sound broadcasting. Menu Language : Selects a language for the display text. Audio Language [In Digital mode Only] : Select the desired language when watching digital broadcasting containg several voice languages. Subtitle Language [In Digital mode Only] : Use the Subtitle function when two or more subtitle languages are broadcast. ✎ If subtitle data in a selected language is not broadcast, the default language subtitle will be displayed.CloseZoom InOPTIONPROGRAMME SettingPICTURE, SOUND SettingAdvanced FunctionInformation CloseZoom OutSETTINGS OPTION LanguageYou can select the language of the menu displayed on the screen and the digital sound broadcasting. Menu Language : Selects a language for the display text. Audio Language [In Digital mode Only] : elect the desired language when watching digital broadcasting containg several voice languages. Subtitle Language [In Digital mode Only] : Use the Subtitle function when two or more subtitle languages are broadcast. ✎ If subtitle data in a selected language is not broadcast, the default language subtitle will be displayed.

to move between pages.

Zooms in or out the screen.

USING THE USER GUIDE

User Guide allows you to more easily access the detailed TV information.27 ENGENGLISHMAINTENANCE / TROUBLESHOOTING MAINTENANCE Cleaning your TV Clean your TV regularly to keep the best performance and to extend the product lifespan. CAUTION

Make sure to turn the power off and disconnect the power cord and all other cables first.

When the TV is left unattended and unused for a long time, disconnect the power cord from the wall outlet to prevent possible damage from lightning or power surges. Screen, frame, cabinet and stand

To remove dust or light dirt, wipe the surface with a dry, clean, and soft cloth.

To remove major dirt, wipe the surface with a soft cloth dampened in clean water or a diluted mild detergent. Then wipe immediately with a dry cloth. CAUTION

Avoid touching the screen at all times, as this may result in damage to the screen.

Do not push, rub, or hit the screen surface with your fingernail or a sharp object, as this may result in scratches and image distortions.

Do not use any chemicals as this may damage the product.

Do not spray liquid onto the surface. If water enters the TV, it may result in fire, electric shock, or malfunction. Power cord Remove the accumulated dust or dirt on the power cord regularly. TROUBLESHOOTING Problem SolutionCannot control the TV with the remote control.

Check the remote control sensor on the product and try again.

Check if there is any obstacle between the product and the remote control.

Check if the batteries are still working and properly installed ( to , to ).No image display and no sound is produced.

Check if the product is turned on.

Check if the power cord is connected to a wall outlet.

Check if there is a problem in the wall outlet by connecting other products.The TV turns off suddenly.

Check the power control settings. The power supply may be interrupted.

Check if the Auto sleep or Off time feature is activated in the Time settings.

If there is no signal while the TV is on, the TV will turn off automatically after 15 minutes of inactivity.When connecting to the PC (HDMI), ‘No signal’ or ‘Invalid Format’ is displayed.

Turn the TV off/on using the remote control.

Weight With stand (kg)

Weight With stand (kg)

Weight With stand (kg)

Video output ports on DVD player Y P

Video, which is input as below media contents is switched into the 3D screen automatically.

The method for 3D digital broadcast may differ depending on the signal environment. If video is not switched automatically into 3D, manually convert the settings to view 3D images. Input Signal Resolution Horizontal Frequency (kHz) Vertical Frequency (Hz) Playable 3D video format HDMI 720p 1280X720

Side by Side(half), Top and Bottom

Side by Side(half), Top and Bottom

Side by Side(half), Top and Bottom

Side by Side(half), Top and Bottom

DTV 720p 1280X720 37.5 50 Side by Side, Top and Bottom 1080i 1920X1080 28.125 50 USB 1080p 1920X1080 33.75 30 Side by Side, Top and Bottom, MPO(Photo)34 ENG ENGLISH LICENSES / OPEN SOURCE SOFTWARE NOTICE / EXTERNAL CONTROL DEVICE SETUP LICENSES Supported licenses may differ by model. For more information about licenses, visit www.lg.com. Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories. The terms HDMI and HDMI High-Denition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an ofcial DivX Certied® device that plays DivX video. Visit divx. com for more information and software tools to convert your les into DivX video. ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certied® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more infor- mation on how to complete your registration. “DivX Certied® to play DivX® video up to HD 1080p, including premium content.” “DivX®, DivX Certied® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license.” “Covered by one or more of the following U.S. patents : 7,295,673; 7,460,668; 7,515,710; 7,519,274” Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS, the Symbol & DTS and the Symbol together are registered trademarks & DTS 2.0+Digital Out is a trademark of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved. Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS, the Symbol, & DTS and the Symbol together are registered trademarks & DTS 2.0 Channel is a trademark of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.

OPEN SOURCE SOFTWARE NOTICE

To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this product, please visit http://opensource.lge.com. In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping and handling) upon email request to opensource@lge.com. This offer is valid for three (3) years from the date on which you purchased the product.

EXTERNAL CONTROL DEVICE SETUP

To obtain the external control device setup information, please visit www.lg.com (Only LA61**) (Only LN565*)Record the model number and serial number of the TV. Refer to the label on the back cover and quote this information to your dealer when requiring any service. MODEL SERIAL (Only DTV) For any Suggestion, Opinion, Complaints, Please Call 800 54 in UAE 0800 54 54 54 in South Africa 080 100 54 54 in Morocco 19960 in Egypt Other countries, Please contact our local dealer or log into http://www.lg.comMANUEL D’UTILISATION

Support mural LSW430B

User Guide OPTION > To set language SETTINGS OPTION ¨ LanguageYou can select the language of the menu displayed on the screen and the digital sound broadcasting. Menu Language : Selects a language for the display text. Audio Language [In Digital mode Only] : Select the desired language when watching digital broadcasting containg several voice languages. Subtitle Language [In Digital mode Only] : Use the Subtitle function when two or more subtitle languages are broadcast. ✎ If subtitle data in a selected language is not broadcast, the default language subtitle will be displayed.CloseZoom InOPTIONPROGRAMME SettingPICTURE, SOUND SettingAdvanced FunctionInformation CloseZoom OutSETTINGS OPTION ¨ LanguageYou can select the language of the menu displayed on the screen and the digital sound broadcasting. Menu Language : Selects a language for the display text. Audio Language [In Digital mode Only] : elect the desired language when watching digital broadcasting containg several voice languages. Subtitle Language [In Digital mode Only] : Use the Subtitle function when two or more subtitle languages are broadcast. ✎ If subtitle data in a selected language is not broadcast, the default language subtitle will be displayed.
