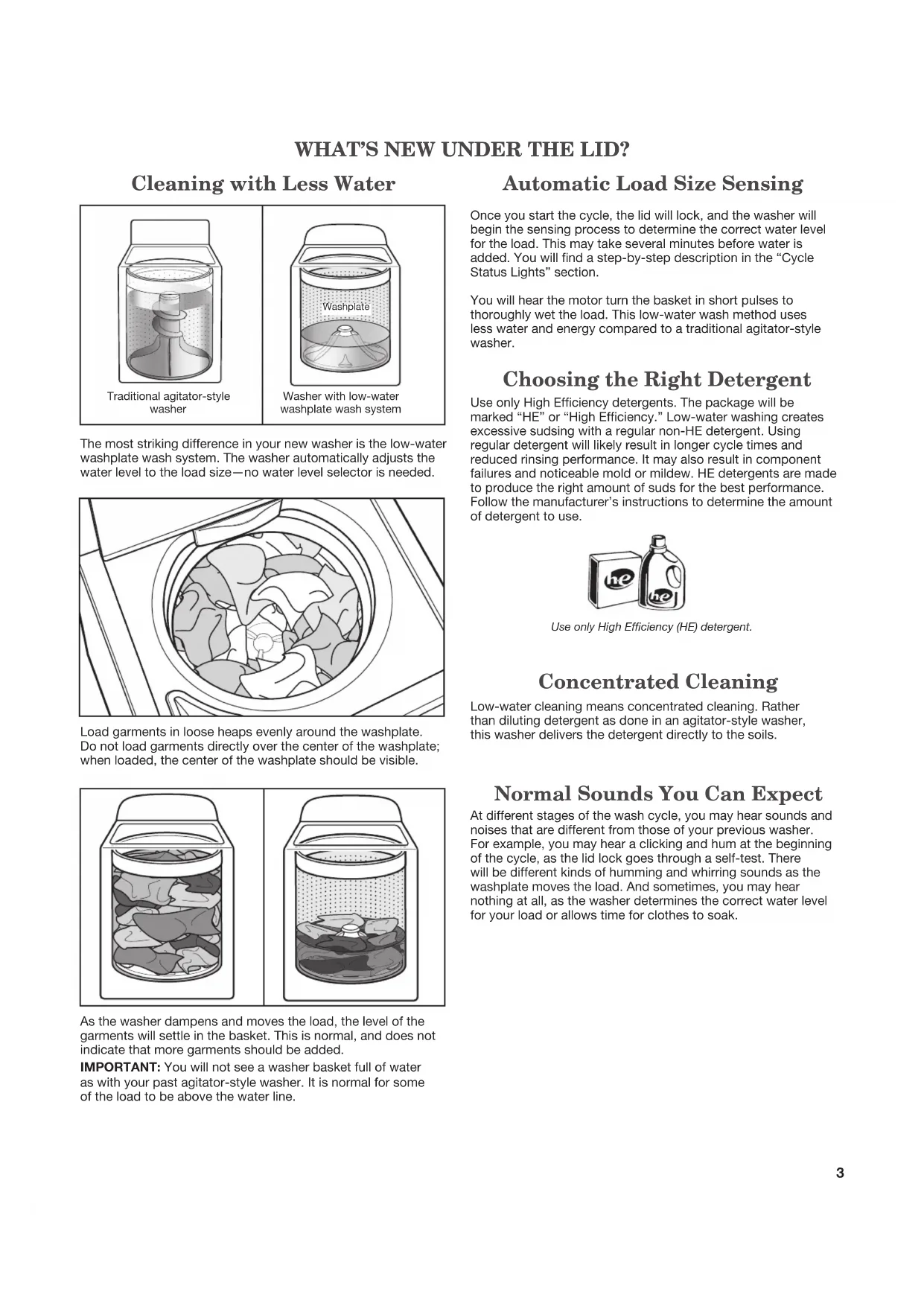

LE DESSUS2 WASHER SAFETY3 As the washer dampens and moves the load, the level of the garments will settle in the basket. This is normal, and does not indicate that more garments should be added. IMPORTANT: You will not see a washer basket full of water as with your past agitator-style washer. It is normal for some of the load to be above the water line. WHAT’S NEW UNDER THE LID? Choosing the Right Detergent Use only High Efciency detergents. The package will be marked “HE” or “High Efciency.” Low-water washing creates excessive sudsing with a regular non-HE detergent. Using regular detergent will likely result in longer cycle times and reduced rinsing performance. It may also result in component failures and noticeable mold or mildew. HE detergents are made to produce the right amount of suds for the best performance. Follow the manufacturer’s instructions to determine the amount of detergent to use. Normal Sounds You Can Expect At different stages of the wash cycle, you may hear sounds and noises that are different from those of your previous washer. For example, you may hear a clicking and hum at the beginning of the cycle, as the lid lock goes through a self-test. There will be different kinds of humming and whirring sounds as the washplate moves the load. And sometimes, you may hear nothing at all, as the washer determines the correct water level for your load or allows time for clothes to soak. Use only High Efciency (HE) detergent. Concentrated Cleaning Low-water cleaning means concentrated cleaning. Rather than diluting detergent as done in an agitator-style washer, this washer delivers the detergent directly to the soils. Automatic Load Size Sensing Once you start the cycle, the lid will lock, and the washer will begin the sensing process to determine the correct water level for the load. This may take several minutes before water is added. You will nd a step-by-step description in the “Cycle Status Lights” section. You will hear the motor turn the basket in short pulses to thoroughly wet the load. This low-water wash method uses less water and energy compared to a traditional agitator-style washer. Cleaning with Less Water The most striking difference in your new washer is the low-water washplate wash system. The washer automatically adjusts the water level to the load size—no water level selector is needed. Traditional agitator-style washer Washer with low-water washplate wash system Washplate Load garments in loose heaps evenly around the washplate. Do not load garments directly over the center of the washplate; when loaded, the center of the washplate should be visible.4

Use the Wash Cycle knob to select available cycles on your washer. Turn the knob to select a cycle for your laundry load. See “Cycle Guide” for detailed descriptions of cycles. CYCLE OPTIONS When you select a cycle, its default settings will light up. Not all cycles and options are available on all models. TEMP Temperature Control senses and maintains uniform water temperatures by regulating incoming hot and cold water. Select a wash temperature based on the type of fabric and soils being washed. For best results and following the garment label instructions, use the warmest wash water safe for your fabric.

• Warmandhotwatermaybecoolerthanwhatyour previous washer provided.

• EveninaCoolwaterwash,somewarmwatermay be added to the washer to maintain a minimum temperature. SOIL LEVEL For most loads, use the Soil Level that is preset with the cycle you have chosen. For heavily soiled and sturdy fabrics, press Soil Level to select more wash time, if needed. For lightly soiled and delicate fabrics, press Soil Level to select less wash time, if needed. Lighter Soil Level setting will help reduce tangling and wrinkling. SPIN SPEED This washer automatically selects the spin speed based on the cycle selected. The preset speeds can be changed. Not all spin speeds are available with all cycles.

• Fasterspinspeedsmeanshorterdrytimes,butmay increase wrinkling in your load.

• Slowerspinspeedsmeanlesswrinkling,butwillleave your load more damp. You may also add or remove options for each cycle. Not all options can be used with all cycles, and some are preset to work with certain cycles. EXTRA RINSE This option can be used to automatically add a second rinse to most cycles. FABRIC SOFTENER This option must be selected if using fabric softener during a cycle. It ensures that fabric softener is added at the correct time in the rinse for even distribution.

The Cycle Status Lights show the progress of a cycle. At each stage of the process, you may notice sounds or pauses that are different from traditional washers. SENSING When the START/Pause/Unlock button is pressed, the washer will rst perform a self-test on the lid lock mechanism. You will hear a click, the basket will make a slight turn, then lid will unlock briey before locking again. Once the lid has locked the second time, the washer will use short, slow spins to estimate the load size. These sensing spins may take 2 to 3 minutes before water is added to the load and you may hear the hum of these spins. If the Sensing light is on, the washer is working properly. You will hear the motor turn the basket in short pulses to thoroughly wet the load. The washer will then move the load briey, pause to allow water to soak into the load, and resume adding water. This process may repeat until the correct amount of water has been added for the load. You may also hear water owing through the dispenser, adding detergent to the load. NOTE: Avoid opening the lid during sensing. The sensing process will start over when the washer is restarted. The Sensing light may also come on during the Wash portion of the cycle. This is normal. WASH You will hear the motor and washplate moving the load. Unlike traditional washers, the load is not covered with water. Low-water cleaning means concentrated cleaning. Rather than diluting detergent, as done in an agitator-style washer, this washer delivers the detergent directly to the soils. The motor sounds may change at different stages in the cycle. The wash time is determined by the selected soil level. RINSE You will hear sounds similar to the wash cycle as the washer rinses and moves the load. You may hear the motor turning on briey (short hum) to move the basket while lling. Fabric softener will be added if the Fabric Softener option was selected. Some cycles use spray rinsing.

LID LOCK To allow for proper load sensing, the lid will lock and the Lid Lock light will turn on. This light indicates that the lid is locked and cannot be opened. If you need to open the lid, press START/PAUSE/ UNLOCK. The lid will unlock once the washer movement has stopped. This may take several minutes if the load was spinning at high speed. Press START/Pause/Unlock again to resume the cycle. CYCLE GUIDE Items to wash: Cycle: Cycle Details: Machine-wash silks, hand-wash fabrics Delicate Small loads, cottons, polyester, perm press No-iron fabrics, cottons, perm press, linens, synthetics Cottons, linens, sheets, and mixed garment loads Large items such as sleeping bags, small comforters, jackets Sturdy fabrics, colorfast items, towels, jeans Cottons, linens, sheets, and mixed garment loads Swimsuits and items requiring rinsing without detergent Quick Wash Casual Normal Bulky Items Heavy Duty Eco Normal Rinse & Spin Use this cycle to wash lightly soiled garments indicating “Machine Washable Silks” or “Gentle” cycle on the care label. Place small items in mesh garment bags before washing. This cycle uses a higher, preset water level. Use this cycle to wash small, lightly soiled loads of 2-3 items that are needed in a hurry. This cycle features a spray rinse. Use this cycle to wash loads of no-iron fabrics such as sport shirts, blouses, casual business clothes, permanent press, and blends. Use this cycle for normally soiled cottons and mixed fabric loads. This cycle features a spray rinse. Use this cycle to wash large items such as jackets and small comforters. The washer will ll with enough water to wet down the load before the wash portion of the cycle begins. Do not tightly pack basket. Use this cycle for heavily soiled or sturdy items. Water-level sensing process may take longer for some items than for others because they will absorb more water than other fabric types. The Eco Normal cycle allows you to increase your energy savings compared to the Normal cycle. When this cycle is used, the wash cycle will use cooler wash water temperatures than the Normal cycle. This cycle features a spray rinse. Combines a rinse and spin for loads requiring an additional rinse cycle or to complete a load after power interruption. This cycle uses a higher, preset water level. Also use for loads that require rinsing only. Settings and options shown in bold are default settings for that cycle. For best fabric care, choose the cycle that best ts the load being washed. Not all cycles and options are available on all models. Hand-washed items or dripping wet items Drain & Spin This cycle uses a spin to shorten drying times for heavy fabrics or special-care items washed by hand. Use this cycle to drain washer after cancelling a cycle or completing a cycle after a power failure. No clothes in washer Clean Washer with Affresh

Use this cycle every 30 washes to keep the inside of your washer fresh and clean. This cycle uses a higher water level. Use with AFFRESH

washer cleaner tablet or liquid chlorine bleach to thoroughly clean the inside of your washer. This cycle should not be interrupted. See “Cleaning Your Washer.” IMPORTANT: Do not place garments or other items in the washer during the Clean Washer with AFFRESH™ cycle. Use this cycle with an empty wash tub. Heavily soiled fabrics Soak Use this cycle to soak small spots of set in stains on fabrics. The washer will use intermittent agitation and soaking. After time has expired, water will drain, but the washer will not spin. Cycle is complete. Hot Warm Cool Cold Cold Hot Warm Cool Cold Hot Warm Cool Cold Hot Warm Cool Cold Wash Temp*: Spin Speed: Hot Warm Cool Cold Extra Rinse Extra Rinse Extra Rinse Extra Rinse Available Options: Extra Rinse Extra Rinse Extra Rinse Hot Warm Cool Cold Hot Warm Cool Cold Hot Warm Cool Cold Hot High Low No Spin High Low No Spin High Low No Spin High Low No Spin High No Spin High Low No Spin High Low No Spin High High Low No Spin No Spin High Extra Heavy Heavy Medium Light Extra Heavy Heavy Medium Light Soil Level: Extra Heavy Heavy Medium Light Extra Heavy Heavy Medium Light Extra Heavy Heavy Medium Light Extra Heavy Heavy Medium Light Extra Heavy Heavy Medium Light Extra Heavy Heavy Medium Light Extra Heavy SPIN The washer spins the load at increasing speeds for proper water removal, based on selected cycle and spin speed.

DONE Once the cycle is complete, this light will come on. Remove the load promptly for best results. *All rinses are cold.6

• Emptypockets.Loosechange,buttons,oranysmall object can pass under the washplate and become trapped, causing unexpected sounds.

• Donotdrygarmentsifstainsremainafterwashing,because heat can set stains into fabric.

• Mendripsandtearstoavoidfurtherdamagetoitems during washing. Helpful Tips:

• Whenwashingwater-prooforwater-resistantitems,load evenly. See “Cycle Guide” for tips and more information on using the Bulky Items cycle.

• Usemeshgarmentbagstohelpavoidtanglingwhen washing delicate or small items.

• Turnknitsinsideouttoavoidpilling.Separatelint-takers from lint-givers. Synthetics, knits, and corduroy fabrics will pick up lint from towels, rugs, and chenille fabrics. NOTE: Always read and follow fabric care label instructions to avoid damage to your garments.

1. Sort and prepare your laundry 2. Load laundry into washer

Load garments in loose heaps evenly around the washplate. Do not load garments directly over the center of the washplate; when loaded, the center of the washplate should be visible. Try mixing different sized garments to reduce tangling. IMPORTANT: Garments need to move freely for best cleaning and to reduce wrinkling and tangling.7 Add a measured amount of HE detergent into detergent tray. This tray holds 3 oz. (89 mL). Do not overll tray – adding too much detergent may cause detergent to be dispensed into the washer too early. IMPORTANT: Use only High Efciency detergents. The package will be marked “HE” or “High Efciency.” Low-water washing creates excessive sudsing with a regular non-HE detergent. Using regular detergent will likely result in longer cycle times and reduced rinsing performance. It may also result in component failures and noticeable mold or mildew. HE detergents are made to produce the right amount of suds for the best performance. Follow the manufacturer’s instructions to determine the amount of detergent to use. Using Oxi or color-safe bleach: If using an Oxi or color-safe bleach laundry boost product, add to the bottom of the washer basket before adding clothes. HELPFUL TIP: See “Washer Maintenance” for information on recommended method of cleaning washer dispenser trays.

3. Add HE detergent to dispenser

5. Add fabric softener to dispenser,

if desired Pour a measured amount of liquid fabric softener into tray, always follow manufacturer’s directions for correct amount of fabric softener based on your load size. Close dispenser drawer, then select Fabric Softener option. IMPORTANT: Fabric Softener option must be selected to ensure proper distribution at correct time in cycle. Do not overll or dilute. Overlling dispenser will cause fabric softener to immediately dispense into washer. If Extra Rinse option is selected, fabric softener will be dispensed into the last rinse. It is normal for a small amount of water to remain in the dispenser at the end of a cycle.

4. Add liquid chlorine bleach

to dispenser, if desired Liquid Chlorine Bleach Do not overll, dilute, or use more than 1 cup (250 mL). Do not use color-safe bleach or Oxi products in the same cycle with liquid chlorine bleach.

6. Press POWER to turn on washer

Detergent trayFabric softener tray Make sure the dispenser drawer is closed completely, then press POWER to turn on the washer. Turn cycle knob to choose your wash cycle. For more information, see “Control Panel”.

Liquid Chlorine Bleach Using Laundry Product Dispensers Starting Your Washer8 Wash Temp Hot Some cold water is added to save energy. This will be cooler than your hot water heater setting. Warm Some cold water will be added, so this will be cooler than what your previous washer provided. Cool - brights/darks Warm water is added to assist in soil removal and to help dissolve detergents. Cold Warm water may be added to assist in soil removal and to help dissolve detergents. Dark colors that bleed or fade Light soils

8. Select cycle settings

Once you select a cycle, the default settings for that cycle will be lit. Press the cycle settings buttons to change the Temperature, Soil Level, and Spin Speed, if desired. NOTE: Always read and follow fabric care label instructions to avoid damage to your garments.

10. Press START/Pause/Unlock

to begin wash cycle Press the START/Pause/Unlock button to start the wash cycle. Filling is delayed for several minutes while load balance is sensed.When the cycle has nished, the DONE indicator will light. Promptly remove garments after cycle has completed to avoid odor, reduce wrinkling, and rusting of metal hooks, zippers, and snaps. Unlocking the lid to add garments If you need to open the lid to add 1 or 2 missed garments: Press START/Pause/Unlock; the lid will unlock once the washer movement has stopped. This may take several minutes if the load was spinning at high speed. Then close the lid and press START/Pause/Unlock again to restart the cycle. If lid is left open for more than 10 minutes, water will pump out. Delay in water ll Filling is delayed for 2 to 3 minutes to check for load unbalance. You will hear the hum of the spin prior to lling. This is normal operation.

9. Select cycle options

Select any other cycle options you may wish to add, if not previously set. Some cycles will automatically add certain options such as Extra Rinse. These can be turned off, if desired. NOTE: Not all options are available with all cycles. Suggested Fabrics Whites and pastels Durable garments Heavy soils Bright colors Moderate to light soils Colors that bleed or fade Light soils9 WASHER MAINTENANCE

CLEANING YOUR WASHER

Keep your washer as clean and fresh as your clothes. To keep washer interior odor-free, follow this recommended cleaning procedure after every 30 washes:

1. Make sure the washer is empty.

2. Using recommended AFFRESH

washer cleaner, add one tablet to washer drum.

If using liquid chlorine bleach, add 1 cup (250 mL) to liquid chlorine bleach dispenser. IMPORTANT: Do not add detergent to CLEAN WASHER with AFFRESH™ cycle. Do not use more than recommended amount of bleach to avoid damaging product over time.

5. Select CLEAN WASHER with AFFRESH™ cycle.

6. Press START/Pause/Unlock.

NOTE: For best results, do not interrupt cycle. If cycle must be interrupted, press POWER and run a RINSE & SPIN cycle to ensure cleaner or bleach have been rinsed from washer. To clean exterior:

1. Use a soft, damp cloth or sponge to wipe up any spills.

2. Use all-purpose surface cleaner, if needed.

IMPORTANT: To avoid damaging the washer’s nish, do not use abrasive products. Replace inlet hoses after 5 years of use to reduce the risk of hose failure. Periodically inspect and replace inlet hoses if bulges, kinks, cuts, wear, or leaks are found. When replacing your inlet hoses, mark the date of replacement on the label with a permanent marker.

Operate your washer only when you are home. If moving, or not using your washer for a period of time, follow these steps:

1. Unplug or disconnect power to washer.

2. Turn off water supply to washer, to avoid ooding due

to water pressure surge.

IMPORTANT: To avoid damage, install and store washer where it will not freeze. Because some water may stay in hoses, freezing can damage washer. If storing or moving during freezing weather, winterize your washer. To winterize washer:

1. Shut off both water faucets; disconnect and drain water

2. Put 1 qt. (1 L) of R.V.-type antifreeze in basket and run

washer on RINSE & SPIN cycle for about 30 seconds to mix antifreeze and remaining water.

3. Unplug washer or disconnect power.

IMPORTANT: Dispenser trays are not dishwasher safe. You may nd laundry product residue in your dispenser trays. To remove residue, follow this recommended cleaning procedure:

1. Pull tray out until you feel resistance.

2. Lift up slightly, and then continue pulling out.

3. Wash in warm, soapy water, using a mild detergent.

4. Rinse with warm water.

5. Air dry, or dry with a towel, then place back into slot.10

REINSTALLING/USING WASHER AGAIN

To reinstall washer after non-use, vacation, winter storage, or moving:

1. Refer to Installation Instructions to locate, level, and

2. Before using again, run washer through the following

recommended procedure: To use washer again:

1. Flush water pipes and hoses. Reconnect water inlet

hoses. Turn on both water faucets.

2. Plug in washer or reconnect power.

3. Run washer through BULKY ITEMS cycle to clean

washer and remove antifreeze, if used. Use only HE High Efciency detergent. Use half the manufacturer’s recommended amount for a medium-size load.

TRANSPORTING YOUR WASHER

1. Shut off both water faucets. Disconnect and drain water

2. If washer will be moved during freezing weather, follow

WINTER STORAGE CARE directions before moving.

3. Disconnect drain from drain system and drain any

remaining water into a pan or bucket. Disconnect drain hose from back of washer.

4. Unplug power cord.

5. Place inlet hoses and drain hose inside washer basket.

6. Drape power cord over edge and into washer basket.

7. Place packing tray from original shipping materials back

inside washer. If you do not have packing tray, place heavy blankets or towels into basket opening. Close lid and place tape over lid and down front of washer. Keep lid taped until washer is placed in new location.11 Vibration or Off-Balance First try the solutions suggested here or visit our website possibly avoid the cost of a service call... In U.S.A. www.whirlpool.com/help - In Canada www.whirlpool.ca If you experience Possible Causes Solution Feet may not be in contact with the oor and locked. Front and rear feet must be in rm contact with oor, and washer must be level to operate properly. Jam nuts must be tight against the bottom of the cabinet. Check oor for exing or sagging. If ooring is uneven, a 3/4" (19 mm) piece of plywood under your washer will reduce sound. See “Level the Washer” in the “Installation Instructions”. Load could be unbalanced. Load garments in loose heaps evenly around the washplate. Do not load garments directly over the center of the washplate. Adding wet items to washer or adding more water to basket could unbalance washer. Wash smaller loads to reduce imbalance. Use Bulky Item cycle for oversized, non-absorbent items such as jackets and small comforters. See “Cycle Guide” and “Using Your Washer” in this “Use and Care Guide”. Empty pockets before washing. Loose items such as coins could fall between basket and tub or may block pump. It may be necessary to call for service to remove items. Washer not level. Water may splash off basket if washer is not level. Fill hoses not attached tightly. Tighten ll-hose connection. Make sure all four ll hose at washers are properly seated. Drain hose connection Pull drain hose from washer cabinet and properly secure it to drainpipe or laundry tub. Check household plumbing for leaks or clogged sink or drain. Water can back up out of a clogged sink or drainpipe. Check all household plumbing for leaks (laundry tubs, drain pipe, water pipes, and faucets.) Fill hose washers Noises - For normal operating sounds, go to www.whirlpool.com/help It is normal to hear metal items on clothing such as metal snaps, buckles, or zippers touch against the stainless steel basket. Objects caught in washer drain system. Clicking or metallic noises Gurgling or humming It is normal to hear the pump making a continuous humming sound with periodic gurgling or surging as nal amounts of water are removed during the spin/drain cycles. Washer may be draining water. Water Leaks Check the following for proper installation: Unbalanced loading can cause basket to be out of alignment and cause water to splash off tub. See “Using Your Washer” for loading instructions. Washer not loaded properly. TROUBLESHOOTING Check the following for proper installation or see “Using Your Washer” section. Not enough water in washer Load not completely covered in water. This is normal operation for an HE low-water washer. The load will not be completely under water. The washer senses load sizes and adds correct amount of water for optimal cleaning. See “What’s New under the Lid.” IMPORTANT: Do not add more water to washer. Adding water lifts the garments off the washplate, resulting in less effective cleaning. Washer not performing as expected Washer may not be level. Humming You may hear the hum of the sensing spins after you have started the washer. This is normal. Sensing spins will take several minutes before water is added to the washer. The sensing light is on.12 If you experience Possible Causes Solution Normal washer operation. Lid must be closed for washer to run. Washer will pause during certain phases of cycle. Do not interrupt cycle. Washer may be stopped to reduce suds. The washer senses the dry load with short spins that may take 2 to 3 minutes before the water is added. You may hear the hum of the spins. This is normal. Washer won’t run or ll, washer stops working or wash light remains on (indicating that the washer was unable to ll appropriately) Check for proper water supply. Both hoses must be attached and have water owing to inlet valve. Both hot and cold water faucets must be turned on. Check that inlet valve screens have not become clogged. Check for any kinks in inlet hoses, which can restrict water ow. Plug power cord into a grounded 3 prong outlet. Do not use an extension cord. Ensure there is power to outlet. Reset a tripped circuit breaker. Replace any blown fuses. NOTE: If problems continue, contact an electrician. Check proper electrical supply. Washer may be tightly packed. Remove several items, rearrange load evenly around the washplate. Do not load garments directly over the center of the washplate. Close lid and press Start/Pause. Add only 1 or 2 additional garments after washer has started. Not using HE detergent or using too much HE detergent. Only use HE detergent. Suds from regular detergents can slow or stop the washer. Always measure detergent and follow detergent directions based on your load requirements. To remove suds, cancel cycle. Select RINSE & SPIN. Press START/Pause/Unlock. Do not add more detergent. First try the solutions suggested here or visit our website possibly avoid the cost of a service call... In U.S.A. www.whirlpool.com/help - In Canada www.whirlpool.ca Washer not performing as expected (cont.) Do not add more water to the washer. TROUBLESHOOTING13 If you experience Possible causes Solution Incorrect or wrong wash or rinse temperatures Check for proper water supply. Make sure hot and cold inlet hoses are not reversed. Both hoses must be attached to both washer and faucet, and have both hot and cold water owing to inlet valve. Check that inlet valve screens are not clogged. Remove any kinks in hoses. Energy Star
