USER MANUAL ABR2037FES WHIRLPOOL

Black and white photo of assorted fruits including apples, grapes, peaches, and melons (no text or symbols visible)

Bottom Freezer Refrigerator

Use & Care Guide

Vertical sequence of black-and-white icons representing various workplace or safety symbols (no text or labels)

Important Safety Instructions .... 1-2

Installation 3-9

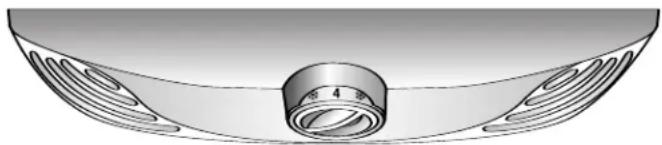

Temperature Controls .... 10-11

Fresh Food Features 12-14

Freezer Features 15

Ice and Water 16-17

Water Filter 17-19

Food Storage Tips 20-22

Care and Cleaning 23-26

Operating Sounds 27

Troubleshooting 28-30

Warranty & Service 31

Installer: Please leave this guide with this appliance.

Consumer: Please read and keep this Use and Care Guide for future reference; it provides the proper use and maintenance information.

Keep sales receipt and/or canceled check as proof of purchase.

Call: 1-800-688-9900 USA 1-800-688-2002 Canada

Have complete model and serial number identification of your refrigerator. This is located on a data plate inside the fresh food compartment, on the upper right side. Record these numbers below for easy access.

Model Number ____

Serial Number

Date of Purchase

In our continuing effort to improve the quality and performance of our appliances, it may be necessary to make changes to the appliance without revising this guide.

What You Need to Know About Safety Instructions

Warning and Important Safety Instructions appearing in this guide are not meant to cover all possible conditions and situations that may occur. Common sense, caution and care must be exercised when installing, maintaining or operating appliance.

Always contact the manufacturer about problems or conditions you do not understand.

Recognize Safety Symbols, Words, Labels

DANGER

DANGER – Immediate hazards which WILL result in severe personal injury or death.

WARNING

WARNING – Hazards or unsafe practices which COULD result in severe personal injury or death.

CAUTION

CAUTION – Hazards or unsafe practices which COULD result in minor personal injury or property damage.

DANGER

To reduce risk of injury or death, follow basic precautions, including the following:

Important: Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators are still dangerous – even if they sit out for “just a few days.” If you are getting rid of your old refrigerator, please follow the instructions below to help prevent accidents.

Before you throw away your old refrigerator or freezer:

• Take off the doors.
- Leave the shelves in place so children may not easily climb inside.
- Cut off power cord plug.

Illustration of a computer setup with stacked documents and a tablet device (no text or symbols visible)

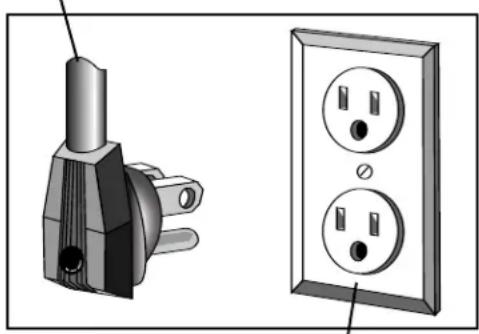

This appliance is equipped with a three-prong grounded plug for your protection against possible electrical shock hazards. It must be plugged into a properly grounded wall receptacle. Where a standard two-prong wall receptacle is encountered, it is the personal responsibility and obligation of the customer to have it replaced with a properly grounded three-prong wall receptacle. Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. Do not use an adapter plug.

Power supply cord with three-prong grounded plug

Illustration of a plug and two electrical outlets (no text or symbols)

Properly grounded type wall receptacle

WARNING

To reduce risk of fire, electric shock, serious injury or death when using your refrigerator, follow basic precautions, including the following:

1. Read all instructions before using the refrigerator.
2. Observe all local codes and ordinances.
3. Be sure to follow grounding instructions.
4. Check with a qualified electrician if you are not sure this appliance is properly grounded.
5. Do not ground to a gas line.
6. Do not ground to a cold-water pipe.
7. Refrigerator is designed to operate on a separate 115 volt, 15 amp., 60 cycle line.
8. Do not modify plug on power cord. If plug does not fit wall receptacle, have proper receptacle installed by a qualified electrician.

9. Do not use a two-prong adapter, extension cord or power strip.

10. Do not remove warning tag from power cord.

11. Do not tamper with refrigerator controls.

12. Do not service or replace any part of refrigerator unless specifically recommended in Use and Care Guide or published user-repair instructions.

Do not attempt service if instructions are not understood or if they are beyond personal skill level.

1. Always disconnect refrigerator from electrical supply before attempting any service. Disconnect power cord by grasping the plug, not the cord.
2. Install refrigerator according to Installation Instructions. All connections for water, electrical power and grounding must comply with local codes and be made by licensed personnel when required.
3. Keep your refrigerator in good condition. Bumping or dropping refrigerator can damage refrigerator or cause refrigerator to malfunction or leak. If damage occurs, have refrigerator checked by qualified service technician.
4. Have worn power cords and/or loose plugs replaced by a qualified service technician.
5. Always read and follow manufacturer's storage and ideal environment instructions for items being stored in refrigerator.
6. Your refrigerator should not be operated in the presence of explosive fumes.
7. Children should not climb, hang or stand on any part of the refrigerator.
8. Clean up spills or water leakage associated with water installation.

Installation

Your refrigerator was packed carefully for shipment. Remove and discard shelf packaging and tape. Do not remove the serial plate.

Location

• Do not install refrigerator near oven, radiator or other heat source. If not possible, shield refrigerator with cabinet material (contact a qualified contractor).
• Do not install where temperature falls below 55^ F (12^) or rises above 110^ F (43^) . Malfunction may occur at this temperature.
• Refrigerator is designed for indoor household application only.

Measuring the Opening

When installing your refrigerator, measure carefully. Allow 12 " space at top and 12 " space behind the machine compartment cover (located in the rear) for proper air circulation.

Subflooring or floor coverings (i.e. carpet, tile, wood floors, rugs) may make your opening smaller than anticipated.

Some clearance may be gained by using the leveling procedure under Leveling.

Important: If refrigerator is to be installed into a recess where the top of the refrigerator is completely covered, use distance from floor to top of hinge cap to verify proper clearance.

Transporting Your Refrigerator

• NEVER transport refrigerator on its side. If an upright position is not possible, lay refrigerator on its back. Allow refrigerator to sit upright for approximately 30 minutes before plugging it in to assure oil returns to the compressor. Plugging the refrigerator in immediately may cause damage to internal parts.
• Use an appliance dolly when moving refrigerator. ALWAYS truck refrigerator from its side or back-NEVER from its front.
• Protect outside finish of refrigerator during transport by wrapping cabinet in blankets or inserting padding between the refrigerator and dolly.
• Secure refrigerator to dolly firmly with straps or bungee cords. Thread straps through handles when possible. Do not over-tighten. Over-tightening restraints may dent or damage outside finish.

Leveling

To enhance the appearance and maintain performance, the refrigerator should be leveled per instructions below.

CAUTION

To protect property and refrigerator from damage, observe the following:

• Protect vinyl or other flooring with cardboard, rugs, or other protective material.
• Do not use power tools when performing leveling procedure.

Notes:

• Complete any required water supply connection before leveling.
• Some models only have adjustment screws (A).

Materials Needed:

• 38 " hex head driver

• Carpenter's level.

• Remove toe grille.

- Grasp firmly and pull outward to unclip.

1. Using hex head driver, turn the front adjustment screws (A) on each side to raise or lower the front of the refrigerator (see illustration below).

A B B A C C

1. Using the hex head driver, turn each of these adjustment screws (B) to raise or lower the rear of the refrigerator.
2. Using a carpenter's level, make sure front of refrigerator is 14'' (6 mm) or 12 bubble higher than back of refrigerator and that the refrigerator is level from side to side.
3. Turn stabilizing legs (C) clockwise until firmly against floor.
4. Turn adjustment screws (A) counterclockwise to allow the full weight of the refrigerator to rest on the stabilizing legs.
5. Replace the toe grille.

- Align the toe grille mounting clips with the lower cabinet slots.

- Push the toe grille firmly until it snaps into place.

Door and Drawer Removal

Some installations require door/drawer removal to transport the refrigerator to its final location.

WARNING

To avoid electrical shock which can cause severe personal injury or death, observe the following:

- Disconnect power to refrigerator before removing doors or drawer. Connect power only after replacing doors or drawer.

CAUTION

To avoid damage to walls and flooring, protect vinyl or other flooring with cardboard, rugs or other protective material.

1. Unplug power cord from power source.

2. Remove toe grille (see page 3).

3. Remove top hinge cover from refrigerator door by removing Phillips screw and retain screw and cover for later use.

4. Unscrew 516 " hex head screws from top hinge to remove hinge and retain all screws for later use.

5. Lift refrigerator door from center hinge pin.

6. Remove plastic sleeve, if present. Remove center hinge pin with a 516 " hex head driver. Retain hinge pin and plastic sleeve for later use.

7. Remove Phillips screws to remove center hinge and retain all screws for later use.

8. Remove bottom hinge or stabilizing bracket with 38 " hex head driver and retain screws for later use. Lift out bottom hinge pin (on freezer door models).

9. See pages 4-5 for drawer removal instructions.

" hex

Pullout Freezer Drawer

DANGER

To prevent accidental child entrapment or suffocation risk, do not remove the divider in the top freezer basket.

WARNING

To avoid electrical shock, which can cause severe personal injury or death, disconnect power to refrigerator before removing doors. After replacing doors, connect power.

CAUTION

To avoid possible injury, product, or property damage, you will need two people to perform the following instructions.

To Remove:

1. Pull drawer open to full extension.

2. Pull upper basket out to full extension and lift out to remove.

3. Lift lower basket straight up and out to remove.

4. On each side rail is a basket cradle with two snap attachments. To release each cradle, unlatch the snaps by pushing them inward, away from the side rail system. Lift the cradles off of the rails.

5. Remove Phillips screw from each side of rail system (select models).

6. Lift top of drawer front to unhook supports from rail system. Lift door front out to remove.

Illustration of a hand placing a shopping basket into a refrigerator (no text or symbols visible)

Pure mechanical assembly diagram showing a sliding mechanism inside a door frame (no text or symbols)

Illustration of a hand opening a refrigerator with an upward arrow indicating action (no text or symbols present)

Installation

To Install:

1. Pull both rails out to full extension.

Pure diagram of a door or shelf structure with an arrow indicating direction (no text or symbols)

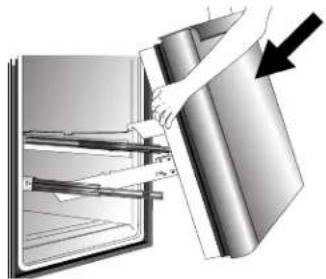

1. While supporting door front, hook supports into tabs located on inside of rail.

Pure mechanical assembly diagram showing a lever and bracket (no text or symbols)

1. Lower door front into final position.

Illustration of a hand inserting a plastic door into an open refrigerator (no text or symbols visible)

1. Replace and tighten Phillips screws that were removed from each side of rail system (select models).

2. Place the basket cradles back onto the side rails. Align snaps with the slots on the side rails and press each snap towards the rail until it clicks.

3. With rails pulled out to full extension, set the basket straight down into the basket cradles.

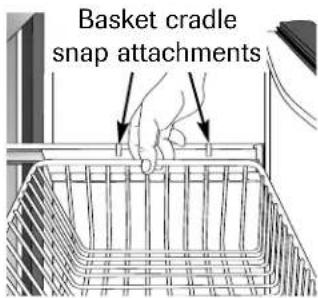

Basket cradle snap attachments

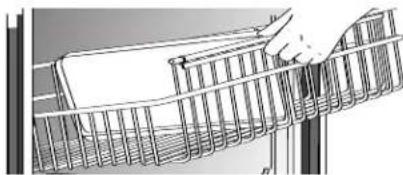

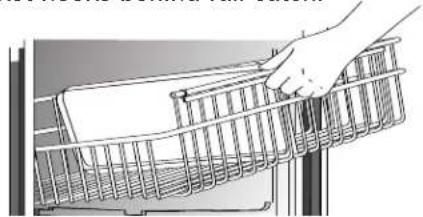

1. Slide upper basket into freezer. Make sure that rear of basket hooks behind rail catch.

Illustration of a hand placing a plastic basket into a container (no text or symbols)

Reinstallation of the Doors

1. Install hinge assemblies:

- Install top hinge loosely with 516 " hex head screws.

• Install center hinge with Phillips screws.

- Freezer door models: Install bottom hinge with 38 " hex head screws.

1. Freezer door models: Insert bottom hinge pin.

- Locate bottom hinge hole closest to outside edge of cabinet, and insert bottom hinge pin. Replace any door shims, if present.

1. Freezer door models: Place hinge side of freezer door on bottom hinge pin and hold freezer door upright while installing center hinge pin with 516 " hex head driver.

- Replace plastic sleeve. - Replace any applicable door shims. - Make sure the hinge pin is installed tightly.

1. Place hinge side of refrigerator door on center hinge pin.

2. While holding refrigerator door upright, tighten down top hinge with 316 " hex head driver and replace hinge cover.

Mechanical assembly diagram showing two downward arrows interacting with a rotating component (no text or symbols)

Door Reversal

In some installations, reversing the door swing allows for more convenient access to stored items. Both doors can be reversed on freezer door models and the fresh food door is reversible on freezer drawer models.

1. Remove door(s) (see page 4).

2. Transfer cabinet plugs and cabinet screws to opposite side of cabinet.

- Remove cabinet plugs with flat blade of screwdriver tip wrapped in masking tape.

- Remove center mullion screws with 516 " hex head screwdriver.

- Freezer door models: Remove bottom mullion screws with 38 " hex head driver.

Diagram of a multi-tiered refrigerator with arrows indicating rotation or movement (no text or symbols)

CAUTION

To avoid possible injury and damage to property:

- Place doors on a nonabrasive surface protected by towels or rugs while working directly on doors.

1. Transfer door stops from bottom edge of fresh food door and freezer door, if applicable, to opposite side of door edge.

- Use a Phillips screwdriver for removal and installation.

Pure diagram of a mechanical or structural component with arrows indicating direction (no text or symbols)

1. Install handles (see below and page 7).

2. Reinstall the door(s).

Handles

Note: If not installed, the handle is located in the interior of the fresh food section or attached to the back of your refrigerator.

Remove and discard handle packaging and tape.

Handle design varies from refrigerator to refrigerator. Please reference the appropriate instructions for your model below.

Fresh Food Handles

Standard Front Mount Handle

Materials Needed:

• Phillips screwdriver
- 5 / 16 hex head driver

To Install:

1. Remove 14 " hex head screws from door face with hex head driver, and Phillips screw from top of door.

Diagram of a rectangular plate with labeled arrows indicating force or direction (no text or symbols present)

- If reversing door, remove door plugs from opposite side of door and insert in screw holes.

1. Align handle holes with screw holes on door face and secure with two door face screws from step 1.

1. Locate handle trim in literature pack and install over top and bottom of handle, as illustrated.

2. Secure top handle trim with remaining screw removed in step 1.

3. Snap bottom trim over bottom portion of handle.

To Remove:

1. Remove top handle trim by removing top handle screw.
2. Retain trim and screw for later replacement.
3. Pry bottom handle trim from handle with screwdriver flat blade wrapped in masking tape.
4. Retain trim for later replacement.
5. Remove two hex head screws.
6. Retain screws for later replacement.

Side Mount Handle

Materials Needed:

• Phillips screwdriver

To Install:

1. Remove screws from the side of the door.
2. Align the side mount handle with the predrilled holes in the door panel.
3. Insert the screws in the sequence as shown.

Upper Handle 1 3

Lower Handle

1. Ensure the door handle is snug to the door panel.

To Remove:

Reverse installation procedure.

Installation

Freezer Handles

Partial-Width Handle

Materials Needed:

• Phillips screwdriver

To Install:

1. Install handle by fastening with screws removed from edge of door.

- If reversing freezer door, remove door plugs from top edge of door and insert into screw holes.

To Remove:

1. Remove handle screws with Phillips screwdriver and retain screws for later use.

Front Mount Plastic Freezer Handle

Notes:

• There is a slight curve to this style of freezer handle.

- For proper installation, be sure handle is oriented as shown.

Illustration of a door handle with a curved handle (no text or symbols)

To Install:

1. Align door handle clips to the studs attached to the freezer door.

2. Ensure the large hole in the mounting clip is positioned to the right on both ends of the handle.

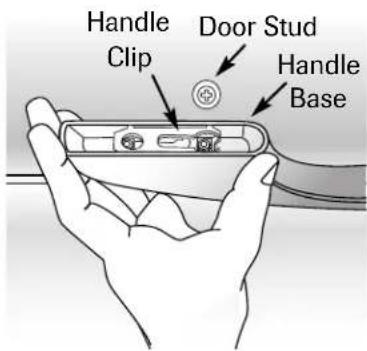

Handle Clip Door Stud Handle Base

1. Rotate the handle so that the handle is flat against the door.

2. Grasp the handle firmly and slide handle to the right.

To Remove:

1. With both hands, firmly grasp the handle toward the right side.

2. Slide toward the left, lift and remove from the surface.

Connecting the Water Supply

WARNING

To reduce the risk of injury or death, follow basic precautions, including the following:

• Read all instructions before installing ice maker.
• Do not attempt installation if instructions are not understood or if they are beyond personal skill level.
• Observe all local codes and ordinances.
• Do not service ice maker unless specifically recommended in Use & Care Guide or published user-repair instructions.
• Disconnect power to refrigerator before installing ice maker.
  • Water damage due to an improper water connection may cause mold/mildew growth. Clean up spills or leakage immediately!

CAUTION

To avoid property damage or possible injury, follow basic precautions, including the following:

• Consult a plumber to connect 14 " O.D. copper tubing to household plumbing to assure compliance with local codes and ordinances.
• Confirm water pressure to water valve is between 35 and 100 pounds per square inch, 20 pounds per square inch without filter.
• Do not use a self-piercing or 316 " saddle valve. Both reduce water flow and can become clogged over time, and may cause leaks if repair is attempted.
• Tighten nuts by hand to prevent cross threading. Finish tightening nuts with pliers and wrenches. Do not over-tighten.
• Wait two to three hours before placing refrigerator into final position to check and correct any water leaks. Recheck for leaks after 24 hours.
• Verify the copper tubing under the sleeve is smooth and free from defects. Do not reuse an old sleeve.

Materials Needed:

• 14 " outer diameter flexible copper tubing
• Shut-off valve (requires a 14 " hole to be drilled into water supply line before valve attachment)
• Adjustable wrench (2)
• 14 " hex nut driver

Notes:

• Use copper tubing only for installation. Plastic is less durable and can cause damage.

• Add 8' to tubing length needed to reach water supply for creation of service loop.

• Create service loop with copper tubing (minimum 2' diameter). Avoid kinks in the copper tubing when bending the service loop. Do not use plastic tubing.

2' diameter minimum

1. Remove plastic cap from water valve inlet port.

2. Place brass nut (A) and sleeve (B) on copper tube end as illustrated.

Reminder: Do not use an old sleeve. The nut and sleeve are provided in the Use and Care packet.

1. Place end of copper tubing into water valve inlet port. Shape tubing slightly. Do not kink – so that tubing feeds straight into inlet port.

e B A

B A

Installation

1. Slide brass nut over sleeve and screw nut into inlet port.

Place adjustable wrench on nut (1) attached to plastic waterline and maintain position.

Using second adjustable wrench turn the lower nut (2) counterclockwise and fully tighten while holding the upper nut in place.

1 2

Important: Do not over-tighten. Crossthreading may occur.

1. Pull on tubing to confirm connection is secure. Connect tubing to frame with water tubing clamp (C) and turn on water supply. Check for leaks and correct if necessary. Continue to observe the water supply connection for two to three hours prior to moving the refrigerator to its permanent location.

2. Monitor water connection for 24 hours. Correct leaks, if necessary.

Pure mechanical diagram showing a vertical rod connected to a cylindrical component, with no text or symbols present.

Alternate connection (select models)

Materials Needed:

• ¼" outer diameter flexible copper tubing
• Shut-off valve (requires a 14 " hole to be drilled into water supply line before valve attachment)
• Adjustable wrench
• 1/4'' hex nut driver

Notes:

• Use copper tubing only for installation. Plastic is less durable and can cause damage.

• Add 8' to tubing length needed to reach water supply for creation of service loop.

• Create service loop with copper tubing (minimum 2' diameter). Avoid kinks in the copper tubing when bending the service loop. Do not use plastic tubing.

1. Remove plastic cap from water valve inlet port.
2. Place brass nut (A) and sleeve (B) on copper tube end as illustrated. Reminder: Do not use old sleeve. The nut and the sleeve are provided in the use and care packet.
3. Place end of copper tubing into water valve inlet port. Shape tubing slightly. Do not kink – so that tubing feeds straight into inlet port.
4. Slide brass nut over sleeve and screw nut into inlet port. Tighten nut with wrench.

Important: Do not over-tighten. Crosstreading may occur.

1. Pull on tubing to confirm connection is secure. Connect tubing to frame with water tubing clamp (C) and turn on water supply. Check for leaks and correct if necessary. Continue to observe the water supply connection for two to three hours prior to moving the refrigerator to its permanent location.
2. Monitor water connection for 24 hours. Correct leaks, if necessary.

Mechanical assembly diagram showing a valve with directional arrows and components (no text or labels)

A B

Dial Temperature Controls (select models)

The controls are located at the top front of the refrigerator and freezer compartments.

Note: The freezer control turns the cooling system on. Neither section will cool if freezer control is set to OFF.

Refrigerator Control

3D rendering of a mechanical component with a central knob and flanges (no text or symbols)

Freezer Control

Simple line drawing of a curved object with a labeled dimension '4' (no text or symbols beyond the label)

Initial Control Settings

After plugging the refrigerator in, set the controls.

• To adjust the controls, turn the control knob to the left or right as desired.
• The temperature control range for both compartments is 1 through 7 (coldest).
• Set the Freezer control on 4.
• Set the Refrigerator control on 4.
• Let the refrigerator run at least 8 to 12 hours before adding food.

Warm Cabinet Surfaces

At times, the front of the refrigerator cabinet may be warm to the touch. This is a normal occurrence that helps prevent moisture from condensing on the cabinet. This condition will be more noticeable when you first start the refrigerator, during hot weather and after excessive or lengthy door openings.

Adjusting the Controls

• 24 hours after adding food, you may decide that one or both compartments should be colder or warmer. If so, adjust the control(s) as indicated in the Temperature Control Guide table below. See page 20 for instructions on checking compartment temperature.
• Except when starting the refrigerator, do not change either control more than one number at a time.
• Allow 24 hours for temperatures to stabilize.
• Changing either control will have some effect on the temperature of the other compartment.

Temperature Control Guide

Refrigerator too warm	Turn the Refrigerator control to next higher number.
Refrigerator too cold	Turn the Refrigerator control to next lower number.
Freezer too warm	Turn the Freezer control to next higher number.
Freezer too cold	Turn the Freezer control to next lower number.
Turn refrigerator OFF	Turn the Freezer control to OFF.

Note: Turning freezer control to OFF stops cooling in both compartments. It does not shut off power to the refrigerator.

Temperature Controls

Touch Temperature Controls (select models)

The controls are located at the top front of the refrigerator compartment.

Control

Amana Freezer 4 To Beaker Refrigerator 4 To Beaker Electronic

Initial Control Settings

After plugging the refrigerator in, set the controls.

• Pressing the or pads adjusts the controls to the desired setting.
  • The temperature control range for both compartments is 1 through 7 (coldest).
• Set the Freezer control on 4.
• Set the Refrigerator control on 4.
• Let the refrigerator run at least 8 to 12 hours before adding food.

Warm Cabinet Surfaces

At times, the front of the refrigerator cabinet may be warm to the touch. This is a normal occurrence that helps prevent moisture from condensing on the cabinet. This condition will be more noticeable when you first start the refrigerator, during hot weather and after excessive or lengthy door openings.

Adjusting the Controls

• 24 hours after adding food, you may decide that one or both compartments should be colder or warmer. If so, adjust the control(s) as indicated in the Temperature Control Guide table below. See page 20 for instructions on checking compartment temperature.
• Except when starting the refrigerator, do not change either control more than one number at a time.
• Allow 24 hours for temperatures to stabilize.

Temperature Control Guide

Refrigerator too warm	Set the Refrigerator control to next higher number by pressing the △ pad.
Refrigerator too cold	Set the Refrigerator control to next lower number by pressing the ▽ pad.
Freezer too warm	Set the Freezer control to next higher number by pressing the △ pad.
Freezer too cold	Set the Freezer control to next lower number by pressing the ▽ pad.
Turn refrigerator OFF	Press the Refrigerator or Freezer pad until a dash (-) appears in the display.

Shelves

CAUTION

To avoid personal injury or property damage, observe the following:

• Never attempt to adjust a shelf that is loaded with food.
• Confirm shelf is secure before placing items on shelf.
• Handle tempered glass shelves carefully. Shelves may break suddenly if nicked, scratched, or exposed to sudden temperature change.

Your refrigerator has either Spillsaver™ or non-sealed shelves. The Spillsaver™ shelves have a spill retainer edge which allows for easier clean up and some are equipped with the EasyGlide™ slide out feature. To slide out (select models), grasp the front of the shelf and pull forward. Push in the shelf to return to the original position.

To Remove a Shelf:

- Slightly tilt up the front and lift up the rear of the shelf, then pull the shelf straight out.

To Lock the Shelf Into Another Position:

• Tilt up the front edge of the shelf.
• Insert the hooks into the desired frame openings and let the shelf settle into place.
• Be sure the shelf is securely locked at the rear.

The Crisper Top serves as the lower fresh food shelf.

To Remove the Crisper Top:

• Remove drawers as indicated on pages 13 and 14.
• Place hand under the frame to push up the glass. Lift glass out.
• Lift frame from refrigerator liner rails.
• To install, repeat above instructions in reverse order.

Door Storage

Dairy Center

The Dairy Center provides convenient door storage for spreadable items such as butter and margarine. This compartment can be moved to different locations to accommodate storage needs. To use the dairy center, raise the cover.

Illustration of hands operating a mechanical device with a curved arrow indicating rotation (no text or symbols present)

To Remove:

- Raise the cover, pull upward and tilt out.

To Install:

- Reverse above procedure.

Door Buckets

Door Buckets can be moved to meet storage needs.

To Remove:

- Slide bucket up and pull straight out.

To Install:

- Slide bucket in and down until firmly seated in the door liner.

Simple line drawing of a container being inserted into a cabinet (no text or symbols)

Full-Width Door Shelf

Full-Width Door Shelf removes for easy cleaning.

To Remove:

- Slide shelf up and pull straight out.

To Install:

- Reverse above procedure.

Technical line drawings of three different structural components or brackets, showing different angles and orientations (no text or symbols present)

Fresh Food Features

Beverage Chiller™ (select models)

The Beverage Chiller™ keeps beverages and other items cooler than the rest of the fresh food section. A cold air inlet allows air from the section to pass into the beverage chiller. The Beverage Chiller™ control is located on the left wall of the fresh food compartment. The control adjusts the amount of cold air allowed in to the beverage chiller. For a cooler temperature in the Beverage Chiller™, slide the control down.

To Remove:

• First remove the pick off shelf to the left of the Beverage Chiller™.
• Firmly hold each side of beverage chiller, lift up and away from door liner.

To Install:

- Reverse above procedure.

Illustration of a hand placing a tray with arrows indicating direction (no text or symbols)

Diagram of a container with arrows indicating movement or force (no text or symbols present)

Note: Cold air diverted into the Beverage Chiller™ can decrease the main refrigerator temperature. Refrigerator control may need to be adjusted.

Storage Drawers

Snack Drawer (select models)

The Snack Drawer can be used for storage of miscellaneous items or extra produce.

Technical line drawing of a mechanical or architectural component with no visible text or symbols

To Remove:

- Pull drawer out to full extension. Tilt up front of drawer and pull straight out.

To Install:

- Insert drawer into frame rails and push back into place.

Crisper Drawers

The Crisper Drawers provide a higher humidity environment for fresh fruit and vegetable storage.

Controls

The Crisper Controls regulate the amount of humidity in the crisper drawer. Slide the control toward the low setting for produce with outer skins. Slide the control toward the high setting for leafy produce.

Vegetables

high

•

Humidity Controlled

low

Fruit

To Remove:

- Pull drawer out to full extension. Tilt up front of drawer and pull straight out.

To Install:

- Insert drawer into frame rails and push back into place.

Note: For best results, keep the crispers tightly closed.

Temperature-Controlled Drawer (select models)

The Chef's Pantry™ drawer is a full-width drawer with adjustable temperature control. This drawer can be used for large party trays, deli items, beverages or miscellaneous items.

There is a temperature control which adjusts the amount of cold air allowed into the Chef's Pantry™. The control is located on the right side of the drawer. Depending on your model, it is either on the front of the drawer or under the lid.

Set the control to cold or to provide a normal refrigerator temperature. Set the drawer on the coldest or setting when a temperature colder than the main refrigerator compartment is desired. Use the coldest setting when storing meats.

Notes:

• Cold air directed to the Chef's Pantry™ can decrease refrigerator temperature. Refrigerator control may need to be adjusted.
• Do not place leafy vegetables in the Chef's Pantry™ drawer. Colder temperatures could damage leafy produce.

To Remove:

- Lift lid (select models). Pull drawer out to full extension. Tilt up front of pantry and pull straight out.

To Install:

- Push metal glide rails to the back of the refrigerator (select models). Place drawer onto rails and slide drawer back until it falls into place.

Some models feature a divider to organize the Chef's Pantry ^™ into sections.

To Remove:

- Pull drawer completely out and raise the front of the divider to unhook it from the rear wall of the pantry and lift it out.

To Install:

- Hook back of divider over rear wall of pantry and lower into place.

Beverage Organizer™ (select models)

The Beverage Organizer ^™ slides out from underneath the Spillsaver ^™ shelf. The Beverage Organizer ^™ holds up to twelve 12-ounce beverage cans.

To Remove:

- Pull out to full extension. Tilt up the front of the Beverage Organizer™ and pull straight out.

To Install:

- Insert Beverage Organizer™ into frame rails and push back into place.

Accessories

Wine Trivet/Can Rack (select models)

The Wine Trivet/Can Rack accessory fits in the Chef's Pantry™ or on a shelf.

Bottles or cans can be laid crosswise, or a single bottle may be laid in the center depression.

Grip Pads (select models)

The Grip Pads prevent objects from sliding in the door buckets. Grip Pads are removable and are top-rack dishwasher safe for easy cleaning.

Technical illustration of a mechanical component with cross-sectional and top views (no text or symbols)

Freezer Features

Shelves and Baskets

Models with swing freezer door:

Freezer Shelf (select models)

Select models have a shelf divider.

Diagram of a structural steel frame with directional arrows indicating force or movement (no text or symbols)

To Remove:

- Pull shelf out to full extension. Tilt up front of shelf and pull straight out.

To Install:

- Insert shelf into freezer liner rails and push to back of compartment.

Wire Basket (select models)

To Remove:

- Pull basket out to full extension. Tilt up front of basket and pull straight out.

Technical line drawing of a structural framework with grid reinforcement (no text or symbols)

To Install:

- Insert basket into freezer liner rails and push back into place.

Freezer Door Shelf (select models)

The Freezer Door Shelf provides convenient storage for frozen food items in freezer door.

To Remove:

- Lift shelf from side liner tabs and pull out.

To Install:

- Fit ends of shelf on liner tabs and slide down.

Models with pullout freezer drawer:

DANGER

To prevent accidental child entrapment or suffocation risk, do not remove the divider in the top freezer basket

Upper Wire Basket

To Remove:

- Pull upper basket out to full extension and lift out to remove.

To Install:

- Slide upper basket into freezer. Make sure that rear of basket hooks behind rail catch.

Diagram of a hand holding a grid-like object, possibly a container or rack, with no visible text or symbols.

Note: Freezer Drawer Models: See page 5 for lower basket and complete pullout drawer instructions.

Accessories

Ice Cube Tray (select models)

The Ice Cube Tray provides an area to freeze cubes for manual dispensing of ice.

Isometric line drawing of a rectangular electronic component with internal grid structure (no text or symbols)

To release ice cubes from tray, hold tray upside down over a storage container and twist both ends of tray until cubes release.

Ice Service Rack (select models)

The Ice Service Rack holds the ice cube tray.

To Install:

- Slide L-shaped groove of shelf down over back wall screw. Push rack back until screw is stopped in L-shaped groove

1 2

(1). Slide front portion of shelf over front wall screw (2).

To Remove:

- Perform above steps in reverse order.

Automatic Ice Maker (select models)

Note: Energy rating guides that are posted on the refrigerator at the time of purchase do not include optional ice maker energy usage.

Some models are automatic ice maker ready. The number of the appropriate ice maker kit is IC11B. The kit contains installation instructions and water connection instructions.

Other models have a factory installed ice maker. Connect the ice maker to the water supply as instructed on page 9. Proper water flow and a level refrigerator are essential for optimal ice maker performance.

Operating Instructions

- Confirm ice bin is in place and ice maker arm is down.

• After freezer section reaches approximately 0^ F ( -18^ C), ice maker fills with water and begins operating. You will have a complete harvest of ice approximately every three hours.

- Allow approximately 24 hours after installation to receive first harvest of ice.

- Discard ice created within first 12 hours of operation to assure system is flushed of impurities.

- Stop ice production by raising ice maker arm until click is heard.

- Ice maker will remain in the off position until arm is pushed down.

- The first one or two batches will probably contain undersized and irregular cubes because of air in the supply line.

- When the ice cubes are ejected it is normal for several cubes to be joined together at the ends. They can easily be broken apart. The ice maker will continue to make ice until the supply of ice cubes raises the sensor arm, shutting the ice maker off.

- Certain sounds may accompany the various cycles of the ice maker. The motor may have a slight hum, the

cubes will rattle as they fall into an empty storage bin and the water valve may click or "buzz" occasionally.

• If the ice is not used frequently, the ice cubes will become cloudy, shrink, stick together and taste stale. Empty the ice storage bin periodically and wash it in lukewarm water. Be sure to dry the bin thoroughly before replacing it.
• Beverages and foods should not be placed in the ice storage bin for quick chilling. These items can block the sensor arm, causing the ice maker to malfunction.
• Turn off (arm up) the ice maker when the water supply is to be shut off for several hours.

To Remove the Ice Bin:

- Pull it forward, away from the ice maker. To avoid the ice maker dumping ice while the bin is removed, turn the ice maker off by raising the sensor arm.

To Install the Ice Bin:

- Reverse the above procedure. Turn the ice maker on by lowering the sensor arm.

WARNING

To avoid personal injury or property damage, observe the following:

• Do not place fingers or hands on the automatic ice making mechanism while the refrigerator is plugged in. This will help protect you from possible injury. It will also prevent interference with moving parts of the ejector mechanism and the heating element that releases the cubes.
• Under certain rare circumstances, ice cubes may be discolored, usually appearing with a green-bluish hue. The cause of this unusual discoloration can be a combination of factors such as certain characteristics of local waters, household plumbing and the accumulation of copper salts in an inactive water supply line which feeds the ice maker. Continued consumption of such discolored ice cubes may be injurious to health. If such discoloration is observed, discard the ice cubes and contact your dealer to purchase and install a water line filter.

• Water damage due to improper water connection may cause mold/mildew growth.

- Clean up water and ice spills to avoid personal injury and to prevent mold/mildew growth.

Ice and Water

Water Dispenser (select models)

The Water Dispenser is located on the left side wall of the fresh food section. This design is for cold water dispensing only.

To Dispense Water:

- Hold container under spout and press dispenser pad.

Illustration of hands using a tool to adjust or install a component (no text or symbols visible)

Water Filter (select models)

Removal and Installation

WARNING

To avoid serious illness or death, do not use refrigerator where water is unsafe or of unknown quality without adequate disinfection before or after use of filter.

CAUTION

After installing a new water filter, always dispense water for two minutes before removing the filter for any reason.

• The bypass cap does not filter water. Be sure to have replacement cartridge available when filter change is required.
• If water filtration system has been allowed to freeze, replace filter cartridge.
• If system has not been used for a short period of time, and water has an unpleasant taste or odor, flush system by dispensing two to three glasses of water. If unpleasant taste or odor persists, change filter cartridge. If system has not been used for three months or more, replace water filter cartridge (see page 26).

Initial Installation

The water filter is located in the upper right hand corner of the fresh food compartment.

1. Remove blue bypass cap and retain for later use.
2. Remove sealing label from end of filter and insert into filter head.

1. Rotate gently clockwise until filter stops. Snap filter cover closed.
2. Reduce water spurts by flushing air from system. Run water continuously for two minutes through dispenser until water runs steady. During initial use, allow about a one- to two-minute delay in water dispersal to allow internal water tank to fill.

• Additional flushing may be required in some households where water is of poor quality.

Replacing Water Filter

Important: Air trapped in system may cause water and cartridge to eject. Always dispense water for two minutes before removing the filter for any reason. Use caution when removing.

1. Turn filter counterclockwise until it releases from filter head.
2. Drain water from filter into sink, and dispose in normal household trash.
3. Wipe up excess water in filter cover and continue with Initial Installation, steps 2 and 4.

The filter should be changed at least every 12 months.

Important: Condition of water and amount used determines life span of water filter cartridge. If water use is high, or if water is of poor quality, replacement may need to take place more often.

To purchase a replacement water filter cartridge, contact your dealer or call 1-877-232-6771 USA or 1-800-688-8408 Canada.

The dispenser feature may be used without a water filter cartridge. If you choose this option, replace filter with blue bypass cap.

PuriClean II

System Specification and Performance Data Sheet Refrigerator Water Filter Cartridge Model UKF8001AXX

Specifications

Service Flow Rate (Maximum)....0.78 GPM (2.9 L/min) Rated Service Life UKF8001AXX-750 (Maximum)....750 gallons/2838 liters Maximum Operating Temperature....100° F/38° C Minimum Pressure Requirement....35 psi /241 kPA Minimum Operating Temperature....33° F/1° C Maximum Operating Pressure....120 psi /827 kPA

a 3M Company

1000 Apollo Road

Eagan, Minnesota 55121-2240

651.450.4913

EPA EST #35917-MN-1

Performance Data

100834/B

Standard No. 42: Aesthetic Effects
Parameter	USEPA MCL	Influent Challenge Concentration	Influent Average	Effluent % Reduction				Min. Required Reduction
				Average	Maximum	Average	Minimum
Chlorine	-	2.0 mg/L ± 10%	1.88 mg/L	<0.05136364 mg/L	0.06 mg/L	>97.26%	96.84%	50%
T & O	-	-	-	-	-	-	-	-
Particulate**	-	at least 10,000 particles/ml	5,700,000 \#/ml	30,583 \#/ml	69,000 \#/ml	99.52%	98.94%	85%

Standard No. 53: Health Effects

Parameter	USEPA MCL	Influent Challenge Concentration	Influent Average	Effluent % Reduction				Min. Required Reduction
				Average	Maximum	Average	Minimum
Turbidity	1 NTU**	11 ± 1 NTU***	10.7 NTU	0.31 NTU	.049 NTU	97.09%	95.20%	0.5 NTU
Cysts	99.5% Reduction	Minimum 50,000/L	166,500 #/L	<1 #/L	<1 #/L	>99.99%	>99.99%	>99.95%
Asbestos	99% Reduction	10' 10' fibers/L; fibers >10 micrometers in length	155 MF/L	<1 MF/L	<1 MF/L	>99.99%	>99.99%	99%
Lead at pH 6.5	0.015 mg/L	0.15 mg/L + 10%	0.153 mg/L	<.001 mg/L	<.001 mg/L	>99.35%	>99.29%	0.10 mg/L
Lead at pH 8.5	0.015 mg/L	0.15 mg/L + 10%	0.150 mg/L	<.001 mg/L	<.001 mg/L	>99.33%	>99.29%	0.10 mg/L
Mercury at pH 6.5	0.002 mg/L	.006 mg/L ± 10%	0.006 mg/L	0.0003 mg/L	0.0005 mg/L	95.70%	90.91%	0.002 mg/L
Mercury at pH 8.5	0.002 mg/L	.006 mg/L ± 10%	0.006 mg/L	0.0008 mg/L	0.0015 mg/L	86.22%	75.93%	0.002 mg/L
Atrazine	0.003 mg/L	0.009 mg/L + 10%	0.009 mg/L	<0.002 mg/L	0.002 mg/L	76.99%	75.31%	0.003 mg/L
Benzene	0.005 mg/L	0.015 mg/L ± 10%	0.014 mg/L	0.0006 mg/L	0.0011 mg/L	95.71%	92.14%	0.005 mg/L
Carbofuran	0.04 mg/L	0.08 mg/L ± 10%	0.081 mg/L	<0.001 mg/L	<0.001 mg/L	98.74%	98.46%	0.04 mg/L
1,4-Dichlorobenzene	0.075 mg/L	.225 mg/L ± 10%	0.208 mg/L	<0.0005 mg/L	<0.0005 mg/L	99.76%	99.74%	0.075 mg/L
Lindane	0.0002 mg/L	0.002 mg/L + 10%	0.002 mg/L	0.000 mg/L	<0.0001 mg/L	98.72%	96.50%	0.0002 mg/L
Toxaphene	0.003 mg/L	0.015 ± 10%	0.015 mg/L	<0.001 mg/L	<0.001 mg/L	92.97%	91.67%	0.003 mg/L

* Tested using a flow rate of 0.78 gpm; pressure of 60 psig; pH of 7.5 + 0.5; temp. of 68° + 5° F (20° + 3° C)

** Measurement in Particles /ml. Particles used were 0.5 - 1 microns

*** NTU - Nephelometric Turbidity Units

Tested and certified by NSF International against ANSI/NSF Standards 42 & 53 in models UKF8001AXX-750 for the reduction of:

Standard No. 42: Aesthetic Effects

Taste and Odor Reduction

Chlorine Taste & Odor

Mechanical Filtration Unit

Particulate Reduction Class 1

Standard No. 53: Health Effects

Chemical Reduction Unit

Lead, Atrazine, Lindane, Benzene,

Carbofuran, 1,4-Dichlorobenzene,

Mercury & Toxaphene Reduction

Mechanical Filtration Unit

Cyst, Turbidity and Asbestos Reduction

General Use Conditions

Read this Performance Data Sheet and compare the capabilities of this unit with your actual water treatment needs.

DO NOT use this product where water is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. System certified for cyst reduction may be used on disinfected water that may contain filterable cysts.

USE ONLY WITH COLD WATER SUPPLY. CHECK FOR COMPLIANCE WITH THE STATE AND LOCAL LAWS AND REGULATIONS.

The PuriClean® II retractable water filtration system uses a UKF8001AXX replacement cartridge. Timely replacement of filter cartridge is essential for performance satisfaction from this filtration system. Please refer to the applicable section of your Use & Care Guide for general operation, maintenance requirements and troubleshooting.

This system has been tested according to ANSI/NSF 42 and 53 for reduction of the substance listed above. The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system, as specified in ANSI/NSF 42 and 53.

State of California

Department of Health Services

Water Treatment Device

Certificate Number

03 - 1583

Date Issued: September 16, 2003

Trademark /Model Designation Replacement Elements

PuriClean® II UKF8001AXX750 UKF8001AXX

Manufacturer: PentaPure Inc.

The water treatment device(s) listed on this certificate have met the testing requirements pursuant to Section 116830 of the Health and Safety Code for the following health related contaminants:

Microbiological Contaminants and Turbidity

Cysts Asbestos

Turbidity Lead

Inorganic/Radiological Contaminants

Mercury

Organic Contaminants

Atrazine

Lindane

Toxaphene

Rated Service Capacity: 750 gal. Rated Service Flow: 0.78 gpm

Conditions of Certification:

Do not use where water is microbiologically unsafe or with water of unknown quality, except that systems certified for cyst reduction may be used on disinfected waters that may contain filterable cysts.

Food Storage Tips

Fresh Food Storage

• The fresh food compartment of a refrigerator should be kept between 34^ and 40^ F ( 1^ and 4^ C) with an optimum temperature of 37^ F ( 3^ C). To check the temperature, place an appliance thermometer in a glass of water and place in the center of the refrigerator. Check after 24 hours. If the temperature is above 40^ F ( 4^ C) adjust the controls as explained on pages 10 and 11.
• Avoid overcrowding the refrigerator shelves. This reduces the circulation of air around the food and results in uneven cooling.

Fruits and Vegetables

• Storage in the crisper drawers traps humidity to help preserve the fruit and vegetable quality for longer time periods (see page 13).
• Sort fruits and vegetables before storage and use bruised or soft items first. Discard those showing signs of decay.
  • Always wrap odorous foods such as onions and cabbage so the odor does not transfer to other foods.
• While vegetables need a certain amount of humidity to remain fresh, too much humidity can shorten storage times (especially leafy vegetables). Drain vegetables well before storing.
• Wait to wash fresh produce until right before use.

Meat and Cheese

• Raw meat and poultry should be wrapped securely so leakage and contamination of other foods or surfaces does not occur.
• Occasionally mold will develop on the surface of hard cheeses (Swiss, Cheddar, Parmesan). Cut off at least an inch around and below the moldy area. Keep your knife or instrument out of the mold itself. Do not try to save individual cheese slices, soft cheese, cottage cheese, cream, sour cream or yogurt when mold appears.

Dairy Food

- Most dairy foods such as milk, yogurt, sour cream and cottage cheese have freshness dates on their cartons for appropriate length of storage. Store these foods in the original carton and refrigerate immediately after purchasing and after each use.

Frozen Food Storage

• The freezer compartment of a refrigerator should be kept at approximately 0^ F (-18^ C). To check the temperature, place an appliance thermometer between the frozen packages and check after 24 hours. If the temperature is above 0^ F (-18^ C), adjust the control as described on pages 10 and 11.
• A freezer operates more efficiently when it is at least two-thirds full.

Packaging Foods for Freezing

• To minimize dehydration and quality deterioration use aluminum foil, freezer wrap, freezer bags or airtight containers. Force as much air out of the packages as possible and be sure they are tightly sealed. Trapped air can cause the food to dry out, change color and develop an off-flavor (freezer burn).
  • Overwrap fresh meats and poultry with suitable freezer wrap prior to freezing.
• Do not refreeze meat that has completely thawed.

Loading the Freezer

• Avoid adding too much warm food to the freezer at one time. This overloads the freezer, slows the rate of freezing and can raise the temperature of frozen foods.
• Leave space between the packages so cold air can circulate freely, allowing food to freeze as quickly as possible.
• Avoid storing hard-to-freeze foods such as ice cream and orange juice on the freezer door shelves. These foods are best stored in the freezer interior where the temperature varies less with door openings.

Refer to the Food Storage Chart on pages 21 and 22 for approximate storage times.

Food Storage Chart

Storage times are approximate and may vary depending on type of packaging, storage temperature, and the quality of the food when purchased.

Sources: United States Department of Agriculture; Food Marketing Institute; Cooperative Extension Service, Iowa State University

FOODS	REFRIGERATOR	FREEZER	STORAGE TIPS
DAIRY PRODUCTS
Butter	1 month	6 to 9 months	Wrap tightly or cover.
Milk and cream	1 week	Not recommended	Check carton date. Close tightly.Do not return unused portions to original container.Do not freeze cream unless whipped.
Cream cheese, cheese spread and cheese food	1 to 2 weeks	Not recommended	Wrap tightly.
Cottage cheese	3 to 5 days	Not recommended	Store in original carton.Check carton date.
Sour cream	10 days	Not recommended	Store in original carton.Check carton date.
Hard cheese (Swiss, Cheddar and Parmesan)	1 to 2 months	4 to 6 monthsMay become crumbly	Wrap tightly.Cut off any mold.
EGGS
Eggs in the shell	3 weeks	Not recommended	Refrigerate small ends down.
Leftover yolks or whites	2 to 4 days	9 to 12 months	For each cup of yolks to be frozen, add 1 tsp. sugar for use in sweet, or 1 tsp. salt for non-sweet dishes.
FRUITS
Apples	1 month	8 months (cooked)	May also store unripe or hard apples at 60° to 70° F (16° to 21°C).
Bananas	2 to 4 days	6 months (whole/peeled)	Ripen at room temperature before refrigerating.Note: Bananas darken when refrigerated.
Pears, plums, avocados	3 to 4 days	Not recommended	Ripen at room temperature before refrigerating.Note: Avocados darken when refrigerated.
Berries, cherries, apricots	2 to 3 days	6 months	Ripen at room temperature before refrigerating.
Grapes	3 to 5 days	1 month (whole)	Ripen at room temperature before refrigerating.
Citrus fruits	1 to 2 weeks	Not recommended	May also store at 60° to 70° F (16° to 21°C).If refrigerated, store uncovered.
Pineapples, cut	2 to 3 days	6 to 12 months	Will not ripen after purchase.Use quickly.
VEGETABLES
Asparagus	1 to 2 days	8 to 10 months	Do not wash before refrigerating. Store in crisper.
Brussels sprouts, broccoli, cauliflower, green peas, lima beans, onions, peppers	3 to 5 days	8 to 10 months	Wrap odorous foods.Leave peas in pods.
Cabbage, celery	1 to 2 weeks	Not recommended	Wrap odorous foods and refrigerate in crisper.
Carrots, parsnips, beets and turnips	7 to 10 days	8 to 10 months	Remove tops. Wrap odorous foods and refrigerate in the crisper.
Lettuce	7 to 10 days	Not recommended
POULTRY and FISH
Chicken and turkey, whole	1 to 2 days	12 months	Keep in original packaging for refrigeration. Place in the meat and cheese drawer. When freezing longer than two weeks, overwrap with freezer wrap.
Chicken and turkey, pieces	1 to 2 days	9 months
Fish	1 to 2 days	2 to 6 months
MEATS
Bacon	7 days	1 month
Beef or lamb, ground	1 to 2 days	3 to 4 months	Fresh meats can be kept in original packaging for refrigeration.
Beef or lamb, roast and steak	3 to 5 days	6 to 9 months	Place in the meat and cheese drawer.When freezing longer than two weeks, overwrap with freezer wrap.
Ham, fully cooked, whole	7 days	1 to 2 months
half	5 days	1 to 2 months
slices	3 days	1 to 2 months
Luncheon meat	3 to 5 days	1 to 2 months	Unopened, vacuum-packed luncheon meat may be kept up to two weeks in the meat and cheese drawer.
Pork, roast	3 to 5 days	4 to 6 months
Pork, chops	3 to 5 days	4 months
Sausage, ground	1 to 2 days	1 to 2 months
Sausage, smoked	7 days	1 to 2 months
Veal	3 to 5 days	4 to 6 months
Frankfurters	7 days	1 month	Processed meats should be tightly wrapped and stored in the meat and cheese drawer.

CAUTION

To avoid personal injury or property damage, observe the following:

• Read and follow manufacturer's directions for all cleaning products.
• Do not place buckets, shelves or accessories in dishwasher. Cracking or warping of accessories may result.

WARNING

To avoid electrical shock which can cause severe personal injury or death, disconnect power to refrigerator before cleaning. After cleaning, reconnect power.

Refrigerator Cleaning Chart

PART	DO NOT USE	DO
Textured Doors and Exterior	Abrasive or harsh cleanersAmmoniaChlorine bleachConcentrated detergents or solventsMetal or plastic-textured scouring pads	Use 4 tablespoons of baking soda dissolved in 1 quart (1 liter) warm, soapy water.Rinse surfaces with clean, warm water and dry immediately to avoid water spots.
Cabinet Interior
Stainless Steel Doors and Exterior (select models)Important:Damage to stainless steel finish due to improper use of cleaning products or non-recommended products is not covered under this product's warranty.	Abrasive or harsh cleanersAmmoniaChlorine bleachConcentrated detergents or solventsMetal or plastic-textured scouring padsVinegar-based productsCitrus-based cleaners	Use warm, soapy water and a soft, clean cloth or sponge.Rinse surfaces with clean, warm water and dry immediately to avoid water spots.To polish and help prevent fingerprints, follow with Stainless Steel Magic Spray (part no. 20000008*).
Door Gaskets	Abrasive or harsh cleanersMetal or plastic-textured scouring pads
Condenser CoilRemove base grille to access.		Use a vacuum cleaner hose nozzle.
Condenser Fan Outlet GrilleSee back of refrigerator.		Use a vacuum cleaner hose nozzle with brush attachment.
AccessoriesShelves, buckets, drawers, etc.	A dishwasher	Follow removal and installation instructions from appropriate feature section.Allow items to adjust to room temperature.Dilute mild detergent and use a soft, clean cloth or sponge for cleaning.Use a plastic bristle brush to get into crevices.Rinse surfaces with clean, warm water.Dry glass and clear items immediately to avoid spots.

* To order, call 1-877-232-6771 USA or 1-800-688-8408 Canada.

Removing Odors From Refrigerator

WARNING

To avoid electrical shock which can cause severe personal injury or death, disconnect power to refrigerator before cleaning. After cleaning, reconnect power.

1. Remove all food and turn the refrigerator OFF.
2. Disconnect power to the refrigerator.
3. Clean the walls, floor, ceiling of cabinet interior, drawers, shelves and gaskets according to the instructions on page 23.
4. Dilute mild detergent and brush solution into crevices using a plastic bristle brush. Let stand for 5 minutes. Rinse surfaces with warm water. Dry surfaces with a soft, clean cloth.
5. Wash and dry all bottles, containers and jars. Discard spoiled or expired items.
6. Wrap or store odor-causing foods in tightly sealed containers to prevent recurring odors.
7. Reconnect power to refrigerator and return food to refrigerator.
8. Allow the refrigerator to cool.
9. After 24 hours, check if odor has been eliminated.

If odor is still present:

1. Remove drawers and place on top shelf of refrigerator.
2. Pack refrigerator and freezer sections – including doors – with crumpled sheets of black and white newspaper.
3. Place charcoal briquettes randomly on crumpled newspaper in both freezer and refrigerator compartments.
4. Close doors and let stand 24 to 48 hours.

Energy Saving Tips

• Avoid overcrowding refrigerator shelves. This reduces air circulation around food and causes refrigerator to run longer.
• Avoid adding too much warm food to refrigerator at one time. This overloads compartments and slows rate of cooling.
• Do not use aluminum foil, wax paper, or paper toweling as shelf liners. This decreases air flow and causes refrigerator to run less efficiently.
• A freezer that is two-thirds full runs most efficiently.
• Locate refrigerator in coolest part of room. Avoid areas of direct sunlight, or near heating ducts, registers or other heat producing appliances. If this is not possible, isolate exterior by using a section of cabinet.
• Clean door gaskets every three months according to cleaning instructions. This will assure that door seals properly and refrigerator runs efficiently.
  • Take time to organize items in refrigerator to reduce time that door is open.
• Be sure your doors are closing securely by leveling refrigerator as instructed in your installation instructions.
• Clean condenser coils as indicated in the cleaning instructions every three months. This will increase energy efficiency and cooling performance.

Care and Cleaning

Replacing Light Bulbs

WARNING

To avoid electrical shock which can cause severe personal injury or death, disconnect power to refrigerator before replacing light bulb. After replacing light bulb, reconnect power.

CAUTION

To avoid personal injury or property damage, observe the following:

• Allow light bulb to cool.
• Wear gloves when replacing light bulb.

Fresh Food Section (style of light shield varies)

1. Slide clear light shield toward back of compartment to release from light assembly.
2. Remove light bulbs.
3. Replace with appliance bulbs no greater than 40 watts.
4. Replace light bulb cover by inserting tabs on light shield into liner holes on each side of light assembly. Slide shield toward front of refrigerator until it locks into place. Do not force shield beyond locking point. Doing so may damage light shield.

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Freezer (style of light shield varies)

1. Reach behind the light cover.
2. With firm pressure, press forward on the notches at the back of the cover and pull down. The cover will open from the back.
3. Remove the cover.
4. Remove light bulb.
5. Replace bulb with appliance bulb no greater than 40 watts.
6. Insert front tabs of light cover into slots in freezer liner and snap rear portion over light assembly until rear tab engages.

Hand holding a fan with a hand pointing at a striped surface (no text or symbols visible)

Diagram of a mechanical component with arrows indicating direction (no text or symbols)

Illustration of a hand holding a stack of books with an arrow pointing to it, no text or symbols present.

Preparing for Vacation

CAUTION

If your refrigerator has a dispenser and there is any possibility that the temperature can drop below freezing where the refrigerator is located, the water supply system (including the water tank and the water valve) must be drained by a qualified servicer.

For short vacations or absences (three months or less):

1. Remove all perishables.
2. If no one will be checking in on the refrigerator during your absence, remove all frozen items also.

3. If your refrigerator has an automatic ice maker:

4. Shut off the water supply to the ice maker at least one day ahead of time.
   • After the last load of ice drops, raise the wire shut off arm to the OFF position.

5. Empty the ice bin.

6. If the room temperature will drop below 55^ F ( 12^ C), follow the instructions for longer absences.

For long vacations, absences (more than three months) OR if the room temperature will drop below 55^ F ( 12^ C):

1. Remove food.
2. If your refrigerator has an automatic ice maker:
3. Shut off the water supply to the ice maker at least one day ahead of time.
   • After the last load of ice drops, raise the wire shut off arm to the OFF position.

4. Empty the ice bin.

5. If your refrigerator has a dispenser system with water filter, remove the water filter cartridge and install the filter bypass. Dispose of the used cartridge.

6. Turn the Freezer control to OFF with dial controls or (−) with touch controls (see pages 10 or 11).

7. Unplug the refrigerator.

8. Thoroughly clean the interior of both compartments with a baking soda solution and a clean, soft cloth (four tablespoons of baking soda in one quart of warm water).

9. Dry thoroughly.

10. Leave the doors open to prevent the formation of mold and mildew.

Upon your return:

After a short vacation or absence:

For models with automatic ice makers or dispensers:

• Reconnect the water supply and turn on supply valve (see pages 8-9).
• Monitor water connection for 24 hours and correct leaks if necessary.
• Run 10-15 glasses of water from the dispenser to flush out the system.
• Restart the ice maker.
• Discard at least the first three ice harvests.

After a long vacation or absence:

• If your refrigerator has an automatic ice maker, reconnect the water supply and turn on supply valve (see pages 8-9).
• Plug the refrigerator back in and reset controls (see pages 10 and 11).
• Monitor water connection for 24 hours and correct leaks, if necessary.

For dispenser models, run water through the dispenser for at least three minutes with the filter bypass in place, then install water filter (see page 17).

• After installing the water filter, run water through the dispenser continuously for at least two minutes, or until water runs steady. Initially you may notice a one-two minute delay in water dispersal as the internal tank fills.
- Restart the ice maker.
- Discard ice produced within the first 12 hours (at least the first three harvests).

Preparing to move:

• Follow the above instructions for long vacations/absences, through step 7.
• Secure all loose items such as shelves and drawers by taping them securely in place to prevent damage.
• Tape the doors shut.
• Use an appliance dolly when moving the refrigerator. ALWAYS truck the refrigerator from its side or back-NEVER from its front.
• Be sure the refrigerator stays in an upright position during moving.

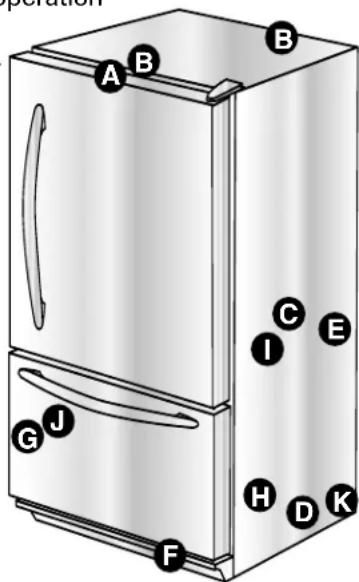

Improvements in refrigeration design may produce sounds in your new refrigerator that are different or were not present in an older model. These improvements were made to create a refrigerator that is better at preserving food, is more energy efficient, and is quieter overall. Because new refrigerators run quieter, sounds may be detected that were present in older refrigerators, but were masked by higher sound levels. Many of these sounds are normal. Please note that the surfaces adjacent to a refrigerator, such as hard walls, floors and cabinetry may make these sounds seem even louder. The following are some of the normal sounds that may be noticed in a new refrigerator.

SOUND	POSSIBLE CAUSE	SOLUTION
Clicking	Freezer control (A) clicks when starting or stopping compressor.	Normal operation
	Motorized device (B) sounds like an electric clock and snaps in and out.	Normal operation
Air rushing or whirring	Freezer fan (C) and condenser fan (D) make this noise while operating.	Normal operation
Gurgling or boiling sound	Evaporator (E) and heat exchanger (F) refrigerant makes this noise when flowing.	Normal operation
Thumping	Ice cubes from ice maker (select models) drop into ice bucket (G).	Normal operation
Vibrating noise	Compressor (H) makes a pulsating sound while running.	Normal operation
	Refrigerator is not level.	See page 3 for details on how to level your refrigerator.
Buzzing	Ice maker water valve (I) hookup (select models) buzzes when ice maker fills with water.	Normal operation
Humming	Ice maker (J) is in the ‘ON’ position without water connection.	Stop sound by raising ice maker arm to OFF position (see page 16).
	Compressor (H) can make a high-pitched hum while operating.	Normal operation
Hissing or popping	Defrost heater (K) hisses, sizzles or pops when operational.	Normal operation

A B B C E I G J H D K F

PROBLEM	POSSIBLE CAUSES	WHAT TO DO
Freezer control and lights are on, but compressor is not operating	Refrigerator is in defrost mode.	Normal operation.Wait 40 minutes to see if refrigerator restarts.
Crisper drawer temperature is too warm	Refrigerator control settings are too low.	See page 10 or 11 to adjust controls.
Refrigerator does not operate	Refrigerator is not plugged in.	Plug in refrigerator.
	Control is not on.	See page 10 or 11 to adjust your controls.
	Fuse is blown, or circuit breaker needs to be reset.	Replace any blown fuses.Check circuit breaker and reset, if necessary.
	Power outage has occurred.	Call local power company listing to report outage.
Refrigerator still won't operate	Refrigerator is malfunctioning.	Unplug refrigerator and transfer food to another refrigerator. If another refrigerator is not available, place dry ice in freezer section to preserve food.Warranty does not cover food loss.Contact service for assistance.
Food temperature is too cold	Condenser coils are dirty.	Clean according to the chart on page 23.
	Refrigerator or freezer controls are set too high.	See page 10 or 11 to adjust your controls.
Food temperature is too warm	Door is not closing properly.	Refrigerator is not level. See page 3 for details on how to level your refrigerator.
		Check gaskets for proper seal. Clean, if necessary, according to the chart on page 23.
		Check for internal obstructions that are keeping door from closing properly (i.e. improperly closed drawers, ice buckets, oversized or improperly stored containers or foodstuffs, etc.)
	Controls need to be adjusted.	See page 10 or 11 to adjust your controls.
	Condenser coils are dirty.	Clean according to the chart on page 23.
	Rear air grille is blocked.	Check the positioning of food items in refrigerator to make sure grille is not blocked. Rear air grilles are located under crisper drawers.
	Door has been opened frequently, or has been opened for long periods of time.	Reduce time door is open. Organize food items efficiently to assure door is open for as short a time as possible.
	Food has recently been added.	Allow time for recently added food to reach refrigerator or freezer temperature.
Refrigerator has an odor	Compartment is dirty or has odor-causing food.	Clean according to instructions on page 24.
Water droplets form on outside	Check gaskets for proper seal.	Clean according to the chart on page 23.
	Humidity levels are high.	Normal during times of high humidity.
	Controls require adjustment.	See page 10 or 11 to adjust your controls.
Water droplets form on inside of refrigerator	Humidity levels are high or door has been been opened frequently.	See page 10 or 11 to adjust your controls.
	Check gaskets for proper seal.	Reduce time door is open.Organize food items efficiently to assure door is open for as short a time as possible.
		Clean, if necessary, according to the chart on page 23.
Refrigerator or ice maker makes unfamiliar sounds or seems too loud	Normal operation.	See Operating Sounds on page 27.
Crisper drawers do not close freely	Contents of drawer, or positioning of items in the surrounding compartment could be obstructing drawer.	Reposition food items and containers to avoid interference with the drawers.
	Drawer is not in proper position.	See page 13 and 14 for proper drawer placement.
	Refrigerator is not level.	See page 3 for details on how to level your refrigerator.
	Drawer channels are dirty or need treatment.	Clean drawer channels with warm, soapy water.Rinse and dry thoroughly.
		Apply a thin layer of petroleum jelly to drawer channels.
Refrigerator runs too frequently	Doors have been opened frequently or for long periods of time.	Reduce time door is open.Organize food items efficiently to assure door is open for as short a time as possible.
		Allow interior environment to adjust for period the door has been opened.
	Humidity or heat in surrounding area is high.	Normal operation.
	Food has recently been added.	Allow time for recently added food to reach refrigerator or freezer temperature.
	Refrigerator is exposed to heat by environment or by appliances nearby.	Evaluate your refrigerator's environment. Refrigerator may need to be moved to run more efficiently.
	Condenser coils are dirty.	Clean, if necessary, according to the chart on page 23.
	Controls need to be adjusted.	See page 10 or 11 to adjust your controls.
	Door is not closing properly.	Refrigerator is not level. See page 3 for details on how to level your refrigerator.
		Check gaskets for proper seal.Clean, if necessary, according to the chart on page 23.
		Check for internal obstructions that are keeping door from closing properly (i.e. improperly closed drawers, ice buckets, oversized or improperly stored containers or foodstuffs, etc.)
	Normal Operation	See Operating Sounds on page 27.

Ice

PROBLEM	POSSIBLE CAUSES	WHAT TO DO
Refrigerator is leaking water	Plastic tubing was used to complete water connection.	The manufacturer recommends using copper tubing for installation. Plastic is less durable and can cause leakage.The manufacturer is not responsible for property damage due to improper installation or water connection.
	Improper water valve was installed.	Check water connection procedure (see pages 8-9).Self-piercing and 316 " saddle valves cause low water pressure and may clog the line over time.The manufacturer is not responsible for property damage due to improper installation or water connection.
Ice forms in inlet tube to ice maker	Water pressure is low.	Water pressure must be between 35 to 100 pounds per square inch to function properly. A minimum pressure of 35 pounds per square inch is recommended for refrigerators with water filters.
	Freezer temperature is too high.	Adjust freezer control (see pages 10-11). Freezer is recommended to be approximately 0^ (-18^) .
Water flow is slower than normal	Water pressure is low.	Water pressure must be between 35 to 100 pounds per square inch to function properly. A minimum pressure of 35 pounds per square inch is recommended for refrigerators with water filters.
	Improper water valve was installed.	Check water connection procedure in your Installation Instructions. Self-piercing and 316 " saddle valves cause low water pressure and may clog the line over time.The manufacturer is not responsible for property damage due to improper installation or water connection.Open water valve completely and check for leaks.
	Copper tubing has kinks.	Turn off water supply and remove kinks. If kinks cannot be removed, replace tubing.
	Water filter is clogged or needs to be changed.	Change water filter (see page 17).
Ice maker is not producing ice	Ice maker arm is in OFF position.	Confirm ice maker arm is down. SeeAutomatic Ice Maker, page 16.
	Household water supply is not reaching water valve.	SeeConnecting the Water Supply, pages 8-9.
	Copper tubing has kinks.	Turn off water supply and remove kinks. If kinks cannot be removed, replace tubing.
	Water pressure is too low.	Water pressure must be between 35 to 100 pounds per square inch to function properly. A minimum pressure of 35 pounds per square inch is recommended for refrigerators with water filters.
	Check freezer temperature.	SeeTemperature Controls, pages 10-11. Freezer temperature should be between 0^ to 2^ (-18^ to -17^) to produce ice.

Warranty

Limited One Year Warranty - Parts and Labor

For one (1) year from the original retail purchase date, any part which fails in normal home use will be repaired or replaced free of charge.

Canadian Residents

The above warranties only cover an appliance installed in Canada that has been certified or listed by appropriate test agencies for a compliance to a National Standard of Canada unless the appliance was brought into Canada due to transfer of residence from the United States to Canada.

The specific warranties expressed above are the ONLY warranties provided by the manufacturer. These warranties give you specific legal rights, and you may also have other rights which vary from state to state.

CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. MAYTAG CORPORATION SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS, SO THESE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY STATE TO STATE OR PROVINCE TO PROVINCE.

What is Not Covered By These Warranties

1. Conditions and damages resulting from any of the following:

a. Improper installation, delivery, or maintenance.
b. Any repair, modification, alteration, or adjustment not authorized by the manufacturer or an authorized servicer.
c. Misuse, abuse, accidents, unreasonable use, or acts of God.
d. Incorrect electric current, voltage, electrical and/or gas supply.
e. Improper setting of any control.
f. Use of risers (pedestals) that are not Maytag branded.

1. Warranties are void if the original serial numbers have been removed, altered, or cannot be readily determined.
2. Light bulbs, water filters and air filters.
3. Products purchased for commercial or industrial use.
4. The cost of service or service call to:

a. Correct installation errors. For products requiring ventilation, rigid metal ducting must be used.

b. Instruct the user on the proper use of the product.

c. Transport the appliance to and from the servicer.

d. To correct issues related to risers (pedestals) that are not Maytag branded.

1. Any food loss due to refrigerator or freezer product failures.

2. Expenses for travel and transportation for product service in remote locations.

3. Outside of the United States and Canada this warranty does not apply. Contact your dealer to determine if another warranty applies.
4. Consequential or incidental damages sustained by any person as a result of any breach of these warranties. Some states do not allow the exclusion or limitation of consequential or incidental damages, so the above exclusion may not apply.

If You Need Service

First see the Troubleshooting section in your Use and Care Guide or call the dealer from whom your appliance was purchased or call Maytag Services, LLC, Customer Assistance at 1-800-688-9900 USA and 1-800-688-2002 Canada to locate an authorized servicer.

• Be sure to retain proof of purchase to verify warranty status. Refer to WARRANTY for further information on owner's responsibilities for warranty service.
• If the dealer or service company cannot resolve the problem, write to Maytag Services, LLC, Attn: CAIR® Center, P.O. Box 2370, Cleveland, TN 37320-2370, or call 1-800-688-9900 USA and 1-800-688-2002 Canada. U.S. customers using TTY for deaf, hearing impaired or speech impaired, call 1-800-688-2080.
• User's guides, service manuals and parts information are available from Maytag Services, LLC, Customer Assistance.

Notes: When writing or calling about a service problem, please include:

a. Your name, address and telephone number;
b. Model number and serial number;
c. Name and address of your dealer or servicer;
d. A clear description of the problem you are having;
e. Proof of purchase (sales receipt).

Amana®

Vertical sequence of black-and-white icons representing various workplace or safety symbols (no text or labels)

Black and white photo of assorted fruits including apples, grapes, melons, and oranges (no text or symbols)

Illustration of a refrigerator interior with open doors and sheets (no text or symbols)

Illustration of a black electrical plug and a wall-mounted power socket (no text or symbols)

Pure mechanical diagram showing a lever mechanism with arrows indicating direction (no text or symbols)

Illustration of a hand placing a shopping cart into a refrigerator (no text or symbols visible)

Illustration of a hand using a tool to install or install an open door panel (no text or symbols visible)

Illustration of a hand opening a refrigerator with an arrow indicating the process (no text or symbols present)

Installation :

Close-up of a mechanical or architectural component with a black arrow pointing to a section (no visible text or symbols)

Pure mechanical assembly diagram showing a hand connecting a component to a bracket (no text or symbols)

Illustration of a hand inserting a plastic bag into an open refrigerator (no text or symbols visible)

Pure mechanical diagram showing a lever mechanism with downward arrows indicating force or motion (no text or symbols)

Pure diagram of a mechanical or structural component with arrows indicating motion, no text or symbols present

3D diagram of a rectangular plate with labeled axes (X, Y, Z) and origin points (O), showing directional arrows indicating orientation (no text or symbols beyond axis labels)

Installation

Illustration of a kitchen drawer with handle (no text or symbols)

Installation :

Diagram of a mechanical or electrical component with labeled part 'C' and connecting rods (no readable text or symbols)

3D rendering of a mechanical component with a central knob and flanges (no text or symbols)

Simple line drawing of a curved object with a labeled dimension '4' (no text or symbols beyond the label)

Réglage initial

Illustration of hands holding a device with a scroll wheel (no text or symbols visible)

Diagram of a kitchen drawer with a black arrow indicating direction (no text or symbols)

Dépose :

Technical line drawings of three different structural components or brackets, showing different angles and mounting features (no text or symbols present)

Illustration of a hand placing a container into a bell jar with arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical or architectural component with no visible text or symbols

Dépose :

Vegetables high low Humidity Controlled Fruit

Dépose :

Technical illustration of a mechanical component with cross-sectional views (no text or symbols)

Pure technical diagram of a structural frame with directional arrows indicating force or flow (no text or symbols)

Dépose :

Technical line drawing of a structural frame or cage structure (no text or symbols)

Dépose :

Diagram of a mechanical assembly with a curved bracket and grid-like structure (no text or symbols)

Isometric line drawing of a rectangular grid-like structure with no text or symbols

Illustration of hands using a tool to adjust or install a component (no text or symbols visible)

Illustration of hands installing or adjusting a mechanical component (no text or symbols visible)

Hand holding a fan or switch with a black arrow pointing to the grille (no text or symbols visible)

Diagram of a ceiling-mounted air duct system with directional arrows indicating flow or movement (no text or symbols)

Diagram of a hand holding a stack of books with an arrow indicating upward motion (no text or symbols)

A B B C E I G J H D K F

Vertical sequence of black-and-white icons representing various workplace or safety symbols (no text or labels)

Black and white photo of assorted fruits including apples, grapes, melons, and oranges (no text or symbols)

Illustration of a refrigerator with open doors and a closed door, no text or symbols present

Illustration of a black electrical plug and two 3-pin electrical outlets (no text or symbols)

Pure mechanical diagram showing a lever mechanism with arrows indicating direction (no text or symbols)

Illustration of a hand placing a shopping cart into a refrigerator (no text or symbols visible)

Illustration of a hand using a tool to install or install an open door (no text or symbols visible)

Illustration of a hand opening a refrigerator with an arrow indicating the process (no text or symbols present)

Installation :

Close-up of a mechanical or architectural component with a black arrow pointing to a section (no visible text or symbols)

Pure mechanical assembly diagram showing a hand connecting a component to a bracket (no text or symbols)

Illustration of a hand inserting a plastic bag into an open refrigerator (no text or symbols visible)

Pure mechanical diagram showing a lever mechanism with downward arrows indicating force or motion (no text or symbols)

Pure diagram of a mechanical or structural component with no text, numbers, or symbols

3D diagram of a rectangular plate with labeled axes (X, Y, Z) and origin points (O), showing directional arrows indicating force or orientation (no text or symbols beyond axis labels)

Installation

Illustration of a kitchen drawer with handle (no text or symbols)

Installation :

Diagram of a mechanical or electrical component with labeled part 'C' and connecting rods (no readable text or symbols)

3D rendering of a mechanical component with a central knob and flanges (no text or symbols)

Simple line drawing of a curved object with a labeled dimension '4' (no text or symbols beyond the label)

Réglage initial

Illustration of hands holding a device with a scroll wheel (no text or symbols visible)

Diagram of a kitchen drawer with a black arrow indicating direction (no text or symbols)

Dépose :

Technical line drawings of three mechanical components with arrows indicating assembly or movement (no text or symbols)

Illustration of a hand placing a container into a bell jar with arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical or architectural component with no visible text or symbols

Dépose :

Vegetables high Humidity Controlled low Fruit

Dépose :

Technical illustration of a mechanical component with cross-sectional views (no text or symbols)

Isometric diagram of a structural frame with directional arrows indicating force or movement (no text or symbols)

Dépose :

Technical line drawing of a structural framework with grid-like supports (no text or symbols)

Dépose :

Diagram of a mechanical assembly with a grid-like structure and a hand holding a curved component (no text or symbols visible)

Isometric line drawing of a rectangular grid-like structure with no text or symbols

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of hands holding a small mechanical component (no text or symbols visible)

Hand holding a fan with a black arrow pointing to the grille (no text or symbols visible)

Diagram of a ceiling-mounted air duct system with directional arrows indicating airflow or movement (no text or symbols)

Diagram of a hand holding a stack of books with an arrow indicating upward motion (no text or symbols)

A B B C E I G J H D K F

Black and white photo of assorted fruits including apples, grapes, peaches, and melons (no text or symbols visible)

Congelador inferior Refrigerador

Vertical sequence of black-and-white icons representing various workplace or safety symbols (no text or labels)

Illustration of a refrigerator with shelves and papers stacked on the side (no text or symbols visible)

Illustration of a plug and two electrical outlets (no text or symbols)

Simple diagram of a horizontal beam with two vertical supports labeled A and C, no text or symbols present.

Pure mechanical diagram showing a bracket with arrows indicating direction, no text or symbols present

Illustration of a hand placing a shopping basket into a refrigerator (no text or symbols visible)

Diagram of a door with hand holding a tool, showing internal components and wiring (no text or symbols)

Cont.

Instalación

Illustration of a hand opening a refrigerator with an arrow indicating upward motion (no text or symbols)

Instalación:

Diagram of a door frame with an arrow indicating direction (no text or symbols present)

Pure mechanical assembly diagram showing a hand connecting components to a bracket (no text or symbols)

Illustration of a hand inserting a plastic bag into an open refrigerator (no text or symbols visible)

Diagram showing a mechanical or electrical component with arrows indicating force or movement, possibly illustrating a process or assembly.

Illustration of a hand using a cart to lift a box (no text or symbols visible)

Pure diagram of a mechanical or structural component with arrows indicating direction (no text or symbols)

Manijas

Illustration of a stainless steel refrigerator with a handle (no text or symbols)

Technical diagram showing three stages of a mechanical or electrical assembly with labeled components A and B, likely illustrating a procedure or assembly.

Instalación

Diagram of a cable or cable support structure with labeled component 'C' (no text or symbols beyond label)

3D rendering of a mechanical component with a central knob and flanged side (no text or symbols)

Control del congelador

Simple line drawing of a curved object with a labeled dimension '4' (no text or symbols beyond the label)

Amana Freezer 4 7th Colloid Refrigerator 4 7th Colloid Electronic

Illustration of hands holding a device with a curved arrow indicating rotation (no text or symbols)

Technical line drawings of a curved structural component with mounting brackets and directional arrows indicating assembly (no text or symbols)

Illustration of a hand placing a bowl into a container with an upward arrow, next to a curved structure (no text or symbols)

Illustration of a hand pressing down on a mechanical component with directional arrows (no text or symbols)

Technical line drawing of a mechanical or architectural component with no visible text or symbols

Desmontaje:

Technical illustration of a mechanical component with cross-sectional views (no text or symbols)

Protectores adherentes (modelos selectos)

Diagram of a structural frame with directional arrows indicating force or movement (no text or symbols)

Instalación:

Technical line drawing of a structural frame or cage structure (no text or symbols)

Instalación:

Diagram of a window frame with directional arrows indicating movement or force (no text or symbols)

Desmontaje:

Technical line drawing of a mechanical component with no visible text or symbols

Isometric line drawing of a rectangular tray with internal grid structure (no text or symbols)

Illustration of hands using a tool to lift or lift a vertical object (no text or symbols visible)

Illustration of a hand holding a mechanical component, no text or symbols present

Hand holding a fan with a black arrow pointing to a striped surface (no text or symbols visible)

Diagram of a mechanical component with arrows indicating direction (no text or symbols)

Illustration of a hand holding a stack of books with an arrow pointing to it, no text or symbols present

A B B C E I G J H D K F
