Download the instructions for your TV in PDF format for free! Find your manual Aquos LC60C6600U - SHARP and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Aquos LC60C6600U by SHARP.

USER MANUAL Aquos LC60C6600U SHARP

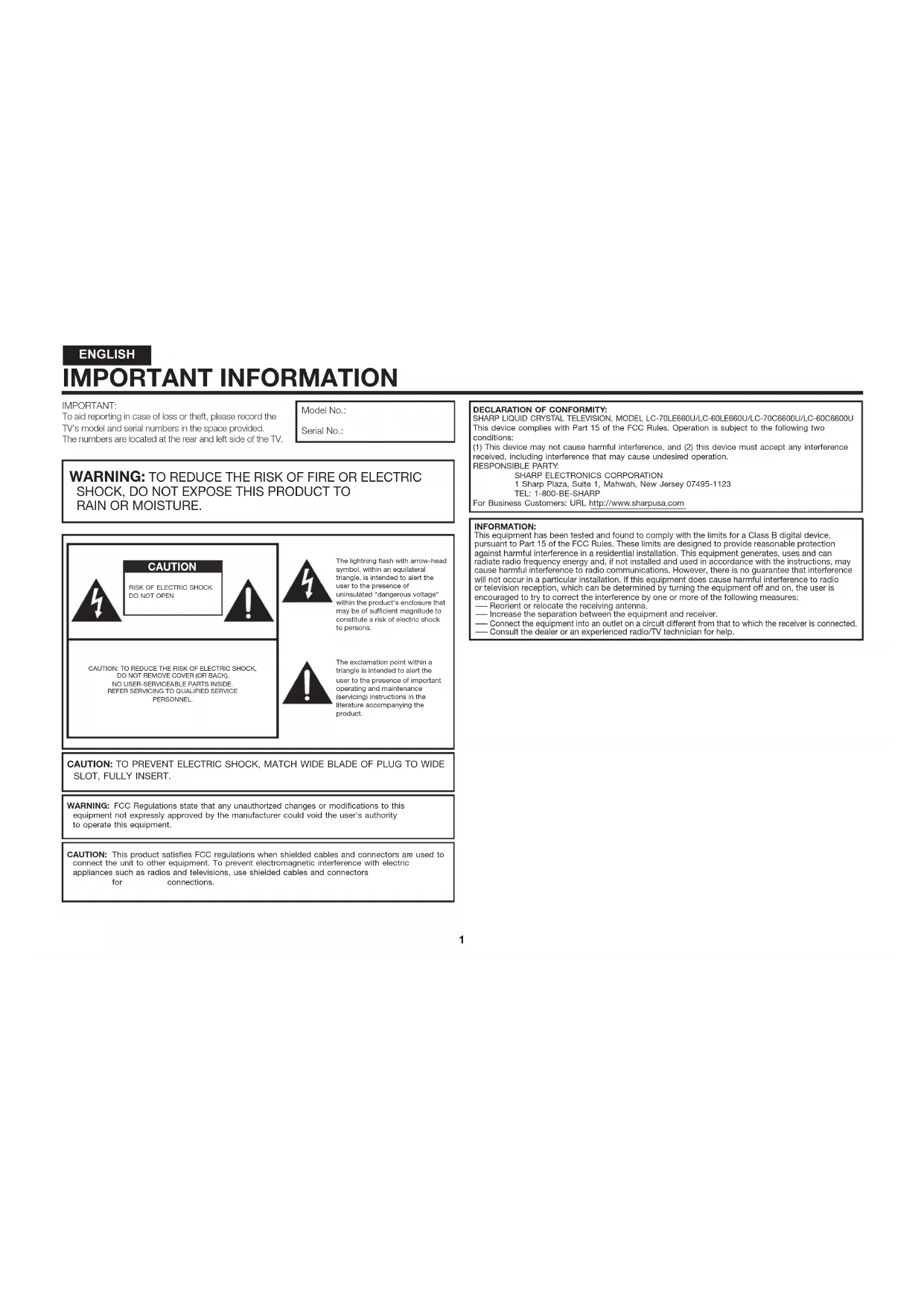

LC-70LE660U LC-60LE660U LC-70C6600U LC-60C6600UIMPORTANT:To aid reporting in case of loss or theft, please record the TV's model and serial numbers in the space provided. The numbers are located at the rear and left side of the TV.Model No.:Serial No.:

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC

SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPENCAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,DO NOT REMOVE COVER (OR BACK).NO USER-SERVICEABLE PARTS INSIDE.REFER SERVICING TO QUALIFIED SERVICEPERSONNEL.CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.WARNING: FCC Regulations state that any unauthorized changes or modiﬁcations to this equipment not expressly approved by the manufacturer could void the user's authority to operate this equipment. CAUTION: This product satisﬁes FCC regulations when shielded cables and connectors are used to connect the unit to other equipment. To prevent electromagnetic interference with electric appliances such as radios and televisions, use shielded cables and connectors for connections.The lightning ﬂash with arrow-head symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufﬁcient magnitude to constitute a risk of electric shock to persons.The exclamation point within a triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product. IMPORTANT INFORMATION INFORMATION:This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. ENGLISH

DECLARATION OF CONFORMITY: SHARP LIQUID CRYSTAL TELEVISION, MODEL LC-70LE660U/LC-60LE660U/LC-70C6600U/LC-60C6600U This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. RESPONSIBLE PARTY:

For Business Customers: URL http://www.sharpusa.com For location of the nearest Sharp Authorized Service, or to obtain product literature, accessories, supplies, or customer assistance, please call 1-800-BE-SHARP. LIMITED WARRANTY

CONSUMER LIMITED WARRANTY

SHARP ELECTRONICS CORPORATION warrants to the ﬁ rst consumer purchaser that this Sharp brand Liquid Crystal Display product (the “Product”), when shipped in its original container, will be free from defective workmanship and materials, and agrees that it will, at its option, either repair the defect or replace the defective Product or part thereof with a new or remanufactured equivalent at no charge to the purchaser for parts or labor for the period(s) set forth below. This warranty does not apply to any appearance items of the Product or if the serial number or model number afﬁ xed to the Product has been removed, defaced, changed, altered or tampered with. This warranty does not cover installation or signal reception problems. This limited warranty will not apply if the Product has been or is being used in a commercial setting or application; this warranty is meant solely for the non-commercial, household use of the Product by consumers in their home or residence. If you intend to or already use this Product for commercial purposes or in a commercial setting, there are warranties available to cover your use of this Product, the terms of which may vary. Please contact 1-888-GO-SHARP for further information. In order to enforce your rights under this limited warranty, you should follow the steps set forth below. You must be able to provide proof of purchase to the servicer, which proof must include the date of purchase. To the extent permitted by applicable state law, the warranties set forth are in lieu of, and exclusive of, all other warranties, express or implied. Speciﬁ cally ALL OTHER WARRANTIES OTHER THAN THOSE SET FORTH ABOVE ARE EXCLUDED, ALL EXPRESS AND IMPLIED WARRANTIES INCLUDING THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR USE, AND FITNESS FOR A PARTICULAR PURPOSE ARE SPECIFICALLY EXCLUDED. IF, UNDER APPLICABLE STATE LAW, IMPLIED WARRANTIES MAY NOT VALIDLY BE DISCLAIMED OR EXCLUDED, THE DURATION OF SUCH IMPLIED WARRANTIES IS LIMITED TO THE PERIOD(S) FROM THE DATE OF PURCHASE SET FORTH BELOW. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE. The warranties given herein shall be the sole and exclusive warranties granted by Sharp and shall be the sole and exclusive remedy available to the purchaser and only for the time periods set forth herein. No other representations or promises made by anyone are permitted. Correction of defects, in the manner and for the period of time described herein, shall constitute complete fulﬁ llment of all liabilities and responsibilities of Sharp to the purchaser with respect to the Product, and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict liability or otherwise. Sharp does not warrant nor shall Sharp be liable, or in any way responsible, for Products which have been subject to abuse (including, but not limited to, improper voltage), accident, misuse, negligence, lack of reasonable care, alteration, modiﬁ cation, tampering, misuse, improper operation or maintenance or any damages or defects in the Product which were caused by repairs or attempted repairs performed by anyone other than a Sharp authorized servicer. Nor shall Sharp be liable or in any way responsible for any incidental or consequential economic or property damage. Some states do not allow limits on warranties or on remedies for breach in certain transactions; in such states, the limits herein may not apply. THIS LIMITED WARRANTY IS VALID ONLY IN THE FIFTY (50) UNITED STATES, THE DISTRICT OF COLUMBIA AND PUERTO RICO. Model Speciﬁ c Section Your Product Model Number & Description: LC-70LE660U/LC-60LE660U/LC-70C6600U/LC-60C6600U LCD Color Television (Be sure to have this information available when you need service for your Product.) Warranty Period for this Product: One (1) year parts and labor from the date of purchase. Additional Exclusions from Warranty Coverage (if any):

n order for the Product to be serviced, the Product must be readily available to the servicer, free and clear of any complex or non-standard installation, mounting or other encumbrance which would unreasonably interfere with servicing the Product. The Servicer will remount the Product after service, provided that such remounting is not into a complex or non-standard installation. Any additional labor and materials required to remove and/or reinstall a Product above and beyond the foregoing are not covered by this warranty, may result in additional ch arges and are the responsibility of the consumer. Image Retention resulting from a ﬁ xed image being displayed for long periods of time is not covered by this Limited Warranty (see Operation Manual on how to prevent this). Where to Obtain Service: From a Sharp Authorized Servicer located in the United States. To ﬁ nd the location of the nearest Sharp Authorized Servicer, please call Sharp toll free at 1-800-BE-SHARP. What to do to Obtain Service: Contact your Sharp Authorized Servicer to obtain in home service for this product. The Servicer will come to your location and if necessary remove the unit for repair at the Servicer’s facility and return the set to you once completed. Be sure to have Proof of Purchase available. TO OBTAIN PRODUCT INFORMATION OR PURCHASE ACCESSORIES AND EXTENDED WARRANTIES, CALL 1-800-BE-SHARP OR VISIT www.sharpusa.com Calling for Service2 IMPORTANT INFORMATION FCC Compliance Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Wireless Radio For product available in the USA/Canada market, only channel 1–11 can be operated. Selection of other channels is not possible. This device is going to be operated in 2.412–2.462GHz frequency range. Important: Any changes or modiﬁ cations not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Industry Canada Statement This Class B digital apparatus complies with CAN ICES-003(B)/NMB-3(B) Wireless Radio For product available in the USA/Canada market, only channel 1–11 can be operated. Selection of other channels is not possible. The device could automatically discontinue transmission in case of absence of information to transmit, or operational failure. Note that this is not intended to prohibit transmission of control or signaling information or the use of repetitive codes where required by the technology. Important: Any changes or modiﬁ cations not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. IC Radiation Exposure Statement: This device complies with IC RSS-210 rules; Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept interference recieved, including interference that may cause undesired operation. "Note to CATV system installer: This reminder is provided to call the CATV system installer's attention to Article 820 of the National Electrical Code that provides guidelines for proper grounding and, in particular, speciﬁ es that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical." This product qualiﬁ es for ENERGY STAR when "Home" is selected for "TV Location". Setting "TV Location" to "Home" allows the TV to achieve an energy-saving status for household use. ENGLISH3 Thank you for your purchase of the Sharp Liquid Crystal Television. To ensure safety and many years of trouble-free operation of your product, please read the Important Safety Instructions carefully before using this product.

Outdoor Antenna Grounding — If an outside antenna is connected to the television equipment, be sure the antenna system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead- in wire to an antenna discharge unit, size of grounding conductors, location of antenna- discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

Water and Moisture — Do not use this product near water - for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like.

Stand — Do not place the product on an unstable cart, stand, tripod or table. Placing the product on an unstable base can cause the product to fall, resulting in serious personal injuries as well as damage to the product. Use only a cart, stand, tripod, bracket or table recommended by the manufacturer or sold with the product. When mounting the product on a wall, be sure to follow the manufacturer's instructions. Use only the mounting hardware recommended by the manufacturer.

Selecting the location — Select a place with no direct sunlight and good ventilation.

Ventilation — The vents and other openings in the cabinet are designed for ventilation. Do not cover or block these vents and openings since insufﬁ cient ventilation can cause overheating and/or shorten the life of the product. Do not place the product on a bed, sofa, rug or other similar surface, since they can block ventilation openings. This product is not designed for built-in installation; do not place the product in an enclosed place such as a bookcase or rack, unless proper ventilation is provided or the manufacturer's instructions are followed.

The front panel used in this product is made of glass. Therefore, it can break when the product is dropped or applied with impact. Be careful not to be injured by broken glass pieces in case the panel breaks.

Heat — The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including ampliﬁ ers) that produce heat.

The Liquid Crystal panel is a very high technology product with 2,073,600 pixels, giving you ﬁ ne picture details.Occasionally, a few non-active pixels may appear on the screen as a ﬁ xed point of blue, green or red. Please note that this does not affect the performance of your product.

Lightning — For added protection for this television equipment during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage to the equipment due to lightning and power-line surges.

Power Lines — An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

To prevent ﬁ re, never place any type of candle or ﬂ ames on the top or near the TV set.

To prevent ﬁ re or shock hazard, do not place the AC cord under the TV set or other heavy items. Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage if improperly handled. This product has been engineered and manufactured with the highest priority on safety. However, improper use can result in electric shock and/or ﬁ re. In order to prevent potential danger, please observe the following instructions when installing, operating and cleaning the product. To ensure your safety and prolong the service life of your Liquid Crystal Television, please read the following precautions carefully before using the product. 1)Read these instructions. 2)Keep these instructions. 3)Heed all warnings. 4)Follow all instructions. 5)Do not use this apparatus near water. 6)Clean only with dry cloth. 7)Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. 8)Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliﬁ ers) that produce heat.

Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not ﬁ t into your outlet, consult an electrician for replacement of the obsolete outlet. 10)Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11)Only use attachments/accessories speciﬁ ed by the manufacturer. 12)Use only with the cart, stand, tripod, bracket, or table speciﬁ ed by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over. 13)Unplug this apparatus during lightning storms or when unused for long periods of time. 14)Refer all servicing to qualiﬁ ed service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. Additional Safety Information 15) Power Sources—This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions. 16)Overloading—Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of ﬁ re or electric shock. 17)Object and Liquid Entry—Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a ﬁ re or electric shock. Never spill liquid of any kind on the product. 18)Damage Requiring Service—Unplug this product from the wall outlet and refer servicing to qualiﬁ ed service personnel under the following conditions: a)When the AC cord or plug is damaged, b)If liquid has been spilled, or objects have fallen into the product, c)If the product has been exposed to rain or water,

If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualiﬁ ed technician to restore the product to its normal operation, e)If the product has been dropped or damaged in any way, and f )When the product exhibits a distinct change in performance - this indicates a need for service. 19)Replacement Parts—When replacement parts are required, be sure the service technician has used replacement parts speciﬁ ed by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in ﬁ re, electric shock, or other hazards. 20)Safety Check—Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition. 21)Wall or ceiling mounting—When mounting the product on a wall or ceiling, be sure to install the product according to the method recommended by the manufacturer.4

IMPORTANT SAFETY INSTRUCTIONS

Caring for the cabinet• Use a soft cloth (cotton, ﬂ annel, etc.) and gently wipe the surface of the cabinet.• Using a chemical cloth (wet/dry sheet type cloth, etc.) may deform the components of the main unit cabinet or cause cracking.• Wiping with a hard cloth or using strong force may scratch the surface of the cabinet.• If the cabinet is very dirty, wipe with a soft cloth (cotton, ﬂ annel, etc.) soaked in neutral detergent diluted with water and thoroughly wrung out, and then wipe with a soft dry cloth.• Avoid using benzene, thinner, and other solvents, as these may deform the cabinet and cause the paint to peel off.• Do not apply insecticides or other volatile liquids. Also, do not allow the cabinet to remain in contact with rubber or vinyl products for a long period of time. Plasticizers inside the plastic may cause the cabinet to deform and cause the paint to peel off.Caring for the front panel• Turn off the main power and unplug the AC cord from the wall outlet before handling.• Gently wipe the surface of the front panel with a soft cloth (cotton, ﬂ annel, etc.).To protect the front panel, do not use a dirty cloth, liquid cleaners, or a chemical cloth (wet/dry sheet type cloth, etc.). This may damage the surface of the front panel.• Wiping with a hard cloth or using strong force may scratch the surface of the front panel.• Use a soft damp cloth to gently wipe the front panel when it is really dirty.(It may scratch the surface of the front panel when wiped strongly.)• If the front panel is dusty, use an anti-static brush, which is commercially available, to clean it.• To avoid scratching the frame or screen, please use a soft, lint free cloth for cleaning. Approved cleaning cloths are available directly from Sharp in single (00Z-LCD-CLOTH) or triple (00Z-LCD-CLOTH-3) packs. Call 1-800-BE-SHARP for ordering, or VISIT http://www.sharpusa.com/SharpDirect. CHILD SAFETY:

PROPER TELEVISION PLACEMENT MATTERS

Do not display a still picture for a long time, as this could cause an afterimage to remain.• To prevent ﬁ re or shock hazard, do not expose this product to dripping or splashing. No objects ﬁ lled with liquids, such as vases, should be placed on the product.• Do not insert foreign objects into the product. Inserting objects in the air vents or other openings may result in ﬁ re or electric shock. Exercise special caution when using the product around children.Precautions when transporting the TV• When transporting the TV, never carry it by holding or otherwise putting pressure onto the display. Be sure to always carry the TV by two people holding it with two hands.THE CONSUMER ELECTRONICS INDUSTRY CARES• Manufacturers, retailers and the rest of the consumer electronics industry are committed to making home entertainment safe and enjoyable.• As you enjoy your television, please note that all televisions – new and old- must be supported on proper stands or installed according to the manufacturer’s recommendations. Televisions that are inappropriately situated on dressers, bookcases, shelves, desks, speakers, chests, carts, etc., may fall over, resulting in injury.TUNE IN TO SAFETY• ALWAYS follow the manufacturer’s recommendations for the safe installation of your television.• ALWAYS read and follow all instructions for proper use of your television.• NEVER allow children to climb on or play on the television or the furniture on which the television is placed.• NEVER place the television on furniture that can easily be used as steps, such as a chest of drawers.• ALWAYS install the television where it cannot be pushed, pulled over or knocked down.• ALWAYS route cords and cables connected to the television so that they cannot be tripped over, pulled or grabbed.WALL OR CEILING MOUNT YOUR TELEVISION• ALWAYS contact your retailer about professional installation if you have any doubts about your ability to safely mount your television.• ALWAYS use a mount that has been recommended by the television manufacturer and has a safety certiﬁ cation by an independent laboratory (such as UL, CSA, ETL).• ALWAYS follow all instructions supplied by the television and mount manufacturers.• ALWAYS make sure that the wall or ceiling where you are mounting the television is appropriate.Some mounts are not designed to be mounted to walls and ceilings with steel studs or cinder block construction. If you are unsure, contact a professional installer.• Televisions can be heavy. A minimum of two people is required for a wall or ceiling mount installation.MOVING AN OLDER TELEVISION TO A NEW PLACE IN YOUR HOME• Many new television buyers move their older CRT televisions into a secondary room after the purchase of a ﬂ at-panel television. Special care should be made in the placement of older CRT televisions.• ALWAYS place your older CRT television on furniture that is sturdy and appropriate for its size and weight.• NEVER place your older CRT television on a dresser where children may be tempted to use the drawers to climb.• ALWAYS make sure your older CRT television does not hang over the edge of your furniture.CE.org/safety ENGLISH5 Wireless LAN This TV has received the following certiﬁ cations. - Wi-Fi CERTIFIED™ (certiﬁ cation program from the Wi-Fi Alliance

- Wi-Fi Protected Setup™ (certiﬁ cation program from the Wi-Fi Alliance

FCC This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modiﬁ cations not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. To comply with the FCC RF exposure compliance requirements, this device and its antenna must not be co-located or operated in conjunction with any other antenna or transmitter. IFETEL This equipment operates on a secondary basis and, consequently, must accept harmful interference, including from station of the same kind, and may not cause harmful interference to systems operating on a primary basis. CONTAINS TRANSMITTER MODULE IFETEL ID: RCPSHWN14-1198 Brand: SHARP Model: WN4616L

OU D'ÉLECTROCUTION, N'EXPOSEZ PAS CET

ENGLISH Supplied Accessories Make sure the following accessories are provided with the product. NOTE

Always use the AC cord supplied with the TV.

The illustrations above are for explanation purposes and may vary slightly from the actual accessories.

"AAA " size battery (x2)

Setup Guide (this publication) Optional Accessories The listed optional accessories are available for the Liquid Crystal Television. Please purchase them at your nearest shop.

Before attaching (or detaching) the stand, unplug the AC cord.

Before performing work spread cushioning over the base area to lay the TV on. This will prevent it from being damaged. CAUTION
Be sure to follow the instructions. Incorrect installation of the stand may result in the TV falling over.

Conﬁrm that there are 10 screws supplied with the stand unit.

Attach the base to the post.

Insert and tighten the 6 screws into the 6 holes on the bottom of the base.

Hold the stand unit securely with one hand, and then tighten the screws.

Insert the stand into the openings on the bottom of the TV.

Make sure that the stand is ﬁ rmly inserted into the TV. Improper installation may result in tilting of the TV set.

Insert and tighten the 4 screws into the 4 holes on the rear of the TV.

Screws• Vis• Tornillos• Soft cushion• Coussin moelleux• Cojín blando• Durante el procedimiento de instalación, asegúrese de que sus dedos no queden atrapados entre el televisor y el suelo.• No quite el soporte del televisor a menos que utilice una ménsula de montaje en pared opcional para montarlo.• Tras instalar el soporte al televisor, no sujete el soporte cuando cuelgue, monte, mueva o coloque el televisor. • Lors de l'installation, faites attention de ne pas vous coincer les doigts entre le téléviseur et le sol.• Ne retirez pas le socle du téléviseur, sauf si vous utilisez l'applique pour montage mural en option pour le monter.• Après avoir ﬁ xé le socle au téléviseur, ne tenez pas le socle lorsque vous posez, installez, déplacez ou ﬁ xez le téléviseur.• In the installation procedure, be careful not to catch your ﬁ ngers between the TV set and the ﬂ oor.• Do not remove the stand from the TV unless using an optional wall mount bracket to mount it.• After attaching the stand to the TV, do not hold the stand when you put up, set up, move or lay down the TV.18 Setting the TV on the Wall/Montage du téléviseur sur un mur/Instalación del televisor en una pared ENGLISH Using an optional bracket to mount the TV
You can ask a qualiﬁ ed service professional about using an optional AN-52AG4 bracket to mount the TV on the wall.• Carefully read the instructions that come with the bracket before beginning work.CAUTION• This TV should be mounted on the wall only with the wall mount bracket AN-52AG4 (SHARP). The use of other wall mount brackets may result in an unstable installation and may cause serious injuries.• Installing the TV requires special skill that should only be performed by qualiﬁ ed service personnel. Customers should not attempt to do the work themselves. SHARP bears no responsibility for improper mounting or mounting that results in accident or injury. Hanging on the wall LC-70LE660U/LC-70C6600U• The center of the display:3/32 inch (2mm) above the "c" position.LC-60LE660U/LC-60C6600U• The center of the display:31/64 inch (12mm) above the "c" position.Refer to the operation manual of AN-52AG4 for details.The wall mount kit (sold separately) allows you to mount the TV on the wall.For detailed information on installing the wall mount, see the instructions provided with the product.We recommend you to contact a technician for assistance when installing it. SHARP is not responsible for any damage to the product or injury to yourself or others if you elect to install the wall mount on your own. CAUTION• Install your wall mount on a solid wall perpendicular to the ﬂ oor.When you want to attach the wall mount to surfaces other than plaster board, please contact your nearest retailer/adviser for additional information. If you install the TV on a ceiling or slanted wall, it may fall and result in severe personal injury. Always have two people mount the TV on a wall. NOTE
Due to the terminal conﬁ guration on this TV, when you wall-mount this model, make sure there is enough space between the wall and the TV for the cables.• To use this TV mounted on a wall, remove the AC cord holder on the rear of the TV, and then use the screws supplied with the wall mount bracket to secure the bracket to the rear of the TV. FRANÇAIS Utilisation de l'applique en option pour monter le téléviseur
Vous pouvez faire appel à un technicien de service qualiﬁ é et utiliser l'applique AN-52AG4 en option pour monter le téléviseur sur un mur.• Lisez attentivement les instructions accompagnant l'applique avant de commencer les travaux.ATTENTION• Ce téléviseur doit être installé sur un mur uniquement avec l'applique pour montage mural AN-52AG4 (SHARP). Une installation instable et un risque de blessures graves pourraient résulter de l'utilisation d'autres appliqués pour montage mural.• L'installation du téléviseur demande une qualiﬁ cation spéciale et ne devra être exécutée que par un personnel d'entretien qualiﬁ é. Nous vous conseillons de ne pas effectuer vous-même ce travail. SHARP décline toute responsabilité en cas de montage défectueux pouvant provoquer un accident ou des blessures. Suspension au mur LC-70LE660U/LC-70C6600U• Le centre de l'écran:3/32 de pouce (2mm) au-dessus de la position "c".LC-60LE660U/LC-60C6600U• Le centre de l'écran:31/64 de pouce (12mm) au-dessus de la position "c".Consultez le mode d'emploi de AN-52AG4 pour les détails.Le kit de montage mural (vendu séparément) vous permet de monter le téléviseur au mur.Pour des informations détaillées sur l'installation murale, référez-vous aux instructions fournies avec le produit.Nous vous recommandons de faire appel à un technicien pour vous aider à l'installer.SHARP ne pourra être tenu pour responsable de l'endommagement du produit ou des blessures corporelles causées à vous-même ou à autrui si vous décidez d'installer le téléviseur au mur, sans assistance professionnelle. ATTENTION• Installez l'appareil sur un mur solide, perpendiculaire au sol. Si vous souhaitez ﬁ xer l'applique murale sur une surface autre qu'une plaque de plâtre, prenez contact avec votre détaillant/conseiller pour de plus amples informations. Si vous installez le téléviseur au plafond ou sur un mur incliné, il peut tomber et provoquer des blessures corporelles graves. Il faut un minimum de deux personnes pour l'installation murale du téléviseur.REMARQUE• En raison de la conﬁ guration des prises sur ce téléviseur, lors du montage au mur de ce modèle, assurez-vous de laisser un espace sufﬁ sant entre le mur et le téléviseur pour faire passer les câbles.• Avant toute installation du téléviseur au mur, retirer le support du cordon secteur à l'arrière du téléviseur, puis utiliser les vis fournies avec l'applique pour montage mural pour la ﬁ xer à l'arrière du téléviseur. ESPAÑOL Utilización de una ménsula opcional para montar el televisor

Attach your antenna to the back of the television. (See page 22.)

Connect the AC plug for the television into the AC outlet.

Place the TV close to the AC outlet, and keep the power plug within reach. NOTE
TO PREVENT RISK OF ELECTRIC SHOCK, DO NOT TOUCH UN-INSULATED PARTS OF ANY CABLES WITH THE AC CORD CONNECTED. FRANÇAIS Connexion secteur

When turning on the TV for the ﬁ rst time, press POWER on the television. Insert the batteries into the remote control unit. (See page 21.) NOTE

Speakers cannot be detached from the TV.• The TV angle cannot be adjusted. Turning On/Off the Power Press POWER on the TV or on the remote control unit to turn the power on. NOTE
The Initial Installation starts when the TV powers on for the ﬁ rst time. If the TV has been turned on before, the Initial Installation will not be invoked. For changing the settings of the Initial Installation, please select "Easy Setup" on the Initial Setup menu.Press POWER on the TV or on the remote control unit again to turn the power off.• The TV enters standby and the image on the screen disappears. NOTE
If you are not going to use this TV for a long period of time, be sure to remove the AC cord from the AC outlet.• Weak electric power is still consumed even when the TV is turned off. Experiencing HD Images An HDTV without an HD source is just an ordinary TV.To enjoy HD images on the TV, you should get HD programming from the following:• Over-the-air broadcasting via HD quality antenna• HD cable/satellite subscription• HD compatible external equipment NOTE
For information on updating to HD programming, ask your cable/satellite service provider. FRANÇAIS

Open the battery cover.

Insert two "AAA" size batteries (supplied with the product).

Place the batteries with their terminals corresponding to the (

indications in the battery compartment.

Close the battery cover. CAUTIONImproper use of batteries can result in chemical leakage or explosion. Be sure to follow the instructions below.• Do not mix batteries of different types. Different types of batteries have different characteristics.• Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries or cause chemical leakage in old batteries.• Remove batteries as soon as they are worn out. Chemicals that leak from batteries that come in contact with skin can cause a rash. If you ﬁ nd any chemical leakage, wipe thoroughly with a cloth.• The batteries supplied with this product may have a shorter life expectancy due to storage conditions.• If you will not be using the remote control unit for an extended period of time, remove batteries from it. Using the Remote Control Unit Use the remote control unit by pointing it towards the remote control sensor on the TV. Objects between the remote control unit and the remote control sensor may prevent proper operation.

Cautions regarding the remote control unit

75-ohm coaxial cable (round)

Cable coaxial de 75 ohmios (redondo)

75-ohm coaxial cable (round)

Câble coaxial de 75 ohms (rond)

Cable coaxial de 75 ohmios (redondo)

F-type connector• Connecteur de type F• Conector tipo F• F-type connector• Connecteur de type F• Conector tipo F75-ohm coaxial cable (round)Câble coaxial de 75 ohms (rond)Cable coaxial de 75 ohmios (redondo) ENGLISH Antennas To enjoy a clearer picture, use an outdoor antenna. The following is a brief explanation of the types of connections that are used for a coaxial cable. If your outdoor antenna uses a 75-ohm coaxial cable with an F-type connector, plug it into the antenna terminal at the rear of the TV set. For connecting the antenna cable to the TV, use commercially available cables.Connecting Antenna Cable• Connect the antenna cable to the TV using one of the methods in the illustration as shown

Connecting to video equipment or PC

Connecting to audio equipment

ENGLISH Types of Connection For connecting the TV to external equipment, use commercially available cables.

The illustrations of the terminals are for explanation purposes and may vary slightly from the actual products.

Connecting to video equipment or PC Image quality differs depending on the terminal used. To enjoy clearer images, check the output terminals of your external equipment and use its appropriate terminals for higher quality images.

Cable certiﬁcado HDMI ENGLISH You can connect many types of external equipment to your TV. To view external source images, select the input source by pressing INPUT on the remote control unit or on the TV.For connecting the TV to external equipment, use commercially available cables.CAUTION• To protect equipment, always turn off the TV before connecting any external equipment.• Please read the relevant operation manual (Blu-ray disc player, etc.) carefully before making connections. Connecting a Blu-ray Disc/DVD Player or HD Cable/Satellite Set-top Box

To enjoy 1080p display capability, connect your external equipment using an HDMI-certiﬁ ed cable or a component cable and set the equipment to 1080p output.• When you connect a component cable to the COMPONENT/VIDEO IN terminal, switch Input Select to COMPONENT. Connecting a VCR, Game Console, Camcorder or Cable/Satellite Set-top Box

If the image is not in sync with the audio, check the settings of the connected surround system.

When connecting an audio ampliﬁ er It is possible to output audio through the DIGITAL AUDIO OUT terminal.

Cable RGB analógico (D-sub de 15 contactos o cable VGA) ENGLISH Connecting a PC Refer to built-in operation manual for a list of PC signals compatible with the TV.

Depending on the board, only video signals may be output. In this case, in addition to connecting an HDMI- certiﬁ ed cable to the HDMI IN 2 terminal, connect a Ø 3.5 mm stereo minijack cable to the AUDIO IN terminal and set "Audio Select" to "HDMI+Analog". (Refer to built-in operation manual.)

The HDMI IN terminals only support digital signal.

Insert the batteries into the remote control unit.

Connect the antenna cable to the TV.

Plug in the AC cord to the AC outlet. Language (Language setting) Select from among 3 languages: English, French and Spanish.

to select the desired language listed on the screen, and then press ENTER. Language Location & Time TV Location Antenna & Cable/STB Air/Cable English Español Français CH Search Smart TV Completed Location & Time Make settings for the country, area and time zone where you use the TV.

to select the time zone where you are using the TV, and then press ENTER.

to select "Home" or "Store". Press ENTER to enter the setting. Antenna & Cable/STB Select the type of connection you will use to watch TV.

to select "Antenna & Cable" or "Set-top box", and then press ENTER. Air/Cable (Antenna setting) Make sure what kind of connection is made with your TV when selecting "Air" or "Cable".

to select "Air" or "Cable". Press ENTER to enter the setting. CH Search (Channel search) Channel auto search makes the TV look for all channels viewable in the set area.

When "Air" is selected in Antenna setting: Press

to select "Start", and then press ENTER. Smart TV When you connect to the Internet on the TV, select the desired connection method and follow the instructions shown on the display.

to select "Yes", and then press ENTER.

The settings conﬁ rmation screen is displayed. Conﬁ rm the information displayed on the screen, and then press ENTER. Examples of the settings conﬁ rmation screen FRANÇAIS Terminé

Press MANUAL while watching the TV. This displays the e-manual screen.

When you select contents, its page will be displayed.

You can turn over the page one by one for these arrow marks. NOTE

Is the AC cord disconnected? Page 19.

Has the power been turned on? Page 20.

Remote control unit does not operate.

Are batteries inserted with polarity (

Is connection to other components correct? Page 22 to 27.

CLEAR THE SECRET NUMBER

If you forget the secret number, clear the secret number using the following the procedure.

Select the "Initial Setup" > "Individual Setup" > "Secret No."

You can reconﬁ gure the secret number by entering "9999". NOTE

As a precautionary measure, make a note of your secret number above, and keep it in a safe place. The secret number is

WARNING: FCC Regulations state that any unauthorized changes or modiﬁcations to this

equipment not expressly approved by the manufacturer could void the user's authority to operate this equipment. CAUTION: This product satisﬁes FCC regulations when shielded cables and connectors are used to connect the unit to other equipment. To prevent electromagnetic interference with electric appliances such as radios and televisions, use shielded cables and connectors for connections.The lightning ﬂash with arrow-head symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufﬁcient magnitude to constitute a risk of electric shock to persons.The exclamation point within a triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product. IMPORTANT INFORMATION INFORMATION: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:—Reorient or relocate the receiving antenna.—Increase the separation between the equipment and receiver.— Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. ENGLISH
