USER MANUAL DV310 PIONEER

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. The lightning flash with arrowhead, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product'senclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.CAUTION:TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTSINSIDE. REFER SERVICING TO QUALIFIEDSERVICE PERSONNEL. CAUTION RISK OF ELECTRIC SHOCKDO NOT OPEND1-4-2-3_En IMPORTANT Thank you for buying this Pioneer product. Please read through these operating instructions so you will know how to operate your model properly. After you have finished reading the instructions, put them away in a safe place for future reference. DV410V_KUC_En.book 2 ページ ２００８年２月１５日　金曜日　午後３時０分3

English READ INSTRUCTIONS — All the safety and operating instructions should be read before the product is operated.RETAIN INSTRUCTIONS — The safety and operating instructions should be retained for future reference. HEED WARNINGS — All warnings on the product and in the operating instructions should beadhered to.FOLLOW INSTRUCTIONS — All operating and use instructions should be followed.CLEANING — The product should be cleaned only with a polishing cloth or a soft dry cloth. Never clean with furniture wax, benzine, insecticides or other volatile liquids since they may corrode the cabinet.ATTACHMENTS — Do not use attachments not recommended by the product manufacturer as they may cause hazards. ATER AND MOISTURE — Do not use this product near water — for example, near a bathtub, wash bowl, kitchen sink, or laundrytub; in a wet basement; or near a swimming pool; and the like. ACCESSORIES — Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer’s instructions, and should use a mounting accessory recommended by the manufacturer. CART — A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn. VENTILATION — Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-ininstallation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to. POWER SOURCES — This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company

LOCATION – The appliance should be installed in a stable location. NONUSE PERIODS – The power cord of the appliance should be unplugged from the outlet when left un-used for a long period of time.GROUNDING OR POLARIZATION

• If this product is equipped with a polarized alternating current line plug (a plug having one blade wider than the other), it will fit into the outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

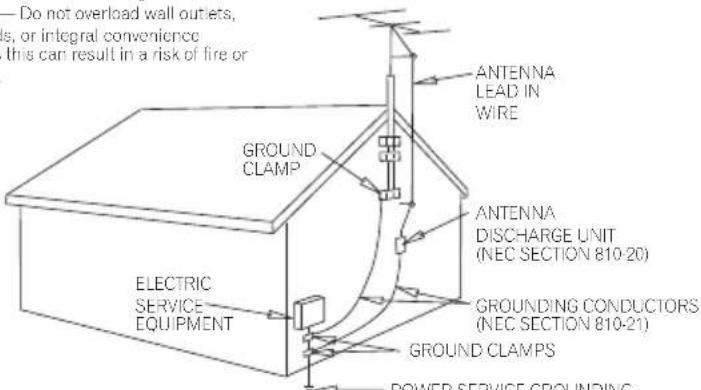

• If this product is equipped with a three-wire grounding type plug, a plug having a third (grounding) pin, it will only fit into a grounding type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding type plug.POWER-CORD PROTECTION —Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.OUTDOOR ANTENNA GROUNDING — If an outside antenna or cable system is connected tothe product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the NationalElectrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit,size of grounding conductors, location ofantenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. See Figure A. LIGHTNING — For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. Thiswill prevent damage to the product due tolightning and power-line surges.POWER LINES — An outside antenna systemshould not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.OVERLOADING — Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock. OBJECT AND LIQUID ENTRY — Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product. SERVICING — Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.DAMAGE REQUIRING SERVICE — Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:• When the power-supply cord or plug is damaged.• If liquid has been spilled, or objects have fallen into the product.
• If the product has been exposed to rain or water.

• If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.

• If the product has been dropped or damaged in any way

• When the product exhibits a distinct change in performance — this indicates a need for service. REPLACEMENT PARTS — When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards. SAFETY CHECK — Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition

WALL OR CEILING MOUNTING — The product should not be mounted to a wall or ceiling. HEAT — The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.GROUNDCLAMPELECTRICSERVICEEQUIPMENTANTENNALEAD IN WIRE ANTENNADISCHARGE UNIT(NEC SECTION 810-20)GROUNDING CONDUCTORS(NEC SECTION 810-21)GROUND CLAMPSPOWER SERVICE GROUNDINGELECTRODE SYSTEM(NEC ART 250, PART H)NEC — NATIONAL ELECTRICAL CODEFig. AD1-4-2-2_En

S001_En Selecting fine audio equipment such as the unit you’ve just purchased is only the start of your musical enjoyment. Now it’s time to consider how you can maximize the fun and excitement your equipment offers. This manufacturer and the Electronic Industries Association’s Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level. One that lets the sound come through loud and clear without annoying blaring or distortion-and, most importantly, without affecting your sensitive hearing. Sound can be deceiving. Over time your hearing “comfort level” adapts to higher volumes of sound. So what sounds “normal” can actually be loud and harmful to your hearing. Guard against this by setting your equipment at a safe level BEFORE your hearing adapts. To establish a safe level:

Start your volume control at a low setting.

• Slowly increase the sound until you can hear it comfortably and clearly, and without distortion. Once you have established a comfortable sound level:

• Set the dial and leave it there. Taking a minute to do this now will help to prevent hearing damage or loss in the future. After all, we want you listening for a lifetime. We Want You Listening For A Lifetime Used wisely, your new sound equipment will provide a lifetime of fun and enjoyment. Since hearing damage from loud noise is often undetectable until it is too late, this manufacturer and the Electronic Industries Association’s Consumer Electronics Group recommend you avoid prolonged exposure to excessive noise. This list of sound levels is included for your protection. Decibel Level Example 30 Quiet library, soft whispers

Living room, refrigerator, bedroom away from traffic 50 Light traffic, normal conversation, quiet office 60 Air conditioner at 20 feet, sewing machine 70 Vacuum cleaner, hair dryer, noisy restaurant

Average city traffic, garbage disposals, alarm clock at two feet.

fonts licenced by NEC Corporation. FontAvenue is a registered trademark of NEC Corporation. This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

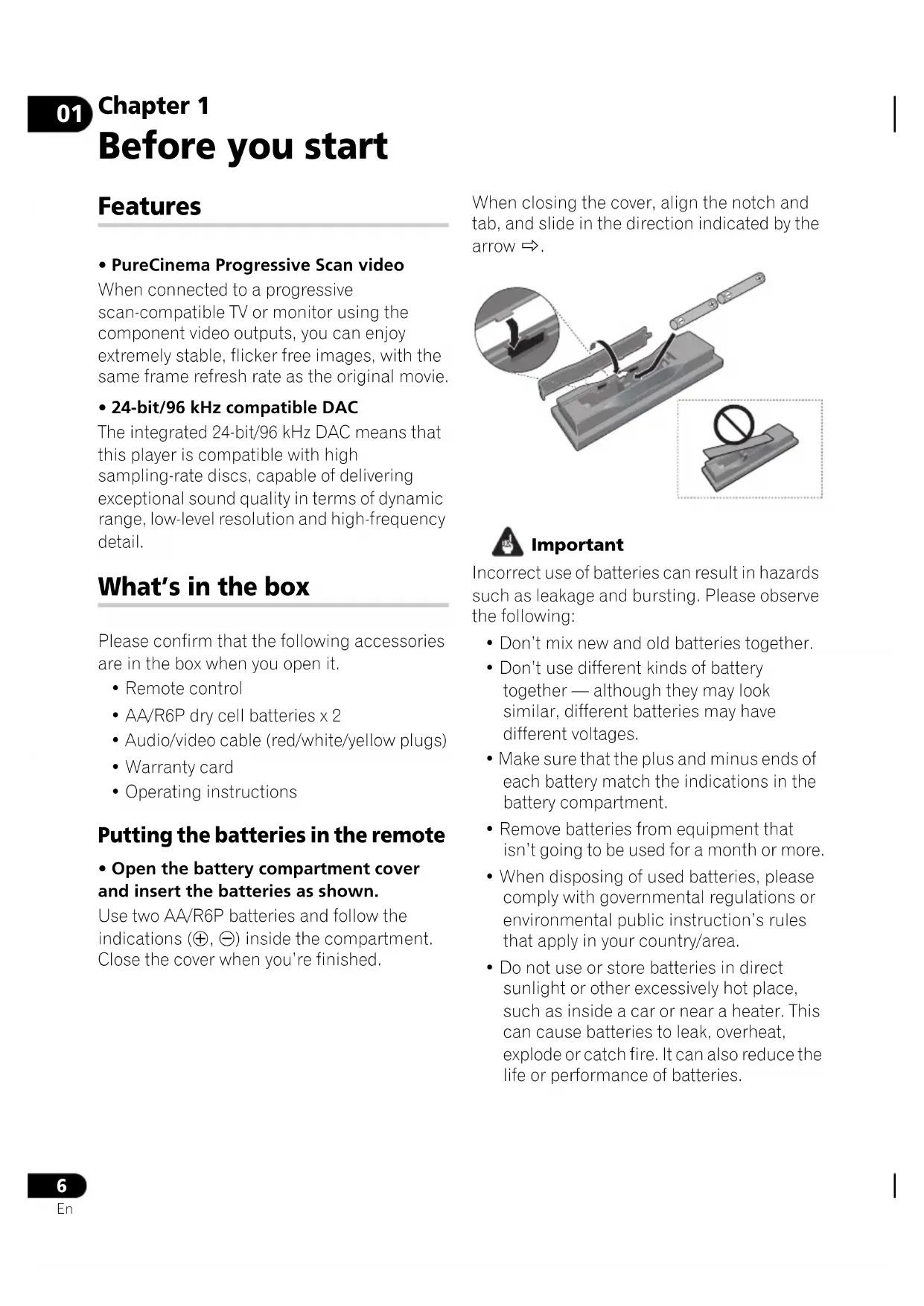

Before you start Features

• PureCinema Progressive Scan videoWhen connected to a progressive scan-compatible TV or monitor using the component video outputs, you can enjoy extremely stable, flicker free images, with the same frame refresh rate as the original movie.• 24-bit/96 kHz compatible DACThe integrated 24-bit/96 kHz DAC means that this player is compatible with high sampling-rate discs, capable of delivering exceptional sound quality in terms of dynamic range, low-level resolution and high-frequency detail. What’s in the box Please confirm that the following accessories are in the box when you open it.• Remote control• AA/R6P dry cell batteries x 2• Audio/video cable (red/white/yellow plugs)• Warranty card• Operating instructions Putting the batteries in the remote

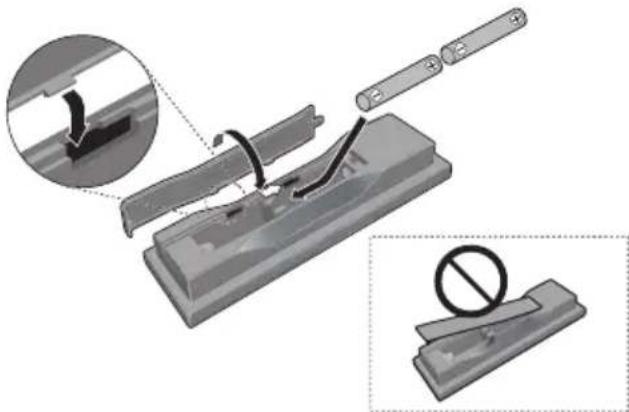

• Open the battery compartment cover and insert the batteries as shown.Use two AA/R6P batteries and follow the indications (, ) inside the compartment. Close the cover when you’re finished.When closing the cover, align the notch and tab, and slide in the direction indicated by the arrow . ImportantIncorrect use of batteries can result in hazards such as leakage and bursting. Please observe the following:• Don’t mix new and old batteries together.• Don’t use different kinds of battery together — although they may look similar, different batteries may have different voltages.• Make sure that the plus and minus ends of each battery match the indications in the battery compartment.• Remove batteries from equipment that isn’t going to be used for a month or more.• When disposing of used batteries, please comply with governmental regulations or environmental public instruction’s rules that apply in your country/area.• Do not use or store batteries in direct sunlight or other excessively hot place, such as inside a car or near a heater. This can cause batteries to leak, overheat, explode or catch fire. It can also reduce the life or performance of batteries. DV410V_KUC_En.book 6 ページ ２００８年２月１５日　金曜日　午後３時０分01

English Hints on installation We want you to enjoy using this product for years to come, so please use the following guidelines when choosing a suitable location: Do...

• Use in a well-ventilated room.

• Place on a solid, flat, level surface, such as a table, shelf or stereo rack. Don’t...

• Use in a place exposed to high temperatures or humidity, including near radiators and other heat-generating appliances.

• Place on a window sill or a place where the player will be exposed to direct sunlight.

• Use in an excessively dusty or damp environment.

• Place directly on top of an amplifier, or other component in your stereo system that becomes hot in use.

• Use near a television or monitor as you may experience interference — especially if the television uses an indoor antenna.

• Use in a kitchen or other room where the player may be exposed to smoke or steam.

• Use on a thick rug or carpet, or cover with cloth — this may prevent proper cooling of the unit.

• Place on an unstable surface, or one that is not large enough to support all four of the unit’s feet. Disc/content format playback compatibility This player is compatible with a wide range of disc types (media) and formats. Playable discs will generally feature one of the following logos on the disc and/or disc packaging. Note however that some disc types, such as recordable CD and DVD, may be in an unplayable format — see below for further compatibility information. Please also note that recordable discs cannot be recorded using this player.

• This unit will play DVD+R/+RW discs.

• is a trademark of DVD Format/Logo Licensing Corporation.

• is a trademark of FUJIFILM Corporation.

About DualDisc playback A DualDisc is a new two -sided disc, one side of which contains DVD content video, audio, etc. while the other side contains non-DVD content such as digital audio material. The non-DVD, audio side of the disc is not compliant with the CD audio specification and therefore may not play. The DVD side of a DualDisc plays in this product. For more detailed information on the DualDisc specification, please refer to the disc manufacturer or disc retailer. CD-R/-RW compatibility

• Compatible formats: CD audio, Video CD, ISO 9660 CD-ROM* containing MP3, WMA, MPEG-4 AAC, JPEG or DivX video/ WMV files

• ISO 9660 Level 1 or 2 compliant. CD physical format: Mode1, Mode2 XA Form1. Romeo and Joliet file systems are both compatible with this player.

• Multi-session playback: No

• Unfinalized disc playback: No

• File structure (may differ): Up to 299 folders on a disc; up to 648 folders and files (combined) within each folder DVD+R/+RW compatibility Only DVD+R/DVD+RW discs recorded in ‘Video Mode (DVD Video Mode)’ which have been finalized, can be played back. However, some editing made during the recording may not be played back accurately. DVD-R/-RW compatibility

• Compatible formats: DVD-Video, Video Recording (VR)*

• Edit points may not play exactly as edited; screen may go momentarily blank at edited points.

• Unfinalized playback: No

• Sampling rates: 32 kHz, 44.1 kHz or 48 kHz

• Bit-rates: Any (128 kbps or higher recommended)

• DRM (Digital Rights Management) compatible: No (DRM-protected audio files will not play in this player — see also DRM in the Glossary on page 49)

English About MPEG-4 AAC Advanced Audio Coding (AAC) is at the core of the MPEG-4 AAC standard, which incorporates MPEG-2 AAC, forming the basis of the MPEG-4 audio compression technology. The file format and extension used depend on the application used to encode the AAC file. This unit plays back AAC files encoded by iTunes

bearing the extension ‘.m4a’. DRM-protected files will not play, and files encoded with some versions of iTunes

may not play, or filenames may display incorrectly.

• Apple and iTunes are trademarks of Apple Inc., registered in the U.S. and other countries. Windows Media™ Audio (WMA) compatibility This player can playback Windows Media Audio content. WMA is an acronym for Windows Media Audio and refers to an audio compression technology developed by Microsoft Corporation. WMA content can be encoded by using Windows Media Player for Windows XP, Windows Media Player 9 or Windows Media Player 10 series.

• Windows Media is a trademark of Microsoft Corporation.

• This product includes technology owned by Microsoft Corporation and cannot be used or distributed without a license from Microsoft Licensing, Inc. About DivX video DivX is a digital video format created by DivX, Inc. This player can play DivX videos recorded on DVDs, CDs, or USB storage devices. Keeping the same terminology as DVD-Video, individual DivX video files are called “Titles”. DivX videos will be played in alphabetical order.

• DivX, DivX Certified, and associated logos are trademarks of DivX, Inc. and are used under license. Displaying external subtitle files The font sets listed below are available for external subtitle files. You can see the proper font set on-screen by setting the Subtitle Language (in Language settings on page 38) to match the subtitle file. This player supports the following language groups:

• Some external subtitle files may be displayed incorrectly or not at all.

• For external subtitle files the following subtitle format filename extensions are supported (please note that these files are not shown within the disc navigation menu): .srt, .sub, .ssa, .smi

• The filename of the movie file has to be repeated at the beginning of the filename for the external subtitle file. Group 1 Albanian (sq), Basque (eu), Catalan (ca), Danish (da), Dutch (nl), English (en), Faroese (fo), Finnish (fi), French (fr), German (de), Icelandic (is), Irish (ga), Italian (it), Norwegian (no), Portuguese (pt), Rhaeto-Romanic (rm), Scottish (gd), Spanish (es), Swedish (sv) Group 2 Albanian (sq), Croatian (hr), Czech (cs), Hungarian (hu), Polish (pl), Romanian (ro), Slovak (sk), Slovenian (sl) Group 3 Bulgarian (bg), Byelorussian (be), Macedonian (mk), Russian (ru), Serbian (sr), Ukrainian (uk) Group 4 Hebrew (iw), Yiddish (ji) Group 5 Turkish (tr) DV410V_KUC_En.book 9 ページ ２００８年２月１５日　金曜日　午後３時０分01

• The number of external subtitle files which can be switched for the same movie file is limited to a maximum of 10. DivX video compatibility

• Plays all versions of DivX

video (including DivX

6) with standard playback of DivX

• File extensions: .avi and .divx (these must be used for the player to recognize DivX video files). Note that all files with the .avi extension are recognized as MPEG4, but not all of these are necessarily DivX video files and therefore may not be playable on this player. About Windows Media Video (WMV) (DV-410V only) WMV is an acronym for Windows Media Video and refers to a video compression technology developed by Microsoft Corporation. WMV content can be encoded by using Windows Media Encoder.

• This player is compatible with WMV9 files that are encoded by using the Windows Media Encoder 9 Series, with .wmv as an extension.

• Compatible with size under 720x480 pixels.

• Advanced Profile is not supported.

• DRM-protected video files will not play in this player. JPEG file compatibility

• Compatible formats: Baseline JPEG and EXIF 2.2* still image files up to a resolution of 3072 x 2048. *File format used by digital still cameras.

• Progressive JPEG compatible: No

• File extensions: .jpg (must be used for the player to recognize JPEG files — do not use for other file types) PC-created disc compatibility Discs recorded using a personal computer may not be playable in this unit due to the setting of the application software used to create the disc. In these particular instances, check with the software publisher for more detailed information. Discs recorded in packet write mode (UDF format) are not compatible with this player. Check the DVD-R/-RW or CD-R/-RW software disc boxes for additional compatibility information. DV410V_KUC_En.book 10 ページ ２００８年２月１５日　金曜日　午後３時０分02

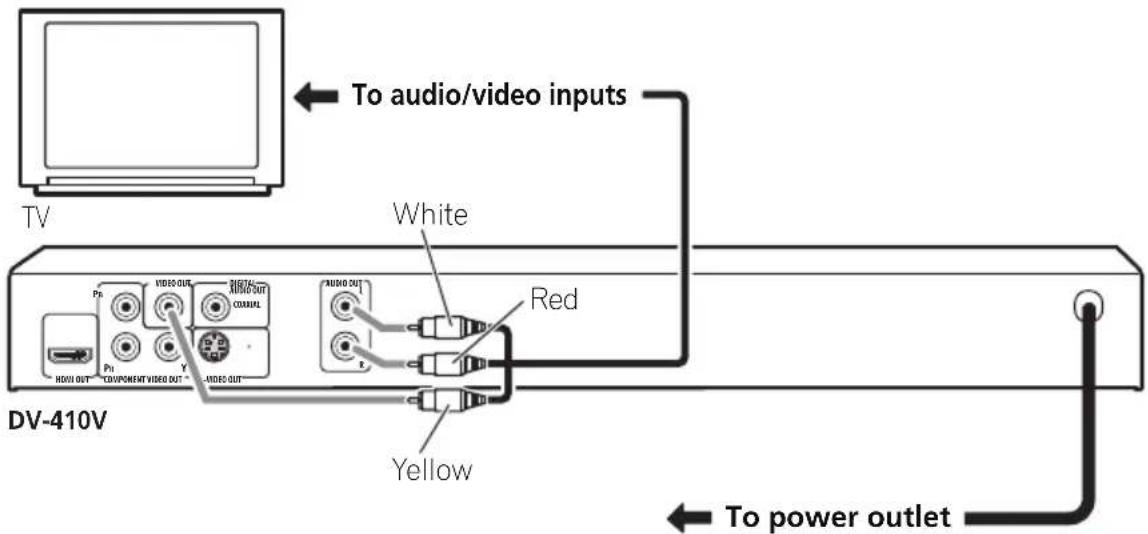

Connections Easy connections Important

• Before making or changing any connections, switch off the power and disconnect the power cable from the AC outlet.
• The setup described here is a basic setup that allows you to play discs using just the cables supplied with the player. In this setup, stereo audio is played through the speakers in your TV.

• This player is equipped with copy protection technology. Do not connect this player to your TV via a VCR using audio/video cables, as the picture from this player will not appear properly on your TV. (This player may also not be compatible with some combination TV/VCRs for the same reason; refer to the manufacturer for more information.)1 Connect the VIDEO OUT and AUDIO OUT L/R jacks to a set of A/V inputs on your TV.Use the supplied audio/video cable, connecting the red and white plugs to the audio outputs and the yellow plug to the video output. Make sure you match up the left and right audio outputs with their corresponding inputs for correct stereo sound.See below if you want to use a component or S-Video cable for the video connection.2 Plug into a power outlet. Note• Before unplugging the player from the power outlet, make sure you first switch it into standby using either the front panel STANDBY/ON button, or the remote control, and wait of the -OFF- message to disappear from the player’s display.• For the above reasons, do not plug this player into a switched power supply found on some amplifiers and AV receivers.PRPB COMPONENT VIDEO OUTVIDEO OUTS-VIDEO OUTDIGITAL AUDIO OUTAUDIO OUTHDMI OUT

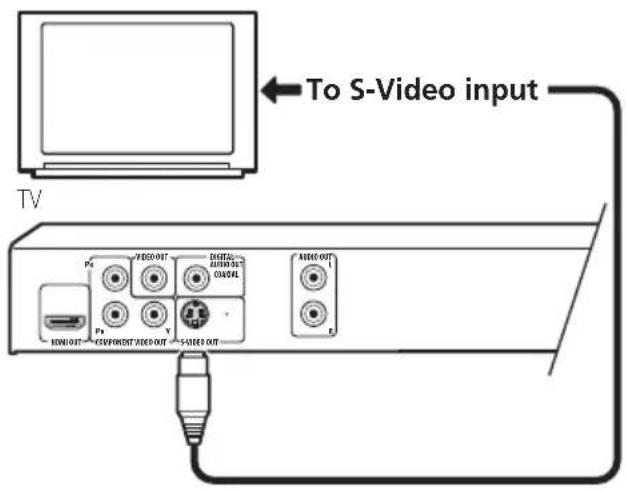

Connecting using the S-Video output If your TV (or other equipment) has an S-Video (S1) input, you can use the S-Video output on this player instead of the standard (composite) output for a better quality picture.

• Use an S-Video cable (not supplied) to connect the S-VIDEO OUT to an S-Video input on your TV (or monitor or AV receiver). Line up the small triangle above the jack with the same mark on the plug before plugging in. Connecting using the component video output You can use the component video output instead of the standard video out jack to connect this player to your TV (or other equipment). This should give you the best quality picture from the three types of video output available.

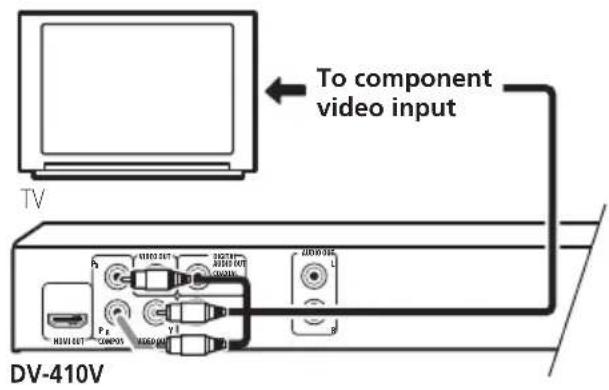

• Use a component video cable (not supplied) to connect the COMPONENT VIDEO OUT jacks to a component video input on your TV, monitor or AV receiver. Watching progressive scan video from the component video outputs This player can output progressive scan video from the component video output. Compared to interlace video, progressive scan video effectively doubles the scanning rate of the picture, resulting in a very stable, flicker-free image. To set up the player for use with a progressive scan TV, see Video Output settings on page 37. When the player is set to output progressive scan video, the PRGSVE indicator lights in the front panel display. PRPB COMPONENT VIDEO OUTVIDEO OUTS-VIDEO OUTDIGITAL AUDIO OUTAUDIO OUTHDMI OUT

• If you connect a TV that is not compatible with a progressive scan signal and switch the player to progressive, you will not be able to see any picture at all. In this case, switch everything off and reconnect using the supplied video cable (see Easy connections on page 11), then switch back

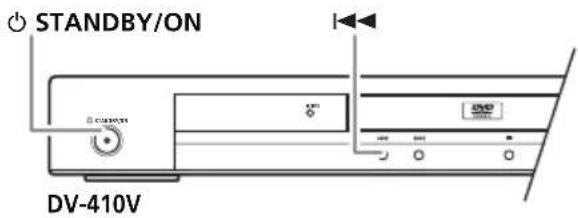

Interlace (see below). Switching the video output to interlace using the front panel controls Switch the player to standby then, using the front panel controls, press STANDBY/ON while pressing to switch the player back to Interlace.

• If the player is connected using HDMI, disconnect the HDMI cable before resetting the player to interlace output. (If left connected, the HDMI output resolution will be reset to its default — see Resetting the output resolution to the default setting with HDMI connection on page 15.) Connecting to an AV receiver You can connect this player to your AV receiver using one of the digital outputs. In addition to these connections, you should also connect the analog outputs for compatibility with all discs. You’ll probably also want to connect a video output to your AV receiver. You can use any of the video outputs available on this player (the illustration shows a standard (composite) connection). 1 Connect the analog AUDIO OUT L/R and VIDEO OUT jacks on this player to a set of analog audio and video inputs on your AV receiver. 2 Connect the AV receiver’s video output to a video input on your TV. You can also use the S-Video or component video jacks to connect to the AV receiver if you prefer. Tip

• You usually have to connect the same kind of video cable between your DVD player and AV receiver, and between your AV receiver and TV. HDMI STANDBY/ON

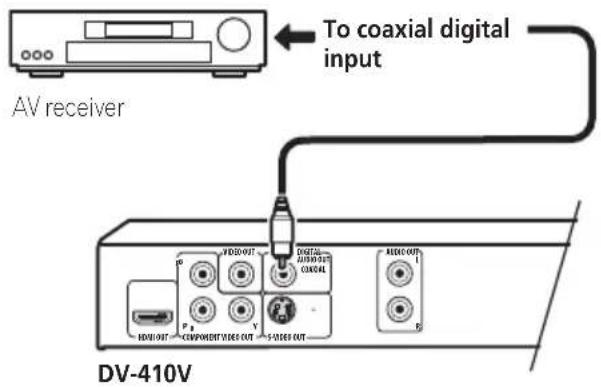

Connecting the digital output This player has coaxial-type digital audio output for connection to an AV receiver. Depending on the capabilities of your AV receiver, you might have to set up this player to output only digital audio in a compatible format. See Digital Audio Out settings on page 36 and refer to the operating instructions that came with your AV receiver.

• Connect one of the COAXIAL DIGITAL AUDIO OUT jacks on this player to a digital input on your AV receiver. For a coaxial connection, use a coaxial cable (similar to the supplied video cable) to connect the COAXIAL DIGITAL AUDIO OUT jack to a coaxial input on your AV receiver. Connecting using HDMI (DV-410V only) If you have a HDMI equipped monitor or display, you can connect it to this player using a commercially available HDMI cable. The HDMI connector outputs uncompressed digital video, as well as almost every kind of digital audio that the player is compatible with, including DVD-Video, Video CD, CD, WMA, MP3, MPEG-4 AAC, DivX video and WMV.

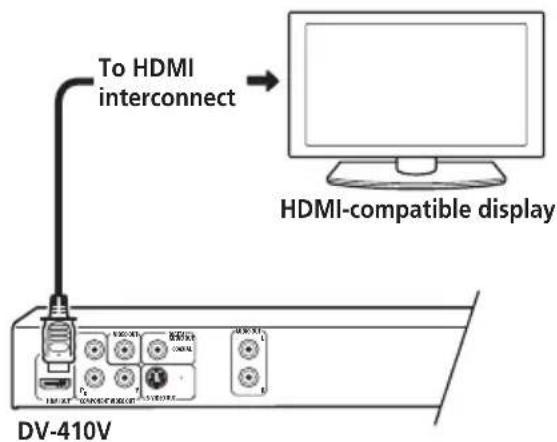

• Use an HDMI cable (not supplied) to connect the HDMI OUT interconnect on this player to an HDMI interconnect on a HDMI-compatible display. The arrow on the cable connector body should be face up for correct alignment with the connector on the player. Note

• This unit has been designed to be compliant with HDMI (High-Definition Multimedia Interface). Depending on the component you have connected, using a DVI connection may result in unreliable signal transfers.

• When you change the component connected to the HDMI output, you will also need to change the HDMI settings to match the new component (see HDMI Out on page 36, HDMI Resolution on page 37 and HDMI Color on page 37 to do this). However, the settings for each component are then stored in memory (for up to 2 components). DV-410V

COAXIAL AV receiverTo coaxial digital input

• The HDMI connection is compatible with

44.1 kHz/48 kHz/96 kHz, 16 bit/20 bit/24 bit

2 channel linear PCM signals, as well as Dolby Digital, DTS and MPEG audio bitstream. – Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic”, and the double-D symbol are trademarks of Dolby Laboratories. – Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS and DTS 2.0 + Digital Out are registered trademarks and the DTS logos and Symbol are trademarks of DTS, Inc. © 1996-2007 DTS, Inc. All Rights Reserved. – Manufactured under license under U.S. Patent #: 5,451,942 & other U.S. and worldwide patents issued & pending. DTS and DTS Digital Out are registered trademarks and the DTS logos and Symbol are trademarks of DTS, Inc. © 1996-2007 DTS, Inc. All Rights Reserved. About HDMI HDMI (High-Definition Multimedia Interface) supports both video and audio on a single digital connection for use with DVD players, DTV, set-top boxes, and other AV devices. HDMI was developed to provide the technologies of High-bandwidth Digital Content Protection (HDCP) as well as Digital Visual Interface (DVI) in one specification. HDCP is used to protect digital content transmitted and received by DVI-compliant displays. HDMI has the capability to support standard, enhanced, or high-definition video plus standard to multi-channel surround-sound audio. HDMI features include uncompressed digital video, a bandwidth of up to five gigabytes per second (with HDTV signals), one connector (instead of several cables and connectors), and communication between the AV source and AV devices such as DTVs.

• HDMI, the HDMI Logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC. Resetting the output resolution to the default setting with HDMI connection Switch the player to standby then, using the front panel controls, press STANDBY/ON while pressing to switch the player back to 720x480p. HDMI STANDBY/ON DV-410V STANDBY/ON

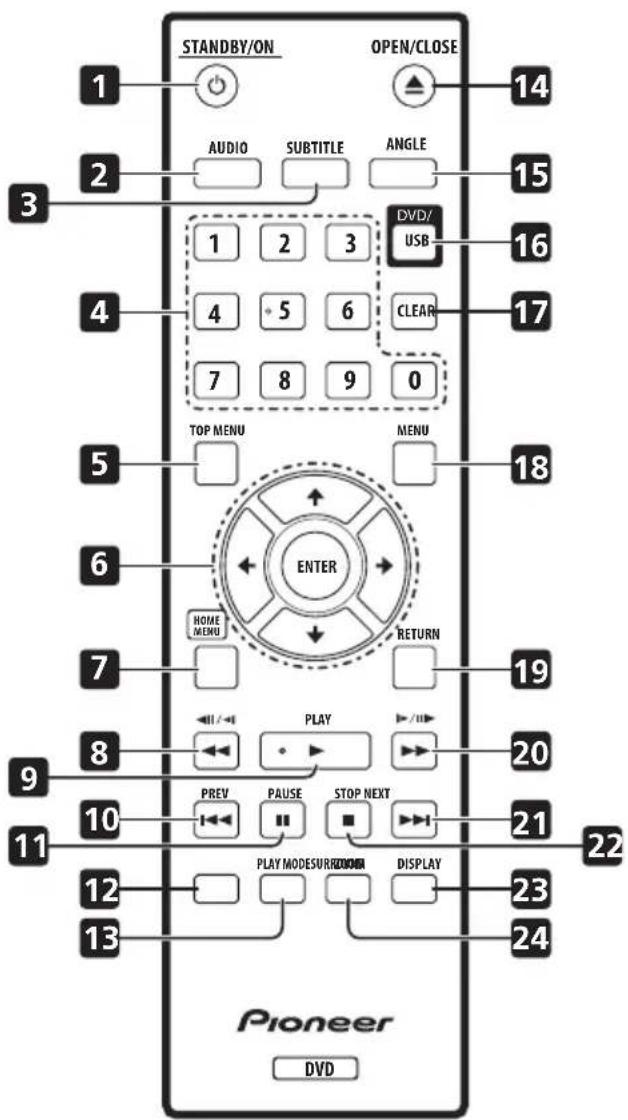

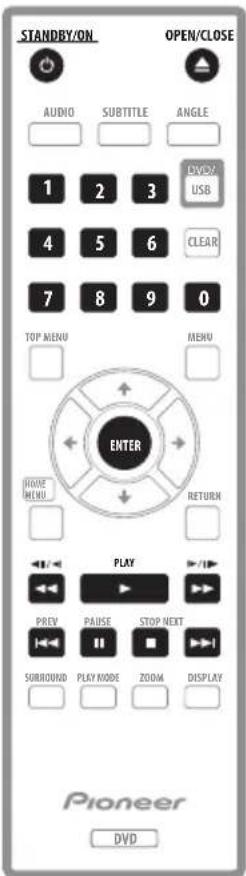

• Make sure that there are no obstacles between the remote and the remote sensor on the unit.

• The remote has a range of about 7 m (23 ft.).

• Remote operation may become unreliable if strong sunlight or fluorescent light is shining on the unit’s remote sensor.

• Remote controllers for different devices can interfere with each other. Avoid using remotes for other equipment located close to this unit.

• Replace the batteries when you notice a fall off in the operating range of the remote.

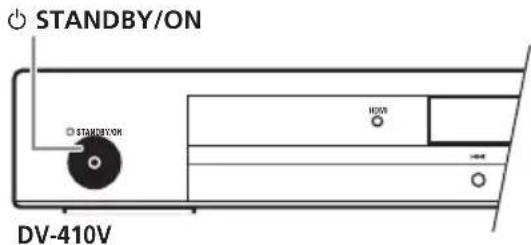

Getting started Switching on After making sure that everything is connected properly and that the player is plugged in, press STANDBY/ON on the front panel or remote control to switch the player on. Also, switch on your TV and make sure that it is set to the input you connected the DVD player to. FAQ

• My DVD player switches on but there is nothing displayed on my TV. Make sure that the TV is set to the correct video input (not a TV channel). For example, if you connected this player to the VIDEO 1 inputs on your TV, switch your TV to VIDEO 1. Note

• This player features a screen saver and an auto power off function. If the player is stopped and no button is pressed for around five minutes, the screen saver starts. If the disc tray is closed but no disc is playing and no control is pressed for about 30 minutes, the player automatically goes into standby. Using the on-screen displays For ease of use, this player makes extensive use of graphical on-screen displays (OSDs). All the screens are navigated in basically the same way, using the cursor buttons (/// ) to change the highlighted item and pressing ENTER to select it. Note

• From here on in this manual, the word ‘select’ generally means use the cursor buttons to highlight an item on-screen, then press ENTER. HDMI STANDBY/ON

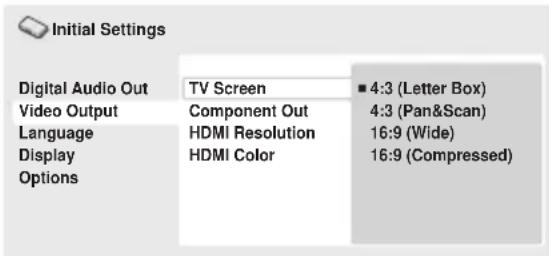

English Setting up the player for your TV If you have a widescreen (16:9) TV, you should setup the player so that the picture will be presented correctly. If you have a conventional (4:3) TV, you can leave the player on the default setting and move on to the next section. 1 Press HOME MENU and select ‘Initial Settings’. 2 Select ‘TV Screen’ from the ‘Video Output’ settings. 3 If you have a widescreen (16:9) TV, select ‘16:9 (Wide)’ or ‘16:9 (Compressed)’. If you have a conventional (4:3) TV, you can change the setting from 4:3 (Letter Box) to 4:3 (Pan & Scan) if you prefer. See Video Output settings on page 37 for more details. 4 Press HOME MENU to exit the menu screen. Setting the language of this player’s on-screen displays This sets the language of the player’s on-screen displays. 1 Press HOME MENU and select ‘Initial Settings’. 2 Select ‘OSD Language’ from the ‘Display’ settings. 3 Select a language. The on-screen language will change according to your selection. 4 Press HOME MENU to exit the menu screen. Initial Settings Digital Audio OutVideo OutputLanguageDisplayOptionsTV ScreenComponent OutHDMI ResolutionHDMI Color4:3 (Letter Box)4:3 (Pan&Scan)16:9 (Wide)16:9 (Compressed)Initial SettingsDV-410V screen Initial Settings Digital Audio OutVideo OutputLanguageDisplayOptionsOSD LanguageAngle IndicatorInitial SettingsDV-410V screen DV410V_KUC_En.book 19 ページ ２００８年２月１５日　金曜日　午後３時０分04

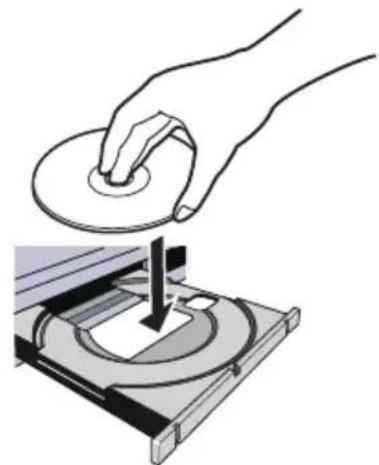

Playing discs The basic playback controls for playing DVD, CD, Video CD, DivX video/WMV and MP3/ WMA/MPEG-4 AAC discs are covered here. Further functions are detailed in the next chapter. For details on playing JPEG picture discs, see Viewing a JPEG slideshow on page 24. Important

• Throughout this manual, the term ‘DVD’ means DVD-Video and DVD-R/-RW. If a function is specific to a particular kind of DVD disc, it is specified. 1 If the player isn’t already on, press STANDBY/ON to switch it on. If you’re playing a DVD, disc containing DivX video/WMV files or Video CD, also turn on your TV and make sure that it is set to the correct video input. 2 Press OPEN/CLOSE to open the disc tray. 3 Load a disc. Load a disc with the label side facing up, using the disc tray guide to align the disc (if you’re loading a double-sided DVD disc, load it with the side you want to play face down). 4 Press PLAY to start playback. If you’re playing a DVD or Video CD, an on-screen menu may appear. See DVD-Video and DivX disc menus and Video CD PBC menus on page 22 for more on how to navigate these.

• If you’re playing a containing DivX video/ WMV files or MP3/WMA/MPEG-4 AAC audio files, it may take a few seconds before playback starts, etc. This is normal.

• Please see About DualDisc playback on page 8 if you want to play a DualDisc (DVD/ CD hybrid disc)

• You may find with some DVD discs that some playback controls don’t work in certain parts of the disc. This is not a malfunction.

• If a disc contains a mixture of movie (DivX video/WMV) and other media file types (MP3, for example), first select whether to play the movie files ( DivX/ WMV )or the other media file types (MP3/

) from the on-screen display.

STANDBY/ONOPEN/CLOSE

English Basic playback controls The table below shows the basic controls on the remote for playing discs. The following chapter covers other playback features in more detail. Resume and Last Memory When you stop playback of a DVD, CD, or Video CD or DivX video/WMV discs, RESUME is shown in the display indicating that you can resume playback again from that point. If the disc tray is not opened, the next time you start playback the display shows RESUME and playback resumes from the resume point. (If you want to clear the resume point, press STOP while RESUME is displayed.) With DVDs and Video CDs, if you take the disc out of the player after stopping playback, the last play position is stored in memory. If the next disc you load is the same one, the display shows LAST MEM and playback will resume. For DVD-Video discs, the player stores the play position of the last five discs. When one of these discs is next loaded, you can resume playback. Note

• The Last Memory function doesn’t work with VR format DVD-R/-RW discs.

• If you don’t need the Last Memory function when you stop a disc, you can press OPEN/CLOSE to stop playback and open the disc tray. Button What it does PLAY Starts playback. If the display shows RESUME or LAST MEM playback starts from the resume or last memory point (see also Resume and Last Memory below.) PAUSE Pauses a disc that’s playing, or restarts a paused disc. STOP Stops playback. See also Resume and Last Memory below.

(remote only) Press to start fast reverse scanning. Press PLAY to resume normal playback.

(remote only) Press to start fast forward scanning. Press PLAY to resume normal playback. PREV Skips to the start of the current track, title or chapter, then to previous tracks/titles/chapters. NEXT Skips to the next track, title or chapter. Numbers (remote only) Use to enter a title/chapter/ track number. Press ENTER to select.

• If the disc is stopped, playback starts from the selected title (for DVD) or track (for CD/Video CD).

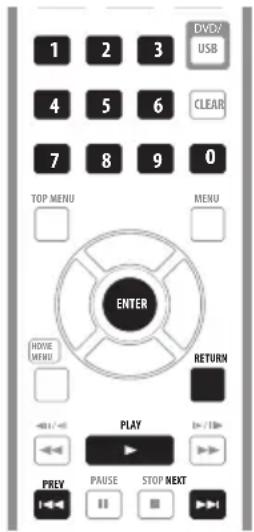

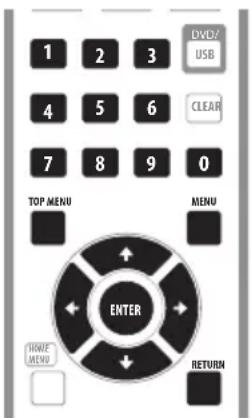

DVD-Video and DivX disc menus Some DivX media files and many DVD-Video discs feature menus from which you can select what you want to watch. They may also give access to additional features, such as subtitle and audio language selection, or special features such as slideshows. See the disc packaging for details. Sometimes DivX and DVD-Video menus are displayed automatically when you start playback; others only appear when you press MENU or TOP MENU. Video CD PBC menus Some Video CDs have menus from which you can choose what you want to watch. These are called PBC (Playback Control) menus. You can play a PBC Video CD without having to navigate the PBC menu by starting playback using a number button to select a track, rather than the PLAY button. Button What it does TOP MENU Displays the ‘top menu’ of a DVD disc — this varies with the disc. MENU Displays a DVD disc (or DivX media files) menu — this varies with the disc and may be the same as the ‘top menu’. /// Moves the cursor around the screen. ENTER Selects the current menu option. RETURN Returns to the previously displayed menu screen. Numbers (remote only) Highlights a numbered menu option (some discs only). Press ENTER to select.

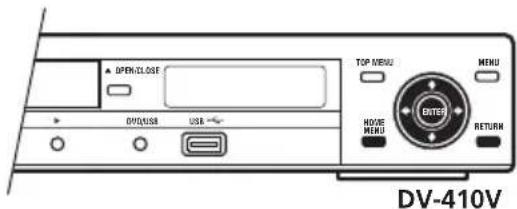

TOP MENU MENU ENTERRETURN HOME MENU Button What it does RETURN Displays the PBC menu. Numbers (remote only) Use to enter a numbered menu option. Press ENTER to select. PREV Displays the previous menu page (if there is one). NEXT Displays the next menu page (if there is one).

Playing discs Note• Many of the functions covered in this chapter apply to DVD discs, Video CDs, CDs, DivX video/WMV and MP3/WMA/MPEG-4 AAC/JPEG discs, although the exact operation of some varies slightly with the kind of disc loaded.• Some DVDs restrict the use of some functions (random or repeat, for example) in some or all parts of the disc. This is not a malfunction.• When playing Video CDs, some of the functions are not available during PBC playback. If you want to use them, start the disc playing using a number button to select a track. Scanning discs You can fast-scan discs forward or backward at four different speeds (only one speed for DivX video/WMV). 1 During playback, press or to start scanning.• There is no sound while scanning DVDs, DivX video/WMV and Video CDs.2 Press repeatedly to increase the scanning speed.• The scanning speed is shown on-screen.3 To resume normal playback, press PLAY.• When scanning a Video CD playing in PBC mode or a MP3/WMA/MPEG-4 AAC track, playback automatically resumes at the end or beginning of the track.• Depending on the disc, normal playback may automatically resume when a new chapter is reached on a DVD disc. Playing in slow motion You can play DVD-Videos and DVD-R/-RW at four different slow motion speeds, forwards and backwards. Video CDs and DivX video/WMV can be played at four different forward slow motion speeds.1 During playback, press PAUSE. 2 Press and hold / or / until slow motion playback starts.• The slow motion speed is shown on-screen.• There is no sound during slow motion playback.3 Press repeatedly to change the slow motion speed.4 To resume normal playback, press PLAY.• Depending on the disc, normal playback may automatically resume when a new chapter is reached. DV410V_KUC_En.book 23 ページ ２００８年２月１５日　金曜日　午後３時０分05

Frame advance/frame reverse You can advance or back up DVD-Video and DVD-R/-RW discs frame-by-frame. With Video CDs and DivX video/WMV file you can only use frame advance. 1 During playback, press PAUSE. 2Press / or / to reverse or advance a frame at a time. 3 To resume normal playback, press PLAY.

• Depending on the disc, normal playback may automatically resume when a new chapter is reached. Viewing a JPEG slideshow When the PLAY button is pressed to play JPEG files on DVD, CD, or USB storage device, the slide show will begin from the first folder or file recorded on the media. The player displays the pictures in each folder in alphabetical order.

• If the folder contains MP3/WMA/ MPEG-4 AAC files, playback of the slideshow and MP3/WMA/MPEG-4 AAC file repeats. During the audio playback, you can still use the skip ( PREV/ NEXT), scan (/) and pause ( PAUSE) functions. Pictures are automatically adjusted so that they fill as much of the screen as possible (if the aspect ratio of the picture is different to your TV screen you may notice black bars at the sides, or at the top and bottom of the screen). While the slideshow is running: Note

• The time it takes for the player to load a file increases with large file sizes. Button What it does PAUSE Pauses the slideshow; press again to restart. PREV Displays the previous picture. NEXT Displays the next picture. / Pauses the slideshow and rotates the displayed picture 90º (counter) clockwise. (Press PLAY to restart slideshow.) / Pauses the slideshow and flips the displayed picture horizontally or vertically. (Press PLAY to restart slideshow.) ZOOM Pauses the slideshow and zooms the picture. Press again to toggle between 1x, 2x and 4x zoom. (Press PLAY to restart slideshow.) MENU Displays the Disc Navigator screen (see page 26). Button What it does DV410V_KUC_En.book 24 ページ ２００８年２月１５日　金曜日　午後３時０分05

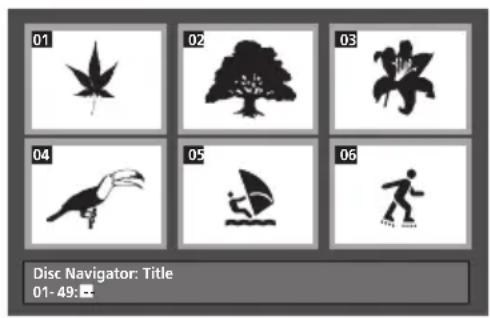

English Browsing Discs with the Disc Navigator Use the Disc Navigator to browse through the contents of a DVD-Video, VR mode DVD-R/-RW or Video CD disc to find the part you want to play. Important

• You can’t use the Disc Navigator with Video CDs in PBC mode. 1 During playback, press HOME MENU and select ‘Disc Navigator’ from the on-screen menu. 2 Select a view option. The options available depend on the kind of disc loaded and whether the disc is playing or not, but include:

Title — Titles from a DVD-Video disc. Chapter — Chapters from the current title of a DVD-Video disc.

Track — Tracks from a Video CD disc. Time — Thumbnails from a Video CD disc at 10 minute intervals.

Original: Time — Thumbnails from the Original content at 10 minute intervals.

Play List: Time — Thumbnails from the Play List at 10 minute intervals. The screen shows up to six moving thumbnail images displayed one after another. To display the previous/next six thumbnails, press PREV/ NEXT (you don’t have to wait for all the thumbnails to finish playing to display the previous/next page). 3 Select the thumbnail image for what you want to play. You can use either the cursor buttons (// /) and ENTER to select a thumbnail, or the number buttons. To select using the number buttons, enter a two-digit number then press ENTER. Tip

• Another way to find a particular place on a disc is to use one of the search modes. See Searching a disc on page 30. Disc Navigator Disc NavigatorTitleChapter

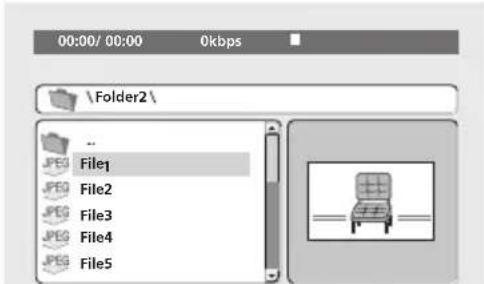

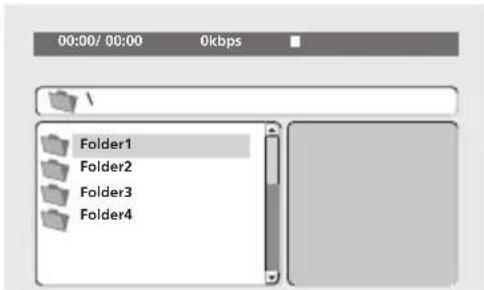

Browsing Files with the Disc Navigator The Disc Navigator can be used to play MP3, WMA, MEPG-4 AAC, DivX video, WMV and JPEG files. Use the Disc Navigator to find a particular file or folder by filename. Note that if there are other types of files on the same disc, these will not be displayed in the Disc Navigator. 1 Press HOME MENU and select ‘Disc Navigator’ from the on-screen menu. 2 Use the cursor buttons (///) and ENTER to navigate. Use the cursor up/down buttons (/) to move up and down the folder/file list. Use the cursor left button () to return to the parent folder. Use ENTER or cursor right () to open a highlighted folder.

• You can also return to the parent folder by going to the top of the list to the ‘ ..’ folder, then pressing ENTER.

• When a JPEG file is highlighted, a thumbnail image is displayed on the right. 3 To play the highlighted track or DivX video/WMV file or display the highlighted JPEG file, press ENTER.

• When a MP3/WMA/MPEG-4 AAC or DivX video/WMV file is selected, playback begins, starting with the selected file, and continues until the end of the folder.

• When a JPEG file is selected, a slideshow begins, starting with that file, and continues to the end of the folder. Tip

• You can also play a JPEG slideshow while listening to MP3/WMA/MPEG-4 AAC playback. Simply select the audio file you want to listen to followed by the JPEG from which you want the slideshow to start. Playback of both the slideshow and the audio files repeats.

• To play the contents of the whole disc rather than just the current folder, exit the Disc Navigator and start playback using the PLAY button. 00:00/ 00:00 0kbpsFolder1Folder2Folder3Folder4 File

English Looping a section of a disc The A-B Repeat function allows you to specify two points (A and B) within a track (CD, Video CD) or title (DVD-Video and DVD-RW) that form a loop which is played over and over.

• You can’t use A-B Repeat with Video CDs in PBC mode, or MP3/WMA/MPEG-4 AAC/ DivX video/WMV files. 1 During playback, press PLAY MODE and select ‘A-B Repeat’ from the list of functions on the left. 2 Press ENTER on ‘A(Start Point)’ to set the loop start point. 3 Press ENTER on ‘B(End Point)’ to set the loop end point. After pressing ENTER, playback jumps back to the start point and plays the loop. 4 To resume normal playback, select ‘Off’ from the menu. Using repeat play There are various repeat play options, depending on the kind of disc loaded. It’s also possible to use repeat play together with program play to repeat the tracks/chapters in the program list (see Creating a program list on page 29). Important

• You can’t use Repeat play with Video CDs in PBC mode, or with MP3/WMA/ MPEG-4 AAC discs.

• You can’t use repeat and random play at the same time. 1 During playback, press PLAY MODE and select ‘Repeat’ from the list of functions on the left. 2 Select a repeat play option. If program play is active, select Program Repeat to repeat the program list, or Repeat Off to cancel. The repeat options available depend on the kind of disc loaded. For example, for DVD-Video and DVD-RW discs, you can select Title Repeat or Chapter Repeat (or Repeat Off

• For CDs and Video CDs, select Disc Repeat

Track Repeat (or Repeat Off).

Using random play Use the random play function to play titles or chapters (DVD-Video), or tracks (CD, Video CD) at random. (Note that the same track/title/chapter may play more than once.) You can set the random play option when a disc is playing or stopped. Important

• Random play remains in effect until you select Random Off from the random play menu options.

• You can’t use random play with VR format DVD-R/-RW discs, Video CDs playing in PBC mode, MP3/WMA/MPEG-4 AAC discs, DivX video/WMV discs, or while a DVD disc menu is being displayed.

• You can’t use random play together with program or repeat play. 1 Press PLAY MODE and select ‘Random’ from the list of functions on the left. 2 Select a random play option. The random play options available depend on the kind of disc loaded. For example, for DVD-Video discs, you can select Random Title

Random Chapter (or Random Off).

• For CDs and Video CDs, select On or Off to switch random play on or off. Tip

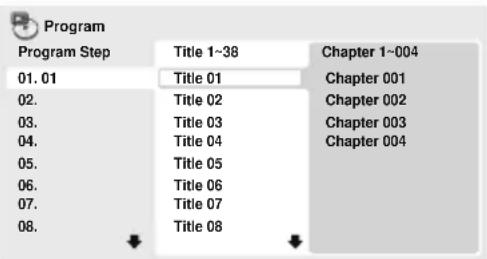

English Creating a program list This feature lets you program the play order of titles/chapters/tracks on a disc. Important

• You can’t use Program play with VR format DVD-R/-RW discs, Video CDs playing in PBC mode, JPEG, or while a DVD disc menu is being displayed. 1 Press PLAY MODE and select ‘Program’ from the list of functions on the left. 2 Select ‘Create/Edit’ from the list of program options. 3 Use the cursor buttons and ENTER to select a title, chapter or track for the current step in the program list. For a DVD-Video disc, you can add a title or a chapter to the program list.

• For a CD or Video CD, select a track to add to the program list. After pressing ENTER to select the title/ chapter/track, the step number automatically moves down one. 4 Repeat step 3 to build up a program list. A program list can contain up to 24 titles/ chapters/tracks.

• To delete a step, highlight it and press CLEAR. 5 To play the program list, press PLAY. Program play remains active until you turn off program play (see below), erase the program list (see below), eject the disc or switch off the player. Tip

• Use the following controls during program play:

• Other functions available from the program menu There are a number of other options in the program menu in addition to Create/Edit.

Playback Start — Starts playback of a saved program list.

Playback Stop — Turns off program play, but does not erase the program list.

Program Delete — Erases the program list and turns off program play. Create/EditPlayback StartPlayback StopProgram DeleteA-B RepeatRepeatRandomProgramSearch ModePlay Mode Program Step01. 01

Searching a disc You can search DVD-Video discs by title or chapter number, or by time; CDs and Video CDs by track number or time; DivX video/WMV discs by time, and some DivX media files by chapter number. Important

• Search functions are not available with Video CDs in PBC mode, or with MP3/ WMA/MPEG-4 AAC discs. 1 Press PLAY MODE and select ‘Search Mode’ from the list of functions on the left. 2 Select a search mode. The search options available depend on the kind of disc loaded.

• The disc must be playing in order to use time search. 3 Use the number buttons to enter a title, chapter or track number, or a time.

• For a time search, enter the number of minutes and seconds into the currently playing title (DVD/DivX video/WMV) or track (CD/Video CD) you want playback to resume from. For example, press 4, 5, 0, 0 to have playback start from 45 minutes into the disc. For 1 hour, 20 minutes and 30 seconds, press 8, 0, 3, 0. 4 Press ENTER to start playback. Note

• Time search is not available with DVD+R/ +RW Switching subtitles Some DVD-Video and DivX video discs have subtitles in one or more languages; the disc box will usually tell you which subtitle languages are available. You can switch subtitle language during playback.

• Press SUBTITLE repeatedly to select a subtitle option. Note

• Some discs only allow you to change subtitle language from the disc menu. Press TOP MENU or MENU to access.

English Switching audio language/ channels When playing a DVD-Video and DivX video disc recorded with dialog in two or more languages, you can switch audio language during playback. When playing a VR format DVD-R/-RW disc recorded with dual-mono audio, you can switch between the main, sub, and mixed channels during playback. When playing a Video CD, you can switch between stereo, just the left channel or just the right channel.

• Press AUDIO repeatedly to select an audio language/channel option. The language/channel information is shown on-screen. Note

• Some DVD discs only allow you to change audio language from the disc menu. Press TOP MENU or MENU to access.

• To set DVD audio language preferences, see Audio Language on page 38. Zooming the screen Using the zoom feature you can magnify a part of the screen by a factor of 2 or 4, while watching a DVD, DivX video/WMV title or Video CD or playing a JPEG disc. 1 During playback, use the ZOOM button to select the zoom factor (Normal, 2x or 4x).

• Since DVD, Video CD, DivX video/WMV title and JPEG pictures have a fixed resolution, picture quality will deteriorate, especially at 4x zoom. This is not a malfunction. 2 Use the cursor buttons to change the zoomed area. You can change the zoom factor and the zoomed area freely during playback.

• If the navigation square at the top of the screen disappears, press ZOOM again to display it. Switching camera angles Some DVD discs feature scenes shot from two or more angles — check the disc box for details. When a multi-angle scene is playing, a icon appears on screen to let you know that other angles are available (this can be switched off if you prefer — see Angle Indicator on page 38).

• During playback, press ANGLE to switch angle. Displaying disc information Various track, chapter and title information, such as the elapsed and remaining playing time can be displayed on-screen while a disc is playing.

• To show/switch/hide the information displayed, press DISPLAY repeatedly.

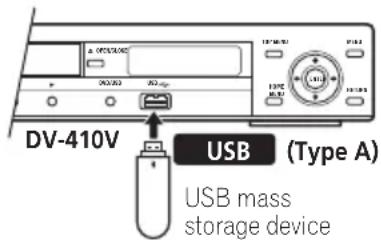

USB playback Using the USB interface It is possible to listen to two-channel audio and watch DivX video/WMV/JPEG files using the USB interface on the front of this unit. Connect a USB mass storage device as shown below. Note

• This includes playback of DivX video/ WMV/MP3/WMA/MPEG-4 AAC/JPEG files (except files with copy-protection or restricted playback).

• Compatible USB devices include portable flash memory (particularly keydrives) and digital audio players (MP3 players) of format FAT16/32. It is not possible to connect this unit to a personal computer for USB playback.

• Pioneer cannot guarantee compatibility (operation and/or bus power) with all USB mass storage devices and assumes no responsibility for any loss of data that may occur when connected to this unit.

• With large amounts of data, it may take longer for the system to read the contents of a USB device.

• Some USB devices may not be properly recognized.

• Even when they are in a supported format, some files may not play or display depending on the content. 1 With the player switched on, press DVD/USB. Make sure your TV is on and set to the correct video input, and that USB MODE is showing on the front panel display. 2 Connect your USB device. The USB terminal is located on the front panel.

• Disc Navigator is automatically displayed. 3 Press ENTER to start playback.

• The method of playback for files saved on a USB device is the same as for other discs. For more information, see Basic playback controls on page 21 and Playing discs on page 23. 4 Turn off this player and remove the USB device.

• The next time you turn this player on it will start up in USB mode. To return to DVD mode, either press DVD/USB or press OPEN/CLOSE to open the disc tray. Important If a USB ERR message lights in the display, it may mean that the power requirements of the USB device are too high for this player, or that the device is incompatible. Try the following:

• Switch the player off, then on again.

• Reconnecting the USB device with the player switched off.

• Change the player back to DVD mode (LOADING will appear in the front panel display whether a disc is inserted or not) by pressing DVD/USB, then once again select USB mode ( USB MODE will appear in the front panel display).

• Using a dedicated AC adapter (supplied with the device) for USB power. If this doesn’t remedy the problem, it is likely your USB device is incompatible. OPEN/CLOSE HOME MENU RETURNENTERTOP MENU MENU USB DVD/USB USB mass storage device USB DV-410V (Type A) DV410V_KUC_En.book 32 ページ ２００８年２月１５日　金曜日　午後３時１５分07

Audio Settings and Video Adjust menus Audio Settings menu The Audio Settings menu offers features for adjusting the way discs sound.1 Press HOME MENU and select ‘Audio Settings’ from the on-screen display.2 Select and change settings using the /// (cursor) buttons, and ENTER. Equalizer

• Settings: Rock, Pop, Live, Dance, Techno, Classic, Soft, Off (default) The various preset EQ curves are designed to suit various styles of music. Note• 96 kHz linear PCM audio is automatically downsampled to 48 kHz if the Equalizer is switched on. Virtual Surround

• Settings: On, Off (default) Switch on Virtual Surround to enjoy realistic surround sound effects from just two speakers. Tip
• You can also use the SURROUND button on the remote control to switch Virtual Surround on. Note• 96 kHz linear PCM audio is automatically downsampled to 48 kHz if Virtual Surround is switched on.• If the player is outputting Dolby Digital, DTS or MPEG bitstream audio (in other words, no conversion to PCM), Virtual Surround has no effect on the audio from the digital output. See Digital Audio Out settings on page 36 for how to set up the digital output formats.• How good the surround effect is varies with the disc. Audio Settings Audio SettingsEqualizerVirtual SurroundAudio DRCDialog

• Settings: High, Medium, Low, Off (default) When watching Dolby Digital DVDs at low volume, it’s easy to lose the quieter sounds completely — including some of the dialog. Switching Audio DRC (Dynamic Range Control) to on can help by bringing up the quieter sounds, while controlling loud peaks. How much of a difference you hear depends on the material you’re listening to. If the material doesn’t have wide variations in volume, you may not notice much change. Note

• Audio DRC is only effective with Dolby Digital audio sources.

• Audio DRC is only effective through the digital output when Digital Out is set to On, and Dolby Digital Out is set to Dolby Digital > PCM (see Digital Audio Out settings on page 36).

• The effect of Audio DRC also depends on your speakers and AV receiver settings. Dialog

• Settings: High, Medium, Low, Off (default) The Dialog feature is designed to make the dialog stand out from other background sounds in the soundtracks. Video Adjust menu From the Video Adjust screen you can adjust various settings that affect how the picture is presented. 1 Press HOME MENU and select ‘Video Adjust’ from the on-screen display. 2 Make settings using the /// (cursor) buttons, and ENTER. You can adjust the following picture quality settings:

Sharpness — Adjusts the sharpness of edges in the picture ( Fine, Standard (default), Soft).

Brightness — Adjusts the overall brightness ( –20 to +20). Contrast — Adjusts the contrast between light and dark ( –16 to +16). Gamma — Adjusts the ‘gradation’ of the picture ( –3 to +3). Hue — Adjusts the red/green balance

Chroma Level — Adjusts how saturated colors appear ( –9 to +9). Adjust the Brightness, Contrast, Gamma, Hue and Chroma Level settings using the / (cursor left/right) buttons. 3 Press ENTER to return to the Video Adjust screen, or HOME MENU to exit. Video Adjust SharpnessBrightnessContrastGamma Hue Chroma LevelStandard

Initial Settings menu Using the Initial Settings menu The Initial Settings menu provides audio and video output settings, parental lock settings, and display settings, among others.If an option is grayed out it means that it cannot be changed at the current time. This is usually because a disc is playing. Stop the disc, then change the setting.1 Press HOME MENU and select ‘Initial Settings’.2 Use the cursor buttons and ENTER to select the setting and option you want to set. All the settings and options are explained on the following pages. Note• In the table below, the default setting is shown in bold:•The Digital Audio Out settings only need to be set if you have connected the digital output of this player to an AV receiver, or other equipment.• Check the operating instructions supplied with your other equipment to see which digital audio formats it’s compatible with.• Some settings, such as TV Screen, Audio Language and Subtitle Language may be overridden by the DVD disc. Often these settings can also be made from the DVD disc menu.•The HDMI Out, HDMI Resolution and HDMI Color settings only need to be set if you connected this player to an HDMI-compatible component using the HDMI connector.•The Digital Audio Out and Component Out settings cannot be set if the player is connected to an HDMI-compatible component using the HDMI connector. Additionally, certain settings such as HDMI Out, HDMI Resolution, and HDMI Color may be changed automatically. Initial Settings DV410V_KUC_En.book 35 ページ ２００８年２月１５日　金曜日　午後３時０分08

Digital Audio Out settings Setting Option What it means HDMI Out (DV-410V only) LPCM (2CH) Set if your monitor or device only accepts stereo input. On this setting multichannel audio is downmixed to 2 channels for stereo linear PCM output. Auto Dolby Digital, DTS and MPEG sources are processed according to how they were encoded, and linear PCM sources are heard as is. Off No digital audio output. Choose this option when you want to change the Digital Audio Out settings. Digital Out On Digital audio is output from the digital outputs. Off No digital audio output. Dolby Digital Out Dolby Digital Dolby Digital encoded digital audio is output when playing a Dolby Digital DVD disc. Dolby Digital > PCM Dolby Digital audio is converted to PCM audio before being output. DTS Out DTS DTS encoded digital audio is output when playing a DTS disc. (Noise will be output if your amplifier/ receiver is not compatible with DTS audio.) DTS > PCM (for DV-410V) No digital audio is output when playing a DTS disc.DTS audio is converted to PCM audio before being output. Off (for DV-310) No digital audio is output when playing a DTS disc. 96kHz PCM Out 96kHz > 48kHz 96 kHz digital audio is converted to 48 kHz for digital output. 96kHz 96 kHz digital audio is output as is at 96 kHz. MPEG Out MPEG MPEG encoded digital audio is output as is. MPEG > PCM MPEG encoded digital audio is converted to PCM audio for digital output. DV410V_KUC_En.book 36 ページ ２００８年２月２７日　水曜日　午後１時２９分08

English Video Output settings Setting Option What it means TV Screen (This setting effective for analog and HDMI video output. See also Screen sizes and disc formats on page 43.) 4:3 (Letter Box) Set if you have a conventional 4:3 TV. Widescreen movies are shown with black bars top and bottom. 4:3 (Pan & Scan) Set if you have a conventional 4:3 TV. Widescreen movies are shown with the sides cropped so that the image fills the screen. 16:9 (Wide) Set if you have a widescreen TV. 16:9 (Compressed) (DV-410V only) Can be selected when you are connected via HDMI, and have the HDMI Resolution set to 1920x1080p, 1920x1080i or 1280x720p. Video in 4:3 can be properly displayed on a 16:9 high definition television (with black bars shown on either side of the screen). Component Out Progressive Set if your TV is compatible with progressive scan video (see your TV’s instruction manual for details). The PRGSVE indicator lights in the front panel display. See also Switching the video output to interlace using the front panel controls on page 13. Note that progressive scan video is only output from the component video jacks. Interlace Set if your TV is not compatible with progressive scan video. HDMI Resolution (DV-410V only) 1920x1080p Set if your TV supports 1920 x1080 pixel progressive-scan video (24 Hz frame rate is not supported). 1920x1080i Set if your TV supports 1920x1080 pixel interlace video. 1280x720p Set if your TV supports 1280x720 pixel progressive-scan video. 720x480p Set if your TV supports 720x480 pixel progressive- scan video. 720x480i Set if your TV supports 720x480 pixel interlace video. HDMI Color (DV-410V only) Full range RGB If colors are weak, this gives brighter colors and deeper black. RGB Use this setting if colors appear overly rich on the Full range RGB setting. Component Outputs component video format (default setting for HDMI-compatible devices). DV410V_KUC_En.book 37 ページ ２００８年２月１５日　金曜日　午後３時０分08

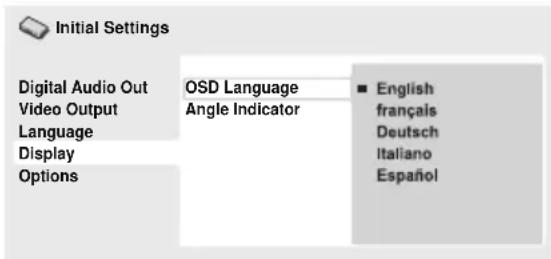

Language settings Display settings Setting Option What it means Audio Language English If there is an English soundtrack on the disc then it will be played. Languages as displayed If there is the language selected on the disc, then it will be played. Other Language Select to choose a language other than the ones displayed (page 44). Subtitle Language (See also Displaying external subtitle files on page 9.) English If there are English subtitles on the disc then they will be displayed. Languages as displayed If there is the subtitle language selected on the disc, then it will be displayed. Other Language Select to choose a language other than the ones displayed (page 44). DVD Menu Lang. w/Subtitle Lang. DVD disc menus will be displayed in the same language as your selected subtitle language, if possible. Languages as displayed DVD disc menus will be displayed in the selected language, if possible. Other Language Select to choose a language other than the ones displayed (page 44). Subtitle Display On Subtitles are displayed according to your selected subtitle language (see above). Off Subtitles are always off by default when you play a DVD disc (note that some discs override this setting). Setting Option What it means OSD Language English On-screen displays of the player are in English. Languages as displayed On-screen displays are shown in the language selected. Angle Indicator On A camera icon is displayed on-screen during multi-angle scenes on a DVD disc. Off No multi-angle indication is shown. DV410V_KUC_En.book 38 ページ ２００８年２月１５日　金曜日　午後３時０分08

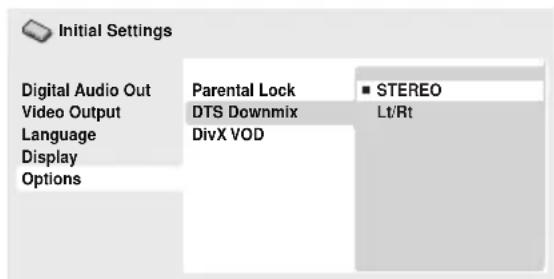

English Options settings Parental Lock

• Default level: Off; Default password: none; Default Country/Area code: us (2119) To give you some control over what your children watch on your DVD player, some DVD-Video discs feature a Parental Lock level. If your player is set to a lower level than the disc, the disc won’t play. Some discs also support the Country/Area Code feature. The player does not play certain scenes on these discs, depending on the Country/Area Code you set. Note

• Not all discs use Parental Lock, and will play without requiring the password first.

• If you forget your password, you’ll need to reset the player to register a new password (see Resetting the player on page 44). Registering a new password You must register a password before you can change the Parental Lock level or enter a Country code. 1 Select ‘Options’, then ‘Password’. 2 Use the number buttons to enter a 4-digit password. The numbers you enter show up as asterisks (*) on-screen. 3 Press ENTER to register the password. You will return to the Options menu screen. Setting Option What it means Parental Lock – See Parental Lock below. DTS Downmix(DV-410V only)STEREO Downmixes DTS for 2 channel output to regular stereo. (See also DTS Downmix on page 40.) Lt/Rt Downmixes DTS for 2 channel output to be compatible with Dolby Surround matrix decoders. (See also DTS Downmix on page 40.) DivX VOD Display See About DivX® VOD content on page 40. Digital Audio OutVideo OutputLanguageDisplayOptionsParental LockDTS DownmixDivX VODPasswordLevel ChangeCountry Code Initial SettingsDV-410V screen DV410V_KUC_En.book 39 ページ ２００８年２月１５日　金曜日　午後３時０分08

Changing your password To change your password, confirm your existing password then enter a new one.1 Select ‘Password Change’.2 Use the number buttons to enter your existing password, then press ENTER.3 Enter a new password and press ENTER.This registers the new password and you will return to the Options menu screen. Setting/changing the Parental Lock 1 Select ‘Level Change’.2 Use number buttons to enter your password, then press ENTER.3 Select a new level and press ENTER.• Press (cursor left) repeatedly to lock more levels (more discs will require the password); press (cursor right) to unlock levels. You can’t lock level 1.This sets the new level and you will return to the Options menu screen. Setting/changing the Country/Area code You can find the Country/Area code list on page 50.1 Select ‘Country Code’.2 Use number buttons to enter your password, then press ENTER.3 Select a Country/Area code and press ENTER.There are two ways you can do this:• Select by code letter: Use / (cursor up/down) to change the Country/Area code.• Select by code number: Press (cursor right) then use the number buttons to enter the 4-digit Country/Area code.The new Country/Area code is set and you will return to the Options menu screen. Note that the new Country/Area code doesn’t take effect until the next disc is loaded (or the current disc is reloaded). DTS Downmix (DV-410V only)• Default setting: STEREO If you’ve selected DTS > PCM in DTS Out on page 36, you can choose the way the signal is downmixed to PCM audio. STEREO will downmix the DTS signal to 2-channel stereo, whereas Lt/Rt will downmix to a 2-channel signal compatible with Dolby surround matrix decoders. (This allows you to hear surround sound if your AV receiver or amplifier has Dolby Pro Logic capability.) About DivX

VOD content In order to play DivX VOD (video on demand) content on this player, you first need to register the player with the DivX VOD registration system. You do this by generating a DivX VOD registration code from the device, which you will submit to DivX via the DivX Player program available for your computer. Important• DivX VOD content is protected by a DRM (Digital Rights Management) system. This restricts playback of content to specific, registered devices. Digital Audio OutVideo OutputLanguageDisplayOptionsSTEREOLt/RtInitial SettingsParental LockDTS DownmixDivX VODDV-410V screen DV410V_KUC_En.book 40 ページ ２００８年２月１５日　金曜日　午後３時０分08

• If you load a disc that contains DivX VOD content not authorized for your player, the message Authorization Error is displayed and the content will not play.

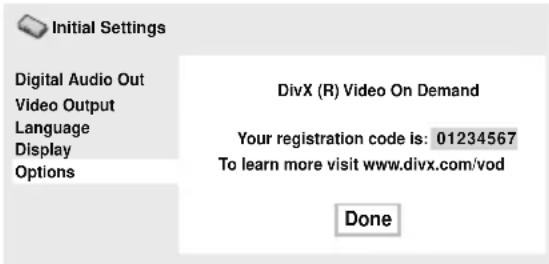

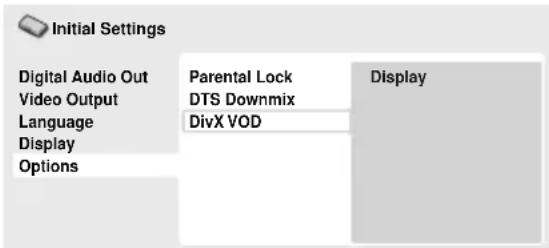

• Resetting the player (as described in Resetting the player on page 44) will not cause you to lose your registration code. Displaying your DivX VOD registration code 1 Press HOME MENU and select ‘Initial Settings’. 2 Select ‘Options’, then ‘DivX VOD’. 3 Select ‘Display’. Your 8-digit registration code is displayed.

• Make a note of the code as you will need it to complete your registration. Playing DivX

VOD content Some DivX VOD content may only be playable a fixed number of times. When you load a disc containing this type of DivX VOD content, the remaining number of plays is shown on-screen and you then have the option of playing the disc (thereby using up one of the remaining plays), or stopping. If you load a disc that contains expired DivX VOD content (for example, content that has zero remaining plays), the message Rental Expired is displayed. If your DivX VOD content allows an unlimited number of plays, then you may load the disc into your player and play the content as often as you like, and no message will be displayed. About the HDMI audio output settings (DV-410V only) The table below shows how the audio settings you make in the HDMI Out (page 36) affect the HDMI output with various types of disc. Digital Audio OutVideo OutputLanguageDisplayOptionsParental LockDTS DownmixDivX VODDisplayInitial SettingsDV-410V screen Initial Settings DivX (R) Video On Demand

1. These formats include DVD-RW discs.

2ch downmixDolby Digital 2. If the HDMI device you are using is not compatible with these compressed formats, the signal is output as linear PCM.Dolby Digital (karaoke)Left/Right Dolby Digital Linear PCM

Left/Right Left/RightDTS 2ch downmix DTS

Additional information Taking care of your player and discs General Hold discs by the edge or by the center hole and edge.When you’re not using a disc, return it to its case and store upright. Avoid leaving discs in excessively cold, humid, or hot environments (including under direct sunlight).Don’t glue paper or put stickers on to discs. Do not use a pencil, ball-point pen or other sharp-tipped writing instrument to write on the disc.Don’t use self-adhesive disc labels on discs as these can cause the disc to warp slightly during playback causing distortion in the picture and/or sound. Damaged and shaped discs Do not use cracked, chipped, warped, or otherwise damaged discs as they may damage the player.This player is designed to be used only with conventional, fully circular discs. Do not use shaped discs. Pioneer disclaims all liability arising in connection with the use of shaped discs. Cleaning discs Fingerprints and dust on discs can affect playback performance. Clean using a soft, dry cloth, wiping the disc lightly from the center to the outside edge as shown below.If necessary, use a cloth soaked in alcohol, or a commercially available CD/DVD cleaning kit to clean a disc more thoroughly. Never use benzine, thinner or other cleaning agents, including products designed for cleaning vinyl records. Cleaning the unit’s exterior Unplug the unit before cleaning.Use a dry cloth to wipe off dust and dirt. If the surfaces are very dirty, wipe with a soft cloth dipped in some neutral cleanser diluted five or six times with water and wrung out well, then wipe again with a dry cloth.Do not use furniture wax or cleaners. Never use thinners, benzine or insecticide sprays or other chemicals on or near this unit.If you use a chemical-impregnated cleaning cloth, read the instructions carefully before use. These cloths may leave smear marks on half-mirror finish surfaces; if this happens, finish with a dry cloth. DV410V_KUC_En.book 42 ページ ２００８年２月１５日　金曜日　午後３時０分09

English Cleaning the pickup lens The DVD player’s lens should not become dirty in normal use, but if for some reason it should malfunction due to dust or dirt, consult your nearest Pioneer-authorized service center. We do not recommend using commercially available lens cleaners for CD players. Condensation Condensation may form inside the player if it is brought into a warm room from outside, or if the temperature of the room rises quickly. Although the condensation won’t damage the player, it may temporarily impair its performance. Leave it to adjust to the warmer temperature for about an hour before switching on. Moving the player If you need to move this unit, first remove the disc, if there's one loaded, and close the disc tray. Next, press STANDBY/ON to switch the power to standby, checking that the -OFF- indication in the display goes off. Lastly, disconnect the power cord. Never lift or move the unit during playback — discs rotate at a high speed and may be damaged. Caution for when the unit is installed in a rack with a glass door Do not press the OPEN/CLOSE button on the remote control to open the disc table while the glass door is closed. The door will hamper movement of the disc table, and the disc table could be damaged. Screen sizes and disc formats DVD-Video discs come in several different screen aspect ratios, ranging from TV programs, which are generally 4:3, to CinemaScope widescreen movies, with an aspect ratio of up to about 7:3. Televisions, too, come in different aspect ratios; ‘standard’ 4:3 and widescreen 16:9. Widescreen TV users If you have a widescreen TV, the TV Screen setting (page 37) of this player should be set to 16:9 (Wide) or 16:9 (Compressed). When you watch discs recorded in 4:3 format with the 16:9 (Wide) setting, you can use the TV controls to select how the picture is presented. Your TV may offer various zoom and stretch options; see the instructions that came with your TV for details. Please note that some movie aspect ratios are wider than 16:9, so even though you have a widescreen TV, these discs will still play in a ‘letter box’ style with black bars at the top and bottom of the screen. DV410V_KUC_En.book 43 ページ ２００８年４月４日　金曜日　午前１１時５５分09

Standard TV users If you have a standard TV, the TV Screen setting (page 37) of this player should be set to 4:3 (Letter Box) or 4:3 (Pan & Scan), depending on which you prefer. Set to 4:3 (Letter Box), widescreen discs are shown with black bars top and bottom. Set to 4:3 (Pan & Scan), widescreen discs are shown with the left and right sides cropped. Although the picture looks larger, you don’t actually see the whole picture. Please note that many widescreen discs override the player’s settings so that the disc is shown in letter box format regardless of the setting. Note

• Using the 16:9 (Wide) or 16: 9 (Compressed) setting with a standard 4:3 TV, or either of the 4:3 settings with a widescreen TV, will result in a distorted picture. Resetting the player Use this procedure to reset all the player’s settings to the factory default. 1 Switch the player into standby. 2 Using the front panel buttons, hold down the (stop) button and press STANDBY/ON to switch the player back on. All the player’s settings are now reset. DVD-Video regions All DVD-Video discs carry a region mark on the case somewhere that indicates which region(s) of the world the disc is compatible with. Your DVD player also has a region mark, which you can find on the rear panel. Discs from incompatible regions will not play in this player. In this case the attention sentence Incompatible disc region number Can’t play disc is displayed on screen. Discs marked ALL will play in any player. The diagram below shows the various DVD regions of the world. Selecting languages using the language code list Some of the language options (such as ‘DVD Menu Lang.’ in the Initial Settings) allow you to set your preferred language from any of the 136 languages listed in the language code list on page 50. 1 Select ‘Other Language’. 2Use the / (cursor left/right) buttons to select either a code letter or a code number. 3Use the / (cursor up/down) buttons to select a code letter or a code number. See Language code list on page 50 for a complete list of languages and codes.

English Troubleshooting Incorrect operation is often mistaken for trouble or malfunction. If you think that there is something wrong with this component, check the points below. Sometimes the trouble may lie in another component. Inspect the other components and electrical appliances being used. If the trouble cannot be rectified after checking the items below, ask your nearest Pioneer authorized service center or your dealer to carry out repair work. Problem RemedyThe disc won’t play or is automatically ejected after loading.• Make sure the disc is free from dirt and dust and is not damaged (page 42).• Make sure the disc is loaded with the label side face-up and aligned properly in the disc tray guide.• Incompatible region number: If the region number on a DVD-Video disc does not match the number on the player, the disc cannot be used (page 44). In this case the attention sentence “Incompatible disc region number Can’t play disc” is displayed on screen.• Condensation inside the player: Allow time for condensation to evaporate. Avoid using the player near an air-conditioning unit.• Disc is loaded upside down: Reload the disc with the label side face up.Picture playback stops and the operation buttons cannot be used.

• Press STOP, then start playback again ( PLAY).
• Switch the power off once, unplug from the wall socket, then plug back in and switch on again using the front panel STANDBY/ON button.New settings made in the Setup screen menus while a disc is playing are ineffective.• Some settings can be changed while a disc is playing, but are not effective until the disc is stopped then restarted: Press STOP, then start playback again ( PLAY). Settings are canceled. • When the power is cut due to power failure or by unplugging the power cord, settings will be canceled: Press STANDBY/ON on the front panel to turn the player off. Wait for -OFF- to disappear from the display, then unplug the power cord.The remote control doesn’t seem to work.• The remote control is too far from the player, or the angle with the remote sensor is too wide: Use the remote within its operating range (page 17).• The batteries are exhausted: Put in new ones (page 6). DV410V_KUC_En.book 45 ページ ２００８年４月４日　金曜日　午前１１時５６分09

No picture/No color. • Incorrect video connections: Check that connections are correct and that plugs are inserted fully. Also check the video cable for damage.

• TV/monitor or AV amplifier settings are incorrect: Check the instruction manual of the connected equipment.

• The video output is set to progressive but your TV/monitor is not compatible with progressive scan: See page 13 for how to set to Interlace. Screen is stretched or aspect does not change.

• The TV Screen setting in the Initial Settings menu is incorrect. See page 43 for how to set it correctly for your TV/monitor. Picture disturbance during playback or the picture is dark.

• This player is compatible with Macro-Vision System copy guard. Some discs include a copy prevention signal, and when this type of disc is played back, stripes etc., may appear on some sections of the picture depending on the TV. This is not a malfunction.

• Due to the player’s copy protection circuits, connection of this device through a VCR or an AV selector may prevent recording or cause picture problems. This is not a malfunction.

• Check whether the TV system is properly set (page 44). No audio, or audio is distorted.

• No audio is output during slow motion playback or when scanning discs other than audio CDs.

• Some DVD discs do not output digital audio: Switch your amplifier to the player’s analog outputs.

• Check that the disc is free from dust and dirt, and that it is not damaged (page 42).

• Check that all interconnects are firmly inserted.

• Check that the plugs and terminals are free of dirt, oxide, etc. and clean if necessary. Also check the cable for damage.

• Make sure the player’s output is not connected to the amplifier’s phono (turntable) inputs.

• Check your amplifier/receiver’s settings (volume, input function, speaker settings, etc.). The analog audio is OK, but there appears to be no digital audio signal.

• Make sure that the Digital Out setting is set to On (page 36).

• Check that the Dolby Digital Out, DTS Out and MPEG Out settings (page 36) are suitable for your amplifier/receiver — check the instruction manual that came with your amplifier/receiver. Noticeable difference in DVD and CD volume.

• This is due to differences in the audio format and is not a malfunction. Cannot play multi-channel audio.

• Check that the Dolby Digital Out, DTS Out and MPEG Out settings (page 36) are suitable for your amplifier/receiver — check the instruction manual that came with your amplifier/receiver.

• Check the audio options available from the disc menu. Cannot listen to high-sampling rate audio through the digital output.

• Make sure that 96kHz PCM Out is set to 96kHz (page 36).

• As a copy-protection measure, some DVDs do not output 96 kHz audio. In this case, even if set to 96kHz, the player automatically outputs the audio at 48 kHz. This is not a malfunction. Problem Remedy DV410V_KUC_En.book 46 ページ ２００８年２月１５日　金曜日　午後３時０分09

• Check that 96kHz PCM Out is set to 96kHz (page 36).

• Some discs are digital copy protected and do not output high sampling rate digital audio. In this case the output is automatically downsampled. No DTS audio output. • If this unit is connected to a non-DTS compatible amplifier or decoder using a digital audio cable, set DTS Out to DTS > PCM/Off (page 36). If you do not do this, noise will be output when you play a DTS disc.

• If this unit is connected to a DTS-compatible amplifier or decoder using a digital audio cable, check the amplifier settings, and that the cable is properly connected. Can’t hear effect of Virtual Surround.

• The Virtual Surround effect is only output through the AUDIO OUT L/R analog audio outputs.

• The effectiveness of Virtual Surround varies with the disc. Problem Remedy Problem Remedy No HDMI audio output. • Check whether or not HDMI Out is set to Off (page 36).

• This unit has been designed to be compliant with HDMI (High-Definition Multimedia Interface). Depending on the component you have connected, unreliable signal transfers may result.

• If the front panel HDMI indicator is lit: – You won’t hear any sound from the HDMI output if the source component is only DVI/HDCP-compatible.

• If the front panel HDMI indicator is unlit then: – Make sure that you’ve selected this player as the HDMI input in the settings for the component you’re using. You may need to refer to the instruction manual of the component to do this. – Check that the HDMI cable is connected properly and that the cable isn’t damaged. – Check that components connected using the HDMI interface are switched on and HDMI compatible. DV410V_KUC_En.book 47 ページ ２００８年４月４日　金曜日　午前１１時５６分09

• Static electricity or other external influences may cause malfunctioning of this unit. In this case, unplug the power cord and then plug back in. This will usually reset the unit for proper operation. If this does not correct the problem, please consult your nearest Pioneer service center. No HDMI video output. • Make sure that you’ve selected this player as the HDMI input in the settings for the component you’re using. You may need to refer to the instruction manual of the component to do this.

• Check that the HDMI cable is connected properly and that the cable isn’t damaged.

• Check that components connected using the HDMI interface are switched on and HDMI compatible.

• This unit has been designed to be compliant with HDMI (High-Definition Multimedia Interface). Depending on the component you have connected, using a DVI connection may result in unreliable signal transfers.

• Make sure the resolution on this player matches that of the component you have connected using HDMI. See HDMI Resolution on page 37 to change the HDMI resolution. See Resetting the output resolution to the default setting with HDMI connection on page 15 if you want to reset the output resolution. No multichannel HDMI audio.

• Make sure the HDMI Out setting is set to Auto (page 36). See also About the HDMI audio output settings on page 41. Component Out cannot be set to Interlace.

• You can use the Interlace setting if the HDMI Resolution is set to 720x480i (page 37). A connected DVI component (with HDCP) doesn’t work with this player.

• This unit has been designed to be compliant with HDMI (High-Definition Multimedia Interface). Depending on the component you have connected, using a DVI connection may result in unreliable signal transfers. Problem Remedy Problem Remedy USB mass storage device is not recognized by the system.

• Make sure you have completely inserted the USB connector to this unit.

• Check that the memory format is FAT16 or FAT32.

• USB devices with an internal USB hub are not supported. Files don’t show up in the Navigator/Photo Browser.

• The files must have the correct file extension (page 7).

• Make sure the file permission hasn’t been restricted (through a password, etc.). Can’t play WMA or MPEG-4 AAC files.

• The files were recorded using DRM (digital rights management) or FairPlay copy-protection. This is not a malfunction. DV410V_KUC_En.book 48 ページ ２００８年２月１５日　金曜日　午後３時０分09

English Glossary DRM DRM (digital rights management) copy protection is a technology designed to prevent unauthorized copying by restricting playback, etc. of compressed audio files on devices other than the PC (or other recording equipment) used to record it. For detailed information, please see the instruction manuals or help files that came with your PC and/or software. EXIF (Exchangeable Image File) A file format developed by FUJIFILM for digital still cameras. Digital cameras from various manufacturers use this compressed file format which carries date, time and thumbnail information, as well as the picture data. HDMI HDMI (High-Definition Multimedia Interface) is a high-speed digital interface which has the capability to support standard, enhanced, or high-definition video plus standard to multi-channel surround-sound audio on a single digital connection. HDMI features include uncompressed digital video, a bandwidth of up to 5 gigabytes per second and communication between the AV source and AV devices such as DTVs. ISO 9660 format International standard for the volume and file structure of CD-ROM discs. MPEG-4 AAC MPEG-4 AAC is a compressed stereo audio file format. Files are recognized by the extention ‘.m4a’. Note that some files purchased with copyright protection (such as files from the iTunes store) may not playback. MPEG audio An audio format used on Video CDs and some DVD discs. PBC (PlayBack Control) A system of navigating a Video CD through on-screen menus recorded onto the disc. PCM (Pulse Code Modulation) Digital audio encoding system found on CDs. Good quality, but requires a lot of data compared to Dolby Digital, DTS and MPEG encoded audio. Progressive scan video All the lines that make up a video picture are updated in one pass (compared to interlace which takes two passes to update the whole picture). Sampling frequency The rate at which sound is measured to be turned into digital audio data. The higher the rate, the better the sound quality. CD is 44.1 kHz; DVD can be up to 96 kHz. WMV WMV is an acronym for Windows Media Video and refers to a video compression technology developed by Microsoft Corporation. Files are recognized by the file extension “.wmv”. DV410V_KUC_En.book 49 ページ ２００８年２月１５日　金曜日　午後３時０分09

STANDBY/ONOPEN/CLOSE

Chapter Repeat (ou encore Repeat Off).
