USER MANUAL MFI2269VEM MAYTAG

Important Safety Instructions.... 1-2

Quick Reference Guide ....3

Installation 4-9

Using the Controls...... 10-11

Ice And Water 12-13

Water Filter 14-15

Fresh Food Features 16-18

Freezer Features 18

Food Storage Tips...... 19-21

Care and Cleaning.... 22-25

Operating Sounds 26

Troubleshooting.... 27-30

Warranty & Service 31

Installer: Please leave this guide with this appliance.

Consumer: Please read and keep this Use and Care Guide for future reference; it provides the proper use and maintenance information.

Keep sales receipt and/or canceled check as proof of purchase.

Call: 1-800-688-9900 USA 1-800-688-2002 Canada

Have complete model and serial number identification of your refrigerator. This is located on a data plate inside the fresh food compartment, on the upper right side. Record these numbers below for easy access.

Model Number

Serial Number

Date of Purchase

In our continuing effort to improve the quality and performance of our appliances, it may be necessary to make changes to the appliance without revising this guide.

What You Need to Know About Safety Instructions

Warning and Important Safety Instructions appearing in this guide are not meant to cover all possible conditions and situations that may occur. Common sense, caution and care must be exercised when installing, maintaining or operating appliance.

Always contact the manufacturer about problems or conditions you do not understand.

Recognize Safety Symbols, Words, Labels

DANGER

DANGER – Immediate hazards which WILL result in severe personal injury or death.

WARNING

WARNING – Hazards or unsafe practices which COULD result in severe personal injury or death.

CAUTION

CAUTION – Hazards or unsafe practices which COULD result in minor personal injury or property damage.

DANGER

To reduce risk of injury or death, follow basic precautions, including the following:

Important: Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators are still dangerous – even if they sit out for “just a few days.” If you are getting rid of your old refrigerator, please follow the instructions below to

help prevent accidents.

Before you throw away your old refrigerator or freezer:

• Take off the doors.
- Leave the shelves in place so children may not easily climb inside.
- Cut off power cord plug.

Illustration of a refrigerator with open doors and a stack of papers (no text or symbols visible)

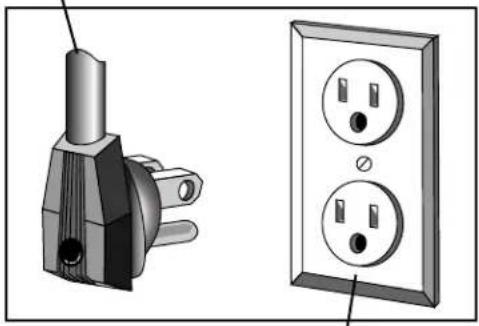

This appliance is equipped with a three-prong grounded plug for your protection against possible electrical shock hazards. It must be plugged into a properly grounded wall receptacle. Where a standard two-prong wall receptacle is encountered, it is the personal responsibility and obligation of the customer to have it replaced with a properly grounded three-prong wall receptacle. Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. Do not use an adapter plug.

Power supply cord with three-prong grounded plug

Illustration of a black electrical plug and its corresponding 2-pin socket (no text or symbols)

Properly grounded type wall receptacle

WARNING

To reduce risk of fire, electric shock, serious injury or death when using your refrigerator, follow basic precautions, including the following:

1. Read all instructions before using the refrigerator.
2. Observe all local codes and ordinances.
3. Be sure to follow grounding instructions.
4. Check with a qualified electrician if you are not sure this appliance is properly grounded.
5. Do not ground to a gas line.
6. Do not ground to a cold-water pipe.
7. Refrigerator is designed to operate on a separate 115 volt, 15 amp., 60 cycle line.
8. Do not modify plug on power cord. If plug does not fit wall receptacle, have proper receptacle installed by a qualified electrician.

9. Do not use a two-prong adapter, extension cord or power strip.

10. Do not remove warning tag from power cord.

11. Do not tamper with refrigerator controls.

12. Do not service or replace any part of refrigerator unless specifically recommended in Use and Care Guide or published user-repair instructions.

Do not attempt service if instructions are not understood or if they are beyond personal skill level.

1. Always disconnect refrigerator from electrical supply before attempting any service. Disconnect power cord by grasping the plug, not the cord.
2. Install refrigerator according to Installation Instructions. All connections for water, electrical power and grounding must comply with local codes and be made by licensed personnel when required.
3. Keep your refrigerator in good condition. Bumping or dropping refrigerator can damage refrigerator or cause refrigerator to malfunction or leak. If damage occurs, have refrigerator checked by qualified service technician.
4. Have worn power cords and/or loose plugs replaced by a qualified service technician.
5. Always read and follow manufacturer's storage and ideal environment instructions for items being stored in refrigerator.
6. Your refrigerator should not be operated in the presence of explosive fumes.
7. Children should not climb, hang or stand on any part of the refrigerator.
8. Clean up spills or water leakage associated with water installation.

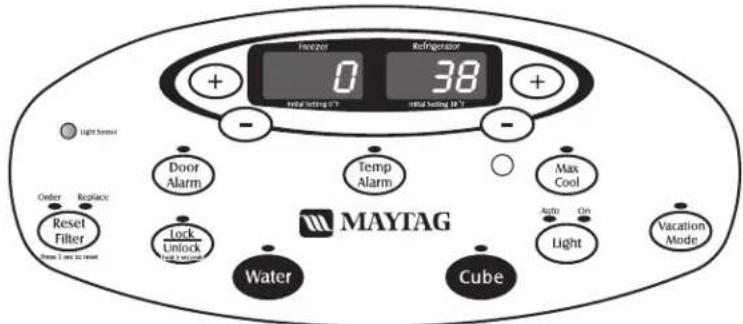

A Freezer 0 38 Refrigerator + + Initial Setting 0 °F Initial Setting 18 °F - - B Light Sensor C Reset Filter Press 3 sec to reset Order Replace Door Alarm Lock Unlock hold 3 seconds Temp Alarm MAYTAG Water Cube Max Cool Auto On Light Vacation Mode K D E F G H I J

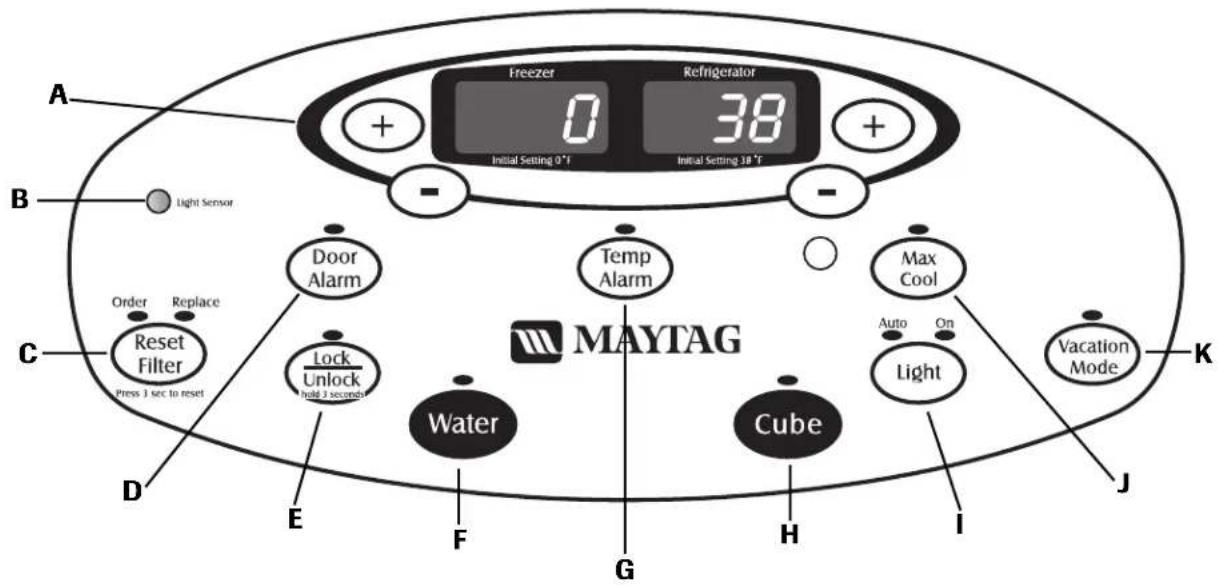

Quick Reference Guide

A	Temperature Control	Use to control the temperature in the refrigerator and freezer compartments. Temperatures are preset at the factory at 38°F (3°C) in the refrigerator compartment and 0°F (-18°C) in the freezer compartment.
B	Light Sensor	Senses light level within the room. Used with Autolight feature.
C	Reset Filter	Use as a reminder to order or replace the filter.Press and hold the pad for three seconds to reset lights.
D	Door Alarm	Indicates a door has been left open.To deactivate: close the door or press the pad.
E	Lock/Unlock	Use to lock all functions.To activate: press until green light illuminates.To deactivate: press and hold the pad for three seconds until green light turns off.
F	Water	Use to select water.
G	Temp Alarm	Use to alert if temperatures exceed normal range. Press once to stop audible alarm.To deactivate: press and hold pad for three seconds.
H	Cube	Use to select ice.
I	Light	Use to activate or deactivate the light. Press pad once for Auto, twice for Continuous or three times to deactivate.
J	Max Cool	Use to quickly drop compartment temperatures to minimum settings.To activate: press pad.To deactivate: press pad again.
K	Vacation Mode	Use to defrost less frequently when you are away.To activate: press the pad once.To deactivate: press the pad again or open a door and the light will turn off.

See pages 10-11 for more information on controls.

Installation

Your refrigerator was packed carefully for shipment. Remove and discard shelf packaging and tape. Do not remove the serial plate.

Location

• Do not install refrigerator near oven, radiator or other heat source. If not possible, shield refrigerator with cabinet material (contact a qualified contractor).
• Do not install where temperature falls below 55^ F (13° C) or rises above 110° F (43° C). Malfunction may occur at this temperature.
• Refrigerator is designed for indoor household application only.

Measuring the Opening

When installing your refrigerator, measure carefully. Allow 12 " space at top and 12 " space behind the machine compartment cover (located in the rear) for proper air circulation.

Subflooring or floor coverings (i.e. carpet, tile, wood floors, rugs) may make your opening smaller than anticipated.

Some clearance may be gained by using the leveling procedure under Leveling.

Important: If refrigerator is to be installed into a recess where the top of the refrigerator is completely covered, use distance from floor to top of hinge cap to verify proper clearance.

Transporting Your Refrigerator

• N EVER transport refrigerator on its side. If an upright position is not possible, lay refrigerator on its back. Allow refrigerator to sit upright for approximately 30 minutes before plugging it in to assure oil returns to the compressor. Plugging the refrigerator in immediately may cause damage to internal parts.
• Use an appliance dolly when moving refrigerator. ALWAYS truck refrigerator from its side or back—NEVER from its front.
• Protect outside finish of refrigerator during transport by wrapping cabinet in blankets or inserting padding between the refrigerator and dolly.
• Secure refrigerator to dolly firmly with straps or bungee cords. Thread straps through handles when possible. Do not over-tighten. Over-tightening restraints may dent or damage outside finish.

Leveling

To enhance the appearance and maintain performance, the refrigerator should be leveled per instructions below.

CAUTION

To protect property and refrigerator from damage, observe the following:

• Protect vinyl or other flooring with cardboard, rugs, or other protective material.
• Do not use power tools when performing leveling procedure.

Notes:

• Complete any required water supply connection before leveling.
• Some models only have adjustment screws (A).

Materials Needed:

• 38 " hex head driver

• Carpenter's level.

• Remove toe grille.

- Grasp firmly and pull outward to unclip.

1. Using hex head driver, turn the front adjustment screws (A) on each side to raise or lower the front of the refrigerator (see illustration below).

A B B A C C

1. Using the hex head driver, turn each of these adjustment screws (B) to raise or lower the rear of the refrigerator.
2. Using a carpenter's level, make sure front of refrigerator is 14'' (6 mm) or approximately 12 bubble higher than back of refrigerator and that the refrigerator is level from side to side.
3. Turn stabilizing legs (C) clockwise until firmly against floor.
4. Turn adjustment screws (A) counterclockwise to allow the full weight of the refrigerator to rest on the stabilizing legs.
5. Replace the toe grille.

- Align the toe grille mounting clips with the lower cabinet slots.

- Push the toe grille firmly until it snaps into place.

Installation

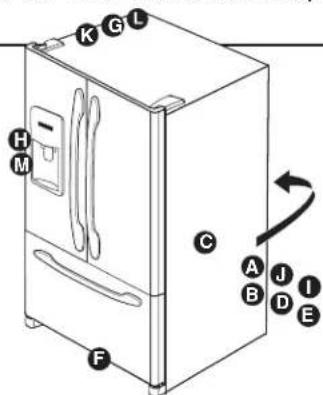

Door and Drawer Removal

Some installations require door/drawer removal to transport the refrigerator to its final location.

WARNING

To avoid electrical shock which can cause severe personal injury or death, observe the following:

- Disconnect power to refrigerator before removing doors or drawer. Connect refrigerator door wire harness and power only after replacing doors or drawer.

CAUTION

To avoid damage to walls and flooring, protect vinyl or other flooring with cardboard, rugs or other protective material. Monitor water connection for 24 hours. Correct leaks if necessary.

Note: For refrigerators in operation, shut off water before disconnecting water line from the door.

1. Unplug power cord from power source.

2. Remove toe grille (see page 4).

3. Remove top hinge cover from right side refrigerator door by removing Phillips screw. Retain screw and cover for later use.

4. Unscrew 516 " hex head screws from top hinge to remove hinge and retain all screws for later use.

Diagram of a mechanical device with a lever and handle, showing internal components and a top component (no text or symbols)

Mechanical assembly diagram showing a bracket with mounting holes and directional arrows (no text or symbols)

1. Lift right side refrigerator door from center hinge pin. Remove door closure from center hinge pin on the right side and retain for later use.

2. Remove top hinge cover from left side refrigerator door by removing Phillips screw. Retain screw and cover for later use.

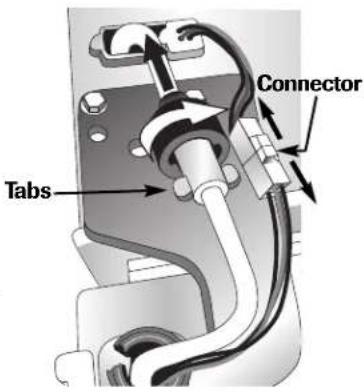

3. Disconnect wire harness on top left side of refrigerator door top hinge. Release connector by pressing junction point with a flat blade screwdriver or fingernail.

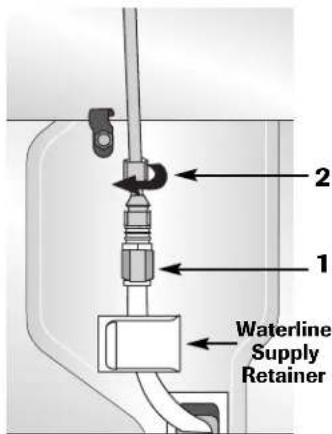

4. Disconnect waterline. Hold "tabbed" section of waterline while rotating the black locking collar clockwise and slide back.

5. Unscrew 516 hex head screws from top hinge to remove hinge; retain for later use.

6. Lift left side refrigerator door, along with top hinge, from center hinge pin.

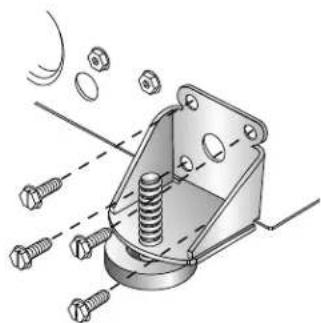

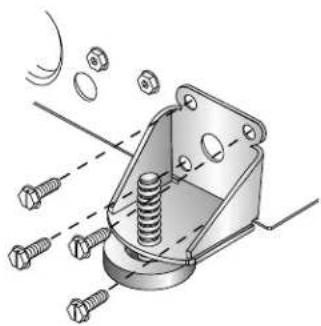

7. Remove Phillips screws to remove right and left hinges; retain all screws for later use.

8. Remove both stabilizing brackets with 38 " hex head driver; retain screws for later use.

Right side door closure

Mechanical assembly diagram showing a clamping device with upward force arrow (no text or symbols)

Connector Tabs

Diagram of a mechanical clamp or bracket with bolts and arrows indicating force direction (no text or symbols)

Mechanical assembly diagram showing a bracket with bolts and a spring, no text or symbols present

Installation

Door Reinstallation

1. Install hinge assemblies:

• Install center hinges with Phillips or hex screws.

1. Place hinge side of refrigerator door on center hinge pin.

- Install top hinge with 516 " hex head screws.

1. While holding refrigerator door upright, tighten down top hinge with 516 " hex head driver.

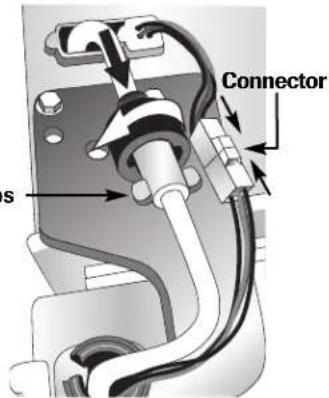

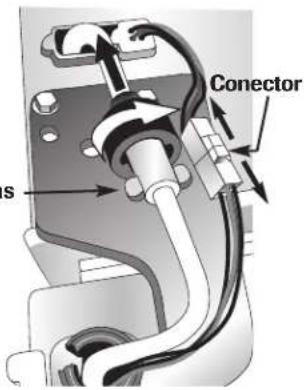

2. Reconnect connector.

3. Connect the waterline tubes firmly by pushing one waterline inside the other.

4. Slide the black locking collar fully forward.

5. Hold tabbed section of waterline.

6. Rotate black locking collar counterclockwise locking water lines in place. A "click" is heard ensuring waterlines are correctly locked in place. The "arrow" on the tabbed section should align with the 2 bars on the black locking collar.

7. Ensure the connection does not leak before installing the upper hinge cover.

8. Replace top hinge covers.

Connector s

Mechanical assembly diagram showing a piston and valve mechanism (no text or labels)

Pullout Freezer Drawer

WARNING

To avoid electrical shock which can cause severe personal injury or death, disconnect power to refrigerator before removing doors. After replacing doors, connect power.

CAUTION

To avoid possible injury, product, or property damage, you will need two people to perform the following instructions. Important: Always unload food in freezer trays before removing trays.

To Remove:

1. Pull drawer open to full extension.
2. Slide freezer bins forward and lift straight out.
3. Remove Phillips screws from each of the drawer slides.

Illustration of hands inserting a device into a rack (no text or symbols visible)

Illustration of a hand inserting a plastic into an open refrigerator (no text or symbols visible)

1. Lift top of drawer front to unhook the drawer from the slides.

2. Move drawer slides fully forward.

3. Lift out lower drawer assembly.

Illustration of a hand inserting a folder into a file (no text or symbols visible)

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Installation

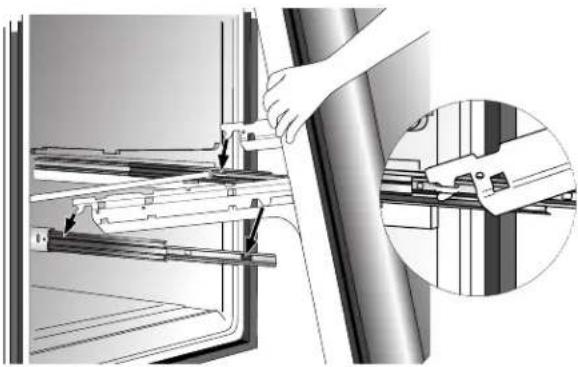

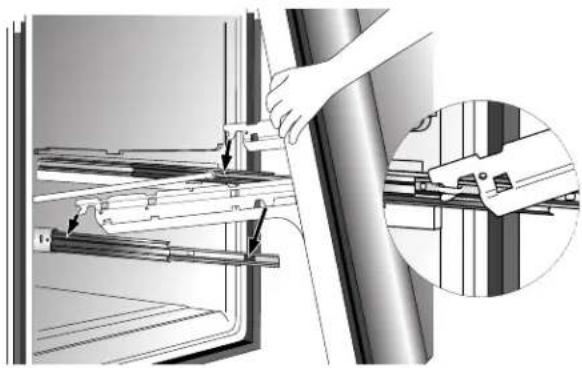

To Install:

1. Pull both rails out to full extension.
2. While supporting door front, hook supports into slots located on inside of each slide.

Diagram of a door with an arrow indicating direction (no text or symbols present)

Technical illustration of a hand operating a mechanical assembly with a magnified inset showing the detail (no text or symbols present)

Note: All four drawer bracket supports must be in the proper slots for the drawer to function properly. (See inset for detail.)

1. Lower door front into final position.
2. Replace and tighten Phillips screws that were removed from the drawer slides.
3. Install the lower assembly by aligning hooks of lower drawer assembly with rear rail on freezer drawer.

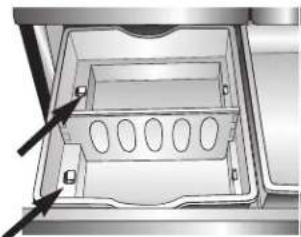

4. Replace freezer bins. Align the large square notches on outside of the drawer slides.

Illustration of a hand inserting a card into an oven (no text or symbols visible)

Interior view of a microwave oven or drawer with internal compartments and ventilation slots (no text or symbols visible)

Handles

Note: If not installed, the handle is located in the interior of the fresh food compartment or attached to the back of your refrigerator.

Plastic Handle

To Remove:

1. Grasp the lower part of the handle firmly, slide up, lift and remove from the surface.

To Install:

1. The handles are to be oriented as shown.
2. Align door handle clip with the door studs.

3. Ensure the large hole in the mounting clip is positioned down on both ends of the handle.

4. Rotate the handle so that the handle is flat against the door.

5. Grasp the handle firmly and slide down.
6. Grasp the handle firmly and slide down.

3D diagram of a stainless steel enclosure with a door and arrow indicating direction (no text or symbols)

3D rendering of a metallic industrial enclosure with a side panel and mounting bracket (no text or symbols)

Door Stud

Diagram of a mechanical component with a curved arrow indicating rotation (no text or symbols)

Technical line drawing of a stainless steel enclosure with a door and mounting bracket (no text or symbols)

Freezer Handle

Notes:

• Select models have a slight curve to the freezer handle.
• For proper installation, be sure handle is oriented as shown.

Installation

To Install:

1. Align door handle clips to the studs attached to the freezer door.

2. Ensure the large hole in the mounting clip is positioned to the right on both ends of the handle.

3. Rotate the handle so that the handle is flat against the door.

4. Grasp the handle firmly and slide handle to the right.

To Remove:

1. With both hands, firmly grasp the handle toward the right side.

2. Slide toward the left, lift and remove from the surface.

Illustration of a refrigerator with a handle and arrow indicating left side (no text or symbols)

Metal Handle

Materials Needed:

• 3/32" Allen wrench
- Gloves to protect hands

Note: Metal handles can scratch doors.

To Remove:

• Loosen set screws in handle using 3/32 Allen wrench.
• Repeat the procedure on all screws.

To Replace:

• Align handle with the mounting posts.
  • Fully tighten all set screws to secure handle in place.

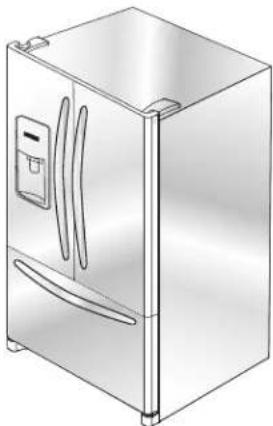

Line drawing of a stainless steel refrigerator with doors and side panels (no text or symbols)

Connecting the Water Supply

WARNING

To reduce the risk of injury or death, follow basic precautions, including the following:

• Read all instructions before installing ice maker.
• Do not attempt installation if instructions are not understood or if they are beyond personal skill level.
• Observe all local codes and ordinances.
• Do not service ice maker unless specifically recommended in Use and Care Guide or published user-repair instructions.
  • Water damage due to an improper water connection may cause mold/mildew growth. Clean up spills or leakage immediately!

CAUTION

To avoid property damage or possible injury, follow basic precautions, including the following:

• Consult a plumber to connect y_4 " O.D. copper tubing to household plumbing to assure compliance with local codes and ordinances.
• Confirm water pressure to water valve is between 35 and 100 pounds per square inch, 20 pounds per square inch without filter.

- Do not use a self-piercing, or 316 " saddle valve. Both reduce water flow and can become clogged over time, and may cause leaks if repair is attempted.

- Tighten nuts by hand to prevent cross threading. Finish tightening nuts with pliers and wrenches. Do not over-tighten.

- Wait two to three hours before placing refrigerator into final position to check and correct any water leaks. Recheck for leaks after 24 hours.

- Verify the copper tubing under the sleeve is smooth and free from defects. Do not reuse an old sleeve.

Installation

Materials Needed:

• 14 " outer diameter flexible copper tubing
• Shut-off valve (requires a 14 " hole to be drilled into water supply line before valve attachment)
• Adjustable wrenches (2)
• 14 " hex nut driver

Notes:

• Use copper tubing only for installation. Plastic is less durable and can cause damage.

• Add 8' to tubing length needed to reach water supply for creation of service loop.

• Create service loop with copper

tubing (minimum 2' diameter). Avoid kinks in the copper tubing when bending it into a service loop. Do not use plastic tubing.

2' diameter minimum

1. Remove plastic cap from water supply connection.

2. Place brass nut (A) and sleeve (B) on copper tube end as illustrated.

Reminder: Do not use an old sleeve. The nut and sleeve are provided in the Use and Care packet.

1. Place end of copper tubing into water valve supply line.

2. Slide brass nut over sleeve and screw nut into supply line.

(1) Place adjustable wrench on nut attached to plastic waterline and maintain position.

(2) Using second adjustable wrench turn the upper nut clockwise

and fully tighten while holding the lower nut in place.

2 1 Waterline Supply Retainer

Important: Do not over-tighten. Cross threading may occur.

1. Pull on tubing to confirm connection is secure. Connect tubing to frame with water tubing clamp (C). Slide waterline into retainer, then turn on water supply. Check for leaks and correct if necessary. Continue to observe the water supply connection for two to three hours prior to moving the refriger permanent location.

C Waterline Supply Retainer

1. Monitor water connection for 24 hours. Correct leaks, if necessary.

Opening and Closing Your Fresh Food Doors

Your new refrigerator is uniquely designed with two fresh food doors. Either door can be opened or closed independently of one another.

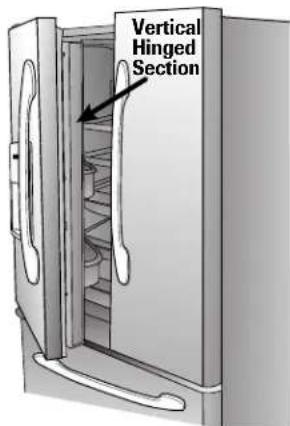

Vertical Hinged Section

For proper usage and to avoid possible damage, always ensure the vertical hinged section (on the left fresh food door) remains folded inward before closing both doors. When both doors are closed, the hinged section automatically forms a seal between the two doors.

When the left door is opened, the vertical hinged section automatically folds inward so that is is out of the way.

WARNING

To avoid electrical shock which can cause severe personal injury or death, DO NOT attempt to remove the vertical hinged section from the fresh food section.

CAUTION

To avoid possible product damage, ALWAYS verify that the vertical hinged section is folded against the edge of the door prior to closing.

Freezer 0 38 Refrigerator + - + - + - + - Light Sensor Door Alarm Temp Alarm Max Cool Order Replace Reset Filter Lock Unlock Heat Storage Auto On Water Cube Light Vacation Mode MAYTAG

Initial Temperature Setting

Temperatures are preset at the factory at 38^ F ( 3^ C) in the refrigerator compartment and 0^ F (-18°C) in the freezer compartment.

Adjusting the Control

24 hours after adding food, you may decide that one or both compartments should be colder or warmer. If so, adjust the control as indicated in the Temperature Control Guide below.

- Do not change either control more than one degree at a time. Allow temperature to stabilize for 24 hours before making a new temperature adjustment.

Temperature Control Guide

Refrigerator too cold	Set the refrigerator control to next higher number by pressing the (+ pad.
Refrigerator too warm	Set the refrigerator control to next lower number by pressing the (- pad.
Freezer too cold	Set the freezer control to next higher number by pressing the (+ pad.
Freezer too warm	Set the freezer control to next lower number by pressing the (- pad.
Turn refrigerator off	Press the freezer (+ pad until “OFF” appears in the display. Press the (- in either the freezer or refrigerator section to turn back on.

Water Reset Filter Status Indicator Light

When a water filter has been installed in the refrigerator, the yellow Order light will illuminate when the filter is 90% used OR 11 months have elapsed since the filter has been installed.

The red Replace light will illuminate when the filter is 100% used OR 12 months have elapsed since the filter was installed. A new filter should be installed immediately when the Replace light is illuminated.

After replacing the filter, press and hold the Reset Filter pad for three seconds. The Order and Replace lights will blink and then go off.

Light

The Light feature can be used to provide light to the dispenser area. The light feature is automatically activated and the indicator light illuminates. There are two methods available for lighting the dispenser - Auto and Continuous.

The Auto light function activates the dispenser light at half-power when the light sensor detects that the light levels in the room are low.

The Continuous light function provides light until deactivated. The On indicator light will illuminate.

To Activate Auto Light:

Press the Light pad once. The Auto indicator will illuminate.

To Activate Continuous Light:

Press Light pad again. The On indicator light will illuminate.

To Deactivate Auto or Continuous Light:

Press the Light pad a third time. This will turn off the dispenser and indicator light.

Vacation Mode

The Vacation Mode feature causes the freezer to defrost less frequently, conserving energy. The Vacation Mode indicator light will illuminate when the feature is activated. To activate, press the Vacation Mode pad. To deactivate, press the Vacation Mode pad again OR open either door. The indicator light will go off, and return to normal operating mode.

Using the Controls

Notes:

• Door openings will not deactivate Vacation Mode for approximately one hour after activation.
• If vacationing for more than a few days, see the Preparing for Vacation section, page 25.

Temp Alarm

The Temp Alarm system is designed to alert you if the freezer or refrigerator temperatures exceed normal operating temperatures due to a power outage or other event.

To Activate:

Press the Temp Alarm pad once. The Temp Alarm indicator light will illuminate.

To Deactivate:

Press and hold the Temp Alarm pad for three seconds. The indicator light will go off. If the alarm is not actively showing an alarm condition, then the temp alarm pad does not need to be held down for three seconds.

An Audible Alarm will sound repeatedly if the freezer or refrigerator temperatures have exceeded normal operating temperatures. The temperature display will alternately show the current compartment temperatures and the highest compartment temperatures reached when the power was out, doors left slightly ajar, or system failures.

To Turn Off the Audible Alarm:

Press the Temp Alarm pad once. The Temp Alarm indicator light will continue to flash and the temperatures will alternate until the temperatures have stabilized.

Door Alarm

The Door Alarm feature will alert you when one of the doors has been left open for approximately three minutes. When this happens, the Door Alarm light will flash and an audible alarm will sound.

To Activate:

Press the Door Alarm pad once. The Door Alarm indicator light will illuminate.

To Deactivate:

Press the Door Alarm pad once. The indicator light will go off.

To Turn Off the Audible Alarm:

Press the Door Alarm pad once OR close the door.

Note: The light bulbs will all turn off if any door is left open for six continuous minutes. Shutting all three doors for one second will cause light bulbs to come back on.

Max Cool

The Max Cool feature is automatically activated and the indicator light illuminates. This feature provides the ability to cool down the refrigerator, freezer after extended door openings or when I either compartment with warm food. This feature causes the refrigerator and freezer temperature drop to the minimum settings on the control.

Important: When the Max Cool feature is in operation, the + and - pads for the Refrigerator and Freezer controls will not operate.

To Activate:

Press the Max Cool pad once. The Max Cool indicator light will illuminate.

To Deactivate:

Press the Max Cool pad once. The indicator light will go off.

Max Cool will deactivate automatically after 2 hours.

User Preferences

Access the User Preferences menu to:

• Change the temperature display from ^ to ^ .
• Enable or disable audible alarms.
• Adjust the light level at which the Dispenser Auto Light will illuminate when this feature is activated on the ice and water dispenser.
• Activate the Sabbath Mode.

To access the User Preferences menu, press and hold the Door Alarm pad for three seconds. When in the User Preferences mode, a short title for the feature will appear in the Freezer temperature display and the feature status will appear in the Refrigerator display.

1. Use the Freezer + and - control to scroll through the features.
2. When the desired feature is displayed, use the Refrigerator + and - control to change the status.
3. When changes are complete, press the Door Alarm pad for three seconds.

Temperature Display (F\_C)

Change the display to show temperatures in degrees Fahrenheit or degrees Celsius.

Alarm (AL)

When the Alarm mode is off, all tones will be disabled until the feature is turned on (alarms are still enabled).

Auto Light Level Selection (LL)

This setting adjusts the light level at which the dispenser light will illuminate when the sensor detects

Ice and Water

that the light levels in the room are low. Setting 1 is the darkest light level setting, setting 9 is the brightest light level setting. Important: The Auto Light must be activated on the ice and water dispenser control to take advantage of this option.

Sabbath Mode (SAb)

When the Sabbath Mode is on, all control lights, interior lights, night light, ice and water dispenser and alarm tones will be disabled until the feature is turned off. Press the Door Alarm pad for three seconds to restore the lights.

Notes:

• Dispenser light will not activate during dispensing while in Sabbath Mode.
• If the power fails, the control will remain in Sabbath Mode when power returns.

Warm Cabinet Surfaces

At times, the front of the refrigerator cabinet and the vertical hinged section of the door may be warm to the touch. This is a normal occurrence that helps prevent moisture from condensing on the cabinet. This condition will be more noticeable when the refrigerator is first started, during hot weather and after excessive or lengthy door openings.

Note: During initial use of water dispenser and ice maker, there will be a one to two minute delay while water tank fills before water dispenses or ice is made. Discard first 10-14 glasses of water after initially connecting refrigerator to household water supply. Additional flushing may be required in some households where water is of poor quality.

Ice and Water Dispenser

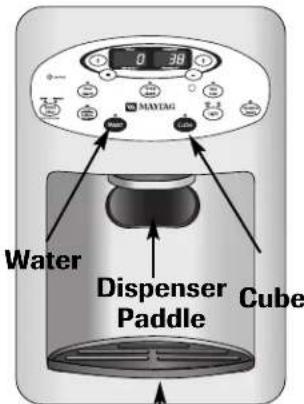

To Use Dispenser Paddle:

• Choose Water selection from dispenser control panel.
• Press a sturdy, wide-mouthed container against dispenser paddle.
• Dispenser Light will come on while paddle is pressed.
• Release pressure on dispenser paddle to stop water dispensing. A small amount of water may

0 30 MAYEAG Water Dispenser Cube

Removable Tray

continue to dispense and collect in dispenser tray. Large spills should be wiped dry.

Removable Tray

The removable tray at the bottom of the dispenser area is designed to collect small spills and may be easily removed for cleaning and emptying purposes.

Important: Removable tray does not drain. Do not allow tray to overflow. If it does, remove tray and wipe up overflow.

To Dispense Ice and Water:

• Select Water or Cube ice mode by pushing button on dispenser control panel. A green light above button indicates mode selection.
• Press container against dispenser paddle. When dispensing ice, hold container as close to chute as possible to reduce spraying.

Note: If dispenser is active for more than five minutes, an automatic lock out sensor will shut down power to dispenser area. See Dispenser Lock/Unlock for unlocking information.

Dispenser Lock/Unlock

The Dispenser Lock/Unlock affects all keypad functions.

To Lock Dispenser:

- Press and hold the Lock/Unlock button for three seconds. A green indicator light above the button will illuminate when the dispenser is locked.

To Unlock Dispenser:

- Hold the Lock/Unlock button for three seconds. The green indicator light above will go out.

Automatic Ice Maker

Connect the ice maker to the water supply as instructed on pages 8-9. A properly leveled refrigerator is essential for optimal ice maker production.

Illustration of hands cleaning a kitchen appliance (no text or symbols visible)

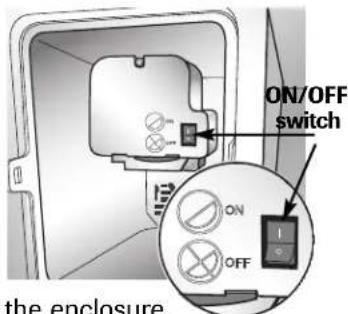

Ice Storage Bin

The ice storage bin is located below the automatic ice maker in the upper left side enclosure of the fresh food compartment.

ON/OFF switch ON OFF the enclosure.

To Remove:

- Depress the button on the lower right of the ice storage bin to release from the enclosure. Continue pulling until resistance is felt. Lift up front of ice bin and remove. Press the switch on the front of the ice maker to turn the ice maker off.

Ice and Water

Important: Do not remove ice storage bin without pressing ice maker switch to OFF. Removing ice storage bin while ON could result in ice falling into the ice storage bin enclosure, blocking the dispenser and disabling the bin from being locked into proper position.

Note: Access to the ice storage bin will be limited with the left fresh food door opened at 90 degrees. Move cabinet forward to enable door to open sufficiently for ice storage bin access.

To Install:

Important: Ice bin must be locked in place for proper ice dispensing. If necessary, turn auger driver behind ice bin counterclockwise to properly align ice bin with auger driver.

ON OFF Auger Driver

- Press the switch ON to activate ice maker. Slide bin into guide rails located on either side of the enclosure. Push the ice bin in until resistance is felt. Raise the front slightly and push the ice bin completely in. An audible "click" is heard when the ice bin is located correctly.

Operating Instructions

• Confirm ice bin is in place.
• After freezer section reaches between 0^ to 2^ F (-18^ to -17^ C), ice maker fills with water and begins operating. You will have a complete harvest of ice approximately every hour.
• Allow approximately 3 to 6 hours after installation to receive first harvest of ice.

- Discard ice created within the first 12 hours of operation to verify system is flushed of impurities.

- Stop ice production by pressing the ON/OFF switch located on the front of the ice maker.

- The first one or two batches will probably contain undersized and irregular cubes because of air in the supply line.

- When the ice cubes are ejected it is normal for several cubes to be joined together at the ends. They can easily be broken apart. The ice maker will continue to make ice until the supply of ice cubes raises the ice maker arm, shutting the ice maker off.

- Certain sounds may accompany the various cycles of the ice maker. The motor may have a slight hum, the cubes will rattle as they fall into an empty storage bin and the water valve may click or "buzz" occasionally.

• If the ice is not used frequently, the ice cubes will become cloudy, shrink, stick together and taste stale. Empty the ice storage bin periodically and wash it in lukewarm water. Be sure to dry the bin thoroughly before replacing it.
• Beverages and foods should not be placed in the ice storage bin for quick chilling. These items can cause the ice maker to malfunction.
• Press the switch on the ice maker front to OFF when the water supply is to be shut off for several hours.

WARNING

To avoid personal injury or property damage, observe the following:

• Do not place fingers or hands on the automatic ice making mechanism while the refrigerator is plugged in. This will help protect you from possible injury. It will also prevent interference with moving parts of the ejector mechanism and the heating element that releases the cubes.
• Under certain rare circumstances, ice cubes may be discolored, usually appearing with a green-bluish hue. The cause of this unusual discoloration can be a combination of factors such as certain characteristics of local waters, household plumbing and the accumulation of copper salts in an inactive water supply line which feeds the ice maker. Continued consumption of such discolored ice cubes may be injurious to health. If such discoloration is observed, discard the ice cubes and contact your dealer to purchase and install a water line filter.
  • Water damage due to improper water connection may cause mold/mildew growth.
• Clean up water and ice spills to avoid personal injury and to prevent mold/mildew growth.
• Do not dispense ice directly into thin glass, fine china or delicate crystal.

Water Filter Removal and Installation

WARNING

To avoid serious illness or death, do not use refrigerator where water is unsafe or of unknown quality without adequate disinfection before or after use of filter.

CAUTION

After installing a new water filter, always dispense water for two minutes before removing the filter for any reason. Air trapped in system may cause water and cartridge to eject. Use caution when removing.

• The bypass cap does not filter water. Be sure to have replacement cartridge available when filter change is required.
• If water filtration system has been allowed to freeze, replace filter cartridge.
• If system has not been used for several months, or water has an unpleasant taste or odor, flush system by dispensing water for two to three minutes. If unpleasant taste or odor persists, change filter cartridge.

Initial Installation

The water filter is located in the upper right-hand corner of the fresh food compartment.

1. Remove blue bypass cap and retain for later use.
2. Remove sealing label from end of filter and insert into filter head.
3. Rotate gently clockwise until filter stops. Snap filter cover closed.

Pull tab foward

Hand holding a cylindrical object above a metal shelf (no text or symbols visible)

Replacing Water Filter

Important: Air trapped in system may cause water and cartridge to eject. Always dispense water for at least 2 minutes before removing the filter or blue bypass cap for any reason. Use caution when removing.

1. Turn filter counterclockwise until it releases from filter head.
2. Drain water from filter into sink, and dispose in normal household trash.
3. Wipe up excess water in filter cover and continue with Initial Installation, steps 2 and 3.

The filter should be changed at least every 12 months.

Important: Condition of water and amount used determines life span of water filter cartridge. If water use is high, or if water is of poor quality, replacement may need to take place more often.

To purchase a replacement water filter cartridge, contact your dealer or call 1-877-232-6771 USA or 1-800-688-8408 Canada.

The dispenser feature may be used without a water filter cartridge. If you choose this option, replace filter with blue bypass cap.

State of California Department of Health Services

Water Treatment Device Certificate Number

03 - 1583

Date Issued: September 16, 2003 Date Revised: April 22, 2004

Trademark/Model Designation Replacement Elements

UKF8001AXX750 UKF8001AXX

469006-750 46 9006

67003523-750

Manufacturer: PentaPure Inc.

67003523

The water treatment device(s) listed on this certificate have met the testing requirements pursuant to Section 116830 of the Health and Safety Code for the following health related contaminant's:

Microbiological contaminant's and Turbidity

Cysts Turbidity Lead

Inorganic/Radiological contaminant's

Asbestos

Mercury

Organic contaminant's

Altrazine Lindane Benzene Carbofuran p-dichlorobenzene Toxaphene

Rated Service Capacity: 750 gal. Rated Service Flow: 0.78 gpm

Conditions of Certification:

Do not use where water is microbiologically unsafe or with water of unknown quality, except that systems certified for cyst reduction may be used on disinfected waters that may contain filterable cysts.

PuriClean II System Specification and Performance Data Sheet Refrigerator Water Filter Cartridge Model UKF8001AXX

Specifications

Service Flow Rate (Maximum)....0.78 GPM (2.9 L/min)

Rated Service Life UKF8001AXX-750 (Maximum).....750 gallons/2838 liters

Maximum Operating Temperature....100° F/38° C

Minimum Pressure Requirement....35 psi /241 kPA

Minimum Operating Temperature....33° F/1° C

Maximum Operating Pressure....120 psi /827 kPA

1000 Apollo Road

Eagan, Minnesota 55121-2240

651.450.4913

EPA EST #35917-MN-1

Performance Data

100834/B

Standard No. 42: Aesthetic Effects
Parameter	USEPA MCL	Influent Challenge Concentration	Influent Average	Effluent % Reduction				Min. Required Reduction
				Average	Maximum	Average	Minimum
Chlorine	-	2.0 mg/L ± 10%	1.88 mg/L	<0.05136364 mg/L	0.06 mg/L	>97.26%	96.84%	50%
T & O	-	-	-	-	-	-	-	-
Particulate**	-	at least 10,000 particles/ml	5,700,000 #/ml	30,583 #/ml	69,000 #/ml	99.52%	98.94%	85%

Standard No. 53: Health Effects

Parameter	USEPA MCL	Influent Challenge Concentration	Influent Average	Effluent % Reduction				Min. Required Reduction
				Average	Maximum	Average	Minimum
Turbidity	1 NTU**	11 ± 1 NTU***	10.7 NTU	0.31 NTU	.049 NTU	97.09%	95.20%	0.5 NTU
Cysts	99.5% Reduction	Minimum 50,000/L	166,500 #/L	<1 #/L	<1 #/L	>99.99%	>99.99%	>99.95%
Asbestos	99% Reduction	10° 10' fibers/L; fibers >10 micrometers in length	155 MF/L	<1 MF/L	<1 MF/L	>99.99%	>99.99%	99%
Lead at pH 6.5	0.015 mg/L	0.15 mg/L + 10%	0.153 mg/L	<.001 mg/L	<.001 mg/L	>99.35%	>99.29%	0.10 mg/L
Lead at pH 8.5	0.015 mg/L	0.15 mg/L + 10%	0.150 mg/L	<.001 mg/L	<.001 mg/L	>99.33%	>99.29%	0.10 mg/L
Mercury at pH 6.5	0.002 mg/L	.006 mg/L ± 10%	0.006 mg/L	0.0003 mg/L	0.0005 mg/L	95.70%	90.91%	0.002 mg/L
Mercury at pH 8.5	0.002 mg/L	.006 mg/L ± 10%	0.006 mg/L	0.0008 mg/L	0.0015 mg/L	86.22%	75.93%	0.002 mg/L
Atrazine	0.003 mg/L	0.009 mg/L + 10%	0.009 mg/L	<0.002 mg/L	0.002 mg/L	76.99%	75.31%	0.003 mg/L
Benzene	0.005 mg/L	0.015 mg/L ± 10%	0.014 mg/L	0.0006 mg/L	0.0011 mg/L	95.71%	92.14%	0.005 mg/L
Carbofuran	0.04 mg/L	0.08 mg/L ± 10%	0.081 mg/L	<0.001 mg/L	<0.001 mg/L	98.74%	98.46%	0.04 mg/L
p-Dichlorobenzene	0.075 mg/L	.225 mg/L ± 10%	0.208 mg/L	<0.0005 mg/L	<0.0005 mg/L	99.76%	99.74%	0.075 mg/L
Lindane	0.0002 mg/L	0.002 mg/L + 10%	0.002 mg/L	0.000 mg/L	<0.0001 mg/L	98.72%	96.50%	0.0002 mg/L
Toxaphene	0.003 mg/L	0.015 ± 10%	0.015 mg/L	<0.001 mg/L	<0.001 mg/L	92.97%	91.67%	0.003 mg/L

* Tested using a flow rate of 0.78 gpm; pressure of 60 psig; pH of 7.5 + 0.5; temp. of 68° + 5° F (20° + 3° C)
** Measurement in Particles/ml. Particles used were 0.5 - 1 microns
*** NTU - Nephelometric Turbidity Units

General Use Conditions

Read this Performance Data Sheet and compare the capabilities of this unit with your actual water treatment needs.

DO NOT use this product where water is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. System certified for cyst reduction may be used on disinfected water that may contain filterable cysts.

USE ONLY WITH COLD WATER SUPPLY. CHECK FOR COMPLIANCE WITH THE STATE AND LOCAL LAWS AND REGULATIONS.

Tested and certified by NSF International against ANSI/NSF Standards 42 & 53 in models UKF8001AXX-750 for the reduction of:

Standard No. 42: Aesthetic Effects

Taste and Odor Reduction

Chlorine Taste & Odor

Mechanical Filtration Unit

Particulate Reduction Class 1

Standard No. 53: Health Effects

Chemical Reduction Unit

Lead, Atrazine, Lindane, Benzene,

Carbofuran, p-Dichlorobenzene, Mercury

& Toxaphene Reduction

Mechanical Filtration Unit

Cyst, Turbidity and Asbestos Reduction

The PuriClean™ II retractable water filtration system uses a UKF8001AXX replacement cartridge. Timely replacement of filter cartridge is essential for performance satisfaction from this filtration system. Please refer to the applicable section of your Use and Care Guide for general operation, maintenance requirements and troubleshooting. Suggested retail price of replacement water filter is \$39.99.

This system has been tested according to ANSI/NSF 42 and 53 for reduction of the substances listed above. The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system, as specified in ANSI/NSF 42 and 53.

Shelves

CAUTION

To avoid personal injury or property damage, observe the following:

• Never attempt to adjust a shelf that is loaded with food.
• Confirm shelf is secure before placing items on shelf.
• Handle tempered glass shelves carefully. Shelves may break suddenly if nicked, scratched, or exposed to sudden temperature change.

Spill-Catcher™ Glass Shelves

Your refrigerator has Spill-Catcher ^™ glass shelves. The shelves have a spill retainer edge which allows for easier clean up and some are equipped with a slide out feature. To slide out, grasp the front of the shelf and pull forward. Push in the shelf to return to the original position.

To Remove a Shelf:

- Slightly tilt up the front and lift up the rear of the shelf, then pull the shelf straight out.

To Lock the Shelf Into Another Position:

• Tilt up the front edge of the shelf.
• Insert the hook into the desired frame openings and let the shelf settle into place.
• Be sure the shelf is securely locked at the rear.

Elevator™ Shelf (select models)

The Elevator ^™ Shelf is equipped with a spill-retaining edge and the EasyGlide ^™ slide-out feature. It can be adjusted up or down without unloading.

To Slide Out EasyGlide™ Shelf:

• Grasp the front of the shelf and pull forward.
• Push the shelf in to return to original position.

To Adjust the Elevator™ Shelf:

• Pull out the knob on the crank handle.
• Rotate the crank clockwise to raise the shelf, and counterclockwise to lower the height of the shelf.

To Remove Elevator™ Shelf:

• Completely unload the shelf and pull the shelf forward.
• Pull until the shelf stops.
• Slightly tilt up the front and pull the shelf straight out. Continue pulling forward until the shelf is clear of the frame.

To Replace Elevator™ Shelf:

- Align the shelf to the frame and push it all the way back.

In ordinary use, the Elevator ^™ Shelf frame assembly does NOT require removal. Though unlikely, and not recommended, the correct removal procedure is as follows:

To Remove Frame Assembly:

• Unload the shelf completely.
• Slide the shelf forward about 2" and manually move the two rear latches toward the shelf center.
• While supporting the entire shelf and frame from underneath, lift slightly and rotate the assembly approximately 30^ to allow the rear mechanism to clear the vertical rear side rails.
• The entire assembly can then be moved forward and clear of the refrigerator compartment.

To Reinstall Frame Assembly:

- Reverse the removal procedure. Be sure the shelf is in a level position. When the sliding shelf is pushed to the rear, it will reposition the rear latches to their correct operating position.

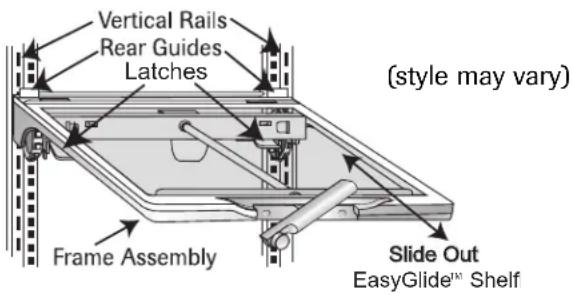

Vertical Rails Rear Guides Latches (style may vary) Frame Assembly Slide Out EasyGlide™ Shelf

Fresh Food Features

Crisper Top

The crisper top serves as the lower fresh food shelf.

To Remove the Crisper Top:

• Remove crisper drawers.
• Place hand under the frame to push up the glass. Lift glass out.
• Lift frame from fresh food liner rails.

To Install:

• Replace frame in fresh food liner rails.
• Carefully replace glass into frame.

Door Storage

Dairy Center

The dairy center provides convenient door storage for spreadable items such as butter and margarine. This compartment

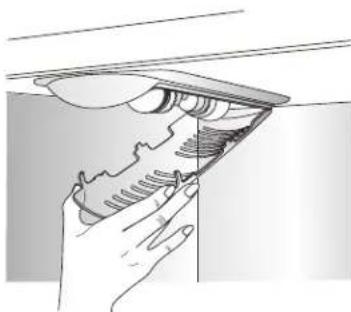

Illustration of hands installing or adjusting a mechanical component (no text or symbols visible)

can be moved to different locations to accommodate storage needs. To use the dairy center, raise the cover.

To Remove:

- Raise the cover, push upward and pull out.

To Install:

- Slide the dairy center in and push down until firmly seated in the door liner.

Door Buckets

Door buckets can be moved to meet storage needs.

To Remove:

- Slide bucket up and pull straight out.

To Install:

- Slide bucket in and push down until firmly seated in the door liner.

ut.

Crisper Drawers

The crisper drawers provide a higher humidity environment for fresh fruit and vegetable storage.

Controls

The crisper controls regulate the amount of humidity in the crisper drawer. Slide the control toward the FRUIT setting for produce with outer skins. Slide the control toward the VEGETABLES setting for leafy produce.

VEGETABLES

FRUIT

HUMIDITY CONTROLLED

To Remove:

- Pull drawer out to full extension. Tilt up front of drawer and pull straight out.

To Install:

- Insert drawer into frame rails and push back into place.

Note: For best results, keep the crisper drawers tightly closed.

Wide-N-Fresh™ Drawer

The Wide-N-Fresh™ drawer is a full-width drawer with adjustable temperature control. This drawer can be used for large party trays, deli items, beverages or miscellaneous items and features a divider to organize the drawer into sections if desired.

There is a temperature control which adjusts the amount of cold air allowed into the drawer.

The control is

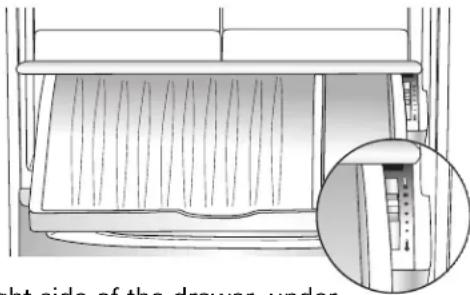

Diagram of a drawer with an inset close-up showing internal structure (no text or symbols)

located on the right side of the drawer, under the lid.

Set the control to the higher setting to provide a normal fresh food temperature.

Set the drawer on the lower setting ⏻ when a temperature colder than the main fresh food compartment is desired. Use the coldest setting when storing meats.

Notes:

• Cold air directed to the drawer can decrease fresh food temperature. Fresh food control may need to be adjusted.
• Do not place leafy vegetables in the drawer. Colder temperatures could damage leafy produce.

Fresh Food Features

To Remove Drawer:

- Lift lid. Pull drawer out to full extension. Tilt up front of drawer and pull straight out.

To Install Drawer:

- Push metal glide rails to the back of the fresh food compartment. Place drawer onto rails and slide drawer back until it falls into place.

To Remove Divider:

- Pull drawer completely out and raise the front of the divider to unhook it from the rear wall of the drawer, then lift drawer out.

To Install Divider:

- Hook back of divider over rear wall of drawer and lower into place.

Accessories

Egg Tray (style may vary)

The egg tray holds a "dozen-plus" eggs. It can be removed to carry to a work area or to be washed.

Wine Trivet/Can Rack

The wine trivet/can rack accessory fits in the Wide-N-Fresh™ drawer or on a shelf.

Bottles or cans can be laid crosswise, or a single bottle may be laid in the center depression.

Freezer Features

Freezer Bin

To Remove:

- Pull drawer out to full extension and lift bins out to remove.

To Install:

- Slide bin into freezer. Make sure the large square holes along outer bin align with square knobs on freezer drawer.

Interior view of a microwave oven with vent slots and an open drawer (no text or symbols visible)

Built-In Door Organizer

The vertical organizer is located in the fresh food section on the inside left door. The organizer is designed to hold six - 12oz. cans, 20oz. bottles, baby bottles, or yogurt containers, individually.

Technical illustration of a door with multiple circular components mounted on a wall (no text or symbols)

Temperature Controlled Beverage Chiller

The beverage chiller keeps beverages and other items cooler than the rest of the fresh food section. A cold air inlet allows air from the freezer section to pass into the beverage chiller. The beverage chiller control is located on the right wall of the fresh food compartment. The control adjusts the amount of cold air allowed into the beverage chiller. For a cooler temperature in the beverage chiller, slide the control down.

Coldest Chiller Control Cold

To Remove:

- Slide bucket up and straight out. Firmly hold each side of the beverage chiller, lift up and away from the door.

Diagram of a mechanical component with an arrow indicating direction (no text or symbols present)

To Install:

- Reverse above procedure.

Freezer Bin Divider

The freezer drawer features a divider in the bin to organize the drawer into sections if desired.

Lower Freezer Drawer

Note: See pages 6-7 for complete information on lower drawer and drawer removal.

Food Storage Tips

Fresh Food Storage

• The fresh food compartment of a refrigerator should be kept between 34^ - 40^ F (1^ - 4^) with an optimum temperature of 37^ F (3^) . To check the temperature, place an appliance thermometer in a glass of water and place in the center of the fresh food compartment. Check after 24 hours. If the temperature is above 40^ F (4^) adjust the controls as explained on page 10.
• Avoid overcrowding the fresh food shelves. This reduces the circulation of air around the food and results in uneven cooling.

Fruits and Vegetables

• Storage in the crisper drawers traps humidity to help preserve the fruit and vegetable quality for longer time periods (see page 17).
• Sort fruits and vegetables before storage and use bruised or soft items first. Discard those showing signs of decay.
  • Always wrap odorous foods such as onions and cabbage so the odor does not transfer to other foods.
• While vegetables need a certain amount of humidity to remain fresh, too much humidity can shorten storage times (especially leafy vegetables). Drain vegetables well before storing.
• Wait to wash fresh produce until right before use.

Meat and Cheese

• Storage in Wide-N-Fresh™ drawer helps preserve quality for longer time periods.
• Raw meat and poultry should be wrapped securely so leakage and contamination of other foods or surfaces does not occur.
• Occasionally mold will develop on the surface of hard cheeses (Swiss, Cheddar, Parmesan). Cut off at least an inch around and below the moldy area. Keep your knife or instrument out of the mold itself.
  Do not try to save individual cheese slices, soft cheese, cottage cheese, cream, sour cream or yogurt when mold appears.

Dairy Food

• For milk and cream, store in the Temperature Controlled Beverage Chiller which is designed to maintain a lower temperature for optimum freshness and life.
• Most dairy foods such as milk, yogurt, sour cream and cottage cheese have freshness dates on their cartons for appropriate length of storage. Store these foods in the original carton and refrigerate immediately after purchasing and after each use.

Frozen Food Storage

• The freezer compartment of a refrigerator should be kept at approximately 0^ F (-18^) . To check the temperature, place an appliance thermometer between the frozen packages and check after 24 hours. If the temperature is above 0^ F (-18^) , adjust the control as described on page 10.
• A freezer operates more efficiently when it is at least two-thirds full.

Packaging Foods for Freezing

• To minimize dehydration and quality deterioration use aluminum foil, freezer wrap, freezer bags or airtight containers. Force as much air out of the packages as possible and be sure they are tightly sealed. Trapped air can cause the food to dry out, change color and develop an off-flavor (freezer burn).
  • Overwrap fresh meats and poultry with suitable freezer wrap prior to freezing.
• Do not refreeze meat that has completely thawed.

Loading the Freezer

• Avoid adding too much warm food to the freezer at one time. This overloads the freezer, slows the rate of freezing and can raise the temperature of frozen foods.
• Leave space between the packages so cold air can circulate freely, allowing food to freeze as quickly as possible.

Refer to the Food Storage Chart on pages 20 and 21 for approximate storage times.

Food Storage Chart

Storage times are approximate and may vary depending on type of packaging, storage temperature, and the quality of the food when purchased.

Sources: United States Department of Agriculture; Food Marketing Institute; Cooperative Extension Service, Iowa State University

FOODS	REFRIGERATOR	FREEZER	STORAGE TIPS
DAIRY PRODUCTS
Butter	1 month	6 to 9 months	Wrap tightly or cover.
Milk and cream	1 weekStore inTemperatureControlled BeverageChiller.	Not recommended	Check carton date. Close tightly.Do not return unused portions to original container.Do not freeze cream unless whipped.
Cream cheese, cheese spread and cheese food	1 to 2 weeks	Not recommended	Wrap tightly.
Cottage cheese	3 to 5 days	Not recommended	Store in original carton.Check carton date.
Sour cream	10 days	Not recommended	Store in original carton.Check carton date.
Hard cheese(Swiss, Cheddar and Parmesan)	1 to 2 months	4 to 6 monthsMay become crumbly	Wrap tightly.Cut off any mold.
EGGS
Eggs in the shell	3 weeks	Not recommended	Refrigerate small ends down.
Leftover yolks or whites	2 to 4 days	9 to 12 months	For each cup of yolks to be frozen, add 1 tsp. sugar for use in sweet, or 1 tsp. salt for non-sweet dishes.
FRUITS Store in Crisper Drawer
Apples	1 month	8 months (cooked)	May also store unripe or hard apples at 60° to 70° F (16° to 21°C).
Bananas	2 to 4 days	6 months(whole/peeled)	Ripen at room temperature before refrigerating.Note: Bananas darken when refrigerated.
Pears, plums, avocados	3 to 4 days	Not recommended	Ripen at room temperature before refrigerating.Note: Avocados darken when refrigerated.
Berries, cherries, apricots	2 to 3 days	6 months	Ripen at room temperature before refrigerating.
Grapes	3 to 5 days	1 month (whole)	Ripen at room temperature before refrigerating.
Citrus fruits	1 to 2 weeks	Not recommended	May also store at 60° to 70° F (16° to 21°C). If refrigerated, store uncovered.
Pineapples, cut	2 to 3 days	6 to 12 months	Will not ripen after purchase.Use quickly.
VEGETABLES Store in Crisper Drawer
Asparagus	1 to 2 days	8 to 10 months	Do not wash before refrigerating. Store in crisper.
Brussels sprouts, broccoli, cauliflower, green peas, lima beans, onions, peppers	3 to 5 days	8 to 10 months	Wrap odorous foods.Leave peas in pods.
Cabbage, celery	1 to 2 weeks	Not recommended	Wrap odorous foods and refrigerate in crisper.
Carrots, parsnips, beets and turnips	7 to 10 days	8 to 10 months	Remove tops. Wrap odorous foods and refrigerate in the crisper.
Lettuce	7 to 10 days	Not recommended
POULTRY and FISH Store in Wide-N-FreshTM Drawer or Freezer
Chicken and Turkey, whole	1 to 2 days	12 months	Keep in original packaging for refrigeration. Place in the meat and cheese drawer. When freezing longer than two weeks, overwrap with freezer wrap.
Chicken and Turkey, pieces	1 to 2 days	9 months
Fish	1 to 2 days	2 to 6 months
MEATS Store in Wide-N-FreshTM Drawer or Freezer
Bacon	7 days	1 month
Beef or lamb, ground	1 to 2 days	3 to 4 months	Fresh meats can be kept in original packaging for refrigeration.
Beef or lamb, roast and steak	3 to 5 days	6 to 9 months	Place in the meat and cheese drawer.When freezing longer than two weeks, overwrap with freezer wrap.
Ham, fully cooked, whole	7 days	1 to 2 months
half	5 days	1 to 2 months
slices	3 days	1 to 2 months
Luncheon meat	3 to 5 days	1 to 2 months	Unopened, vacuum-packed luncheon meat may be kept up to two weeks in the meat and cheese drawer.
Pork, roast	3 to 5 days	4 to 6 months
Pork, chops	3 to 5 days	4 months
Sausage, ground	1 to 2 days	1 to 2 months
Sausage, smoked	7 days	1 to 2 months
Veal	3 to 5 days	4 to 6 months
Frankfurters	7 days	1 month	Processed meats should be tightly wrapped and stored in the meat and cheese drawer.

CAUTION

To avoid personal injury or property damage, observe the following:

• Read and follow manufacturer's directions for all cleaning products.
• Do not place buckets, shelves or accessories in dishwasher. Cracking or warping of accessories may result.

WARNING

To avoid electrical shock which can cause severe personal injury or death, disconnect power to refrigerator before cleaning. After cleaning, reconnect power.

Refrigerator Cleaning Chart

PART	DO NOT USE	DO
Smooth or Textured Painted Doors and Exterior (select models)Damage to finish due to improper use of cleaning products or non-recommended products is not covered under this product's warranty.	Abrasive or harsh cleanersAmmoniaChlorine bleachConcentrated detergents or solventsMetal or plastic-textured scouring pads	Use 4 tablespoons of baking soda dissolved in 1 quart (1 liter) warm, soapy water.Rinse surfaces with clean, warm water and dry immediately to avoid water spots.
Cabinet Interior
Stainless Steel Doors and Exterior (select models)Important:Damage to stainless steel finish due to improper use of cleaning products or non-recommended products is not covered under this product's warranty.	Abrasive or harsh cleanersAmmoniaChlorine bleachConcentrated detergents or solventsMetal or plastic-textured scouring padsVinegar-based productsCitrus-based cleaners	Use warm, soapy water and a soft, clean cloth or sponge.Rinse surfaces with clean, warm water and dry immediately to avoid water spots.To polish and help prevent fingerprints, follow with Stainless Steel Magic Spray (part no. 20000008*).
Door Gaskets and Ice Dispenser Chute	Abrasive or harsh cleanersMetal or plastic-textured scouring pads	Use warm, soapy water and a soft, clean cloth or sponge.
Condenser CoilRemove base grille to access.	Anything other than a vacuum cleaner	Use a vacuum cleaner hose nozzle.
Condenser Fan Outlet GrilleSee back of refrigerator.		Use a vacuum cleaner hose nozzle with brush attachment.
AccessoriesShelves, buckets, drawers, etc.	A dishwasher	Follow removal and installation instructions from appropriate feature section.Allow items to adjust to room temperature.Dilute mild detergent and use a soft, clean cloth or sponge for cleaning.Use a plastic bristle brush to get into crevices. Rinse surfaces with clean, warm water.Dry glass and clear items immediately to avoid spots.

* To order, call 1-877-232-6771 USA or 1-800-688-8408 Canada.

Removing Odors from Refrigerator

WARNING

To avoid electrical shock which can cause severe personal injury or death, disconnect power to refrigerator before cleaning. After cleaning, reconnect power.

1. Remove all food and turn the refrigerator off.
2. Disconnect power to the refrigerator.
3. Clean the walls, floor, ceiling of cabinet interior, drawers, shelves and gaskets according to the instructions on page 22.
4. Dilute mild detergent and brush solution into crevices using a plastic bristle brush. Let stand for 5 minutes. Rinse surfaces with warm water. Dry surfaces with a soft, clean cloth.
5. Wash and dry all bottles, containers and jars. Discard spoiled or expired items.
6. Wrap or store odor-causing foods in tightly sealed containers to prevent recurring odors.
7. Reconnect power to refrigerator and return food to refrigerator.
8. Allow the refrigerator to cool.
9. After 24 hours, check if odor has been eliminated.

If Odor is Still Present:

1. Remove drawers and place on top shelf of refrigerator.
2. Pack fresh food and freezer sections – including doors – with crumpled sheets of black and white newspaper.
3. Place charcoal briquettes randomly on crumpled newspaper in both freezer and fresh food compartments.
4. Close doors and let stand 24 to 48 hours.

Energy Saving Tips

• Avoid overcrowding refrigerator shelves. Overcrowding reduces air circulation around food and causes refrigerator to run longer.
• Avoid adding too much warm food to refrigerator at one time. This overloads compartments and slows rate of cooling.
• Do not use aluminum foil, wax paper, or paper toweling as shelf liners. This decreases air flow and causes refrigerator to run less efficiently.
• A freezer that is two-thirds full runs most efficiently.
• Locate refrigerator in coolest part of room. Avoid areas of direct sunlight, or near heating ducts, registers or other heat producing appliances. If this is not possible, isolate exterior by using a section of cabinet or an added layer of insulation.
• Clean door gaskets every three months according to cleaning instructions. This will assure that door seals properly and refrigerator runs efficiently.
• Take time to organize items in refrigerator to reduce time that door is open.
• Be sure your doors are closing securely by leveling refrigerator according to the instructions on page 4.
• Clean condenser coils as indicated in the cleaning instructions every three months. This will increase energy efficiency and cooling performance.

Care and Cleaning

Replacing Light Bulbs

WARNING

To avoid electrical shock which can cause severe personal injury or death, disconnect power to refrigerator before replacing light bulb. After replacing light bulb, reconnect power.

CAUTION

To avoid personal injury or property damage, observe the following:

• Allow light bulb to cool.
• Wear gloves when replacing light bulb.

Fresh Food Section

The fresh food light bulbs are located at the top of the compartment and beneath the ice storage enclosure. The freezer light bulb is located at the top front of the freezer section.

Fresh Food Section Upper Front

1. Squeeze both sides of light shield in the open area while pulling downward to remove.

Illustration of a hand holding a small object with a black arrow indicating direction (no text or symbols)

1. Remove light bulbs.

2. Replace with appliance bulbs no greater than 40 watts.

3. Replace light bulb shield by inserting tabs on light shield into liner holes on each side of light assembly.

Illustration of a hand holding a tool interacting with a mechanical component (no text or symbols visible)

Do not force shield beyond locking point. Doing so may damage light shield.

Fresh Food Left Rear Light

1. Press along upper edge of light shield and roll light shield forward to remove.
2. Remove light bulb. Replace with appliance bulb no greater than 40 watts.
3. Insert lower tabs of light shield into slots of fresh food liner. Roll upward to snap into slots located under the ice storage enclosure.

Freezer Light

1. Remove light bulb.
2. Replace bulb with appliance bulb no greater than 40 watts.

Hand inserting a component into a cabinet or rack, showing a curved arrow indicating rotation (no text or symbols present)

Technical illustration of a mechanical component with no visible text or symbols

Preparing for Vacation

CAUTION

If there is any possibility that the temperature can drop below freezing where the refrigerator is located, the water supply system (including the water tank and the water valve) must be drained by a qualified servicer.

For Short Vacations or Absences (Three Months or Less):

1. Remove all perishables.

2. If no one will be checking in on the refrigerator during your absence, remove all frozen items also.

3. Shut off the water supply to the ice maker at least one day ahead of time.

4. After the last load of ice drops, press ice maker switch to OFF.

5. Empty the ice bin.

6. If the room temperature will drop below 55^ F ( 13^ C), follow the instructions for longer absences.

For Long Vacations, Absences (More Than Three Months) OR if the Room Temperature Will Drop Below 55°F (13°C):

1. Remove food.

2. Shut off the water supply to the ice maker at least one day ahead of time.

3. After the last load of ice drops, press ice maker switch to OFF.

4. Empty the ice bin.

5. Remove the water filter cartridge and install the filter bypass. Dispose of the used cartridge.

6. Turn the freezer control to OFF.
7. Unplug the refrigerator.
8. Thoroughly clean the interior of both compartments with a baking soda solution and a clean, soft cloth (four tablespoons of baking soda in one quart of warm water).
9. Dry thoroughly.
10. Secure both doors open to prevent odors and to keep the doors from shutting while you are away.

Upon your Return

After a Short Vacation or Absence:

• Reconnect the water supply and turn on supply valve (see page 8-9).
• Monitor water connection for 24 hours and correct leaks if necessary.
• Run 10-15 glasses of water from the dispenser to flush out the system.
• Restart the ice maker by pressing switch to the ON position.
• Discard at least the first three ice harvests.

After a Long Vacation or Absence:

• Reconnect the water supply and turn on supply valve (see page 8-9).
• Plug the refrigerator back in and reset controls (see pages 10-11).
• Monitor water connection for 24 hours and correct leaks, if necessary.

Run water through the dispenser for at least three minutes with the filter bypass in place, then install water filter (see page 14).

• After installing the water filter, run water through the dispenser continuously for at least two minutes, or until water runs steady. Initially you may notice a one to two minute delay in water dispersal as the internal tanks fills.
• Restart the ice maker by pressing switch to the ON position.
• Discard ice produced within the first 12 hours (at least the first three harvests).

Preparing to Move

• Follow the above instructions for long vacations/absences, through step 7.
• Secure all loose items such as shelves and drawers by taping them securely in place to prevent damage.
• Tape the doors shut.
• Use an appliance dolly when moving the refrigerator. Always truck the refrigerator from its side or back - never from its front.
• Be sure the refrigerator stays in an upright position during moving.

Improvements in refrigeration design may produce sounds in your new refrigerator that are different or were not present in an older model. These improvements were made to create a refrigerator that is better at preserving food, is more energy efficient, and is quieter overall. Because new refrigerators run quieter, sounds may be detected that were present in older refrigerators, but were masked by higher sound levels. Many of these sounds are normal. Please note that the surfaces adjacent to a refrigerator, such as hard walls, floors and cabinetry may make these sounds seem even louder. The following are some of the normal sounds that may be noticed in a new refrigerator.

SOUND	POSSIBLE CAUSES	SOLUTION
Clicking	Freezer control (A) clicks when starting or stopping compressor.	Normal operation
	Defrost timer or electric damper control (select models) (B) sounds like an electric clock and snaps in and out of defrost cycle.	Normal operation
Air rushing or whirring	Condenser fan (D) makes this noise while operating.	Normal operation
	Freezer fan (C) makes this noise while operating.	Normal operation
	Freezer fan (C) slows to a stop as the freezer door is opened.	Normal operation
Gurgling or boiling sound	Evaporator (E) and heat exchanger (F) refrigerant make this noise when flowing.	Normal operation
Thumping	Ice cubes from ice maker drop into ice bucket (G).	Normal operation
	Dispenser ice chute (H) closing.	Normal operation
Vibrating noise	Compressor (I) makes a pulsating sound while running.	Normal operation
	Refrigerator is not level.	See Leveling, page 4.
Buzzing	Ice maker water valve (J) hookup buzzes when ice maker fills with water.	Normal operation
Humming	Ice maker (K) is in the ‘on’ position without water connection.	Normal operation
	Ice auger (L) hums as auger agitates ice during dispensing.	Stop sound by turning ice maker switch to OFF. See Automatic Ice Maker, page 12 for details.
	Compressor (I) can make a high pitched hum while operating.	Normal operation
	Solenoid valve (M) operating ice chute door.	Normal operation
Beeping	Doors are open, or have not been properly closed.	See Opening and Closing your Fresh Food Doors, page 9.
	Door Alarm, Temp Alarm.	See page 11 for Door Alarm and Temp Alarm.

K G L H M C A J I B D E F

PROBLEM	POSSIBLE CAUSES	WHAT TO DO
Freezer control and lights are on, but compressor is not operating	• Refrigerator is in defrost mode.	• Normal operation.Wait 40 minutes to see if refrigerator restarts.
Temperature-controlled drawers are too warm	• Control settings are too low.	• See pages 10 and 11 to adjust controls.
	• Freezer controls are set too low.	• See pages 10 and 11 to adjust controls.
	• Drawer is improperly positioned.	• See pages 6 and 7 to verify drawer positioning.
Refrigerator does not operate	• Refrigerator is not plugged in.	• Plug in refrigerator.
	• Touch temperature controls are set to “OFF”.	• See pages 10 and 11 to adjust controls.
	• Fuse is blown, or circuit breaker needs to be reset.	• Replace any blown fuses.Check circuit breaker and reset, if necessary.
	• Power outage has occurred.	• Call local power company listing to report outage.
Refrigerator still won’t operate	• Refrigerator is malfunctioning.	• Unplug refrigerator and transfer food to another refrigerator. If another refrigerator is not available, place dry ice in freezer section to preserve food.Warranty does not cover food loss.Contact service for assistance.
Food temperature is too cold	• Condenser coils are dirty.	• Clean according to the chart on page 22.
	• Refrigerator or freezer controls are set too cold.	• See pages 10 and 11 to adjust controls.
	• Food is too close to upper left air inlet.	• Relocate food.
	• Ice bin not locked in place.	• See pages 12 and 13 to verify correct installation of ice storage bin.
Food temperature is too warm	• Door is not closing properly.	• Refrigerator is not level. See page 4 for details on how to level your refrigerator.
		• Check gaskets for proper seal. Clean, if necessary, according to the chart on page 22.
		• Check for internal obstructions that are keeping door from closing properly (i.e. improperly closed drawers, ice buckets, oversized or improperly stored containers, etc.)
	• Controls need to be adjusted.	• See pages 10 and 11 to adjust controls.
	• Condenser coils are dirty.	• Clean according to the chart on page 22.
	• Rear air grille is blocked.	• Check the positioning of food items in fresh food compartment to make sure grille is not blocked. Rear air grills are located at the upper left side and under the crisper drawers of the fresh food compartment.
	• Door has been opened frequently, or has been opened for long periods of time.	• Reduce time door is open. Organize food items efficiently to assure door is open for as short a time as possible.
	• Food has recently been added.	• Allow time for recently added food to reach refrigerator or freezer temperature or activate Max Cool to accelerate cooling process.
Refrigerator has an odor	• Odor producing foods should be covered or wrapped.	• Clean according to instructions on page 22.
	• The interior needs cleaning.
All interior light bulbs are off	• Refrigerator is not plugged in	• Plug in refrigerator.
	• Fuse is blown or circuit breaker needs to be reset.	• Replace any blown fuses.• Check circuit breaker and reset if necessary.
	• Doors have been open for six continuous minutes.	• Close all three doors for at least one second.
Water droplets form on inside of refrigerator	· Humidity levels are high or door has been been opened frequently.	· See pages 10 and 11 to adjust your controls.· Reduce time door is open.· Organize food items efficiently to assure door is open for as short a time as possible.
	· Check gaskets for proper seal.	· Clean, if necessary, according to the chart on page 22.
Refrigerator or ice maker makes unfamiliar sounds or seems too loud	· Normal operation.	· See page 26 for Operating Sounds.
Crisper drawers do not close freely	· Contents of drawer or positioning of items in the surrounding compartment could be obstructing drawer.	· Reposition food items and containers to avoid interference with the drawers.
	· Drawer is not in proper position.	· See page 17 to verify drawer positioning.
	· Refrigerator is not level.	· See page 4 for details on how to level your refrigerator.
	· Drawer channels are dirty or need treatment.	· Clean drawer channels with warm, soapy water.· Rinse and dry thoroughly.· Apply a thin layer of petroleum jelly to drawer channels.
Refrigerator runs too frequently	· Doors have been opened frequently or for long periods of time.	· Reduce time door is open.· Organize food items efficiently to assure door is open for as short a time as possible.
		· Allow interior environment to adjust for period the door has been opened.
	· Humidity or heat in surrounding area is high.	· Normal operation.
	· Food has recently been added.	· Allow time for recently added food to reach refrigerator or freezer temperature.
	· Refrigerator is exposed to heat by environment or by appliances nearby.	· Evaluate your refrigerator's environment. Refrigerator may need to be moved to run more efficiently.
	· Condenser coils are dirty.	· Clean according to the chart on page 22.
	· Controls need to be adjusted.	· See pages 10 and 11 to adjust your controls.
	· Door is not closing properly.	· Refrigerator is not level. See page 4 for details on how to level your refrigerator.
		· Check gaskets for proper seal.
		· Clean, if necessary, according to the chart on page 22.
		· Check for internal obstructions that are keeping door from closing properly (i.e. improperly closed drawers, storage bins, oversized or improperly stored containers, etc.)
	· Normal operation	· See Operating Sounds on page 26.

Ice and Water

PROBLEM	POSSIBLE CAUSES	WHAT TO DO
Refrigerator is leaking water	· Plastic tubing was used to complete water connection.	· The manufacturer recommends using copper tubing for installation. Plastic is less durable and can cause leakage. The manufacturer is not responsible for property damage due to improper installation or water connection.
	· Improper water valve was installed.	· Check water connection procedure (see page 9). Self-piercing and 316 " saddle valves cause low water pressure and may clog the line over time. The manufacturer is not responsible for property damage due to improper installation or water connection.
Water flow is slower than normal	· Water pressure is low.	· Water pressure must be between 35 to 100 pounds per square inch to function properly. A minimum pressure of 35 pounds per square inch is recommended for refrigerators with water filters.
	· Improper water valve was installed.	· Check water connection procedure in your Installation Instructions. Self-piercing and 316 " saddle valves cause low water pressure and may clog the line over time. The manufacturer is not responsible for property damage due to improper installation or water connection. Open water valve completely and check for leaks.
	· Copper tubing has kinks.	· Turn off water supply and remove kinks. If kinks cannot be removed, replace tubing.
	· Water filter is clogged or needs to be changed.	· Change water filter (see page 14).
Ice storage bin will not close	· Ice cube blockage	· Remove spilled ice cube(s) before replacing ice storage bin.
Water filter indicator light is red	· Water filter needs to be replaced.	· If filter is not available, replace with bypass filter. See Water Filter, page 14.
	· Filter indicator sensor needs to be reset.	· See Filter Status Indicator Light, page 10.
Ice forms in inlet tube to ice maker	· Water pressure is too low	· Water pressure must be between 35 to 100 pounds per square inch to function properly. A minimum pressure of 35 pounds per square inch is recommended for refrigerators with water filters.
	· Saddle valve not open completely.	· Open saddle valve completely.
	· Freezer temperature is too high.	· See Temperature Controls, pages 10 and 11. Freezer temperature should be between 0^ to 2^ F (-18° to -17°C) to produce ice.
Ice maker is not producing ice	· Ice maker switch is not ON	· Confirm ice maker switch is ON. See Automatic Ice Maker, page 12.
	· Household water supply is not reaching water valve.	· See Connecting the Water Supply page 8.
	· Copper tubing has kinks.	· Turn off water supply and remove kinks. If kinks cannot be removed, replace tubing.
	· Water pressure is too low.	· Water pressure must be between 35 to 100 pounds per square inch to function properly. A minimum pressure of 35 pounds per square inch is recommended for refrigerators with water filters.
	· Check freezer temperature.	· See Temperature Controls, pages 10 and 11. Freezer temperature should be between 0^ to 2^ F ( -18^ to -17^ C) to produce ice.
	· Inner fountain door is blocked or frozen.	· Do not attempt to free the fount ain door by continuously pressing the dispenser button. Contact qualified service technician.
Temp Alarm Light is flashing	· Exceeded normal operating temperatures.	· See Temp Alarm, page 11.
All lights on dispenser and interior lights are off and appliance is still running	· Control has been set to Sabbath Mode.	· See, Sabbath Mode, page 12.
Door alarm set, no alarm sounded	· Alarm mode has been disabled.	· To activate audible alarms, refer to page 11.
Temperatures in display look too low	· Temperature display has been set to Celsius rather than Fahrenheit.	· See Temperature display on page 11.

Warranty

Limited One Year Warranty - Parts and Labor

For one (1) year from the original retail purchase date, any part which fails in normal home use will be repaired or replaced free of charge.

Canadian Residents

The above warranties only cover an appliance installed in Canada that has been certified or listed by appropriate test agencies for a compliance to a National Standard of Canada unless the appliance was brought into Canada due to transfer of residence from the United States to Canada.

The specific warranties expressed above are the ONLY warranties provided by the manufacturer. These warranties give you specific legal rights, and you may also have other rights which vary from state to state.

CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. MAYTAG CORPORATION SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS, SO THESE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY STATE TO STATE OR PROVINCE TO PROVINCE.

What is Not Covered By These Warranties

1. Conditions and damages resulting from any of the following:

a. Improper installation, delivery, or maintenance.
b. Any repair, modification, alteration, or adjustment not authorized by the manufacturer or an authorized servicer.
c. Misuse, abuse, accidents, unreasonable use, or acts of God.
d. Incorrect electric current, voltage, electrical and/or gas supply.
e. Improper setting of any control.
f. Use of risers (pedestals) that are not Maytag branded.

1. Warranties are void if the original serial numbers have been removed, altered, or cannot be readily determined.
2. Light bulbs, water filters and air filters.
3. Products purchased for commercial or industrial use.
4. The cost of service or service call to:

a. Correct installation errors. For products requiring ventilation, rigid metal ducting must be used.

b. Instruct the user on the proper use of the product.

c. Transport the appliance to and from the servicer.

d. Correct issues related to risers that are not Maytag branded.

1. Any food loss due to refrigerator or freezer product failures.
2. Expenses for travel and transportation for product service in remote locations.
3. Outside of the United States and Canada this warranty does not apply. Contact your dealer to determine if another warranty applies.
4. Consequential or incidental damages sustained by any person as a result of any breach of these warranties. Some states do not allow the exclusion or limitation of consequential or incidental damages, so the above exclusion may not apply.

If You Need Service

First see the Troubleshooting section in your Use and Care Guide or call the dealer from whom your appliance was purchased or call Maytag Services, LLC, Customer Assistance at 1-800-688-9900 USA and 1-800-688-2002 Canada to locate an authorized servicer.

• Be sure to retain proof of purchase to verify warranty status. Refer to WARRANTY for further information on owner's responsibilities for warranty service.
• If the dealer or service company cannot resolve the problem, write to Maytag Services, LLC, Attn: CAIR® Center, P.O. Box 2370, Cleveland, TN 37320-2370, or call 1-800-688-9900 USA and 1-800-688-2002 Canada. U.S. customers using TTY for deaf, hearing impaired or speech impaired, call 1-800-688-2080.
• User's guides, service manuals and parts information are available from Maytag Services, LLC, Customer Assistance.

Notes: When writing or calling about a service problem, please include:

a. Your name, address and telephone number;
b. Model number and serial number;
c. Name and address of your dealer or servicer;
d. A clear description of the problem you are having;
e. Proof of purchase (sales receipt).

Refrigerador

Installation.... 36-41

Illustration of a laptop with open screen and document stack (no text or symbols)

Illustration of a black electrical plug and its corresponding 3D electrical socket (no text or symbols)

A Freezer 0 38 Refrigerator Initial Setting 0°F Initial Setting 38°F + - + - + - B Light Sensor C Order Replace Reset Filter Press 3 sec to reset Door Alarm Lock Unlock Hold 3 seconds Temp Alarm MAYTAG Water Cube Max Cool Auto On Light Vacation Mode K D E F G H I J

Quick Reference Guide

Mechanical assembly diagram showing a bracket with a handle and mounting bracket (no text or symbols)

Mechanical assembly diagram showing a lever and mounting bracket with arrows indicating motion (no text or symbols)

Mechanical assembly diagram showing a valve or pump with an upward arrow indicating motion (no text or symbols present)

Mechanical assembly diagram showing a valve or pump with a downward arrow indicating force or direction (no text or symbols present)

Illustration of a door with hand positioning and interior compartments, showing hand positioning and storage (no text or symbols)

Illustration of a hand opening a refrigerator with an upward arrow indicating the handle (no text or symbols present)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Installation

Diagram of a door with internal structure and directional arrow, no text or symbols present

Technical illustration of a hand using a tool to install or install a mechanical component, with an inset close-up showing the assembly detail (no text or symbols present)

Illustration of a hand inserting documents into an oven (no text or symbols visible)

Interior view of a refrigerator drawer with internal compartments and labeled parts (no text or symbols visible)

Poignées

Illustration of a stainless steel cabinet with a door and side-mounted device (no text or symbols)

3D rendering of a metallic enclosure or enclosure with a handle and mounting bracket (no text or symbols visible)

Goujon de porte

Diagram of a cable connector with a switch and socket, showing a curved arrow indicating rotation (no text or symbols)

Technical line drawing of a stainless steel enclosure with internal components and mounting holes (no text or symbols)

Illustration of a refrigerator with a curved handle and arrow indicating left side (no text or symbols)

Poignée métallique

Line drawing of a stainless steel refrigerator with doors and side panels (no text or symbols)

Freezer 0 38 (mid heating 14 °C) (mid heating 15 °C) + - Refrigerator + - Light Sensor Door Alarm Temp Alarm Max Cool Order Replace Reset Filter Lock Unlock with more Auto On New Tacs is need Water Cube Light Vacation Mode MAYTAG

Illustration of a hand holding a cylindrical object attached to a wall-mounted device (no text or symbols visible)

Illustration of hands installing or adjusting a mechanical component (no text or symbols visible)

Technical illustration of a mechanical component with multiple circular cavities and a central housing (no text or symbols)

Coldest Chiller Control Cold

Pour l'enlever :

Diagram of a mechanical component with a curved arrow indicating motion or force direction (no text or symbols)

Interior view of a refrigerator with open door and side compartments (no text or symbols visible)

Illustration of a hand holding a small object with an arrow indicating direction (no text or symbols present)

Illustration of a hand holding a device with a curved panel and a vertical line, no text or symbols present

Hand inserting a component into a cabinet or rack, showing a circular arrow indicating rotation (no text or symbols present)

Technical illustration of a mechanical component with no visible text or symbols

K G L H M C A J I B D E F

Dépannage

Illustration of a refrigerator with open doors and a closed door, no text or symbols present

Diagram of a plug and two electrical outlets (no text or symbols)

A Freezer 0 38 Refrigerator Initial Setting 0°F Initial Setting 18 °F + - + - + - B Light Sensor Order Replace Reset Filter Press 3 sec to reset Door Alarm Lock Unlock Inade 2 seconds Temp Alarm Water Max Cool Auto On Light Cuba Vacation Mode K J D E F G H I MAYTAG

Technical illustration of a mechanical assembly with a bracket and mounting hole (no text or symbols)

Mechanical assembly diagram showing a bracket with mounting holes and directional arrows (no text or symbols)

Mechanical assembly diagram showing a piston and valve mechanism (no text or labels)

Lengüetas

Conector s

Diagram of a mechanical clamp or bracket with bolts and arrows indicating force direction (no text or symbols)

Mechanical assembly diagram showing a bracket with bolts and a spring, no text or symbols present

Diagram of a mechanical device with a downward arrow indicating force or movement (no text or symbols present)

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of a hand inserting a plastic into a refrigerator (no text or symbols visible)

Illustration of a hand inserting a device into a container with documents (no text or symbols visible)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Instalación

Para instalar:

Diagram of a door with metal components and an arrow indicating direction (no text or symbols)

Technical illustration of a mechanical assembly with a hand adjusting components, showing a close-up inset (no text or symbols)

Illustration of a hand inserting a card into an oven (no text or symbols visible)

Manijas

Interior view of a refrigerator drawer showing internal compartments and ventilation slots (no text or symbols)

Plastic Handle

Para sacar:

3D diagram of a stainless steel enclosure with a door and vent, showing internal components and mounting holes (no text or symbols)

Para instalar:

3D rendering of a metallic enclosure or enclosure with internal components and mounting holes (no text or symbols visible)

Diagram of a cable or connector with a switch and circular component, showing a curved arrow indicating rotation (no text or symbols present)

3D diagram of a stainless steel enclosure with internal components and mounting holes (no text or symbols)

Manija del congelador

Notas:

Illustration of a refrigerator with a curved door and directional arrow (no text or symbols)

Manija de metal

Line drawing of a stainless steel kitchen appliance with front panel and side door (no text or symbols)

Illustration of a hand using a tool to lift a cylindrical object into a tray (no text or symbols visible)

Illustration of hands inserting a device into a container (no text or symbols visible)

Diagram of a refrigerator with a partially open drawer and a magnified inset showing internal components (no text or symbols)

Technical illustration of a door with multiple circular components mounted vertically (no text or symbols)

Coldest Chiller Control Cold

Para sacar:

Diagram of a mechanical component with a curved arrow indicating direction (no text or symbols)

Interior view of a microwave oven with ovals and a tray (no text or symbols visible)

Divisor del compartimento del congelador

Illustration of a hand holding a small object with a black arrow indicating direction (no text or symbols)

Illustration of a hand holding a tool interacting with a surface, showing mechanical components (no text or symbols)

Hand inserting a component into a cabinet with a black arrow indicating rotation (no text or symbols)

Technical illustration of a mechanical component with no visible text or symbols
