USER MANUAL RMW90025W Royal Sovereign

Please read and retain these instructions.

To register your product, please go to www.royalsovereign.com USA. Click the Customer Support Tab then Registration Tab.

www.royalsovereign.com

Royal Sovereign International, Inc.

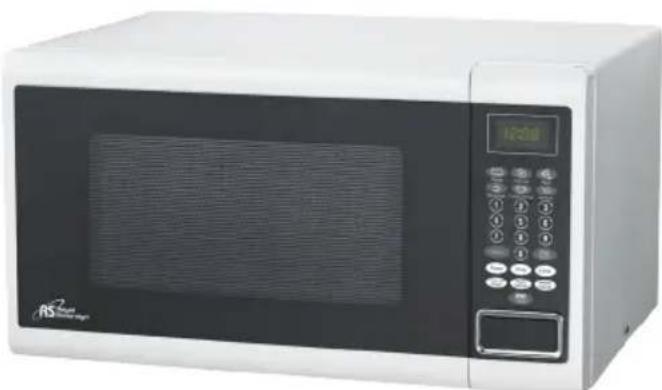

MICROWAVE OVEN

INTRODUCTION

Thank you for choosing Royal Sovereign microwave oven. This microwave oven can be set-up in just minutes and easily operated to satisfy your food preparation needs. This manual will provide you information for operation, use, and maintenance. Please take a few moments to read the instructions thoroughly and always follow the precautions.

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

1. Do not attempt to operate this oven with the door-open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
2. Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
3. Do not open the oven if it is damaged. It is particularly important that the oven door is closed properly and that there is no damage to the door, hinges and latches, door seals and sealing surfaces.
4. The oven should not be adjusted or repaired by anyone except properly qualified service personnel.

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should be followed, including the following:

WARNING: To reduce the risk of burns, electric shock, fire, and injury to persons or exposure to excessive microwave energy:

1. Read all instructions before using the appliance.
2. Read and follow the specific "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY" on page 2.
3. This appliance must be grounded. Connect only to properly grounded outlet. See "GROUNDING INSTRUCTIONS" on page 5.
4. Install or locate this appliance only in accordance with the provided installation instructions.
5. Some products such as whole eggs and sealed containers -for example, closed glass jars- are able to explode and should not be heated in this oven.
6. Use this appliance only for its intended use as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook, or dry food. It is not designed for industrial or laboratory use.
7. As with any appliance, close supervision is necessary when used by children.
8. To reduce the risk of fire in the oven cavity:

a. Do not overcook food. Carefully attend appliance when paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking.
b. Remove wire twist-ties from paper or plastic bags before placing bag inoven.
c. If materials inside the oven should ignite, keep oven door closed, turn oven off, and disconnect the power cord or shut off power at the fuse or circuit breaker panel.
d. Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in the cavity when not in use.

1. Liquids, such as water, coffee, or tea can be overheated beyond the boiling point without appearing to be boiling due to surface tension of the liquid. Visible bubbling or boiling when the container is removed from the microwave oven is not always present. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID. To reduce the risk of injury to person:

1) Do not overheat the liquid.
2) Stir the liquid both before and halfway through heating it.
3) Do not use straight-sided containers with narrow necks.
4) After heating, allow the container to stand in the microwave oven for a short time before removing the container.
5) Use extreme care when inserting a spoon or other utensil into the container.

1. Do not heat oil or fat for deep-frying. It is difficult to control the temperature of oil in microwave oven.
2. Pierce foods with heavy skins such as potatoes, whole squash, apples and chestnuts before cooking.
3. The contents of feeding bottles and baby jars should be stirred or shaken and the temperature should be checked before serving in order to avoid burns.
4. Cooking utensils may become hot because of heat transferred from the heated food. Potholders may be needed to handle the utensil.
5. Do not cover or block any openings on the appliance.
6. Do not store or use this appliance outdoors. Do not use this product near water, for example, near a kitchen sink, in a wet basement, near a swimming pool, or similar locations.
7. Do not operate this appliance if it has a damaged cord or a plug, if it is not working properly or if it has been damaged or dropped.
8. Do not immerse cord or plug in water.

CONTENTS

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE

TO EXCESSIVE MICROWAVE ENERGY 2

IMPORTANT SAFETY INSTRUCTIONS 3

SAVE THESE INSTRUCTIONS

INSTALLATION GUIDE 6
GROUNDING IN STRUCTIONS 6
UTENSILSGuide 7
COOKING TECHNIQUES 9

PART 10
CONTROL 10
OPERATION IN STRUCTIONS 12
QUICK COOK SETTINGS 15
CLEANING AND CARE 16
SPECIFICATIONS 17
WARRANTY 18
CONTACT INFORMATION 18

Page en Francais 19

SAVE THESE INSTRUCTIONS

INSTALLATION GUIDE

1. Make sure that all the packing materials are removed from the inside of the door.
2. Check the oven for any damage, such as misaligned or bent door, damaged door seals and sealing surface, broken or loose door hinges and latches and dents inside the cavity or on the door. If there is any damage, do not operate the oven but contact qualified service personnel.
3. Do not place the oven where heat, moisture, or high humidity are generated, or near combustible materials
4. For correct operation, the oven must have sufficient airflow. Allow 20cm of space above the oven, 10cm at back and 5cm at both sides. Do not cover or block any openings on the appliance. Do not remove feet on which oven stands.
5. Do not operate the oven without glass tray, roller support, and shaft in their proper positions.
6. Make sure that the power supply cord is undamaged and does not run under the oven or over any hot or sharp surface.
7. The socket must be readily accessible so that it can be easily unplugged in an emergency.

GROUNDING INSTRUCTIONS

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces risk of electric shock by providing an escape wire for the electric current.

WARNING: Improper use of the grounding plug can result in a risk of electric shock.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded, and either:

1) If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-blade grounding plug and a 3-slot receptacle that will accept the plug on the appliance. The marked rating of the extension cord shall be equal to or greater than the electrical rating of the appliance.
2) Do not use an extension cord. If the power supply cord is too short, have a qualified electrician or serviceman install an outlet near the appliance.

RMW900-25W SERIES

Electrical Requirements

The electrical requirements are a 120 volt 60Hz , AC only, 15 amp. It is recommended that a separate circuit serving only the oven be provided. The oven is equipped with a 3-prong grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded.

Power Supply Cord

1. A short power supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
2. Longer cord sets or extension cords are available and may be used if care is exercised in their use.
3. If long cord or extension cord is used:

a) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.
b) The extension cord must be a grounding-type 3-wire cord, and The longer cord should be arranged so that it will not drape over the counter top or table top where it can be pulled on by children or tripped over unintentionally.

Notes: If you have any questions about the grounding or electrical instructions, consult a qualified electrician or service person. Neither the manufacturer nor the dealer can accept any liability for damage to the oven or personal injury resulting from failure to observe the electrical connection procedures.

Radio or TV Interference

Should there be any interference caused by the microwave oven to your radio or TV, check that the microwave oven is on a different circuit, relocate the radio or TV as far away from the oven as feasible or check position and signal of receiving antenna.

UTENSILS GUIDE

This section lists which utensils can be used in the microwave, which ones have limited use for short periods, and which ones should not be used in the microwave.

RECOMMENDED

Microwave browning dish: Use to brown the exterior of small items such as steaks, chops, or pancakes. Follow the directions provided with your browning dish.

Microwaveable plastic wrap: Use to retain steam. Leave a small opening for some steam to escape and avoid placing it directly on the food.

Paper towels and napkins: Use for short-term heating and covering; these absorb excess moisture and prevent spattering. Do not use recycled paper towels, which may contain metal and could ignite.

Glass and glass-ceramic bowls and dishes: Use for heating or cooking.

Paper plates and cups : Use for short-term heating at low temperatures. Do not use recycled paper, which may contain metal and could ignite.

Wax paper: Use as a cover to prevent spattering.

Thermometers: Use only those labeled "Microwave Safe" and follow all directions. Check the food in several places. Conventional thermometers may be used on microwave food once the food has been removed from the oven.

LIMITEDUSE

Aluminum foil: Use narrow strips of foil to prevent overcooking of exposed areas. Using too much foil can damage your oven, so be careful. You should keep distance of 1 inch (2.54cm) between aluminum foil and cavity.

Ceramic, porcelain, and stoneware: Use these if they are labeled "Microwave Safe". If they are not labeled, test them to make sure they can be used safely.

Plastic: Use only if labeled "Microwave Safe". Other plastics can melt.

NOT RECOMMENDED

Glass jars and bottles: Regular glass is too thin to be used in a microwave. It can shatter and cause damage and injury.

Paper bags: These are a fire hazard, except for popcorn bags that are designed for microwave use.

Styrofoam plates and cups: These can melt and leave an unhealthy residue on food.

Plastic storage and food containers: Containers such as margarine tubs can melt in the microwave.

Metal utensils: These can damage your oven. Remove all metal before cooking.

Note: Should you wish to check if a dish is safe for microwaving, place the empty dish in the oven and microwave on HIGH for 30 seconds. A dish which becomes very hot should not be used.

RMW900-25W SERIES

COOKING TECHNIQUES

Your microwave makes cooking easier than conventional cooking, provided you keep these considerations in mind:

Stirring

Stir foods such as casseroles and vegetables while cooking to distribute heat evenly. Food at the outside of the dish absorbs more energy and heats more quickly, so stir from the outside to the center. The oven will turn off when you open the door to stir your food.

Arrangement

Arrange unevenly shaped foods, such as chicken pieces or chops, with the thicker, meatier parts toward the outside of the turntable where they receive more microwave energy. To prevent overcooking, place delicate areas, such as asparagus tips, toward the center of the turntable.

Shielding

Shield food with narrow strips of aluminum foil to prevent overcooking. Areas that need shielding include poultry wing tips, the ends of poultry legs, and corners of square baking dishes. Use only small amounts of aluminum foil. Larger amounts can damage your oven.

Turning

Turn foods over midway through cooking to expose all parts to microwave energy. This is especially important with large foods such as roasts.

Standing

Foods cooked in the microwave build up internal heat and continue to cook for a few minutes after heating stops. Let foods stand to complete cooking, especially foods such as cakes and whole vegetables. Roasts need this time to complete cooking in the center without overcooking the outer areas. All liquids, such as soup or hot chocolate, should be shaken or stirred when cooking is complete. Let liquids stand a moment before serving. When heating baby food, stir well at removal and test the temperature before serving.

Adding Moisture

Microwave energy is attracted to water molecules. Food that is uneven in moisture content should be covered or allowed to stand so that the heat disperses evenly. Add a small amount of water to dry food to help it cook.

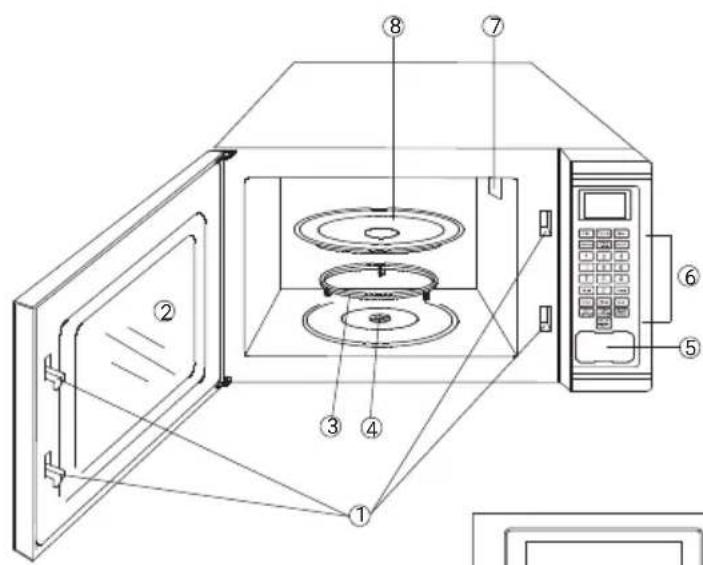

PARTS

1. Door Safety Lock System
2. Oven Window
3. Turntable Roller
4. Shaft
5. Door Release Button
6. Control Panel
7. Wave Guide (Please do not remove the mica plate covering the wave guide)
8. Glass Tray

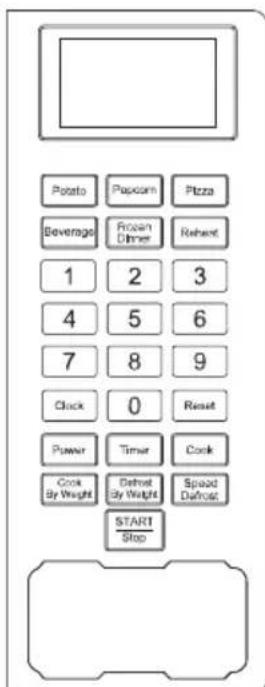

CONTROL

MENU ACTION SCREEN: Cooking time, power, indicators and present time are displayed.

QUICK COOK BUTTONS: Instant settings to cook popular foods.

NUMBER PADS (0-9): Touch to set time or amount.

CLOCK: Touch to set the clock time.

RESET: Touch to clear all previous settings.

TIMER: Timer functions independently, even while a cooking program is in process.

POWER LEVEL: Use to set microwave power levels.

COOK: Use for multi-stage cooking. Enables cooking at multiple power and time settings automatically.

COOK BY WEIGHT: Programmed cooking based on weight offfoods.

DEFROST BY WEIGHT: Programmed defrosting based on the weight of the foods to be defrosted.

SPEED DEFROST: Speed Defrost function that alternates defrost and stand times to quickly and effectively defrost foods.

START/STOP: Touch to start or stop cooking.

OPERATION IN STRUCTIONS

SETTING THE CLOCK

1. Touch CLOCK pad.
   2.Use the number pads to enter clock time.
2. Touch CLOCK padagain to confirm..

NOTE: This is a 12 hour clock. When the oven is first plugged in or when the power resumes after a power interruption, the display will show ENTER CLOCK TIME. If you prefer not to have the clock displayed, touch RESET pad.

SETTING THE TIMER

1. In standby state or during cooking, touch TIMER pad.
   2.Use the number pads to enter desired time. The longest time is 99 minutes 99 seconds.
2. Touch START/STOP pad to confirm

NOTE: You can check the countdown time by pressing TIMER pad, if you press RESET pad when the display shows the time, the function is cancelled.

EXPRESS COOK

Program can be started at full power immediately after touching the number pad from 1-6 in standby. Suppose you want to set the quick cooking in 6 minutes.

1. Touch number pad 6.
   2.6:00 can be seen on display.
2. The program starts automatically.

Touch number pad	1 2 3 4 5 6
Time Minutes	1Minute 2 Minutes 3 Minutes 4 Minutes 5 Minutes 6 Minutes

SETTING MICRO.COOKINGPROGRAM

A. One-stage Cooking

1. Touch POWER pads to enter the power level.

Touch POWER pad Once	Twice 3times 4times 5times 6times 7times 8times 9times 10times
Cooking power 100%	90%	80%	70%	60%	50%	40%	30%	20%	10%

1. Touch number pad to enter desired cooking time. The maximum number that can be entered is 99 min. 99 sec.

2. Touch START/STOP pad to start cooking.

NOTE: During cooking, the current power level can be seen by touching POWER pad.

B.Two-stage Cooking

Some recipes require different stages of cooking at different power levels.

1. SET STAGE 1: Follow steps 1 and 2 in "One-stage Cooking". DO NOT TOUCH START/STOP pad
2. SET STAGE 2: Touch COOK pad then enter proper cooking time and (lower) power level. (Most 2-stage recipes use lower power for second stage.)
3. Touch START/STOP pad.

NOTE: After the total time elapsed, the system will sound beep with END in display. And the beeps will continue to sound every two minutes automatically until the door is opened or any pad is touched.

MULTISTAGE COOKING

First stage Speed Defrost Microwave cooking
Second stage Microwave cooking	Microwave cooking
Third stage	Microwave cooking

1. Set the first stage cooking program. NOT TOUCH START/STOP.
2. Touch COOK pad.

RMW900-25W SERIES

3.Set the second stage cooking program. NOT TOUCH START/STOP.
4. Touch COOK pad.
5. Set the third stage cooking program.
6触摸 START/STOP pad.

NOTE: If you need two stages cooking program, only omit the 4-5 steps.

SPEED DEFROST

1. Touch SPEED DEFROSTpad.
2. Use the number pads to enter defrosting time. The longest time is 99 minutes 99 seconds.
3. Touch START/STOPpad.

NOTE: During the defrosting program, the system will sound beep to remind user to turn food over, and you need to stop the program and turn food over, then close the oven door and press START/STOP pad to resume.

COOK BY WEIGHT

1. Touch COOK BY WEIGHT pad.
2. Enter the one digit code by touching the correct number pad(1~3).
3. Enter weight by touching numberpads.
4. Touch START/STOP pad.

Cook By Weight Code Description

CODE TYPE MAX WEIGHT
1 Beef 5 lb. 16 oz
2 Mutton 5 lb. 16 oz
3 Pork 5 lb. 4 oz.

NOTE: Weight must be in pounds and ounces.

• Ounce weights less than 10 must be preceded by a 0. If label gives weight in pounds only, change the fraction of a pound to ounces using the following chart.

Converting Fractions of a Pound to Ounces

Fractions of a pound	Less than .03	.03 to .09	.10 to .15	.10 to .15	.22 to .27	.28 to .34	.35 to .40	.41 to .46	.47 to .53
Ounces 0 1 2 3	4 5 6 7 8

Fractions of a pound .54	to 59.60 to .65	.66 to .71	.72 to .78	.79 to .84	.85 to .90	.91 to .97 above	.97
Ounces	9	10	11	12	13	14	15	go to next even

• During cooking, the system will pause automatically and sound to remind user to turn food over. After that, touch START/STOP pad to resume cooking.

DEFROST BY WEIGHT

1. Touch DEFROST BY WEIGHT pad.
2. Enter weight by touching number pads.
3. Touch START/STOP pad.

NOTE: - Weight must be in pounds and ounces. Ounce weights less than 10 must be preceded by a 0. If label gives weight in pounds only, change the fraction of a pound to ounces by using the chart given above. The maximum weight is 5lb.16oz.

• During defrosting the system will sound to remind user to turn food over, then touch START/STOP pad to resume defrosting.

SETTING CHILD LOCK

The safety lock prevents unsupervised operation by children.

1. To setthe child lock: In standby mode, press RESET pad for 3 seconds, then a beep will sound. In the lock state, the oven can't be operated.
2. To cancel the child lock: Press RESET pad for 3 seconds, then a beep will sound, and the oven can be operated.

RMW900-25W SERIES

QUICK COOK SETTINGS

The QUICK COOK settings allow you to cook or reheat food automatically without entering power level or time. For smaller portions, simply touch the applicable pad and start. For larger portions, push the pad twice. FROZEN DINNER, BAKED POTATO and BEVERAGE allow you to cook multiple amounts of the same food. Simply touch pad once, and ENTER AMT appears in the display. Enter the amount of servings andstart.

POPCORN

1. Touch POPCORN pad.
2. POPCORN automatically sets the cooking time for a 3.5 oz. bag of microwavepopcorn.
3. Touch START/STOP pad.

NOTE: To change the preset POPCORN time 1. Touch POPCORN pad twice. 2.Use number pads to enter minutes and seconds. 3. Touch START/STOP pad.

The longest cooking time is 99 minutes and 99 seconds. The new cooking time will remain whenever you use the POPCORN setting until you reset it.

BAKED POTATO

1. Touch BAKED POTATO pad once.
2. Enter number of potatoes by touching number pads from 1 to4.
3. Touch START/STOP pad.

4. Touch BAKED POTATO pad twice.
5. Enter number of potatoes by touching number pads from 1 to4.
6. Touch START/STOP pad.

REHEAT

1. Touch REHEAT pad.
2. Touch START/STOP pad.

NOTE: This setting lets you reheat a dinner plate of chilled leftovers with good results.

BEVERAGE

1. Touch BEVERAGE pad once.
2. Enter number of cups by touching number pads from 1 to4.
3. Touch START/STOP pad.

1. Touch BEVERAGE pad twice.
2. Enter number of cups by touching number pads from 1 to4.
3. Touch START/STOP pad.

FROZEN DINNER

1. Touch FROZEN DINNER pad once.
2. For 1 entree or 2 entrees, touch the number pad "1" or "2".
3. Touch START/STOP pad.
   < Microwaving larger (10 to 12 oz. per share) frozen dinners>
4. Touch FROZEN DINNER pad twice.
5. For 1 entree or 2 entrees, touch the number pad "1" or "2".
6. Touch START/STOP pad.

PIZZA

1. Touch PIZZA pad once.
2. Touch START/STOP pad.
   < Heating a whole frozen pizza>
3. Touch PIZZA pad twice.
4. Touch START/STOP pad.

CLEANING AND CARE

1. Turn off the oven and remove the power plug from the wall socket before cleaning.
2. Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls, wipe with a damp cloth. Mild detergent may be used if the oven gets very dirty. Avoid the use of spray and other harsh cleaners as they may stain, streak or dull the door surface.
3. The outside surfaces should be cleaned with a damp cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.
4. Wipe the window on both sides with a damp cloth to remove any spills or spatters.
5. Do not allow the control panel to become wet. Clean with a soft, damp cloth. When cleaning the control panel, leave oven door open to prevent oven from accidentally turning on.
6. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity conditions. In such case, it is normal.
7. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy water or in a dishwasher.
8. The roller ring and oven floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent. The roller ring may be washed in mild sudsy water or dishwasher. When removing the rollerring from cavity floor for cleaning, be sure to replace in the proper position.
9. Remove odors from your oven by combining a cup of water with the juice and skin of one lemon in a deep microwaveable bowl, microwave for 5 minutes. Wipe thoroughly and dry with a soft cloth.
10. When it becomes necessary to replace the oven light, please consult a dealer to have it replaced.
11. The oven should be cleaned regularly and any food deposits removed. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
12. Please do not dispose this appliance into the domestic rubbish bin, it should be disposed to the particular disposal center provided by the municipalities.

SPECIFICATIONS

Model Name RMW900-25W
Power Consumption: 120V~60Hz, 1350W
Output:	900W
Operation Frequency:	2450MHz
Outside Dimensions(H×W×D):	11 1/16×19 ×14 3/4 (in)/283×482×374(mm)
Oven Cavity Dimensions(H×W×D):	8 11/16 ×13 3/8 ×12 5/8 (in) /220 ×339×320(mm)
Oven Capacity: 0.81cu.ft.
Cooking Uniformity: Turntable System
Net Weight:	Approx. 30.0lbs. /13.6Kg

LIMITED ONE YEARWARRANTY

This warranty applies to repair or replacement of product found to be defective in material or workmanship for 1 year from the date of the original purchase. This warranty is extended only to the original purchaser.

This warranty does not apply to damage resulting from abuse, misuse, or improper maintenance of damage that is attributable to acts of nature, or failures which result from commercial use of product (product is designed for household use). Royal Sovereign International, Inc. (and its affiliated companies) is not liable for incidental or consequential damages of any nature. This limitation would not apply if you live in those areas that do not permit the exclusion or limitation of incidental or consequential damages.

Defective products for warranty repair or replacement cannot be returned without a Return Authorization number. Please go to www.royalsovereign.com USA-Customer Support Tab to make a request for an Office Product Return Authorization.

Defective products must be returned to Royal Sovereign International Consumer Return Department, freight prepaid, with proof of purchase and Return Shipping and Handling payment (check or money order). Upon repair or replacement the product will be returned to the customer.

Return defective product to the following address with adetailed description of the problem. If possible, pack in original carton. Please prepay shipping charges.

For out of warranty service or frequently asked questions please go to www.royalsovereign.com USA-Customer Support Tab. Forsales of product, partsor accessories please visit us at www.royalfullfillmentcorp.com.

For service or sales please contact your local Royal Sovereign Office:

ROYAL SOVEREIGN INTERNATIONAL, INC.

2 Volvo Drive Rockleigh, NJ 07647 USA

www.royalsovereign.com

RS INTERNATIONAL CANADA INC.

5610 Timberlea Blvd, Mississauga Ontario L4W 4M6 CANADA

TEL: [phone] TF: [phone]

FAX: [phone]

www.royalsovereign.ca

Guide d'utilisation

Série RMW900-25W

FOUR À MICRO-ONDES

Page en Francais 19

www.royalsovereign.com

Royal Sovereign International, Inc.

FOUR À MICRO-ONDES

INTRODUCTION

POMME DE TERRE AU FOUR

GARANTIE LIMITÉE D'UN AN

www.royalsovereign.com

RS INTERNATIONAL CANADA INC.

5610 Timberlea Blvd, Mississauga Ontario L4W 4M6 CANADA

TEL: [phone] TF: [phone]

FAX: [phone]

www.royalsovereign.ca
