USER MANUAL Diva DF71 DV08011 HOOVER

• Certain models only ** Certain models only, nozzles may vary according to model

CMY K* Certain models only ** Certain models only, nozzles may vary according to model

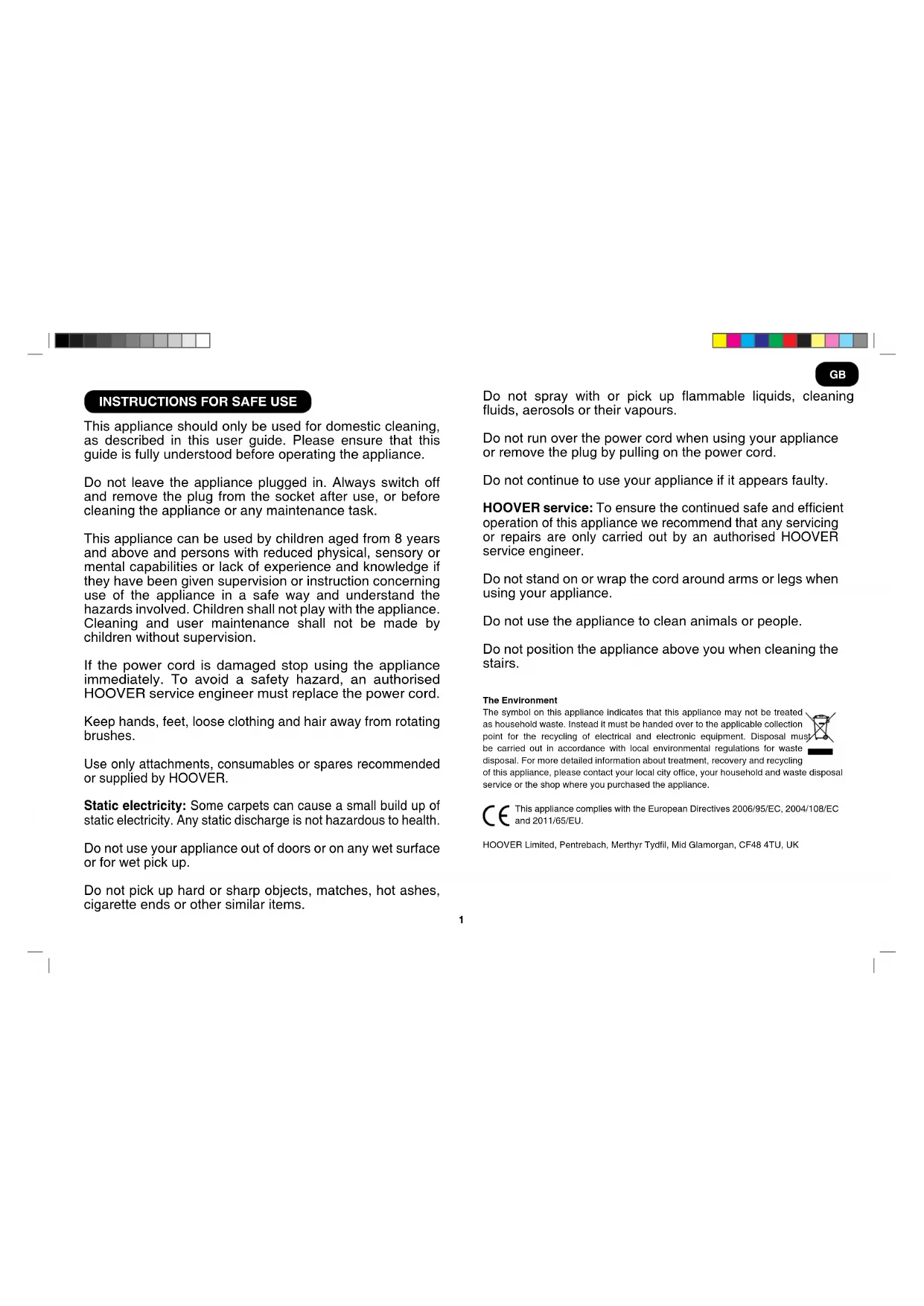

This appliance should only be used for domestic cleaning, as described in this user guide. Please ensure that this guide is fully understood before operating the appliance. Do not leave the appliance plugged in. Always switch off and remove the plug from the socket after use, or before cleaning the appliance or any maintenance task. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. If the power cord is damaged stop using the appliance immediately. To avoid a safety hazard, an authorised HOOVER service engineer must replace the power cord. Keep hands, feet, loose clothing and hair away from rotating brushes. Use only attachments, consumables or spares recommended or supplied by HOOVER. Static electricity: Some carpets can cause a small build up of static electricity. Any static discharge is not hazardous to health. Do not use your appliance out of doors or on any wet surface or for wet pick up. Do not pick up hard or sharp objects, matches, hot ashes, cigarette ends or other similar items. Do not spray with or pick up ammable liquids, cleaning uids, aerosols or their vapours. Do not run over the power cord when using your appliance or remove the plug by pulling on the power cord. Do not continue to use your appliance if it appears faulty. HOOVER service: To ensure the continued safe and efcient operation of this appliance we recommend that any servicing or repairs are only carried out by an authorised HOOVER service engineer. Do not stand on or wrap the cord around arms or legs when using your appliance. Do not use the appliance to clean animals or people. Do not position the appliance above you when cleaning the stairs. The Environment The symbol on this appliance indicates that this appliance may not be treated as household waste. Instead it must be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this appliance, please contact your local city ofce, your household and waste disposal service or the shop where you purchased the appliance. This appliance complies with the European Directives 2006/95/EC, 2004/108/EC and 2011/65/EU. HOOVER Limited, Pentrebach, Merthyr Tydl, Mid Glamorgan, CF48 4TU, UK GB2

1. Remove the accessories from the main packaging. You will nd the following:

• Carpet and Floor nozzle (GP)**

2. Assemble the cleaner handle and x in position with the supplied screw. [1a,1b]

3. Secure the nozzle to the product [1c].

For models equipped with Carpet & Floor nozzle*: Secure the nozzle to the product. Press the oor type selector pedal on the nozzle [1d] to select the ideal cleaning mode for the oor type. Hard Floor – Brushes are lowered to protect the oor. Carpet – Brushes are raised for the deepest clean. For models equipped with Parquet nozzle*: Secure the nozzle to the product in the same way as the main nozzle. For parquet oors and other delicate oors. *Certain Models Only ** Certain models only, nozzles may vary according to model For models equipped with Carpet Nozzle*: Secure the nozzle to the product in the same way as the main nozzle. Use the Carpet nozzle for deep cleaning on carpets. Cord storage: To store the cord after cleaning wrap the cord around the two cord hooks. [2] NOTE: During cleaning, the cord can be clipped in the cord grip on the rear of the handle to avoid any interference while cleaning.

1. To switch the cleaner on, rotate the power control knob. [3]

2. Rotate the knob to the correct power level.*

3. To switch off the product, rotate the same knob.

CLEANER MAINTENANCE Replacing the disposable bag

1. Lay the cleaner on a at surface, pull back the door release button and remove the

2. Remove the disposable bag, close the ap to lock the contents and dispose. [5]

3. Take a new bag and t the collar with the location in the main body and rotate until

4. Locate tabs on door as shown and close door.

Attention: This product is tted with a mechanism that prevents the door closing when there is no bag tted. NOTE: The bag may need changed frequently when picking up material such as powder or ne dust or when cleaning new carpets. Cleaning the washable pre-motor lter

1. Lay the cleaner on a at surface, pull back the door release button and remove the

2. Remove the old pre motor lter by pressing the nger tab to release. [7]

3. Gently tap the lter against the side of a bin to release excess dust. [8a]

4. If deeper cleaning is required: Wash the lter thoroughly under hand warm water until

the water runs clean. [8b]

5. Remove excess water by shaking and leave to dry for 24 hours. DO NOT USE HOT

WATER OR DETERGENTS. [8c]

6. Ret bag door as above.

IMPORTANT - For optimum performance, shake off excess dust from the lters regularly. We recommend that the lter is washed every 3 months. NOTE: Do not use the cleaner without lters assembled. GB3 *Certain Models Only ** Certain models only, nozzles may vary according to model IMPORTANT INFORMATION Hoover spares and Consumables Always replace parts with genuine Hoover spares. These are available from your local Hoover dealer or direct from Hoover. When ordering parts always quote your model number. Consumables Microber Bag (x4) H68 - 35601148 Pre-motor Filter S101 - 35601149 Spare parts Hard Floor Extra Nozzle G216EE - 35601609 Hard Floor Smart Nozzle G218SE - 35601618 Carpet & Floor Pro Nozzle G233PE 35601672 Carpet Extra Nozzle G215EE - 35601608 Parquet Extra Nozzle G87PC - 35600655 Grand Turbo Nozzle J48 - 35601151 Hoover Service Should you require service at any time, please contact your local Hoover Service Ofce. Quality BSI ISO 9001: Hoover’s factories have been independently assessed for quality. Our products are made using a quality system which meets the requirements of ISO 9001. Your Guarantee The guarantee conditions for this appliance are as dened by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee. Subject to change without notice. USER CHECKLIST Should you have a problem with your product, complete the simple user checklist before calling the Hoover customer service.

• Is there a working electricity supply to the product? Check with another electrical product.

• Is the bag full? Inspect and replace.

• Is the hose blocked? Check by stretching to the full length.

• Is the product inlet blocked? Check by removing the bag and checking the bag inlet.

• Is the filter blocked? Check by removing and clean. ACCESSORIES To obtain the best performance and energy efciency #1 it is recommended that the correct nozzles are used for the main cleaning operations. These nozzles are indicated in the diagrams by the letters GP, HF or CA. A nozzle type GP can be used to clean both carpet and hard oor. A nozzle type HF is suitable for use only on hard oor. A nozzle of type CA is suitable for use only on carpet. The other nozzles are accessories for specialist cleaning tasks and are recommended for occasional use only. It is important to note that this vacuum cleaner is supplied with an Energy Label as required by European Regulation (EU) 665/2013. If the label shows a red prohibition circle on the left covering the carpet symbol, then this indicates that the vacuum cleaner is not suitable use on carpets. If the label shows a red prohibition circle on the right covering the hard oor symbol, then this indicates that the vacuum cleaner is not suitable for use on hard oors. #1 NOTE: Dust pick up ability carpet, dust pick up ability hard oor, and energy efciency in accord with Commission Regulations (EU) 665/2013 and (EU) 666/2013. All accessories can be tted to the end of the handle or the end of the telescopic tube. Parquet Nozzle* – For parquet oors and other delicate oors. IMPORTANT: Do not use the turbo and mini turbo nozzles on rugs with long fringes, animal hides and carpet pile deeper than 15mm. Do not keep the nozzle stationary while the brush is rotating. GB4
