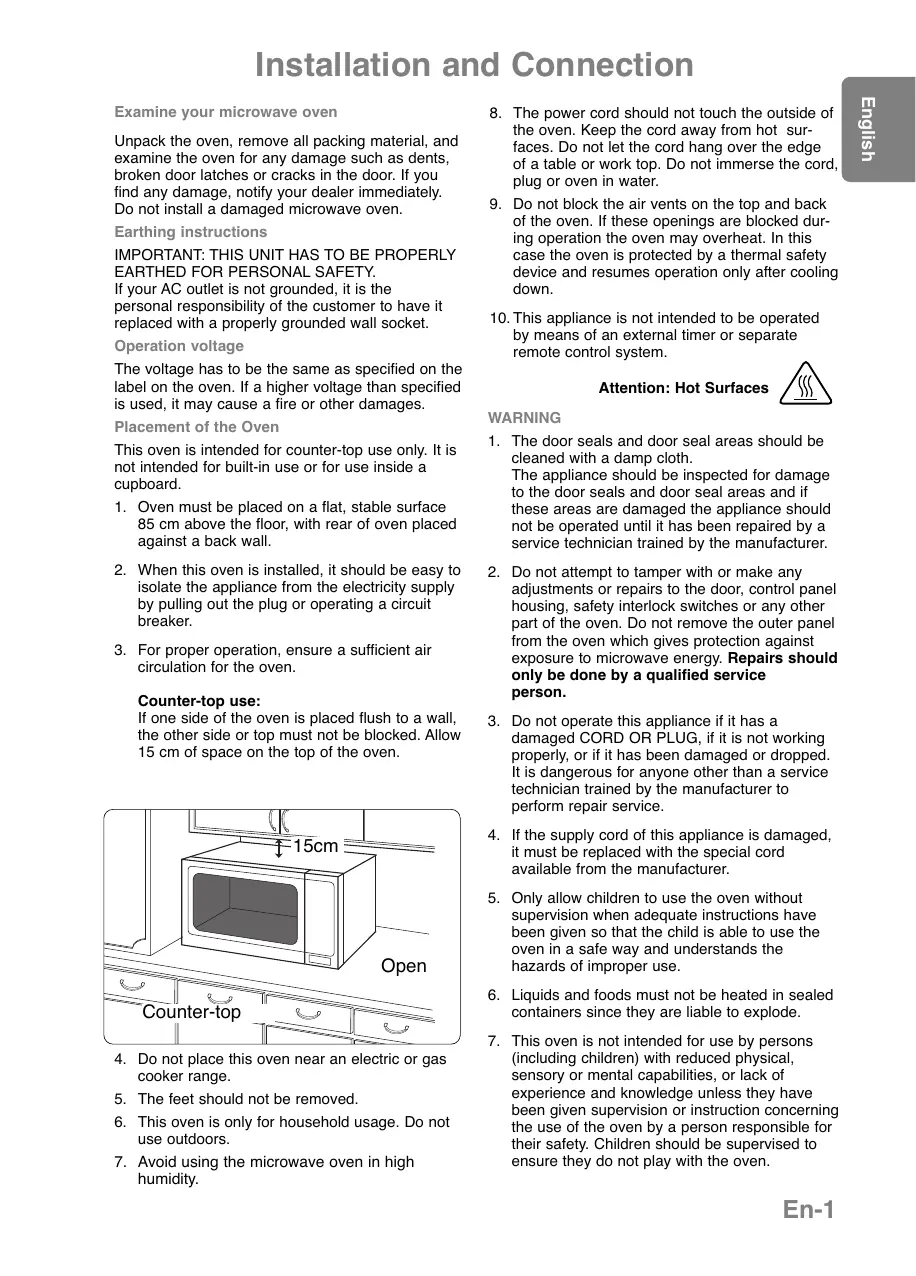

2009-11-17 Tina15:02:28 Installation and Connection Unpack the oven, remove all packing material, and examine the oven for any damage such as dents, broken door latches or cracks in the door. If you find any damage, notify your dealer immediately. Do not install a damaged microwave oven. Earthing instructions IMPORTANT: THIS UNIT HAS TO BE PROPERLY EARTHED FOR PERSONAL SAFETY. If your AC outlet is not grounded, it is the personal responsibility of the customer to have it replaced with a properly grounded wall socket. Operation voltage The voltage has to be the same as specified on the label on the oven. If a higher voltage than specified is used, it may cause a fire or other damages. Placement of the Oven This oven is intended for counter-top use only. It is not intended for built-in use or for use inside a cupboard.

1. Oven must be placed on a flat, stable surface

85 cm above the floor, with rear of oven placed against a back wall.

2. When this oven is installed, it should be easy to

isolate the appliance from the electricity supply by pulling out the plug or operating a circuit breaker.

3. For proper operation, ensure a sufficient air

circulation for the oven. Counter-top use: If one side of the oven is placed flush to a wall, the other side or top must not be blocked. Allow 15 cm of space on the top of the oven.

8. The power cord should not touch the outside of

the oven. Keep the cord away from hot surfaces. Do not let the cord hang over the edge of a table or work top. Do not immerse the cord, plug or oven in water.

9. Do not block the air vents on the top and back

of the oven. If these openings are blocked during operation the oven may overheat. In this case the oven is protected by a thermal safety device and resumes operation only after cooling down.

10. This appliance is not intended to be operated

by means of an external timer or separate remote control system. Attention: Hot Surfaces WARNING

1. The door seals and door seal areas should be

cleaned with a damp cloth. The appliance should be inspected for damage to the door seals and door seal areas and if these areas are damaged the appliance should not be operated until it has been repaired by a service technician trained by the manufacturer.

2. Do not attempt to tamper with or make any

adjustments or repairs to the door, control panel housing, safety interlock switches or any other part of the oven. Do not remove the outer panel from the oven which gives protection against exposure to microwave energy. Repairs should only be done by a qualified service person.

3. Do not operate this appliance if it has a

damaged CORD OR PLUG, if it is not working properly, or if it has been damaged or dropped. It is dangerous for anyone other than a service technician trained by the manufacturer to perform repair service.

4. If the supply cord of this appliance is damaged,

it must be replaced with the special cord available from the manufacturer. 15cm Open Counter-top

4. Do not place this oven near an electric or gas

5. The feet should not be removed.

6. This oven is only for household usage. Do not

7. Avoid using the microwave oven in high

5. Only allow children to use the oven without

supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.

6. Liquids and foods must not be heated in sealed

containers since they are liable to explode.

7. This oven is not intended for use by persons

(including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning the use of the oven by a person responsible for their safety. Children should be supervised to ensure they do not play with the oven. En-1 English Examine your microwave oven Safety Instructions Use of your oven

1. Do not use the oven for any reason other

than the preparation of food. This oven is specifically designed to heat or cook food. Do not use this oven to heat chemicals or other non-food products.

2. Before use, check that utensils/containers

are suitable for use in microwave ovens. While the oven is in Microwave/Heater operation, the cooling fan always rotates to cool the electric components. After the completion of operation, the fan may continue rotating for a while. This is perfectly normal, and you can take out the food from the oven while the fan is still in operation. Oven Light

3. Do not attempt to use this microwave oven

to dry newspaper, clothing or any other materials. They may catch on fire. When it becomes necessary to replace the oven light, please consult your dealer.

4. When the oven is not being used, do not

store any objects other than oven accessories inside the oven in case it is accidentally turned on. Accessories The oven comes equipped with a variety of accessories. Always follow the directions given for use of the accessories.

5. The appliance shall not be operated by

MICROWAVE or COMBINATION WITHOUT FOOD IN THE OVEN. Operation in this manner may damage the appliance. Exception to this is point 1 under heater operation and pre-heating the Panacrunch pan. Glass Tray

1. Do not operate the oven without the roller

ring and the glass tray in place.

6. If smoke or a fire occurs in the oven, press

Stop/Cancel pad and leave the door closed in order to stifle any flames. Disconnect the power cord, or shut off power at the fuse or the circuit breaker panel. Heater Operation

1. Before using CONVECTION,

COMBINATION or GRILL function for the first time, wipe excessive oil off in the oven cavity and operate the oven without food and accessories on CONVECTION 220°C, for 20 minutes. This will allow the oil that is used for rust protection to be burned off. This is the only time the oven is used empty.

2. Exterior oven surfaces, including air vents

on the cabinet and the oven door will get hot during CONVECTION, COMBINATION and GRILLING, take care when opening or closing the door and when inserting or removing food and accessories.

3. The oven has two quartz heaters situated

in the top of the oven. After using the CONVECTION, COMBINATION and GRILL functions, care should be taken to avoid touching the inside surfaces of the oven, as these will be very hot. N.B. After cooking by these modes, the oven accessories will be very hot.

4. The accessible parts may become hot in

CONVECTION, COMBINATION and GRILL use. Young children should be kept away and children should only use the oven under adult supervision due to the temperatures generated. En-2 IP2811_37X50EP_01_Eng_00_091117.2

2. Never use another type of glass tray than

the one specially designed for this oven.

3. If the glass tray is hot, let it cool before

cleaning or placing in water.

4. The glass tray can turn in either direction.

5. If the food or cooking vessel on the glass

tray touches the oven walls and stops the tray rotating, the tray will automatically rotate in the opposite direction. This is normal.

6. Do not cook foods directly on the glass

tray, except when cooking Jacket Potatoes in microwave mode. Roller Ring

1. The roller ring and the oven floor should be

cleaned frequently to prevent noise and build-up of remaining food.

2. The roller ring must always be used for

cooking together with the glass tray. Metal Tray

1. Metal Tray is for cooking on Grill,

Convection and Combination modes. Do not use Metal Tray in Microwave mode only.

2. Metal Tray should be placed on Glass Tray

or Wire Rack. Wire Rack

1. The wire rack is used to grill small dishes,

and help with the circulation of heat.

2. Do not use any metal container directly on

the Wire Rack in COMBINATION with MICROWAVE.

3. Do not use the Wire Rack in MICROWAVE

mode only. Panacrunch pan - See page En-16 2009-11-17 Tina15:01:51

• Cooking times given in the cookbook are approximate. The cooking time depends on the condition, temperature, amount of food and on the type of cookware.

• When heating liquids, e.g. soup, sauces and beverages in your microwave oven, overheating the liquid beyond boiling point can occur without evidence of bubbling. This could result in a sudden boil over of the hot liquid. To prevent this possibility the following steps should be taken: a) Avoid using straight-sided containers with narrow necks. b) Do not overheat. c) Stir the liquid before placing the container in the oven and again halfway through the cooking time. d) After heating, allow it to stand in the oven for a short time, stir again before carefully removing the container.

• Begin with the minimum cooking time to help prevent overcooking. If the food is not sufficiently cooked you can always cook it for a little longer. N.B.: If the recommended cooking times are exceeded the food will be spoiled and in extreme circumstances could catch fire and possibly damage the interior of the oven.

2) Small Quantities of Foods

• Small quantities of food or foods with low moisture content can burn, dry out or catch on fire if cooked too long. If materials inside the oven should ignite, keep the oven door closed, turn the oven off and remove the plug from the socket.

3) Eggs

• Do not cook eggs in their shells and whole hard-boiled eggs by MICROWAVE. Pressure may build up and the eggs may explode, even after the microwave heating has ended.

7) Paper/Plastic

• When heating food in plastic or paper containers, check the oven frequently as these types of containers ignite if overheated.
• Do not use recycled paper products (e.g. Kitchen Roll) unless the paper product is labelled as safe for microwave oven use. Recycled paper products may contain impurities which may cause sparks and/or fires during use.
• Remove wire twist-ties from roasting bags before placing the bags in the oven.

4) Piercing Skin

• Food with non porous skins, such as potatoes, egg yolks and sausages must be pierced before cooking by MICROWAVE to prevent bursting.

5) Meat Thermometer

• Use a meat thermometer to check the degree of cooking of roasts and poultry only when the meat has been removed from the oven. Do not use a conventional meat thermometer when using MICROWAVE or COMBINATION because it may cause sparking.

8) Utensils/Foil

• Do not heat any closed cans or bottles because they might explode.
• Metal containers or dishes with metallic trim should not be used during Microwave cooking. Sparking will occur.
• If you use any aluminium foil, meat spikes or metalware the distance between them and the oven walls and door should be at least 2 cm to prevent sparking.

9) Feeding Bottles/Baby Food Jars

• The top and teat or lid must be removed from feeding bottles or baby food jars before placing in the oven.
• The contents of feeding bottles and baby food jars are to be stirred or shaken.
• The temperature has to be checked before consumption to avoid burns. En-3 IP2811_37X50EP_01_Eng_00_091117.3

2009-11-17 Tina15:01:51 English Outline Diagram [14] [8] [6] [4] [13] [5] [2] [15] [1] [7] [3] [10] [9] [12] [11] [1] Door Release Button Press to open the door. When you open the oven door during cooking, the cooking is stopped temporarily without clearing earlier made settings. The cooking is resumed as soon as the door is closed and Start Pad pressed. The oven lamp lights as soon as the oven door is opened. [2] Oven Window [3] Door Safety Lock System [4] Oven Air Vent [5] Control Panel [6] Glass Tray [7] Roller Ring [8] External Oven Air Vents [9] Metal Tray [10] Wire Rack [11] Panacrunch Pan [12] Panacrunch Pan Handle [13] Power Cord [14] Caution Label (Hot Surfaces) [15] Identification Label En-4 IP2811_37X50EP_01_Eng_00_091117.4

2009-11-17 Tina15:01:51 Control Panel (1) (1) (2)

10min 1min 10s AUTO /

English NN-CT579S Display Window (2) Time Pads (3) Microwave Power Pad (4) Grill Power Pad (5) Convection Pad (6) Combination Pad (7) Auto Defrost Pad (8) Weight Select Pads (9) Clock Pad (10) Delay/Stand Pad (11) Auto Weight Program Pads (12) Panacrunch Program Pads (13) Start Pad: Press to start operating the oven. If during cooking the door is opened or Stop/Cancel Pad is pressed once, Start (11) Pad has to be pressed again to (3) continue cooking. (14) (4) Stop/Cancel Pad: Before cooking: one press clears your instructions. Panacrunch (5) During cooking: one press Combi temporarily stops the cooking program. (6) Another press cancels all your (12) instructions and the time of day will 1-2-3 appear in the display. (7) (9) (8)

(10) (13) (14) N.B: If an operation is set and start pad is not pressed, after 6 minutes, the oven will automatically cancel the operation. The display will revert back to clock mode. This oven is equipped with an energy saving function. Please Note:

NN-CT579S When in stand-by mode the brightness of the display will be reduced. The oven will enter stand-by mode, when first plugged in and immediately after the last operation has completed. Beep Sound: A beep sounds when a pad is pressed. If this beep does not sound, the setting is incorrect. When the oven changes from one function to another, two beeps sound. After the completion of the preheating on Convection or Combination mode, three beeps sound. After completion of cooking, five beeps sound. En-5 IP2811_37X50EP_01_Eng_00_091117.5

2009-11-17 Tina15:01:51 Oven Accessories The following chart shows correct use of the accessories in the oven. Glass Tray Metal Tray Wire Rack Panacrunch pan Microwave YES

Grill YES YES YES YES Convection YES YES YES YES Combination YES YES YES YES Cooking Modes The diagrams shown below are examples of the accessories. It may vary depending on recipe/dish used. Further information can be found in the Cookbook. Microwave Convection Grill Combination Grill + Microwave Convection + Microwave Microwave Heater En-6 IP2811_37X50EP_01_Eng_00_091117.6

2009-11-17 Tina15:01:52 Controls and Operation Procedure Word Prompting “88:88” Press “FRANCAIS” In French Press “ITALIANO” In Italian Press “DEUTSCH” In German Press “NEDERLANDS” In Dutch Press ESPANOL In Spanish Press “POLSKI” In Polish Press “CESKY” In Czech Press “ENGLISH” In English

• Press Clock Pad. The colon starts to blink. twice

10min 1min 10s 5 times These models have a unique function “Word Prompting” which guides you through the operation of your microwave. After plugging in the oven press the Start Pad until you locate your language. As you press the pads, the display will scroll the next instruction eliminating the opportunities for mistakes. If for any reason you wish to change the language displayed, unplug the oven and repeat this procedure. If the Delay/Stand Pad is pressed 4 times, this will turn off the operation guide. To turn the operation guide back on, press the Delay/Stand Pad 4 times. inoperable

• Enter the time by pressing the appropriate Time Pads. The time appears in the display and the colon blinks.

• Press Clock Pad. The colon stops blinking and the time of day is entered. NOTE:

1. To reset the time of day repeat all the above steps.

2. The time of day is displayed, unless the power supply is interrupted.

3. This clock has a 24 hour display.

Child Safety Lock: Using this system will make the oven controls inoperable; however, the door can be opened. Child Lock can be set when the display shows a colon or the time. To Cancel: To Set:

• Press Start Pad three times. The time of day will disappear. Actual time will not be lost. A ʻ*ʼ is indicated in the display.

• Press Stop/Cancel Pad three times. The time of day will reappear in the display. En-7 NOTE: To activate child lock, start pad must be pressed 3 times within a 10 second period. IP2811_37X50EP_01_Eng_00_091117.7

2009-11-17 Tina15:01:52 English Plug In Microwave Cooking and Defrost There are 6 different microwave power levels available (see the chart below). Use of accessory: Glass Tray This chart shows approximate wattage for each power level. Press once twice 3 times 4 times 5 times 6 times

• Select Microwave power level. Wattage 1000 W 270 W 600 W 440 W 250 W 100 W

10min 1min 10s Max time available 30 minutes 99 minutes 50 secs . 99 minutes 50 secs . 99 minutes 50 secs . 99 minutes 50 secs . 99 minutes 50 secs .

• Set the cooking time.

• Press Start Pad. NOTE:

1. For 2 or 3 stage cooking, before pressing Start Pad, repeat setting the Microwave

power level and cooking time. e.g. Casserole –– High 10 minutes to bring the casserole to boil. Simmer 60 minutes to cook. Warm 10 minutes to allow flavours to develop

2. Stand time can be programmed after the Microwave power and time setting.

3. You can add to the cooking time during cooking, if required. Press 1 min pad to

increase the cooking time. Time can be added in 1 minute increments up to maximum time available. CAUTION: The oven will automatically operate on 1000 W Microwave Power if a cooking time is entered without selecting the power level. En-8 IP2811_37X50EP_01_Eng_00_091117.8

2009-11-17 Tina15:01:52 Grilling English The Grill Pad provides 3 Grill settings. Use of accessory: Wire Rack Press once twice 3 times Metal Tray Power Level 1 HIGH 2 MEDIUM 3 LOW Wattage 1300 W 950 W 700 W Glass Tray inoperable

• Press Grill Power Pad for the desired Grill setting.

• Set the cooking time (up to 99 minutes 50 seconds.)

• Press Start Pad. NOTE:

1. The Grill will only operate with the oven door closed.

2. The Grill cannot be preheated.

3. You can add to the cooking time during cooking, if required. Press 1 min pad to

increase the cooking time. Time can be added in 1 minute increments, up to 99 minutes 50 seconds. En-9 IP2811_37X50EP_01_Eng_00_091117.9

2009-11-17 Tina15:01:52 Cooking by Convection This feature offers a choice of convection temperatures 100 - 220°C in 10°C increments. For quick selection of the most commonly used cooking temperatures, the temperatures start at 150°C and count up to 220°C then 100°C. Use of accessory: Wire Rack Metal Tray Metal Tray Glass Tray Glass Tray Cooking by Convection: After preheating, place the food in the oven.

• Press Start Pad to desired start preheating. temperature.

10min 1min 10s inoperable

• Set the cooking time (up to 9 hours 59 minutes).

• Press Start Pad. NOTE ON PREHEATING:

1. Do not open the door during preheating. After preheating 3 beeps will be heard and

the “P” will flash in the display window. If the oven door is not opened after preheating, the oven will maintain the selected temperature. After 30 minutes, the oven will shut off automatically and revert to time of day.

2. If you want to cook without preheating, after selecting the desired temperature, set

the cooking time then press Start Pad. NOTE:

1. When the selected cooking time is less than one hour, the time counts down second

2. When the selected cooking time is over one hour, the time counts down minute by

minute until only “1H 00” (1 hour) remains. The display then indicates minutes and seconds and counts down second by second.

3. You can add to the cooking time during cooking, if required. Press 1 min pad to

increase the cooking time. Time can be added in 1 minute increments.

4. After pressing Start Pad, the selected temperature can be recalled and changed.

Press Convection Pad once to indicate the temperature in the display window. While the temperature is recalled in the display window, you can change the temperature by pressing Convection Pad. En-10 IP2811_37X50EP_01_Eng_00_091117.10

2009-11-17 Tina15:01:53 Combination Cooking Use of accessory: Convection or Grill + Microwave Wire Rack Metal Tray English There are 2 combination settings:

1) Grill 1, 2 or 3 + Microwave 600 W, 440 W, 250 W or 100 W

2) Convection 100 - 220°C + Microwave 600 W, 440 W, 250 W or 100 W

Metal Tray Glass Tray Panacrunch pan Glass Tray Glass Tray

1) Grill + Microwave

• Press Combination Pad.

• Set the desired Grill setting.

• Set the desired Microwave power level. inoperable
• Set the desired cooking time (up to 9 hours 59 minutes).

2) Convection + Microwave

• Press Combination Pad.

• Set the desired temperature.

• Set the desired Microwave power level. inoperable
• Set the desired cooking time (up to 9 hours 59 minutes).

• Press Start Pad. NOTE ON PREHEATING:

1. When using Grill + Microwave mode, preheat is not available.

2. When using Convection + Microwave, the oven can be preheated. Press Start Pad after

selecting Microwave power level and Convection temperature. No microwaves are emitted during combination preheating. En-11 IP2811_37X50EP_01_Eng_00_091117.11

2009-11-17 Tina15:01:53 Auto Defrost With this feature you can defrost frozen foods according to the weight. Select the category and set the weight of the food. The weight is programmed in grams. For quick selection, the weight starts from the most commonly used weight for each category. 1-2-3

• Select the desired Auto Defrost Program.

• Set the weight of the frozen food. g weight counts up in 100 g increments weight counts up in 10 g increments

• Press Start Pad. weight counts down in 10 g increments Word Prompt Program

Recommended Accessories Weight SMALL PIECES

120 - 1550g

Small pieces of meat, escallop, sausages, fish fillets, steaks, chops (each 100g to 400g). Turn at beeps. BIG PIECE

400 - 2500g

Big pieces of meat, roast, whole chicken. Turn at beeps.

70 - 500g

For reheating frozen bread, rolls and croissants. Remove all packaging and place on Wire Rack on Metal Tray on Glass Tray. Turn at beeps.

Suitable Foods BREAD

1. When the defrosting time is longer than 60 minutes, the time will appear in hours

2. The shape and size of the food will determine the maximum weight the oven can

accommodate. NOTE on Program 3: Take care when removing Bread and Rolls from the oven. The oven and accessories will get hot during/after defrosting. En-12 IP2811_37X50EP_01_Eng_00_091117.12

2009-11-17 Tina15:01:55 Auto Weight Programs e.g. AUTO /

• Select the desired Auto Weight Program.

• Set the weight of food.

weight counts up in 100 g increments weight counts up in 10 g increments weight counts down in 10 g increments

• Press Start Pad. NOTE:

1. When cooking time is over 60 minutes, the time will appear as Hours and Minutes.

2. Follow the charts on the following pages for the recommended weight and

accessories to be used. En-13 IP2811_37X50EP_01_Eng_00_091117.13

2009-11-17 Tina15:01:55 English This feature allows you to cook most of your favourite foods by setting the weight only. The oven determines Microwave power level, Grill setting, Convection temperature and cooking time automatically. Select the category and set the weight of the food. The weight is programmed in grams. For quick selection, the weight starts from the most commonly used weight for each category. Auto Weight Programs Program Category Word Prompt FRESH Cook Fresh Vegetables VEGETABLES Recommended Accessories Weight

300 - 1500 g

For cooking fresh vegetables. Place the prepared vegetables in a suitable sized container. Sprinkle with 6 tbsp (90 ml) of water. Cover them lightly with pierced cling film or a lid. Large quantities will require stirring at beep.

200 - 1500 g

For cooking baked potatoes with a crisp dry skin. Choose medium sized potatoes 180-300g for best results. Wash and dry potatoes and prick with a fork several times. Place on metal tray on glass tray.

150 - 1000 g

For cooking fresh chicken pieces. Place breast side down on Wire Rack on Metal Tray on Glass Tray. Turn at beep.

950 - 2000 g

For cooking a whole chicken. Place on Metal Tray on Glass Tray. Start cooking breast side down and turn at beep. Cook stuffing separately. 1 Press Cook Baked Potato BAKED POTATO 1 Press 1 Press Cook Fresh Whole Chicken CHICKEN PIECES WHOLE CHICKEN Instructions 1 Press NOTE It is necessary to preheat the oven for the fresh whole chicken progam. Use the following sequence.

Select the Fresh Whole Chicken Program. Press the Start Pad to pre-heat the oven. After pre-heating, beeps sound and ʻPʼ will flash in the display. Place the Whole Chicken in the oven and set weight. Press Start. En-14 IP2811_37X50EP_01_Eng_00_091117.14

2009-11-17 Tina15:01:55 Auto Weight Programs Category Word Prompt Frozen Pizza FROZENPIZZA Recommended Weight Accessories English Program Instructions

150 - 600 g

For reheating, crisping the base and browning the top of frozen purchased pizza. Remove all packaging and place the pizza in the panacrunch pan.

150 - 600 g

For reheating, crisping the base and browning the top of fresh purchased pizza. Remove all packaging and place the pizza in the panacrunch pan.

150 - 550 g

For reheating, crisping the pastry base and browning the top of frozen purchased quiche. Remove all packaging and place the quiche in the panacrunch pan.

100 - 600 g

For reheating, crisping and browning fresh feuilletes (pastry items) e.g. friands, feuillete tresse etc. Remove all packaging and place in the panacrunch pan. 1 Press Fresh Pizza CHILLED PIZZA 2 Presses Frozen Quiche FROZENQUICHE 1 Press NOTE:

1. It is necessary to preheat the Panacrunch pan for the above Programs. Use the

2. Press the start

button to pre-heat the Panacrunch pan.

1. Select the

required Program (1 press) and place the Panacrunch pan in the oven, directly on the glass tray.

3. After pre-heating

beeps sound and “P” will flash in the display. Place the food in the pan, set weight.

4. Press start.

En-15 IP2811_37X50EP_01_Eng_00_091117.15

2009-11-17 Tina15:01:56 Panacrunch pan THE ʻCONCEPTʼ NOTES: Some foods cooked by microwave can have soft and soggy crusts. Your Panacrunch pan accessory will brown and crisp pizzas, quiches, pies, breaded products. Your Panasonic Panacrunch pan works in three ways: heating the pan by absorbing microwaves, heating the food directly by microwaves and heating the food by Grill/Convection. The base of the pan absorbs the microwaves and transfers them into heat. Then the heat is conducted through the pan to the food. The heating effect is maximised by the non-stick surface.

1. Do not pre-heat the pan more than 8

USING THE PANACRUNCH PAN

For best results, pre-heat the pan before using. Place directly on the glass tray and pre-heat on Combination Grill 1 + 600 W for 3 minutes. To assist browning, brush the pan with oil before preheating for items such as sausages and beefburgers. Remove the pan from the oven and place the food in the pan. Use the Panacrunch pan handle or oven gloves as the pan will be very hot. For best results, it is important that the food is placed on the pan immediately after pre-heating. Performance cannot be guaranteed with a time delay. Place the pan on the glass tray and cook according to the guidelines shown in the cooking chart in the cookbook.

2. Always place the pan in the centre of the

glass tray and ensure it does not touch the wall of the oven cavity. Failure to do so may cause sparking which would damage the cavity.

3. Always use the pan on the glass tray. Do

not use with the wire rack.

4. Always use the Panacrunch pan handle

or oven gloves when handling the hot pan.

5. Ensure all food packaging is removed

6. Do not place any heat-sensitive

materials on the hot pan as this may cause burning.

7. The pan can be used in a conventional

8. For best results, use the pan in

COMBINATION GRILL/ CONVECTION

and MICROWAVE. Never use any sharp utensils on the pan as this will damage the non-stick surface.

After use, wash the pan in hot soapy water and rinse in hot water. Do not use any abrasive cleaning substances or scouring pads as this will damage the surface of the pan.

The pan is dishwasher safe. En-16 IP2811_37X50EP_01_Eng_00_091117.16

2009-11-17 Tina15:01:56 Delay Start Cooking

10min 1min 10s e.g. English By using Delay/Stand Pad, you are able to program Delay Start cooking. inoperable

• Set the delay time by Delay/Stand Pad. pressing Time Pads (up to 9 hours 59 minutes).

• Set the desired cooking program

• Press Start Pad. and cooking time. NOTE:

1. Three stage cooking can be programmed including Delay Start cooking.

2. If the programmed delay time exceeds one hour, the time will count down in units of

minutes. If less than one hour, the time will count down in units of seconds.

3. Delay Start cannot be programmed before any Auto Programs.

En-17 IP2811_37X50EP_01_Eng_00_091117.17

2009-11-17 Tina15:01:56 Stand Time By using Delay/Stand Pad, you can program Stand Time after cooking is completed or use to program the oven as a minute timer.

• Set the desired cooking program and cooking time.

• Press Delay/Stand Pad. inoperable

• Set desired amount of time by

• Press Start Pad. pressing Time Pads (up to 9 hours 59 minutes). NOTE:

1. Three stage cooking can be programmed including Stand Time.

2. If the oven door is opened during the Stand Time or Minute Timer, the time in the

display window will continue to count down.

3. This feature may also be used as a timer. In this case press Delay/Stand Pad, set

time and press Start Pad. En-18 IP2811_37X50EP_01_Eng_00_091117.18

2009-11-17 Tina15:01:56 Questions and Answers A: When the oven does not turn on, check the following:

1. Is the oven plugged in securely? Remove the plug from

the outlet, wait 10 seconds and reinsert.

2. Check the circuit breaker and the fuse. Reset the circuit

breaker or replace the fuse if it is tripped or blown.

3. If the circuit breaker or fuse is all right, plug another

appliance into the outlet. If the other appliance works, there probably is a problem with the oven. If the other appliance does not work, there probably is a problem with the outlet. If it seems that there is a problem with the oven, contact an authorized Service Center. Q: My microwave oven causes interference with my TV. Is this normal? A: Some radio and TV interference might occur when you cook with the microwave oven. This interference is similar to the interference caused by small appliances such as mixers, vacuums, blow dryers, etc. It does not indicate a problem with your oven. Q: The oven wonʼt accept my program. Why? A: The oven is designed not to accept an incorrect program. For example, the oven will not accept a fourth stage, and will not accept Auto Weight Program after Delay Start. Q: Sometimes warm air comes from the oven vents. Why? A: The heat given off from the cooking food warms the air in the oven cavity. This warmed air is carried out of the oven by the air flow pattern in the oven. There are no microwaves in the air. The oven vents should never be blocked during cooking. Q: There are humming and clicking noises from my oven when I cook by COMBINATION. What is causing these noises? A: The noises occur as the oven automatically switches from microwave power to CONVECTION/GRILL to create the combination setting. This is normal. Q: Can I check the pre-set oven temperature while cooking or preheating by CONVECTION? A: Yes. Press Convection Pad and the oven temperature will appear in the display window for 2 seconds. Q: Can I easily cook my favourite A: Yes. You can cook your favourite recipe just as you would in a conventional oven. Check instructions in the recipes using Panasonic Cookbook for suggested oven temperatures CONVECTION/GRILL? and cooking times. En-19 IP2811_37X50EP_01_Eng_00_091117.19

2009-11-17 Tina15:01:56 English Q: Why wonʼt my oven turn on? Questions and Answers Q: “D” appears in the display and the oven does not cook. Why? A: The oven has programmed DEMO MODE. This mode is designed for retail store display. Deactivate this mode by pressing microwave pad once and stop/cancel pad 4 times. Q: Can I use a conventional oven thermometer in the oven? A: Only when you are using CONVECTION/GRILL cooking mode. The metal in some thermometers may cause arcing in your oven and should not be used on MICROWAVE and COMBINATION cooking modes. Q: My oven has an odour and generates smoke when using the CONVECTION, COMBINATION and GRILL function. Why? A: After repeated use, it is recommended to clean the oven and then run the oven without food, glass tray, and roller ring on CONVECTION 220°C for 20 minutes. This will burn off any food, residue or oil which may cause an odour and/or smoking. Q: The oven stops cooking by microwave and 'H97' or 'H98' appears in the display. Why? A: This display indicates a problem with the microwave generation system. Please contact an authorised Service Centre. Q: The wordprompt has disappeared on my display, I can only see numbers ? A : There may have been a power failure, and the wordprompt is disabled. Unplug the oven for a few seconds, then plug it again. When "88:88" is displayed, press the start pad until your language is displayed. Then set the clock. Refer to page En-7. En-20 IP2811_37X50EP_01_Eng_00_091117.20

2009-11-17 Tina15:01:56 Care of Your Oven

2. Keep the inside of the oven, door

seals and door seal areas clean. When food splatters or spilled liquids adhere to the oven walls, door seals and door seal areas wipe off with a damp cloth. Mild detergent may be used if they get very dirty. The use of harsh detergent or abrasive is not recommended.

DO NOT USE COMMERCIAL OVEN

3. Do not use harsh abrasive cleaners

or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

4. The outside oven surface should be

cleaned with a damp cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.

5. If the Control Panel becomes dirty,

clean it with a soft, dry cloth. Do not use harsh detergents or abrasives on the Control Panel. When cleaning the Control Panel, leave the oven door open to prevent the oven from accidentally turning on. After cleaning touch STOP/CANCEL Pad to clear the display window.

6. If steam accumulates inside or around

the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity conditions and in no way indicates a malfunction of the unit.

7. It is occasionally necessary to remove

the glass tray for cleaning. Wash the tray in warm soapy water or in a dishwasher.

8. The roller ring and oven cavity floor

should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent and hot water then dry with a clean cloth. The roller ring may be washed in mild soapy water. Cooking vapours collect during repeated use but in no way affects the bottom surface or roller ring wheels. After removing the roller ring from the cavity floor for cleaning, be sure to replace it in the proper position.

9. When using the GRILL,

CONVECTION or COMBINATION mode, some foods may inevitably splatter grease on to the oven walls. If the oven is not cleaned occasionally, it may start to “smoke” during use. 10.A steam cleaner is not to be used for cleaning. 11.This oven should only be serviced by qualified personnel. For maintenance and repair of the oven contact the nearest authorized dealer.

12. Keep air vents clear at all times.

Check that no dust or other material is blocking any of the air vents on the top, bottom or rear of the oven. If air vents become blocked this could cause overheating which would affect the operation of the oven and possibly result in a hazardous situation.

13. Failure to maintain the oven in a

clean condition could lead to deterioration of surfaces that could affect the life of the appliance and possibly result in a hazardous situation. En-21 IP2811_37X50EP_01_Eng_00_091117.21

2009-11-17 Tina15:01:56 English

1. Turn the oven off before cleaning.

Technical Specifications Power Source: Power Consumption: 230 V, 50 Hz Maximum; Microwave; Grill; Convection; Output: Microwave; Grill Heater; Convection Heater; 520 (W) x 395 (D) x 310 (H) mm 359 (W) x 352 (D) x 217 (H) mm

13.5 kg

50 dB Outside Dimensions: Oven Cavity Dimensions: Uncrated Weight: Noise:

1000 W (IEC-60705) 1300 W 1300 W Specifications subject to change without notice. This product is an equipment that fulfills the European standard for EMC disturbances (EMC = Electromagnetic Compatibility) EN 55011. According to this standard this product is an equipment of group 2, class B and is within required limits. Group 2 means that radio-frequency energy is intentionally generated in the form of electromagnetic radiation for warming and cooking of food. Class B means that this product may be used in normal household areas. Information on Disposal for Users of Waste Electrical & Electronic Equipment (private households) This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste. For proper treatment, recovery and recycling, please take these products to designated collection points, where they will be accepted on a free of charge basis. Alternatively, in some countries you may be able to return your products to your local retailer upon the purchase of an equivalent new product. Disposing of this product correctly will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling. Please contact your local authority for further details of your nearest designated collection point. Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation. For business users in the European Union If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information. Information on Disposal in other Countries outside the European Union This symbol is only valid in the European Union. If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal. Pursuant to the directive 2004/108/EC, article 9(2) Panasonic Testing Centre Panasonic Service Europe, a division of Panasonic Marketing Europe GmbH Winsbergring 15,22525 Hamburg, F.R.Germany Manufactured by Panasonic Home Appliances Microwave Oven (Shanghai) Co.,Ltd, 898 Longdong Road, Pudong, Shanghai, 201203, China. En-22 IP2811_37X50EP_01_Eng_00_091117.22

2009-11-17 Tina15:01:57 (11) (3) (4) Panacrunch (5) Combi (6) D-13 IP2811_37X50EP_02_Deu_00_091117.13

2009-11-17 Tina15:01:59 Nl-4 IP2811_37X50EP_03_Dut_00_091117.4

Nl-5 IP2811_37X50EP_03_Dut_00_091117.5

2009-11-17 Tina15:02:01 Nederlands [15] (3) (4) Panacrunch (5) Combi (6) (12) 1-2-3 (7) (9) (8) Nl-6 IP2811_37X50EP_03_Dut_00_091117.6

2009-11-17 Tina15:02:01 Nl-7 IP2811_37X50EP_03_Dut_00_091117.7

2009-11-17 Tina15:02:01 Nl-8 IP2811_37X50EP_03_Dut_00_091117.8

2009-11-17 Tina15:02:01 Nl-9 IP2811_37X50EP_03_Dut_00_091117.9

2009-11-17 Tina15:02:02 Nederlands niet operationeel Wattage 1000 W 270 W 600 W 440 W 250 W 100 W

10min 1min 10s Nl-10 IP2811_37X50EP_03_Dut_00_091117.10

2009-11-17 Tina15:02:02 1 HOOG 2 MIDDEN 3 LAAG Vermogen 1300 W 950 W 700 W Glazen draaiplateau niet operationeel Nl-11 IP2811_37X50EP_03_Dut_00_091117.11

2009-11-17 Tina15:02:02 Nederlands Metalen draaiplateau Indrukken Nl-12 IP2811_37X50EP_03_Dut_00_091117.12

2009-11-17 Tina15:02:02 Combinatie koken Nl-13 IP2811_37X50EP_03_Dut_00_091117.13

2009-11-17 Tina15:02:02 Nederlands Metalen draaiplateau Metalen draaiplateau KLEINE STUKKEN

Gewicht Accessoires Geschikt voedsel/Tips

120 - 1550g

Nl-14 IP2811_37X50EP_03_Dut_00_091117.14

2009-11-17 Tina15:02:03 Nl-16 IP2811_37X50EP_03_Dut_00_091117.16

2009-11-17 Tina15:02:03 Nl-17 IP2811_37X50EP_03_Dut_00_091117.17

2009-11-17 Tina15:02:03 Nederlands Verse Pizza Instructies/Tips Nl-18 IP2811_37X50EP_03_Dut_00_091117.18

2009-11-17 Tina15:02:03 Nl-19 IP2811_37X50EP_03_Dut_00_091117.19

2009-11-17 Tina15:02:03 Nl-20 IP2811_37X50EP_03_Dut_00_091117.20

2009-11-17 Tina15:02:04 Nl-21 IP2811_37X50EP_03_Dut_00_091117.21

2009-11-17 Tina15:02:04 Nederlands Nl-22 IP2811_37X50EP_03_Dut_00_091117.22

2009-11-17 Tina15:02:04 Nl-23 IP2811_37X50EP_03_Dut_00_091117.23

2009-11-17 Tina15:02:04 Nederlands Nl-24 IP2811_37X50EP_03_Dut_00_091117.24

2009-11-17 Tina15:02:04 MAX 1000 W

MIN (DECONGELATION) 270 W

MOYEN 600 W DOUX 440 W MIJOTAGE 250 W

MAINTIEN AU CHAUD

100 W Fr-16 IP2811_37X50EP_04_Fre_00_091117.16

2009-11-17 Tina15:02:07 2400 W 1260 W 1360 W 1380 W 1000 W (IEC-60705) 1300 W 1300 W It-2 IP2811_37X50EP_05_Ita_00_091117.2

2009-11-17 Tina15:02:08 It-3 IP2811_37X50EP_05_Ita_00_091117.3

2009-11-17 Tina15:02:08 Italiano It-4 IP2811_37X50EP_05_Ita_00_091117.4

2009-11-17 Tina15:02:08 It-5 IP2811_37X50EP_05_Ita_00_091117.5

2009-11-17 Tina15:02:08 It-6 IP2811_37X50EP_05_Ita_00_091117.6

2009-11-17 Tina15:02:09 It-7 IP2811_37X50EP_05_Ita_00_091117.7

2009-11-17 Tina15:02:09 Italiano It-8 IP2811_37X50EP_05_Ita_00_091117.8

2009-11-17 Tina15:02:09 It-9 IP2811_37X50EP_05_Ita_00_091117.9

2009-11-17 Tina15:02:09 It-10 IP2811_37X50EP_05_Ita_00_091117.10

2009-11-17 Tina15:02:10 It-11 IP2811_37X50EP_05_Ita_00_091117.11

2009-11-17 Tina15:02:10 It-12 IP2811_37X50EP_05_Ita_00_091117.12

2009-11-17 Tina15:02:10 It-13 IP2811_37X50EP_05_Ita_00_091117.13

2009-11-17 Tina15:02:10

400 - 2500g

70 - 500g

Accessori Alimenti adatti It-14 IP2811_37X50EP_05_Ita_00_091117.14

2009-11-17 Tina15:02:10 It-15 IP2811_37X50EP_05_Ita_00_091117.15

2009-11-17 Tina15:02:10 Italiano It-16 IP2811_37X50EP_05_Ita_00_091117.16

2009-11-17 Tina15:02:10 It-17 IP2811_37X50EP_05_Ita_00_091117.17

2009-11-17 Tina15:02:11 Italiano

150 - 600 g

(premere 1 volta) It-18 IP2811_37X50EP_05_Ita_00_091117.18

2009-11-17 Tina15:02:11 It-19 IP2811_37X50EP_05_Ita_00_091117.19

2009-11-17 Tina15:02:11 It-20 IP2811_37X50EP_05_Ita_00_091117.20

2009-11-17 Tina15:02:11 It-21 IP2811_37X50EP_05_Ita_00_091117.21

2009-11-17 Tina15:02:11 Italiano It-22 IP2811_37X50EP_05_Ita_00_091117.22

2009-11-17 Tina15:02:11 It-23 IP2811_37X50EP_05_Ita_00_091117.23

2009-11-17 Tina15:02:11 Italiano It-24 IP2811_37X50EP_It_00_091117_P24.indd 1 It-24 2009-11-17 Tina15:11:02 Moc 1000 W 270 W 600 W 440 W 250 W 100 W

10min 1min 10s (3) (4) Panacrunch (5) Combi (6) Convection + Microwave

1) Grill + Microwave

2) Convection + Microwave

Combi Vyberte program Cele Kure. (11) (3) (4) Panacrunch (5) Combi (6) (14) © Panasonic Corporation 2009 F00037X50EP IP1109-0 Printed in China 2009-11-17 Tina15:12:29
